Top grinding machine

ALPA RVB 300

Condition: used, Year of construction: 1980, Technical details: x-travel: 850 mm y-travel: 280 mm z-travel: 355 mm spindle taper ISO: SK 45 / SK 45 spindle head swivable left - right: je 90° ° range of revolution per miute: 28 - 1400 / 18 step U/min distance table/horizontal spindle: min.: 60 / max.: 180 mm table surface area: 1070 x 270 mm Dodpou Ndf Isfx Ac Hswd table load: 1000 kg table swivelling +/-: je 45° Grad feed:: X+Y: 16 - 800 und Z: 5 - 250 mm/min total power requirement: 8,0 kW machine weight approx.: 3100 kg dimension machine xH: 2,1 x 1,8 x 2,15 m dimensions electric cabinet: L: 0,8 x B: 0,45 x H: 1,65 m clamping surface area: 315 x 1250 mm Horizontal beam adjustment manual 650 mm mounted on table: clamping head with 3-jaw chuck Ø 200 mm with inner jaws, center height 165 mm Coolant system Hand crank Milling arbor Ø 22 x 620 mm with form cutter 80 x Ø 8 mm *

Year of construction: 1985, condition: used, spindle diameter 110 mm Dsdst Hwyxepfx Ac Hswd x-travel 900 mm y-travel 600 mm z-axis 200 mm table length 1020 mm table width 860 mm taper MK 40 Table size, approx. 1,020 x 860 mm Max. weight of workpiece 800 kg Table travel, longitudinal, max. (X) 900 mm Boring head travel, cross, max. (Y) 600 mm Boring spindle stroke (Z) 200 mm Vertical travel of cross beam (W) 635 mm Vertical distance between table and boring spindle 15 - 850 mm Distance between columns 950 mm Spindle Ø 110 mm Spindle taper internal/external ISO 40 18 spindle speeds 10 - 2,500 rpm Milling feeds of table, infinitely variable 1 - 6,000 mm/min 4 milling feeds of boring head 30 - 180 mm/min 6 boring feeds 0.01 - 0.39 rpm Accuracy of all 3 axes when the machine was new 0.003 mm Quick feeds for table, boring head slide, and boring spindle, max. 6,000 mm/min Spindle drive 6.2 kW Weight, approx. 9,000 kg Total electrical load 15 kW - 380 V - 50 Hz Accessories / Special Features - BOSCH CNC Control, Model MICRO 8, in 3 axes, with monitor. Program input is either manual or via cassette, or via interface entry. - Digital display for Z Axis. - Separate switch cabinet. - Various tools. - Oil cooler for spindle lubrication.

Condition: good (used), Cup wheel - diameter: 175 mm Spindle projection: 180 mm Dwedoc Skfbspfx Ac Hed Operating voltage: 400 V Machine weight approx.: 300 kg Space requirement approx.: 0.90 x 0.60 x 1,80 m

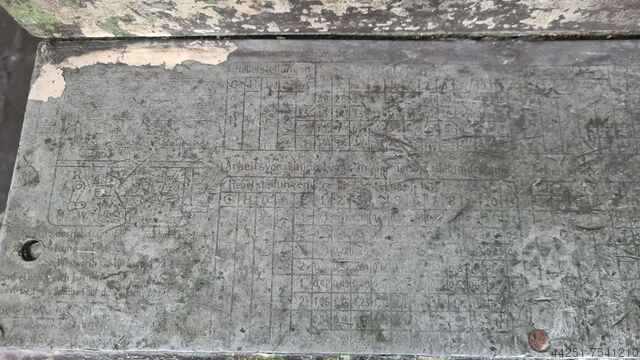

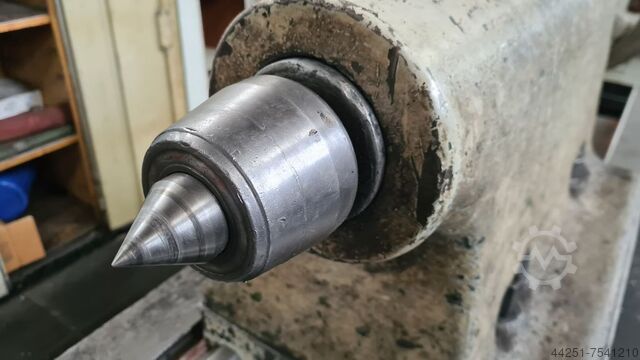

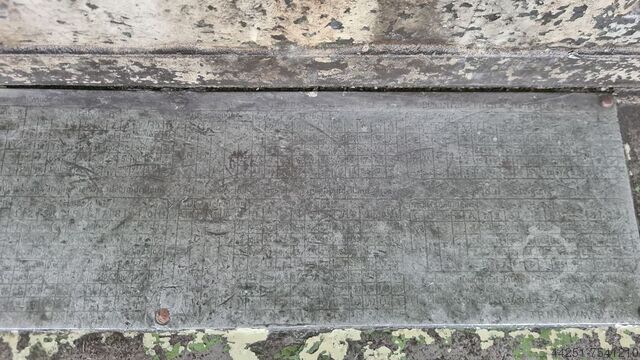

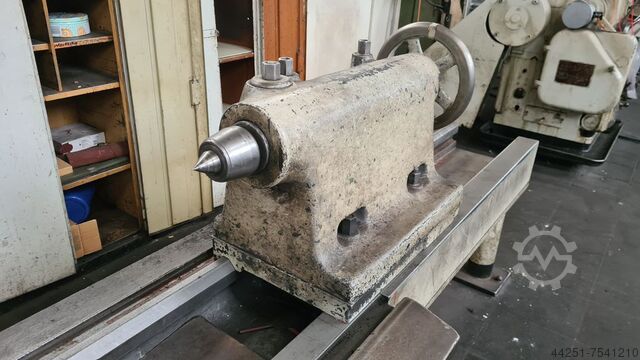

Condition: good (used), Weipert Crankshaft Grinding Machine Grinding Bench Dwodsihfr Iepfx Ac Hsd Weipert Grinding bench Centering point: Röhm 110 H MK5 machine length: 5900 mm More grinding machines in other sizes - new and used - you will find in our store! International shipping costs on request!

Year of construction: 1983, condition: good (used), Machine number: 316204/22 Type / Model: FSS 315/E Travel x-y-z: 850 - 280 - 355 mm table: 1.200 x 370 mm Dodpfxsfli Afo Ac Hewd clamping surface: 1.060 x 260 mm Speed range: 28 to 1,400 rpm spindle mount: SK 50 quill stroke: 80 mm Feed rates x and y axis 16 to 800 mm/min feed z-axis: 5 to 250 mm/min Connection: 8 kW Accessories/equipment: Swivel head; condition: good Weight: 4 t Dimensions: 2.000 x 2.000 x 2.400 mm

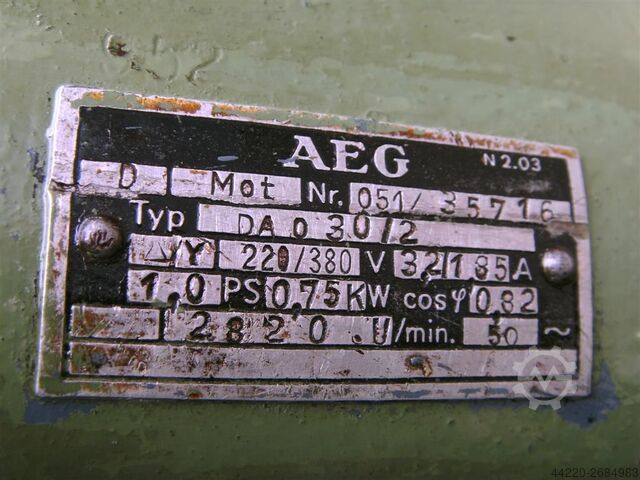

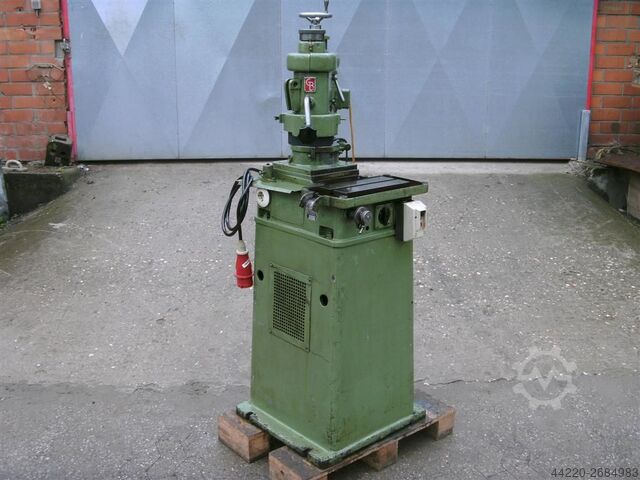

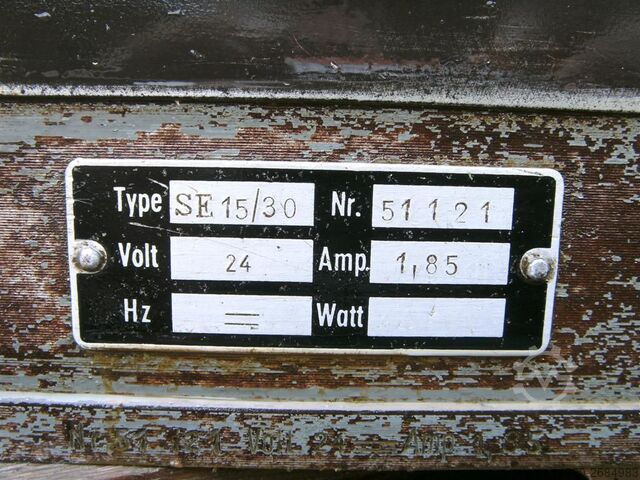

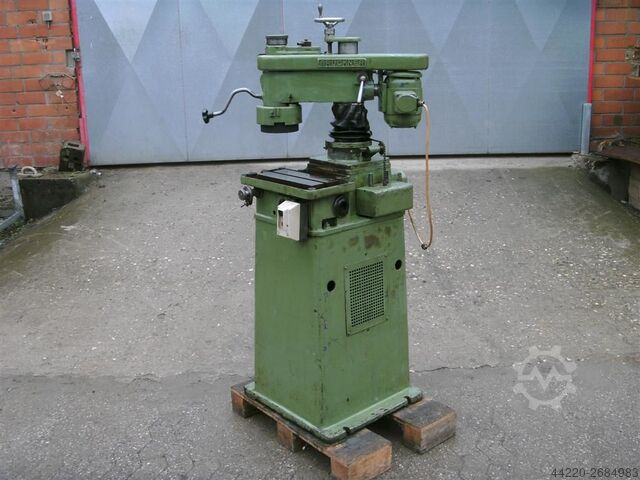

Condition: used, Cup grinding machine Make Gustav Brueckner Type FSH 1 maximum distance : table - grinding wheel 200 mm table surface 315 x 135 mm 380 volt Dedpjcv Tb Djfx Ac Howd 0,75 kw 1,85 ampere Space requirement : D.650 x W.600 x H.1600 mm

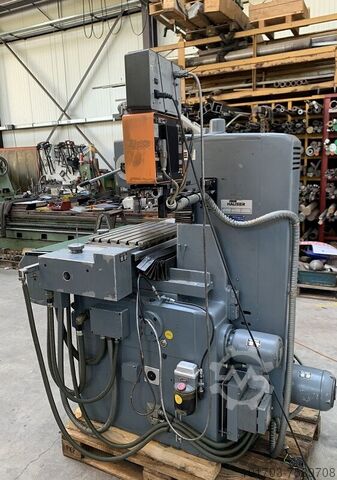

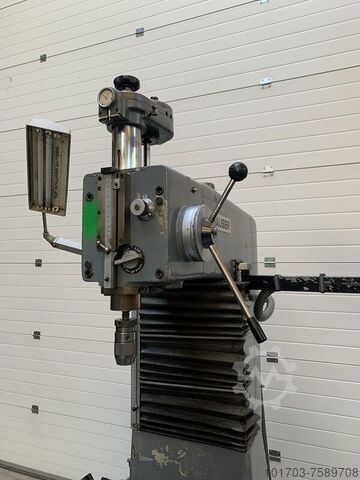

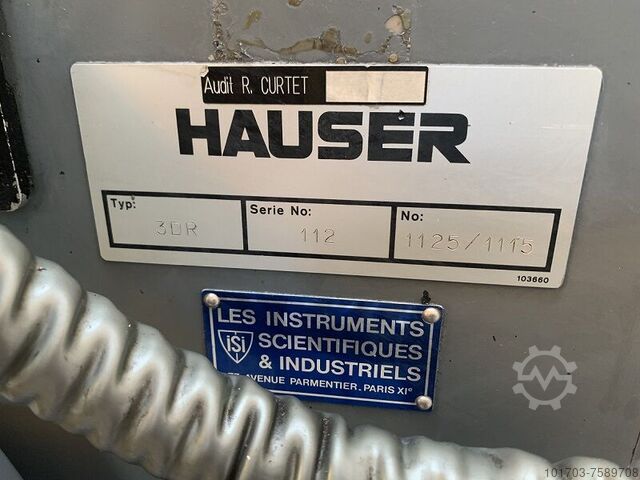

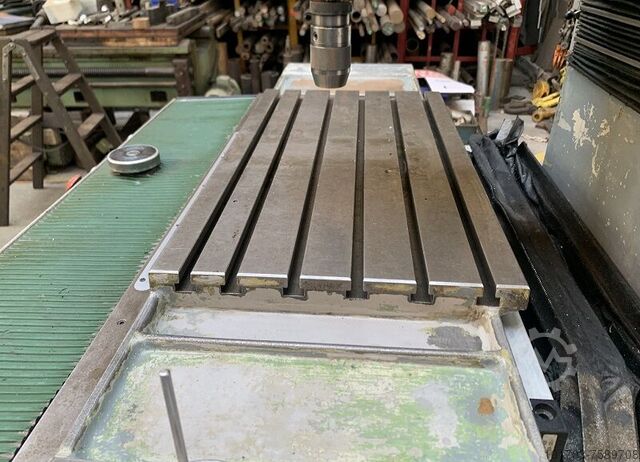

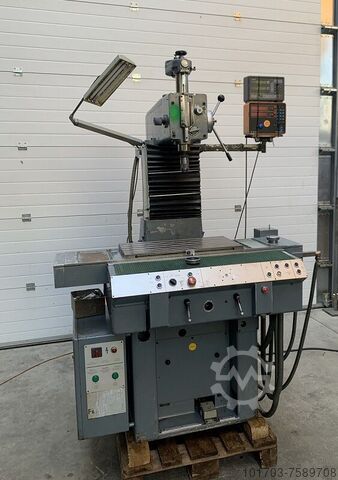

Condition: good (used), Jig boring/Milling machine HAUSER 3DR Travel X: 400 mm Travel Y: 200 mm Travel Z: 400 mm Spindle: 2 speeds Dwsdjiix Ipspfx Ac Hsd Cone:CM2 Spindle exit: 120 mm 2 speed ranges 60-1500 RPM / 1500-3000 RPM Table size: L 590 mm x W 320 mm Speed variator at the spindle 2 advances Auto descent: 0,03 mm/min - 0,06 mm/min X-axis functional with Mitutoyo devise Y and Z axis: defective scale Voltage: 380 V Width: 1500 mm Depth: 1700 mm Height in low position: 1800 mm Weight: approx 1,5 T

Year of construction: 1992, condition: good (used), machine/vehicle number: 20281, Offer 23034 Technical data: - max. grinding length approx. 350 mm - max. grinding width 150 mm Dwodpfjklxwkex Ac Hjd - max. installation height with / without magnet 150 / 210 mm - grinding wheel stroke approx. 200 mm - clamping surface 300 x 160 mm - magnetic clamping plate 250 x 150 mm - grinding wheel dimension approx. 200 x 80 x 78 mm - grinding wheel speed 2800 rpm - swivel range of the grinding arm approx. 180 ° - manual swivel arm clamping via clamping lever - wet grinding device - drive 400 V / 1,85 kW - space requirement approx. W 850 x H 1650 x D 800 mm - weight approx. 350 kg

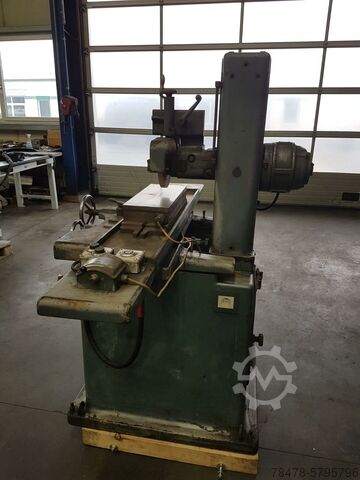

Condition: ready for operation (used), Year of construction: 1950, Grinding length X: approx. 600 mm Grinding width Z: approx. 200 mm grinding height Y: approx. 200 mm clamping surface: 500 x 200 mm weight: 1000 kg dimensions: approx. 1900 x 1300 x 1900 mm Dwodpfx Acjgu N Tys Hsd Painting: grey Digital display: Without Accessories: magnet, suction device

Condition: used, Year of construction: 1976, Technical details: table surface area: 1300 x 190 mm range of revolution per miute: 60 - 4000 Stufenlos U/min feed continuous: Pinole: 0,06 / 0,12 / 0,24 mm/U quill stroke vertical: 140 mm spindle taper: SK 40 spindle head swivable left - right: 90° und 45° ° total power requirement: 3,0 kW weight of the machine ca.: 1620 kg machine dimensions LxWxH: 2,7 x 2,3 x 2,4 m Milling machine with universal milling head Spindle run right/left Dodju Sq Emjpfx Ac Hewd Table specifications: X/Y/Z travel: 860/380/460mm. feed X/Y/Z: 40 - 400mm/min. continuous rapid traverse 400mm/min. max. workpiece weight 30kg Equipment 3-way measuring display Mitutoyo with beam machine lighting Coolant tank with pump X- and Y-axis feed adjustable incl. accessories comparable to the picture *
