Used Machining centers with flat or grid table for sale (320)

Condition: excellent (used), Year of construction: 2021, operating hours: 250 h, Description APS-2030 Quotation Entry-level model 3-axis gantry milling machine Area of application simple applications in wood, plastics, etc. Model: V-2030 Table size [mm]: 2000 x 4000 Working area X and Y axis mm 2020 x 3020 Working area Z axis [mm]: 30cm Vacuum zones 6 pieces Equipment Steel construction simple frame construction with reinforced gantry frame Switching element and control in the external control cabinet. to reduce the installation area Work table material: hard PVC Functions T-slot and vacuum plate divided into 6 sections Travel system X and Y axis rack and pinion drive Travel system Z axis ball screw (TBI) Linear guides on X, Y and Z axis PMI Travel motors servo X, Y and Z axis (Delta) Spindle 9 kW air-cooled ( max. travel speed 60 m/min max. working speed 40 m/min Bo Ia Rsvy I Iwexnlewl Working accuracy < 0.2 mm Repeatability 0.03 mm on 300 mm Workpiece positioning optional Tool length sensor yes Control Eding CNC Software Vectric CUT2D Electrical connection Electrical connection 3 phases 320 V, 50 Hz Ambient temperature 0° C -45 °C all prices quoted are net plus the currently applicable statutory VAT.

Condition: excellent (used), Year of construction: 2009, CNC HOMAG OPTIMAT BMG 511 /60/12/F/K CNC WORKING CENTER (POINT TO POINT) 5 AXIS (DRIVE 5C +) SORB TECH is used instead of steel in the machine frame, the vibration-damping capacity is 80 percent higher than that of steel castings. CNC- controlled processing centre in moving gantry construction for trimming and drilling panels of wood or similar material. Prepared for 1 main spindle, mounted on the right side of the gantry beam. Numerical Control PC85 Software woodWOP Safety cabin (enclosure) of the working head Working table with pods and rails Mod. K-Table Support rails (No.) 10 Table dimensions 1250 mm Clamps for workpieces fixing Pneumatic Kit powerClamp - clamping element - K Table Automatic Tools Changing System Tools storage plate (No. of folds-positions) 14 Be Ietg Nqusa Rxnlowl Max. useful working area (X-Y-Z) mm 6175 x 1550 x 300 No 2 Working areas Vacuum pump capacity m3/h 2 x 100 Separate electric and command cabinet Motorized carpet to evacuate chips and wastes. Total installed power (50 A) WORKING GROUPS (TOP) No 9 Independent vertical boring spindles (High Speed 7500) No 4 Independent horizontal boring spindles (No. 2 in Xaxe + No. 2 in Y-axe) Drilling head motor-power 1,5 Kw No 1 Vertical electro-spindles HSKF63 DRIVE 5C +. Vertical electrospindles motor power (KW 10/12)

Condition: new, Year of construction: 2025, CNC knife, creasing and cutting plotter, cutting plotter, creasing plotter Machine configuration: Drives: Helical hardened ground X, Y ball screw Z axis Linear bearing: Trapezoidal rails Travel speed: 80 m/min Program resolution: 0.005 mm (0.0025 servo motors) Positioning accuracy: 0.01 mm Double-sided gate drive: yes Electrospindle power: 7.5Kw S6 Maximum electrospindle speed: 24000 rpm Electrospindle inverter: yes Brushless electrospindle: yes Cutter shank diameters: from 1 to 20 mm Construction: Steel welded Power supply: 400 V Possible additional options: - tool cooling - positioning bases with control - central lubrication system - Pneumatic extraction foot - Manual manipulator - 10-position linear magazine - 1.50 mm pneumatic oscillating knife - Creasing head - Circular knife - Material height sensor - Tool length and diameter sensor - 24-inch touchscreen monitor Be Ia Rxjt N Stxenlowl - Remote service access - 244 m3 vacuum pump with control system - Gate angle auto-calibration - Intelligent energy recovery - Safety fence Material fixing: Vacuum, pneumatically controlled sections with expansion valve Control Real-time industrial control system steel and soft metals: aluminum, brass, copper, bronze etc. composites: dibond, alucobond, etc. plastics: polycarbonate, PVC, plexiglass, teflon, polyamides, gambit, rubber, etc. solid wood and wood-based panels: plywood, chipboards, MDF, OSB, etc. paper, cardboard, foil, etc. foams, extruded materials, etc. leather, textiles etc. #plotter #CNC #millingrouter #machiningcenter #3axis #4axis #5axis #3D #3Dprint #MDF #HPL #Pywood #plytawiorowa #Chipboard #steel #aluminum #aluminum #brass #stainless steel #cast iron #polypropylene #polycarbonate #acrylic #fermacell

Year of construction: 2002, Condition: ready for operation (used), Max. workpiece height: 280mm, tool cone: HSK 63F, weight: 6.5t, an inspection is possible. Bo Ia Rxnsn Tpm Holswl

Condition: new, Year of construction: 2025, he plotter is mainly intended for use in the furniture and modeling industries. The elevated gate in the Z axis of 350 mm allows for processing several boards at the same time. The reinforced structure of the machine is made of steel and cast iron, which gives it high stiffness and resistance to overloads related to the machining process. A high-class C1530 CNC milling plotter, which is characterized by precise and fast work. is intended for processing and cutting wooden materials, chipboards, MDF, OSB, plywood, PVC plastics, plexiglass, dibond and metals. Sectioning table with four independent vacuum sections, dimensions 1500x3000 mm. Construction Welded steel rigid structure, The gate arms are made of hardened, thick, powder-coated sheet metal, which has increased stiffness, which translates into the quality of the processed detail. Working table It has T-slots enabling manual fastening of material with dimensions of 1500 x 3000 mm, Drive SERVO motors used to drive high-power machine tools, provide appropriate acceleration and speed in particular directions. The X and Y axes use high-quality toothed racks, praised by users, which ensure high durability and precision, The Z axis is driven by a high-quality ball screw. All axes move on rail guides. The machine is equipped with a tool height sensor Linear bearing: trapezoidal rails, Hiwin carriages Spindle High-quality brushless spindle that is durable. Additionally equipped with an innovative AIR / not liquid cooling system! The spindle construction uses high-quality cartridge bearings, which operate very quietly and guarantee increased durability. Tool height measurement sensor - included. The spindle speed range is from 4,500 to 18,000 rpm Mounting tools with 3 pcs. ER32 collets, diameters 1/8", 1/2" and 5-6 mm Software The latest softwareUCanCAM V12 (the software provides the ability to import files from Corel, Autocad, etc. . File import/export, text editor and input and many other functions) The software enables quick and easy design of elements, which the program then converts into the so-called G-code. It is also possible to import ready-made files from other programs. DSP control Digital Signal Processing Digital Signal Processing The DSP controller of the machine has its own processor and memory, which ensures failure-free operation and simple operation of the machine. Technical parameters Spindle 5.5kW / 18000 rpm. inverter, air-cooled Workspace 1500x3000 mm Bwo Isf Eypdoa Rxnlsl Maximum spindle height 350 mm Control DSP Software resolution 0.001 mm Power 400V Weight 1380 kg Machine dimensions 2450 x 3800 x 2200 mm Table height 715 mm Guides linear Power transfer toothed rack (Z axis - ball screw) Axis drives hybrid servo drives Software UCanCAM V12

Condition: as good as new (ex-display), Year of construction: 2024, operating hours: 40 h, Functionality: fully functional, travel distance X-axis: 3,200 mm, travel distance Y-axis: 1,550 mm, travel distance Z-axis: 130 mm, workpiece weight (max.): 1,800 kg, rotational speed (max.): 24,000 rpm, HIGHLIGHTS - Robust, fast and versatile machining center - Precision thanks to powerful CNC control and servo motors - Automatic alignment TECHNICAL DETAILS Area of application: Processing many types of materials with great precision X-axis feed length: 3,200 mm Y-axis feed length: 1,550 mm Z-axis feed length: 130 mm X-axis feed speed: 50 m/min Y-axis feed speed: 50 m/min Z-axis feed speed: 15 m/min Workpiece capacity Max. workpiece weight: 1,800 kg Max. workpiece height: 120 mm Drilling depth: 77 mm Spindle Spindle motor power: 9,000 W Speed (min.): 500 rpm Speed (max.): 24,000 rpm Dust extraction Tap nozzle diameter: 150 mm Warranty Warranty period: 12 months MACHINE DETAILS Overall length: 16,000 mm Overall width: 3,100 mm Overall height: 2,100 mm Electrical specifications Input current: three-phase Input frequency: 50 Hz Air and pressure Air pressure: 6 bar Pressure: 6 bar Vacuum pump Bwe Ia Revu A Egexnlsl Power: 5,500 W EQUIPMENT - Powerful CNC control - Automatic alignment

Condition: as good as new (ex-display), single phase, 1950 kg, dust extraction, vacuum table with four individually controlled sections, water cooled 6kw 24000 rpm spindle, A2 hand held controller.spindle, Bws Ia Rxohh Anrenljl

Condition: refurbished (used), 3-axis machining center Machine fully overhauled in our workshop, 1-year warranty on mechanical parts Machining travel in X: 4,500 mm, Y: 800 mm, Z: 400 mm (excluding drill bit) 5-position automatic tool changer Included - Vacuum pump - 4 suction cups Ø180mm h 40 mm - 4 suction cups Ø120mm h 40 mm - 2 pneumatic pole clamps with 160 mm opening Excluded Be Iaer D Nywj Rxnlewl - 3 x 6² + N + ground power cable - Mains cable between office and machine (not compulsory) - Suction hose - 160mm - Compressed air - 6-7 bars - Unloading and installation by local forklift truck Options 4th fixed axis 4 positions € 4,594 Removable positioning system for layout (point 0) € 466 Retractable positioning system for layout (point 0) €2,257 Staircase software (drawing and machining) € 12,400 Laser 2-D Red 15.650 € Transport : Depending on distance

Condition: new, Year of construction: 2025, Technical data Control system Multi-axis real-time interpolator, with active trajectory forecasting, LAN communication, EtherCat, 2ms sampling time, optional RTCP tool end tracking, correction map Working area X 600 – 2500mm Y 900 – 6100 mm Gate clearance and Z axis range 100 – 700 mm Drive system Omron servo drives with EtherCat protocol, X, Y helical slats hardened ground in accuracy class 6, Z axis ball screw with accuracy class 5 Linear bearing Trapezoidal rails, Bosch Rexroth 25 Speed Up to 90 m/min Acceleration Up to 1G Program resolution Up to 0,0001mm Positioning accuracy 0,01 mm Gate drive double-sided master / slave with gate angle correction Electrospindles 2 kW to 18 kW powered by an inverter Tool taper ISO30 or HSK63 ER32 Maximum speed of the electro-spindle 24000 rpm (option 6 000, 40 000, 50 000) Construction Steel welded, ribbed, stress relieved, precision machined Equipment options positioning and correction of the material by means of a camera, laser, measuring probe linear, revolver tool magazine cooling the tool with mist, chilled air 3D laser or touch scanner positioning databases additional angular / rotary axes Bwe Ia Rxon Nwifsnlol drilling units, angular active oscillating knife, roller knife, drag knife, creaser, marker pen pneumatic clamping clamps chip extraction installation Table type T-slot: aluminum profiles, solid aluminum, solid steel; vacuum; hybrid, pneumatic clamping clamps

Condition: ready for operation (used), Year of construction: 1997, Max. workpiece length: 3600mm, max. workpiece width: 1400mm, length: 8750mm, width: 5250mm. Be Iajqvnl Tj Rxnlewl

Condition: good (used), Year of construction: 2000, For Sale: AXYZ 4010 CNC Router (Year 2000) – Made in Canada, Reliable & Versatile We are offering a pre-owned AXYZ 4010 CNC Router, manufactured in Canada, from the year 2000. Known for its durability, precision, and versatility, this CNC router is ideal for various cutting, engraving, and milling applications. It has been well-maintained and remains in good working condition, making it a cost-effective choice for businesses looking to enhance their machining capabilities. Specifications & Features: Bws Ia Revzagujxnljl Work Area: 1220mm x 2540mm (48" x 100") Table: vacuum table Spindle Type: 2x High-speed router spindle Control System: AXYZ proprietary CNC control Drive System: Stepper motor-driven for precision movement Material Compatibility: Suitable for cutting wood, plastics, aluminum, composite materials, and more Software Compatibility: Works with standard CAD/CAM software Manufactured In: Canada Condition: Used, in good working order Key Benefits: Canadian Quality: Built to high manufacturing standards for reliability and longevity. Precision & Efficiency: Capable of intricate cuts and engravings with high accuracy. Versatile Applications: Ideal for signage, woodworking, prototyping, and light metalwork. Cost-Effective Investment: A budget-friendly alternative to purchasing a new CNC router. This AXYZ 4010 CNC Router is an excellent addition for workshops, sign-making businesses, and fabrication shops seeking a dependable machine at an affordable price.

Condition: like new (used), Year of construction: 2018, Functionality: fully functional, travel distance X-axis: 1,300 mm, travel distance Y-axis: 2,610 mm, travel distance Z-axis: 500 mm, number of slots in tool magazine: 32, TECHNICAL DETAILS Machine type: 6-axis plastic machining center Milling motor: 1 piece, 5-axis Sixth axis: Part plate (lathe) Control: OSAI with PC Working area: 1,300 x 2,610 mm Bwj Iaovwc Iyj Rxnlol Z-usable working height: 500 mm Vector speed: 85 m/min Table dimensions: 2,000 x 1,000 mm Tool change: 2 automatic tool changers Number of tool positions: 2 x 12 + 8 Holder: HSK F63

Condition: good (used), Year of construction: 1990, machine/vehicle number: N- 162, Dimensions: 5000x3300x2600 mm Workspace: 2550x2050x200 mm Bo Iaoivr H Dj Rxnlewl Revolver with 8 positions.

Condition: new, Year of construction: 2023, 1325 SPECIAL milling ploter is a precise machine constructed in Poland. It can be used to process many different materials such as wood, wood-based materials (chipboard, MDF, OSB, etc.), plastics (plexiglass, PVC, HPL, etc.), composites (dibond, carbon, alucobond), soft metals, etc. Construction of the machine is made out of steel which gives it high rigidity as well as resistance to congestions associated with the machining process. The plotter is equipped with a user-friendly interface that is easy to use, but also has advanced functions. CONSTRUCTION: The plotter is made entirely of high quality steel. During the production process, all elements undergo a special heat treatment. WORK AREA: The usable area of our machine tool is 1500 x 2500 [mm]. AXIS RANGE AND GATE CLEARANCE: The standard range of the Z axis is 200 mm. However, it is possible to increase it to 400 mm. DRIVES: Our machine tools were powered by digital motors with high resolution and high power, which ensures appropriate acceleration and speed in particular directions. Classic and proven helical blades work in the X and Y axes, which ensure high durability and precision, and the Z axis is driven by a high-quality ball screw. All axes run on rail guides. SPINDLE: The cutting tool is driven by a strong, liquid-cooled and durable high-class brushless spindle. The spindle bearing is high-quality machine bearings, very quiet and guaranteeing above-average durability. The rotational speed of the spindle ranges from 6 to 24 thousand. RPM An inverter is used for power supply, which has more power than the spindle, which protects against speed drops when working under heavy load. SOFTWARE: The machine is equipped with appropriate CAD / CAM software in the latest version. The software enables quick and easy design of elements, which the program then converts into the so-called G-code. It is also possible to import finished files from other programs. CONTROL: The machine is operated by the controller, which has its own processor and operating memory, which ensures stable and reliable operation. The machine controller has the function of active vector analysis, thanks to which the operation of the device is smooth and the error in processing is small. The controller has the function of returning to further work after the loss of power, so there is no need to initialize the program from a scratch. The memory built into the controller allows the machine to work without having to load the program each time. Additional options: - vacuum table with Busch or Becker pump - chip extraction system Bj Iein Eu Hoa Rxnlowl - oil mist - any size of the working table

Condition: as good as new (ex-display), Year of construction: 2025, travel distance X-axis: 1,300 mm, travel distance Y-axis: 6,300 mm, travel distance Z-axis: 300 mm, Technical data: Control system: multi-axis real-time interpolator, with active trajectory prediction, LAN communication, EtherCat, sampling time below 2ms, correction map, RTCP tool end tracking, remote service access Working area: 1300×6300 mm Z axis clearance: 300 mm Drive system: servo drives with EtherCat protocol, X, Y helical strips, hardened, ground in accuracy class 6, Z axis ball screw in accuracy class 6, planetary gears with angular backlash below 1’ Linear bearing: linear guides with preload Travel speed: up to 30 m/min Program resolution: up to 0.0001 mm Positioning accuracy: 0.01 mm Electric spindles: 15 kW inverter-powered, liquid-cooled Bs Ia Rxnjn Nv Rcjlewl Tool cone: HSKF63 Maximum spindle speed: up to 24,000 rpm Construction: welded, ribbed, stress-relieved steel, precisely machined from one mount Table type: beam Equipment options: - Schmalz double-circuit beam system - Schmalz pneumatic and mechanical clamping clamps - positioning bases - possibility of two-zone operation - preparation for chip extraction - chip conveyor - revolver tool magazine and 2 linear magazines (26 tools) - drilling unit 12 vertical tools, 4 horizontal tools, 2x saw - functions: correction map and intelligent energy recovery - advanced safety system - possibility of cooperation with CAD/CAM software for programming - furniture, fronts, stairs, windows, doors and many other details - automatic central lubrication - air conditioning of the control cabinet - remote service access, remote diagnostics - tool diameter and length measurement probe with diameter compensation - via the control system - light laser for positioning workpieces - machine in the Industry 4.0 concept - tool life option #plotter #CNC #milling machine #millingrouter #machiningcenter #3axis #4axis #5axis #3D #3Dprint #MDF #HPL #Pywood #plytawiorowa #Chipboard #steel #aluminium #aluminum

Year of construction: 2002, Condition: ready for operation (used), Current: 50A, nominal voltage: 400V. Bwe Ia Rsinkqrsxnlsl

Condition: ready for operation (used), Year of construction: 2007, Functionality: fully functional, travel distance X-axis: 3,685 mm, travel distance Y-axis: 1,290 mm, travel distance Z-axis: 150 mm, TECHNICAL DETAILS Working area: 3,685 x 1,290 x 150 mm Milling machine: 1 electrospindle, 16 HP, HSK-F63 Bwe Ia Rxnjvwcyislsl Tool changer: 1 automatic rotary gearbox with 18 positions Drilling comb: 14 vertical and 6 horizontal holes Lubrication: automatic central lubrication system Vacuum pump: 1 piece, 250 m³/h Software: BIESSE WORKS Standards: CE standard

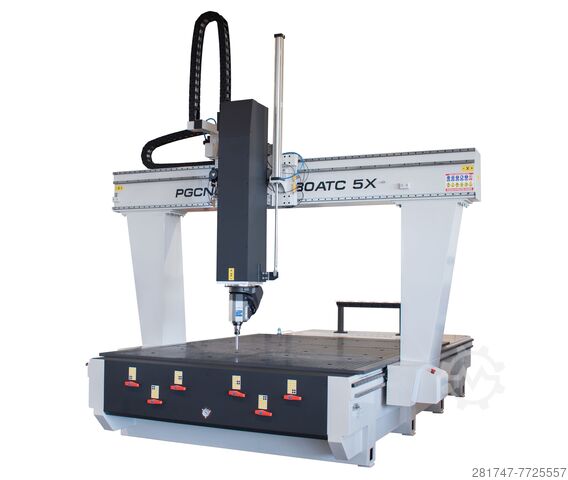

Condition: new, Year of construction: 2023, The ATC series was created for professional use in large industrial plants and factories. Like the plotters of the SPECIAL series, it can be designed for machining various materials. To meet the demands of heavier machining, ATC machines use an additional reinforced structure and stronger AC servo drives on each axis. The presence of five axes provides support in the machining process of even the most demanding elements. The standard in these devices is a vacuum work table. It is also possible to install a hybrid table. The plotters in this series come standard with automatic tool change, a six-position linear magazine and a tool height sensor. The applied solutions significantly accelerate the machining process requiring the use of several milling cutters. Processed materials: -wood - wood-based materials (chipboard, MDF, OSB, etc.) Be Iaoin Etzo Rxnljwl -plastics -Composites -PVC - non-ferrous metals (aluminum, brass, copper, etc.) CONSTRUCTION: The plotter is made entirely of high quality steel. During the production process, all elements undergo a special heat treatment. WORK AREA: The usable area of our machine tool is 2100 x 3100 [mm]. MATERIAL FASTENING: The machine is equipped with a vacuum table. AXIS RANGE AND GATE CLEARANCE: The standard range of the Z axis is 300 mm DRIVES: Our machine tools were powered by digital motors with high resolution and high power, which ensures appropriate acceleration and speed in particular directions. Classic and proven helical blades work in the X and Y axes, which ensure high durability and precision, and the Z axis is driven by a high-quality ball screw. All axes run on rail guides. SPINDLE: The cutting tool is driven by a strong, liquid-cooled and durable high-class brushless spindle. The spindle bearing is high-quality machine bearings, very quiet and guaranteeing above-average durability. The rotational speed of the spindle ranges from 6 to 24 thousand. RPM An inverter is used for power supply, which has more power than the spindle, which protects against speed drops when working under heavy load. TOOL MAGAZINE: The standard equipment of the machine is a linear tool magazine equipped with 6 ISO30 cones. SOFTWARE: The machine is equipped with appropriate CAD / CAM software in the latest version. The software enables quick and easy design of elements, which the program then converts into the so-called G-code. It is also possible to import finished files from other programs. CONTROL: The machine is operated by the controller, which has its own processor and operating memory, which ensures stable and reliable operation. The machine controller has the function of active vector analysis, thanks to which the operation of the device is smooth and the error in processing is small. The controller has the function of returning to further work after the loss of power, so there is no need to initialize the program from a scratch. The memory built into the controller allows the machine to work without having to load the program each time.

Condition: new, Year of construction: 2025, Working area: 1500 – 3000 x 2100 – 12000 mm Z axis range: 500 – 1500 mm Bws Ia Rjn Nv H Ssxnlsl Linear bearing: Bosch Rexroth 35 Speed: X, Y up to 45 m/min; C, A up to6000 degrees/min Program resolution: 0,0005 mm Positioning accuracy: 0,01 mm Gate drive: double-sided master / slave with gate angle correction Electrospindles: 8 kW up to 36 kW Electrospindle inverter: yes Maximum revolutions of the electro-spindle: 24 000 rpm (option 6000, 40 000 50 000) Construction: Steel welded, ribbed, stress relieved, precision machined Table type vacuum, hybrid, steel, aluminum with M16 or M18 holes

Year of construction: 2001, Condition: ready for operation (used), Operational hours counter: ca. 40,000h, there is little documentation, has been serviced regularly, suitable for aluminum and wood, available from June/July 2024, an on-site inspection is possible. Be Ia Rxnjp S Sq Ijljwl

Condition: new, Year of construction: 2023, 1012 SPECIAL milling ploter is a precise machine constructed in Poland. It can be used to process many different materials such as wood, wood-based materials (chipboard, MDF, OSB, etc.), plastics (plexiglass, PVC, HPL, etc.), composites (dibond, carbon, alucobond), soft metals, etc. Construction of the machine is made out of steel which gives it high rigidity as well as resistance to congestions associated with the machining process. The plotter is equipped with a user-friendly interface that is easy to use, but also has advanced functions. Bws Iaein Ewze Rxnlel CONSTRUCTION: The plotter is made entirely of high quality steel. During the production process, all elements undergo a special heat treatment. WORK AREA: The usable area of our machine tool is 1000 x 1200 [mm]. AXIS RANGE AND GATE CLEARANCE: The standard range of the Z axis is 200 mm. However, it is possible to increase it to 400 mm. DRIVES: Our machine tools were powered by digital motors with high resolution and high power, which ensures appropriate acceleration and speed in particular directions. Classic and proven helical blades work in the X and Y axes, which ensure high durability and precision, and the Z axis is driven by a high-quality ball screw. All axes run on rail guides. SPINDLE: The cutting tool is driven by a strong, liquid-cooled and durable high-class brushless spindle. The spindle bearing is high-quality machine bearings, very quiet and guaranteeing above-average durability. The rotational speed of the spindle ranges from 6 to 24 thousand. RPM An inverter is used for power supply, which has more power than the spindle, which protects against speed drops when working under heavy load. SOFTWARE: The machine is equipped with appropriate CAD / CAM software in the latest version. The software enables quick and easy design of elements, which the program then converts into the so-called G-code. It is also possible to import finished files from other programs. CONTROL: The machine is operated by the controller, which has its own processor and operating memory, which ensures stable and reliable operation. The machine controller has the function of active vector analysis, thanks to which the operation of the device is smooth and the error in processing is small. The controller has the function of returning to further work after the loss of power, so there is no need to initialize the program from a scratch. The memory built into the controller allows the machine to work without having to load the program each time. Additional options: - vacuum table with Busch or Becker pump - chip extraction system - oil mist - any size of the working table

Condition: new, Year of construction: 2025, Machine for processing sinks made of materials such as sintered quartz, granite, granite composites and ceramic models, etc. Technical data: MILLING PLOTTER 1325 PRO+ WORKING AREA 1300X2500MM Z AXIS RANGE 700MM - PRO OMRON SERVO AC HIGH SPEED DRIVES (SET WITH PLANETARY GEARS) 1.5KW ETHERCAT INTELLIGENT ENERGY RECOVERY OSAI OPENSMART REAL-TIME INDUSTRIAL CONTROL SYSTEM, CYCLE TIME BELOW 2MS, SUPPORT UP TO 16 AXES, ETHERCAT COMMUNICATION WITH THE CONTROL CABINET AUTO CALIBRATION OF THE GATE ANGLE EUCHNER HBA-103037 HAND MANIPULATOR CONTROL CABINET AIR CONDITIONING TOOL LENGTH SENSOR (60MM) AUTOMATIC CENTRAL LUBRICATION WITH SKF SOLID GREASE BEAM SYSTEM PNEUMATIC CLAMPS SINK FIXING SYSTEM Bwe Ia Roualqqsxnlel DUST REMOVAL CHANNELS BALL SCREW COVER ON THE Z AXIS BLOWING SYSTEM FOR RIDING ELEMENTS VACUUM SENSOR SYSTEM DOUBLE SCRAPER SET

Condition: new, Year of construction: 2025, Technical data: Control system: multi-axis real-time interpolator, with active trajectory prediction, LAN communication, EtherCat, sampling time below 2 ms, correction map, RTCP, remote service access, Working area: 2100 x 3100 mm (option 2100 x 4100 mm) Z axis clearance: 100 – 300 mm Drive system: servo drives with EtherCat protocol, X, Y hardened helical strips ground in accuracy class 6, Z axis ball screw in accuracy class 5 Linear bearing: trapezoidal rails Travel speed: Up to 80 m/min Program resolution: 0.0001 mm Positioning accuracy: 0.01 mm Gate drive: double-sided master/slave with gate angle correction Electrospindles: 8 kW to 36 kW powered by an inverter Be Iaeu U Hnaj Rxnlewl Tool taper: ISO30 or HSK63 ER32 Maximum spindle speed: 24,000 rpm Construction: welded, ribbed, stress-relieved, precisely machined steel Table type: vacuum Equipment options - positioning and correction of material using a camera, laser, measuring probe - revolver tool magazine - tool cooling with oil mist, frozen air - 3D laser or touch scanner - positioning bases - drilling, angle units - active oscillating, circular, dragging knife, creasing machine, pen, knife - electric pneumatic - chip extraction system - pneumatic sections - printer, reader codes - CAD/CAM software for designing furniture, bodies and fronts - automatic central lubrication #plotter #CNC #milling machine #millingrouter #machiningcenter #3axis #4axis #5axis #3D #3Dprint #MDF #HPL #Pywood #plytawiorowa #Chipboard #steel #aluminium #aluminum #brass #stainless steel #cast iron #polypropylene #polycarbonate #acrylic #fermacell

Condition: new, Year of construction: 2025, Technical data Control system Multi-axis real-time interpolator, with active trajectory forecasting, LAN communication, EtherCat, 2ms sampling time, optional RTCP tool end tracking, Working area X 2100mm Y 3100 mm Gate clearance and Z axis range 100 – 300mm Drive system Omron servo drives with EtherCat protocol, X, Y, Z helical slats Linear bearing Trapezoidal rails TBI 20, trolleys Travel speed Up to 60 m/min Program resolution Up to 0,0001mm Positioning accuracy 0,02 mm Gate drive double-sided master / slave with gate angle correction Electrospindles 7,5kW Bws Iaeumambj Rxnlol tool taper ISO30 Maximum speed of the electro-spindle 24000 rpm (option 6 000, 40 000, 50 000) Construction Steel welded, ribbed, stress relieved, precision machined

Condition: new, Year of construction: 2025, Technical data Control system: Multi-axis real-time interpolator, with active trajectory forecasting, LAN communication, EtherCat, 2ms sampling time, optional RTCP tool end tracking, correction map Working area: X 600 x 900 mm Y 3000 x 12000 mm Gate clearance and Z axis range: 100-1000 mm Drive system: Omron servo drives with EtherCat protocol, X, Y helical slats hardened ground in accuracy class 6, Z axis ball screw with accuracy class 5 Linear bearing: Trapezoidal rails, Bosch Rexroth 25 Speed: Up to 120 m / min Bs Ijn Hq Huoa Rxnlewl Acceleration: Up to 1G Program resolution: up to 0.0001mm Positioning accuracy: 0.01 mm Gate drive: double-sided master / slave with gate angle correction Electrospindles: 2 kW to 36 kW powered by an inverter Tool taper: ISO30 lub HSK63 ER32 Maximum speed of the electro-spindle: 24,000 rpm (option 6,000, 40,000, 50,000) Construction: Steel welded, ribbed, stress relieved, precision machined Equipment options positioning and correction of the material by means of a camera, laser, measuring probe linear, revolver tool magazine cooling the tool with mist, chilled air 3D laser or touch scanner positioning databases additional angular / rotary axes drilling units, angular active oscillating knife, roller knife, drag knife, creaser, marker pen pneumatic clamping clamps chip extraction installation integration with an industrial robot Table type: T-slot: aluminum profiles, solid aluminum, solid steel; vacuum; hybrid, pneumatic clamping clamps
