SPECIFICATIONS
Lapping Plate Size 28 inches
Plate Rotation Speed (Variable) 0 - 100 RPM
Number of Ring Stations 3 Pressure Plates
Conditioning Ring Size 13.875" OD x 12" ID
Main Motor 3 HP
Pneumatic Down-force Range 0 - 500 lbs
Bjocaw3ki8
Worktable Diameter 48 inches
Water Flow Rate 1 GPM
Approximate Dimensions 66"L x 48"W x 77"H
Approximate Weight 3500 pounds
EQUIPPED WITH
(3) Independently Controlled Adjustable Down Pressure Pneumatic Hold Downs. Pneumatic Counter Balance. Abrasive Slurry Pum...
Diameter: 1000
Bs8o0z98vw
Number of floors: 2
MELCHIORRE 2P SP 1000 2-plate lapping machine, double sided diameter mm 1000 with coolant chiller Machine visible under power in our warehouse in Gussago BS Italy Lapping is a mechanical operation that is performed on a metallic surface mirror. stahli Stähli staehli peter wolters speedfam
4
Reishauer DS / zum läppen
Bymztz2gi9
weight of the machine ca. 200 kg
4
grinding height 250 mm
grinding width 280 mm
grinding wheel diameter 900 mm
table diameter mm
workpiece height 250 mm
C2m79f9w
number of wheels 2
total power requirement 50 kW
weight of the machine ca. t
dimensions of the machine ca. m
L A P M A S T E R (England)
Dual - Face Fine Grinding and Lapping Machine
Model LFG 12
Year 2009/2014 reconditioned by Manufacturer S/No. 12016
_____
Grinding wheels, Ø x thickness / ckness 900 x 50 mm
Grinding wheel width, upper and lower 280 mm
Bore of ...
7
Vibration frequency DH/min: max. 2200, min 2000
amplitude 3 - 6 mm
weight 26 kg
max. stroke of the stone guide 25 mm
Pneumatic finishing unit for mounting on medium and large carrier machines for superfinishing of ground and turned surfaces. Especially for high chip removal rates on large workpieces and for the use of large-area tools.
In addition to rotationally symmetrical shapes, flat surfaces and bores can also be machined.
Cj3w3x78
The superfinisher is in very good condition.
1
This horizontal tubehone was originally built by Sunnen in the 1990’s with capacity to take workpieces up to a maximum of 1.5m long. It was then extended and rebuilt to accept 3.0m long parts in the 2000’s. Fitted with Sunnen’s brilliant MPS system the machine has great potential as it can be adapted to hone smaller (down to 25mm) or larger (up to 480mm) bore diameters along with tricky blind end parts in tough and hardened materials making it ideal for actuators, hydraulic cylinders, down hole ...
SPECIFICATIONS
Lapping Wheels 310mm x 97.5mm (12.2" x 3.83")
Upper Wheel Speeds 14 / 28 RPM
Lower Wheel 24 / 54 RPM
Workpiece Drive 27 / 54 RPM
Wheel Drive .87 kw
Approximate Weight 1000 pounds
F.O.B. Our Plant
EQUIPPED WITH
2 Speed Lapping Wheels and Work Piece Drive with Reversing. Cycle Timer. Abrasive Grinding Wheels. Pin Type Epicyclic Work Drive. Pneumatic Adjustable Operating Pressure.
Djk0hdb
Cleaned. Cycled.
Diameter: 900 mm
Number of rings: 3
Pneumatic pressers: Yup
Precisionlap 36 3 ring flat lapping machine dia 900mm Under power in our warehouse in Gussago BS. Mimu Machine Tools
Fjz2tlata
3
table diameter 500 mm
Loading 350 kg
turning speeds 75 U/min
Drive 2,2 kW
min. workpiece diameter 0,7 mm
max. workpiece diameter 30 mm
workpiece length - min. 2 mm
workpiece length - max. 200 mm
total power requirement kW
weight of the machine ca. 665 kg
dimensions of the machine ca. 1,5x1,2x2,0 m
0u8sw3ub
with ring holders for parts
4
Engis 24" splicer in good condition
B3dvcnmpxi
4
table diameter 1000 mm
workpiece height 25 mm
2xcqaxhfj
number of wheels 1
total power requirement kW
weight of the machine ca. t
dimensions of the machine ca. m
8
Condition: used
Working area: 2,5-70 mm
B2i3nlbzqz
Spindle speed: 200-1600 rpm
8
SPECIFICATIONS
Maximum Camshaft Length 54 inches
Lapping Arms 6
Lobe Arms 4
Bwvsspx
Main Bearing Arms 2
Lapping Arm Slide Carriage Travel 54 inches
EQUIPPED WITH
(6) Lapping Arms (4) Lobe Arms and (2) Main Bearing Arms. Each arm is independently adjustable along the arm mounting surface. During the machining process the lapping arm slide stitches along the shaft lapping 6 mains & lobes then travels to the next section of the shaft. Servo Driven Axes Include: Workhead Rotation & Positioning Tail...
5

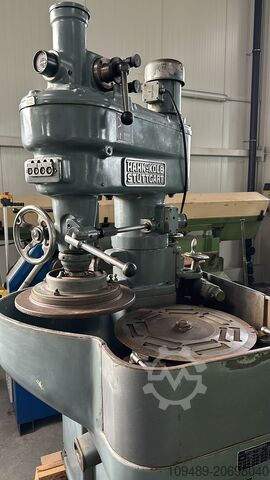

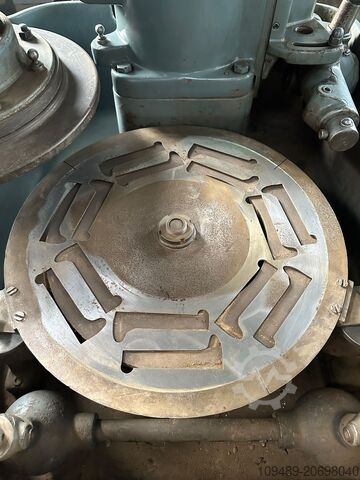

HYDRAULIC - LAPP MACHINE - LHD0 / Hahn&Kolb
Largest lapping wheel diameter approx. 400mm
Largest workpiece length approx. 100mm
B2pwrlepqw
Largest distance between the casting lapping wheels approx. 80mm
Largest distance between the lapping wheels approx. 55mm

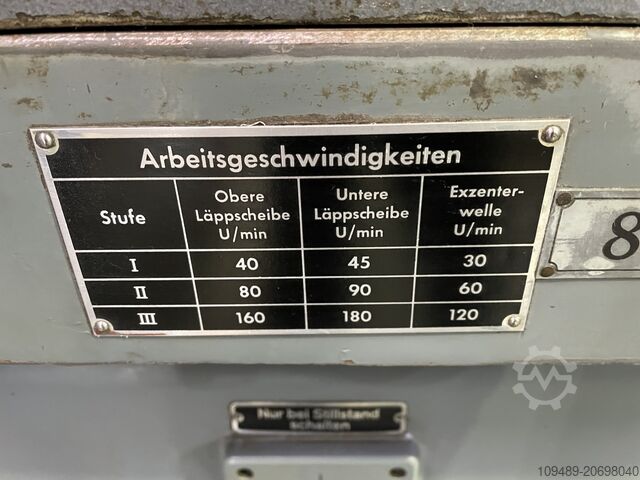

Rotational speed of the lapping wheels (average value) 40/80/160 rpm
Speed - main drive motors approx. 700/1400/2800 rpm
total power 1,8 -2,7 KW
Special accessories:
Lapping cage - Steering device
Adjustable suspension (one-sided lapping d...
12
Manufacturer: Peter Wolters
Model: 3R50-GR
Type: Single disc lapping machine
Njogk3
Serial number: 94-0065-11638
Condition: used
The lapping machine is located in Hildesheim and can be dismantled and collected there by the customer.
Dismantling and transport by us is also possible after quotation and agreement.
Complete factory closure,
large selection of storage platforms, pallet racks, shelf racks, paternosters.
High-quality industrial machines, lathes, grinding machines, hand machines....
6
Single disc lapping machine make WENTZKY type 3 R 40
machine. # 20/437 table model
technical data:
Lapping wheel diameter 400 mm
Number of lapping stations 3
Inner diameter of lapping stations 140 mm
Number of working speeds 2
dimensions L x W x H approx. 820 x 640 x 500 mm
with
- timer
- coolant pump
- pause time setting
3n2vunp9
used, in good condition
6
Lapping wheel diameter 500 mm
Inner diameter of dressing rings 230 mm
Bfaq73kg
Speed of lapping wheel 0-100 rpm
Working pressure 0-400 kg
MARCELS MASCHINEN CH
1
Machine type: sunnen CK21 honing machine - Bore size 3/4" to 8" diameter
Manufacturer: sunnen
Bfryitfwv0
Model: CK21
5
Lapping machine Hahn & Kolb 800 10-05-010
Delivery time: immediately
Number: 10-05-010
Machine data
Year of construction: approx. 1985
L x W x H: approx. 2500 x 2100 x 2100 mm
Weight: approx. 2500 kg
** Two disc lapping machine **
Technical specifications
Lapping disc diameter: approx. Ø 800 mm
Cpvl08tei
Further accessories on request
Price and further technical data on request
SURFACE LAPPING MACHINE "STAEHLI" TYPE DLM-450
Manufacturing origin CH
Voltage 400 V
Netweight 1900 kg
Custom position 8460.2920
Dimensions 1200x1650x2050 mm
TECHNICAL DATA
Machine :
Plates rotation speed 0-110 min-1
Max plates driving power 2 kW
Max load of upper plate 20 daN
Plates diameter Ø 450 mm
Inner drive rotation speed 0-115 min-1
Max inner drive power 0,5 kW
Driving motors of plates (direct current motor) :
Type direct current motor
Anchorage tension Ua 260 V
Field tension U...
7
Joke lapping machine EL 380
- Height: 130cm
- depth: 100cm
- width: 70cm
- Lapping wheel diameter. 380mm
Good condition fully functional can be viewed and tried on site.
Shipping also abroad.
Viewing :
Basically I would like to inform you that to avoid any misunderstanding, the item is welcome to be inspected and tested under power before purchase. Please ask questions before buying to avoid ambiguities.
For general questions or to make an appointment for a viewing, I am, at the phone number be...
8
Lapping machine Fabr. WOLTERS type FL 3
Masch.# 120
Technical data:
Lapping disc diameter 300 mm
Speed of the lapping plate 220 RPM.
0.4 kW
External dimensions approx. 500 x 1000 x 970 mm
with
-very much accessories
used, in good condition
Cij9cfbe
1
Peter Wolters AC700F completely modernized,
New control cabinet construction with Siemens components
new Siemens servo motors 2x 12.5kW, 1x 3.6kw
new pneumatics
new gears boxes
Jwrxlm
carrier drive system 119TF36/7 other sizes possible
Siemens PLC S7-1500 TIA V16
New CE declaration of conformity
12 months of warranty
The machine can be demonstrated under power in our house!
Delivery 3 month after order
1
The Pemamo process is closer to lapping than honing, and this machine uses a superabrasive (diamond-like) plated tool that expands a micron at a time. This ‘E’ version is similar to a manual Speedhone or Sunnen MBB1660 machine where the operator strokes the workpiece back and forth over the tool removing a micron or so of stock at a time. It is exceedingly accurate and simplifies the honing process on jobs with minimal stock removal.
Npgy9
7
Flat lapping machine
Technical data
diameter of lapping wheel outside/inside 700/170 mm
with 4-ring-design outside/yours 700/200 mm
Diameter of dressing rings outside/yours 310/260 mm
with 4-ring version outside/on 290/240 mm
Speed of the lapping wheel 54 rpm
Stepless version outside/on top 16 - 85 rpm
gear motor 1, 1/1,5 kW
pump motor 0,15 kW
Base area of the machine 800X800 mm
Bxxhk7omez
Required floor space 1100X1100 mm
Height of the machine 800 mm
Net weight 850 mm
10
SURFACE LAPPING MACHINE "STAEHLI" TYPE FLM-1000
Manufacturing origin Swiss
Bdomwherq7
Voltage 400/50/2
Netweight abt.2500 kg
Dimensions 1500x2000x2180 mm
Total power
Custom position 8460.40 20
TECHNICAL DATA
Polishing discs, ext.dia. 1000 mm
3 straightening rings, inn.dia. 400 mm
Speed of polishing discs 60 min-1
Time-regulator, 6 steps 0 – 60 h
Driving main motor 7,5 kW
Pivoting control-desk
Special equipment
Polishing discs speed, continuous 0 – 60 min-1
Pneumatic, 3 cylinders, adjustab...
Vertical honing machine CIMOF type 300
Vertical stroke of grinding spindle: 300 mm
Diameter capacity: Ø 130 mm
Spindle speed: from 100 to 400 RPM
Table size: 1100 mm x 500 mm
Total power of both motors: 3 CV
Oil for hydraulic movement: 20 Liters
Lubricating liquid (diesel, petrol): 65 Liters
Voltage: 380 V
Width: 1200 mm
Buuxilkref
Depth: 1300 mm
Total height: 2760 mm
Weight: approx 1,5 T
7
Motorized lapping machine Make Unknown
Technical data:
Lapping wheel size 1000 mm
Pbtwx
Lapping rings 2 x 400 mm
lapping rings 3 x 150 mm
drive power 5,5 kW
weight approx. 1300 x 1300 x 1500 mm
with
- control desk
- lapping time
- automatic
- agitator
- pump
- overload indicator
used, in good condition
3
Voltage: 400V, weight: 300kg.
Ssy0ig
1
The Pemamo process is closer to lapping than honing, and this machine uses a superabrasive (diamond or diamond like) plated tool that expands a micron at a time. You place your work-piece on the tool and this EH version automatically strokes it over the tool which in turn expands as the process runs until final size is achieved. It is exceedingly accurate and simplifies the honing process on long running jobs.
I3eorzb
7
Lapping machine Wentzky 4R40
- 2 speeds
- lapping medium pump
- lapping wheel-Ø 400 mm
- Lapping ring-Ø 130 mm
Good condition fully functional can be inspected and tested on site.
Shipping also abroad.
Viewing :
Basically, to avoid any misunderstanding, I would like to inform you that the item is welcome to be inspected and tested under power before purchase. Please ask questions before buying to avoid ambiguities.
For general questions or to make an appointment for a viewing, I am, at the phon...
This is a machine for chamfering, grinding, lapping and polishing of optical glass with different sizes and forms. It has a lot of advantages and it is used manually.
The biggest advantage is the vacuum tweezers which have different tips.
Another advantage is that the machine can be easily regulated on height which facilitates the worker to decide if he/she will work sat down or upstanding. This is very important for the good ergonomic position of the spine.
Pd27v
The cooling is taking place ...
14
Horizontal honing MAUSER
Machine in 2 parts
2s907a
Honing capacity: Ø 100 mm max x Length 6000 mm
Voltage: 380 V
Length: 14000 mm
Width: 1000 mm
Total height: 1000 mm
6
Working range
wheel diameter max.710 mm
wheel ring width max. 200 mm
Bfxoemw8yc
work piece height max. 100 mm
8
Lapping machine Wentzky 4R40 GV
- Speed adjustable
- 5 lapping rings
- 2 lapping wheels
- Lapping weights with cover
Bjjtv3as
Good condition fully functional can be inspected and tested on site.
Shipping also abroad.
Viewing :
Basically I would like to inform you that to avoid any misunderstanding, the item is welcome to be inspected and tested under power before purchase. Please ask questions before buying to avoid ambiguities.
For general questions or to make an appointment for a viewing, I a...
Manual horizontal honing machine SUNNEN type MB 625 DE
Rotation: 30 / 450 / 650 / 800 RPM
Delivered without honing tools
Voltage: 220 V mono
Mwfcdc
Width: 600 mm
Depth: 1000 mm
Total height: 1600 mm
Weight: approx 100 kg
6
Working wheel diameter, external: 650-870 mm
Number of carriers: 4-8
Bq2rhpcqpv
Height range between working: wheels
7
Precision honing of large and heavy components in small to medium batches.
Bore diameter range of 25.4 to 900mm
User-friendly control panel with digital cycle timer
Maximum power via hydraulic stroking motor
Accurate and repeatable stroking movement
Fully adjustable spindle and stroking speeds
Short stroke capacity
Automatic feel system as standard
Space-efficient footprint
Bg7ktx3xap
5
• Honing from 1mm to 80mm diameter
Bfryhwsfzx
• NC Control System
• Control fee 0.001 mm
• Quick set up
• Electronically adjustable rotation speed
• LCD screen
• Electronic adjustable trolley speed
• CE certified
• Remote access via Internet
8
high precision vertical honing machine, two expansion heads, where the piece moves at high speed on the spindle.
Ewkzaxi
2 years guarantee and all inclusive service
7
suitable for processing high precision components 0.001um, with minimal operator or robot assistance.
Progressive multi-spindle.
Equipped with:
- made in ITALY
- n. 4-12 spindles // tools
- n. 6-18 processing / loading / measuring stations
- tools driven by single brushless motors with torque control;
- rotary table driven by programmable brushless motor;
- ready for industry 4.0
Eazfgj0uk
- ABB / Simmens / Omron high quality components etc
