Profile bending machine Zopf
Zopf ZB 70/3 H NC

Name: Zopf ZB 70/3 H NC
Brand: Zopf
Availability: InStock

Year of construction

2024

Condition

New

Location

Haldenwang Germany

Show map

Machine data

Machine type:: Profile bending machine Zopf

Manufacturer:: Zopf

Model:: ZB 70/3 H NC

Year of construction:: 2024

Condition:: new

Price & Location

Location:: Hauptstraße 2, 89356 Haldenwang, Deutschland

Call

Details about the offer

Listing ID:: A447-8849

Reference number:: ZB 70/3 H NC

Update:: 24.03.2025

Description

Bending machine ZB 70/3 H NC
Zopf
- semiautomatic
Fodpjfkz Rbjfx Ac Hspp
- with foot pedal
- with standard roller set
TECHNICAL SPECIFICATIONS:
- three driven shafts, smooth surface
- hydraulic adjusting of the center roller
- working position horizontal and vertical
- shafts are supported by conical bearings
- slide bars on the slide-support are exchangeable
- shaft diameter: 40 mm
- roller diameter: 152/162 mm
- shaft rpm: 8,5 U/min
- voltage: 400V 50Hz 3Ph
- drivingmotor: 1,1 kW
- motor for hydraulic: 1,1 kW
- hydraulic pressure: 8 to
- adjusting way: 120 mm
- weight: 490 kg
- dimensions:
- colour RAL5012 / RAL7015
NC-CONTROL for ZB 70/3 HA:
- two axes controlled
- touch screen
- memorise of 1000 programs ech 19 steps
- interpolation
- accuracy of the y-axes 1/10 mm
- programmable forward and backward

Seller

Last online: A week ago

Registered since: 2017

49 listings online

Call

Send inquiry

Telephone & Fax

+49 8222 ... show

Fax:

These listings may also fit your interest.

Listing

Mudersbach

7,748 km

Ring & profile bending machine
OstasOPK 45 - 3

€6,400

ONO plus VAT

Call

Condition: new, Ostas Hydraulic Profile Ring Bending Machine OPK 45 - 3 Special equipment included in the price: 3 driven rollers Digital display Incl. standard roller set steel Description Hydraulic / motorized ring bending machine horizontal and vertical applicable with 3 driven rolls 3 rollers motor driven Feeding of the upper roller hydraulic Rollers are hardened Left/right rotation by means of foot pedal Shaft 50mm roller-Ø top 158 mm roller-Ø bottom 158 mm Speed 4,5 m/min Motor power : 0,75 +1,5 kW Electrical connection 400 V According to CE standard Weight 420 kg Fjdpfx Acog Tzbwj Hopp

See details

Listing

Niederlangen

7,585 km

Section Bender
AKYAPAKAPK 45

Call

Condition: new, Year of construction: 2020, I - beam section - flat steel 80 x 15 (d600) mm I-beam section - upend 60 x 10 (d800) mm L-beam 45 x 5 (d600) mm bar material - diameter 35,0 (d700) mm tube diameter 60 x 2,0 (d1000) mm square material 45x45x3,0 mm total power requirement 2,25 kW weight of the machine ca. 0,5 t Fsdpjgvqvmsfx Ac Hspp dimensions of the machine ca. 780 x 950 x 1450 mm - higher speed 6.6m/min - l-steel flat 80x15 (d600)mm - l-steel on edge 60x10 (d800) mm - Angle steel 45x5 (d600) mm - Solid material Ø 35.0 (d700) mm - Pipe diameter max. 60x2.0 (d1000) mm - Square material 45x45x3.0 mm

See details

Listing

Wiefelstede

7,608 km

Refrigeration compressor
BitzerBHS 752

€420

Fixed price plus VAT

Call

Condition: used, Refrigeration compressor, chiller, refrigeration compressor, refrigeration unit, refrigeration compressor, compressor, motor compressor, refrigeration machine -Manufacturer: Bitzer, Compressor Motor Compressor -Type: BHS 752 -Power: 4 kW / 1450 rpm Fedpfsguztgjx Ac Hepp -Volume flow: 28.11 m3 / h -Max operating pressure: 24.5 bar -Dimensions: 640/450 / H425 mm -Weight: 131 kg

See details

Listing

Enschede

7,601 km

Ring & profile bending machine
OstasOPK-65

Call

Listing

Soest

7,510 km

Profile bending machine
ZopfZB70/2H

Call

Condition: new, Year of construction: 2025, 2-roll driven profile bending machine Hydraulically adjustable top roller Fpjdpfx Ashgiuhoc Hep Shaft diameter: 40 mm Roller diameter: 152-162 mm Revolutions: 8.5 per min. Top roll adjustment: 120 mm Capacity table: in the attachment Machine available in various versions: Manual adjustment, 3-roll driven etc.

See details

Listing

Refrigeration compressor Bitzer BHS 592 S

Wiefelstede

7,607 km

Refrigeration compressor
BitzerBHS 592 S

€380

Fixed price plus VAT

Call

Condition: used, Refrigeration compressor, chiller, refrigeration compressor, refrigeration unit, refrigeration compressor, compressor, motor compressor, refrigeration machine -Manufacturer: Bitzer, Compressor Motor Compressor -Type: BHS 592 S Fpodjguzr Hepfx Ac Hop -Power: 3 kW / 1450 rpm -Volume flow: 22.14 m3 / h -Max operating pressure: 24.5 bar -Number: 2x cooling unit available -Price per piece -Dimensions: 550/315 / H390 mm -Weight: 88 kg

See details

Listing

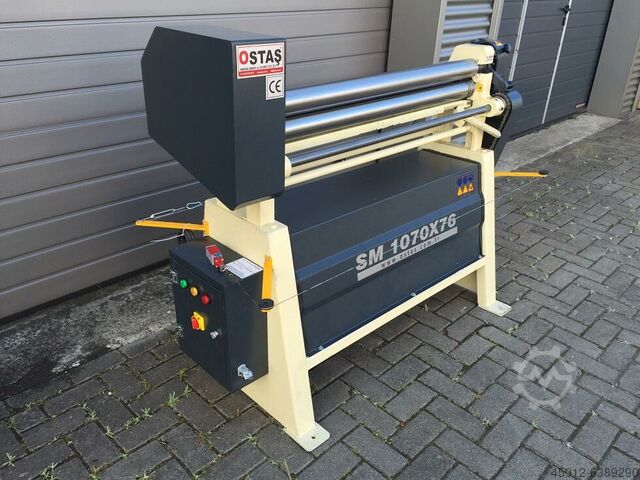

Round bending machine OSTAS SM 1070 x 76
