CNC Tilting Rotary Table

TSUDAKOMA TTNC-1500

Condition: ready for operation (used), Schiess 80 DF Type: 80 DF 700/900-550/280 Originele CNC-machine van Schiess (geen ombouw van conventioneel naar CNC) Volledig hydrostatische machine Gelaste kolom Siemens-motor Uitgerust met een controlelift om de bovenkant van het werkstuk te bekijken Machine met zeer hoge tolerantie Iedpfov Rwdpox Ah Uebd Tafeldiameter: 7000 mm Maximale diameter van het werkstuk: 9000 mm Maximale belasting: 315 ton Snelheid: 0,25 25 tpm Maximaal rotatiekoppel: 63.000 kgm Maximale snijkracht met uitgeschoven ram tot 900 mm: 12.500 kg Gereedschapskop kan -40° tot +40° kantelen Vermogen: 125 kW gewicht van de tafel: 71 ton Ramsectie: 380 x 380 mm Horizontale verplaatsing van de ram vanaf het midden van de tafel: 5640 mm Verticale slag van de ram: 2800 mm Maximale hoogte onder dwarsbalk: 5547 mm Horizontale verplaatsing van de dwarsbalk: 4700 mm Uitgerust met 3-positie automatische gereedschapswisselaar Totaalgewicht van de machine: 260 ton! Unieke eigenschap er zijn 3 mogelijke configuraties van de hoofdkolom: 1 - voor maximale zwenking 9000 mm (zoals momenteel ingesteld) 2 - voor max. zwenkbereik 10.500 mm 3 - voor maximale swing 13 100 mm Dit kan worden bereikt door de hoofdkolom opnieuw op het fundament te positioneren.

Condition: good (used), Year of construction: 2002, functionality: fully functional, USED Soraluce Soramill Model SP 10000 Travelling Column, Table Type CNC Milling Centre, with Automatic Oil Mist Lubricated Orthogonal Milling Head with 1 X 1 Degree Indexing and HEIDENHAIN TNC 430 M Control System. Year 2002 SN 8647 Table Area - 10000 x 1100 mm Column Traverse (X) - 8500 mm Vertical Traverse (Y) - 1600 mm Ram Traverse (Z) - 1200 mm Spindle Motor - 28 kW Spindle Taper - Standard ISO 50 BT50 tooling Pullstud - DIN 6987 2-Form A. ISO 7388/2-Form A Independent Gearbox with 2 Ranges Speed Range - 20 to 4000 RPM Feed Range - 5 to 5000 mm/min Rapid traverse rate - (X, Y, Z) 15,000 mm/min Preloaded double nuts and recirculating ballscrews to each axis. Linear Guiding System with recirculating cylindrical rollers and steel guideway assemblies in X, Y and Z axes Independent A.C Drive motor to each axis. Linear Transducer in X, Y and Z-axes with air purge system. Automatic tool clamping. Automatic hydraulic tool releasing device. CNC Control HEIDENHAIN TNC-430-M. (Flat TFT screen with digital drives) 9 axes CNC and 1 spindle, 5 of them simultaneously interpolated. Working area lighting Electrical cabinet cooling system Electrical cabinet lighting Heidenhain HR410 portable electronic handwheel with 3m spiral cable Horizontally articulated pendant for CNC control Orthogonal head 28KW, 800Nm, 1deg x 1 deg, 4000rpm oil lubricated Price includes oil cooling unit for both head and gearbox. Option G2, Ram prepared for 4000rpm, is also included. Coolant through the spindle type AD. Coolant system with 500l capacity tank with two pumps providing low and high pressure of 3 and 8 bars and 50l/min flow. The system includes a combined paper and magnetic drum-filtering unit. Standard operators platform fixed to the column 40 tools capacity toolchanger magazine, BT50 Max. Tool length = 400 mm. Max. Tool diameter: - With full magazine = 120 mm. With adjacent position empty = 250 mm. Max. Tool weight = 20 kg. Mean tool weight with full magazine = 10 kg. Max. Permitted total weight = 20 kg. Swarf Conveyor Isdpsr Hr Arefx Ah Uobd Hinge type conveyor belt Machine preparation for the addition of a 4th axis electro-mechanical table. Splash Guarding against swarf at the table front and both sides. Consists of four sliding front doors with a height from the floor of 2.100mm and a length of 1.700mm each one. Manually operated opening and closing with mechanical interlock. The doors can be opened for the full longitudinal traverse. The rear of the table is open. Protection in the back and both lateral sides of the machine column.

Condition: good (used), Year of construction: 2009, functionality: fully functional, travel distance X-axis: 6,000 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 2,000 mm, rapid traverse X-axis: 20 m/min, rapid traverse Y-axis: 15 m/min, rapid traverse Z-axis: 15 m/min, rotational speed (max.): 5,000 rpm, table length: 4,000 mm, table width: 2,000 mm, Sachman PX 120 Travelling column milling and boring machine with: - X-axis travel 6000 mm - Y-axis travel 1200 mm - Z-axis travel 2000 mm - Heidenhain TNC 530 control unit - CNC rotary-translating table 2000 x 2000 mm - Stolle table 4000 x 2000 mm - KOSMO 3 automatic head 0.02° x 0.02° Ibjdpfx Ajv Acatoh Usd - 60-place tool magazine - chip conveyor - standard accessories Free extension in 12/24 months

Condition: good (used), Year of construction: 1998, Make: Waldrich Coburg Year: 1998 original CNC Control: Siemens 840-C Chuck dia: 4500 mm Turning dia: 5750 Turning height below tool post: 4600 mm Chuck motor: 100 KW Chuck speed: 0.56 to 71 rpm! Table load capacity: 80 Tonnes Hydrostatic chuck Ram travel vertical: 2500 mm Ram rapid vertical/horizontal axis: 10/16m/min Ibsdpfoxn Rvvjx Ah Uod Crossslide travel: 3000 mm With Grinding attachment

Condition: used, Year of construction: 2025, faceplate diameter 2.500 mm swing diameter 3.000 mm turning height 2.000 mm Control Fanuc max. Torque 55.010 Nm cutting capacity max. 5.000 kgf max. workpiece weight 15.000 kg table: table diameter 2.500 mm table speeds 1,0 - 150 1/min power capacity - table 60/75 kW C - Axis: resolution 0,001 ° Working speed 0 - 900 °/min max. table speed 2,5 1/min turret slide: Shank diameter 50 mm spindle cone ISO 7/24 / No.50 Spindlespeed 15 - 1.500 min/-1 power capacity - Tool Spindle 22 / 26 kW max. Torque 280 Nm ram cross section 280 mm axis stroke: x-axis 1.700 mm z-axis 1.600 mm cross rail adjustment 1.000 mm Tool-Presetter: tool taper MAS-BT 50 number of toolpositions 24 (12 + 12) pos. max. tool weight 70,0 kg draw bolt P50T-I feeds: Ibsdpfxovp Sc De Ah Usd rapid feed (X / Z) 10,0 m/min feed speeds max. 10.000 mm/min rapid traverse of the crossrail 300 mm/min total power requirement 200 kVA weight of the machine ca. 60,0 t dimensions of the machine ca. 11,00 x 9,00 x 8,50 m CNC - Vertical Turret Lathe HANKOOK - VTB 250 E - NEWMACHINE (related picture)

Condition: good (used), Year of construction: 2015, functionality: fully functional, workpiece weight (max.): 100,000 kg, turning diameter: 6,000 mm, rotational speed (max.): 25 rpm, spindle speed (min.): 25 rpm, travel distance Z-axis: 1,500 mm, Main Technical Features • Manufacturer: SCHIESS Model: 18’ VBM Chuck Diameter: 5,500 mm Maximum Turning Diameter: 6,000 mm (distance between columns) Maximum Workpiece Height: 4,400 mm Movable Crossrail: 3,000 mm travel RAM (Z-axis): 1,500 mm travel Maximum Weight on Chuck: 100 tons Rotation Speeds: Range I: 1-8 rpm; Range II: 5-25 rpm • CNC Control: FAGOR 8055 (2015) Machine Condition: In operation and dismantled Isdpfx Ahexnyh Us Ujbd SCHIESS 18’ VBM vertical lathe—a robust machine featuring the oversized capacities typical of its era. Manufactured in Germany and retrofitted in 2015, this lathe is ideal for machining large, heavy workpieces. It is suitable for a wide range of industries, including metallurgy, general machining workshops, mechanical component production, heavy structural fabrication, and energy generation. PRICE AND FURTHER INFORMATION ON REQUEST (CNC, SIEMENS, HAAS, LAGUN, FAGOR, CINCINNATI, HEIDENHAIN, MACHINING, PINACHO, MORI SEIKI, MILLING MACHINE, LATHE, GRINDER, BORING MACHINE, PRESS, LASER, SHEAR, PRESS BRAKES)

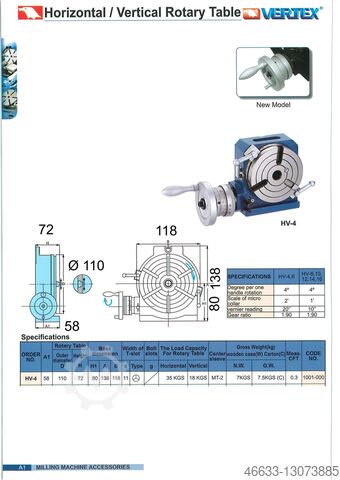

Condition: new, Year of construction: 2023, functionality: fully functional, faceplate diameter: 110 mm, working height: 72 mm, Rotary Table HV-4 for horizontal and vertical use Producer: VERTEX Type: HV-4 Year of Construction: 2023 Serial Number: - Direction of Use: horizontal, vertical Mounting Plate: Ø 110mm Ibsdpfx Ahopr Ur So Uod Centre Sleeve: MK2 through hole Flatness of Clamping Surface: ±0,015mm/100mm Parallelism of Clamping Surface to Ground: ±0,02mm/100mm True Running of Clamping Surface: ±0,015mm/100mm Workpiece Weight horizontally: max. 35 kg Workpiece Weight vertically: max. 18 kg Weight: 7 kg Scale Ring: 360° Quick clamping device: yes Gear: Worm gear ground, hardened & adjustable, 90:1 Ort: Austria / Vienna Condition: new, originally packed Description: Simply viewed, a dividing head is a turntable on which a workpiece can be attached directly or using clamping aids. The plate can be rotated to any desired angle, either with a crank and scale ring or with high precision using a pin and a perforated disk (optional accessory). Application: Support Tool for the production of gears, belt wheels, perforated disks, ... Dimensions see drawing
