Thread Rolling Machine

SENY D.44. EH

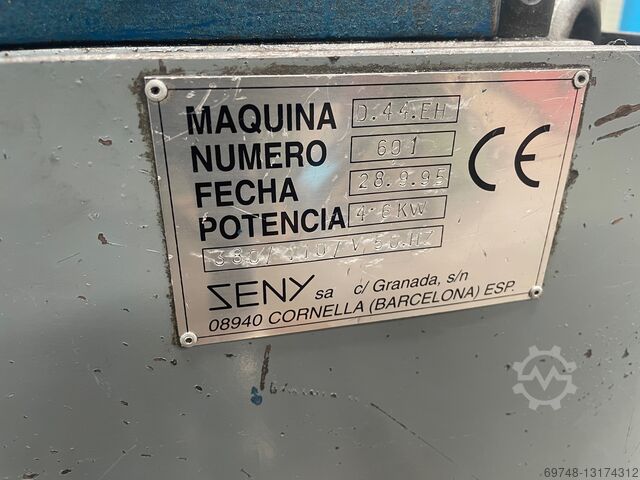

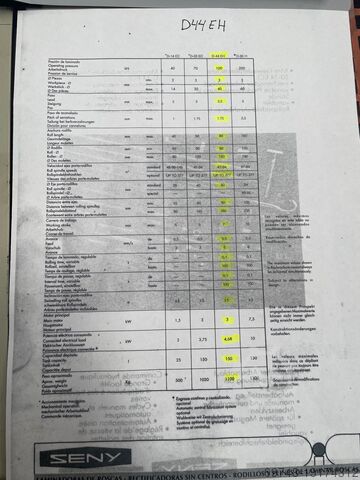

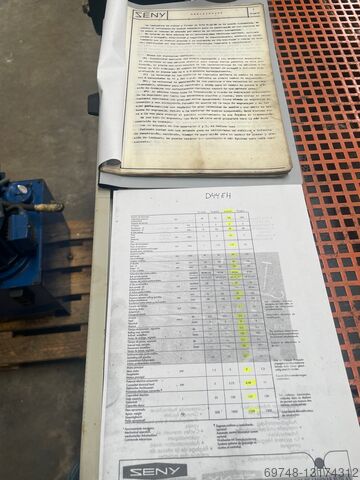

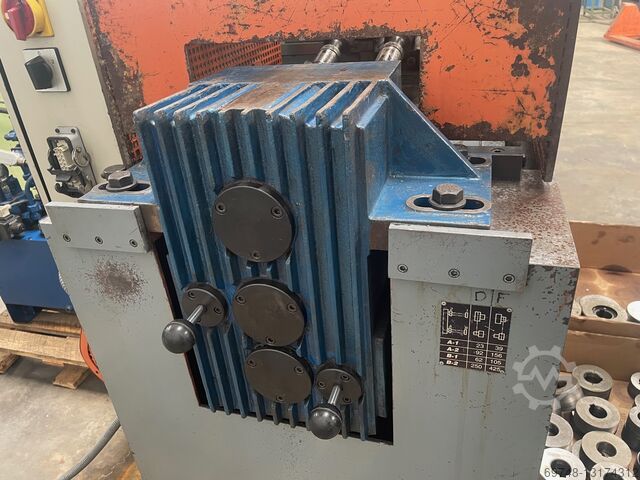

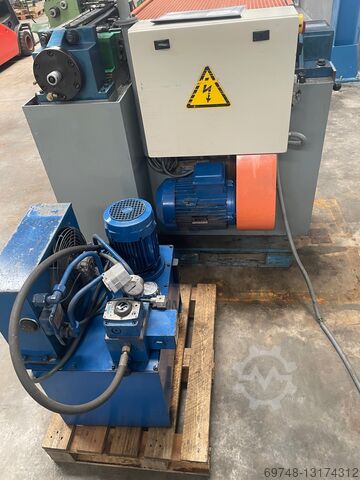

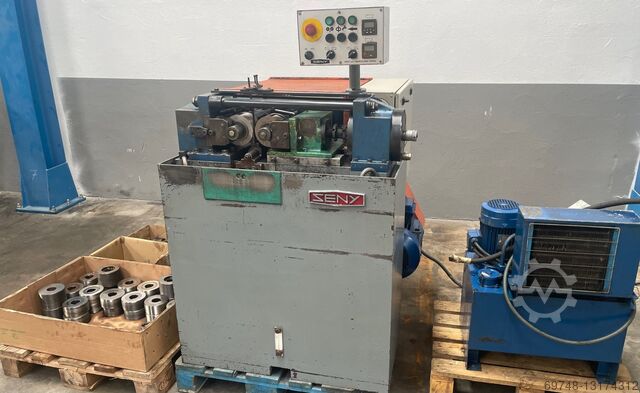

Year of construction: 1995, condition: good (used), 2 Die Thread Rolling machine SENY, Type D-44 EH, Versatile for all types of work, manual and automatic cycles, easily adapted to automating loading,range of cycle times and roll speeds.operating pressure 100Kn, workpiwcw min 3mm max 40mm,lead 3,5 max, pitch of serrations 1,75mm max, roll length 80mm, diameter roll min 80mm max 120mm,roll spindle speeds 47-94, roll spindle diameter 40mm,distance between rolling spindles 80mm minim 165mm max, working stroke 7, feed 0,5mm/s minim 6mm/s maxim, rolling time,variable 0,1-100 seg, swivelling roll spindles +-5º,main motor 3Kw, connected electrical load 4,68kw, tank capacity 150L,aprox weigth 1100kg Pedpfjpwbvkox Amljgu

Condition: refurbished (used), ORT RP30 C thread rolling machine 2-roll 30 tons electronic control of speed and position. Brushless motors for the rotation of the rollers Possibility to memorize the parameters for the piece. Pgjdpfxsyzt T Ts Amleu The machine is visible working in our warehouse in Gussago BS. Test possibility Mimu Machine Tools Rolling is a mechanical processing without chip removal that can be performed cold or hot, having as an aim the improvement of the surface finish (therefore the apathetic behavior of the material. Power (Ton): 30 Number of rollers: 2 PLC: YES

Condition: reconditioned (used), workpiece diameter (max.): 60 mm, roll diameter: 185 mm, roll width: 150 mm, One - Reconditioned ORT Model RP18 - 18 ton Hydraulic Thread Rolling Machine with fixed rolling spindles for in-feed rolling or thru -feed rolling with helical thru-feed dies. Including new rolling spindles , new bearings and new worm gears & shafts etc Max rolling dia: 60mm - Max rolling width with in-feed dies: 150mm - Max rolling width with thru-feed dies: infinite Spindle diameter : 69.85mm & 80mm - Power of main motor: 7.5kw Pedeyml Ekopfx Amlogu With one pair of spindle sleeves 69.85mm i.d. x 80mmo.d. & 17 sets thread dies 60mm, 120mm & 180mm wide from M6 to M24 Photographs taken before reconditioning

Condition: excellent (used), Year of construction: 1995, functionality: fully functional, Emcomat Emco EM20D Lead and Feed Lathe, built in 1995, in excellent condition, CE compliant! Technical specifications: >> Year of manufacture: 1995 >> Center height 200 mm >> Swing over bed 400 mm >> Swing over cross slide 250 mm >> Turning length: 1000 mm >> Spindle speed: 4 speed levels, continuously variable from 35-3000 rpm >> Quill stroke 120 mm >> Tailstock: MT3 Pgedewag Stspfx Amlju >> Spindle bore: 50 mm >> 20 longitudinal feeds 0.045 / 0.787 mm/rev >> 20 cross feeds 0.023 / 0.406 mm/rev >> Space requirements / installation dimensions approx. length 1.900 x depth 0.9 x height 1.3 meters >> Weight approx. 850 kg Accessories and equipment: >> 3-axis position indicator >> 1 piece Three-jaw chuck with 1 set of jaws >> Tool holder with 3 pockets >> Chip return wall >> Coolant system >> Bed stop About the machine: Offered is an Emcomat 20D centerline and feed spindle lathe, built in 1995, in lightly used condition. The machine is fully functional. All slides run very smoothly and evenly. The bed guides are in very good condition. Take advantage of the opportunity to view this machine on-site under power and see for yourself its condition.

Condition: excellent (used), Setting rings Pgjdodx E Hrspfx Amlju Diameter 40 mm - 0.001 " 35 mm - 0.001 mm " 32 mm h6 " 31.4 + 0.001 " 30.001 " 29 - 0.002 " 28 + 0.000 " 24.995 " 14 " 12 - 0.001 " 11.000 " 10.001 " 8 - 0.001 " 6 - 0.002 " 4 + 0.001 Setting rings can also be sold individually.

Condition: excellent (used), overall weight: 1,350 kg, spindle diameter: 40 mm, type of input current: three-phase, total height: 1,500 mm, total length: 1,000 mm, total width: 1,000 mm, One - Very Good Used ORT Model RP10/U - 10 ton Hydraulic Thread Rolling Machine with swivelling spindles for in-feed or thru-feed rolling Max. threaded diameter: 30mm Min.threaded diameter: 2mm Max. width in-feed rolling: 65mm Power of main motor: 4 kw Complete with coolant equipment , work rest blade holder ,open fronted spindle front supports for Pjdpszt R Rwefx Amljgu easy access with small dia. components - 13 set of in-feed thread dies

Condition: excellent (used), Year of construction: 2006, CNC machining center with horizontal moving column, equipped with automatic tool changer, linear digital scales on X, Y, and Z axes, and Siemens 840D computer numerical control (CNC). Includes all standard machine equipment: Travel: X = 1500 mm (60”) Y = 1500 mm (60”) Z = 810 mm (32”) Spindle speed range: 20 – 6000 RPM Pgedpfx Asycxnkomlju Operator station mounted on the platform with CRT display Portable pushbutton station for manual machine control Pushbutton for machine setup Platform-mounted safety door with electrical interlock Cartridge-type spindle with automatic power draw-in and quick-change system 90-tool oblong matrix tool magazine, double chain, mounted on the carriage for interference-free storage Tool chain guard with electrical interlock Tool change mechanism mounted on the carriage, transferring tools between the tool magazine and the spindle Complete assembly consisting of a double arm and its corresponding tool change mechanism, transferring tools from the magazine to the spindle and vice versa, operated by a hydraulic cylinder. Double arm. Rotation is powered by a hydraulic motor, and the in/out movement is operated by a hydraulic cylinder.
