Pipe laser cutting machine
Pipe Laser Cutting Machine G-12 3KW

Name: Pipe Laser Cutting Machine G-12 3KW
Brand: Pipe Laser Cutting Machine
Availability: InStock

Year of construction

2025

Condition

New

Location

Erwitte

Pipe laser cutting machine Pipe Laser Cutting Machine G-12 3KW

Show map

Machine data

Machine type:: Pipe laser cutting machine

Manufacturer:: Pipe Laser Cutting Machine

Model:: G-12 3KW

Year of construction:: 2025

Condition:: new

Functionality:: fully functional

Price & Location

Location:: Overhagener Weg 44, 59597 Erwitte, Germany

Call

Technical details

Laser power:: 1,500 W

Positioning speed:: 80 m/min

Repeat accuracy:: 0.03 mm

Input frequency:: 50 Hz

Warranty duration:: 24 months

Working range:: 6,000 mm

Equipment:: cooling unit, safety light barrier

Details about the offer

Listing ID:: A168-72676

Update:: 10.11.2025

Description

G-12A
HIGH SPEED PROFESSIONAL TUBE LASER CUTTING MACHINE 1500-3000W
The G series is equipped with many high-quality components with extreme performance and powerful cutting functions,suitable for tube cutting of various types and diameters

● The Highest Standards of Chucks in the Industry
● Two Methods for Fewer-tailing Cutting
Gusdpsuc Sifefx Ah Uei
● Variable Diameter Wheel Supporting
● Automatic Unloading Device
● Super Dust Removal System
● Patented Dust Baffle
● High-strength Cage Structure Welded Machine Bed
Technical Parameter:
Power: 1500W-3000W
Maximum Tube Processing Size: 6000mm*φ120mm
Max. Rotating Speed of Chucks: 160r/min
X/Y-axis Positioning Accuracy≤0.05mm
X/Y-axis Repositioning Accuracy≤±0.03mm
Maximum positioning speed: 80m/min
Max. Acceleration: 1.5G
Round Tube Processing Dim: Φ10mm-Φ120mm
Square Tube Processing Dim: 10mm*120mm
Overall Dimensions: 9000mm*2700mm

The Highest Standards of Chucks in the Industry
The highest standards of chucks in the industry with strong clamping force, high rigidity, high speed, and stable performance

Two Methods for Fewer-tailing Cutting
Support two fewer-tailing cutting methods , choose one of them on the software interface according to different tube diameters

Chuck double jaws: standard double jaws, small tube cutting precision is guaranteed

Support: 2 sets of variable diameter wheel support standard (optional to increase to 3 sets)/optional servo support

Unloading: [3M/4M] cylinder unloading rack/optional-[3M/4M] servo unloading rack/optional

Loading: [Fully automatic loading rack/simple fully automatic loading rack/semi-automatic loading rack]/optional

Dust removal: standard rear card hollow dust removal

Short tail: chuck fixed, crossbeam fixed, short tail, front card open, rear card

Continue to move forward, shorten the tail, ≥80 mm; if the short tail
function is not used, the tail is about 200 mm

Variable Diameter Wheel Supporting
G Series has a wide range of cutting for various types and diameters of tubes, supported by the variable diameter wheel

Automatic Unloading Device
Efficient automatic unloading, saving time and labor costs, greatly improving production efficiency

Super Dust Removal System
The super dust removal system with ventilation design inside the chuck and the tube reduces the slag hanging in the tube, which is independently researched and developed by Glorystar

Patented Dust Baffle
Patented dust baffle protects important components from pollution and ensures stable performance

High-strength Cage Structure Welded Machine Bed
The industry’s highest-quality high strength cage structure welded machine bed with long life, anti-vibration, anti-torsion and anti-deformation

Seller

Registered since: 2024

46 listings online

Call

Send inquiry

Telephone & Fax

+86 137 1... show

These listings may also fit your interest.

Listing

Laser cutting machine BAISON Laser M3 3kW 3x1.5m compact laser cutting

Coevorden

7,565 km

Laser cutting machine
BAISON LaserM3 3kW 3x1.5m compact laser cutting

Call

Condition: new, functionality: fully functional, Year of construction: 2024, laser power: 3,000 W, Description BAISON M3: (3 kW) from stock Europe. table length 3.050 mm table width 1.530 mm laser head Ray-tools autofocus laser capacity in Kw 3 Raycus total power requirement 25-30 kW We can deliver from (1 till max 6 Kw) overall dimensions 4750x2260x2100 mm weight of the machine ca. 4.550 kg Configuration: - Raycus Laser source 3 Kw (opt. other laser power) - Cypcut (full option control) - High integrated, simple operation, leading technology - Ray-tools autofocus cutting head - Nesting, With leapfrog, Edge seeking, Fly cutting - 2x LCD monitor control, keyboard, control panel - central Lubrication system - video camera inside machine Cutting capacities: - normal steel 20 mm - stainless steel 12 mm - aluminum 10 mm - brass 8 mm - copper 8 mm Axes: - Machine axes: 3 axes (X, Y, Z,) - X-axis travel 3050 mm - Y-axis travel 1530 mm - Z-axis travel 100 mm - Axis speed X / Y: 120 m / min - Positioning accuracy: +/- 0.03 mm/m - Repeatability accuracy +/- 0.03 mm – Acceleration max. 1,2 G Table platform 1500mm complete outside for leading: - table load 1000 kg. assisting gases: - mild steel - oxygen (0.5 - 2 bar) - stainless steel - nitrogen (5 - 16 bar) - Aluminium - compressed air or nitrogen (5 - 16 bar) including: - Complete safety features for CE - Safety relay - Protection grade IP54 - Spare part basic supply package with nozzles and lenses - Professional software for cutting and nesting metal sheets - AC unit for electrical cabinet - Pneumatic table holders clamps for thin metal sheet, anti-vibration system - Automatic door-up and table-out system - Dual temperature water cooling system Why CNC Top Ten bv - Cnc Top Ten company have over 50 year experience in CNC machines. - And we have more service and sales locations in west and east Europe - our service team know from beginning how to respect service, installation and training. Guodpfx Ajvcbf Ish Usi - for this machine the installation and training is 1 week. Not included in machine price. - we can offer cost also depend on end-user place and country. - Machines for cutting sheets metal - Fiber laser is the green laser technology for the future - (Saving of at least 50% energy costs) - Components / therefore very low-maintenance - Save up to 50% per part through more efficient production - In addition, precise cuts and smooth surface quality - Heavy-duty constructed frame, - equipped with world-famous, durable, high-quality components - Light barrier for moving table, safety protection - Complete CE standard Official Seller CNC Top Ten bv Coevorden Netherlands

See details

Listing

Welding Machine EWM AG Tetrix 300 Comfort Puls

Germany

7,870 km

Welding Machine
EWM AGTetrix 300 Comfort Puls

Call

Year of construction: 2021, condition: ready for operation (used), 20 identical welding machines are available. Type: cool41 U31, standard: IEC 60974-1, -2, -10 C.L.A, mains voltage: 400V, frequency: 50/60Hz, protection class: IP23, power consumption P min: 0.9kW, cooling capacity P max: 0.35MPa (3.5bar), max. current consumption: 2.5A, length: 539mm, width: 210mm, height: 415mm, weight: 22kg. Control: Comfort 2.0 with intuitive operation via click wheel, pulse spot normal mode continuously adjustable (especially for TIG welding), pulse pause ratio (balance) adjustable for example from 10-90%, Hz and kHz pulses up to approx. 15kHz, ActivArc technology dynamic arc control to ensure constant performance despite distance fluctuations and to prevent electrode sticking, improved root and penetration quality, spotArc Spotmatic functions for spot welding and tacking, 2-stroke and 4-stroke mode depending on torch trigger operation, manual metal arc welding often with MMA pulse automatic also integrated, gas pre-flow and post-flow times adjustable, upslope and downslope times also controllable, torch modes via torch trigger such as reduced secondary current, memory and job storage recurring welding tasks can be saved depending on version approx. 8-100 jobs, energy efficiency high efficiency, standby function available. Remote control and interfaces remote adjusters and functional torches can be connected, optional LAN WiFi gateway ewm Xnet, PC interfaces for parameter setting and monitoring. Very little used. An on-site inspection is possible. Guedpfsxdc Upjx Ah Usi

See details

Listing

Wiesbaden

7,810 km

Circular saw
unbekanntunbekannt

Call

Listing

Częstochowa

8,372 km

Welding robot
OKIOAB-1410G

Call

Listing

Oldenzaal

7,597 km

Profile bending machine
ErcolinaCE40H3

Call

Condition: good (used), Brand Ercolina Model CE40H3 Year of manufacture 2006 Hydraulic drive Roller diameter Ø 165 mm Shaft Ø 40 mm Tube capacity (thin-walled) Ø 70x1.5 mm min. Ø 700 mm Tube capacity (thick-walled) Ø 2" x 3.2 mm min. Ø 450 mm Angle section capacity 50x50x6 mm min. Ø 400 mm Flat bar capacity 50x10 mm min. Ø 250 mm Flat bar capacity (hard edge) 100x15 mm min. Ø 250 mm Box section capacity 50x50x3 mm min. Ø 500 mm Shaft capacity Ø 35 mm min. Ø 250 mm Power 1.85 kW Bending speed 10 rpm. Gsdpow Hx Tvefx Ah Uoui

See details

Listing

Wolica Druga

8,541 km

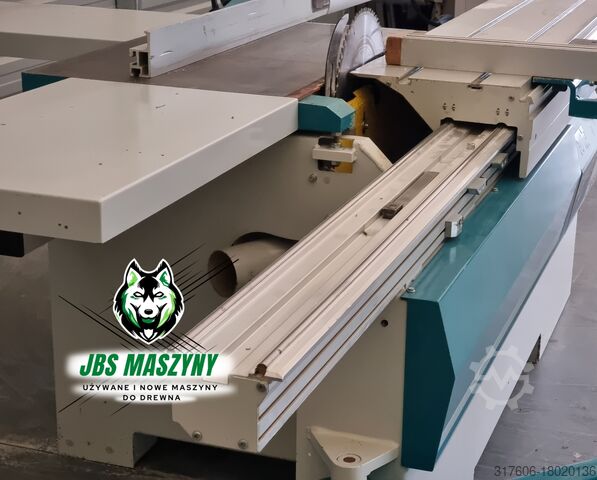

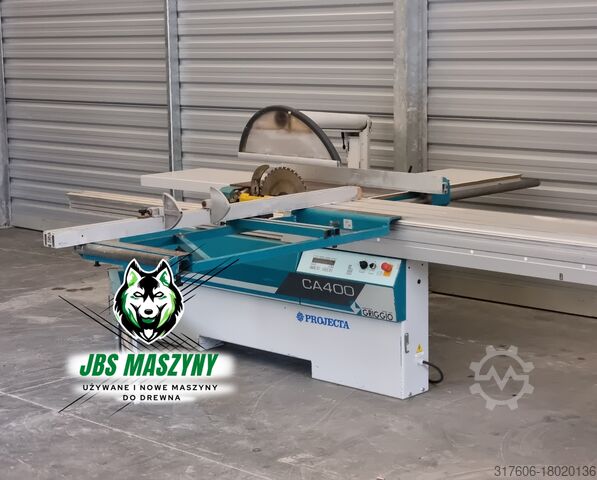

Sliding table saw
