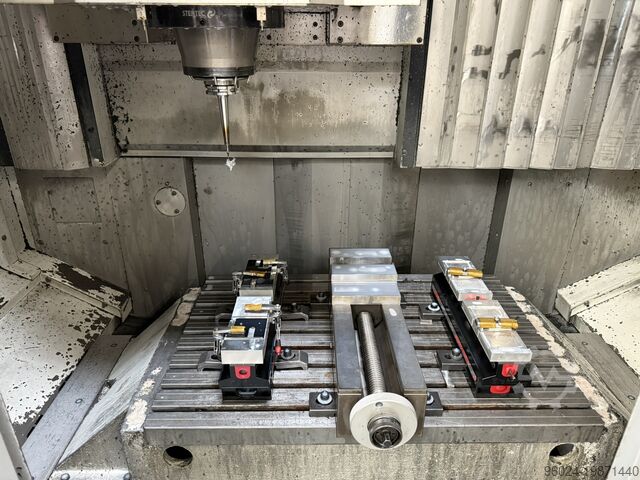

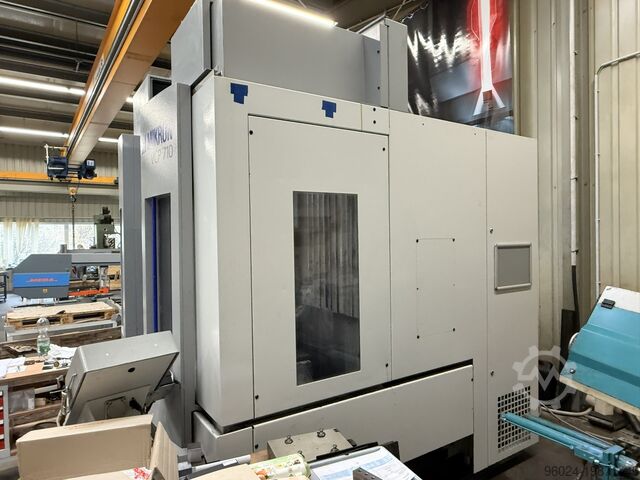

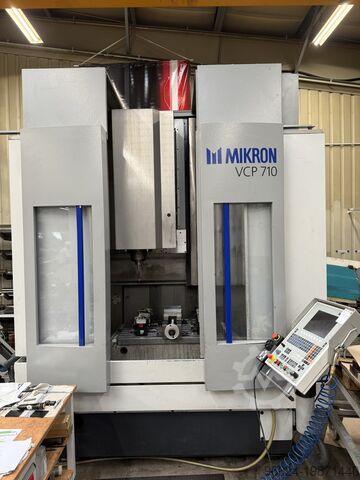

Vertical machining center

MIKRON VCP710

Condition: good (used), Year of construction: 1998, operating hours: 6,000 h, functionality: fully functional, machine/vehicle number: 107.40.98.165, Year 1998 Heidenhain TNC 430 710x500x500 mm - 42000 RPM Netweight 5670 kg Dimensions 2794x2997x3035* mm TECHNICAL DATA Table Dimensions 1220 x 457 mm Admitted load 1575 kg T-grooves 14 mm Number of T-grooves 5 Travels Longitudinal X 1016 mm Transverse Y 508 mm Vertical Z 635 mm Workspindle Power of AC-motor, 2-stepped gears 11kW Speed range, continuous 10-7500 min-1 Spindle speed (option) 10'000 rpm Taper ISO40 Feeds drive Feed programmable axes X, Y & Z 0 – 7620 mm/min Rapid feed axes X, Y, Z 18,0 m/min Automatisation Tool changer 20 pos Tool changing time (for nearby posts) 5,0 sec. Fpjdpfx Afecl Rureusd errors and omissions excepted-data given without obligation Inventory Nr.4112006, machine equipped with  : NC Heidenhain TNC430M Milling spindle 42’000 min-1, HSK 40 E 36 tool positions Electronical handwheel Tool measuring Renishaw TS27 Ethernet card Minimal quantities greasing Unilube Aspiration Lumestat Protection cabin Rotary table Air passage through rotary table Vacuum clamping (by external provider) Spray gun Chips conveyor

Condition: used, TECHNICAL DETAILS - Number of axes : 3 MILLING SPINDLE - Tool holder type : HSK40 - Spindle speeds : 12.000 [rpm] - Spindle power : 7,6 [kVA] LINEAR AXES - Travels on X/Y/Z axes : 500 / 410 / 610 [mm] TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 26 - Tool exchange time : 0.7 [sec] TABLE - Table dimensions : 650 x 400 [mm] - Maximum weight upon table : 200 [kg] POWER SUPPLY - Supply voltage : 220 [V] - Total installed power : 25 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 1.640 x 2.100 [mm] - Machine height : 2.274 [mm] - Machine weight : 2.250 [kg] MACHINE HOURS - Number of working hours : 9070 [h] EQUIPMENT - CNC : BROTHER A00 - Electronic handwheel - Interface : RS232 - Workpiece probe : Renishaw OMP 60 - 4th axis : LEHMANN sans variateur - Chips conveyor - Coolant tank - Coolant through spindle : 70 [bars] Fodpfx Ajuhbt Rofuspd - Oil mist extractor : AAF Astrosta - Electric transformer - Tool-holders : 42

Condition: used, Technical details: Fedpfsu Ix Rpjx Afuepd turning diameter over bed: 1040 mm turning diameter over support: 720 mm centre distance: 5400 mm center height over bed: 540 mm control: Siemens 828D CNC mit shop turn turning dia. in gap: 1300 mm length of gap: 640 mm spindle bore: 152 mm revolution per minute: 3,5...1000/ 4 steps U/min feed:: x-Achse: 37,24 (m/min) m/min feed:: z-Achse: 21,91 (m/min) m/min force of feed longitudinal: x-Achse: 6,44 (KN) N feed force Z - max.: 17,2 (KN) N tailstock taper MT: MK 6 tailstock quill stroke: 300 mm total power requirement: ca. 30 kW weight of the machine ca.: 14,1 t space requirement approx.:: L:7,7xB:1,7xH:2,0 m CNC Lathe with shop turn Geometric overhaul is in procedure. Equipment: - headstock Morse 6, travel of spindle sleeve 300mm - thread cutting possible (metric thread, inch threads, module threads) - multi quick steel holder swiveable 360° - 3-jaw lathe chuck Ø=630mm - chuck protection - 2 steady rests (Lynettes) (1x fixed + 1x fixed open) - 4 pcs tips for tailstocks - 5 x multi quick change steel holder for chisel - 1 x drill chuck 16mm + 2x drills with MK-cone sleeves 68,5mm & 24,75mm - 1 lot self constructed clamping means Accessories: - face chuck Ø=800mm (adaptation necessary) - CNC turning with shop turn - your benefits at first glance: - flexible programing via graphic interactive (without DIN/ISO knowledge) or text programming with contour definition and cycle support - user friendly operation through practical set up -and measuring operations, clearly arranged tool managment and 3D-Simulation - increase of productivity via supporting PC-Software for work preparation without machine assignment *

Condition: good (used), Year of construction: 1999, Offered is a used CNC milling machine CHIRON FZ 22 S high speed with Siemens SINUMERIK 840D control. The machine is already dismantled and ready for loading. Manufacturer: CHIRON - Works 78532 Tuttlingen Type: FZ 22 S high speed Machine no.: 497-55 Chip conveyor: Knoll 340 K-1/500 Spindle hours: 2355 h year of construction: 1999 Weight: 6500 kg Inspection report measurement from 2021 available x-way: 750 mm y-way: 520 mm z-travel: 630 mm spindle holder: SK 40 Fpsdpfxjkr E Nns Afusd CNC control: Siemens SINUMERIK 840D table size: 1150 x 570 mm max. table load: 1200 kg tool changing device: 20 pos. Coolant device operating voltage: 400 V total power requirement: 32 kVA space requirement W x L x H: approx. 2.00 x 3.80 x 3.0 m The price is net, plus VAT, ex works free loading.

Condition: like new (used), Year of construction: 2005, functionality: fully functional, turning length: 450 mm, spindle speed (min.): 25 rpm, spindle speed (max.): 6,000 rpm, travel distance X-axis: 213 mm, travel distance Z-axis: 450 mm, rapid traverse X-axis: 24 m/min, rapid traverse Z-axis: 30 m/min, bar passage: 65 mm, Siemens 840 D CNC Working area Max. swing diameter on bed 505 mm Swing diameter on X-slide 375 mm Chuck diameter 210 mm Bar capacity 65 mm Transverse travel (X) 213 mm Longitudinal travel (Z) 450 mm Feed rates X/Z-axis rapid traverse 24/30 m/min Main spindle Spindle nose (flat flange) 140 h 5 mm Internal diameter of front bearing 100 mm Spindle motor power (40/100% DC) 16/12 kW Torque (40/100% DC) 153/115 Nm Spindle speed 25 - 6.000 rpm Tool turret Number of tool stations 12 Of which motorized 12 Shank diameter (according to DIN 69880) 30 mm Motor power (40% DC) 9 kW Maximum torque (40% DC) 20 Nm Maximum speed 4.500 min-1 Tailstock Tailstock stroke, automatic 450 mm Fodpfxew Adhwj Afuspd Center point attachment 4 CM Tailstock thrust, max 400 daN Machine equipment: • Chip conveyor • Provision for fume extractor • 2 axial motorized modules • 4 radial motorized modules • Fixed tool holders

Condition: used, Year of construction: 1995, functionality: unexamined, machine/vehicle number: XXX, We are going to sell 3 wire edm machines and 1starthole edm machine Fedpfstylpcox Afuepd

Condition: excellent (used), Year of construction: 1997, functionality: fully functional, machine/vehicle number: 1114.3705-24, Used CNC Lathe Make: Boehringer Type: VDF 250Cm Year of Manufacture: 1997 VDF Boehringer 250C The machine has the following features: 1000mm turning length No tailstock Driven tools Special indexing chuck Siemens 840C control system The Boehringer VDF 250Cm is a CNC lathe designed for machining chucked parts. It is characterized by its robust construction and precise machining capabilities. Technical Specifications (Model Year 1997) Working Area: Swing over Bed: 550 mm Swing over Cross Slide: 480 mm X-Axis Travel: 405 mm Z-Axis Travel: 1,099 mm Maximum Turning Length: 1,000 mm (None) Tailstock: Tool Turret: Number of Positions: 12 Tool Holder: VDI 50 DIN 69880 Live Tools: YES Spindle: Fjdpfx Aewlap Asfuopd Spindle Head Size: 8 DIN 55026 Spindle Bore: 103 mm Max. Chuck Diameter: 315 mm Max. Drive Power (50% Duty Cycle): 53 kW Max. Torque: 780 Nm Speed Range: 30–3,000 rpm Feeds: Automatic Feeds: 1–10,000 mm/min Rapid traverse speed: 10 m/min (X and Z axes) Max. feed force: 15 kN Dimensions and weight: Machine dimensions (L × W × H): approx. 5,400 × 3,200 × 2,400 mm Machine weight: approx. 11,000 kg Equipment: Pivoting control panel Hydraulic system from HYDROKRAFT Coolant system with 600 l tank, max. pump pressure 5.5 bar, flow rate 60 l/min, pump power 1.1 kW Chip conveyor with 325 l tank capacity, right-hand discharge 3-jaw power chuck Oil mist extraction Control cabinet with cooling unit and temperature controller from RITTAL Control system: SIEMENS SINUMERIK 840 C Variants and Differences There are various variants of the VDF 250 series, such as the VDF 250 CU, which can be equipped with different control systems (e.g., PHILIPS B2T) and technical specifications. Some models feature driven tools and a tailstock, while others are designed as pure chuck-type lathes without a tailstock. Conclusion The Boehringer VDF 250 Cm is a versatile CNC lathe characterized by its stability and precision. With its robust construction and extensive features, it is ideally suited for machining chucked parts in a variety of production environments.

Condition: good (used), Year of construction: 2005, Parts shown by hand not come. Fjdpfx Aevf D Anjfuopd

Condition: used, various tool holders from , mazak, sandvik, mimatic, gerardi, ews, nikken and others. turning-milling tools with the VDI 40 holder only for sale per pallet pallet5 euro 2730 total 3x driven tools vdi 40 euro 580/pc 11x tool holder vdi 40 euro 90/pc pallet 6 euro 2640 total 3x driven tools vdi 40 euro 580/pc 10x tool holder vdi 40 euro 90/pc pallet 7 euro 2640 total 3x driven tools vdi 40 euro 580/pc 10x tool holder vdi 40 euro 90/pc pallet 8 euro 2730 total 3x driven tools vdi 40 euro 580/pc Fpjdpfxsvry T Nj Afusd 11x tool holder vdi 40 euro 90/pc

Condition: good (used), Year of construction: 1996, travel distance X-axis: 710 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 500 mm, spindle speed (max.): 5,000 rpm, spindle speed (min.): 5 rpm, For sale: Mikron UMS 710-900 machining center The machine is in good condition. New ball screw drives for X and Y axes, new cover for Z axis, and new Z-axis spiral. Technical data: x-travel: 710 mm y-travel: 630 mm z-travel: 500 mm CNC control: HEIDENHAIN TNC 426 Table size: 1200 x 600 mm Max. table load: 500 kg Spindle mount: SK 40 with ring groove Spindle speed range: 5 – 5,000 rpm Spindle drive power: 11 kW Feed rate range: 0 – 10,000 mm/min Rapid traverse: 10 m/min Operating voltage: 400 V Fedpfx Astt Acgjfuepd Total connected load: 15 kW Machine weight approx.: 5.0 t Floor space required approx.: 2.40 x 3.40 x 2.30 m Chip tray No internal coolant supply (IKZ) 44-position tool changer Handwheel Initial filling with operating fluids for the machine available on request. Loading and transport can be organized throughout Europe for an additional charge. All prices plus VAT. Inspection possible by appointment. Please contact us – our team will be happy to assist you. Trade-in or exchange possible! Machinery purchase & sales BUYING / SELLING OF PRODUCTION & METALWORKING MACHINES, AND MORE. Are you looking for a high-quality yet affordable metalworking machine for your production? Or do you want to sell your equipment? For further information or contact options...
