Used bandsaw

MEBA 320 DG

Condition: good (used), Mitre Band Saw MEBA DG 320 Cedpfoycwcasx Af Dopu - Cutting capacity: 325 mm - Rectangular material: 500x300 mm - Mitre 45° – Round: 300 mm - Mitre 45° – Rectangular material: 300x300 mm - Mitre range – infinitely adjustable: 30–135° - Hydraulic material clamping - Hydraulically adjustable sawing pressure - Infinitely variable band saw speed - Saw blade dimensions: 4200x34x1.1 mm - Coolant system - Automatic shut-off - Emergency stop - Documentation Dimensions: LxWxH 1.8x1.6x1.6 meters / Weight 1500 kg Subject to errors and omissions.

Condition: good (used), Year of construction: 2008, machine/vehicle number: 6424102096, Offer No. 25101 Technical Data: Cpedpfx Afswpincj Dsu - Cutting range at 90° round 400 mm - flat W 400 x H 400 mm - Cutting range at 45° flat W 320 x H 320 mm - Cutting range at 60° flat W 210 x H 320 mm - Material support height approx. 700 mm - Saw band dimensions 5090 x 34 x 1.1 mm - Cutting speed steplessly adjustable 17 - 90 m/min - Hydraulic lifting – lowering of the saw frame - Cutting pressure steplessly adjustable 0 - 10 m/min - Total drive power 400 V / 3.5 kW - Coolant system - Infeed – roller conveyor 7000 mm - Outfeed – roller conveyor with stop + digital display 4000 mm - Space requirement approx. W 2000 x H 1400 x D 2800 mm - Weight approx. 1200 kg

Condition: new, functionality: fully functional, 2 speeds 35/75 m/min Saw blade speed 15-150 m/min Saw blade dimensions 4200x34x1.1 mm Cutting range at 90 degrees: round 325 mm Cutting range at 90 degrees: flat 500x300 mm Cutting range at 45 degrees right: round 300 mm Cutting range at 45 degrees right: flat 300x300 mm Cutting range at 30 degrees right: round 200 mm Cutting range at 30 degrees right: flat 200x200 mm Cutting range at 45 degrees left: round 300 mm Cutting range at 45 degrees left: flat 300x300 mm Minimum remnant length without bundle clamping – manual 85 mm Minimum remnant length with bundle clamping – manual 260 mm Smallest diameter 5 mm Working height 750 mm Cedpfx Ajx Sq Tfjf Dopu Total power requirement 3.0 kW Dimensions 1450x2200x1400 mm Equipment/Accessories: - Rapid mitre adjustment from 30° to 150° stepless, digital mitre display to 0.1° - Quick material clamping: Material is clamped parallel at 90° in every saw frame angle - MEBA high-performance package version “HSS” – Hydraulic lifting and lowering of the saw frame and hydraulic clamping of the material Stepless hydraulic cutting pressure and feed regulation Display of lowering speed via scale. Cut-through display via manometer. Rapid saw frame lowering via push button to material edge - Frequency-controlled AC drive 15–150 m/min – 3 kW - Full-stroke hydraulic material clamping - Machine base with chip collection tray - Saw blade drive with limit switch - Precision saw blade carbide roller guides, saw blade brush - Complete coolant system with electric immersion pump - 1 saw blade on the machine, 4-6 TPI

Condition: new, Comparable to Behringer, Kaltenbach, Kasto, Jaespa, etc. Semi-automatic saw operation with workpiece clamping – sawing – lifting to preset height after completing the cut. Infinitely adjustable hydraulic cutting pressure and feed rate monitoring at the saw band tension. This allows optimal settings for every sawing task, i.e., constant pressure for solid material and constant feed for thin-walled profiles. Especially suited for universal use with various cross-sections, materials, and frequently changing mitre cuts. The machine control system complies with CE standard 89/289. Technical data: Cutting capacity in mm round/flat 90° 325 / 500 x 300 45° 300 / 300 x 300 30° 200 / 200 x 200 45° 300 / 300 x 300 Rapid lowering of the saw frame to the material edge by push button Manual mitre adjustment from 45°–90° – 30°, continuously adjustable with scale The mitre swivel point is the intersection between the saw blade and the fixed vice jaw, meaning there is no change in length measurement when changing the angle Hydraulic full-stroke workpiece clamping – CETOP hydraulic system At any saw frame angle, the material is clamped parallel at 90° Complete coolant system with electric immersion pump Centralised machine operation Saw band drive with end stop Moveable band guide arm, adjustable to material width Saw blade return pulleys with carbide guides Integrated chip cleaning brush Saw band tension with torque wrench Finish: Silver-grey / Blue-grey (RAL 7001 / RAL 7031) Remnant piece length: 60 mm Cutting speed: AC frequency-controlled drive from 15–150 m/min, infinitely adjustable at the control panel Drive: Saw band 3.0 kW; 400 V, 50 Hz Hydraulics 1.1 kW Coolant pump 0.1 kW Saw frame feed: Infinitely variable up to 300 mm/min, hydraulically controlled Saw band tension: Mechanical with torque wrench Saw band dimensions: 4200 x 34 x 1.1 mm Working height: 750 mm (without base elements) Weight: 850 kg Cjdpfxet D Azcs Af Djpu Dimensions (LxWxH): 1450 x 2350 x 1350 mm

Condition: new, Year of construction: 2025, cutting diameter 350 mm saw band length 4860 x 34 mm cutting width 1,1 mm Capacity 90° - round 350 mm Capacity 90° - square 350 x 350 mm Capacity 90° - rectangle 350 x 500 mm Capacity 45° - round 320 mm Capacity 45° - square 300 x 300 mm Capacity 45° - rectangle 250 x 320 mm Capacity 30° - round 210 mm Capacity 30° - square 180 x 180 mm Capacity 30° - rectangle 160 x 200 mm total power requirement 3 kW / 500 Nm weight of the machine ca. 1450 kg dimensions of the machine ca. 1600 x 1400 x 2850 mm The KMY 2DG 350 is a semi-automatic - double miter cutting bandsaw. Standard specifications - Hydraulic Vice - Hydro-Mechanic Blade Tension - Blake Breakage Switch / Stop System - 2 Pieces 60 cm Roller Table Cpsdpfx Aeuddiajf Deu - Swarf Brush - Led Lighting The pictures are for orientation only and do not represent a true-to-scale image of the machine.

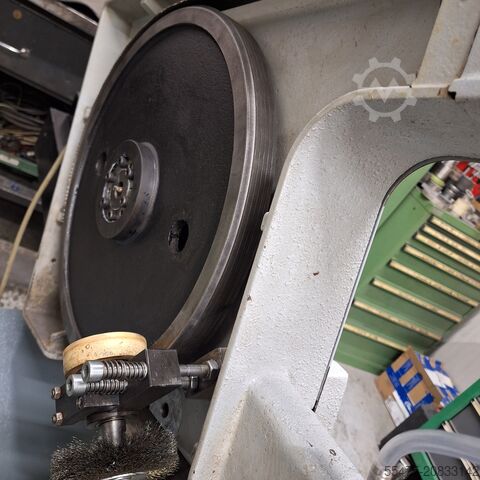

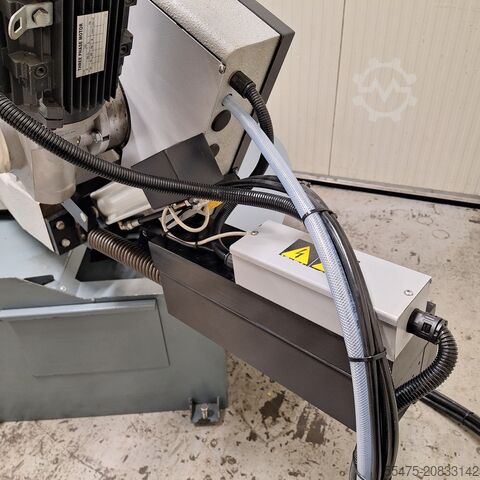

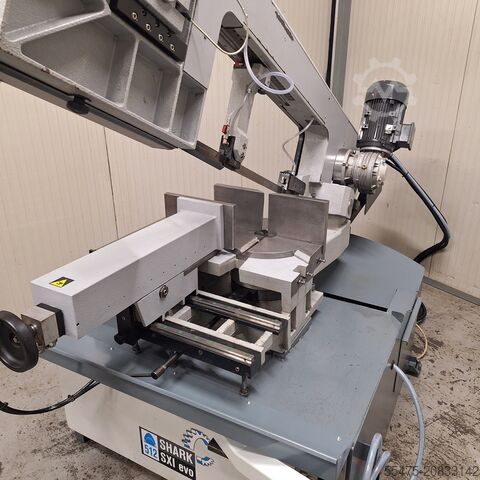

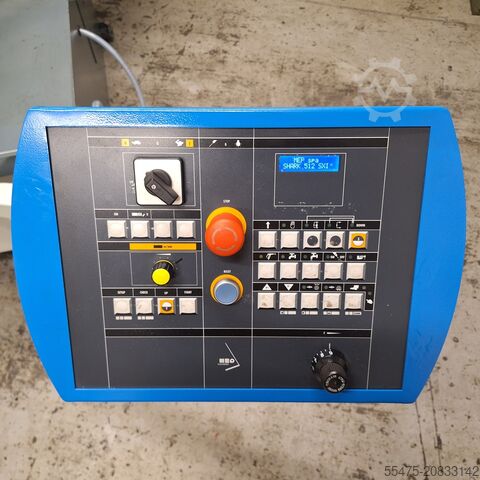

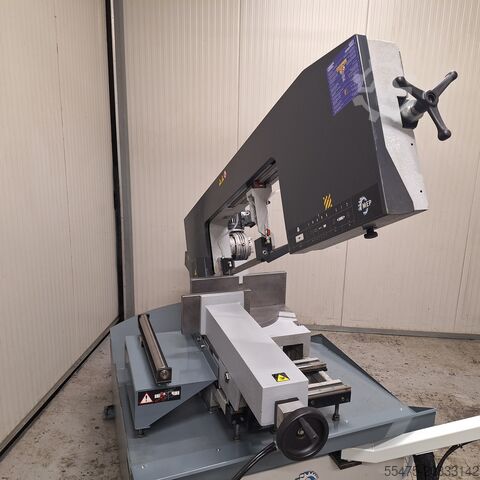

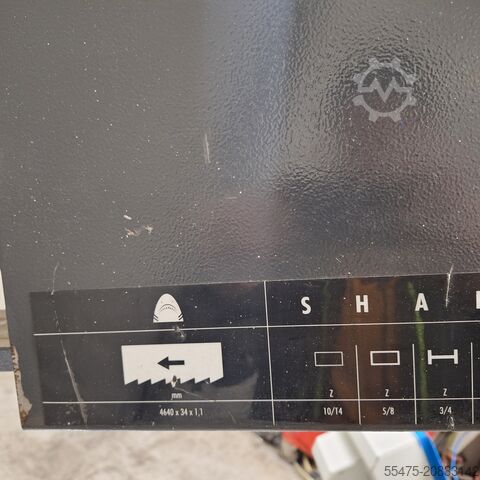

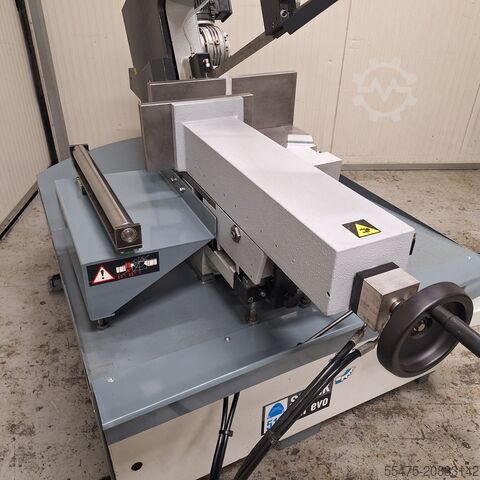

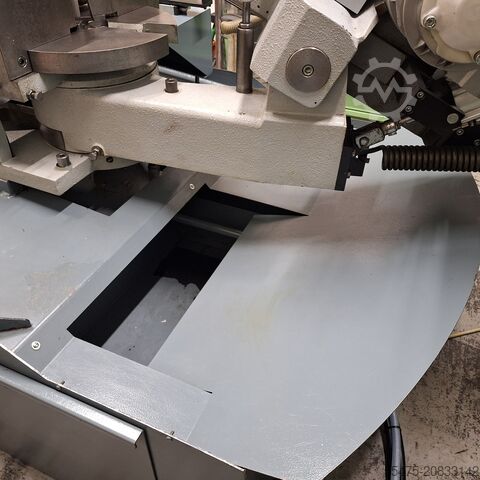

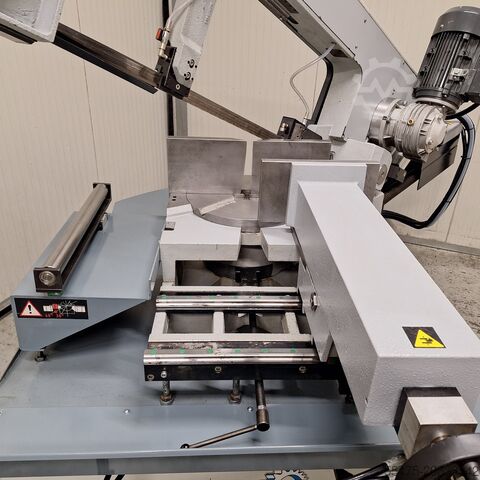

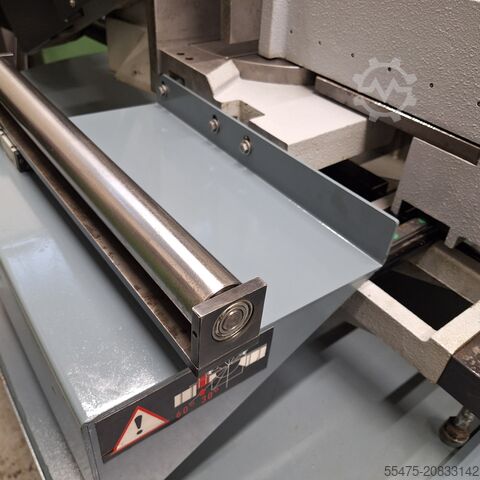

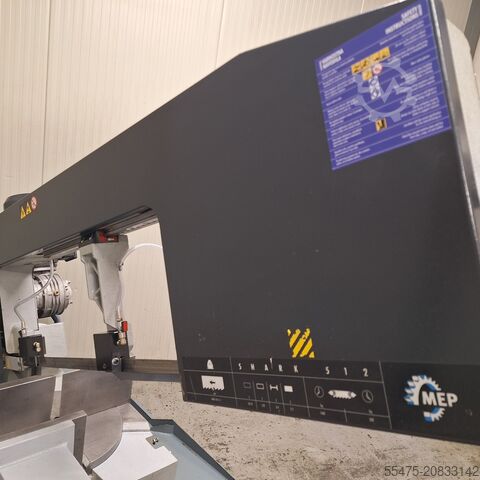

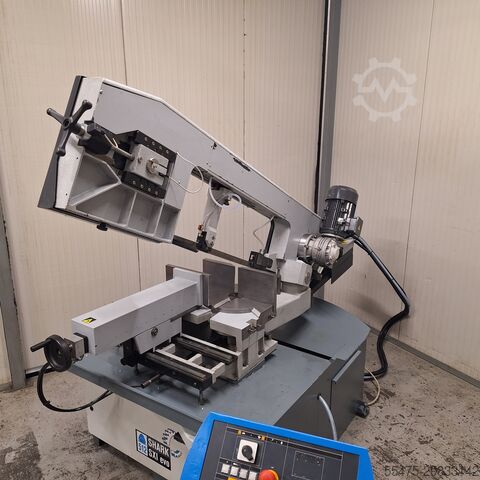

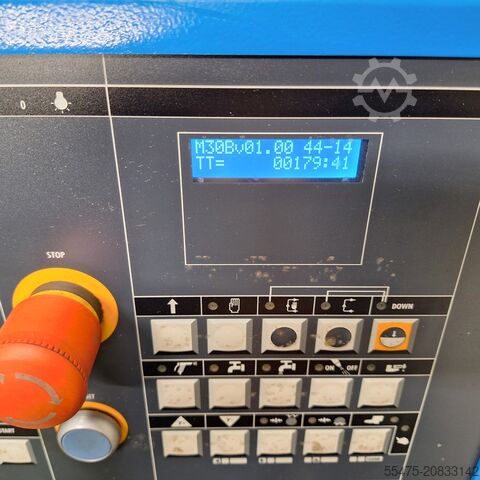

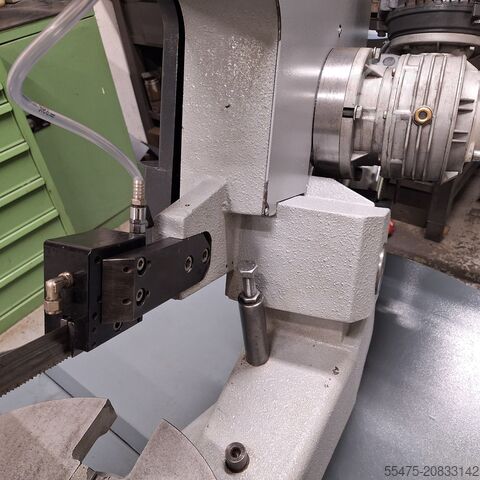

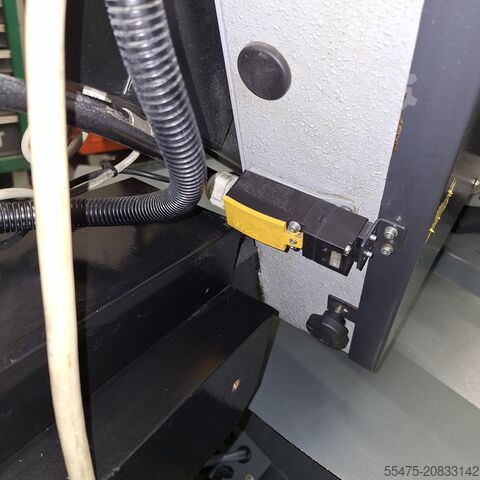

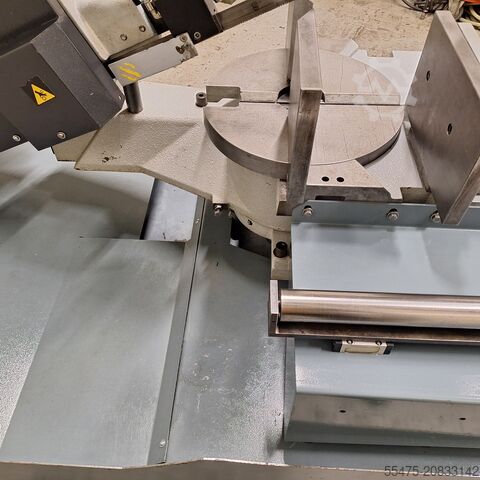

Condition: excellent (used), Year of construction: 2015, Used hydraulic semi-automatic bandsaw MEP Shark 512 sxi evo Blade dimensions: 4640x34x1.1 mm Blade speed: 15–100 m/min Cutting capacity at 0° – round 330 mm – square 320x320 mm – rectangle 510x320 mm Miter angle: from -60° to +60° Machine weight: 1190 kg Year of manufacture: 2015 The saw will be fully inspected, serviced, and tested. Cpjdox N E N Aspfx Af Dou The machine will be available after 15.1.2026.
