Condition: excellent (used), Swing over bed 320 mm Dsdsi Ezhqopfx Akcswc Distance between centers 800 mm Spindle speeds -4000 rpm Control: HEIDENHAIN Manual Plus M Misc. accessories MARCELS MASCHINEN CH

Condition: ready for operation (used), Year of construction: 2011, operating hours: 83,422 h, travel distance X-axis: 700 mm, travel distance Y-axis: 550 mm, travel distance Z-axis: 820 mm, controller manufacturer: HEIDENHAIN, controller model: iTNC 530, total height: 3,600 mm, table width: 630 mm, table load: 850 kg, overall weight: 18,000 kg, spindle speed (max.): 12,000 rpm, spindle motor power: 33,000 W, number of slots in tool magazine: 24, swivel angle A-axis (max.): 150 °, swivel angle C-axis (max.): 360 °, number of axes: 5, This 5-axis KOVOSVIT MAS MCU 630V-5X was manufactured in 2011. It features a HEIDENHAIN iTNC 530 control, a spindle speed of up to 12,000 min⁻¹, and a maximum torque of 157/215 Nm. The machine supports a table load of 850 kg and includes options like cooling through the spindle and a Probe OPM40. Ideal for complex machining tasks, the KOVOSVIT MAS MCU 630V-5X vertical machining centre we have for sale. For more information about this vertical machining centre, please reach out to us. Machine Benefits Qualitative Machine Benefits • Perfect condition Dwedpfxszv N Ias Akcoc • Full documentation available including service history Technical Machine Benefits • Rapid traverse x, y, z: 60 m/min • Acceleration x, y, z: 6. 5 m/s² Dimensions Machine Depth 4200 mm Technical Specification Taper Size ISO 40 Through-spindle Coolant Yes

Condition: used, Year of construction: 2005, DEPACK 3 equipped with 3 heads at 4 x 3 Dodpfx Aoz Icdpskcowc

Condition: good (used), Year of construction: 1996, Radial drilling machine, MAS Kovosvit V0 80, serial number 151321248, manufactured in 1996, weight approximately 12,000 kg, overhang approximately 200 cm, with a large clamping cube. Dwjdpsz Ib Uyefx Akcec

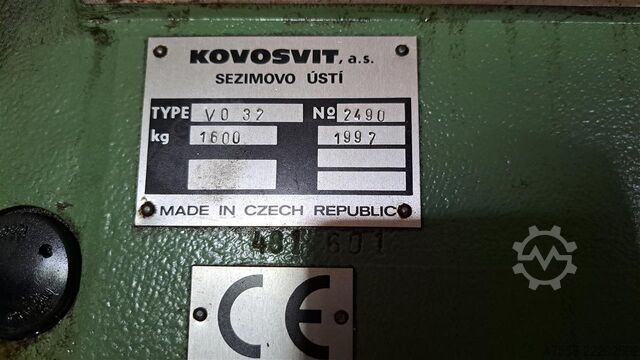

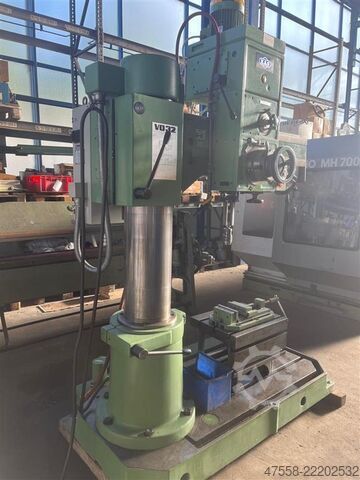

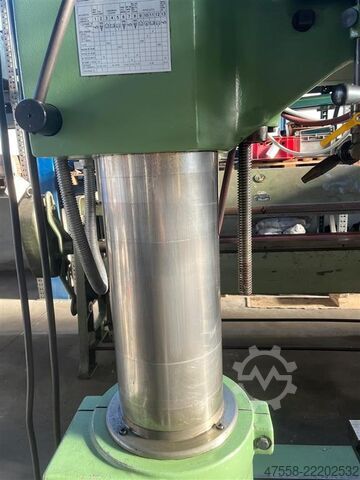

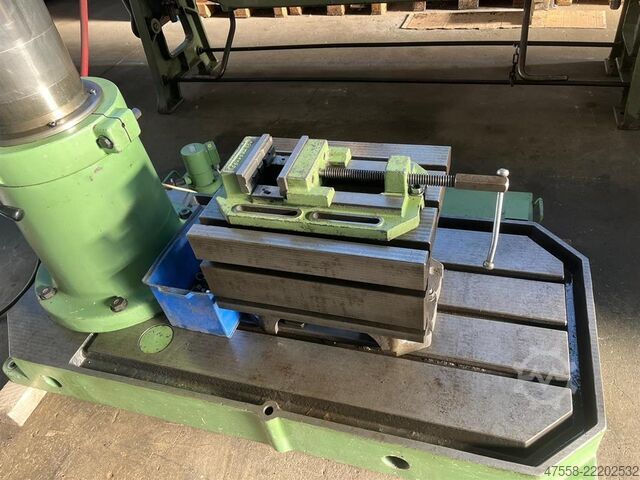

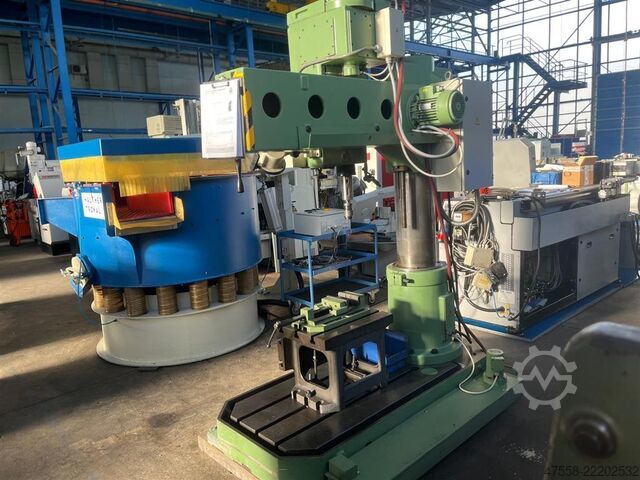

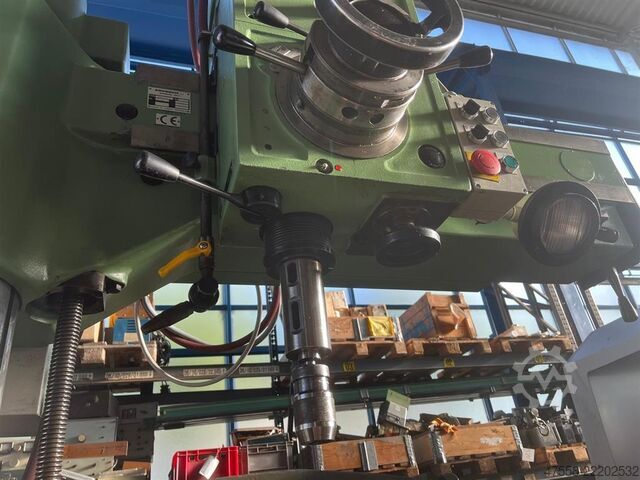

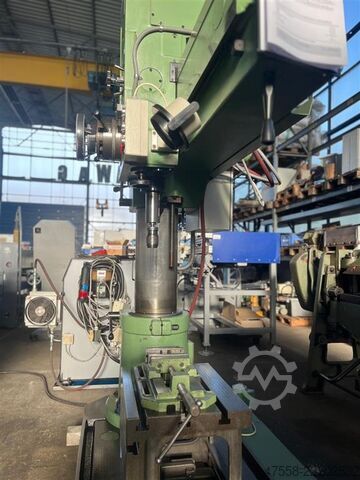

Condition: used, Year of construction: 1997, Technical details: bore capacity in steel (diameter): 32 mm x-travel: 750 mm y-travel: 520 mm drill capacity in cast iron: 45 mm revolution per minute: 90 - 4500 U/min feed steps: 6 bore spindle stroke: 250 mm boring spindle diameter: 30 mm drill spindle - Morse Taper: MK4 vertical adjustment of the arm: 520 mm throat max.: 1000 mm throat min.: 250 mm Dedpfxszgwgfo Akcjwc column diameter: 400 mm swivel range of the arm: 180 ° table clamping surface LxW: 1150 x 800 mm total power requirement: 3,5 KW weight of the machine ca.: 2000 kg dimension machine approx.LxWxH: 1,7 x 1,07 x 2,61 m The KOVOSVIT VO 32 is a robust and versatile radial drilling machine designed for industrial applications. The machine is suitable for drilling, boring, countersinking, reaming, and tapping operations in steel, cast iron, and other materials. Thanks to its swiveling radial arm and large reach, even large and heavy workpieces can be machined conveniently without the need for complex repositioning. The machine features a massive cast-iron construction, a powerful main drive, and an automatic feed system. The drilling head can be moved along the radial arm, providing a large working area. Its solid design ensures high precision, reliability, and a long service life, even under continuous operation. Equipment: ·Including coolant pump ·1 × boring tool block (boring cube) ·1 × machine vise *

Condition: excellent (used), Year of construction: 1985, functionality: fully functional, power: 4 kW (5.44 HP), tool diameter: 50 mm, spindle mount: MK 5, height adjustment type: electric, rotational speed (max.): 2,500 rpm, rotational speed (min.): 28 rpm, total width: 1,145 mm, total length: 3,100 mm, total height: 3,390 mm, table width: 986 mm, table length: 1,820 mm, overall weight: 4,200 kg, Equipment: documentation/manual, Morse 5 taper in the spindle, max. drilling capacity in steel Ø 50 mm, arm length 1250 mm, base clamping surface 1820 x 986 mm, max. Ø boring capacity in steel – without guide: 120 mm, with guide: 200 mm, spindle stroke: 310 mm, vertical arm travel 750 mm, spindle speed: 16 steps, range: 28-2500 rpm, feed rate 0.05 - 2 mm/min, 16 steps, spindle motor power at 1430 rpm: 4 kW, total power consumption 6 kVA, machine dimensions L x W x H: 3100 x 1145 x 3390 mm, machine weight 4200 kg, the machine can be fully tested in our warehouse in Přerov upon agreement. Dwjdpfx Aozzfbajkcec

Condition: excellent (used), Year of construction: 2013, Control Siemens Sinumerik 840D Max. turning diameter: 280 mm Max. bar capacity main spindle: 61 mm Turning length: 490 mm Spindle speed main/sub spindle: 4700 / 6000 rpm 12-position turret with driven tools C-axis Djdpezwhkisfx Akcjwc Y-axis Parts catcher Workpiece ejector Chip conveyor Various tool holders

Condition: good (used), Year of construction: 1982, Drilling diameter: 50 mm, gray cast iron: 60 mm Maximum spindle-guide distance: 1600 mm Vertical arm travel: 875 mm Carriage travel on the arm: 1280 mm Arm rotation: 180° Morse 5 spindle taper Spindle stroke: 310 mm Number of spindle speeds: 16 Dedpfxswlh E Sj Akcjwc Maximum spindle torque: 31,000 Nm Mounting surface: 1820 x 986 mm Dimensions: 3100 x 1120 x 3396 mm Weight: 4300 kg

Condition: good (used), Year of construction: 2015, operating hours: 24,272 h, functionality: fully functional, travel distance X-axis: 1,270 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 720 mm, torque: 406 Nm, controller manufacturer: Heidenhain, overall weight: 11,800 kg, number of slots in tool magazine: 24, Equipment: chip conveyor, documentation/manual, MAS KOVOSVIT MCV 1270 Power Year of manufacture: 2015 Heidenhain iTNC 530 control system Dsdozydarspfx Akcewc X-axis: 1270 mm, Y-axis: 610 mm, Z-axis: 720 mm Tool changer: 24-position SK50 Spindle speed: up to 8000 rpm Spindle torque: 406 Nm / 100% 623 Nm / 40% Chip conveyor Coolant pressure: 20 bar Weight: 11800 kg

Condition: ready for operation (used), Year of construction: 1994, overall weight: 7,000 kg, arm length 2150 mm, drilling capacity 80 mm weight 7000 kg Dodpfx Akjyzq Dpecowc
