Used International B414 for sale (9,724)

Condition: used, Technical details: honing diameter: 4-31 mm stroke: 350 mm throat: 250 mm Fodpfx Aowx Shksf Dofu

Condition: new, functionality: fully functional, Year of construction: 2026, Internal combustion forklift truck with a 2,500 kg load capacity Design and technology The forklift’s construction is made of high-strength materials, resistant to intensive use and outdoor conditions. The reinforced frame and high-rigidity mast ensure stability during lifting and transport operations. The Nissan K25 engine with an output of 50 HP is a well-established unit in the forklift industry, offering strong tractive force, durability, and excellent availability of spare parts. The Power Shift automatic transmission allows dynamic acceleration and smooth direction changes without loss of torque. In addition, the use of hydraulic brakes and support systems enhances operational safety and user comfort. Precision and operational efficiency The mast is equipped with a forward/backward tilt function (angle 6° / 12°), enabling safe and precise handling of loads in various working conditions. The side-shift function significantly reduces operating time by allowing fork position adjustments without repositioning the entire truck. Thanks to pneumatic tires with deep tread and high ground clearance, the forklift performs exceptionally well on uneven terrain, ramps, and loading yards. A travel speed of up to 19 km/h unloaded enables fast execution of handling and transport tasks over large areas. Standard equipment Nissan K25 internal combustion engine Ffsdpfx Afjycv A Ej Dou Power Shift automatic transmission Tilting mast Side-shift forks Complete work and warning lighting Reverse alarm, strobe light, turn signals 1,220 mm forks with manual spacing adjustment Choose a proven solution for internal logistics. Select the CORMak 2,500 kg forklift with the Nissan K25 engine and Power Shift transmission—contact our technical advisor or order directly online. Technical specifications Load capacity: 2,500 kg Maximum lift height: 3,000 mm Side shift: Yes Mast tilt: Yes Engine: Nissan K25 Engine power: 50 HP Transmission: Automatic (Power Shift) Travel speed (loaded / unloaded): 17 / 19 km/h Tire type: Pneumatic Overall length: 3,800 mm (L) Overall length without forks: 2,580 mm (L’) Wheelbase: 1,600 mm (L1) Distance from front axle to fork face: 469 mm (L2) Fork length: 1,220 mm (L4) Single fork width: 120 mm (W) Overall width: 1,160 mm (W1) Rear width: 970 mm (W2) Fork carriage width: 970 mm (W3) Outside fork spread: 1,024 mm (W5) Maximum lifting height: 3,000 mm (H) Overall mast height (lowered): 2,000 mm (H1) Overall mast height (raised): 4,250 mm (H2) Fork height above ground: 150 mm (H3) Overall height to overhead guard: 2,070 mm (H4) Mast ground clearance: 110 mm (H5) Ground clearance: 110 mm (H6) Load center distance: 500 mm (C) Rated capacity: 2,500 kg (Q) Fork thickness: 40 mm (T) Mast tilt angle (forward): 6% (α) Mast tilt angle (backward): 12% (β) Weight: 3,680 kg

Condition: new, functionality: fully functional, Year of construction: 2026, Electric forklift truck with a 2,500 kg load capacity and 4,500 mm lifting height Design and technology The forklift is equipped with a modern electric drive that ensures quiet and emission-free operation. The power system is based on a high-performance 48V 490Ah battery, providing up to 10 hours of continuous operation. Compared to lithium-ion batteries, this battery offers up to 40% greater safety—it is resistant to mechanical damage, overheating, and does not emit harmful gases. A stable structure, precise hydraulic system, and a mast made of high-grade steel allow safe handling of loads at full capacity and maximum lift height. The forklift features a soft start system, power steering, and automatic speed reduction while turning, improving machine control and enhancing operator safety. Precision and operational efficiency The side-shift function allows fork position correction without the need to reposition the entire truck. Forward and backward mast tilt enables precise load placement and stable transport. A travel speed of up to 14 km/h and an optimized turning radius of 2172 mm make the forklift highly effective in narrow warehouse aisles. Applications This model is ideal for use in: high-bay warehouses and distribution centers, production plants with high material throughput, industries requiring clean, emission-free operation (food, pharmaceutical, chemical), outdoor loading areas – thanks to pneumatic tires and high ground clearance. Standard equipment Integrated 48V 490Ah battery 70A battery charger Side shift system (lateral fork movement) Tilting mast Full LED work and warning lighting Pneumatic tires with deep tread Fjdpfx Afjycvxye Defu Audible warning system, turn signals, warning beacon, reverse alarm Technical specifications Load capacity: 2,500 kg Maximum lift height: 4,500 mm Fork length: 1,220 mm Side shift: Yes Mast tilt: Yes Battery voltage / rated capacity: 48V / 490Ah Continuous operating time on full charge: up to 10 h Charging time: 10 h Travel speed (loaded / unloaded): 12 / 14 km/h Tire type: Pneumatic Overall length: 3,573 mm (L) Overall length without forks: 2,353 mm (L’) Wheelbase: 1,480 mm (L1) Distance from front axle to fork face: 468 mm (L2) Fork length: 1,220 mm (L4) Single fork width: 120 mm (W) Overall width: 1,170 mm (W1) Rear width: 950 mm (W2) Fork carriage width: 970 mm (W3) Outside fork spread: 1,038 mm (W5) Maximum lifting height: 4,500 mm (H) Overall mast height (lowered): 1,995 mm (H1) Overall mast height (raised): 5,750 mm (H2) Fork height above ground: 150 mm (H3) Overall height to overhead guard: 2,098 mm (H4) Mast ground clearance: 110 mm (H5) Minimum ground clearance: 105 mm (H6) Load center distance: 500 mm (C) Rated capacity: 2,500 kg (Q) Fork thickness: 40 mm (T) Turning radius: 2,172 mm (r) Mast tilt angle (forward): 6% (α) Mast tilt angle (backward): 12% (β) Weight: 4,015 kg

Condition: new, functionality: fully functional, Year of construction: 2026, Internal combustion forklift truck with a 3,500 kg lifting capacity Design and technology The forklift is equipped with reinforced load-bearing components, a durable frame, and a hydraulic system designed to operate under maximum load. The Nissan K25 engine is a proven power unit known for its high overload resistance and low fuel consumption. The Power Shift automatic transmission ensures smooth driving, increasing operator comfort and safety, especially during frequent direction changes. Pneumatic tires with increased diameter and deep tread perform exceptionally well on ramps, loading yards, and both paved and unpaved surfaces, effectively absorbing vibrations and reducing suspension wear. Precision and operational efficiency The side-shift mechanism allows horizontal fork movement, significantly reducing cycle time during storage and unloading operations. Manual fork spacing adjustment enables quick adaptation to different pallet sizes. Forward and backward mast tilt improves safety when handling heavy loads, facilitating precise placement and stabilizing the load during travel. Standard equipment Nissan K25 engine Side shift – lateral fork movement Mast tilt adjustment (forward/backward) Manual fork spacing adjustment Pneumatic tires LED work lights Reverse alarm and warning lights Technical data Load capacity: 3,500 kg Lift height: 3,000 mm Fork height (lowered): 40 mm Fork length: 1,220 mm Side shift: Yes Mast tilt: Yes Engine: Nissan K25 Engine power: 50 HP Transmission: Automatic Travel speed (loaded/unloaded): 12 / 13 km/h Tire type: Pneumatic Overall length: 3,800 mm (L) Overall length without forks: 2,580 mm (L’) Wheelbase: 1,740 mm (L1) Distance from front axle to fork face: 487 mm (L2) Fork length: 1,220 mm (L4) Single fork width: 120 mm (W) Overall width: 1,225 mm (W1) Rear width: 970 mm (W2) Fork carriage width: 1,000 mm (W3) Outside fork spread: 1,060 mm (W5) Maximum lifting height: 3,000 mm (H) Overall mast height (lowered): 2,120 mm (H1) Overall mast height (raised): 4,250 mm (H2) Fork height above ground: 150 mm (H3) Overall height to overhead guard: 2,090 mm (H4) Mast ground clearance: 120 mm (H5) Ground clearance: 120 mm (H6) Load center distance: 500 mm (C) Rated capacity: 3,500 kg (Q) Single fork thickness: 40 mm (T) Mast tilt angle (forward): 6% (α) Mast tilt angle (backward): 12% (β) Ffedpfxjycvv Se Af Dsu Weight: 4,700 kg

Condition: excellent (used), Ball valve internal thread -Internal thread: 2 -Full bore, solid sphere -Quantity: 195 pieces in stock -Packaging unit: 12 pieces Ffodpfjv Tm Snex Af Dou -1 carton at: 84.00 euros -Price shown: piece

Condition: used, Year of construction: 2009, internal diameter max. 600 mm grinding depth max. 800 mm grinding length max. 600 mm control Siemens 840 D grinding diameter - internal max. 600 mm grinding diameter - cylindrical max. 800 mm workpiece length - max. 380 mm external grinding length max. 600 mm travel - x1 axis 150 mm travel - z1 axis 1100 mm travel - x2 axis 470 mm Fsdewp S Tnspfx Af Dsfu travel - z2 axis 800 mm workpiece spindle 8,5 kW turning speed range - stepless 1-795 U/min Equipment / Accessories: Workpiece spindle unit (U/B1/L adjustment): - Travel (U-axis): 300 mm - Swivel angle (B1 axis): -0,5°/+12° - Drive power of the workpiece spindle: 8.5 kW - Speed range (infinitely variable): 1-795 rpm - Set-up speed (jogging): 10 rpm - Spindle head size A 8 according to DIN 55026 - Through-hole 58.5 mm - Workpiece diameter max. 830 mm - Workpiece length (overhung clamping) max. 800 mm - Workpiece length (clamped between centers) max. 800 mm - Load capacity at spindle head max. 6100 N Internal grinding device (Z1/X1/B2): - Travel (Z1 axis): 1100 mm - Travel (X1 axis): 150 mm - Swivel angle (B2 axis): 270° - Manual longitudinal adjustment of internal grinding axis on table: 780 mm - Drive power of the internal grinding spindles (infinitely variable) Belt-driven grinding spindles: 7.5 kW - Grinding block mounting hole (diameter): 100 mm / 125 mm - Mounting length of sanding block: 220 mm - Sanding diameter: max. 600 mm - Sanding depth: max. 800 mm External and surface sanding device (Z2/X2): - Travel (Z2 axis): 800 mm - Travel distance (X2 axis): 470 mm - Swivel angle (B2 axis): 270° - Drive power of the external grinding spindles: 7.5 kW - Grinding block mounting hole: Ø 140 mm - Sanding diameter: max. 800 mm - Sanding length max. 600 mm - Grinding wheel dimensions: max. Ø 450 x 50 x Ø 127 mm

Condition: used, Year of construction: 2003, internal diameter 99999 mm grinding depth 99999 mm swing diameter 99999 mm Fjdouxft Sjpfx Af Dofu grinding diameter 99999 mm grinding length 200 mm centre height 175 mm CNC internal grinding machine B-axis 4 x 90° Q-axis for adjusting tapers Used with minor maintenance 2 HF internal grinding spindles: -Fischer MFM 1090 90,000 rpm -Fischer MFM 1242/60 42,000-60,000 rpm 1 external grinding motor spindle Fischer MFVS1407 7,000 rpm -Pneumatic power clamping device with 20mm stroke -Dressing device with 2 swivelling arms, hydraulically foldable back -Grinding detection ring sensor Dittel on the workpiece headstock -Passive grinding detection with magnetic base -Paper belt filter 375 l

Year of construction: 1971, condition: excellent (used), Horizontal internal broaching machine Arthur Klink RIW 16x1800 -WAG 718- Manufacturer: Arthur Klink Type: RIW 16 x 1800 Year of manufacture: 1971 Max. Tractive force: 16t Max. Stroke: 1800mm Fodpfx Afjhpqqus Dsfu Max. Cutting speed: 7m/min Max. Return speed: 25m/min Max. Tool diameter: Ø 95mm Weight: 4,8to

Condition: like new (used), functionality: fully functional, tool type: VDI 40, overall weight: 10 kg, At a glance  Extremely compact construction for critical length threads  Thanks to disengaging clutch thread length is precisely controlled  One single head for internal and external threads  Integrated coolant supply (with coolant feed through centre on request)  Available in  ANGST Flex or ESX (ER) Collets  Sizes 1, 2, 3, 4 and 6  All usual shanks e.g. cylindrical, cylindrical with flat (Weldon), DIN 69880 / VDI 3425, Ffedpoxltzvefx Af Dou SK DIN 69871, BT (Japan Standard MAS 403), ISO Caterpillar and Morse taper  Heavy-duty and durable Swiss quality products PAFIX Tapping Head for CNC machines  The PAFIX CNC head has been designed especially for all machines with programmable forward and return feeds to the toolholder (turret, spindle, etc.). It is of extremely compact length and is fitted with a positive disengaging clutch which can be set to 3 different pull-out lengths if required, for example with head size 25-2…, 1,5/3/5 mm.  The head can be set to two different programmed tapping cycles as follows. Both cycles ensure a certain amount of pitch compensation (float). In order to make sure of faultless thread cutting with precise starting point and depth or length of the thread, no spring take-up thread lead or friction clutch against overload has been provided. The PAFIX CNC is designed to permit a quick change over from tapping head to die head. Simply unscrew the collet nut and replace with the die housing.

Year of construction: 2026, condition: as good as new (ex-display), JT3150 Electronic Threading Machine easy operation via display directly on the motor, Blind hole depth programmable, Technical details: -Brushless motor 750 watts 220V -Multifunctional head -3-fold articulated arm system -Tapping capacity in steel M3-M16 -Outreach up to 1900mm -Spindle GR2 Accessories: -Positioning magnet size 2 Fsdpfjhpqadox Af Defu -quick change adapter size 2 -M3-M4-M5-M6-M8-M10-M12-M14-M16 -control on motor -drill chuck (1-13mm)

Condition: ready for operation (used), Year of construction: 2002, cnc num machine rebuilt in 2002 front-end unit max. grinding diameter 200MM max. grinding stroke 200MM max passage diameter 500MM weight 4500KGS Ffjdpfxet E N Dme Af Deu

Condition: ready for operation (used), Year of construction: 2019, Control Unit Brand FANUC Model §==I Main Drive Number of axis 5 Table Number of tslots 7 Inner width 14 mm Table load 800 kg Ffedpfx Afjx D Ny Sj Dou This 5-axis HAUSER KELLENBERGER H55-400 was manufactured in 2019, designed for precision internal grinding. Ideal for complex geometries, it offers advanced control for high accuracy. Consider the opportunity to buy this HAUSER KELLENBERGER H55-400 internal grinding machine. Contact us for more information. Application Types Grinding

Condition: ready for operation (used), Year of construction: 2012, operating hours: 10,799 h, functionality: fully functional, machine/vehicle number: 8P31127C4, travel distance X-axis: 1,145 mm, travel distance Y-axis: 615 mm, travel distance Z-axis: 615 mm, controller manufacturer: Heidenhain, controller model: iTNC 530, rotational speed (max.): 12,000 rpm, overall weight: 6,500 kg, spindle speed (max.): 12,000 rpm, operating hours of spindle: 10,799 h, coolant supply: 20 bar, spindle nose: SK-40 DIN69871, number of spindles: 1, Equipment: chip conveyor, rotational speed infinitely variable, Pinnacle LV 116 Control: Heidenhain iTNC 530 Travel X: 1145 mm Travel Y: 615 mm Travel Z: 615 mm Table size: 1200 x 600 mm Tool holder: SK-40 DIN69871 Tool positions: 30 Max. spindle speed: 12,000 rpm Operating hours: 11,658 h (as of 20.06.2025, machine remains in use) Rapid traverse: 30 m/min Fsdpfx Afjtphbzj Dsfu Weight: 6.5 t Equipment: - Through-spindle coolant 20 bar with belt filter unit - Mobile electronic handwheel - Heidenhain iTNC 530 Payment terms: 100% prior to dismantling and loading The spring disc pack for tool pull-in force was renewed in August 2024. We are a toolmaking company reducing our production capacity. The machine is powered up and in ongoing use. Inspection and test operation are possible. The machine can be handed over at short notice by arrangement. In the event of purchase, we can additionally offer: - Training of your personnel - Cleaning of the machine - Installation of transport locks - Loading onto the truck - Transport with our own truck - Unloading at your site - Placement of the machine at your premises - Alignment of the machine - Connection and commissioning

Condition: excellent (used), Year of construction: 2000, machine/vehicle number: 03.2456, CNC Ibroching machine Arthur Klink Ffsdpfsirwiqjx Af Dou RISH 6.3X1000X400 Renewed in 2016

Condition: used, Internal threading machine HAGEN & GOEBEL type HG 10 Tapping machine, Vertical tapping machine Machine. No. 4462 Year of construction approx. 1980 Cutting capacity in steel M3 to M10 Cutting capacity in cast iron M3 to M16 Cutting capacity in brass M3 to M18 mm throat depth 250 mm Pinol stroke 80 mm Table size 340 x 240 mm Spindle speed 200-1000 rpm 6 steps Motor power 0.55 and 0.75 kW Mains connection 380 Volt, 50 Hz - 6 speed levels through 2 motor speeds and 3 belt levels - Thread pitch via guide cartridge - 2 guide cartridges with 1.0 mm and 1.25 mm thread pitch Ffjdoupbf Depfx Af Dsu - Spindle holder with cone Ø 14.8 to 16 mm and 4 mm keyway - Table height adjustment with toothed rack via hand crank on the round column - Quick-change tapping chuck size 1, Ø 19 mm Space requirement L x W x H 850 x 550 x 1800 mm Weight 255 kg Good condition

Condition: used, Internal threading machine Hagen & Goebel type HG 124 Machine no. No. 4112 Year of construction approx. 1980 Cutting capacity in steel M3 to M10 Cutting capacity in cast iron M3 to M15 Cutting capacity in brass M3 to M17.5 throat depth 250 mm Pinol stroke 80 mm Table size 345 x 245 mm Spindle speed 200 - 1000 rpm Motor power 0.55 / 1.0 kW Mains connection 380 Volt, 50 Hz - 6 speed levels via belt change (3 levels via belt + 2 motor speeds) - Thread pitch via guide cartridge - 2 guide cartridges with 0.8 mm and 28 G per inch thread pitch Ffedpfx Afehgnd Ao Deu - Table height adjustment with toothed rack via hand crank on the round column - Spindle holder with cone Ø 14.8 to 16 mm - Gear rim drill chuck Ø 1 to 13 mm Space requirement L x W x H 900 x 500 x 1800 mm Weight 260 kg Good condition

Condition: excellent (used), grinding length: 500 mm, The machine is in good condition. Ffodpfx Afsx N A Agj Deu

Condition: used, STUDER CT 960 is an Internal grinding machine delivering precision, high accuracy and reliable performance. Working capacities: centre height 150 mm, grinding length 150 mm, X/Z travels 400 mm, wheel diameter 250 mm, spindle hole 35 mm; B-axis +61/-91°, rotatable head -5/+275°, turret with 4 spindles. Main specs: spindle speeds 6000 / 45000 / 60000 / 90000 rpm; X/Z feeds 12 m/min; air 6–10 bar; 3x 400 V 50 Hz; total power 34 kVA; weight ~4050 kg; dimensions L 3218 × W 2256 × H 2300 mm. Equipment: coolant system, measuring probe, diamond redresser, spindle cooling, flanges for internal grinding, tool holders, 3-jaw chucks Ø100/125/160, magnetic chuck Ø125/300, tool cabinet, lamp, fire system, electronic handwheel, external grinding spindle 6000 rpm, calibration accessories. Enables tight tolerances; suited to automotive, watchmaking, machine tools, aerospace and medical sectors. Fodpexx U Auefx Af Dofu

Condition: used, Year of construction: 2005, Type Honanlage Control Nagel In our opinion, the machine is in good used condition and can be inspected under power by appointment. Two machines are available. Ffsdpfx Afjxwdxij Dou Accessories, tools, and clamping devices shown are only included in the scope of delivery if noted in the additional information. Subject to changes and errors in the technical data and information, as well as subject to prior sale!

Condition: excellent (used), functionality: fully functional, Year of construction: 1999, machine/vehicle number: 20, Used CNC internal broaching machine Make: FORST Type: RISH 63X1000X320 Year of manufacture: 1999/ Reconditioned Mach. No.: 20 Ffodpfjv Htluox Af Deu

Condition: good (used), Internal item no.: 25087 Cylindrical grinding machine Fedpjxtpbbefx Af Defu Schaudt AR 500 + Magnetic chuck D160mm + Internal grinding attachment! Grinding length: max. 500mm Grinding diameter: max. 300mm Centre height: 150mm Centre distance: 500mm Tailstock taper: MK4 Machine dimensions (LxWxH): 2700 x 2000 x 1800mm Weight: approx. 2000kg

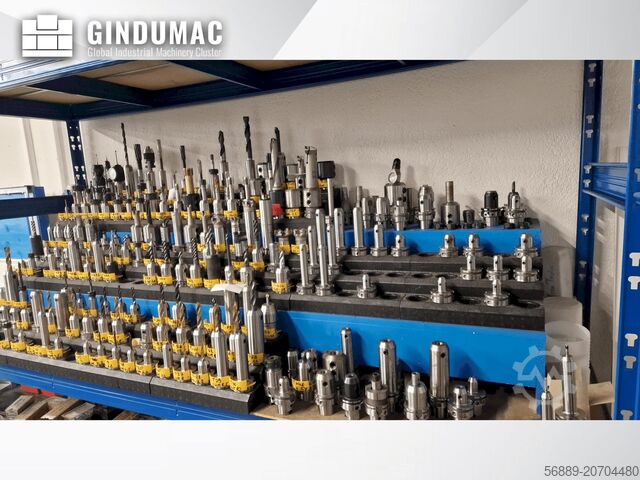

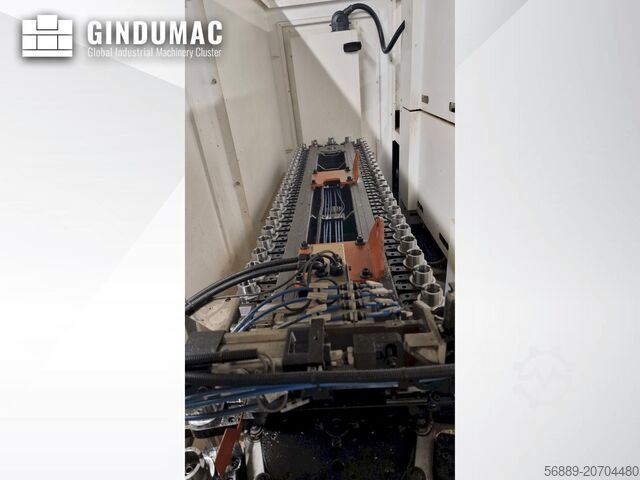

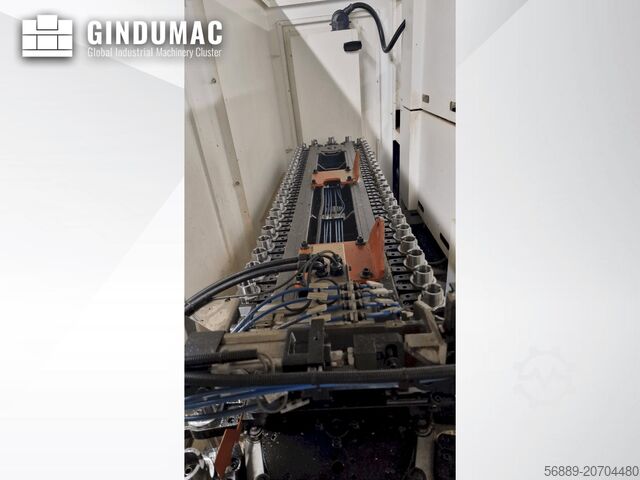

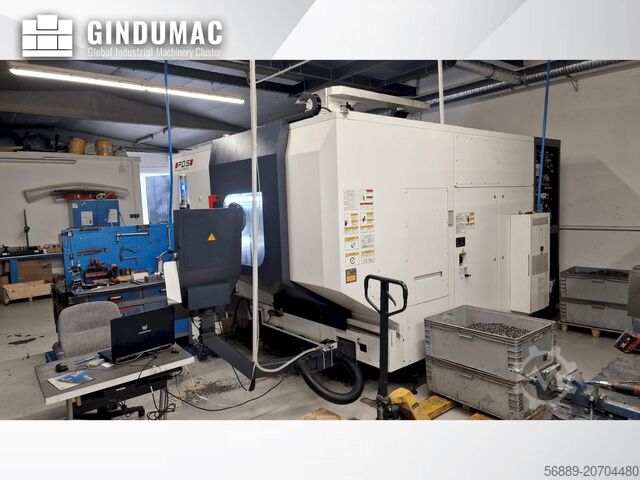

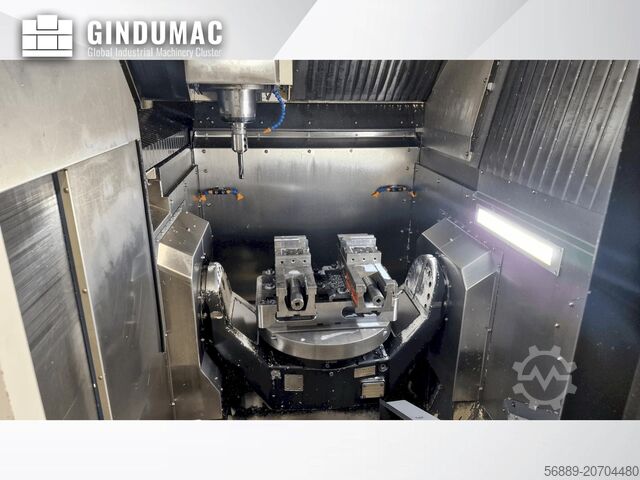

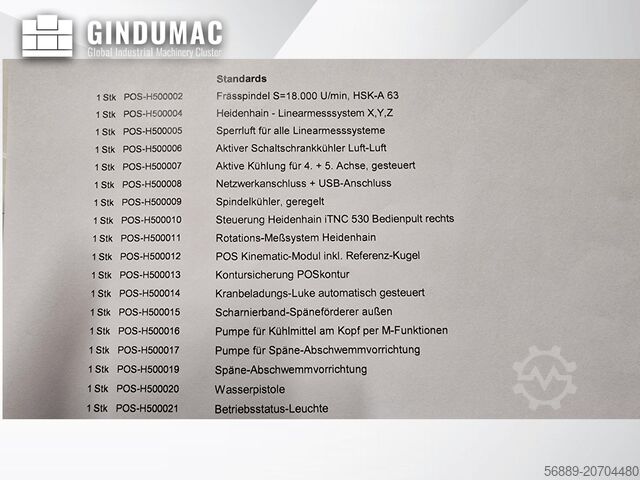

Condition: good (used), Year of construction: 2018, Internal item no.: 25043 5-Axis CNC Machining Center POSmill H 500 U Year: 2018 Just approx. 1,000 spindle hours since spindle replacement Machine total approx. 20,500 hours Spindle replaced in 2024 (18,000 rpm) Geometry realigned in 2024. Travel axes: X 650 / Y 850 / Z 500 mm Rotary table: 360° infinite Control: Heidenhain iTNC 530 Spindle: 18,000 rpm Spindle interface: HSK-A63 The machine is equipped as follows: 60-position tool changer Through-spindle coolant (20 bar) with belt filter system Compressed air through the spindle Kessler rotary table, diameter 500 mm Infrared 3D part measurement probe Tool measurement via BLUM laser Rotating inspection window POS DCM collision module Mobile electronic handwheel Oil mist extraction system Heidenhain linear measurement system X, Y, Z Purge air for all linear measurement systems Active control cabinet air-to-air cooler Active cooling for 4th + 5th axis, controlled Network connection + USB port Controlled spindle cooler Heidenhain rotary measuring system Contour protection POSkontur External hinge belt chip conveyor Coolant pump at the head, operated via M-functions Pump for chip flushing device Chip flushing device Machine status indicator light Spindle air purge Electromechanical oil/coolant separator Automatic coolant level monitoring 3-fold media interface in the center of the table Hydraulic unit incl. control via M-function Connected load: 60 kVA Installation dimensions: W 4800 / D 4600 / H 3000 mm + Through-spindle coolant unit (LxWxH): 2200 x 1300 x 1400 mm Fjdpfx Aewz I Acof Dofu Weight: approx. 13,000 kg The machine is in very well-maintained condition and comes from a small, family-run business. In 2024, the spindle was replaced and the geometry was set (guides repaired and adjusted). Since then, the machine has seen only minimal use.

Condition: good (used), Hagen & Goebel HC 22 E / Thread Cutting Machine Fsdpsx Edbmefx Af Dsfu - Speed range: 56 - 355 rpm - Table dimensions: 600x500 mm - Year of manufacture: 1988 Dimensions: LxWxH 1.1x0.7x2 meters / Weight 900 kg Subject to errors and input mistakes.

Condition: good (used), Year of construction: 1997, functionality: fully functional, machine/vehicle number: 05972978, input voltage: 380 V, total length: 10,560 mm, total width: 2,400 mm, total height: 1,250 mm, year of last overhaul: 2022, input current: 79 A, heating capacity: 47 kW (63.90 HP), temperature: 80 °C, type of cooling: air, plate width: 1,400 mm, infeed width: 1,500 mm, power: 47 kW (63.90 HP), Equipment: documentation/manual, Muller Dryer M-Jet International 1500 year of manufacture 1997 Fully operational Ffedpfx Ajxz Rzfef Dju 1500mm belt width up to max. 80 degrees With Viprotech stacker Optionally available in combination with various screen printing machines and accessories.

Condition: used, Year of construction: 2008, internal diameter 99999 mm grinding depth 99999 mm swing diameter 99999 mm Control FANUC 320iA 3 x internal grinding spindles 2x HV-X 100-90000/3 Housing diameter: 100 h5 mm Spindle speed max: 90000 min/1 Nominal/max. power: 2.5/3.0 kW Spindle nose: D10/18 Spindle cooling: Water 1x HS80c 120000/1.1 Housing diameter: 80 h5 mm Spindle speed max: 120000 min/1 Nominal/max. power: 0.8/1.1 kW Spindle nose D06/12 Spindle cooling: Water 1 x external grinding spindle: MMO-100 HSK-C50/4 Diameter: 100 h5 mm Maximum speed: 3770 min/1 Nominal/max. power: PS1/PS6 - 6.0/7.0 kW Fedjx Dxw Hspfx Af Dofu Clamping system: HSK-50/M12 Grinding wheels: Diameter 125-200 x 2-20 mm 1 x dressing spindle MHF-72 D40/16 Housing diameter: 72 h6 mm Maximum speed range: 16000 rpm Power S1/S6: 400/500 W Spindle nose: 40 mm/8xM5 on TK 56 mm Spindle nose: 40 mm/4xM5 on TK 32 mm 1 x measuring probe (longitudinal positioning) Etamic C25 Abrichteinheit für das automatische Abrichten mit Hydraulisch einschwenkbarem Arm. Präzisions Positionierung und Einrastung mittels Konischem Bolzen, geschliffen und gehärtet. Schwenkbewegung : Hydraulisch Schwenkgeschwindigkeit : Einstellbar 1 x Messtaster (Längspositionierung) Etamic C25 X-Achse Fahrweg: 400 mm Auflösung: 0.0001 mm Vorschub: 0-10'000 mm/min Messung: Glasmassstab Absolut Z-Achse Fahrweg: 400 mm Auflösung: 0.0001 mm Vorschub: 0-10'000 mm/min Messung: Glasmassstab Absolut B-Achse Fahrweg: +60°..- 91° Auflösung Winkelmessgeber: 0.0005° Auflösung Antrieb: 0.0001° Vorschub: 25°/Sek Messung: Winkelmessgeber Absolut Revolver Anzahl Position 4 Zeit beim Wechseln 5 Sek Möglicher Spindeldurchmesser: 0 100 mm Werkstück- Spindeldrehzahl max.: 1'000 min-1 Spindelstock Leistung max.: 1.8 kW 960-41 Spindelnase: A2.4/MK5 Ausrüstung Anschnitterkennung Anschnitterkennung und Prozessoptimierung zur Optimierung des Schleif- und Abrichtprozesses und zur Verkürzung des Luftschleifens. Signal über Körperschallsensor auf dem Werkstückspindelstock aufgebaut, bestehend aus: -1x AE-Auswertsystem mit Display AE4100 -1x Kabel -1x Software und Anbauaufwand inkl. Material Sensor und Empfänger für Abrichtspindel - 1x Ringsensor - 1x Ringempfänger Sensor und Empfänger für Spindelnase A2.4/MK5 Elektroschrank mit CNC-Steuerung FANUC 320i A und Bedienungskonsole mit Bildschirm 15" Color LCD TFT 1024 x 768 Bedienpanel 55 Tasten und LEDs PC Tastatur QWERTY Intel Pentium III 866 MHz Windows XP Professionnal Combitec HMI für FANUC 320i A Standard Programmiersprache nach DIN/ISO Werkstattorientierte Schleifzyklen (WOP) Mobiles Handrad mit Wahlschalter 0.001, 0.01, 0.1 mm und Achsenwahlschalter Vorschub Korrektur über Raster-Potentiometer 0-100 % Spindelgeschwindigkeits-Korrektur über Raster-Potentiometer 50-125 % RJ-45 Ethernet mit TCP/IP Software und Zubehör für das Radius und Konus schleifen mit PC Simulation und CNC-Bahnkontur schleifen Vollautomatisches Schleifen eines Radius G71 und/oder eines Konus G72 ab einem bestimmten Winkel auf einen...
