Modernized Veneer Guillotine

JOSTING EFS 2300 L

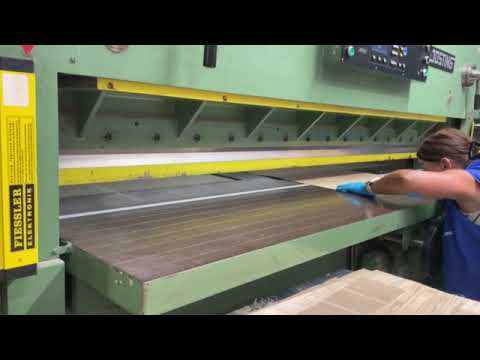

JOSTING EFS 2300 L is a heavy-duty single-knife veneer guillotine designed for accurate cutting of veneer sheets and veneer packs. The machine has been modernized and upgraded with an electronic positioning and control system, improving cutting accuracy, repeatability and ease of operation.
Manufacturer: JOSTING
Model: EFS 2300 L
Hsdpfxjzu Au Do Ah Eenr
Machine type: Veneer Jointing Guillotine / Veneer Pack Cutting Machine
Cutting length: 2,300 mm
Maximum insertion height: 80 mm
Parallel fence range: approx. 20–720 mm*
Pressure bar: Hydraulic cylinder with two pressure stages
Cutter bar drive: Brake motor, gearbox and crank drive
Parallel fence: Motor-driven positioning system
Connected load: approx. 7.7 kW
Machine footprint with parallel fence: approx. 3,640 × 1,700 mm
Machine height: approx. 1,700 mm
Net weight: approx. 3,000 kg
Modernization INCLUDES:
Digital LCD display
Electronic measurement display in millimetres
Numeric keypad for direct entry of required cutting dimensions
Automatic positioning of the parallel back fence
Programmable cutting dimensions
Cutting sequence / step programming functions
Electronic adjustment and positioning controls
Start/Stop control directly from the operator panel
Manual fine-adjustment controls
Centralized operator interface combining machine and positioning functions
