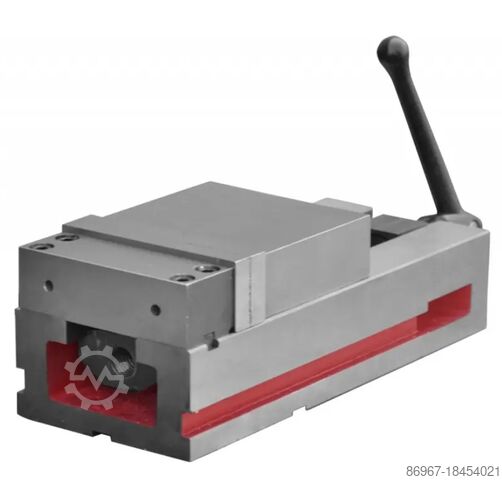

125 mm Precision Machine Vice

CORMAK QM16125N

Precision Machine Vice 125 mm QM16125N – Maximum Rigidity and Accuracy for Demanding Applications

Machine vices are an essential part of the equipment in every modern toolroom and production facility. The QM16125N 125 mm precision machine vice is a high-quality clamping tool designed for precise workpiece holding during drilling, milling, and other machining operations. Its robust construction, extended jaw opening range, and compatibility with bench drills and CNC machines make it a versatile solution for demanding industrial applications.

Main advantages of the QM16125N machine vice
High-quality cast iron body – the base with a hardness of approximately 40 HRC ensures excellent durability and effective vibration damping.
Hardened steel jaws with a hardness of 48–52 HRC – provide secure and long-lasting workpiece clamping even during intensive machining.
Adjustable jaw insert positioning – increases the working range and flexibility of clamping.
Precision-designed movable jaw – provides additional downward clamping force, preventing unwanted workpiece lifting or loosening.
Base height tolerance of ±0.015 mm – demonstrates extremely high manufacturing accuracy.
Possibility of using multiple vices together – an ideal solution for securing larger components or multi-station machining operations.
Design and manufacturing technology

The QM16125N machine vice has been designed with stability, durability, and repeatability in mind. High-quality materials and precise manufacturing ensure that this model meets the requirements of modern single-piece and series production. The wide jaw opening range (up to 305 mm) makes it a flexible solution suitable for clamping workpieces of various sizes.

Precision and work efficiency

Thanks to the accurate machining of all components, the QM16125N enables repeatable workpiece clamping without the need for additional positioning adjustments. The minimal base tolerance ensures machining accuracy, which is essential during precision milling and drilling operations. The vice is perfectly suited for use with milling machines, CNC machining centres, and bench drills, providing reliable performance in demanding production environments.

Applications
Hnjdpevxgugsfx Ah Eer

The QM16125N is designed for industrial plants, toolrooms, prototype workshops, and service departments requiring a reliable workholding solution. It is ideal as:

A machine vice for CNC milling machines – suitable for both series and individual machining operations.
A workshop vice for machining centres – providing versatile clamping capabilities for various applications.
Standard equipment
Jaw inserts with adjustable positioning capability
Precision-made steel movable jaw
High-strength cast iron base
Lead screw with hexagonal head
Technical specifications – QM16125N precision machine vice
Parameter Value
Jaw width 125 mm
Jaw height 38 mm
Maximum jaw opening L1 112 mm
Maximum jaw opening L2 165 mm
Maximum jaw opening L3 250 mm
Maximum jaw opening L4 305 mm
Transverse key width 14 mm
Longitudinal key width 14 mm
Hexagonal screw shaft head 14 mm
Dimensions 338 × 126 × 106 mm
Weight 16 kg
