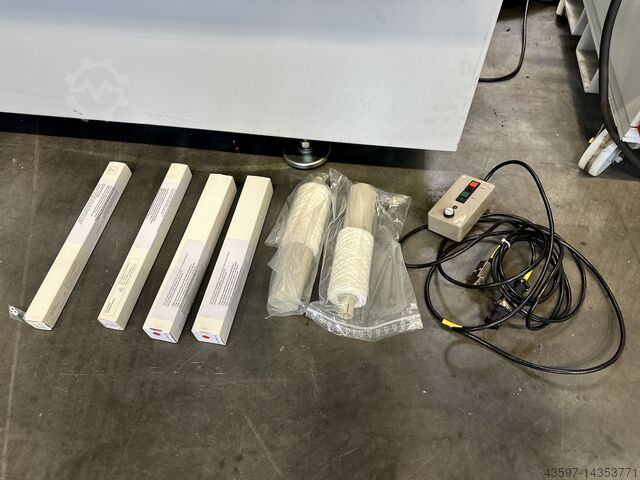

Engraving machine

Baublys BL 150 S/NC 500

Laser marking system
Fab. Baublys Typ. BL 150 S/NC 500
Year 2001

Technical data

Manufacturer: Baublys
Type: BL 150 S/NC 500
Year of manufacture: 2001
Laser: 150 Watt
Laser type Q-switch pulsed solid-state laser
Laser medium Nd:YAG
Wavelength 1064 nm
Beam diameter approx. 1.2 - 1.3 mm after decoupling mirror at TEM00
Beam divergence 5 mrad TEM00
Pulse duration (time) CW / 90 ns
Max. Output power 65 W multimode
16 W single mode
Pulse energy 16 mJ at 3 kHz
Beam deflection system Galvanometer system
Line thickness with mixed mode approx. 0.12 mm
Deflection speed 3 m/s; this corresponds to 200 characters/s at a height of 1.5 mm
and a single-line font
Dimension: approx.
Weight: approx.

Power supply

Voltage 400 V, three-phase current 50 Hz, 3 phases,
clockwise rotating field
Connection 5-pin CEE plug 16 A 6h
Max. Power consumption 8.5 kW, max. 16 A per phase
Fuse protection 3 x 16 A slow-blow

Water connection

Cooling water flow rate 7.5 l/min at 20°C flow temperature
Connection thread to be discharged G 3/4" external thread
Heat quantity approx. 6.5 kW
Max. Cooling water temperature
at inlet 20°C
Water consumption dependent on inlet temperature
Outlet temperature < = 35°C

Ambient conditions for transportation and storage

Temperature +5°C to +40°C
Humidity < 70%
Installation site Observe transport instructions

Ambient conditions for operation

Temperature +10°C to +40°C
Humidity < 70%
Installation location Observe transport instructions

All information without guarantee.

A demonstration is possible at any time in our exhibition hall.
