Injection molding machine

BATTENFELD TM4500

Year of construction: 2004, condition: used, A BATTENFELD large-format horizontal injection molding machine in need of repair is offered. Operating pressure: 210bar, clamping force: 4500kN, screw diameter: 85mm, injection volume: 2128cm³, injection pressure: 1624bar, tie-bar spacing X/Y: 900mm/800mm, opening stroke: 950mm, max. mold height: 970mm, oil capacity: 900l, connected load: 55kW, operating hours: approx. 82510h, weight: approx. 20.4t. The servo motor for the screw drive is defective. In addition, some smaller parts are missing. An on-site inspection is possible. Nwedpfx Apszvy E Aehol

Year of construction: 2014, condition: ready for operation (used), Clamping force: 1600kN, weight: 9t, operational hours counter: 3638h, with Handling Robot ENGEL viper 20. Nedjh Nypfjpfx Aphewl

Year of construction: 2004, condition: ready for operation (used), A large-format horizontal injection molding machine Battenfeld is available. Operating pressure: 210bar, clamping force: 4500kN, screw diameter: 85mm, injection volume: 2128cm³, injection pressure: 1624bar, tie-bar spacing: 900mm/800mm, opening stroke: 950mm, max. mold installation height: 970mm, oil volume: 900l, connected load: 55kW, weight: approx. 20400kg. Documentation available. An on-site inspection is possible. The machine has a defect. Nwodpfjyz Anmox Aphjl

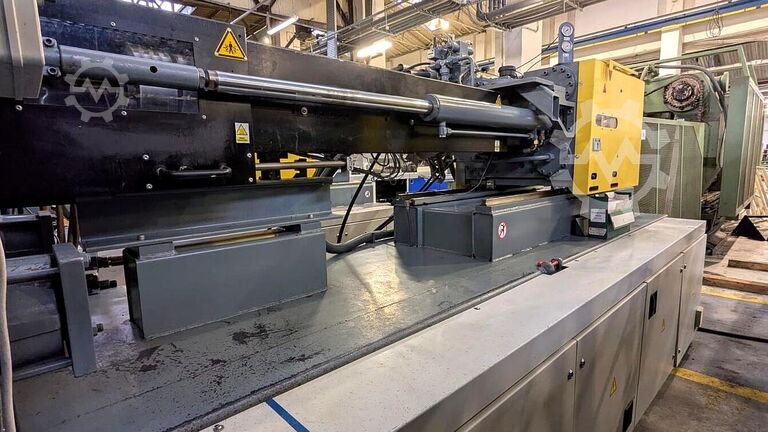

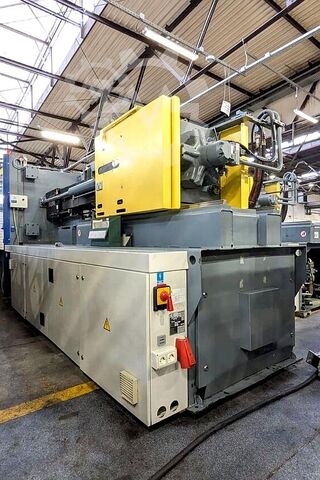

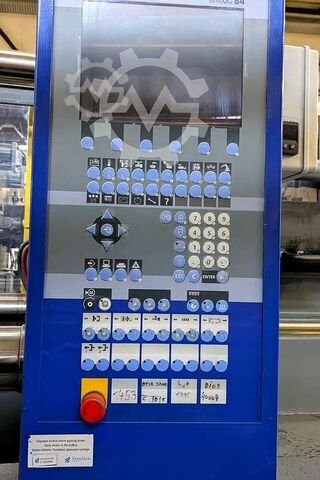

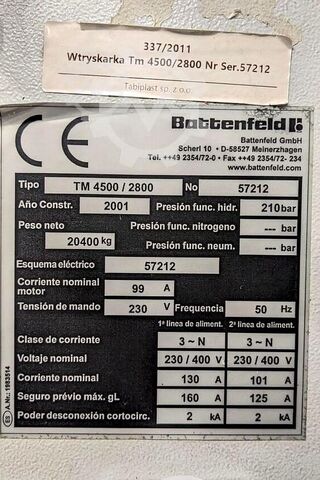

Condition: good (used), Year of construction: 2001, Battenfeld TM 4500/2800 injection molding machine Year of production: 2001 Control: Unilog B4 4 identical machines available Closing system: Closing force: 4500 kN Minimum mold height: 425 mm Nwsdpfxevn Sa Ts Aphjl Maximum mold height: 770 mm Column spacing: 800 x 800 mm Mounting plate dimensions: 1155 x 1195 mm Mould opening stroke: 760 mm Injection unit: Screw diameter: 75 mm Shot weight (PS): 1506 g Injection volume: 1657 cm³ Specific injection pressure: 1739 bar Robot interface: Euromap 12 Machine dimensions: 8.3 x 1.9 x 2.4 m Weight: 20400 kg Oil tank capacity: 800 liters

Condition: good (used), Year of construction: 2020, 5-axis CNC machining center - universal - Manufacturer: MAZAK Machine model: Variaxis J-500 Control system: Mazatrol SmoothG Year of manufacture: 2020 Number of controlled axes: 5 TECHNICAL DATA Travel ranges - X-axis: (mm) 350 - Y-axis: (mm) 550 - Z-axis: (mm) 510 - Swivel range A-axis: (degrees) -120 / +30 - C-axis (rotary and swivel table): (degrees) 360 Nwsdpfx Aezr Uudephol Feed rate X/Y/Z: (mm/min) 8,000 Rapid traverse rates - X-axis (mm/min) 30,000 - A-/C-axis: 10,800 degrees/min Spindle - Spindle speed max.: (rpm) 12,000 - Drive power (ED) 100 / 40: (kW) 7.5 / 11.0 Tool magazine - Tool holder: BT40/CAT40 - Pull stud: Yamazaki ANSI type - Tool positions: 30 - Tool diameter: (mm) 90 - Tool length: (mm) 300 Machine table Swivel rotary table Pallet system - Pallet changer: 2-position - Clamping table dimensions: (mm) 500 x 400 Swivel rotary table - Rotary table diameter: (mm) 500 x 400 - Max. workpiece weight: (kg) 200 EQUIPMENT FEATURES + Internal cooling system 70 bar + Chip conveyor with scraper band + Oil mist extraction + Tool length measurement and tool breakage monitoring + Additional interior lighting + Signal light (3-color) Subject to changes and errors in the technical data and specifications.

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, clamping force: 4,412 kN, screw diameter: 85 mm, injection weight: 1,870 g, No reserve price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Clamping force: 450 tons Screw diameter: 85 mm Nwsdpfxsy Ewn Ns Aphjl Shot weight: 1,870 g MACHINE DETAILS Tie bar distance: 800 mm x 800 mm Note: When purchasing multiple items from the same location (see offers below), you will only be charged the lowest applicable costs for dismantling and loading.

Condition: like new (used), Year of construction: 2018, operating hours: 5,498 h, functionality: fully functional, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,300 mm, travel distance Z-axis: 3,500 mm, feed rate X-axis: 40 m/min, feed rate Y-axis: 40 m/min, feed rate Z-axis: 40 m/min, table length: 2,500 mm, table width: 3,500 mm, spindle speed (max.): 12,000 rpm, table height: 300 mm, table load: 130,000 kg, workpiece weight (max.): 130,000 kg, spindle nose: HSK A100, MOVING GANTRY MILLING MACHINE FPT MOD. DINOX 350 IAT 5 axes Numerical control: Heidenhain TNC 640 X axis: 2,500 mm Z axis (Vertical): 1,300 mm Y axis: 3,500 mm Rapid traverse: 40,000 mm/min Universal head with continuous positioning HSK A100 electrospindle interface Maximum speed: 12,000 rpm A axis: + / - 185° C axis: + / - 270° Table: 3,500 x 2,500 mm, height 300 mm Load capacity: 15t/m^2 Tool changer: 64 positions Total power: 85.13 kW Weight: 51,370 kg Complete with: - Laser probe and software for tool integrity check and tool length and radius measurement Nwsdpfx Apewzv Tcohol - Workpiece probing and alignment sensor - External/internal tool coolant with 1,500 l tank, p=40 bar - Workpiece washing gun with tool coolant, dedicated pump - Internal tool cooling with compressed air, High Speed - Chip conveyor USED MACHINE YEAR 2018

Condition: new, Year of construction: 2025, functionality: fully functional, travel distance X-axis: 1,000 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 600 mm, rapid traverse X-axis: 36 m/min, rapid traverse Y-axis: 36 m/min, rapid traverse Z-axis: 36 m/min, feed rate X-axis: 15 m/min, feed rate Y-axis: 15 m/min, feed rate Z-axis: 15 m/min, total height: 2,700 mm, total length: 2,800 mm, total width: 3,550 mm, table width: 600 mm, table length: 1,200 mm, table load: 800 kg, overall weight: 7,500 kg, spindle speed (max.): 8,000 rpm, spindle nose: SK40, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Vertical machining center with extensive standard equipment: - FANUC or Heidenhain control Nwodpevtz Dxefx Aphjl - internal coolant supply - SK 40 - 24-position tool magazine, double-arm gripper - Glass scales in all axes - Chip conveyor - Electronic handwheel - Compressed air through the spindle - 30-position tool holder package - Complete 24-position tool equipment - Initial filling of coolant lubricant - Installation-commissioning-training - Guarantee up to 5 years possible HAITIAN European branch Ebermannsdorf

Condition: used, Year of construction: 2015, Technical details: closing pressure: 6600 kN Nwsdpfsw I E R Nsx Aphsl weight of the machine ca.: 45,5 t

Condition: ready for operation (used), Year of construction: 2005, Offered is a Röders RXP 500 high-precision milling machine year 2005, approx. 160763h, spindle approx. 100000h incl. HSK-25 high-frequency spindle with 50000rpm, 42-fold chain magazine, HG sensor, high-accuracy option incl. spindle cooling as well as Renishaw probe, machine weight approx. 5500kg. Viewing is possible by arrangement. Nodpjxyk S Iefx Aphewl
