Used parquet production lines / parquet machines for sale (34)

Condition: excellent (used), Year of construction: 2016, functionality: fully functional, machine/vehicle number: 21321, Automatic longitudinal parquet forming machine IMATEC PA6/2, a complete automatic system for performing all longitudinal operations in the production of solid wood parquet. Cgodpot D U Tkjfx Aaqon Operating voltage: 380V Year of production: 2016 Main technical features of the machine: * Min/max length of processed elements: 200–1300 mm * Min/max width of processed elements: 40–180 mm * Min/max thickness of processed elements: 8–85 mm * Stepless adjustable feed speed: 13–45 m/min * Equipped with 6 heads: • two lower horizontal spindles (1–2) • two vertical spindles (3–left, 4–right) • two upper horizontal spindles (5–6)

Condition: excellent (used), Marinus Machines V&G 400 Series, Through Feed End Matching Machine suitable for fixed or random lengths as needed Maximum working length up to 6m, Minimum working length: 500m/m Total Power: Appr: 32kw, Csdpfsydii Isx Aaqsgn Tooling included. 400v 50hZ 20 pieces per minute possible depending on length. PLC Controls. Complete Safety Enclosure.

Condition: used, Year of construction: 2004, machine/vehicle number: 59274, type of input current: AC, input voltage: 230 V, disc diameter: 150 mm, FRANK Surface Grinder GECKO S Cgedpfx Aeycuy Njaqen Technical data: • Motor voltage: 230 V • Motor power: 1,500 W • Grinding disc diameter: 150 mm • Weight approx. 6 kg The machine has been overhauled in our workshop and is fully operational. The machine is supplied including power cable and dust bag. Shipping available at extra cost. We ship exclusively within the EU. No shipping outside the EU.

Condition: used, machine/vehicle number: 4/14242, Frank Floor Sanding Machine FSR used Engine power: 0,75 KW Voltage: 230 Volt 5 amps, 50 Hz, Machine no.: 4/14242 Cgsdpfx Aasb Auu Roqon Dust bag Location: Ex warehouse Bitburg

Condition: new, Year of construction: 2026, functionality: fully functional, working width: 200 mm, The Marinus Powermax Chevron is an advanced machine line for head-end machining tongue and groove on Hungarian-point (Chevron) and herringbone parquet. Cgedpfjiv R Hhjx Aaqsn Several wooden parquet boards can be loaded into the infeed cassette, after which the process runs automatically. First the boards are pre-cut to the corresponding length and angle in the cross cut saw unit, then they go via conveyor to the Chevron machine. Before the profiling takes place the wood is brought to a stationary position, fixed sideways and clamped to an accurate reference surface above. Resulting in high profile accuracy with no noticeable edge on the top side when the boards are fitted together. The two arms on which the profiling heads slide back and forth are sturdy built and driven by servo motors, which guarantees that all the boards have exactly the same length and angle. The lengths and angles are stepless adjustable via the user friendly touch screen panel. This clamping system combined with two pre-cut aluminium backing blocks effectively prevents blow-outs and splintering. Lengths: 350 - 1200 mm Widths: 50 - 200 mm Thicknesses: 8 - 22 mm Angle: -45° to +45° Capacity: Up to 10 boards per minute Length modes: Fixed lengths This machine is engineered and built in our company in The Netherlands and will be delivered new from our factory. This machine is equipped with an online remote support system. We provide customer support worldwide. This listing on Machineseeker is also made by us: Marinus Machinery.

Condition: new, Year of construction: 2026, The Marinus Powermax Endmatcher is designed for head-end machining tongue and groove on parquet floorboards, decking and cladding, producing fixed and variable lengths. It can be used for any type of wood; hardwood, softwood, or engineered wood. The machine can cut to length, cut out defects, and do head-end profiling, all in a single pass of the wood through the machine. When feeding wood into the machine, it is possible to mark defects, like knots or cracks, with a luminescent crayon. The machine will cut out these defects, including the crayon lines. Lengths: 450 - 6000+ mm Widths: 50 - 300 mm (optional width of 400mm or 500mm) Thicknesses: 8 - 45 mm Codpsf Hkgpefx Aaqjgn Capacity: up to 20 pc/min Length modes: Variable / Fixed / Round. This machine is engineered and built in our company in The Netherlands and will be delivered new from our factory. This machine is equipped with an online remote support system. We provide customer support worldwide. This listing on Machineseeker is also made by us: Marinus Machinery.

Condition: reconditioned (used), Year of construction: 2007, functionality: fully functional, total length: 2,000 mm, total width: 1,250 mm, total height: 2,000 mm, type of input current: three-phase, input voltage: 400 V, power: 40 kW (54.38 HP), saw blade diameter: 450 mm, workpiece width (max.): 300 mm, workpiece height (max.): 30 mm, air pressure: 6 bar, extraction connection diameter: 200 mm, hone diameter: 125 mm, number of spindles: 2, MARINUS PROMAX - Endmatcher and defect saw. The machine is according to following specifications: - Stable and heavy construction, dimensions LxDxH = 2080x1260x2000 mm. - Continuous feeding system with accurate positioning (servo). - Pneumatic sidepushers for guaranteed square angle. - PLC-steering. - Operating by terminal. - Modem for programming at distance. - 2 servomotors for maximum dynamics. - 2 sawingmotors (3,0 kW). - 2 high-speed millingmotors with inverter (7,5 kW each /200 Hz/n=12.000). - 1 motorgearbox with inverter. Cedpfx Aaeq Auhdoqegn - 2 drummotors. - 26 pneumatic cylinders with valves. - 1 luminescence-sensor - 6 inductive-sensors - Bandconveyor for waste, height 1,3 mtr. - Machine completely closed by safety-doors. - Machine according to CE-requirements. Length-measuring system: A lenght-measuring-system displays the total lenght and square meters of the boards on the display during production. Tooling: We can offer tooling (tongue and groove) with disposable knives and 2 crosscutsawblades as an option for the machine. Standard Programming: The machine is equipped with 2 main programs: 1 Endmatching 2 Cutting Both main programs have 2 sub programs: 1. Variable lenghts: defects are cut out, endproducts are of all variable lenghts. 2. Fix lenghts: boards will be produced at a fixlenght, infeedlenght has an oversize of max +200 mm. Cutting out defects is not possible. - Min. Width 60 mm - Max. Width 300 mm - Min. Length 500 mm - Max. Length 6000 mm - Min. Thickness 10 mm - Max. Thickness 30 mm

Condition: like new (used), Year of construction: 2019, operating hours: 180 h, functionality: fully functional, total length: 8,000 mm, total width: 1,200 mm, total height: 1,300 mm, type of input current: AC, input voltage: 400 V, power: 10 kW (13.60 HP), SOEST Universal Surface Line for oiling, staining, lye treatment, patination, etc. Primarily intended for parquet surfaces up to 40 cm workpiece width. Cgjdpfx Aaeyaiafeqsn 1) Roller Machine RCR-400-L Reverse, for applying and removing surface products such as oils, stains, lacquers, etc. 2) Distributor Machine VP-400-1B-2P-2B with one brush, two pad holders, and an additional two brushes, for distributing, working in, or patinating surface media in the pores and/or also for removing, distributing, and working in depending on the desired surface effects. 3) Accessories include two spare application rollers, a material pump (brand new, never used), four replacement brushes, various distributor pads, and a pneumatic brush cleaning machine. This complete surface finishing line is built for professional industrial use and is configured with a full set of equipment. A considerable amount of accessories for the system, such as extra rollers and cleaning machines, is also included (see photos!). Very robust construction, all motors frequency-controlled (Siemens). Speeds are steplessly adjustable for both forward and reverse operation. Maximum workpiece width is approx. 410 mm. The system is in very good condition, with little use—only approx. 180 operating hours—so it can be described as as-new. This surface processing line was only used as a backup line in parquet production and only for specific surface techniques, which explains the low operating hours (used sporadically from 2019 to 2022). In 2023, our company downsized and the system has been stored ever since or is immediately available, and therefore remains in nearly brand-new condition! This system is no longer used in our facility and is therefore being sold. The new price for this line was approx. €87,000 in 2019; the current selling price is negotiable! Inspection of this surface line is possible by appointment. If required, we can also offer 10 drying rack trolleys for sale with this system. (The YouTube video serves only as an example video of a similar system configuration!)

Condition: like new (used), Year of construction: 2012, Profiling parquet machine for longitudinal side 5+5 motors Speed up to 60 m/min Cedpoxwnhbefx Aaqogn Min. Working width 70 mm (65 mm without bevel) Diamond tools for T&G profile +infeed belt conveyor

Condition: good (used), Year of construction: 2009, Grooving parquet machine ZEFIRO - automatic producing of the grooves on the plywood back side of parquet boards. Useful length 2400 mm. Entry belt conveyor included. Cedpfjx Rrqvox Aaqegn

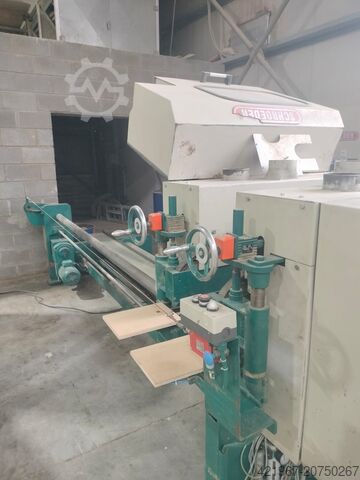

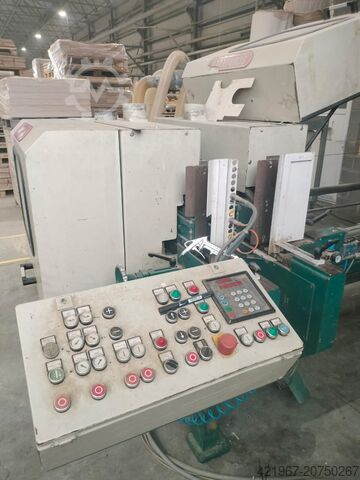

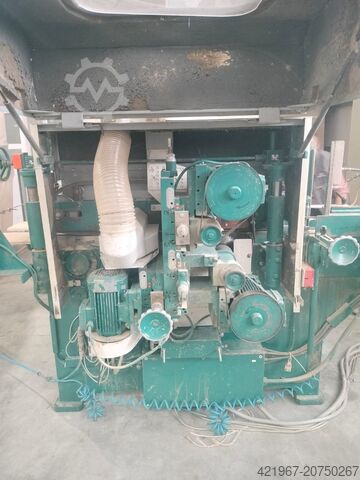

Condition: used, Year of construction: 2000, MACHINE SCHROEDER PAKUE 6 Cgsdpjx Hi S Nofx Aaqsn Length 3.0 m

Condition: used, Year of construction: 2010, functionality: fully functional, total length: 4,500 mm, total width: 1,300 mm, total height: 1,400 mm, type of input current: three-phase, CEFLA Sorbini SmartParquet Flooring Oiling Line + Aerotherm UV Dryer For sale: A complete set of machines for oiling wooden floors, consisting of: * CEFLA Sorbini SmartParquet oil applicator and spreading system * Aerotherm UV drying tunnel (UV dryer) This line is designed for finishing and oiling wooden floors, parquet, and engineered boards. --- Csdpfxox Rb Hme Aaqsgn Technical Data CEFLA SORBINI Oiling Line (SmartParquet): * Dimensions: 4500 × 1300 × 2000 mm (L × W × H) * Weight: approx. 1400 kg Aerotherm UV – Drying Tunnel, Dryer: * Dimensions: approx. 3000 × 1200 × 1400 mm * Weight: approx. 400 kg --- Adjustable speed settings for all working components: * Application rollers * Brushes * Pads * Feed Technical condition: Very good, in continuous operation Reason for sale: Sale only due to purchase of a new processing line. --- Additional Information * Machines can be inspected live during operation * A demonstration video of the line in operation can be provided upon request * Assistance with loading available

Condition: ready for operation (used), Year of construction: 1998, functionality: fully functional, power: 30 kW (40.79 HP), Multi-blade crosscut saw / Splitting machine for parquet strips Manufacturer: A. Costa Model: Zefiro 1450 Machine from parquet production, previously used as a grooving machine. Professional splitting machine for parquet strips. In engineered parquet production lines, this machine is typically positioned directly after the press, so that the parquet slats coming out of the press are fed directly to the Zefiro grooving and milling machine to mill/saw channels in the plywood backing. These grooves on the underside ensure that the manufactured parquet strips are more flexible and resilient. As a result, the parquet is less prone to deformation, which usually occurs due to moisture. This significantly increases the quality of the parquet flooring. Technical data: Working width: 1400 mm Max. feed width: approx. 1650 mm Cutting height: approx. 30 mm Min. distance between saw blades: approx. 20 mm Feed speed adjustable, approx. 3 - 13 m/min Main motor: 30 kW CE marking Saw dimensions approx. 2800 x 2400 x 1800 mm Saw weight approx. 2,650 kg Cgsdpfx Aajxrlb Isqsn Including 2 conveyor belts for the removal of the grooved parquet slats

Condition: used, Year of construction: 2019, functionality: fully functional, machine/vehicle number: AN2018080, total length: 12,860 mm, total width: 4,806 mm, type of input current: three-phase, input voltage: 400 V, feed length X-axis: 3,000 mm, working width: 350 mm, power: 25 kW (33.99 HP), TRC 1500 – Timber Repair & Cosmetic Machine Technical Description • System Overview • Process Workflow System Overview The Wintersteiger TRC 1500 is a fully automated industrial system designed to detect, repair defects in wooden boards. It combines advanced 3D scanning, high-pressure thermoplastic injection technology to deliver consistent, high-quality repairs at production speed. Defects are repaired with thermoplastic filling material using injection and application units. No filling material is wasted thanks to the precise calculation of the filling quantity and precision injection. the edges can also be filled. Key Features • Automated 3D laser triangulation defect detection • High-pressure thermoplastic injection for durable repairs • Precision finishing unit for cosmetic perfection • Independent melt temperature zones with 8 kg tank • Closed glycol-water cooling system for controlled solidification • Ethernet-based control system with remote maintenance • Unlimited product profiles and intuitive scanner interface Product Range (Workpiece Specifications) Length 500–3000 mm Width 100–350 mm Thickness 3–30 mm Production speed upto 10 m/min – depending on number and sizes of defects Filling System – Injection & Application Units • Injection Unit: • 3-axis positioning (X/Y servo-driven, Z pneumatic) • Pressure-regulated melt feed • High-pressure injection • Application Unit: • 3-axis control • Fine finishing of repaired areas Faulty Spot Eye Scanner • 3D laser triangulation and high-speed camera system. • Detects defects from approx. 1 mm depth • Automatic height adjustment • 2D + 3D measurement • Adjustable parameters for wood types Melting Unit • 8 kg tank • Independent temperature zones • Integrated piston pump for constant pressure Cooling Unit • Closed glycol-water circuit • Stable temperature control Control System • Ethernet-based communication with remote maintenance • Access to PLC, scanner, servo drives • Energy-efficient regenerative drive technology Cgjdpfx Aasx Dmdheqjn Scanner Software • Processes 3D light-section profiles • Calculates defect volume and coordinates • Unlimited product programs • Intuitive operator interface High-Pressure Injection Process 1. Melting of thermoplastic material 2. Pressure and temperature regulation 3. Targeted injection into defect 4. Immediate cooling 5. Minimal surface residue • Benefits: • Low material usage • Excellent adhesion • No alteration of surrounding wood structure System Architecture • Melting unit • Heated hoses • Injection head • Cooling plate • Cooling unit with supply/return flow

Condition: used, Year of construction: 2012, functionality: fully functional, total length: 5,500 mm, total width: 1,300 mm, total height: 2,000 mm, type of input current: three-phase, The HSDP hydraulic press is designed for layer-by-layer gluing of wooden components used in floorboards, beams, and others, under high pressure from hydraulic cylinders reaching up to 1.4 MPa (14 kG/cm²). The stack of glued elements is formed by hydraulic compression between the cylinder beams and the lower support beam. Thickness gluing allows for shaping any profile, reduces processing costs, and decreases waste. The HSDP press is also equipped with pneumatic clamps, which secure the compressed stack and prevent it from shifting. Cedpfx Aaox Hrxfjqogn

Condition: excellent (used), Year of construction: 2020, functionality: fully functional, total length: 700 mm, total width: 2,000 mm, total height: 1,350 mm, type of input current: three-phase, input voltage: 380 V, working width: 1,300 mm, The DRM model offers the most economic single roller coater for smaller or start-up companies looking to oil wooden floorboards. This machine is specifically designed for the application of oil and glue. The machine is fully operational without any functional defaults. The machine comes with two new glue trays. Cgedpfx Asxdxf Roaqon Contact us for a quote, or visit our Test Center for a free demo.

Condition: excellent (used), Year of construction: 2024, operating hours: 2,000 h, functionality: fully functional, type of input current: three-phase, input voltage: 400 V, working width: 400 mm, warranty duration: 12 months, power: 15 kW (20.39 HP), Fast and efficient UV drying tunnel for oils and lacquers. Delivers instant curing and a durable, high-quality finish. Equipped with adjustable UV lamps (50–100%) and a heat- and UV-resistant INOX mesh belt. Lamp type and configuration (mercury or gallium, 5 kW each) available on request. Cgedpexuibksfx Aaqon Before sale, the machine is fully cleaned, serviced, and tested.

Condition: as good as new (ex-display), Year of construction: 2024, operating hours: 20 h, functionality: fully functional, type of input current: three-phase, input voltage: 400 V, feed rate X-axis: 27 m/min, working width: 400 mm, warranty duration: 12 months, power: 2.5 kW (3.40 HP), Achieve flawless coating results on wood, MDF, and other flat materials with the Soest Roller Coater. Ideal for furniture, flooring, and panel production, it ensures consistent finish quality and high production efficiency. Suitable for applying water-based, UV, LED oil, lye, stain, or lacquer. The RC-L model is specially configured for lacquer applications, featuring dosing and application rollers with blades and a reversible dosing roller. Alternative roller types or the RC-L blade system can be supplied upon request. Contact us for a quotation or visit our Test Center for a live demonstration. Cjdsxuh T Ejpfx Aaqsgn

Condition: like new (used), Year of construction: 2012, Longitudinal profiler solid wood floorboards JOEMA 450 edit solid Wood Planks longitudinally Cedjduw Auspfx Aaqegn width max. 450 mm right side 2 electric motor je 7,5 kW left side 2 electric motor je 7,5 kW Feed gear motor 3.0 kW toothed transport chains for safe transport Solid wood floorboards, chateau floorboards, floorboards

Condition: refurbished (used), Year of construction: 2023, Lengthwise and crosswise parquet line completely renovate with fully guarantee. Width min/max 80-400 mm Csdpfxjlaxinj Aaqogn Length min/max 500-3000 mm 4+4 motors per side Customized machine according to customer needs

Condition: excellent (used), Year of construction: 2023, Pressing Lines for automatic multi-(2-3)-layer parquet production. Cgodpfx Aasggflcjqen

Condition: refurbished (used), Year of construction: 2001, Working width 40-170 mm Thickness 9-50 mm Codpfx Aaeqa Dq Ioqjgn 6 operator motors of 7.5 KW each

Condition: reconditioned (used), Year of construction: 2002, Longitudinal profiling machine for parquet 4+4 motors Minimum working width 80 mm M+F profile Csdpfx Aaovxz Sysqjgn

Condition: used, Year of construction: 2000, functionality: fully functional, machine/vehicle number: 3186, For sale: industrial planer LEDINEK ROTOLES 400 D-S. Year of manufacture: 2000. Max. working width: 400 mm Max. working height: 2–150 mm Min. workpiece length: 150 mm Cgedpoxyan Sefx Aaqen Max. material removal: 8 mm Rotating shaft with 34 knives Feed speed: 10–30 m/min. Motorized thickness adjustment with digital display. Extraction hood diameter: 200 mm (required air speed: 30 m/s) Main spindle motor: 15.0 kW Feed motor: 3.0 kW Total power: 18 kW Total weight: 1,800 kg.

Condition: like new (used), Year of construction: 2025, operating hours: 8 h, functionality: fully functional, total length: 700 mm, total width: 2,000 mm, total height: 1,350 mm, type of input current: three-phase, input voltage: 380 V, working width: 1,300 mm, The DRM model offers the most economic single roller coater for smaller or start-up companies looking to oil wooden floorboards. This machine is specifically designed for the application of oil and glue. With just 8 operating hours, this machine is as good as new. Cgedpfx Aexdxabeaqen Contact us for a quote, or visit our Test Center for a free demo.
