Used mixer for sale (121)

Condition: excellent (used), Year of construction: 2012, machine/vehicle number: 12CG001009, Used GEA continuous mixing and granulation system, model ConsiGma1, stainless steel product contact surfaces, with Brabender feeder, twin screw continuous mixer, and fluid bed dryer granulator, with controls, CE and Ex rated, 400 volt, 50 Hz, seiral# 12CG001009, built 2012. Prodetvm Uljpfx Appob

Condition: used, Year of construction: 2007, Fabricant : WAM Model : WBHY 550 PO Year : 2007 Type : Ploughshare mixer Total tank capacity: 550 L Useful tank capacity: 518 L Material : stainless steel Number of ploughshares: 4 + 2 blades Spray nozzle: liquid injection Choppers : 2 (ATEX motors: 4 kW) Main motor power: 18.5 kW Machine dimensions: 130 x 230 x 145 cm Weight : 2000 kg Plan to install an electrical box: this request may be subject to a separate quotation Prodpfx Aoziqfmoppjb

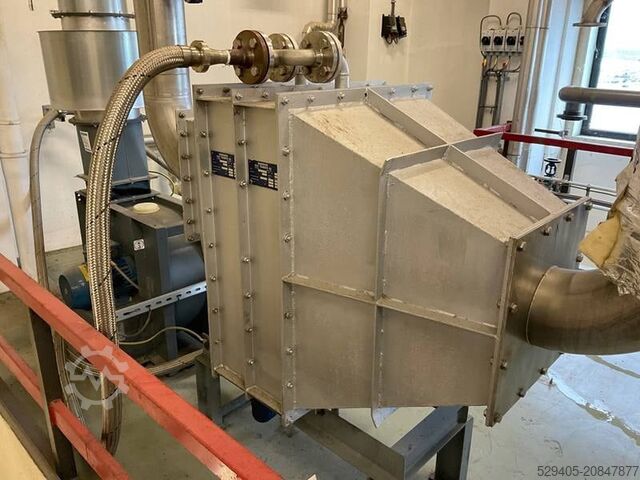

Condition: used, Year of construction: 2017, Old Lodige KM 1200 D continuous mixer with ploughshares (year 1977) transformed into a mixer-dryer (year 2017) by the previous user. Modification made : New enclosure / mixing chamber in stainless steel 316. Change of motor transmission: belt -> geared motor Main material: 316 stainless steel Year: 2017 Type of drying: hot air blowing Without electrical cabinet Prsdpfx Ajx R An Ejppob With piping 1 – Ploughshare mixer 1200 L Motor manufacturer: SEW Power : 18,5 KW Material: 316 stainless steel + 2 manual butterfly valves + 2 manual Orbinox knife gate valves Porthole interior view Safety box suppression (brand : Vigilex) No manufacturer’s plate 2 – Fan n°1 Manufacturer: Kiekens Model : 8 KTEN 355 Year: 2017 Volume: 1204 m3 / H Power : 15 KW Temperature : 80°C Atex : yes Ex II 3D/G td nA 3 - Fan n°2 Manufacturer: Kiekens Model : 8 KTEN 280 Year: 2017 Volume: 1204 m3 / H Power : 4 KW Temperature : 80°C Atex : yes Ex II 3D/G td nA 4 – Heat exchanger Manufacturer : Bronswerk heat transfer B.V Year: 1996 Exchange surface: 67 m2 x 2 Max pressure : 20 bar Max. temperature: 215°C Fluid : water or steam Volume : 17 L x 2 Temperature sensor connection 5 – Dust collection cyclone Year: 2017 With DMN Westinghouse rotary valve (type : butterfly) On frame 6 – Platform with stairs and mixer support Manufacturer: IJSSEL technology

Condition: used, Used Wolfking TSMG 1500/250 stainless steel ASI 304 / 1.4301 horizontal twin paddle mixer total capacity 1 500 ltr. Mixing chamber measures approx. 1 500 mm length x 1 600 mm width. Total lenght of mixer is 3 200 mm. Total height of mixer is 2 200 mm. There is two horizontal twin paddle agitators in the mixing chamber. Agitators speed is 20 PRM driven by two el. motors 7,5 kW. One side discharge with screw installed in the bottom of chamber driven by el. motor 55 kw, 160 PRM. Included: control panel, switchboard Podpfszn N H Tox Appjrb

Condition: used, functionality: fully functional, overall weight: 207 kg, type of input current: three-phase, Silverson 600 UHS in-line (in-line) high shear mixer/homogeniser with stainless steel work head and 3" tri-clamp connections, driven by a 2021 ATEX explosion-proof ABB motor. Suitable for mixing, emulsifying, homogenising and dispersing in food, pharma, cosmetic and chemical applications. Pjdpjzn A Azofx Apporb Available for collection or delivery can be arranged (buyer to arrange or request a quote). Weight approx. 232 kg — palletised/crated shipping recommended. Tracht specialise in hygienic process equipment for the food, beverage, cosmetics, pharmaceutical and chemical industries, with practical experience supporting both batch and continuous manufacturing environments. In addition to process vessels, Tracht supply and install stainless steel mixing vessels, Silverson high-shear mixers, hygienic lobe pumps, hygienic centrifugal pumps, access gantries, and provide full vessel installation and commissioning services. Whether replacing existing equipment or expanding production capacity, Tracht can specify, supply and install the right equipment for your application.

Condition: used, Year of construction: 2019, Manufacturer : CMA Model : Robotainer (RBT) Year : 2019 Type: Rotary powder mixer / Rotary container mixer Container types: 1,500 and 1,900 litres Number of containers: 4 units Rotation speed: 5 to 11 rpm Control panel and PLC Prodpfx Apjyv R Drjpeb Safety light curtain Video available in running condition Complete technical file

Condition: used, Chemical Mixer, Stainless Steel Mixer, Chemical Mixer 2000 L, Used Machine Prjdpfx Ajyc Sfvoppsb Manufacturer: Chemplex Type: T240 Electrical power: Heating: 20 kW Mixer motor: 3 kW Weighing system: MS-h10/kn, MS-CT-SQB – maximum weighing capacity 3,500 kg Maximum heating temperature: 90 °C Capacity: 2,000 L Description: General-purpose chemical mixer manufactured by Chemplex with a 2,000-liter capacity, designed with an integrated tank weighing system (3 load cells with indicator). The vessel is an atmospheric tank with a DN100 bottom outlet. Heating is provided by a 20 kW electric bottom heater. The mixer is equipped with a propeller-type agitator. It features a flat lid, which is openable and fitted with a safety grid. The lid includes 4 dosing/inlet nozzles. Recommended operating temperature: 20–60 °C. The bottom discharge nozzle is fitted with a stainless steel ball valve, equipped with a pneumatic actuator and bubble position indicator. The actuator is spring-loaded, providing a fail-safe (safety closed) function.

Condition: used, Year of construction: 1973, Manufacturer: Grenier - Charvet Model: E 15 Year: 1973 ( Conformity certificate in 2001) Type : High viscosity paste mixer   Motor power : 15 CV - 11 KW Speed variation: mechanical Previous use : Paint 220 L tank Mixing tool: Ø 705 mm butterfly / cloverleaf type Psdpfjx R Azrex Appsrb Vessel clamping: pneumatic   Vertical movement: hydraulic unit Height in low position: 2040 mm Height in high position: 2880 mm Stroke: 840 mm

Condition: good (used), Equipment: type plate available, Ystral Type X 11,000 S/LDT-4-154P Disperser based on the rotor-stator principle on a stand, without control unit The YSTRAL disperser is designed for the production of emulsions and suspensions in the medium-viscosity range. It meets high requirements for fine dispersion, even in the medium-viscosity range, and is used for batches up to 2,000 liters. Psdszp Nvwepfx Apporb Drive: 2,910 RPM / 11.0 kW

Condition: excellent (used), Year of construction: 2007, BACHOFEN Turbula T2F Shaker Mixer The mixing container is set in three-dimensional motion, subjecting the material to alternating, rhythmically pulsating movements for intensive mixing. Max. volume: container with 2 L capacity Container dimensions: approx. Ø 130 mm x 215 mm Speed is adjusted via a stepped pulley. Prsdpfx Apeyc R Nyepeb Manufacturer: Willy A. Bachofen GmbH Year of manufacture: 2002 Space requirement: 50 x 60 x 40 cm

Condition: used, Year of construction: 1989, Manufacturer: Pendraulik Model : WD R 24 Type: dissolver Year: 1989   Power : 17,5 KW ATEX class : (Ex) e G3 Mixing speed : 400 – 1500 rpm Speed variation : electric Dispersion disc: Ø 300 mm Recommended vessel: Ø 700 – 1000 mm   Pedjzg Nf Hspfx Appsrb Mounting: wall or floor standing Sold with 1 bowl (additional units available on request). Vessel clamping: manual and mechanical Total height: 3520 mm Distance between mixing head and floor: 250 mm – 1400 mm   Technical Data available

Condition: used, Year of construction: 2018, Manufacturer : SPXFLOW Lightnin Model : HP-25 A Year: 2018 Type : Stirrer Diameter of the stirring blade: 110 mm Length of the stirring shaft: 825 mm Shaft diameter: 12.5 mm Required pressure: 6 bar Manual pin-type lifting system Lifting stroke: 36 cm Maximum width of a container: 72 cm Predszcznyopfx Appjb Dimensions: floor to >mixing head (lower position): 55 mm Dimensions: floor to >agitator head (top position): 415 mm Dimension : 110 x 103 x 150 cm Technical documentation available

Year of construction: 2010, condition: good (used), Sower mixer disperser Type: SWFS Power: 4 KW Year: 2010 Speed: 1500 RPM Weight: ca 600 KG Dimensions: 145x55x165 cm LxWxH Prsdpfji It T Esx Appeb

Condition: used, Used Wolfking model 100 L BL stainless steel twin-shaft ribbon mixer. - Manufacturer: Wolfking - Model: 100 L BL - Total volume: 110 litre (approximately) - Mixing chamber dimensions: 770 mm x 501 mm x 305 height mm (approximately) - Type of agitators: Twin uninterrupted ribbons Prjdpjzunvysfx Appeb - Dimensions of agitators: diameter 290 mm x 770 mm long (approximately) - Drive: 0.75 kW, 220/380 V, 1400 rpm (belt driven through gearbox) - Includes: Control panel

Condition: used, Comprehensively tested, used Olsa Process Mixing Suite. This mixing suite comprises of: 2 off Olsa Pharmaceutical grade mirror polished 316 stainless steel vacuum mixer homogenising vessels.  Full hydraulic raise/lower with electrical panels, touchscreen PLC controls, CIP pumps, diaphragm product discharge pumps, both vessels on load cell system. Manuals/drawings included. Technical specification below for each main process vessel.   Prodpjymaz Hsfx Appjb Vessel 1 Gross capacity 266L, full scraped wall 2.2kw anchor mixer, contra rotating mixer 1.1kw, bottom entry high speed homogeniser 7.5kw.  Vessel rating 2.5bar plus full vacuum at 155 Degrees C.  Jacket 4.5bar 155 degrees C. CIP system.  150mm dia hinged chargeport with sight glass, vessel light.  Numerous top dish connections, vacuum pressure gauge, 30mm dia outlet.  Vessel dimensions 1.3m x 2m x 2.4m closed.   Vessel 2 Gross capacity 266L, full scraped wall 2.2kw anchor mixer, bottom entry high speed homogeniser 7.5kw.  Vessel rating 2.5bar plus full vacuum at 155 Degrees C.  Jacket 4.5bar 155 degrees C. CIP system.  150mm dia hinged chargeport with sight glass, vessel light.  Numerous top dish connections, vacuum pressure gauge, 30mm dia outlet.  Vessel dimensions 1.3m x 2m x 2.4m closed.

Condition: used, Używany mieszalnik planetarny produkcji Grieser (DE) model VPL 350. Mieszalnik posiada dwa mieszadła spiralne i jedno obcierające ściany boczne. Mieszadła są napędzane silnikiem el. 15 kW, 1460 obr/min, 400 V, 50 Hz, przez przełożenia pasowe i przekładnię planetarną. Unoszenie i opuszczanie mieszadeł hydrauliczne. Mieszalnik jest wyposażony w 9 przejezdnych kadzi ze stali ko. Każda kadź ma wewnętrzne wymiary 695 mm x 500 mm głębokości, całkowita pojemność 365 l, robocza ok 350 l. Dwie z kadzi mają w dennicy otwory spustowe wyposażone w zawory otwierane ręcznie. W zestawie znajduje się również mechaniczna wywrotnica do unoszenia i rozładunku kadzi przez przechył. Mieszalnik posiada lokalny panel sterowania i szafkę elektryczną. Dokumentacja techniczna - ogólny podręcznik użytkownika i schematy el, w formie cyfrowej. Maszyna obecnie zdemontowana. Ostatnio pracowała w przemyśle spożywczym. Podpfxoyma E Es Apporb Specifications: Power: 15 kW

Condition: used, Used Stainless Steel Millchem Dissolver type FMG25HD. Driven by a 22/15kW, 380V, 1500/750 rpm motor. Stainless Steel Turbine has a diameter of approximately 300mm. Supplied with (1) stainless steel tank with a capacity of approximately 1300 litres measuring 1180mm diameter x 1240mm. Pedozd Urgjpfx Apporb

Condition: like new (used), Year of construction: 2012, JANKE + KUNKEL TURBOTRON SFH ATEX agitator Generator version with propeller agitator Max. batch size: 200 liters ATEX version Infinitely variable drive up to 1,100 rpm Manufacturer: IKA Year of manufacture: 2012 Space requirement: 170 x 130 x 225 cm Prsdjwu Uk Hopfx Appsb

Condition: used, Year of construction: 1972, Manufacturer : Lodige Prodpfx Apox R Dyiepjb Model : M20 GRE Year : 1972 Type: ploughshare mixer for powders Total volume : 20 Litres Motor : 1,1 KW Video available in operation Static counter blade Transmission and sealing: reconditioned Mixing chamber rotation Bin: filling / emptying

Condition: used, Year of construction: 2009, Manufacturer: Romaco - Frymakoruma Model: Dinex Lab Year: 2009 Type: Vacuum mixer for R&D or small-scale production Application: liquid and/or viscous (semi-liquid) products = dispersion, homogenization, emulsion, grinding, and pumping of the product Tank: Pressure: -1 / 0 bar Volume: 18 L Temperature: 130°C Jacket: Pressure: 6 bar Prsdpfx Apox R D Elopeb Volume: 2 L Temperature: 180°C Homogenizer: high-speed agitation 2 modes = Pumping with discharge / Dispersion with high shear force Tool size: 100 mm Rotor: 20 x 4 mm Stator: 30 x 4 mm VEM motor 7.5 kW / 2890 RPM Scraper mixer: slow agitation SEW 0.37 KW motor Sterling SIHI LEMA 25 liquid ring vacuum pump Power 1.1 KW - Max. 16 m³/h. CIP (clean in place) 2 x feed hoppers, 1 of which is connected to the jacket with its piping Air pressure: 6 bar Water pressure: 6 bar Temperature control regulator Single-acting seal: reconditioned by Burgmann Paper documentation Weight: 750 kg

Condition: new, Unused Langfields approximately 7,766 litre total capacity Nickel 200 (BS3072N11) vertical mixing vessel. Unit measures approximately 1950mm straight side x 1950mm diameter. Unit has welded dished top and bottom heads. Internal rated 18.35 Bar design pressure at 200 deg.c. Unit has a top entry (2) tier (3) pitched blade Nickel 200 agitator driven by 3 kW variable speed drive at 1420rpm with double mechanical seal and thermistors. Unit is mounted on (4) carbon steel legs. Specifications: Capacity: 7,766 L Internal Pressure [Y/N]: Yes Mixer/Agitator [Y/N]: Yes Tank Bottom: Dish Prsdpfx Apjzbt U Njpob Diameter: 1,950 mm Straight Side: 1,950 mm Vertical/Horizontal: Vertical Legs/Lugs/Skirt: Legs

Condition: used, Year of construction: 1983, Manufacturer : Moritz Year : 1983 Type : Vacuum mixer Emulsifying motor: 3000 rpm – 3 kW Volume : 50L Vertical stainless steel tank: Diameter 400 mm / Depth: 450 mm Jacketed Total draining 2 variable-speed agitators on the lid - 2 three-bladed propellers: 0 to 200 rpm - Anchor with scrapers: 0 to 100 rpm Two-speed bottom-mounted turbo emulsifier with recirculation Built-in vacuum pump Electrical cabinet A hot water unit is available on request; this request may be subject to a separate quotation. Psdpjy E T Swefx Apporb

Condition: used, Year of construction: 1975, Manufacturer : Frewitt Model: MGIF 624 Year : 1975 Prsdpfx Apsx R Av Njpjb Type: Stainless steel oscillating arm granulator Material : stainless steel Overall dimensions: 130 X 90 X 250 CM Motor power : 1,5 KW Rotor dimensions: length 44 cm / diameter 13 cm Variable speed, regulator: mechanical Mounted on a stainless steel chassis with 4 wheels Capacity: approx. 1000 kg/h depending on product Technical file available.

Condition: used, Year of construction: 1980, Manufacturer: Krieger Model : Molto Mat Universal 100 (MMU 100) Year : 1980 Type: vacuum mixer   Main tank: Total tank volume: 144 L / useful volume: 100 L Working pressure: -1/+2 bars Maximum operating temperature: 120°C Minimum load capacity: 33 L   Jacketed : Capacity: 26 L Maximum operating temperature: 150°C Working overpressure: 4 bars Insulation thickness: 35 mm   Counter-rotating mixer Slow agitation – two speeds : external mixer (anchor) /min: 9/18 – 18/36 inner mixer /min : 17/34 – 34/68 Homogeniser speed three speeds rpm: 1150 / 2300 / 4500   Raise/lower: hydraulic Tilting: hydraulic   Technical documentation available. Weight : 1280 kg Pjdpsx R A Urofx Apporb

Condition: used, Year of construction: 1986, Manufacturer : OLSA Model : Speedycream 750 Year : 1986 Type: vacuum mixer Capacity: 750 Liters Total capacity: 880 Liters Minimum working capacity: 280 Liters Jacketed : 3 bars Inside tank pressure: 1 bar Slow stirring: 5.5 KW Planetary: 15-78 rpm Prodpox R Dmisfx Appeb Blade with Teflon scrapers: 5-26 rpm Satellite rapid mixer (located on the lid): 7.5 KW Homogenizing disperser: 1400 - 2800 rpm Movement speed: 5-26 rpm Temperature controller Planetary mixer speed indicator Internal vacuum indicator Planetary mixer power consumption indicator Fast stirrer power consumption indicator Planetary speed indicator Satellite speed selector Tilting axis Vacuum pump : 1,45 KW Drain valve Ø 65 mm Exterior dimensions: 2658 mm x 1420 mm x 2510 mm (3870 mm - lid open) Spare parts available (see photos) Original paper documentation available Video available in running condition
