Used coordinate measuring machines for sale (377)

Condition: not inspected (used), functionality: unexamined, measuring range X-axis: 800 mm, measuring range Y-axis: 1,400 mm, measuring range Z-axis: 500 mm, table width: 1,170 mm, table length: 2,120 mm, No reserve price – guaranteed sale to the highest bidder! The machine is being auctioned as part of a site closure. Bidding obliges the buyer to collect the machine within the specified timeframe: from 26.01.2026 to 29.01.2026! TECHNICAL DETAILS Travel X-axis: 800 mm Travel Y-axis: 1,400 mm Travel Z-axis: 500 mm Worktable dimensions: 2,120 x 1,170 mm Magnetic chuck dimensions: 600 x 200 mm MACHINE DETAILS Dimensions & weight Dimensions (L x W x H): 3,000 x 2,400 x 3,500 mm Weight: 7,000 kg EQUIPMENT Magnetic clamping plate Workshop drawer cabinet with contents Djdpfx Aoxqqkfebroul Various measuring tools (measuring pins and touch probe) Additional suitable accessories

Condition: ready for operation (used), Year of construction: 2021, operating hours: 20 h, functionality: fully functional, machine/vehicle number: SK02UXKP0365, measuring range X-axis: 550 mm, measuring range Y-axis: 600 mm, Auction of a Zeiss T-Scan Hawk with only 20 operating hours! TECHNICAL DETAILS Maximum measuring range: 550 mm x 600 mm Measuring accuracy: 0.02 mm + 0.035 mm/m MACHINE DETAILS Dedpfx Abex Sqfnorsul Laser class: Class 2M (eye-safe) according to IEC 60825-1:2014 Operating hours: 20 EQUIPMENT Notebook GOM Inspect software

Condition: like new (used), Year of construction: 2025, functionality: fully functional, controller model: DC241 EEC, workpiece height (max.): 3 mm, swivel angle A-axis (max.): 105 °, swivel angle B-axis (max.): 180 °, As-new Hexagon Global S Blue Coordinate Measuring Machine! TECHNICAL DETAILS Probe Interface (CMM): TKJ Probe Weight: 350 g Total Weight: 480 g Measuring Performance Probing Force: 5 µm Measuring Range: 2 mm Maximum Measuring Distance: 14 mm Resolution in Z-Axis: 66 nm Lateral Resolution: 6 µm Angular Acceptance: ±30 ° Max. Measurable Thickness: 3 mm Spot Diameter: 12 µm LED Area Light Illuminated Area: 780 × 780 mm Overall Dimensions: approx. 860 × 840 × 20 mm Weight: approx. 19 kg Load Capacity: max. 50 kg Stylus Shank Diameter: 3 mm Shank Length: 50 mm Ruby Ball Diameter: 5 mm Thread: M3 Angular Rotation Steps: 2.5° A-Axis: ±105° B-Axis: ±180° Rotation Speed: 90° in 2.5 s Max. Extension Length: 450 mm Recommended Drive Torque: max. 1.4 Nm Positioning Repeatability: 0.5 µm at 100 mm from the A-axis center MACHINE DETAILS Control System: DC241 EEC Control Compatibility: HH-C-V2.0, HH-CA-V2.0 with HR-R automatic probe changer rack Electrical Data Supply Voltage: DC 5 V to 6 V Current Consumption (normal): 50 mA Current Consumption (min): 30 mA Current Consumption (max): 150 mA (pulsed) Protection Class: IP40 (IEC 60529) Temperature Range: 16 °C to 26 °C EQUIPMENT Windows 10 Operating System Interactive 3D Graphical Capability Computer-Simulated Measuring Machine Environment Bidirectional Interface to CAD Systems: IGES, VDA, DXF, and STEP Dujdpfsx Sx Nusx Abrsl Processing of 2D, 3D, wireframe, and surface models Curve and Surface Scanning (CurveAnalyzer) Includes PC-DMIS-SHEETMETAL Functions for measuring thin-walled components Automatic White Light Probe – TKJ 2.5 HP-OW-2.14 Sensor Kit, incl. controller and reference sphere, Ø 30 mm, ceramic matte HP-SX1H Scanning Probe Sensor LED area light for mounting on the coordinate measuring machine Reference price mechanical frame for supporting the area light HP-CTS5.10 Optical Sensor HP-S-X1C/H Stylus Holder (1× M3) HH-C-V2.1 Controller HR-OW-2.14 Short End Cap HR-R3 Sensor Acceleration HH-CA-V2.0 Interface Active Probe Rack, HR-RA-65 HR-X1-3P Stylus Rack Reference Sphere, Ø 60 mm, ceramic, with stand M3 Stylus (R-5-SS-3.50) Stylus Tray Computer & Software PC-DMIS CAD++ PC-DMIS Operator Interface with order system PC-DMIS CWS Interface PC-DMIS Probe Change Support Software PC-DMIS Vision for Tactile Sensors Touchscreen including computer system Desk for computer system

Condition: used, Year of construction: 2015, WENZEL coordinate measuring machine (CMM) Travel distances: X2000, Y1200, Z1000 mm Year of manufacture: 2015 Dusdpfxjxu Nwlo Abrjl

Condition: used, Year of construction: 2023, Keyance XM Series Handheld Probe Co-ordinate Measuring Machine, XMH-5000 Scan Head, XMP-500 Probe, XM-MP Base Table. S/No. 4BOP 000122 (2023) Country of Origin: Japan Dujdpjx R S Uzsfx Abrjl Please Note: This lot is located in Coventry, UK. Unfortunately, there are no loading facilities on-site, dismantling and loading will be at the cost of the purchaser. All/Any tooling is being offered as specifically described.

Condition: used, Year of construction: 2007, Technical details: weight of the machine ca.: 3 t measurement range X =: 650 mm measurement range Y =: 1200 mm workpiece weight: 700 kg Duedpfx Aevap Sksbrjl traversing speed: 200 mm/s capacity: 1000 VA Design: Portal measuring center with fixed measuring table and laterally driven portal, measuring table, traverse and quill made of granite. All axes are equipped with high-precision air bearing guides. It is driven by DC servo motors. Control: 3-5 axis microcontroller with vector path control Measuring system: Incremental length measuring system, resolution 0.5 m Computer: Industrial PC, Pentium class, Windows 2000 operating system, multilingual Software: MarSoft Vision 3D multisensor 3D, measuring software *

Condition: refurbished (used), Year of construction: 2025, operating hours: 12 h, functionality: fully functional, measuring range X-axis: 200 mm, measuring range Y-axis: 200 mm, measuring range Z-axis: 200 mm, workpiece weight (max.): 15 kg, warranty duration: 12 months, total height: 1,700 mm, type of input current: AC, total width: 750 mm, total length: 900 mm, overall weight: 300 kg, input voltage: 230 V, table load: 15 kg, year of last overhaul: 2025, ambient temperature (max.): 30 °C, ambient temperature (min.): 12 °C, maximum load weight: 20 kg, Equipment: documentation/manual, lighting, type plate available, Fully factory-refurbished and modernized multisensor coordinate measuring machine Mahr MS222 with a modern 64-bit CNC controller and Windows 11, including 12 months warranty and full support from the specialized service company. The measuring device has been completely factory overhauled and reconditioned, equipped with a modern new controller and the latest version of our measurement software. The measuring system will be delivered and set up at the customer’s site for the above-mentioned price. Additional optional services: On-site commissioning / calibration Training Custom measurement programming for immediate start of part inspections Complete package includes: Measuring machine 64-bit CNC controller Industrial PC with Windows 11 Perpetual software license OptiCheck3D 2025 (full license of the measurement software with no subscription or maintenance contract) Multisensor head with high-resolution industrial camera Renishaw TP20 touch probe system (alternatively TP200 system available) including one standard force module Calibration artifact Acceptance certificate / calibration certificate (pre-shipment condition) Free delivery within Germany (EU and international shipping available on request) Djdowcxb Sjpfx Abrsul Specifications: Measuring range: 200 x 200 x 200 mm Load capacity: 10 kg on glass plate Scale resolution: 0.1 µm Max. travel speed: 150 mm/s Dimensions: 900 x 750 x 950 mm Machine weight: 170 kg Control cabinet weight: 90 kg Accuracy according to VDI/VDE 2617 Sheet 6, ISO 10360-2: U1 = 1.9 + L/200, U2 = 2.2 + L/150, U3 = 2.9 + L/100

Condition: used, Year of construction: 2023, Due to a new requirement in our production, a KEYENCE XM-5000 is being sold. The measuring system was purchased directly from KEYENCE in 11/23. These additional details may be of interest to you: Dsdpfxox Sv Stj Abreul - Faster and simpler measurement enables significant time savings - Measurements can be performed in the machine / mobile measurements are possible - All users can measure without significant operator influence; additionally, every measurement is documented and thus traceable - Inspection reports simplify communication - The statistical and analysis functions allow for better assessment of product quality, enabling quality improvements - Reverse engineering capability - No maintenance contracts

Condition: good (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: 06-00376, measuring range X-axis: 400 mm, measuring range Y-axis: 400 mm, measuring range Z-axis: 150 mm, Manufacturer: Werth Messtechnik GmbH Type / Model: Scope-Check 400 × 400 × 150 3D CNC Machine Type: Multi-sensor Coordinate Measuring Machine (optical / tactile) • Year of Manufacture: 2006 • Serial Number: 06-00376 Djdpfx Abox Sw R Dsrsul Condition • Used, well-maintained overall condition • Machine was fully operational in measurement use until recently • Regular calibrations documented • No visible damage to granite, guides, or measurement system Accessories / Delivery Scope • Granite-based machine with measurement glass and protective cover • CNC control with Scope controller • Renishaw probe (multiple stylus inserts included) • PC workstation comprising: • Computer • Monitor(s) • Keyboard, mouse • Control panel / joystick • Documentation: • User manuals (WinWerth) • Calibration and inspection reports • Folder with machine and measurement room documentation • Software and calibration data carriers (CD/DVD) • Integrated control cabinet with main switch Application Area • Form and position tolerance inspection • Dimensional inspection of: • Sheet metal forming parts • Turned and milled components • Tools • Prismatic and rotationally symmetric parts The unit is currently still installed and powered. An inspection while operational is possible by appointment. Dismantling, loading, and transport are to be carried out and borne by the buyer. • Measuring range (X/Y/Z): 400 × 400 × 150 mm • Control: CNC • Software: WinWerth, version 8.40 or higher (data carrier included) • Tool holder / probe: Renishaw, MK 2 • Probe system: Renishaw Probe Interface PI 200 • Measurement accuracy: • Length measurement deviation approximately 1.5 µm (according to Werth documentation / calibration records) • Voltage: 230 V AC • Frequency: 50 Hz • Power consumption: max. 10 A

Condition: used, functionality: fully functional, In this offer you purchase a used production measuring system "Keyence XM-5000A" Object of sale: 1 x Keyence XM-5000A with the following equipment: incl. laptop with software incl. CAD import module XM-H5C incl. transport case Condition: This offer is for a used device which may show signs of use (minor scratches or yellowing). The device has been tested for function Packaging and dispatch: Dusdpfxowrxrcs Abrel You are welcome to view the device during our business hours. Please make an appointment for this! Seaworthy packaging and worldwide shipping available on request! A function test will be recorded on video for you before dispatch or collection. For further information, you can of course also contact us personally.

Condition: excellent (used), Year of construction: 2003, functionality: fully functional, measuring range X-axis: 900 mm, measuring range Y-axis: 1,200 mm, measuring range Z-axis: 700 mm, Zeiss Prismo VAST XT Year of manufacture: 2003 Retrofit Measuring range: X = 900 mm, Y = 1200 mm, Z = 700 mm C99 controller with operating panel VAST XT probe head VAST GOLD probe head (optional) 13-position probe changer magazine Probe change rack Probe accessories Dujdpowyukdjfx Abrsl Calibration sphere Technical documentation Additional accessories HP workstation with monitor Calypso Basic software Further options available on request Available at short notice Delivery without the automatic feed unit shown

Condition: ready for operation (used), Year of construction: 2017, functionality: fully functional, measuring range X-axis: 1,600 mm, measuring range Y-axis: 3,000 mm, measuring range Z-axis: 1,000 mm, workpiece weight (max.): 3,500 kg, warranty duration: 12 months, total height: 4,000 mm, type of input current: three-phase, overall weight: 12,500 kg, We are offering for sale our test and demonstration machine from our Solution Center. Additional machines are available. Please feel free to contact us. Zeiss | PRISMO 10 with REVO 5-axis measuring system (Please note: offer does not include rotary table!) Retrofitted coordinate measuring machine featuring the latest Renishaw 5-axis technology! Dusdpfxsvxhy Do Abrol We purchased the machine from a used equipment dealer in 2017 and subsequently upgraded it with the complete Renishaw technology package. The machine has consistently received all necessary updates and is up to date with the latest technological standards. It was originally manufactured in 2000. Measuring range XYZ: 1600 x 3000 x 1000 mm Measurement uncertainty MPE (E0): 3.2 + L/300 in µm Equipment features: - Renishaw UCC S5 controller, SPA3 servo amplifier, MCU5-2 joystick - Active temperature compensation with workpiece sensor - Renishaw REVO 5-axis measuring system for touch-trigger and scanning, including RSP2, 1x RSH175, 2x RSH250, and RSP3-3 Kit (3xSH), including all probe changers - Renishaw Modus measuring software (latest version) with CAD import (STEP), including one year of software maintenance - PC system running Windows 11 with 2 x 27" TFT monitors (NEW), adjustable-height desk included - Control cabinet featuring up-to-date safety technology We are happy to tailor the specifications to your requirements. Please note: offer does not include rotary table! Optional service package available upon request: Delivery to curbside | Commissioning | Inspection | Accuracy certification according to DIN ISO 10360 | Software training in Pliezhausen or Eitorf | Additional options and configurations available upon request.

Condition: like new (used), Year of construction: 2013, operating hours: 400 h, functionality: fully functional, measuring range X-axis: 300 mm, measuring range Y-axis: 200 mm, measuring range Z-axis: 150 mm, workpiece weight (max.): 20 kg, total height: 890 mm, total width: 986 mm, total length: 705 mm, overall weight: 170 kg, input voltage: 230 V, Equipment: documentation/manual, lighting, type plate available, SPECIAL OFFER with optional full service (delivery, commissioning) Technical Specifications of the HEXAGON OPTIV CLASSIC 321 GL tp Measuring Machine Year of manufacture: 2013 Maximum traverse speed in X, Y, Z axes: 160 mm/s Maximum workpiece weight: 20 kg Measurement resolution: 0.05 µm Measurement accuracy in X, Y axes (optical sensor): Ex, Ey = (1.6 + L/250) µm Measurement accuracy in XY axes (optical sensor): Exy = (2.0 + L/250) µm Measurement accuracy in Z axis (optical sensor): Exy = (3.9 + L/200) µm Measurement accuracy in X, Y axes (touch-trigger probe): Ex, Ey = (2.0 + L/250) µm Measurement accuracy in XY axes (touch-trigger probe): Exy = (2.5 + L/250) µm Measurement accuracy in Z axis (touch-trigger probe): Ez = (2.9 + L/200) µm Measuring volume Optical Sensor: X 300mm Y 200mm Z 150mm Measuring volume tactile sensor: X 230mm Y 200mm Z 150mm Dimensions (L x W x H): 705 x 986 x 890 mm Machine weight: 170 kg Measuring machine features: 3-axis microprocessor CNC with vector path control Metrology software: PC-DMIS Vision Vision sensor for non-contact measurement of the smallest and most precise components CCD camera with 6.5x motorized CNC zoom Duodpfjxmgvpox Abrol DC servo motors TESA touch probe system (1 body and 1 module) Modular probe changer: TESASTAR with 4 slots and 4 modules Linear guides on all axes Coaxial LED incident light (white LED) LED backlight (green LED + diffuser) Multi-segment LED ring light Including evaluation computer by Dell Optional services: Delivery (extra charge) Commissioning (extra charge)

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, ABERLINK Axiom too 600, coordinate measuring machine. Made in the UK, year 2013, resolution 0.5µm – optimal temperature 18-22°C. Win 10 PRO. Excellent condition. Regularly serviced and calibrated. Inspection possible by appointment. Duedpfex Sykysx Abrol

Condition: excellent (used), Year of construction: 2016, functionality: fully functional, machine/vehicle number: E2CO, measuring range X-axis: 200 mm, measuring range Y-axis: 20 mm, measuring range Z-axis: 205 mm, workpiece weight (max.): 25 kg, Equipment: type plate available, High-precision Contour and Roughness Measuring Instrument T4HD Manufacturer: Triebworx GmbH & Co. KG Model: T4HD – High Definition Metrology Fully equipped 4-axis CNC contour and roughness measuring system T4HD from a testing and calibration laboratory. The unit is in excellent condition, currently installed, operational, and powered on. The T4HD is a high-precision measuring system for contour and roughness measurement of workpieces with complex geometries. It is ideally suited for: • Quality assurance • Testing laboratories • Research & development • Series and single-part inspection • Automotive, tool, and mechanical engineering The scope of supply includes: • Contour and roughness measuring instrument T4HD • T4HD USB probe arm (patented technology) • Several probe arms / probes T4HD 100-2x5 USB • Spherical calibration standard for auto-calibration • Industrial joystick for manual operation • Evaluation PC with Windows operating system • 24” Full-HD monitor • Keyboard and mouse • 24 VDC power supply • USB cables (2x USB connection) • Original T4HD operating manual • EC Declaration of Conformity • Several original IMTS wooden boxes for probes and accessories • T4HD E2C0 USB sticks • Software version 02/2016 • Software version 02/2018 • Accessories, cable set, storage boxes • Condition: Very good • Source: Professional test and measurement laboratory • Not disassembled, not surplus stock • Regularly inspected (service/maintenance sheet valid until 2025, all OK entries) • Clean and well-maintained overall condition • System is installed, connected, and ready for operation • Sale as inspected • Collection preferred due to weight and precision • Viewing and function test possible by arrangement (Excerpt from operating manual) • Measuring systems: optical, incremental, non-contact • Measuring range X: 200 mm • Measuring range Z: 205 mm • Adjustment range Y: 20 mm • Y-table dimensions (W x D): 200 x 166 mm • Y-table load capacity: 25 kg • Measuring point spacing: 0.25 µm to 3.5 µm • Measuring force: 0.75 mN to 40 mN, programmable via software • Contour measuring speed: 0.25 – 3.5 mm/s • Roughness measuring speed: 0.25 – 0.5 mm/s Dusdpfxjx Sw D Do Abrjl • Positioning speed X/Y/Z: 25 mm/s, combined 35 mm/s • Measuring accuracy X/Z: 1 µm + (L[mm] / 100) x 1 µm • Roughness probe tips: diamond, R = 2 µm • Contour probe tips: carbide, R = 25 – 100 µm • Ruby balls: Ø 0.5 – 3 mm • Operating voltage device: 24 VDC • Mains connection: 100 – 230 VAC / 50 – 60 Hz • Device dimensions: 592 x 220 x 511 mm (W x D x H) • Weight: approx. 45 kg

Condition: used, functionality: fully functional, In this offer you purchase a used mobile coordinate measuring system ‘Keyence WM-3500’ Object of sale: Dedpfx Aov Id Uvsbrsul 1 x Keyence WM-3500 with the following equipment: incl. camera tripod incl. laptop with measuring software incl. WM-B1 measurement battery incl. battery charger WM-BC1 incl. transport case Condition: This is a used device, which may show signs of use (minor scratches or yellowing). (minor scratches or yellowing). The device has been tested for function For further information you can of course contact us personally.

Condition: refurbished (used), Year of construction: 2001, measuring range X-axis: 1,200 mm, measuring range Y-axis: 2,400 mm, measuring range Z-axis: 1,000 mm, Zeiss Prismo 10 VAST GOLD with rotary table Year of manufacture: 2001 Complete retrofit in 2025 Measuring range: X = 1200 mm, Y = 2400 mm, Z = 1000 mm Machine features and equipment: C99 control with BP26_SE control panel VAST GOLD sensor system Duodpfxormkukj Abrsl Probe changer magazine Probe changer rack Probe accessories Automatic temperature compensation Calibration sphere HP Workstation Z4 with 27" monitor Calypso software Options: as desired Additional accessories Further options possible Inspection under power possible

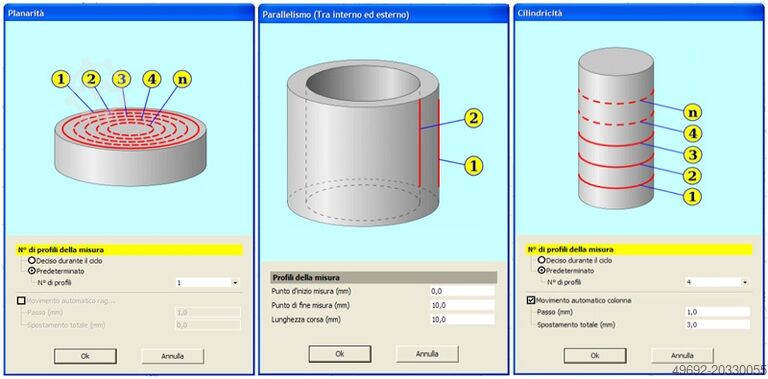

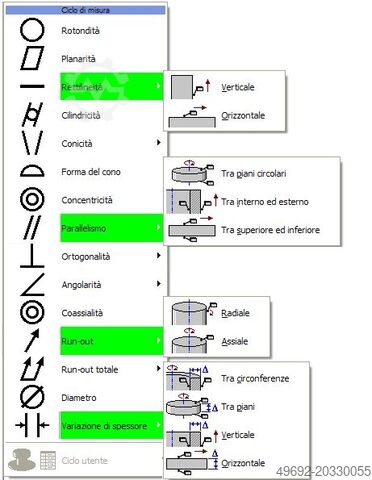

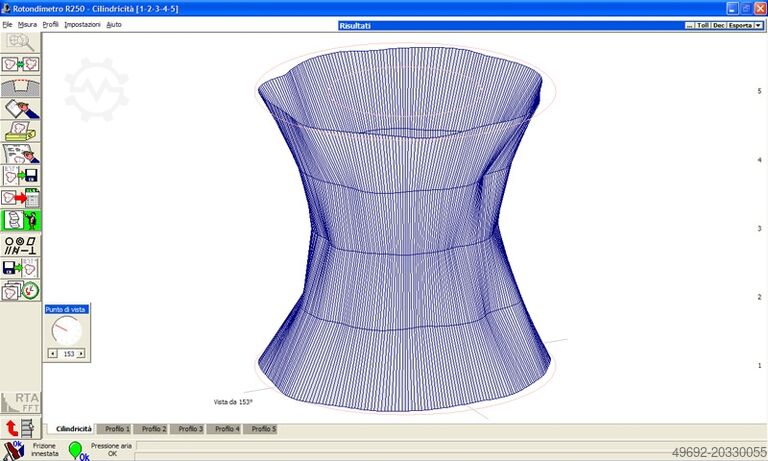

Condition: refurbished (used), functionality: fully functional, Taylor Hobson Tallyrond 300 Dedjxpqwijpfx Abrsul In good condition, Completely overhauled by sm-instruments (with new control unit and software) Includes side table and accessories Delivery time: several weeks

Condition: like new (used), Year of construction: 2015, operating hours: 230 h, functionality: fully functional, measuring range X-axis: 300 mm, measuring range Y-axis: 200 mm, measuring range Z-axis: 150 mm, workpiece weight (max.): 20 kg, total height: 890 mm, total width: 986 mm, total length: 705 mm, overall weight: 170 kg, input voltage: 230 V, Equipment: documentation/manual, lighting, type plate available, SPECIAL OFFER with optional full service (delivery, commissioning) Technical data of the HEXAGON OPTIV CLASSIC 321 GL tp measuring machine Year of manufacture: 2015 Dsdsxfzzqspfx Abrsul Maximum traverse speed in X, Y, Z axes: 160 mm/s Maximum workpiece weight: 20 kg Measuring resolution: 0.05 µm Measuring accuracy in X, Y axes (optical sensor): Ex, Ey = (1.6 + L/250) µm Measuring accuracy in XY axes (optical sensor): Exy = (2.0 + L/250) µm Measuring accuracy in Z axis (optical sensor): Exy = (3.9 + L/200) µm Measuring accuracy in X, Y axes (touch-trigger probe): Ex, Ey = (2.0 + L/250) µm Measuring accuracy in XY axes (touch-trigger probe): Exy = (2.5 + L/250) µm Measuring accuracy in Z axis (touch-trigger probe): Ez = (2.9 + L/200) µm Measuring volume (optical sensor): X 300 mm / Y 200 mm / Z 150 mm Measuring volume (tactile sensor): X 230 mm / Y 200 mm / Z 150 mm Dimensions (L x W x H): 705 x 986 x 890 mm Machine weight: 170 kg Equipment of the measuring machine: • 3-axis microprocessor CNC with vector path control • Metrology software: PC-DMIS Vision • Vision sensor for non-contact measurement of the smallest and most precise components • CCD camera with 6.5x motorized CNC zoom • DC servomotors • TESA probe system (1 body and 1 module) • Modular probe changer: TESASTAR with 4 slots and 4 modules • Linear guides on all axes • Coaxial LED top light (white LED) • LED backlight (green LED + diffuser) • Multi-segment LED ring light • Evaluation computer from Dell included Optional services: Delivery (surcharge) Commissioning (surcharge)

Condition: good (used), Year of construction: 2022, Description: Dsdpfx Abex A U Sdorsul The machine is in good technical condition, and testing can be arranged by prior agreement. Along with the machine, stocks of measuring probes, clamping plates, and connecting elements can also be sold.

Condition: like new (used), Year of construction: 2020, operating hours: 100 h, functionality: fully functional, Software type: UCCsuite 5.3.3. Renishaw PH20 measuring head (swivel-mounted) Measuring range X = 600 mm Measuring range Y = 800 mm Measuring range Z = 500 mm Repeatability 2 µm Table height 850 mm Power consumption 1.5 kVA Duedex I I Npjpfx Abrjl Air consumption >= 0.6 MPa Dimensions L x W x H = 1380 x 1620 x 2700 mm Max. workpiece weight 500 kg Machine weight 1450 kg With computer and monitor. Made in Italy. Very good condition, hardly used.

Condition: like new (used), Year of construction: 2019, operating hours: 150 h, functionality: fully functional, machine/vehicle number: AL-18-00113, measuring range X-axis: 1,000 mm, measuring range Y-axis: 1,000 mm, measuring range Z-axis: 800 mm, workpiece weight (max.): 820 kg, warranty duration: 12 months, compressed air connection: 6.1 bar, year of last overhaul: 2025, operating temperature: 20 °C, ALTERA S 10.10.8 portal measuring machine with NMC300 control, PH10M Plus rotary, Laser Scanner Ready and swivel head Duodsnacxcjpfx Abrjl Accuracies starting at 1.8µm+L/400, repeatability 1.6µm, speed 762mm/sec, acceleration 2.238mm/sec2. - Ceramic machine construction with granite table and base covering - Integrated Controller with monitor arm - incl. NMC300 control and SOLO hand box - Temperature compensation - Probe calibration D19mm calibration ball - CMM accuracy according to ISO 10360 - 10 years original accuracy guarantee - - 12 months of warranty - PH10M PLUS head with TP200 and ACR3 Changing Rack with MRS 600mm Rail + stylus set - PC with Win10 24" monitor - Camio Online software for tactile application Button configuration: - 1x PH10M PLUS pan/tilt head (A-5863-1000) - TP200 Probe including 3 days of training and commissioning of the system according to ISO 10360-2/5 Delivery term: EXW Photos show example images with various configurations Surcharge on the SP25 system for laser scanning e.g. with Nikon Laser LC15 including software and point cloud analysis: (on request) Anti-vibration possible for an extra charge. Other button configurations are possible. Other machine sizes are available. Just ask us. The machine can also be equipped with other software, e.g.: -Innovmetric Polyworks -CMM Manager

Condition: good (used), Year of construction: 2007, 2nd unit MORA-GEMODEK Dedsr Igwnopfx Abreul Type: MICROSPEED 10 Year 2007 Measuring machine control cabinet with remote control.

Year of construction: 1993, condition: good (used), Measuring Range Dsdpfxogvg I Tj Abrjul X – axis 700 mm Y – axis 1500 mm Z – axis 600 mm Accuracy acc. ISO 10360 E = [4,0 + 5,5L/1000] µm at temperature range 18 … 22 °C wax. workpiece weight 800 kg base material granit fixing holes M8 x 1,25 Scalesystem Mitutoyo Linear Scales resolution 0,0005 µm DCC Controller Mitutoyo CMMC-3S DC motors all axis Guideways air earings Tilt&swivel head Renishaw PH1 manual, PH9 or PH10M as option Probesystem Renishaw TP200 Computer Windows XPP Workstation Software MCOSMOS-1 V2.4

Condition: good (used), Year of construction: 2007, Technical Data WENZEL LH 108 Year of Manufacture: 2007 Measuring Range X Axis: 1,000 mm Y Axis: 3,000 mm Z Axis: 800 mm Machine Type Bridge-type coordinate measuring machine Granite guides Air-bearing axes Measuring Accuracy Length measurement deviation approx. 1.3 µm + L/400 (depending on configuration and calibration status) Probe Systems Renishaw probe heads possible Touch trigger and scanning PH10, TP20, SP25, SP80 depending on equipment Workpiece Weight Permissible table load up to approx. 2,000 kg (depending on configuration) Control CNC control with manual control unit Software Metrosoft CM Version 3.112 WENZEL Quartis R16 Dsdpfxsx N H U Hs Abroul Electrical Supply 230 V, 50/60 Hz Power consumption approx. 1 kVA Pneumatic Supply Compressed air 6 to 10 bar, filtered and dry The machine can be tested under power. Dismantling will be carried out by Wenzel.
