Used Finger jointing lines for sale (75)

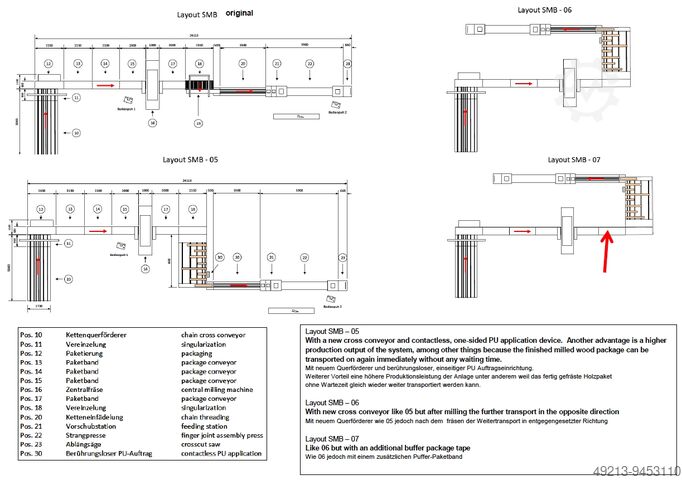

Condition: ready for operation (used), Year of construction: 2000, Compact finger jointing system SMB FLP 25/320 Fully automatic Bs Ia Unxevw R Sajiswl With planing machine We can assemble and commission this system throughout Europe

Condition: excellent (used), Untha LR 1400 Shaft length 1400mm Motor 2 x 22KW Year of manufacture 2008 Large hopper 3.2m x 3.2m Screw conveyor Conveyor belt with magnet, new rubber belt Screen 60mm We have specialized in the sale of woodworking machines for 25 years. Each of our machines is thoroughly tested before sale to ensure the highest quality and reliability. Customer satisfaction is our top priority. Bws Ia Uov Sc Ntonxisl You are welcome to inspect and test the machines in advance so you can personally convince yourself of their flawless function and quality. We can also arrange delivery upon request. For further information or questions, please feel free to contact us by phone or email.

Condition: excellent (used), Year of construction: 2014, AUTOMATIC FINGER JOINT plans for lamellar beams complete with loading belt and automatic unloading rollerway 13 mt length Second hand in good conditions WORKING PROCESS The manufacturing process of the HPX-O Horizontal Automatic Finger Joint consists of seven phases: 1. Two subsequent work pieces are automatically positioned and clamped in horizontal position by two hydraulic clamps 2. The groups holder chariot with 2 cutters and 2 gluing units moves vertically to mill simultaneously rear side of the first piece and the front side of the second 3. Comb nozzles apply glue to the back side of the first piece and the front side of the second. 4. The rear milled piece, blocked on a mobile carriage, advances thanks to two hydraulic cylinders until it joins the piece that precedes it 5. The two hydraulic cylinders complete the thrust and join the two pieces with a pressure of 18 tons. 6. The jointed piece advances automatically via the extraction rollers, while the milling carriage returns to its starting position 7. Two new pieces to be joined position themselves automatically and the cycle starts again. MODEL COMPOSITION HPX-O Horizontal 4m FEEDING BELT Motorized rollers for inserting and positioning the workpiece in the machine. Bwo Ia Uswg Db Sjnxisl MACHINE STRUCTURE The structure is in electro-welded mechanical carpentry with high resistance and stability. This guarantees the Finger Joint model HPX-O the ability to support the pressure of 18 tons in the jointing phase. PIECE BLOCKING CLAMPS Two hydraulic clamps, one fixed to lock the piece positioned at the entrance and one mobile with an 18-ton thrust to complete the joining operation. MILLING, GLUING AND JOINTING UNIT Integrated unit in the structure of the machine, composed as follows: ELECTRONIC PROGRAMMER Programmer for managing length measurements and number of pieces to be produced SAW GROUP Automatic pneumatic saws for cutting the lamella according to the pre-established length GLUE SPREADER NOZZLES Comb nozzles for one-component glue synchronized with the milling units for applying the glue to the parts to be joined MILLING GROUPS Fixed speed milling groups. TECHNICAL DATA Workpiece height min. mm 25 - max 100 Minimum workpiece length mm 600 - max. unlimited Workpiece width mm 80-260 Joint type 20/20 or 15/15 Constant thrust pressure max ton 20 Production joint /min approx. 4 Final lamella length mm 13000 Total machine weight kg 5500 included: AUTOMATIC STACKING OF JOINTED LAMELLAS, WITH ROLLERWAYS AND IDLE ROLLER TRANSFER OF THE LAMELLA STACK AUTOMATIC DE-STACKING OF LAMELLAS WITH SINGULARIZZATOR AND ROLLERWAYS TO FEED THE PLANING MACHINE.

Condition: reconditioned (used), Year of construction: 2007, Dostępna od zaraz półautomatyczna linia do łączenia elementów drewnianych na długość 6 metrów, linia kapitalnym remoncie. Czopiarka wyposażona w stolik z taśmą transportową oraz dodatkowy stół obrotowy, Taki układ ułatwia i przyspiesza pracę na maszynie, a co za tym idzie zwiększa jej wydajność. Nowa dysza klejowa do automatycznego nakładania kleju i nowy piło-rębak. Prasa o stałej długości łączenia na 6 metrów. Czopiarka dane techniczne : - Wrzeciono frezarskie: fi 50x210 mm - Obroty wrzeciona: 5500 obr/min - Silnik: 15 kW - Wymiary narzędzia: fi 250x150 mm Bwo Iajtyy Exj Unxiol - Rębak specjalny: fi 300x8 mm - Silnik: 6 kW / 3000 obr/min - Stół posuw bezstopniowy - Szer. x wys. robocza: 600 x 30 x 150 mm Prasa hydrauliczna: - Długość robocza: 6m - Szerokość listwy do 160 mm, grubość listwy 80 mm, długość jednorazowego klejenia 6000 mm - Ilość tłoków pneumatycznych 4 (2 od góry, 2 od dołu) - Ciśnienie zasilania 5-8 bar - Zapotrzebowanie powietrza 300 l/cykl - Średnica piły 300 mm - Średnica wrzeciona 30 mm - Moc silnika 1,5 kW - Przesuw piły – pneumatyczny Wymiary (dł./szer./wys. – 7700 x 1160 x 1500 mm, masa 1 500 kg). Za dodatkową opłatą montaż, uruchomienie i szkolenie z zakresu obsługi maszyny.

Condition: new, Year of construction: 2023, Line for joining wooden elements to length, type PDFE (full-automatic double-milling machine version) - milling package width 650 mm - length of connected elements 190 – 800 mm - width of joined elements 30 – 150 mm - thickness of joined elements 20 – 60 mm - adhesive contact elements made of stainless steel - package alignment option in milling machines (laser sensor) - buffer table equipped with a mechanism for turning over elements (brush) - a claw dropping elements onto a chain conveyor controlled by a servo drive - working length of the press 4500 mm - chain conveyor PTŁŁ 3500 mm - line and zigzag connections - central control on Mitsubishi components Bo Iaspy Eb Uo Unxiswl

Condition: new, Year of construction: 2025, Dimensions (L/W/H) 2200x1650x1600 mm Bwj Ia Unxsvz Hybsiol Weight 1300 kg Total power requirement 17,5 kw

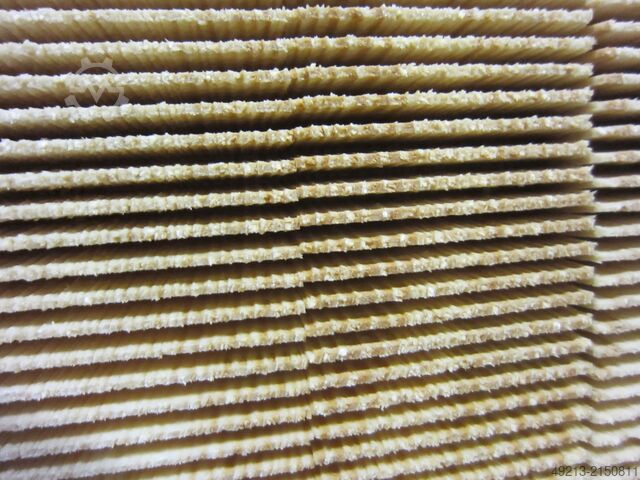

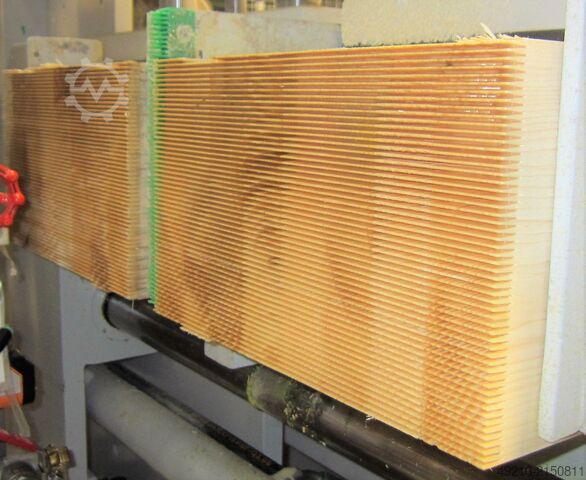

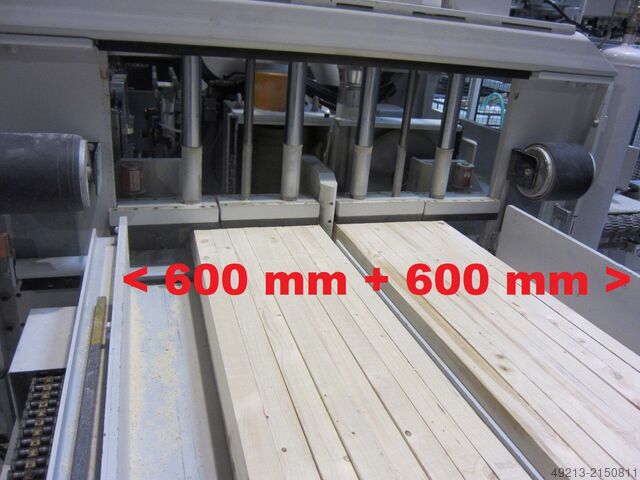

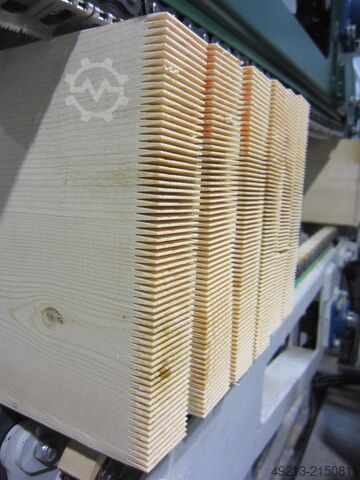

Condition: new, Year of construction: 2024, machine/vehicle number: 2024/002, Finger jointing machines and lines are a masterpiece of woodworking industry >wood entry lengths 900 to 6100 mm< >wood rests and tools drive< >Best tooth milling quality and optimized cutting speed< >Long service life of the milling tools / dovetail cutters< -MINDA - MACH I (patented) -High performance finger jointing line -for KVH / DUO / TRIO / BSH / GL / CLT -technical running meters capacity = approx. 150 m/min -vertical and horizontal joints possible max. 200 x 300 mm -extremely flexible; short set-up times; reliable operation The only package system in the world that can also process a single board or single beam. Bws Iocbyp Nsa Unxiel -finger jointing machine, for vertical and horizontal milling, zinc profiles, made in Germany, along with new developments in the clamping stations and the transfer channel on the router table, has the Joema MACH I include a groundbreaking benefits, fast pace. Together with 1200 mm milling channel at 40 mm Thickness technical power meter = approx 150 meters /min, very reliable material transport - No vulnerable conveyor rollers, flaps and cross conveyors - high availability - for all sections including square suitable - by fully automatic, continuous channel matching is possible in extreme cases single mill - thus the system is extremely flexible, vertically horizontally and zinc profiles possible performance with KVH 160 x 280 mm are 38 meters / min, with KVH 100 x 300 mm, 64 meters / min, at BSH 45 x 250 mm are 110 meters / min, >>cutting-edge technology simply kept

Condition: like new (used), Year of construction: 2022, operating hours: 500 h, Functionality: fully functional, Drying paternoster for finger-jointed boards Consisting of: - Transfer chain to finger-jointing press (foldable) - Drying paternoster (approx. 7 m, board length up to 6 m) - Cutting and zero-cutting saw Bo Ia Unxjwclkysijwl - Conveyor belt for waste wood disposal - Stacking machine - Strip magazine not for sale - Package cross conveyor The machine is in very good condition and has had very little use. The machine is still assembled but available immediately.

Condition: excellent (used), Year of construction: 2017, Grecon Profijoint wood joining line 1. Tenoning machine: Material length at entry 150-700mm Material width 40-150mm Material thickness 18-50mm Possibility of joining in zigzag and dash Milling spindle with a power of 15kw Bwo Ia Usv Tmy Esnxiol 2. Grecon PJ7/6100 hydraulic press for joining Maximum length of the finished element 6100mm Material cutting saw Saw diameter 350mm Cutting unit power 2.2kw Year of production 2017

Condition: used, Year of construction: 1990, Functionality: fully functional, For sale: JÖMA KT 250 industrial finger-wing press. Year of manufacture: 1990. Technical data: Bwo Ia Unsvnl I Djxijl • Maximum processing size: 80 mm * 250 mm • Motors: 55 kW, 22 kW • Air pressure requirement: 10 bar / 1000 liter tank • Semi-automatic: milling and pressing are automatic. Glue application is manual. The machine can be viewed in Esztergom, a 60-minute drive from Budapest, in a Hungarian prefabricated house factory. The machine works reliably. Reason for sale: the production of glued laminated timber has stopped in the factory.

Condition: used, Year of construction: 2012, 1. Dimensions of workpieces entering the line, mm: thickness, min 20 max 75 width, max 150 length, min 150 max 900 Automatic tenoning machine MXB 3515B-A: 2. Dimensions of the carriage working table *), mm 800 x 800 3. Height of workpiece processing, max. mm 150 Bj Ia Unxswakqmjijwl 4. Width of the workpiece package, max. mm 800 5. Feed force of the working table, maximum, kg 840 6. Spindle speed, rpm: - saw 2840 - milling 6750 7. Scoring saw dimensions, mm 110 x 2.2 x 30T 8. Scoring saw landing diameter, mm 25.4 9. Miter saw dimensions, mm 255 x 4 x 80T x 50 10. Spindle landing diameter of the miter saw, mm 30 11. Crusher cutter dimensions, mm 238 X T20 X S30 X 12T 12. Cutter diameter ), mm 160 x 4.0 x 70 160 x 10 x 70 13. Milling spindle diameter landing, mm 50 Automatic tenoning machine MXB 3515 B-B: 14. Dimensions of the carriage working table, mm 630 x 800 15. Height of workpiece processing, max, mm 150 16. Width of a package of workpieces, max, mm 590 17. Feed force of the working table, max, kg 840 18. Spindle speed, rpm: - saw and scoring 2840 - milling 6750 19. Dimensions of the scoring saw, mm - upper 110 x 2.2 x 30T - lower 160 x 2.2 x 60T 20. Landing diameter of the scoring saw, mm 25.4 21. Dimensions of the miter saw, mm 255 x 4 x 80T x 50 22. Spindle diameter of miter saw, mm 30

Condition: new, Year of construction: 2025, Dimensions (L/W/H) 2200x1650x1600 mm Weight 1300 kg Total power requirement 17,5 kw Bws Iajvz Hx Rs Unxisl

Condition: used, Year of construction: 2001, Price: On request - Year: 2001 - Documentation available: No Bwo Ia Ujv Umkgenxiol - Serial number: 20033 - Voltage [V]: 400 - Power [kW]: 58.0 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Glenn Smeets

Condition: refurbished (used), Year of construction: 2008, machine/vehicle number: SO 7.186-4, ASSEMBLY MILLING MACHINE / MULTI-SPINDLE DRILLING MACHINE Brand: HOFFMANN Type: PP2-H-DB-SDE-10E Serial no.: SO 7.186-4 Be Ia Uneikq Nnsxiswl Year: 2008 Machine designed for slot milling in combination with the HOFFMANN assembly system. Composition : . 1 Double dovetail assembly milling machine . 2 multi-spindle drilling machines, each with 2 ramps of 5 horizontal spindles. A total of 20 rear horizontal drilling spindles. Technical data : . Number of motors: 2 x drilling / 1 x milling . Direction of rotation: right . Drilling speed : 2800 1/min. . Dovetail milling speed : 25000 rpm. . Collet: Ø 8 mm. . Max. milling depth: 160 mm. right / left . Drilling depth: 16 mm. . Table height: 950 mm. . Electrical connection: 3 ph / N / PE 230/400 v. 50/60 Hz 4.5 KW . Compressed air connection: 6 bar . Operating pressure: 4-6 bar . Noise emission : 75.3 dB(A) . Suction requirement : 62 mg/m3 . Dimensions : L=1300 mm. D=900 mm. H= 1560 mm. . Weight : 180 Kg Little-used machine, in a prototyping workshop, very clean and in perfect condition. Ideal for assembling Holz Schiller window profiles. Numerous assembly inserts supplied with the machine.

Condition: excellent (used), FAMAD PDFD wood gluing line – precision and efficiency in your plant The FAMAD PDFD wood gluing line is a modern solution for companies involved in the production of glued elements, such as furniture boards, countertops or carpentry structures. Thanks to the precise pressing system and advanced glue dosing technology, the device guarantees strong and durable connections, while optimizing raw material consumption. Key features: •Process automation – increased efficiency and lower material losses. •Solid construction – durability and reliability in everyday use. •Precise glue dosing – uniform and durable connections. •Easy to use – intuitive control panel allows for quick adjustment of work parameters. Technical specifications: •Width of the milling-tenoning machine input package: 600 mm. •Width of glued elements: from 40 to 155 mm. •Length of glued elements: from 170 to 900 mm. •Thickness of glued elements: from 20 to 70 mm. Bwo Ia Uov Tiauenxiol •Length of glued element: from 4500 to 6600 mm. •Operating air pressure: 0.6 MPa. •Compressed air demand: about 18 m³/h. •Working capacity: up to 1.5 cycles per minute. •Operating voltage: 3 x 400 V AC + N + PE. •Control voltage: 24 V DC.

Condition: reconditioned (used), Functionality: fully functional, Milling motor dimter for finger joint milling machine HK200 and HK400 50 kW Bwo Iajm Sgvze Unxisl

Condition: excellent (used), Year of construction: 2018, operating hours: 600 h, Functionality: fully functional, machine/vehicle number: 106, For sale: a line for joining wooden elements along the length (two-tenoning version) FAMAD PDFD 65 – Manufacturer: Famad - Industrial Machinery and Equipment Factory The line consists of two elements: - milling-tenoning nests (where the ends of the strips are processed), - a press for joining along the length, on which the elements are joined into a strip up to 6.6m long with the possibility of programming up to eight intercuts dividing the strip into sections of a length programmed by the staff. Between these basic devices there are transport devices that also perform the function of pre-tenoning. The most important functions of the line: · Line efficiency up to 6500m/shift. · Microprocessor control · The line has the ability to process "calzing" type elements as well as elements for the production of countertops (joined "on the line"). · It is equipped with a receiving table with automatic feeding of strips to the press feeder, which allows the line to be operated by a single employee feeding the elements. · The line operates in an automatic cycle with manual feeding of material. Technical and operational data: Width of the milling-tenoning machine input package, mm, 650 Width of glued elements, mm, 30 ÷ 155 Length of glued elements, mm, 170 ÷ 900 Thickness of glued elements, mm, 20 ÷ 60 Air working pressure, MPa, 0.6 Compressed air demand, m3/h, approx. 25 Working efficiency, Mb/8h, approx. 6500 Length of glued element, mm, 3000 - 6600 Operating voltage, V AC, 3/N/PE 400 V 50 Hz Control voltage, V DC, 24 Power demand, kW, 96.5kW Serial number: 106 Bj Iaswbpwuj Unxiewl Meter reading: 600 Hours of operation Year of production: 2018

Condition: used, Year of construction: 2021, Размеры обрабатываемых блоков: ➢ Длина: от 114 мм до 914 мм; ➢ Ширина: от 35 мм до 203 мм; ➢ Толщина: от 8 мм до 63 мм; ➢ Максимальная разница (допуск), которую можно обработать в толщине и ширине в такой же пробег – до 6 мм; Ширина блока должна быть не менее чем на 50% больше толщины для максимальная производительность; ➢ Древесина лиственных и хвойных пород ВВОД: До 200 штук в минуту; (с расстоянием между выступами 228 мм) ПРОИЗВОДИТЕЛЬНОСТЬ: До 10 циклов прессования в минуту Автоматический загрузчик грунтозацепов Формирователь 15 кВт (20 л.с.) 3000 об/мин ➢ Режущие головки и ножи ACEco являются опцией. Поскольку мы являемся дистрибьюторами ACEco, пожалуйста, ознакомьтесь с раздел опций для получения дополнительной информации и цен; ➢ 2 – 280 мм торцовочные пилы, каждая из которых установлена на высокоточном шпинделе, фиксированная скорость 6000 об/мин, пильные диски в комплекте; ➢ 4 – 200 мм подрезные пилы, каждая из которых установлена на высокоточном шпинделе, с фиксированной скоростью 6000 об/мин, пильные полотна в комплекте; ➢ 2 электродвигателя мощностью 7,5 кВт 3000 об/мин приведут в движение пилы (2 подрезные и 1 обрезная пила на каждой) двигатель) через плоский ремень. Разъединители будут установлены рядом с каждым двигателем Аппликатор клея для максимальной экономии Автоматическая передача углов Bwj Ia Unstp Rhysxisl Сборочная машина Высокопроизводительная пресса; – (7,5м)

Condition: excellent (used), Year of construction: 2019, Functionality: fully functional, machine/vehicle number: FSL-62H-FJ-420A, feed length X-axis: 1,400 mm, feed length Z-axis: 180 mm, table width: 1,400 mm, tine length: 9,500 mm, workpiece height (max.): 180 mm, Furnimate Semi-Auto Finger Jointing Line, new 2019, very good working condition. Model: FSL-62H-FJ-420A Will accept Lengths from 300 to 1400m/m, x up to 180m/m high. Finger joint Unit with Cut off Saw, Scoring Saw & Profiling Unit for the Finger jointing operation. Auto feed with conveyor to Glueing and pressing unit, will take timber jointed up to 4500m/m long x 1400m/m wide. Gluing Press with Auto ejection of the glued panel. Bj Ijuaf Rdja Unxijwl Show your mobile number for images on WhatsApp. Can be demo'd working in Sheffield, Yorkshire UK. Full documentation available. Photos etc, available on Whats App & email. Price ex. works, dismantled & loaded buyers transport: £35,000.00 + Vat if applicable, or Euro 42,000.00 ( make an offer as well )

Condition: refurbished (used), Year of construction: 1999, Functionality: fully functional, Glue applicator for window glulam .Width of rollers 250 mm .Dispensing troughs .The applicator also has a glue tank with dispenser on top .Machine after renovation .Overlaying rollers new. Machine has input and output conveyor .Machine fully operational complete and after overhaul . Bo Iet N H R Eoa Unxiowl

Condition: excellent (used), Year of construction: 2006, FAMAD PDFD-I Wood Jointing Line 1. FAMAD DFC-60M Milling and Tenoning Machine Unit Bwj Ia Ujv Srd Tenxiel Input element length 170-900mm Milling height 20-155mm Milled element package width 650mm Carriage operating speed: Work 10-23m/min Return 32m/min 2. PHSL Pressing Unit Glued element width 35-155mm Glued element thickness 20-70mm Glued element length min/max 4500-6600mm Possibility of programming inter-cuts Line capacity up to 4000mb/shift 3. General information Length 15700mm Width 3350mm Power demand 48kw Year of production 2006 Very good condition

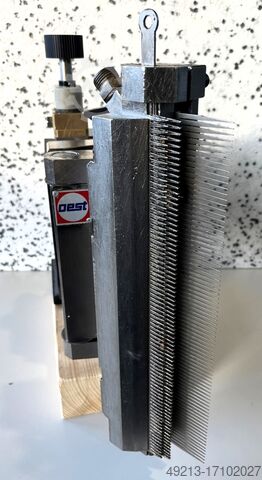

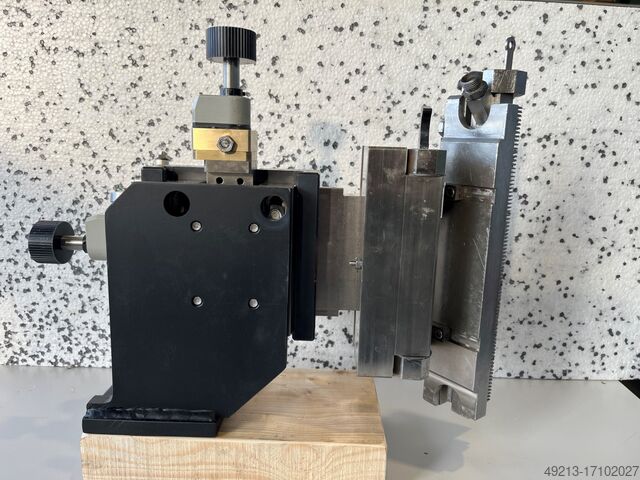

Condition: new, Year of construction: 2023, Application combs 15 mm Application combs 20 mm finger joint profile 15 mm Bo Ia Unxsiacbpeiswl finger joint profile 20 mm delivery time 3 days

Condition: reconditioned (used), Year of construction: 2008, operating hours: 5 h, Automatic single-tenon line for connecting wooden elements to length. The presented machine configuration allows for maximum efficiency of up to 4000mb/shift. The use of a receiving table with automatic feeding of strips to the conveyor entering the PHSL press allows the line to be operated by a single employee feeding the elements. The line works in an automatic cycle with manual feeding of material. Bs Ierpa Apsa Unxijwl Year of production: 2008 Machine after renovation, in very good technical condition. Machine of Polish production. Technical data: - Width of the milling-tenoning machine input package: 600mm - Width of glued elements: 40 ÷ 155mm - Length of glued elements: 170 ÷ 900mm - Thickness of glued elements: 20 ÷ 70mm - Working air pressure: 0.6MPa - Compressed air demand: 18m/h - Working efficiency: 1.5 cycles/min. - Length of glued element: 6600mm - Working voltage V AC: 3 x 400+ N + PE - Control voltage: 24V DC For an additional fee, the machine can be installed and started.

Condition: ready for operation (used), -packet-jointing line -for timber infeed 900-5.100 mm -double-roller conveyor -cut saw with marking recognition 15 KW -packaged -finger jointing milling automate 80 KW -singling cross conveyor -roller conveyor -cycle press hydraulic 20 KW -automatic under table circular saw 5 KW -wood widths of 70 - 255 mm -wood thickness from 22 to 140 mm -wood input from 900 to 5100 mm -pressing force 12 tons -capacity from 7.000 to 10.000 meters / 8 h -options example cycle press 25 to or 40 to Bo Ia Unebqqzgoxijwl

Condition: excellent (used), Year of construction: 2017, Grecon Profijoint wood joining line Year of production: 2017 Technical condition: very good Technical data: Bwe Ia Unxjt Ehzdsiol Tenoning machine: - Length of material at the input 150-700mm - Width of material 40-150mm - Material thickness 18-50mm - Possibility of zigzag and dash joining - Milling spindle with a power of 15kw 2. hydraulic press for joining Grecon PJ7/6100 - Maximum length of the finished element 6100mm - Material trimming saw - Diameter of the saw 350mm - Power of cutting unit 2.2kw For an additional fee, the possibility of installation, commissioning and training of employees in the operation of the machine.
