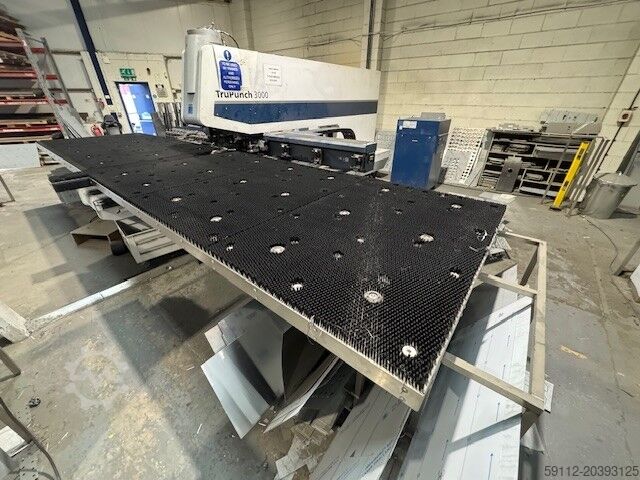

Used Trumpf Trupunch 3000 for sale (9)

Condition: good (used), Year of construction: 2007, operating hours: 52,506 h, functionality: fully functional, punching force: 180 t, sheet thickness (max.): 6 mm, travel distance X-axis: 3,070 mm, travel distance Y-axis: 1,660 mm, punching diameter: 76 mm, workpiece weight (max.): 230 kg, overall weight: 16,000 kg, feed rate X-axis: 90 m/min, feed rate Y-axis: 60 m/min, space requirement width: 6,800 mm, space requirement length: 7,600 mm, space requirement height: 2,500 mm, Equipment: safety light barrier, Special equipment: + MultiShear function + MultiTool function + Brush tables Standard equipment: - Safety light barriers - 3 clamping claws - Rotation of all tools - NC-controlled, digital, maintenance-free three-phase drives - Automatic repositioning - Tool length compensation - Small parts chute 500x500 mm - Punching slug extraction - Tool spray lubrication - Automatic tool change Rodpfx Aez En Iujbaech - Programmable punching tool lubrication with 2 containers - Programmable stripper - Network interface RJ34 - 3.5" floppy disk drive - TOPS 2000 graphics programming - Online diagnostics via modem - Operating manuals.

Condition: ready for operation (used), Year of construction: 2012, punching force: 18 t, sheet thickness (max.): 6 mm, CNC punching machine manufactured in 2012. This TRUMPF TruPunch 3000 features a punching force of 18 tons and a maximum sheet thickness of 6.4 mm. The working area measures 3,000 x 1,500 mm, making it suitable for various applications. If you are looking to get high-quality punching capabilities, consider the TRUMPF TruPunch 3000 machine we have for sale. Contact us for further details. Rodpfx Abjz Szgleajch • Working area: 3,000 x 1,500 mm • Configuration: Stand-alone • Condition: Fully functional • Tooling: Not included • Reason for sale: Seller is switching to a laser combination machine • Note: Sold without tooling

Condition: as good as new (ex-display), functionality: fully functional, Year of construction: 2022, operating hours: 60 h, +++ Demo machine, approx. 60 operating hours +++ +++ Descending Die +++ Basic machine: TruPunch 3000 large format (S20) Machine: - Box frame - Hybrid axis system - Linear tool magazine with 24 stations for clamps and tools - Hydraulic clamps (3x) - Drives with maintenance-free three-phase motors - Repositioning with programmable presser foot - Foot switch to close clamps - Part chute, right - Part removal flap, left - Sensor for part removal flap - SortMaster Compact retrofit-prepared Punching head: - Delta Drive - Rotating single-station tool adapter - Programmable presser foot position - Tool length compensation - Punch spray lubrication - Punching slug vacuum - Forming function - Punch stroke counter Control: - TRUMPF control based on Rexroth IndraMotion MTX - Touch panel with 19" TFT color display - Touchpoint - Auto-shutdown - Remote support interface - Program manager - Production plan Data transmission: - Central Link - Online Update Manager Safety: - CE marking and EC Machinery Directive - Double-beam safety light barrier Advanced standard configuration: - First index pin (inside right) - Ball tables - Part chute for finished part container - Chip container to rear for removal Advanced machine and punching features: - MultiTool function - MultiShear function - MultiBend function - Tapping function with thread counter - Forming tap breakage control - Lubricant level monitoring - Unlimited time license - Marking/Quick beading function (option) - Engraving function - Deburring and roller technology function - Adaptive stroke calibration - StripLine - Die spray lubrication with fill level monitoring - Descending Die - Integrated flattening function - Smart punch monitoring - Additional clamp - Height-adjustable clamp - Vibration damping - Chip container removed to front - Brush tables with loading and unloading assistance - Warped sheet detection Technical data TruPunch 3000 large format (S20) Dimensions / Weight: Width: 7644 mm Depth: 7666 mm Height: 2200 mm Weight (fully equipped): 13,800 kg Control / Hardware / Electrics: Hard disk type: SSD Number and size of hard disks: 2 x 120 GB Customer program memory: 10 GB Display: Touchscreen Display size: 21.5 in Interfaces: USB Network: RJ45 Control type: Bosch CML75 Operating system: Windows 10 IoT Axis data: X/Y/C axis drive: NC-controlled, maintenance-free three-phase servo motors Punching head drive: Electric Max. X axis speed: 90 m/min Max. Y axis speed: 60 m/min Max. simultaneous axis speed: 108 m/min Max. C axis speed (punching): 350 rpm Max. C axis speed (tapping): 350 rpm Max. punching stroke rate (E=1mm): 690 1/min Max. marking stroke rate: 1000 1/min Accuracy — positioning deviation Pa: +/- 0.1 mm Accuracy — position range Ps: +/- 0.03 mm Smallest programmable increment: 0.001 mm Working range / Workpiece size: Max. sheet thickness: 6.4 mm Max. workpiece weight: 230 kg Rcedpfoxmfc Usx Abajh X axis working range: 3000 mm Y axis working range: 1550 mm Punch-specific data: Max. punching force: 180 kN Max. presser foot force: 20 kN Max. tool size, punching (outer diameter): 76.2 mm Max. tool size, forming (outer diameter): 101.6 mm

Condition: like new (used), Year of construction: 2022, functionality: fully functional, punching force: 18 t, working range: 2,500 mm, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,250 mm, Used Trumpf TruPunch 3000 S20 with Sheet Master Compact sheet load and unload for sale Technical data TruPunch 3000 medium format (S20) Dimensions, weights Width 6282 mm Depth 6548 mm Height 2195 mm Weight with all units 10700 kg Control, hardware, electrics Hard disk type SSD Number and size of the hard disc 2 GB x 120 GB Hard disk memory for customer programmes 10 GB Screen Touch screen Screen size 21.5 in Interface USB Network connection RJ45 Control type Bosch CML75 Operating system Windows 10 IoT Axis data X/Y/C axis drive NC-controlled, maintenance-free three-phase current servo motors Punching head drive Electric drive Maximum axis speeds - X axis 90 m/min Maximum axis speeds - Y axis 60 m/min Rcedpfxjykt N So Abaoh Maximum axis speeds - Simultaneous 108 m/min Maximum axis speeds - C axis (punching) 350 rpm Maximum axis speeds - C axis (tapping) 350 rpm Maximum punching stroke rate (E = 1 mm) 800 1/min Maximum marking stroke rate 1000 1/min Precision - Positioning deviation Pa +/- 0.1 mm Precision - Position range Ps +/- 0.03 mm Precision - Smallest programmable increment 0.001 mm Working range and workpiece size Maximum sheet thickness 6.4 mm Maximum workpiece weight 150 kg Working range - X axis 2500 mm Working range - Y axis 1250 mm Punch-specific data Maximum punching force 180 kN Maximum presser foot force 20 kN Maximum tool size, punching (outer circle) 76.2 mm Maximum tool size, forming (outer circle) 101.6 mm Single tool changing time 2.8 s MultiTool changing time 0.5 s Number of linear magazine stations 20 pieces Number of tools when using MultiTool / clamps 18 pieces - 180 pieces Loading / part removal Maximum part size, part removal flap, punching 400 mm x 600 mm Flap size (X x Y) 400 mm x 1250 mm Maximum part size, fixed chute, punching 180 mm x 180 mm Connected loads, ambient temperature Pressure range, compressed air connection minimum (same direction) / maximum (static) 7 bar / 14 bar Painting Main colour white, NCS S 0505-R80B Secondary colour blue, RAL DESIGN 250 20 20 Switch cabinet/periphery grey, RAL 7040 SheetMaster Compact 2500 x 1250 mm (AK05) General Maximum Y1 axis traverse speed (suction frame) 27 m/min Maximum Y2 axis traverse speed (unloading cart) 18 m/min Maximum Z axis traverse speed 20 m/min Y/Z axis drive Asynchronous motors controlled by frequency converter Loading Maximum sheet size 2500 mm x 1250 mm Minimum sheet size 1000 mm x 1000 mm Minimum sheet thickness 1 mm Maximum sheet thickness 6.4 mm Maximum sheet weight 160 kg Unloading Minimum sheet thickness 1 mm Maximum sheet thickness 6.4 mm Maximum sheet weight 160 kg Maximum stack height 190 mm Painting Main colour white, NCS S 0505-R80B Secondary colour blue, RAL DESIGN 250 20 20

Year of construction: 2011, condition: ready for operation (used), A Trumpf CNC punching machine is offered. Max. punching force: 180kN, working range X/Y: 2500mm/1250mm, max. sheet thickness: 6.4mm, max. workpiece weight: 160kg, max. punching diameter: 76.2mm, axis speed: approx. 100m/s, max. punching stroke rate: approx. 1000 strokes/min, max. marking stroke rate: approx. 2500 strokes/min, tool magazine: 18, clamps: 2, max. part size X/Y: 500mm/500mm, operating hours: 22146h. Including tool cassettes, various punches and dies, a MultiTool, and Easy Type. Weight: approx. 9.8t, machine dimensions X/Y/Z: approx. 6500mm/6203mm/2252mm. Documentation available. An on-site inspection is possible. Rcodpezpyygofx Abaeh

Condition: used, functionality: fully functional, Year of construction: 2014, operating hours: 25,379 h, For sale: professional CNC punching machine TRUMPF TruPunch 3000, manufactured in 2014. The machine is in very good technical and visual condition. The total operating time is only about 25,379 operating hours, which is a low number of operating hours for industrial TRUMPF machines of this age. The machine is sold together with punching tools. Rjdpjzxxhnjfx Abaech Currently, the unit is fully connected to the power supply, so before purchasing, you can inspect the machine in operation, check its functionality, and perform a test punching operation. Key information: Manufacturer: TRUMPF Model: TruPunch 3000 Year of manufacture: 2014 Type: Electric CNC punching machine Working table: 3000 x 1500 mm Capacity: 18T Operating time: ~25,379 operating hours Comes with punching tools If you have any further questions, we will be happy to answer them.

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, punching force: 18 t, working range: 30,001,500 mm, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,600 mm, Very well maintained and fully serviced used Large format Trumpf 3000 cnc punch press for sale Manufacturer TRUMPF Type TruPunch 3000 (S11) Year 11/2012 Working area 3000 x 1500 mm - without reposition Working range on cross-side (X-axes) 3000 mm Working range along (Y-axes) 1600 mm Rcjdpfx Aexrnggjbaeh Large throat 1600 Complete with multi tool capability Type S11 Video available upon request

Condition: ready for operation (used), Year of construction: 2013, operating hours: 55,200 h, punching force: 18 t, total height: 2,252 mm, total width: 6,203 mm, sheet thickness (max.): 6 mm, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,250 mm, controller manufacturer: BOSCH, controller model: MTX CMP70, product length (max.): 6,500 mm, number of axes: 3, This TRUMPF TruPunch 3000 CNC punching machine was manufactured in 2013. It features a working area of 2500 mm x 1250 mm and a maximum punching force of 180 kN. The machine is equipped with 18 tool stations and offers a maximum punching rate of 1000 strokes/min. If you are looking to get high-quality punching capabilities, consider the TRUMPF TruPunch 3000 machine we have for sale. Contact us for further details. • Maximum punching rate: 1000 strokes/min Rjdpfx Aszy Rlhebaech • Maximum marking rate: 2500 strokes/min • MultiTool change time: 0.3 sec • Tool stations: 18 • Sheet clamps: machine equipped with 3 vertically movable clamps • Maximum part size via part flap: 500 x 500 mm • Maximum part size via fixed chute: 80 x 50 mm • Control: BOSCH MTX CMP70 with 17-inch touchscreen • Tool holder: Rotating single-tool holder • Thread forming: M2.5 to M10, with thread counter and tool breakage monitoring • Marking/embossing function • Retractable die • Programmable stripper • Automatic tool length compensation • Punch stroke counter • Automatic punch lubrication • Vacuum slug removal • Forming function • Brush table with loading/unloading support • Automatic repositioning with programmable clamps • Average power consumption (production): 5.6 kW • Average power consumption (automatic shutdown mode): 0.3 kW • CE marked • Full service history available • Machine under power and in operation; test possible Additional equipment • Independent part conveyor - not included in the sale • Tooling (e.g., RTC tool cassettes, punches/dies) - not included in the sale

Condition: ready for operation (used), Year of construction: 2012, operating hours: 56,566 h, punching force: 18 t, total height: 2,252 mm, sheet thickness (max.): 6 mm, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,250 mm, controller manufacturer: BOSCH, controller model: MTX CMP70, product length (max.): 6,500 mm, This TRUMPF TruPunch 3000 S11 was manufactured in 2012. It features a Bosch MTX CMP70 control system, with X/Y-axis travels of 2500 / 1250 mm, and can handle sheet weights up to 160 kg. The machine includes a linear tool magazine with 18 stations and offers functions like MultiTool, MultiBend, and thread forming. Consider the opportunity to buy this TRUMPF TruPunch 3000 S11 CNC punching machine. Contact us for more information about this machine. • Maximum sheet weight: 160 kg • Performance: Rcjdpfx Abjx D Dkleajh • Punching strokes (E = 1 mm): 1000 strokes/min • Marking strokes: 2500 strokes/min • MultiTool tool-change time: 0.3 s • Power consumption: • Standby with auto-shutdown: 0.3 kW (average) • During production: 5.6 kW (average) • Equipment & features: • MultiTool function • MultiBend function • Thread forming function with tool breakage monitoring • Surface marking/embossing function • Deburring and roller technology • Tool magazine: Linear, 18 stations • Power On hours: 56.566h • Documentation: TruPunch 3000 documentation
