Used Trumpf Trumaform 400 for sale (380)

Condition: used, Control unit, control panel, control panel, control unit, keyboard, screen, control -Foot switch comes from a Trumpf punch type Sunimat 400 -Dimensions: 280/140/H150 mm Iasdod Aghgopfx Achow -Weight: 4.4 kg

Condition: excellent (used), For sale: professional TRUMPF TruTool TKA 500 (1A1) plate edge beveller / chamfering machine. This machine is designed for making weld preparations and machining edges on steel plates. Condition: used, fully operational, normal signs of use visible in the photos. Industrial-grade equipment – made in Switzerland / Germany. Technical data: Power: 1400 W Supply voltage: 230 V / 50–60 Hz Current: 6.5 A Isdpsyhnuksfx Achjaw Model: TruTool TKA 500 (1A1) Year of manufacture: 2009 Manufacturer: TRUMPF Applications: Bevelling plate edges before welding Chamfering for V and X weld joints Processing of structural and machine steel Workshops, fabrication, steel construction Scope of delivery: TRUMPF TruTool TKA 500 beveller Original TRUMPF transport case Manufacturer’s manual / documentation Accessories as shown in the photos The equipment is ready for operation. On-site inspection possible. Shipping or personal collection – to be arranged.

Condition: used, Trumpf TruDisk 4002 (6 C) High-Power Solid-State Disk Laser with up to 4 kW The Trumpf TruDisk 4002 (6 C) is a state-of-the-art, efficient, and robustly built disk laser optimized for demanding industrial metalworking applications. Machine type: TruDisk 4002 (6 C) Manufacturer: TRUMPF Laser GmbH + Co. KG Year of manufacture: March 2016 Drawing number: 20-10-03-A204 No further testing was conducted in-house. Operating hours could not be read. The laser was operating flawlessly up until decommissioning. Features: - Top performance (up to 4 kW) - Excellent beam quality - Reliability & reflection safety - Energy-efficient, modular architecture - Ideal for a wide range of applications in the automotive industry, mechanical engineering, or surface processing Technical Highlights: - Power: From 80 W up to max. 4000 W in continuous operation (CW) - Wavelength: Approx. 1030 nm (Infrared, Yb:YAG) - Beam quality: Up to 2 mm·mrad (benchmark for exceptional quality), often with a range of 2–25 mm·mrad - Output options: Modular configuration – up to 4 outputs possible (depending on series) - Optional cooling: Water-cooled, e.g., via KLH chiller or integrated heat exchanger/compressor - Modular design: Robust optical layout, efficient operation, power factor correction, energy-saving modes, PROFIenergy interface Typical Applications: - Laser welding (including hybrid or scanner-guided), e.g., for bodywork or gearboxes - Cutting / flame cutting of metals with high precision - Surface processing, coating applications, etc. – professional industrial use Supply voltage: 380 V (-10%) to 460 V (+10%), 3-phase AC + PE Frequency: 50 – 60 Hz Power consumption: 22 kW / 23 kVA Rated current: 325 A at 400 V Protection class: IP54 Short-circuit resistance: Icn / SCCR 50 kA Weight: 850 kg Condition: Used Scope of delivery: (See images) Iasdpfxjziyaas Achew (Specifications subject to change and errors excepted!) Should you have any further questions, feel free to contact us by phone.

Condition: used, Trumpf Trumpf TruDisk 4002 (6 C) High-Power Solid-State Disk Laser with up to 4 kW The Trumpf TruDisk 4002 (6 C) is a state-of-the-art, efficient, and robustly engineered disk laser optimized for demanding industrial metalworking applications. System type: TruDisk 4002 (6 C) Manufacturer: TRUMPF Laser GmbH + Co. KG Year of manufacture: March 2016 Drawing number: 20-10-03-A204* No further in-house inspection was performed. Operating hours could not be read out. The laser was operating flawlessly until decommissioning. It offers: - Top performance (up to 4 kW) - Excellent beam quality - Reliability & reflection safety - Energy-efficient, modular architecture Ideal for diverse applications in the automotive industry, mechanical engineering, or surface processing. Technical Highlights: - Power: From 80 W up to max. 4000 W in continuous operation (CW) Iasdpfxjzix U Aj Achsw - Wavelength: Approx. 1030 nm (infrared, Yb:YAG) - Beam quality: Up to 2 mm·mrad (a benchmark for excellent quality), typically ranging from 2–25 mm·mrad - Output options: Modular configuration – up to 4 outputs possible (depending on model) - Optional cooling: Water-cooled, e.g. via KLH chiller or integrated heat exchanger/compressor - Modular design: Robust optical configuration, efficient operation, power factor correction, energy-saving modes, PROFIenergy connectivity Typical applications: - Laser welding (also hybrid or scanner-controlled), e.g. bodywork or gear assemblies - Cutting / flame cutting of metals with high precision - Surface processing, coating applications, etc. – for professional industrial use Supply voltage: - 380 V (-10%) to 460 V (+10%), 3-phase + PE - Frequency: 50 – 60 Hz - Power consumption: 22 kW / 23 kVA - Rated current: 32.5 A at 400 V - Protection class: IP 54 - Short-circuit strength: Icn / SCCR 50 kA - Weight: 850 kg Condition: used Scope of supply: (see picture) (Subject to modifications and errors in technical data and specifications!) We are happy to answer further questions for you by phone.

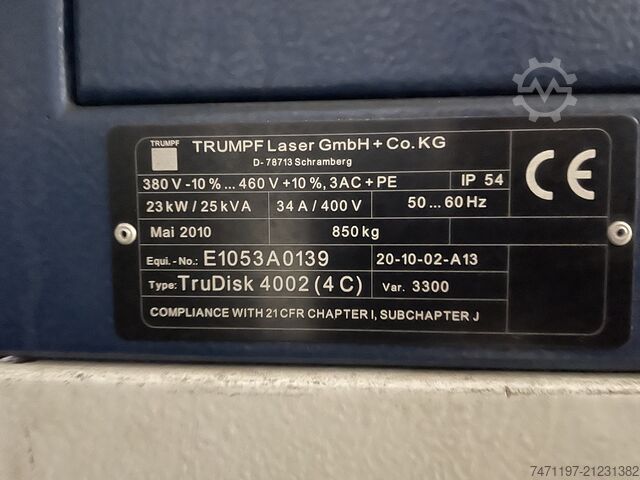

Condition: used, Trumpf TRUMPF TruDisk 4002 (4 C) High-Performance Solid-State Disk Laser with up to 4 kW Output Type: TruDisk 4002 (4 C) The TruDisk 4002 is a powerful, energy-efficient, and modular laser solution – ideal for industrial manufacturing environments with demanding requirements for quality, precision, and automation. The combination of high power, excellent beam quality, and smart factory features makes it particularly attractive for modern production lines. System type: TruDisk 4002 (4C) Manufacturer: TRUMPF Laser GmbH + Co. KG Year of manufacture: May 2012 Drawing number: 20-10-02-A3* No additional tests were carried out in-house. Operating hours could not be read out. The laser operated flawlessly until decommissioning. Technical features: Output & wavelength: 80–4000 W at 1030 nm Beam quality (BPP): typically 2 mm·mrad (up to 25 mm·mrad, depending on configuration) Modular & compact: footprint < 1 m², modular design simplifies maintenance/service Efficient energy & cooling systems: energy-saving modes, active power factor correction, pulse function to reduce consumption Flexible cooling: integrated heat exchanger (5–28 °C), optional with compressor (up to 38 °C inlet temperature) Reflection-resistant: special resonator design also suitable for highly reflective metals Industry 4.0 capable: extensive sensor technology and data interfaces for condition monitoring, OPC UA, predictive maintenance Application areas: Scanner & hybrid welding (e.g. automotive body manufacturing, shipbuilding) Iaedpfx Aezii Nqechjw High-speed cutting, including on reflective metals Flame cutting & surface processing Laser cladding, hardening, deep penetration welding where high precision is required Technical data: Supply voltage: 380 V (-10%) to 460 V (+10%), 3AC + PE Frequency: 50 – 60 Hz Power consumption: 23 kW / 25 kVA Rated current: 34 A at 400 V Protection rating: IP 54 Short-circuit strength: Icn / SCCR 50 kA Weight: 850 kg Condition: used Scope of delivery: (See picture) (Specifications subject to change and errors excepted!) We would be happy to answer any further questions by phone.

Condition: used, Trumpf Type: TruDisk 4002 / W20.HL29 Trumpf TruDisk 4002 laser source with KLH cooler The Trumpf TruDisk 4002 laser source is an industrial disc laser from TRUMPF, characterized by high power, beam quality, and efficiency. It is often used for welding, cutting, and other material processing applications. Maintenance has been performed regularly. Unit consisting of laser source with associated cooler, but without optics and fiber optic cable. Technical data Laser power: 4,000 watts (4 kW) (minimum 80 W) Wavelength: ~1030 nm (infrared range) (Yb:YAG) Beam quality (BPP): typically ≤ 8 mm·mrad Fiber connection: TruDisk lasers usually have multiple fiber connections Cooling: Water-cooled – via a KLH cooler Dimensions: 1.0 x 2.0 x H1.6 m (laser) + 1.0 x 1.5 x 1.8 m (cooler) 380 V -10 % ... 460 V +10 %, 3AC + PE 23 kW / 25 kV A - 34 A / 400 V 50 ... 60 Hz KLH cooler: The KLH cooler is an industrial liquid cooler that ensures heat dissipation Isdoziivkjpfx Achjaw from high-performance laser systems such as the TruDisk 4002. Typical characteristics: Water-water cooling Precise temperature control (typically 20–25 °C) Refrigerant: R 404A Can be controlled via TRUMPF interface Necessary to meet laser specifications Device type W20.HL29 Weight: 850 kg (laser) + estimated 550 kg (cooler) Condition: used Scope of delivery: (See image) (Changes and errors in the technical data are subject to change!) We will be happy to answer any further questions you may have by telephone.

Condition: ready for operation (used), Year of construction: 2010, pressing force: 400 t, stroke length: 400 mm, throat depth: 405 mm, clearance between the columns: 4,050 mm, total length: 6,100 mm, overall weight: 34,000 kg, Equipment: CE marking, documentation/manual, Hydraulic press brake Manufacturer: EHT - Trumpf, Type: TruBend 8400-50S Year of manufacture: 2010 Technical data Manufacturer: EHT / Trumpf Type: TruBend 8400-50S Year of manufacture: 2010 Capacity: 400 t Bending length: 5050 mm Distance between uprights: 4050 mm Throat depth: 405 mm Stroke of Y-axis: 400 mm Installation height: 720 mm Table width: 140 mm Motor power: 37 kW Oil capacity: 600 L Pneumatic connection: 6 +/- 1 bar Dimensions: approx. L 6.1 x W 2.8 x H 3.67 m Weight: approx. 34 t Isdpfx Aszd Tf Sechoaw Equipment • Controlled axes: X, R, Y1, Y2, Z1, Z2 • Control system: Cybelec ModEva 10S, 2D – graphic control • Upper tool clamping system Trumpf/Wila, hydraulic • Lower tool clamping system Trumpf, hydraulic • CNC-controlled crowning • Safety light curtain Lazersafe • 2 pcs. CNC bending aids incl. parking position • Pneumatic die shifting • Foot switch • Very large tool package, as shown in the photos • LCB angle measuring system (2 x front, 2 x rear) All information without guarantee.

Condition: ready for operation (used), Trumpf 150 AQ VIS laser focusing optic 22-43-83-00/02 with 22-43-82-00/01 and 22-27-04-00/05, used, in good condition, 100% fully functional, scope of delivery as shown in photos. Iaedsx Eu Uajpfx Achjw

Condition: good (used), functionality: fully functional, Year of construction: 2011, controller model: Rexroth IndraMotion MTX, laser type: CO₂ laser, laser power: 4,000 W, punching force: 22 t, Equipment: CE marking, nozzle changer, safety light barrier, Standard Equipment: Machine - Work area 3050 x 1550 mm - Robust, easily accessible C-frame - Coordinate guidance for highly precise machining - Linear magazine with 21 tool positions and 4 clamping claws - Drives with maintenance-free three-phase motors - Repositioning device with programmable clamping system Iajdpfsza A Hlsx Achsw - Foot pedal for closing clamping claws - Ball tables - Two parts collection containers - Chip container - Initial oil fill - Transport and assembly device - ContourLine - FocusLine - NitroLine - FastLine - FlyLine - PlasmaLine - Additional Xp and Yp axes - Ejection cylinder for laser parts - Quick flap for laser parts 500 x 500 mm including sensor for part chute - Liftable laser cutting support - Slug detection TRUMPF Laser - Laser TruFlow 2700 with LensLine and optimized standby mode - High-frequency excitation - Cooling unit - Laser control system TASC - Enclosed beam guidance - Beam pipe ventilation with compressed air Cutting Head - Lens cutting head with 170 mm focal length - Universal cutting head quick-change device UTI with bus connection - ControlLine Programming - Extended workshop programming (TruTops via network access) Punching Station - Electro-hydraulic punching head - Rotating mono-tool holder - Tool length compensation - Programmable clamping system with manually adjustable clamping force - Stroke counter for punch - Spray lubrication for punch - Punch slug extraction - Deflection detection - Flap for punching parts 500 x 500 mm including sensor for part chute - Reaching the fill level in the punching console - Level monitoring for thread forming and tool lubrication Control System - TRUMPF control system based on Rexroth IndraMotion MTX - External control panel with 15" TFT touchscreen - Hard drive with 160 GB storage capacity - Integrated technology data - Teleservice via internet - Integrated e-shop - Programmable cutting gas pressure - Automatic shutdown - Production plan Data Transfer - Network connection RJ45 and USB interface Safety - CE marking - Dual light curtains - Monitoring system for gas pressure, temperature, coolant, among others - Quick stop - Protection against scattered radiation - Compact dust extraction system - TruFlow 4000 including LensLine - Automatic nozzle changer - MultiTool function - MultiShear function - MultiBend function - Thread forming function - Deburring and rolling technology - Active die - StripLine - Adaptive stroke calibration - Spray lubrication for die - 4 individually opening clamping claws - Repositioning cylinder - Vibration-damped mounting - Chip conveyor with tipping container - Brush tables with loading and unloading assistance - Blowing device for small parts Automation: SheetMaster - Suction frame 3000 x 1500 mm with 36 suction cups (y-axis = 400 mm) - Adjustable suction rails (v-axis = 120 mm) - Peeling suction - Vacuum sensor for each suction cup - Sheet thickness sensor for double sheet detection - Automatic clamping claw closing on machine - Central lubrication - Main-time parallel loading and unloading of SheetMaster - Unloading monitoring GripMaster special arrangement 4m: - Scrap grid tongs with sensor - Scissor lift table 400 mm

Condition: used, Year of construction: 2009, Technical details: Beam Hour: unbekannt / unknown h laser capacity: 4000 W Iaedpfx Acsyuvcijhsw The TLF4000 resonator was installed in a Trumpf True Laser 2525: Laser power: 4,000 W (4 kW) Wavelength: 10.6 µm Beam mode: TEM01* Pulse frequency (gating): 100 Hz – 10 kHz Gas consumption (laser): CO2: approx. 1 l/h N2: approx. 6 l/h He: approx. 13 l/h Cutting gas O2: approx. 500 – 2,000 l/h Electrical power consumption: approx. 33 – 67 kW Adjustable laser power: programmable in 1% increments Laser type: CO2 laser with closed gas circuit Translated with (free version) *

Condition: excellent (used), functionality: fully functional, Year of construction: 2010, laser power: 4,000 W, X working area max.: 3050 mm Y working area max.: 1550 mm Control: Rexroth IndraMotion MTX Laser power: 4,000 watts Standard equipment: Machine - Sturdy, easily accessible C-frame - Coordinate guidance for high-precision machining - Linear tool changer with 21 tool stations and 4 clamps - Maintenance-free three-phase drive motors - Repositioning device with programmable hold-down - Foot switch for closing clamps - 2 good parts containers - Automatic shutoff Laser station - TruFlow laser - High-frequency excitation - Cooling unit - TASC 3 laser controller - Enclosed beam guidance - Beam tube ventilation with compressed air - Programmable cutting gas pressure - Laser cutting head with 170 mm focal length - Universal quick-change cutting head device UTI with bus connection - LensLine - FocusLine - ControlLine - NitroLine - SprintLine - ContourLine - FlyLine - PlasmaLine - High-speed cutting - Additional Xp and Yp axes - Ejector cylinder for laser parts - Fast flap for laser parts 500 x 500 mm - Liftable laser cutting support - Slag cone detection - Laser logbook function Punching station - Electro-hydraulic punching head - Rotatable mono-tool holder - Tool length compensation - Programmable hold-down with adjustable force - Stroke counter for punches - Spray lubrication for punches Iajdpfoy Saqgox Achjw - Punch slug extraction - Warp detection - Flap for punched parts 500 x 500 mm - Fill level monitoring in the punching console Control - Open control system based on Bosch Rexroth IntraMotion MTX - Operating panel with 15" TFT touchscreen - Program management and 80 GB storage capacity - Diagnostic function with laser logbook - Integrated technology data - Teleservice Data transfer - Network connection RJ45 and USB interface Safety - CE marking - Multi-beam light barriers - Monitoring system for, among others, gas pressure, temperature, cooling water - Hydraulic quick shut-off - Protection against stray radiation - Compact extraction unit - TruFlow 4000 - Vibration-dampened installation - Thread forming function - MultiTool function - Chip conveyor with tilting container - Active die - Ejector for small parts - Brush tables with loading aid - Marking function - Repositioning cylinder - Warp detection

Condition: good (used), functionality: fully functional, Year of construction: 2019, controller model: Rexroth IndraMotion MTX, laser type: CO₂ laser, laser hours: 980 h, laser power: 4,000 W, punching force: 22 t, Equipment: CE marking, nozzle changer, safety light barrier, Machine - C-frame - Coordinate guide - Linear magazine with 25 stations for clamps and tools - 4 x hydraulic clamps - Drives with maintenance-free three-phase motors - Repositioning system with programmable hold-down - Flap for punched parts 500x500mm incl. sensor - Foot pedal for closing clamps - FocusLine - NitroLine - FastLine - FlyLine - Additional XP and Yp axes - Ejector cylinder for laser parts - Fast flap for laser parts 500x500mm incl. sensor - Liftable laser cutting support TRUMPF Laser - TruFlow 4000 laser incl. LensLine and optimized standby - High-frequency excitation - Fine filtration of compressed air for beam tube ventilation - Closed beam guidance Cutting Head - Lens cutting head with 170mm focal length - Universal quick-change device for cutting head - LensLine - ControlLine Punching Head - Electro-hydraulic punching head - Rotatable mono-tool holder - Programmable hold-down position - Tool length compensation - Punch slug extraction - Calculation of fill level in the punching console - Stroke counter for punches - Spray lubrication for punches - Fill level monitoring for tool lubrication - Stripper position measuring system with sheet thickness measurement function Control System - TRUMPF control based on Rexroth IndraMotion - Touch panel with 19" TFT color display - Integrated technology data - Programmable cutting gas pressure - Remote Support interface - Automatic shut-off with wake-up function - Production planner Functions - PlasmaLine Data Transmission - USB interface - RJ-45 network interface - Wireless Operation Point Safety Iaodpfx Asy Sappschjw - CE marking - Two-beam safety light barrier - Monitoring system for gas pressure, temperature and cooling water - Emergency stop for drives - Warp detection - Protection against stray radiation Extended Standard Equipment: - Network installation via Remote Support - Chiller (water-air) - Compact extraction system - 1st locating pin (inside right) - 2 finished parts containers - Chip container - 40 used RTC cassettes + die plate Punch Quality Package - MultiShear - Deburring and rolling technology - Adaptive stroke calibration - StripLine Forming Package - Thread forming incl. thread former breakage control - Marking/fast beading - MultiBend - Height-adjustable clamps - Automatic nozzle changer - MultiTool - Engraving - Smart Punch Monitoring with sheet format detection - 4 individually openable clamps - Automatic clamp closing with mechanical sensor zero stop - Repositioning cylinder - Vibration-damped installation - Chip conveyor with tilting container - Foot pedal start incl. rear-view mirror - Brush tables with loading and unloading support - Ejector unit for small parts - CO2 extinguishing system for compact extractor - Connection piece for exhaust air duct of compact extractor MobileControl App SheetMaster (AK08) UF - Loading station with spreader magnet - Simultaneous loading and unloading during main time - Peeling system incl. positioning aid for oversize formats - Additional positioning aids for medium format - Additional positioning aids for large format - First add-on package with 9 suction cups (incl. vacuum ejector) - Unloading monitoring for laser parts - Loading of blanks GripMaster 4000 x 1500 mm SortMaster Pallet 4 pallets longitudinal ToolMaster Linear 54 stations with simultaneous tool setup during main time - Safety devices for warehouse connection incl. 2nd light barrier circuit - Warehouse interface

Condition: good (used), Year of construction: 2006, operating hours: 20,000 h, Trumpf Haas HL 4006D YAG Solid-State Laser The Trumpf Haas HL 4006D is a 4000W Nd:YAG solid-state laser designed for industrial applications such as welding highly reflective materials, especially for use with robots and with a range of up to 100 meters via flexible fiber optics. Areas of Application Welding: The main application is welding metal parts, especially highly reflective materials such as aluminum and copper, where other lasers are difficult to use. Automated Manufacturing: The laser is designed for integration into automated production lines with industrial robots. Precision Machining: The high power and precise beam quality enable precise work in industrial machining. Technical Specifications Manufacturer: Trumpf Haas Type: HL 4006D Nominal laser power: 4000 W Beam quality: 25 mm.mrad Laser light wavelength: 1064 nm Nominal voltage: 400 V Nominal power: 132 kW Nominal power consumption: 140 kVA Year of manufacture: Oct 2006 Weight: 1500 kg Ijdpoxg Hpcsfx Acheaw Operating hours: approx. 20,000 Dimensions (W x H x D): 3200 x 1700 x 1250 mm Laser optics including ILV scanner, pyrometer, and various spare parts Computer with WinLas software for parameter control You can find the right cooling unit and robot in our shop Rehsler TW HL4006D Cooling Unit Kuka KR 30/2 6-Axis Welding Robot Financing through our bank is also possible. komplett-konzept.leasingo.de Other items - new and Used - find it in our shop! International shipping costs on request!

Condition: good (used), Year of construction: 2007, Working area X 4000 mm, Y 2000 mm, Z 115 mm Weight 16000 kg parameters L x W x H: approx: 9800 mm x 5300 mm x 2000 mm Siemens Sinumerik 840 D type of laser TruFlow 4000 W max thickness 20 mm 4000 mm x 1250 mm feed 3400 mm Dismantling, loading, crane is not in price of machine - plus price per all services NC: 88631 - Resonator/HD pump 1: 87603 - Beam on/pump 2: 53667 Technical parameters:- Designation: KNC/H 1500/65- Maximum temperature: 650 °C- Recommended operating temperature range: 300°C – 600°C- External dimensions approx. (wxhxd): 2800x3200*x2100mm * height including structure for door when hydraulically opening- Internal dimensions (wxhxd): 1500 x 1000 x Iodpfx Acevtm Szehjaw 1000 mm- Number of heating zones: 1- Maximum batch weight: 1000 kg- Melting power: 48 kW- Furnace weight: 1300 approx. kg- Voltage: 3/PEN 400/230V AC 50 Hz- The damper is part of the furnace, serves for automatic temperature control in the furnace and is controlled by the program from the controller. - includes technical documentation in Slovak - protocol of measurement and optimization of the temperature field to meet the DIN 17052-1 standard ΔT10°C in the internal working space (in an empty furnace at Tmax) \- Technical documentation is in SJ. Manufacturer: LAC, s.r.o., Czech Republic Year of Production: 2021 This is an electric furnace, the heating system of which consists of heating resistance elements located near the fan unit. Through the heating branches, the fan ensures circulation of the atmosphere in the heating space and thus heating of the working atmosphere and the charge in the furnace. The working chamber of the furnace is equipped with a separately regulated heating unit in the rear wall of the furnace. The furnace is equipped with a radial circulation fan with a horizontal shaft to ensure uniform temperature distribution throughout the working space of the furnace. The circulation fan drives the heated air through the circulation channels of the circulation insert. All rotating parts are located under a cover against accidental contact. The temperature profile of the device is controlled by a PID programmable INDUSTRY controller. This controller allows the creation of up to 30 heat treatment programs depending on the needs of the processing technology and the properties of the processed batch. Dimensions see. appendix.

Condition: ready for operation (used), Year of construction: 2012, Laser power: 4000W (4kW), wavelength: 1030nm, beam quality (BPP): 8mm/mrad, beam diameter setting: 0.1µm, machine dimensions X/Y/Z: approx. 1000mm/1600mm/1600mm, weight: approx. 1000kg. Including 2x scanner optics (PFO) for the process cells, 3x fiber optic cables and spare parts. Documentation available. On-site inspection is possible. Ijdpfxowwll Ho Achsaw

Condition: ready for operation (used), Year of construction: 1998, operating hours: 30,430 h, functionality: fully functional, punching force: 22 t, sheet thickness (max.): 6 mm, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,250 mm, punching diameter: 76 mm, TECHNICAL DETAILS Pressing force: 220 kN Sheet metal thickness - max.: 6.4 mm Iodpozk A Ntjfx Acheaw Punch diameter: 76.2 mm Travel range X-axis: 2,500 mm Travel range Y-axis: 1,250 mm Positioning speed X-axis: 90 m/min Positioning speed Y-axis: 60 m/min Positioning speed Simulation: 108 m/min Positioning speed rotary axis: 360 °/sec Workpiece weight: 150 kg Smallest programmable path dimension: 0.01 mm or 0.01° Tool stations: 15 units Tool change time: 1.5 - 6.5 sec MACHINE DETAILS Dimensions: 6,400 x 5,800 x 2,100 mm Machine weight approx.: 11,050 kg Operating hours: 30,430 h

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2007, machine/vehicle number: A0250A0472, laser power: 5,000 W, travel distance X-axis: 4,000 mm, travel distance Y-axis: 2,000 mm, TECHNICAL DETAILS Travel range, X-axis: 4,000 mm Travel range, Y-axis: 2,000 mm Laser power: 5,000 W MACHINE DETAILS Mains voltage: 400 V / 50 Hz Iaedjzkr T Uopfx Achjw Connected load: 105 kVA Control voltage: 24 V DC Required fuse rating: 3 x 160 A Compressed air connection: 7 to 10 bar Nitrogen connection N₂: 30 bar Oxygen connection O₂: 20 bar

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, pressing force: 85 t, stroke length: 445 mm, overall weight: 8,600 kg, operating pressure: 300 bar, control voltage: 24 V, TECHNICAL DETAILS Pressing force: 850 kN Stroke: 445 mm Operating pressure: 300 bar Response time: 95 ms Follow-up travel at 220 mm/s: 10 mm Follow-up travel at 160 mm/s: 8.5 mm MACHINE DETAILS Safety clearance: 190 mm Isdpfxszlc Rys Acheaw Voltage: 3 x 400 V Rated current: 24.0 A Frequency: 50 Hz Connected load: 17.0 kVA Control voltage: 24 V Compressed air connection: 6 bar Dimensions & Weight Dimensions (L x W x H): 2,500 x 1,500 x 2,000 mm Machine weight: 8,600 kg Note: The operating hours can be found in the last image.

Condition: excellent (used), functionality: fully functional, Year of construction: 2014, laser power: 2,000 W, sheet thickness (max.): 16 mm, sheet thickness steel (max.): 16 mm, sheet thickness stainless steel (max.): 8 mm, sheet thickness aluminum (max.): 6 mm, The machine is in very good condition and has been regularly serviced by qualified service technicians! TECHNICAL DETAILS Laser power: 2,000 W Sheet metal thickness max: 16 mm Sheet metal thickness, steel max: 16 mm Sheet metal thickness, stainless steel max: 8 mm Sheet metal thickness, aluminum max: 6 mm Table length: 3,000 mm Table width: 1,500 mm EQUIPMENT Iodpfxozlc Sqj Achjaw Cooling unit Emergency stop switch Fume extraction Safety light curtain Dust extraction Note: The operating hours can be found in the last image.

Condition: used, functionality: fully functional, Year of construction: 2012, Standard equipment: Machine - Work area 2500 x 1250 mm - Sturdy, easily accessible C-frame - Coordinate guidance for highly precise machining - Linear magazine with 21 tool stations and 3 clamping claws - Drives with maintenance-free three-phase motors - Follow-up device with programmable clamping device - Foot pedal for clamping claw closure - Ball tables - Two good part containers - Scrap container - Initial oil fill - Transport and assembly device - ContourLine - FocusLine - NitroLine - FastLine - FlyLine - PlasmaLine - Ejector cylinder for laser parts - Fast flap for laser parts 500 x 500 mm incl. sensor for part chute - Liftable laser cutting support - Slug detection TRUMPF Laser - Laser TruFlow 2700 with LensLine and optimized standby mode - High-frequency excitation - Cooling unit - Laser control TASC - Enclosed beam guidance - Beam tube ventilation with compressed air Cutting head - Lens cutting head with 170 mm focal length - Universal cutting head quick-change device UTI with bus connection - ControlLine Programming - Extended workshop programming (TruTops via network access) Iodpfx Acjzmgm Iohjaw Punching station - Electro-hydraulic punching head - Rotatable mono-tool holder - Tool length compensation - Programmable clamping device with manually adjustable clamping force - Stroke counter punch - Spray lubrication punch - Punch slug extraction - Deformation detection - Flap for punching parts 500 x 500 mm incl. sensor for part chute - Reaching the fill level in the punching console - Level monitoring for thread forming and tool lubrication Control system - TRUMPF control system based on Rexroth IndraMotion MTX - External control panel with 15" TFT touchscreen - Hard disk with 160 GB storage capacity - Integrated technology data - Teleservice via internet - Integrated e-shop - Programmable cutting gas pressure - Automatic shutdown - Production plan Data transmission - Network connection RJ45 and USB interface Safety - CE marking - Dual light barriers - Monitoring system for gas pressure, temperature, coolant, etc. - Quick shutdown - Protection against stray radiation - Compact dust extraction system Extended equipment - Brush tables - MultiTool function - MultiShear function - MultiBend function - Thread forming function - Deburring and rolling technology - Active die - StripLine - Adaptive stroke calibration - Spray lubrication die - 3 clamping claws - Vibration-damped installation - Chip conveyor with tilting container - Brush tables with loading and unloading aid - Air blow-out device for small parts - Follow-up cylinder Automation: - Toolmaster

Condition: used, functionality: fully functional, Year of construction: 2019, operating hours: 14,669 h, Trumpf TruPunch 1000, 2019 X Working area max.: 2500 mm Y Working area max.: 1250 mm Operating hours: 14,669 hours Machine - C-frame - Coordinate guidance - Linear magazine with 20 positions for clamping blocks and tools - Hydraulic clamping blocks (2 pieces + 1 option) - Drives with maintenance-free three-phase motors - Post-processing unit with programmable positioning device - 1st stop pin (inside right) - Transfer chute Punch head - Electro-hydraulic punch head - Rotatable mono-tool holder - Programmable positioning device position - Tool length compensation - Spray lubrication for punch - Punch slug extraction - Forming function Control - TRUMPF control based on Rexroth IndraMotion MTX - Control panel with 15" TFT color screen - Integrated technology data - Teleservice interface via internet - Automatic shut-down - Program management - Production plan Data transfer - USB interface - RJ45 network connection Safety - CE marking - Multi-beam light barriers - Rapid shut-down of drives Extended standard equipment - Brush tables - Chip conveyor + chip container - Additional clamping block - Sheet thickness detection - Vibration-damped installation - Programmable support table - Sensor for transfer chute Iaodpjzmgi Njfx Achsw - Wireless operation point Extended punching technology: Multitool Thread forming

Condition: used, functionality: fully functional, Year of construction: 2016, operating hours: 22,192 h, TruPunch 3000 S11 Large Format STANDARD EQUIPMENT: • Robust C-frame • 2 clamping jaws • 18 tool stations • Foot switch for jaw closing • Programmable part flap with a maximum part size of 500x500 mm Punch head: ⦁ Servo-electric punch head ⦁ Hydraulic single-tool holder, 360° rotation ⦁ Programmable stripper (active / passive / repositioning) ⦁ Spray lubrication for punch ⦁ Punch slug extraction ⦁ Adjustable stripper force Control: ⦁ 17" touch screen ⦁ Teleservice via internet ⦁ Automatic shutdown Data transfer: ⦁ USB interface ⦁ Network connection Safety: ⦁ CE marking ⦁ Multi-beam light curtain ⦁ Quick shutdown of hydraulics Extended punching equipment: ⦁ Multitool function ⦁ Deburring and rolling technology function ⦁ Thread forming function Extended machine equipment: ⦁ Sensor for part chute Ijdjzmfdrjpfx Acheaw ⦁ Vibration-dampened mounting ⦁ Brush tables ⦁ Chip conveyor ⦁ One additional clamping jaw

Condition: ready for operation (used), Year of construction: 2008, laser power: 50 W, This 3-axis TRUMPF Trumark Station 5000 was manufactured in 2008. It features maximum workpiece dimensions of 680 mm x 500 mm x 700 mm and a traverse path of 500 mm on the Z-axis. The machine has a maximum workpiece weight of 50 kg without the X/Y axis. If you are looking to get high-quality laser marking capabilities, consider the TRUMPF Trumark Station 5000 machine we have for sale. Contact us for further details. Iedpfxjza Albs Achsaw - Maximum Workpiece Dimensions (W x H x D): 680 mm x 500 mm x 700 mm- Maximum Workpiece Weight: 50 kg (without X/Y axis), 25 kg (with X/Y axis)- Traverse Path Z-Axis: 500 mm- Traverse Path X-Axis: 300 mm- Traverse Path Y-Axis: 300 mm- Traverse Speed Z-Axis: 1.5 m/min- Traverse Speed X-Axis: 6 m/min- Traverse Speed Y-Axis: 6 m/min- Electrical Connection (Voltage): 115 V / 230 V- Electrical Connection (Frequency): 50 Hz / 60 Hz- Maximum Power Consumption: < 2.55 kW- Workstation Dimensions (W x H x D): 860 mm x 2000 mm x 1310 mm- Workstation Weight (without laser): 410 kg- Laser Class: Class 1- Laser Compatibility: Combined with VMc 1-6 and TruMark 7020 marking lasers

Condition: ready for operation (used), Year of construction: 2007, operating hours: 52,506 h, punching force: 18 t, sheet thickness (max.): 6 mm, This 5-axis TRUMPF TRUPUNCH 3000 was manufactured in 2007. It features a maximum cutting force of 180 kN, making it suitable for various punching applications. The machine has undergone major contract maintenance in February 2026, ensuring its operational reliability. If you are looking to get high-quality punching capabilities, consider the TRUMPF TRUPUNCH 3000 CNC punch press we have for sale. Contact us for further details. - Operating Hours (NC): 52,506 hours (as of 09.02.2026)- Max. Cutting Force: 180 kN- Voltage: 400 V- Frequency: 50 Hz- Connected Load / Capacity: 18 kVA- Control Voltage: 24 V=- Required Fuse Protection: 3x 35 A- Compressed Air Connection: 7-14 bar- Software Version: 3.1.0- Backlash X-Axis: 0.03 mm- Backlash Y-Axis: 0.01 mm- Backlash C1-Axis: 0.01 mm- Backlash C2-Axis: 0.01 mm- Maintenance Status: Major contract maintenance performed in February 2026. Oil change for hydraulics is reported as due. Concentricity for C1 and C2 axes tested OK. Brushes/support table partially worn or warped. Ijdpfxozmghle Acheaw

Condition: used, functionality: fully functional, Year of construction: 2017, Loadmaster 1530, year of manufacture 2017 Iedpfx Ajzlwz Hechjaw immediately available.
