Used Biesse Edgebander for sale (331)

Condition: ready for operation (used), Year of construction: 2017, machine/vehicle number: 1000017221, functionality: fully functional, travel distance X-axis: 2,500 mm, travel distance Y-axis: 900 mm, travel distance Z-axis: 60 mm, controller model: BSuite3, number of spindles: 17, TECHNICAL DETAILS Working area X-axis: 2,500 mm Working area Y-axis: 900 mm Working area Z-axis: 60 mm Number of axes: 3 Tool: ISO 30 Fsdpfeyzpcdsx Acgjpl Spindles Total number of spindles: 17 6 vertical in X-axis 5 vertical in Y-axis 4 horizontal in X-axis 2 horizontal in Y-axis MACHINE DETAILS Numerical control: BSolid Software - BSuite3 EQUIPMENT Automatic unloading device Integrated blade for groove insertion Front protective and safety systems with mats Perimetric protective grids External reference: MME002

Condition: used, machine/vehicle number: 007811, Position 1: Panel Feeding and Loading BIESSE - RBO-STREAM SB Position 2: Double Sided Squaring/Edgebanding Machines BIESSE - RBO-STREAM SB Position 3: Panel Turning Device BIESSE - RBO-STREAM SB Position 4: Double Sided Squaring/Edgebanding Machines BIESSE - RBO-STREAM SB Fedpsv Dyxcjfx Acgjpl Position 5: Panel Turning Device BIESSE - RBO-STREAM SB Position 6: Panel Stacking and Offloading BIESSE - RBO-STREAM SB

Condition: ready for operation (used), Year of construction: 2014, machine/vehicle number: 89867, functionality: fully functional, travel distance X-axis: 3,765 mm, travel distance Y-axis: 1,875 mm, travel distance Z-axis: 324 mm, number of slots in tool magazine: 12, overall weight: 4,000 kg, TECHNICAL DETAILS Working area X-axis: 3,765 mm Working area Y-axis: 1,875 mm Working area Z-axis: 324 mm Table length: 3,600 mm Table width: 1,800 mm Tool holding system: HSK-F63 Fedpfx Asy Nxybecgepl Tool changer positions: 12 positions MACHINE DETAILS Number of milling spindles: 1 piece Weight: 4,000 kg Transport packages: 1 piece EQUIPMENT Flat table BiesseWorks system/software Safety mat Drilling tool included Saw unit included Labelling machine Loading system Unloading system

Condition: used, machine/vehicle number: 008113, Max. panel width: 3800 mm Max. panel length: 3800 mm Fpjdpsw Iddhofx Acgjl Main saw blade projection: 75 mm No of Grippers: 8

Condition: used, Technical specifications: - X = 3,060 mm - Y = 1,320 mm - Z = 150 mm - Central automatic lubrication system - 6 ATS workpiece supports - 18 bearing consoles - Vacuum system with division into 2 working areas in the X-direction - Pneumatic system for console adjustment - 2 independent working areas in the X-direction - 4 workpiece supports - 12 clamping devices for clamping narrow workpieces - Conveyor belt for removing chips and cutting waste - Vacuum pump, 90 m³/h - 12 kW electric spindle with ISO 30 tool holder, air-cooled - The machine is additionally equipped with an integrated rotary unit that is integrated into the machine control system and functions as a 5th axis for drilling operations at different angles. Fjdpfx Acozutqvjgspl - Tool changer with 10 tool positions - Manual laser barcode scanner Drilling unit BH 21L - 7 + 7 vertical drilling spindles - 6 horizontal drilling spindles (4 in the X-direction, 2 in the Y-direction) - 1 grooving unit (saw blade) in the X-direction

Condition: good (used), Year of construction: 2006, I sell the 3-axis CNC working centre Biesse Rover A 3.30 with beam table, year 2006. Configuration: 3-axis main spindle HSD Tool magazine 14 positions ISO30 on working head 1 grooving saw X-direction Drilling head 14+4+2 spindles Useful working area 3130x1250mm. 2 working fields, 4 clamping areas Fpjdpfxszmnzmo Acgsl Automatic central system of lubrication. Uniclamp System included Total power 17kW Biesse Works software controller with full instructions. Pump Becker 110 m3/h. 2,4KW. Additional vacuum outputs for raster works or connection of additional clamping devices. Good condition. Available immediately. Repair needed: Handles on beam table, rotation of the ISO30 magazine on working head

Condition: ready for operation (used), Year of construction: 2014, machine/vehicle number: 57269, functionality: fully functional, travel distance X-axis: 4,300 mm, travel distance Y-axis: 2,205 mm, controller model: NC 1000, TECHNICAL DETAILS X-axis working range: 4,300 mm Y-axis working range: 2,205 mm Vertical spindle: 1 unit, HSK F63 Tool changer system: 8 positions (head) Tool changer system: 21 positions (rear, chain) Drilling head: BH 20 Vertical spindles on X-axis: 8 units Vertical spindles on Y-axis: 8 units Horizontal spindles on X-axis: 4 units Horizontal spindles on Y-axis: 4 units Fpedpjydkdgjfx Acgjl Saw unit on X-axis: diameter 120 mm Saw unit on Y-axis: diameter 120 mm MACHINE DETAILS Control: NC 1000 Software: Biesse Works Weight: 400 kg EQUIPMENT FT nesting table with full surface Automatic loading system with side lift table Automatic labelling machine for barcode printing Automatic printing and dispensing system for adhesive labels Automatic unloading system with motorized conveyor belt Front safety and protection system with mats and fences Automatic lubrication system Air conditioning for control cabinet Vacuum pump

Condition: used, machine/vehicle number: 008438, Max. panel width: 4500 mm Max. panel length: 4500 mm Main saw blade projection: 50 mm Fpjdpoyngy Sjfx Acgjl No of Grippers: 8

Condition: used, Year of construction: 2006, functionality: fully functional, TECHNICAL DETAILS Components ADVANTAGE C transverse loader: automatic ROTATING DEVICE (flipper): available BIESSE FTT: with 4 heads, drilling and milling, automatic tool change BIESSE FHT: 2 WORKING UNITS horizontal drilling and dowel insertion WANDRES: brush cleaning from top ADVANTAGE SC transverse unloader: automatic Plate dimensions Plate length: 240 - 3,200 mm Single panel width: 140 - 1,550 mm Plate width: 140 - 800 mm Plate thickness: 12 - 60 mm Drilling units Drill heads FTT 800: 2 machining centres with 4 boring units - 5 working tables Vertical spindles (X-direction): 14 independent per head Vertical spindles (Y-direction): 18 independent per head Horizontal spindles (X-direction): 3 independent, with double output Horizontal spindles (Y-direction): 3 independent, with double output Tool change system Revolver cartridges: 2 Fedpfxjy Ui Rno Acgopl Positions per cassette: 56 Application: Automatic tool change of the vertical spindle centers on 4 drilling units of the two machining centers A and B. Milling spindles Electro spindle 1: 3.7 kW (5 HP), ISO 30, with inverter and 3-way tool change rack Electro spindle 2: 3.7 kW (5 HP), ISO 30, with inverter and 3-way tool change rack Lateral positioning units Workstations: 2 for parallel processing of identical or mirror-inverted panels left positioning element: fixed for lateral reference Right positioning element: movable in X-direction, on lower supports, linearly guided Adjustment: automatic according to the X-dimension of the panel Drive: Brushless with digital control Function: Detection of the actual X Length in the machining center, automatic correction of the drilling positions Max. travel speed: 120 m/min Loading and unloading Infeed system: 1 belt conveyor with cross feed, single drive Unloading system: 1 belt conveyor with cross feed, single drive Additional: Cleaning fan in the unloading area Drill heads FHT (horizontal): machining centres with 2 working units (1 LH unit / 1 RH unit) - 3 working tables. HORIZONTAL BORING UNITS with 24 independent spindles to be installed onto 2 operating units HORIZONTAL INSERTING UNITS WITH 5+5 GLUE INJECTORS AND 8 mm. DIAMETER DOWEL INSERTERS TOOL-HOLDER ADAPTOR for the quick change spindles of the boring units. GLUE INJECTION AND DOWEL INSERTING UNIT for 8 mm. dia. dowels to be added to the standard ones. The unit is prearranged for the insertion of 8 mm. diameter and 25-35 mm. long dowels.* The 8 mm. diam. dowel inserting units are required. NOTE: Dowel inserting unit was never used and not tested. Not possible to be tested ADVANTAGE C 3200 TRASV. 1 POS - loading ADVANTAGE SC 3200 TRASV. 1 POS - unloading Security features Standards: CE compliant Safety equipment: Extensive protective enclosures

Condition: used, machine/vehicle number: 008606, Max. panel width: 3200 mm Max. panel length: 1000 mm No of Bottom Units: 5 Fedjzqz Rcopfx Acgepl No of Top Units: 2 Positioning of Units by NC: yes Lateral horizontal groups: yes

Condition: excellent (used), Year of construction: 2001, I sell the Stacking device BIESSE RBO MAGNUM, year 2001. Stacking device one side feeding / also suitable for pallets. Vacuum-System (including pump) Automatic loading. Infeed table motorised band-system Infeed tables motorised roller-system on the floor (2 channels) Outfeed table front Band-system Security fence system fully complete ! Total power 25kW Year 2001. Available immediately. Ready for work. Fpedpoxyag Uefx Acgel

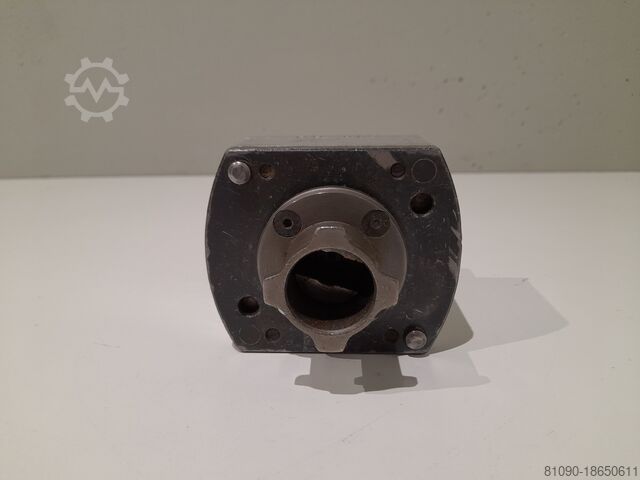

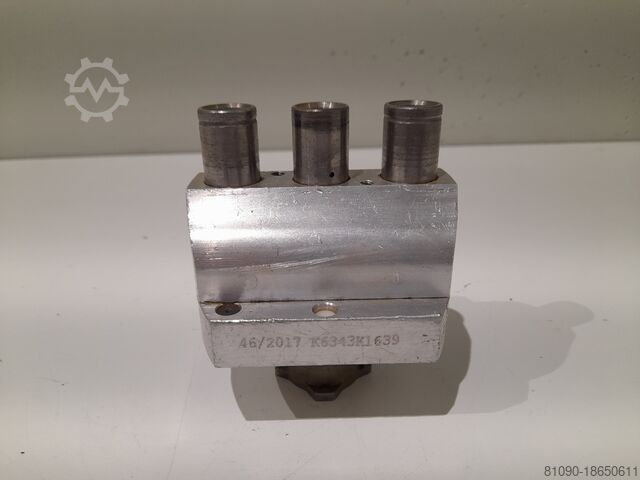

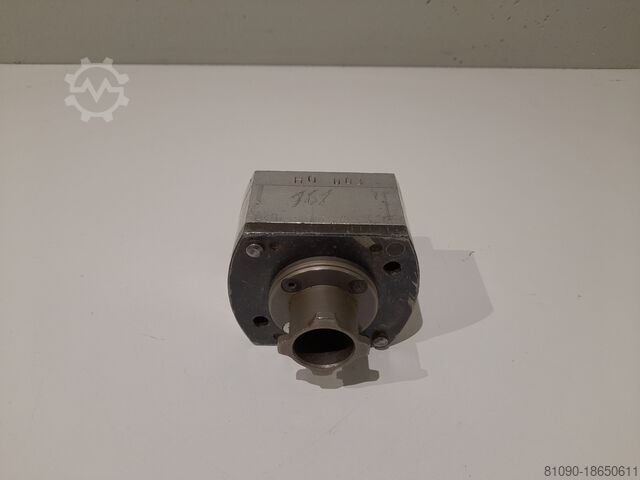

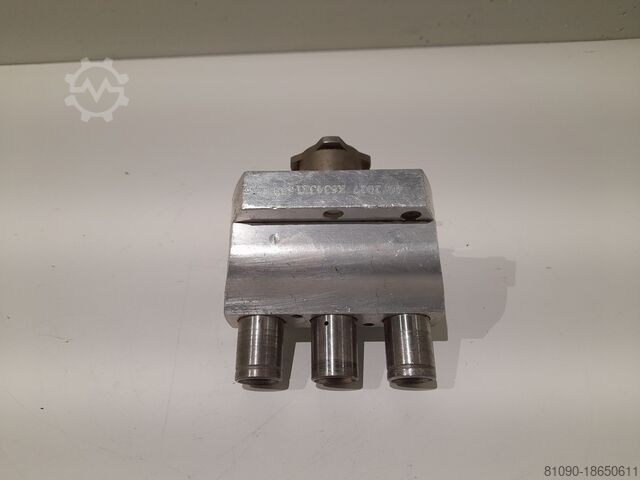

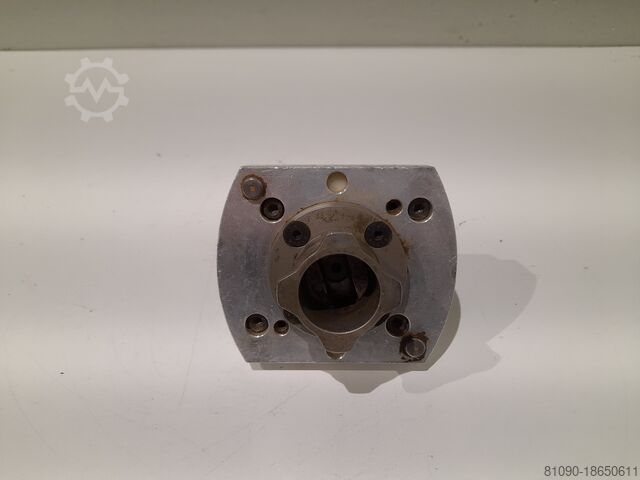

Condition: used, functionality: unexamined, total height: 200 mm, total length: 200 mm, total width: 200 mm, overall weight: 6 kg, Ferwood Code: AGG0050 - Manufacturer Code: 6314A0274 - Condition: Used - Functionality: Not tested - Compatible Machine: CNC BIESSE - If interested, we offer a refurbishment service; please contact us. Fodpjzww Nhofx Acgspl 6KG 20X20X20

Condition: excellent (used), Year of construction: 2006, functionality: fully functional, Working area X: 4600 mm Working area Y: 1570 mm Working area Z: approx. 250 mm 3-axis electrospindle Vertical drilling heads: approx. 22 Horizontal drilling heads X: 6 Horizontal drilling heads Y: 4 Grooving saw blade in X direction Fixed horizontal motor for door lock mortising Chain-type tool changer with approx. 22 positions Fodsy Exz Depfx Acgepl Worktable with 8 beams Vacuum pump 90 m³/h Software: BiesseWorks Safety mats Protective safety nets Weight: approx. 6100 kg Including vacuum suction cups and 1 tiltable aggregate for drilling-routing-sawing

Condition: used, machine/vehicle number: 007849, Max. panel width: 1000 mm Max. panel length: 2200 mm Length of conveyor: 9000 mm Fsdpfx Acjwkfzzogepl Panel return for edgebander: Right

Condition: used, Year of construction: 2007, - Working area: X = 4600 mm / Y = 1935 mm / Z = 275 mm - CE safety devices - 8 ATS plate holders - L = 1525 mm - 24 sliding rails - Automatic positioning of 8 plate holders and sliding rails (EPS X-Y) - Conveyor belt for removing chips and scrap - Pneumatic locking system, divided into 2 working areas in X - 8 rear reference stops with a stroke of 115 mm - 8 stops with a stroke of 140 mm, positioned at 1175 mm (L = 1280 - 1525 - 1800 mm) - 8 stops with a stroke of 140 mm, positioned at 770 mm (L = 1280, 1525, 1800 mm) - 4 lateral stops with a stroke of 140 mm (2 left + 2 right), including pneumatic system. - 4 removable center stops with a stroke of 140 mm (2 left + 2 right), including pneumatic system. - Sensor for detecting lowered stops. - Pneumatic system for lifting rod holders. - 6 lifting rod holders for easy loading - H = 74 mm modules. - Vacuum system for a 250 m3/h pump - 250 m3/h rotary vane vacuum pump for standard vacuum system Composition C3-A1 - Device for mounting a chip deflector with a pneumatic or inductive sensor on a 5-axis machining unit. - Flange for mounting aggregates on a work unit with 5 interpolating axes. *Aggregates can only be used if the spindle is in the vertical position. Composition C3-P2 - Additional Z-slide for rear work units, controlled by an independent Z-axis - 16 vertical and 4 horizontal drilling spindles in the Y direction - Chain-type tool changer with 22 positions at 180 mm center distance - Iron gripper for chip deflectors with pneumatic or inductive sensor, positioned in the chain-type tool changer - RH chip deflector with inductive sensor for standard spindle or 15 kW 5-axis spindle * requires the device for the chip deflector * requires the flange for mounting aggregates when using a 5-axis spindle * requires the C-axis when using a standard spindle - Liquid cooling unit for liquid-cooled systems, can cool two spindles or one spindle and a liquid-cooled drilling head. - Automatic lubrication system - Control unit with 5 interpolating axes. This unit enables numerically controlled interpolation of the spindle on 5 axes. The spindle has high power while simultaneously having reduced dimensions. Fpsdjzux Nwspfx Acgol Note: - Additional overhauled 5-axis main spindle - 8 horizontal drilling spindles, 12 vertical drilling spindles, and nut saw are out of order.

Condition: excellent (used), Numerical Control Type NC 400 Through-feed motorized conveyoring belts (No.) 2 Horizontal units/supports (No.) 2 Drilling heads for each horizontal unit (No.) 2 Splindles for each horizontal drilling head (No.) 10 Max. working width (mm) 3200 - Min. working width (mm) 205 (ca.) Bottom vertical units/supports (No.) 4 Drilling heads/blocks for each bottom vertical unit (No.) 2 Vertical top pressure clamps (No.) 2 Digital quota (axes) display Total installed power (Kw) 23.7 Fpodpezk Eulsfx Acgel The CNC controls the movement (X axe) of the mobile horizontal unit The CNC controls the movement (Y axe) of the stops

Condition: excellent (used), Year of construction: 2001, I sell the Destacking device BIESSE RBO WINNER SC, year 2004. Destacking device one side feeding / also suitable for pallets. Vacuum-System (including pump) Automatic loading. Infeed table motorised roller-system Outfeed tables motorised roller-system on the floor (2 channels) Security fence system fully complete ! Fpodpfsxyah Sjx Acgsl Total power 24kW Year 2004. Available immediately. Ready for work.

Condition: used, machine/vehicle number: 007357, Position 1: Panel Feeding and Loading BIESSE - RBO-STREAM SB2 9.5 Fedpfx Aowuz Rtocgopl Position 2: Double Sided Squaring/Edgebanding Machines BIESSE - RBO-STREAM SB2 9.5 Position 3: Panel Turning Device BIESSE - RBO-STREAM SB2 9.5 Position 4: Double Sided Squaring/Edgebanding Machines BIESSE - RBO-STREAM SB2 9.5 Position 5: Panel Turning Device BIESSE - RBO-STREAM SB2 9.5 Position 6: Panel Stacking and Offloading BIESSE - RBO-STREAM SB2 9.5

Condition: used, machine/vehicle number: 007816, Position 1: Automated Warehouse BIESSE-SELCO SK 450 Position 2: Beam panel saws with automatic warehouse BIESSE-SELCO SK 450 Fpedpfx Aewuufqjcgol

Condition: used, machine/vehicle number: 008595, X axis working area: 4687 mm Y axis working area: 260 mm Fpjdpfjy Stvvex Acgsl Working Table: Pod and Rail Main Electrospindle power: 19 KW Number of controlled axes: 4 axes Total number of tool changer positions: 44

Year of construction: 2001, condition: ready for operation (used), Biesse Rover 22 CNC machining centre Year of manufacture 2001 SN 07498 Working range 4 axes X-axis 3060 mm Y-axis 1080 mm Z-axis 155 mm 6 consoles with 18 vacuum cup holders 4 pneumatic bakelite bars for lifting the platen Vertical electrospindle 7,5 kW with automatic tool change, ISO 30 taper Automatic tool change 7 positions on the working head Drilling head with 20 spindles arranged as follows: 7 vertical in X-axis Fedpfx Acoggxihsgepl 7 vertical in Y-axis 4 horizontal in X-axis 2 horizontal in Y-axis Grooving saw 120mm Safety tread mats 110 m3 / h vacuum pump CE marked Weight 3500 Kg Technical specifications subject to change

Condition: as good as new (ex-display), Year of construction: 2026, CNC Machining Centers Rover Multi Up M C S Working Area*: X = 3280 mm; Y = from 1580 to 1660 mm, depending on work conditions Z = 200 mm – 5-axis machining unit and drilling unit, with vacuum modules H = 74 mm Z = 245 mm – 5-axis machining unit and drilling unit, with vacuum modules H = 29 mm Workpiece Clearance*: Y = 1900 mm Axis Travel*: X = 3706 mm; Y = 2294 mm; Z1 = 515 mm; Z2 = 371 mm VACUUM SYSTEM Subdivision of the vacuum system into 2 working zones and 2 clamping zones in X. AUXILIARY VACUUM SYSTEM – 2 zones Allows clamping of workpieces using vacuum templates. Remote Control RM850 Rover Multi Up M C S Panel – Multi Purpose Regular Configuration 2 Compatible with the turret tool magazine with 16 positions and the side tool magazine with 12 positions. The tool magazines can also be retrofitted. Uninterruptible Power Supply (UPS) for machine PC. 6 ATS workpiece supports – 18 module carriers — 6 aluminium workpiece supports. The positioning of the workpiece supports is via linear guides with ball bearing slider blocks. Clamping is performed on the front and rear linear guides via pneumatic cylinders. Clamping is released by a push button located at the front of the workpiece support. — 18 module carriers, 132 x 132 x H 41.5 mm, with independent pneumatic clamping. The vacuum modules can be rotated in 15° increments on the module carriers; an ideal solution for shaped parts. — 18 covers for module carriers without template. SA (Set-Up Assistant) working table for tables up to 1550 mm. Supported manual positioning system with motion direction indicator and position indicator. — Sensors on each working table and along the X-axis of the working area. — Display of direction and position achieved for the carriage during positioning phase, mounted on each working table. According to the programmed configuration of the working tables, the system indicates the direction of movement for each working table and carriage, and confirms with a green LED and audible signal when the correct position is reached, with a tolerance of +/- 1.5 mm. Subdivision of the pneumatic system into 2 working areas in X. Machining unit with 5 interpolating axes, 13 kWp (17.4 HP), with HSK F63 adapter, liquid-cooled – 20,000 rpm Extraction hood with 12 NC-controlled positions for the 5-axis electrospindle. Flange for preparation of a 5-axis interpolating machining unit for mounting aggregates. Coolant system Additional Z-axis carrier for rear machining units, with independent Z-axis. Drilling head BH 24 L Side tool magazine with 12 positions, integrated into the machine bed. Turret tool magazine with 16 positions, installed directly on the X machining unit. Fjdpey Ehrxsfx Acgjpl HSK F63 tool adapter, equipped with a long integrated flange, for saw blades on the 5-axis head. Saw blade 300 mm, for tool holder. Hi-Tech tool set Complete set of tools for the acceptance test Consisting of the following 9 parts Replacement of standard PC with a high-performance PC. Digital device for measuring tool length up to 130 mm diameter. bSolid NC-HOPS 8 MacroCAM Rover 1. AV NC-HOPS MacroCAM 1. License WorkCenter suction cup proposal 5-Axis Simultaneous Material removal simulation 12-month warranty period Location: ex stock 54634 Bitburg - immediately available -

Condition: used, machine/vehicle number: 007087, X axis working area: 4300 mm Y axis working area: 2200 mm Working Table: Flat table Main Electrospindle power: 12 KW Number of controlled axes: 4 axes Fjdpfx Acoy Nkrvjgepl Total number of drilling spindles: 40 Total number of tool changer positions: 30

Condition: used, machine/vehicle number: 005836, X axis working area: 3000 mm Y axis working area: 1000 mm Main Electrospindle power: 3.5 KW Number of controlled axes: 3 axes Fodpfx Ajwuckuocgepl Total number of drilling spindles: 82

Condition: excellent (used), Year of construction: 2002, I sell the CNC drilling machine with inserting BIESSE COMIL INSIDER KTC. Year 2002. 2 pcs. CNC drilling heads from top. 1 pcs. Glue spraying head 3 pcs. 3Master vibratori Vibration dowel inserting device. Part of the BIESSE line consisting of: COMIL Insider drilling - milling - grooving - dowel inserting - gluing - accessories inserting line Manufacture year 1999-2001. Possible to sell the machines separately. Fjdpfx Acot N Rixegspl Vibration loaders and conveyors on agreement. For more photos and details please send the request.
