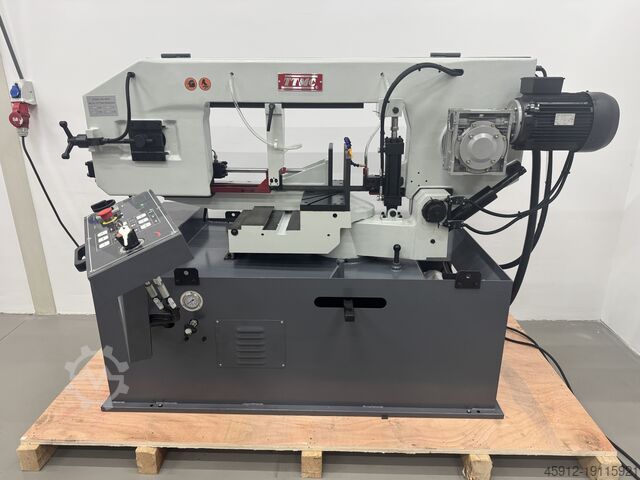

Band saw

TTMC BS-460G

Condition: new, Semi-automatic band sawing machine for cutting solid bars and profiles of medium size with high efficiency and excellent cutting precision. The robust structure gives the machine the necessary rigidity and precision to the cutting unit. Belt drive with two-speed motor and special gearbox with bronze gear and hardened and ground worm screw. Suitably dimensioned flywheels Sturdy ribbon guides made with watertight invitation bearings and adjustable widia plates Belt tension obtained by means of an electromechanical device with microswitch blade rotation control Hfodpfofibd Tjx Ad Aor Accident prevention safety device on the flywheel cover cover and on the blade Cutting thickness 1.5 mm Cutting range 60°sx 60°dx Adjustable stop for cuts of the same size Brush belt cleaning device Hydraulic power unit motor 0,37 kW 0.09 kW electric pump for belt refrigeration Jaw height 200 mm Clamp jaw length 185 mm Worktop height 760 mm Machine weight 820 kg

Condition: new, cutting diameter 355 mm dimensions of saw-band 3770 x 34 x 1,1 mm cutting speed 20 - 80 m/min cutting width 490 x 280 mm 290 mm Impact energy 250 mm 230 mm 180 mm connected load frequency 400 Volt total power requirement 2,2 kW weight of the machine ca. 0,7 t dimensions 1,43 x 0,72 x 1,7 m Semi-automatic miter band saw - Miter cuts up to 45° left + right - Miter cuts up to 60° right - Vice with quick release device Hfodpfx Asmhm Aqod Aer - Tape tension control via manometer - Electr. automatic cooling

Condition: new, bore capacity in steel (diameter) 40 mm Hodpsvn U Awsfx Ad Aefr throat 300 mm bore stroke 120 mm spindle taper MT 4 MK table: 500 x 460 mm column diameter 115 mm turning speeds 75- 3200 U/min feeds 0,1 - 0,18 - 0,26 mm/U total power requirement 1,5 kW weight of the machine ca. 350 kg range L-W-H 2,2 x 0,8 x 0,7 mm Column drilling machine with: Thread cutting function. Digital depth display Coolant system 2 stage motor Spindle protection Swivel table Pivoting drill head LED lighting Packaging dimensions: 730x760x188mm Weight 340kg

Condition: new, bore capacity in steel (diameter) 30 mm throat 250 mm bore stroke 130 mm spindle taper MT 3 MK table: 380 x 380 mm column diameter 98 mm Hfjdpfx Adju Imc Hj Aor turning speeds 75 - 3200 U/min feeds mm/U total power requirement 1,1 kW weight of the machine ca. 220 kg. range L-W-H 0,5 x 0,6 x 2,05 mm Gear drill Thread cutting device Left/right barrel Tilting work table. Lighting. 2 electric Speed levels. Depth stop. Gears run in oil. Packaging dimensions: 2100x400x710mm Weight 260kg

Condition: new, - 2 speeds - Miter - Hydraulically adjustable cutting pressure - Quick clamping clamp - Cooling system - Automatic output - Saw blade 2455 x 0.9 x 27 mm - Emergency stop Hfodort Rp Hjpfx Ad Aer - Documentation - 400V
