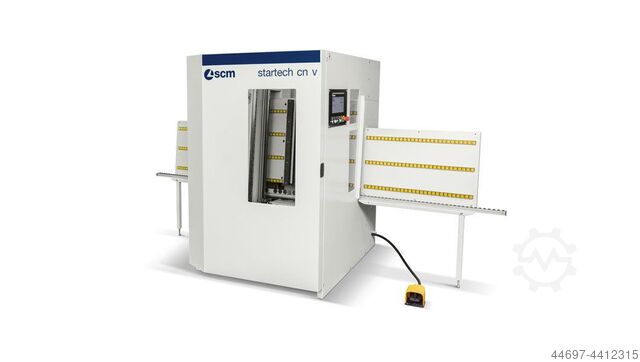

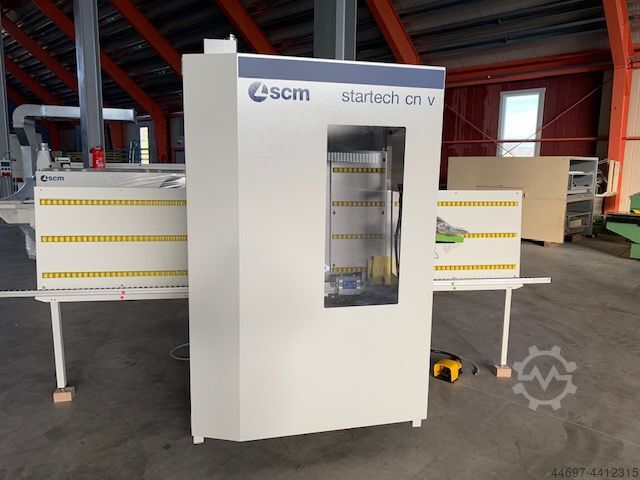

CNC drilling center

SCM startech cv cn

Condition: new, Year of construction: 2025, Robland products are built by Werkhuizen Landuyt, located at Bruges, Belgium. BM 3000: • Saw aggregate for slot making. Max depth 10 mm • Left 5 mm bit for drilling • 20mm bit for minifix-system • 8 mm spindle for drill and limited milling applications • 35 mm bit for hinges • The thickness of the panels to be processed should be between 12 and 40 mm • The machine is equipped with a drilling head with 4 chucks and an integrated sawblade • Y axis reach/stroke: Drilling: 900 mm Grooving: 860 mm Technical data: • Y axis reach/stroke • Drilling: 920 mm • Grooving with sawblade: 860 mm • axis is supported 3000 mm • Z axis plate thickness from 12 mm up to 40 mm • A axis 360° • Movement speed: 20m/min • Min. dimensions workpiece (X) 300x (Y) x 120 x (Z) 12 mm • the machine is equipped with a bore head with 4 chucks and integrated sawblade. • Max/min diameter bore heads 3 mm – 35 mm • Saw blade operates in the X-axis Iodpfxjd Hz Nie Af Seik • Max. Depth saw blade grooving: 10 mm • Motor 1 HP 3*380 V / 3*220 V • Minimal required dust extractor capacity 2300 m³/h

Year of construction: 2025, condition: new, NEW - - Ideal for removing plates from your standing plate storage. - For in-plant transport of the plates to the standing or lying panel dividing saw. - The steplessly height-adjustable support surface can be exactly to the height of your panel saw. height of your panel saw. - Panels weighing up to max. 250 kg can be transported or transported or swiveled by one operator alone. Technical data: Support height - standing: approx. 120 - 340 mm - lying: approx. 890 - 1200 mm max. plate size: 5200 × 2100 mm load capacity: 250 kg Location: ex stock 54634 Bitburg - immediately available- Will be shipped for 90,- Euro net within Germany Ijdpsd Tyaaefx Af Ssik

Condition: used, machine/vehicle number: 006835, Type of edging: Thin edge, Thick edge Iisdpfx Ajrl Utbof Sok Trimming Unit: yes Max Panel Length: 55 mm

Year of construction: 2023, condition: new, machine/vehicle number: 28086221201 (AABM0013), MASTERWOOD CNC machining center type PROJECT TF 100 2.0 "PARTNERSHIP EDITION" - MAST0337 Technical data: Axes: X axis: Max. Workpiece length: unlimited Min. workpiece length: 250mm Traversing speed: 0-25 m/min. Y-axis: Max. Workpiece width: 1.000mm for all aggregates Min. workpiece width: 85mm Traverse speed: 0-50 m/min. Z-axis: Max. Workpiece thickness: 60mm Min. workpiece thickness: 10mm Traverse speed: 0-20 m/min. Aggregates: 16 drilling head: vertical spindles in X-direction: 5 pcs. vertical spindles in Y-direction: 5 pieces horizontal double drilling spindle in X-direction: 2+2 pieces horizontal double drilling spindle in Y-direction: 1+1 pieces distance drilling spindles: 32mm speed of drilling spindles: 4.000 rpm. motor: 1,7 kW grooving saw: in X-direction Speed of rotation: 4.000 rpm. Max. saw blade diameter: 125mm Motor: 1,7 kW (the grooving saw is integrated in the drill head) Control system: Personal computer Operating system: Windows 10 Pro - 64 bit Processor: Intel Hard disk with at least 300 GB of storage space CD-ROM drive Color monitor Video card integrated 2 Ethernet cards Program: MASTERWORK MACHINE VERSION Other data: Required air pressure: 8 bar Air consumption: max. 750 l/min Extraction: Volume: 2,000 m³/h Air speed: 25 - 30 m/sec. Suction nozzle: 1 x 150mm Other equipment features: - Air tables at the working area - Roller table at infeed and outfeed - Sensor for plate measurement - Ball screw and linear guides - Rack and pinion drive - Import of DXF files (operating instructions, switching and pneumatic diagrams are in digital form) "PARTNERSHIP EDITION" consisting of: Milling unit, incl. MASTERWORK software extension Speed: 1.000 to 18.000 rpm. Motor: 4,5 kW with ISO 30 intake Incl. integrated suction control (During drilling only the only the drill head is extracted, for milling only the milling unit is extracted) 6-fold tool changer 3 pieces ISO 30 collet chuck incl. collet chuck Tool equipment, consisting of: HW dowel drill: 5 pieces 5mm - GL 70mm - blind hole drill. 1 piece 5mm - GL 70mm - through hole drill bit 4 pieces 8mm - GL 57,5mm - blind hole drills 2 pieces 10mm - GL 57,5mm - blind hole drills 1 piece 10mm - GL 70mm - blind hole drill bit 1 piece 8mm - GL 70mm - blind hole drill bit 1 piece 15mm - GL 70mm - blind hole drill bit 1 piece 35mm - GL 70mm - blind hole drill bit 1 HW grooving saw blade d=125mm, bore=20mm, width: 4,0mm, Z=35 WSA 1 DIA cutter, right - GL=103mm, NL=43mm, D=18mm, shank: 20x50mm, Z 1+1 1 DIA cutter, left - GL=103mm, NL=43mm, D=18mm, shank: 20x50mm, Z 1+1 1 VHW-WP finishing cutter, right, D=10mm Foldable roller conveyor in the infeed Foldable roller conveyor in the outfeed Automatic central lubrication plus options: Complete package for CLAMEX connectors € 3.500,00, complete door package € 3.500,00, Iiodpjiukvksfx Af Sok software package PaletteCAD start + CAM connection € 3.000,00, freight, installation, instruction € 3.000,00, immediately available from location Seevetal, subject to prior sale.

Condition: excellent (used), Year of construction: 2017, CNC-controlled precision machining center Gannomat Type Protec 571 CNC • For drilling, grooving, and milling Machining unit with PowerBlock featuring 21 spindles and 1 grooving saw: • Vertical drilling spindles: 13 • Horizontal drilling spindles in Y: 6 • Horizontal drilling spindles in X: 2 • Grooving unit in Y: 1 • Milling unit Profit: 4.5 kW, 3000 - 18,000 rpm with frequency converter • Workpiece width (X): min. 85 mm / max. 1000 mm • Workpiece thickness (Z): min. 6 mm / max. 60 mm • Workpiece length (Y): min. 285 mm in throughfeed mode / max. 5600 mm programmable workpiece length in software • Workpiece weight: max. 70 kg Processing speeds per axis: • On X-axis: max. 90 m/min • On Y-axis: max. 30 m/min Ijdpfxowvk Aus Af Ssik • On Z-axis: max. 15 m/min

Condition: new, Year of construction: 2025, Holzkraft band saw HBS 633 S (IE3) In a heavy professional version with a saw blade quick-clamping system for professional users Article number: 5150063 DESCRIPTION Heavy professional version with a high weight for maximum smooth running Particularly smooth and precise running thanks to the torsion-free machine housing Large-dimensioned gray cast iron saw table made from one piece, swivels from 0° to +45° with a ground and polished surface Patented table tilting device with handwheel and rack Saw blade quick clamping Precision saw blade roller guide Fast and precise cutting height adjustment via handwheel and rack with millimeter scale Safety switch for automatic shutdown when the door is opened Large cast parallel stop With angle stop as standard Table tilt via rack and handwheel TECHNICAL DATA Dimensions and weights Length (product) approx. 1190mm Width/depth (product) approx. 820mm Height (product) approx. 2063mm Ijdpfovk Sfbjx Af Soik Weight (net) approx. 377.7kg Extraction connection Extraction nozzle diameter 2 x 120mm Work table(s) Work table length 830mm Work table width 600mm Work table height 830mm Work table inclination 0 – 45° Explanation of work table inclination For safety reasons, a holding device/stop must be installed from 20° to prevent the wood from slipping! Electrical data Connection voltage 400V Mains frequency 50Hz Output power 4.1kW Cutting ranges Cutting height max. 90° 400mm Cutting width max. with stop 570mm Cutting width max. without stop 610mm Saw blade Saw blade speed(s) 1615m/min Flywheel diameter 630mm Saw blade length 4600mm Saw blade guide Precision guide top and bottom Location: from stock 54634 Bitburg - available immediately -

Condition: good (used), Code: 0085 Brand: BIESSE ARTECH - ITALY Model: SINGLE - CE Standard Edgebander for straight and shaped panels with glue pot with automatic feed for edges in wood, pvc, abs, veneer, for furniture, kitchens, panels, joinery, custom-made furniture - CE Standard Technical data Panel height from mm 10 to 60 Edge thickness mm 0,4 - 3 Minimum radius mm 25 Feed speed from 4 to 16 mt/min Glue pot capacity approx 3 litres Motorised feed at variable speed mt/min 4/18 End cutting blade unit for cutting excess edge lengths Tilting table Telescopic support roller conveyor for supporting large panels Compressed air 6 bar Total power consumption Kw 5,2 Overall dimensions mm 1700 x 900 x 1500 h Weight kg 350 Top/bottom trimmer Speedy Isdpfxswut Tgo Af Soik Panel height mm 10/60 Absorbed power Kw 1,5 Compressed air 6 bar Overall dimensions mm 900 x 750 x 1150 h Weight kg 10

Year of construction: 2001, condition: ready for operation (used), HEK GmbH VGO 200 S Heating cabinet Dimensions (approx.): Width: 1035 mm Depth: 800 mm + 210 mm tube Height: 820 Iodpfx Afsg Hzqbo Seik

Condition: like new (used), functionality: fully functional, CNC drilling machine for precise single-part and series production Iiodpfxswz Nuys Af Ssk Drilling head with seven vertical, four horizontal spindles and a groove saw unit Equipment: Roller conveyor for workpiece infeed and outfeed Edge sensor Pressure-boosted Y-axis for processing hard materials Automatic lubrication Machine operator interface software Maestro CNC Qwerty keyboard for convenient data input

Condition: used, Year of construction: 2015, total length: 2,300 mm, total width: 1,950 mm, total height: 1,850 mm, Empty weight: 1.240 kg Price: On request - Year: 2015 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: AB/222595 - Voltage [V]: 400 - Current consumption [A]: 10 - Transport dimensions: 2300mm x 1950mm x 1850mm (l x w x h) - Transport weight [kg]: 1240kg - Transport packages [pcs.]: 1 Isdjxhchdopfx Af Ssik Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Glenn Smeets
