Rotary Transfer Machine

Pfiffner Hydromat HB3245/16

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: HB32-571, Equipment: chip conveyor, documentation/manual, TECHNICAL DETAILS Number of CNC units: 8 Control system: Siemens Chip conveyor: Knoll Filter system: Vacuum rotation filter High pressure system: Combiloop Loading magazine: 3 m UNIT LAYOUT PLAN Station 1: Sawing Station 2: Drilling hydraulics Station 3 H: CNC turning Station 3 V: Drilling hydraulics Station 4: CNC turning Station 5: CNC turning Station 6 H: Drilling hydraulics Fgodpjwkd A Djfx Ac Hji Station 6 V: CNC turning Station 7: No unit Station 8: CNC turning Station 9: CNC turning Station 10: Drilling hydraulics Station 11: Drilling hydraulics Station 12: CNC turning Station 13: CNC turning Station 14: Milling Station 15: Drilling hydraulics Station 16: Drilling hydraulics EQUIPMENT - Pedestal - Declaration of conformity

Condition: used, Year of construction: 2008, functionality: fully functional, measuring range X-axis: 400 mm, measuring range Y-axis: 500 mm, measuring range Z-axis: 300 mm, Visio 500 optical/tactile 3D measuring machine. Travel range: 453 (400 X, 500 Y, 300 Z). Measuring software: PC-DMIS CAD Version 2015. Probe change rack with 6 positions, equipped with 2 TESASTAR MP modules in total. Silent PC Big Tower with Windows 7 (fully installed and operational). Camera with 200x optical zoom featuring ring light/coaxial light and transmitted light (diascopic). All functions fully operational. Y-axis has minor scratches, which have been polished. This does not affect functionality or accuracy. Fsdpfoiyymrjx Ac Hjgi

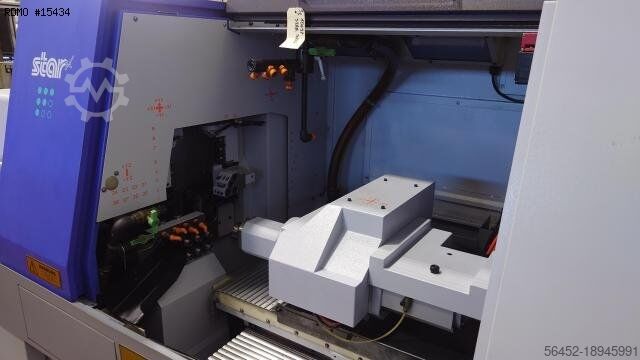

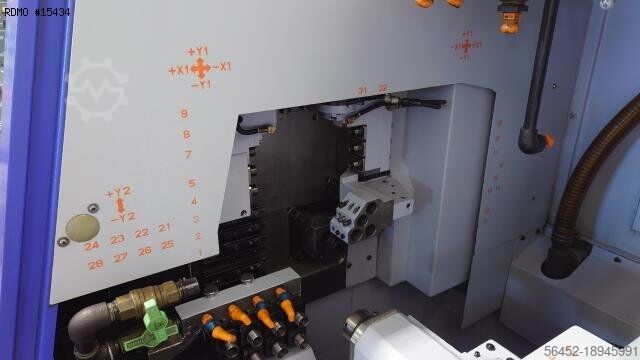

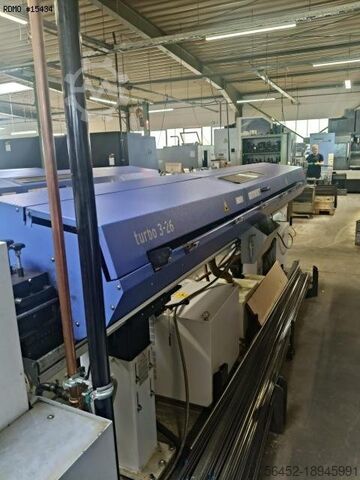

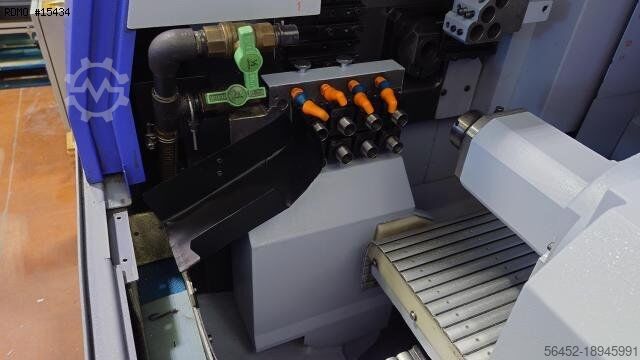

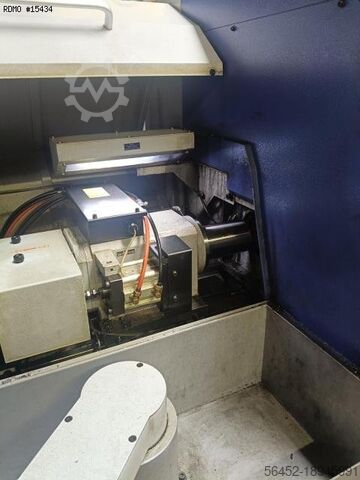

Condition: used, TECHNICAL DETAILS - Number of axes : 8 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 20 [mm] - Max. machining length : 205 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 1 [°] - Number of guide bush holders : 1 GUIDE BUSH HOLDER 1 - Number of positions : 12 - Number of motorized positions : 8 - Live tools speed : 7000 [rpm] END ATTACHMENT - Number of positions : 7 SECONDARY OPERATION - Number of positions : 8 - Number of motorized positions : 8 - Live tools speed : 8000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 7 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2334 x 1200 [mm] - Machine height : 1700 [mm] Fgjdpfx Aewcg Tioc Hsi - Machine weight : 2600 [kg] MACHINE HOURS - Number of hours under power : 57342 [h] - Number of working hours : 31575 [h] - Number of spindle hours : 24829 [h] EQUIPMENT - CNC : Fanuc 31i-B - Rotating guide bush - Chips conveyor - Parts catcher - Parts conveying strip - Ejection of workpiece - Coolant tank - Bar loader : FMB turbo 3-26 - Electric transformer

Condition: excellent (used), Year of construction: 1999, functionality: fully functional, measuring range X-axis: 900 mm, measuring range Y-axis: 1,200 mm, measuring range Z-axis: 700 mm, Zeiss CNC coordinate measuring machine Prismo VAST GOLD with rotary table Year of manufacture: 1999 Retrofit 2013 Measuring range: X = 900 mm, Y = 1200 mm, Z = 700 mm Technically and visually in very good condition Features and equipment: C98 control system with BP26_SE control panel VAST GOLD sensor system 13-position stylus change magazine Fodpfx Acovdtzdj Hogi Stylus change plate Stylus accessories Calibration sphere Reference probe Workstation with monitor Calypso Basic 5.2 software Upgrade to the current Calypso version and additional options possible Complete retrofit with C99 and the current Calypso version possible Available at short notice

Condition: ready for operation (used), Length: 8225mm, width: 3200mm, with documentation. Fgedpfxei Ew Dps Ac Hei

Year of construction: 2006, condition: excellent (used), machine control SIEMENS 840D, language English, coolant system with vacuum rotation filter, without loading magazine (can be retrofitted), double production with loading on station 1 +2 (can be rebuilt), 4x CNC 50/100 turning station, 4x 26/80 feeding unit Fgsdpjppt Nvsfx Ac Hsi

Condition: reconditioned (used), Year of construction: 2011, functionality: fully functional, measuring range X-axis: 300 mm, measuring range Y-axis: 200 mm, measuring range Z-axis: 150 mm, workpiece weight (max.): 16 kg, total height: 1,500 mm, type of input current: AC, total width: 800 mm, total length: 850 mm, travel distance X-axis: 300 mm, travel distance Y-axis: 200 mm, travel distance Z-axis: 150 mm, overall weight: 77 kg, input voltage: 230 V, year of last overhaul: 2023, ambient temperature (max.): 30 °C, Equipment: documentation/manual, type plate available, CNC-controlled measuring machine for automatic, optical-tactile measurements with camera and 3D with probe. Interchangeable bench and 2 SF modules are included. PC-DMIS CAD V13 with Step/Dxf programming possible. Fgjdpfxsq T R Rhj Ac Hoi

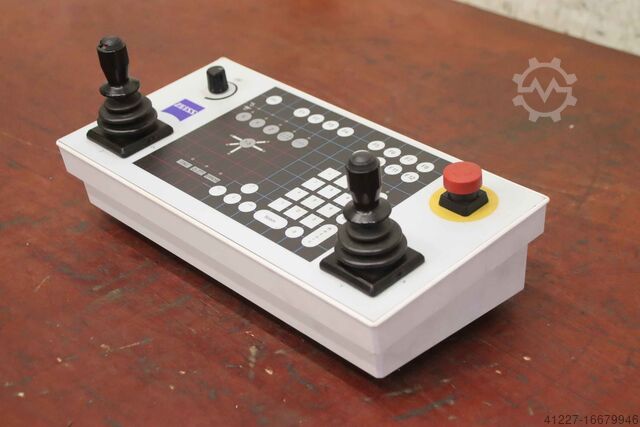

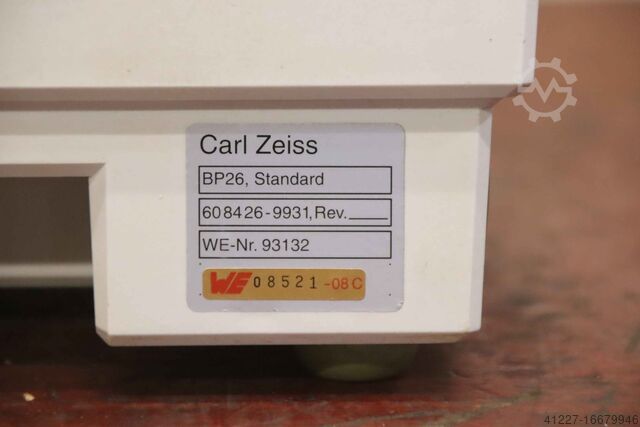

Condition: used, CNC control, control panel, machining center, control device coordinate measuring machine -Manufacturer: Carl Zeiss, control panel control display controller 3D measuring machine -Type: BP26, Standard -Dimensions: 335/165/H155mm Fodpfx Aot Sbamoc Hogi -Weight: 1.1 kg

Condition: used, Year of construction: 2015, functionality: fully functional, measuring range X-axis: 530 mm, measuring range Y-axis: 400 mm, measuring range Z-axis: 300 mm, warranty duration: 12 months, UK DELIVERY ONLY OPTIV Reference 2z543 Dual Z axis system Pneumatic active damping 10x CNC Zoom HP-S-X1C Analogue Scanning Probe Standard Styli Kit 3 port tip changer rack PC-DMIS Measurement Software Year of Manufacture 2015 2nd user machine, sold as seen. Measuring Range: Vision Sensor: X 530mm, Y 400mm, Z 300mm Tactile Sensor: X 530mm, Y 400mm, Z 300mm Mutual Measurement Range: X 530mm, Y 400mm, Z 300mm Length measurement error - Vision Sensor Ex, Ey = (0.5 + L/600) μm Exy = (0.8 + L/600) μm Length measurement error - Tactile Sensor Fedpfou Rq Sksx Ac Hogi MPEE (x), MPEE (y) = (0.5 + L/300) µm MPEE (xy) = (0.8 + L/300) µm MPEE = (1.3 + L/300) µm

Condition: refurbished (used), Year of construction: 2025, operating hours: 12 h, functionality: fully functional, measuring range X-axis: 200 mm, measuring range Y-axis: 200 mm, measuring range Z-axis: 200 mm, workpiece weight (max.): 15 kg, warranty duration: 12 months, total height: 1,700 mm, type of input current: AC, total width: 750 mm, total length: 900 mm, overall weight: 300 kg, input voltage: 230 V, table load: 15 kg, year of last overhaul: 2025, ambient temperature (max.): 30 °C, ambient temperature (min.): 12 °C, maximum load weight: 20 kg, Equipment: documentation/manual, lighting, type plate available, Fully factory-refurbished and modernized multisensor coordinate measuring machine Mahr MS222 with a modern 64-bit CNC controller and Windows 11, including 12 months warranty and full support from the specialized service company. The measuring device has been completely factory overhauled and reconditioned, equipped with a modern new controller and the latest version of our measurement software. The measuring system will be delivered and set up at the customer’s site for the above-mentioned price. Additional optional services: On-site commissioning / calibration Training Custom measurement programming for immediate start of part inspections Complete package includes: Measuring machine 64-bit CNC controller Industrial PC with Windows 11 Perpetual software license OptiCheck3D 2025 (full license of the measurement software with no subscription or maintenance contract) Multisensor head with high-resolution industrial camera Renishaw TP20 touch probe system (alternatively TP200 system available) including one standard force module Calibration artifact Acceptance certificate / calibration certificate (pre-shipment condition) Free delivery within Germany (EU and international shipping available on request) Specifications: Fgsdpfxswcxb So Ac Hei Measuring range: 200 x 200 x 200 mm Load capacity: 10 kg on glass plate Scale resolution: 0.1 µm Max. travel speed: 150 mm/s Dimensions: 900 x 750 x 950 mm Machine weight: 170 kg Control cabinet weight: 90 kg Accuracy according to VDI/VDE 2617 Sheet 6, ISO 10360-2: U1 = 1.9 + L/200, U2 = 2.2 + L/150, U3 = 2.9 + L/100
