VERTICAL MACHINING CENTER

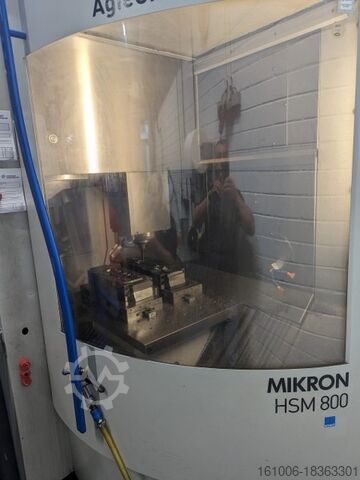

Mikron HSM 800

Condition: ready for operation (used), Year of construction: 2010, operating hours: 10,106 h, functionality: fully functional, machine/vehicle number: 107.86.00.246, travel distance X-axis: 800 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 500 mm, controller model: Heidenhain iTNC 530, rotational speed (max.): 24,000 rpm, TECHNICAL DETAILS Travel range, X-axis: 800 mm Travel range, Y-axis: 600 mm Travel range, Z-axis: 500 mm Spindle speed: 24,000 rpm Table dimensions: 900 x 630 mm Number of axes: 3 MACHINE DETAILS Control system: Heidenhain iTNC 530 Dimensions & Weight Dimensions (L x W x H): 3,000 x 2,550 x 2,900 mm Machine weight: 8,300 kg Connection: 400 V Operating hours Operating hours, control system: 58,372 h Operating hours, machine: 26,800 h Redpfx Aozgt Uljczow Programmed hours: 10,106 h

Condition: ready for operation (used), Year of construction: 2009, operating hours: 35,295 h, travel distance X-axis: 800 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 800 mm, controller manufacturer: HEIDENHAIN, controller model: iTNC 530, total height: 3,200 mm, total width: 5,400 mm, table width: 900 mm, table length: 700 mm, table load: 1,400 kg, overall weight: 13,000 kg, spindle speed (max.): 12,000 rpm, spindle motor power: 28,000 W, number of slots in tool magazine: 60, product length (max.): 3,400 mm, swivel angle B-axis (min.): -29 °, swivel angle B-axis (max.): 180 °, swivel angle C-axis (max.): 360 °, number of axes: 5, This 5-axis DMG DECKEL MAHO DMU 80P duoBLOCK was manufactured in 2009. It features impressive axis travels with X-axis at 800 mm, Y-axis at 1050 mm, and Z-axis at 850 mm. The machine includes a robust table size of Ø 900 × 700 mm and a maximum workpiece weight capacity of 1800 kg. If you are looking to get high-quality machining capabilities, consider the DMG DECKEL MAHO DMU 80P duoBLOCK vertical machining centre we have for sale. Contact us for further details. Rjdpfx Aoyvhfmsczew • Rotary axes: B-axis (tilting head) -30° to +180°; C-axis (rotary table) 360° continuous • Table size: approx. Ø 900 × 700 mm • Max. workpiece weight: approx. 1400–1800 kg • Spindle type: Vertical milling spindle • Coolant through spindle (CTS): yes • CE compliant • P-B0052 – 3D control Heidenhain iTNC 530 • P-W0276 – Universal milling head with controlled B-axis • P-D0010 – Tool magazine Horizontal chain magazine with 60 positions • P-K0220 – Infrared measuring probe Renishaw OMP 60 (optical) • 3D quickSET – Tool set for checking and correcting kinematic accuracy • P-K0205 – 4-color signal light • P-G0004 – Wash gun with pump 2 bar / 40 l/min (theoretical pump capacity) • P-L0036 – Power failure safety package • Condition: Very good working condition; full service history available Technical Specification Taper Size SK 40 Through-spindle Coolant Yes

Condition: used, Year of construction: 2007, total height: 2,800 mm, total length: 3,000 mm, total width: 2,500 mm, overall weight: 8,300 kg, Mikron HSM 800 – High Speed Machining CenterYear 2007 | Heidenhain iTNC 530 | 24,000 rpm | 3-pallet changerHigh-precision CNC machining center from Mikron / GF AgieCharmilles, designed for demanding HSC applications such as mold & die, graphite and electrode machining, as well as flexible production.Travels: X 800 mm / Y 600 mm / Z 500 mm with pallet size 800 x 600 mm. Equipped with a 3-pallet changer for efficient automated operation.The machine features a high-speed spindle up to 24,000 rpm with HSK-A63 interface and a 50-position tool magazine.Well equipped with high-pressure through-spindle coolant (18–70 bar) including band filter system, chip conveyor, minimum quantity lubrication, oil mist extraction, rotating viewing window and probing system (M&H).Additional features include APS (Advanced Process System) and ITC (Intelligent Thermal Control) for maximum process stability and thermal accuracy. Weight approx.: 8,300 kg Control: Heidenhain iTNC 530 Dimensions of the clamping surface: 900 x 600 mm Rodpfx Asy Tkc Aoczew Travel Y-axis: 600 - mm Dimensions (LxWxH) approx.: 3000 x 2500 x 2800 mm Travel Z-axis: 500 - mm Travel X-axis: 800 - mm Year of construction: 2,007 Condition: in working order Terms of payment: 100% prepayment before pick-up Terms of delivery: From foundation under power: Yes

Condition: used, Year of construction: 1990, grinding length 900 mm grinding width 510 mm workpiece height 400 mm table surface area 800 x 400 mm longitudinal feed of the table max. 980 mm table speed -stepless- 1 - 35 m/min grinding wheel size 355 x 51 x 127 mm cross feed of the table 460 mm cross feed 1 - 40 mm/Hub vertical feed autom. 0,005 - 0,04 mm/Hub rapid traverse vertical 0,5 m/min grinding spindle speed 1450 U/min Rjdpfx Astqqm Asczjw grinding spindle drive 5,6 kW table load capacity max. 1000 kg total power requirement 10 kW weight of the machine ca. 4,4 t Accessories: magnetic plate 800 x 400 mm, various grinding wheels with and without flanges, wet grinding attachment with paper band filter

Condition: good (used), Year of construction: 2006, feed length X-axis: 1,650 mm, feed length Y-axis: 1,000 mm, Max. drill Ø steel: 5 - 40mm X - Travel: 1650mm Y - Travel: 1000mm W - Travel: 500mm Table size L x W / or ø:1200 x 1500mm Spindle taper: SK40Mk Speeds / ranges: 4200Rpm Length: 6500mm Width: 3800mm Height: 3400mm Redpfxewyup To Aczjw Weight: 6500kg

Condition: excellent (used), Year of construction: 2019, digital height gauge / electronic height measuring instrument Length:1200mm Width:800mm Height:1400mm Weight:500kg Rsdpfx Acoy Uvhyezjw Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Year of construction: 2011, condition: ready for operation (used), - USED - DRILLING-MILLING MACHINE LONGITUDINAL TRAVEL: 3250 mm TRANSVERSAL TRAVEL: 500 mm VERTICAL TRAVEL: 1500 mm W-AXIS: 500 mm RAPID FEEDS: 8 m/min Rsdpfswt Er Sex Aczsw MIN DRILLING DIAMETER: 5 mm MAX DRILLING DIAMETER: 50 mm MAX DRILLING DEPTH: 2000 mm DRILLING REVOLUTION SPEED: 4200 rpm HEAD: ISO 50 ; ±20° ; 17 kW TABLE SIZE: 2500 x 2000 mm MAX ADMITTED LOAD: 50000 Kg HIGH PRESSURE COOLANT: 80 Bar TOOL MAGAZINE: 20 POS CONTROL UNIT: HEIDENHAIN TNC 530 WEIGHT: 45000 Kg OVERALL DIMENSIONS: 6000 x 8000 x 4300 mm ACCESSORIES: SWARF CONVEYOR ; LINEAR SCALES ; PORTABLE HANDWHEEL NOTE: MAX ADMITTED LOAD ON ROTARY AND SHIFTING TABLE FOR ROTATING PIECE 30.000Kg; GUNDRILLS WITH ADAPTER BUSHES; RAPID CLAMPING PLATE 2200X2500X70 mm

Condition: good (used), Year of construction: 2004, operating hours: 90,000 h, functionality: fully functional, machine/vehicle number: 6010.0176, Technical Data Manufacturer: MIKRON Model: UCP 800 Duro Year of construction: 2004 Control system: Heidenhain iTNC 530 Travel in X-axis: 800 mm Travel in Y-axis: 650 mm Travel in Z-axis: 500 mm Rotary table 600 x 600 mm Max. table load: 500 kg Rotation range C-axis: 360° Tilting range A-axis: +120° / -100° Rapid traverse X/Y/Z: 30 m/min Spindle manufacturer: Step-Tec AG Redpezc Hqasfx Aczew Spindle type: HVCS212-S-12-1.7/20-2F-HSK-A63 Max. spindle speed: 20,000 rpm Tool interface: HSK-A63 Spindle power: 12 kW (S1) Machine weight: approx. 9,900 kg Connection power: 18 kW Operating voltage: 3x 400V + PE / 50Hz Description For sale is a high-precision 5-axis vertical machining center from the Swiss quality manufacturer MIKRON, model UCP 800 Duro. The machine is in good, well-maintained condition and is equipped with a powerful Step-Tec motor spindle up to 20,000 rpm and a reliable Heidenhain iTNC 530 control system. An integrated BLUM LaserControl system ensures precise tool measurement and breakage monitoring. Special advantage for buyers: The machine is currently still installed and operational. An inspection and a function test can be carried out after prior appointment. Equipment / Highlights ( )5-axis simultaneous machining for complex components Heidenhain iTNC 530 CNC control system with hand-held device Step-Tec high-speed spindle (max. 20,000 rpm) BLUM LaserControl (laser tool monitoring) Chip conveyor including chip cart CE marking available Delivery conditions Condition: Used, fully functional, can be tested while powered on. Location: Sinn, Germany Availability: By arrangement. Dismantling & Transport: The buyer bears the costs for dismantling, loading and transport (ex works / EXW).
