Used Mazak for sale (351)

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2002, operating hours: 25,769 h, machine/vehicle number: 159687, laser power: 2,500 W, travel distance X-axis: 3,335 mm, travel distance Y-axis: 1,545 mm, travel distance Z-axis: 420 mm, swivel angle A-axis (max.): 360 °, No reserve price - guaranteed sale to the highest bidder! TECHNICAL DETAILS Travel X-axis: 3335 mm Travel Y-axis: 1545 mm Ijdpfjymfmbsx Abnsap Travel Z-axis: 420 mm A-axis: ±360 ° B-axis: ±135 ° Maximum workpiece dimensions: 3050 x 1525 x 22 mm Maximum table load: 810 kgf MACHINE DETAILS Laser power: 2500 W Laser model: YB-L250A8M NC control: Mazak & Fanuc L-64 Dimensions & Weight Machine dimensions: 7,525 x 2,875 x 2,300 mm Chiller dimensions: 920 x 1,600 x 1,780 mm Extraction unit dimensions: 850 x 850 x 930 mm Machine weight: 14.6 t Operating hours: 25,769 h EQUIPMENT Chiller Extraction unit

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, travel distance X-axis: 1,660 mm, travel distance Y-axis: 760 mm, travel distance Z-axis: 660 mm, table load: 1,200 kg, rotational speed (max.): 8,000 rpm, TECHNICAL DETAILS X-axis: 1,660 mm Y-axis: 760 mm Ijdpsymw Nhsfx Abnoap Z-axis: 660 mm Table size: 760 x 2,000 mm Max. table load: 1,200 kg Tool holder: SK 40 Tool changer: 2 x 24 Max. tool diameter: 80 mm Max. tool diameter with adjacent pocket free: 110 mm Max. tool length: 350 mm Rapid traverse (X/Y/Z): 24 / 24 / 30 m/min MACHINE DETAILS Control: MAZATROL M-PLUS Dimensions & Weight Required space: approx. 6.0 x 4.0 x 3.5 m Machine weight: approx. 8.1 t Total power requirement: 32.8 kVA The machine has been serviced regularly.

Condition: ready for operation (used), Year of construction: 2006, operating hours: 45,559 h, functionality: fully functional, machine/vehicle number: 183519, travel distance X-axis: 730 mm, travel distance Y-axis: 730 mm, travel distance Z-axis: 740 mm, workpiece length (max.): 1,000 mm, workpiece width (max.): 800 mm, overall weight: 11,350 kg, TECHNICAL DETAILS Worktable: Pallet size 500 x 500 mm Max. workpiece dimensions: 800 x 1,000 mm Travel X-axis: 730 mm Travel Y-axis: 730 mm Travel Z-axis: 740 mm Spindle diameter: 215 mm Feed rate: 1 – 60,000 mm/min Rapid traverse max.: 60 m/min Spindle speed range: 35 – 12,000 rpm Internal coolant supply: 70 bar MACHINE DETAILS Control model: Mazatrol PC Fusion CNC 640M Ijdpeyn I Scefx Abnjap Operating hours: 45,559 h Machine weight: approx. 11,350 kg EQUIPMENT Renishaw measuring probe Chip conveyor Tool magazine: 160 equipped positions + approx. 60 additional tools Palletech high-bay pallet system: 16 pallets + 2 loading stations

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: 150602, turning length: 1,190 mm, turning diameter: 320 mm, spindle speed (max.): 5,000 rpm, travel distance X-axis: 230 mm, travel distance Z-axis: 440 mm, TECHNICAL DETAILS Isdpjypdw Dofx Abnsap Travel X-axis: 230 mm Travel Z-axis: 440 mm Turning diameter: max. 320 mm Turning length: max. 1,190 mm Bar capacity diameter: max. 51 mm Swing diameter: max. 320 mm Spindle nose: A2-6 Draw tube thread: M60 x 2 Main spindle speed: 35–5,000 rpm Driven tool speed: 4,500 rpm Rapid traverse speed: 30.5/33 m/min Turret stations: 24 Tool holder / Turret type: VDI MACHINE DETAILS Electrical and Safety Voltage: 400 V Protection class: 1 Connected load: 77.4 kW Footprint & Weight Footprint: 6.5 m² Machine weight: 7,900 kg EQUIPMENT Portal loader GL 100 F

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, empty load weight: 8,400 kg, Lathe with gantry loading! MACHINE DETAILS Weight: 8,400 kg Isdpfxoypc Ibs Abnjap

Condition: ready for operation (used), Year of construction: 1998, functionality: fully functional, turning length: 538 mm, turning diameter: 350 mm, travel distance X-axis: 190 mm, travel distance Z-axis: 535 mm, controller model: Mazatrol PC Fusion 640T, Mazak Super Quick Turn with IEMCA TAL/AUTO 65/32 Bar Feeder! The machine operated in single-shift operation with 80% utilization. TECHNICAL DETAILS Turning length: 538 mm Max. turning diameter: 350 mm Max. turning diameter from bar feeder: 70 mm Max. swing diameter: 525 mm X-axis travel: 190 mm Z-axis travel: 535 mm Spindle speed range: 35–5,000 rpm Number of tool stations: 12 Bar Feeder Max. bar length: 3,200 mm Min. bar length: 400 mm Max. bar diameter: 32 mm Min. bar diameter: 5 mm Bar feeder weight: 850 kg MACHINE DETAILS Control unit: Mazatrol PC Fusion 640T Iodeytcmxopfx Abneap Voltage: 400/230 V 50 Hz Control voltage: 230 V / 24 V Dimensions & Weight Dimensions (L x W x H): approx. 4,000 / 5,700 x 1,800 x 2,000 mm Total weight: approx. 5,000 kg EQUIPMENT Chip conveyor KSF 60/S4 bar chuck IEMCA TAL/AUTO 65/32 bar feeder

Condition: good (used), Year of construction: 2012, Max cutting diameter 584mm, 845mm swing, 165mm bar capacity, 2,000rpm spindle 24 station turret, Iasdpfxoyu N Tzo Abnjp 30kW motor power, 3 jaw chuck, Mazatrol Matrix Nexus control, tool setter, tailstock, swarf conveyor, fixed steady

Condition: good (used), Year of construction: 2006, Max cutting diameter 420mm, 750mm swing, max cutting length 1524mm, 102mm bar capacity, 3300rpm spindle, 4000rpm milling, 12 station turret, 30kW motor power, 3 jaw chuck, Mazatrol 640T Nexus control, 0.001 degree C axis, tool setter, tailstock, swarf conveyor Iaodpfx Absyt H Tvjnjp

Condition: good (used), Year of construction: 2014, Swing over bed 660mm, maximum machining diameter 380mm, maximum machining length 510mm, bar capacity 80mm, spindle speed 4,000rpm, 12 station turret, Mazatrol Smart control, Ijdpjyt H Ruefx Abnsap swarf conveyor, & 3 jaw chuck

Condition: used, turning length / mm control / centre height / mm MAZAK MULTIPLEX 420 CNC turning and milling centre, including FLEX-GL100 gantry loader, with two spindles and two turrets Iajdeyu U Hajpfx Abnjp

Condition: ready for operation (used), Year of construction: 2018, spindle speed (max.): 5,000 rpm, travel distance X-axis: 225 mm, travel distance Z-axis: 605 mm, overall weight: 4,950 kg, controller manufacturer: MAZATROL, controller model: Smooth C, number of axes: 2, Horizontal turning machine manufactured in 2018. This Mazak QUICK TURN 200MA L features a maximum workpiece diameter of Ø 360 mm and a maximum workpiece length of 535 mm. It is equipped with a spindle speed of 5,000 rpm and a turret with 12 VDI positions. If you are looking to get high-quality turning capabilities, consider the Mazak QUICK TURN 200MA L machine we have for sale. Contact us for further details. Iajdpfx Abeyuyh Ajnep • Max Workpiece Diameter: Ø 360 mm • Max Workpiece Length: 535 mm • Max Bar Capacity: Ø 65 mm • Spindle Nose: A2-6 • Spindle Bore: Ø 76 mm • Turret Tool Station: 12 VDI positions Additional equipment • Chip extractor Technical Specification Counter Spindle Yes Driven Tools Yes

Condition: used, turning length / mm control / centre height / mm Iaodpfoyukikjx Abnjp Make / Model: MAZAK QUICK TURN 8NSP Technical Specifications: Maximum turning diameter: 160 mm Maximum swing over bed: 300 mm Spindle speed: up to 4,500 rpm Weight: 2700kg Equipment: Various accessories

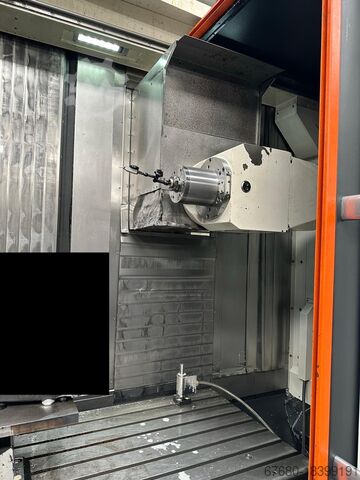

Condition: used, Year of construction: 2019, MAZAK VTC 800/30SR Table size (clamping surface): 3,500 x 820 mm Travel X-axis: 3,000 mm Travel Y-axis: 800 mm Travel Z-axis: 720 mm Rapid traverse X/Y/Z: 50 m/min Max. spindle speed: 18,000 rpm Spindle taper: SK 40 Iedpfx Abexqhxmjnsap Machine is equipped with: - CNC controller Mazatrol SmoothX - Tool magazine with 48 tool places - Through-spindle cooling - Preparation for Monitoring B-System RMP60 - NC rotary table - Chip conveyor

Condition: used, Year of construction: 2015, x-travel 560 mm y-travel 430 mm z-travel 510 mm control Mazatrol Smart table surface area 900 x 430 mm max. table load 500 kg number of spindle speeds 40-12000 U/min rapid speed 42000 mm/min tool magazine with 30 Plätzen max. tool diameter 125 mm weight of the machine ca. 4800 kg Just 4,362 hours of pure machining! Capacity: Isdpjyukgiofx Abnoap External dimensions of the machine table: 900 x 430 mm Travel range X/Y/Z axis: 560/430/510 mm Distance from spindle head to table surface: Min: 150 mm Max. 660 mm Spindle: Spindle speed: 40-12000 (two electrical stages) Feed rate: Rapid traverse speed: 42000 mm/min Cutting feed rate: 1-8000 rpm ATC magazine: Tool magazine slots: 30 Tool shank type: MAS BT-40 Max. tool diameter: with adjacent tools: 80 mm without adjacent tools: 125 mm Max. total weight of tools in magazine: 120 kg Equipment/accessories: Coolant system Vices (not shown in the photo) Tool holders Tools Documentation

Condition: used, Year of construction: 2012, x-travel 185 mm z-travel 385 mm control Mazatrol Matrix Nexus Maximum swing diameter 550 mm Maximum turning diameter 280 mm Iasdpfx Asyukgcebnjp bar capacity 51 mm workpiece weight max. 200 kg main spindle speed 35-6000 U/min milling head speed 25-4500 U/min tool turret 12 Plätze rapid power traverse in X-and Z direction 30/33 m/min spindle bore 61 mm weight of the machine ca. 3800 kg Capacity: Chuck size: 6 inches Max. swing diameter: 550 mm Standard turning diameter: 221 mm Max. turning diameter: 280 mm Max. bar capacity: 51 mm Distance between spindle nose and turret edge: 84–469 mm Main spindle: Speed: 35–6000 rpm Spindle bore: 61 mm Spindle nose: A2-5 Tailstock: Tailstock body travel: 350 mm Max. thrust: 1962 N Turret: Number of tools: 12 pieces Tool size: External turning tool: 20 mm Internal turning tool: 32 mm Milling drill: 16 mm Milling tap: M16 x 2.0 mm End mills: 16 mm Milling spindle speed: 25–4500 rpm Equipment/Accessories: Tool holders Tools Powered tools Turning tool holders Coolant system Documentation

Condition: excellent (used), Year of construction: 2001, x-travel 185 mm z-travel 360 mm b-travel 460 mm control Mazatrol 640 T Maximum swing diameter 550 mm Maximum turning diameter 280 mm workpiece weight max. 200 kg bar capacity 51 mm main spindle speed 35-6000 U/min milling head speed 25-4500 U/min rapid power traverse in X-and Z direction 30/33 m/min Rapid traverse B axis 30 m/min tool turret 12 Plätze weight of the machine ca. 4100 kg Capacity: Chuck size: 6 inches Max. swing diameter: 550 mm Standard turning diameter: 221 mm Max. turning diameter: 280 mm Max. bar capacity: 51 mm Distance between spindle nose and turret edge: 80–535 mm Main spindle: Speed: 35–6000 rpm Spindle bore: 61 mm Counter spindle: Speed: 35–6000 rpm Spindle bore: 52 mm Turret: Number of tools: 12 pieces Tool size: External turning tool: 20 mm Internal turning tool: 32 mm Milling drill: 16 mm Milling tap: M12 End mills: 16 mm Milling spindle speed: 25–4,500 rpm Equipment/Accessories: Tool holders Iasdeyukf Sjpfx Abnsp Tools Powered tools Turning tool holders Coolant system Chip conveyor Documentation

Condition: reconditioned (used), Year of construction: 2007, MAZAK QUICK TURN NEXUS 200-II MSY Max. turning diameter: 380 mm Max. machining length: 511 mm Max. milling speed: 4,500 rpm Max. spindle speed: 5,000 rpm Max. bar diameter: 65 mm Machine is equipped with: - CNC control Mazatrol Matrix - KITAGAWA three-jaw chuck for main spindle, diameter 210 mm - KITAGAWA three-jaw chuck for secondary spindle, diameter 169 mm - Tool Eye - C-axis - C-axis on sub-spindle - Y-axis - Interface for bar loader magazine - Automatic parts catcher - Reinforced coolant pump Iaodpfjyhwy Ijx Abnop - Chip conveyor - 8 stationary tool holders - 2 driven tool holders

Condition: used, Year of construction: 2013, travel distance X-axis: 730 mm, travel distance Y-axis: 730 mm, travel distance Z-axis: 740 mm, controller manufacturer: Mazatrol, controller model: Matrix Nexus, workpiece weight (max.): 700 kg, total height: 2,814 mm, total length: 4,690 mm, total width: 2,330 mm, table width: 500 mm, table length: 500 mm, overall weight: 11,000 kg, spindle speed (max.): 18,000 rpm, Equipment: documentation/manual, CNC Horizontal Machining Centre CNC Control Mazatrol Matrix Nexus Pallet table size 500 x 500 mm Number of pallets 2 Table load 700 kg Movement X-Y-Z-axis 730x730x740 mm Table indexing 0,001 ° Iaedpeytc Nmsfx Abnsp Spindle taper CAT 40 Spindle speed 18.000 1/Min Spindle motor 30/22 kW Magazin capacity 40 If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail.

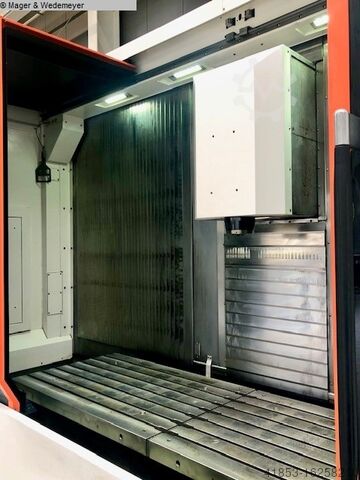

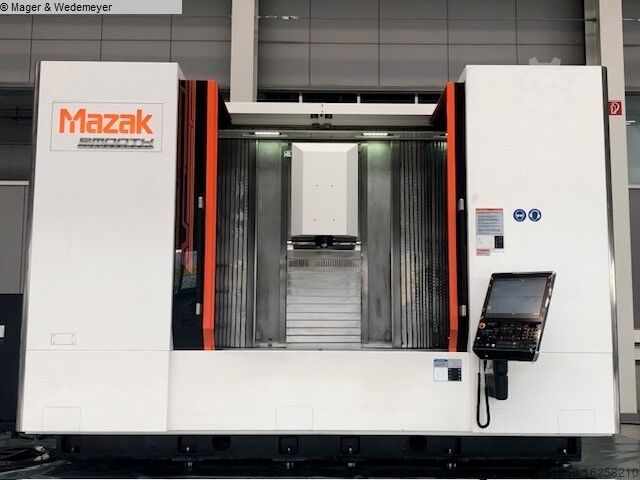

Condition: used, Year of construction: 2013, travel distance X-axis: 3,000 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 720 mm, total height: 3,355 mm, total length: 5,250 mm, total width: 3,573 mm, table length: 3,500 mm, table width: 820 mm, spindle speed (max.): 18,000 rpm, spindle speed (min.): 35 rpm, table load: 2,500 kg, Equipment: documentation/manual, CNC Control Mazatrol Matrix 2 Table size 3500 x 820 mm Table load 2500 kg Number of pallets 1 Movement X-Y-Z-axis 3000 - 800 -720 mm C-axis (table rotation) 0,0001° Iaedpfxjytb Tqs Abnep B-axis travel ± 110° Spindle speed 35 - 18.000 R/min Spindle taper HSK-A63 Spindle motor 35-26 kW Magazin capacity 30 If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: ready for operation (used), Year of construction: 2009, functionality: fully functional, CNC Turning- and Milling Center (Multi-functional-Machine) | Brand: MAZAK Type: INTEGREX e-650H II | Year of construction: 07/2009, Commissioning: November 2009 The machine can be inspected under power by appointment. Condition: Fully functional / operational. Operating hours (as at 10 March 2026): - Total: 91.430 h - Automatic operation: 52.054 hours - Automatic machining: 38.974 hours - Pure machining: 31.316 hours TECHNICAL SPECIFICATIONS: Workspace: - Max. Swing diameter: 920 mm - Max. Swing diameter over tool slide: 920 mm - Max. Turning diameter: 1.100 mm Main spindle: - Max. speed: 1.600 rpm - Min. speed: 35 rpm - Spindle bore: 260 mm (1.000 rpm) - Spindle nose: A2-11" - Spindle bearing inner diameter: 220 mm - Rated power (30 min. operation / 100% continuous operation): 45.0 / 37.0 kW - Max. torque: 4.500 Nm Tailstock (programmable): - Chuck: MK 6 Milling spindle: - Turret type: Single-spindle with ATC - Tool shank: Steep cone 50 - Max. tool diameter: 260 mm - Max. tool length: 500 mm - B-axis indexing increments: 0,0001° - B-axis positioning for turning - Min./max. milling spindle speed: 35 - 10.000 rpm - Milling spindle motor, AC: 37 kW Travel ranges: - X-axis: 1.025 mm - Y-axis: 650 mm - Z-axis: 6.423 mm - B-axis swivel range: 240° Dimensions: - Spindle centre height: 1.350 mm - Length: 13.267 mm - Width: 3.938 mm Iaodpeyuq Dzefx Abnsp - Height: 3.920 mm - Weight: 41 tons Additional information: - Rated power (100% continuous operation): 99,5 kVA Automatic tool changer: - Number of tools: 120-position, SK50 DIN 69871 SPECIFICATIONS / SPECIAL ACCESSORIES: - Numerical control: MAZATROL MATRIX - Documentation - CE marking - Further excellent optional extras ... Without guarantee of completeness and correctness of the technical information and the equipment. - Subject to prior sale - Detailed technical data sheet and information on equipment available on request.

Condition: used, Year of construction: 2008, x-travel 410 mm y-travel 570 mm z-travel 140 mm control Mazatrol Matrix Maximum working diameter 545 mm Maximum working length 519 mm main spindle speed 35 - 6000 U/min tool taper Capto C6 rapid traverse y/x/z axis 30/26/33 m/min Performance/capacity: Max. swivel range: 545 mm Max. machining diameter: 545 mm Max. outside diameter for bar work: 51 mm Max. machining length: 519 mm Max. workpiece weight: Iedpfxjyt R Ido Abneap -Chuck work: 150 kg -Bar work: 200 kg Main spindle: Spindle speed: 35-6000 rpm Spindle bore diameter: 61 mm Max. torque: 161 Nm Tailstock: Rapid traverse: 8 m/min Travel range (advance/return): 434/281 mm Milling head: Milling head type: Single spindle with ATC Tool shank type: Capto C6 Tool size: External turning tool: 20 mm Internal turning tool: 32 mm Milling tool: Max. 90 ? x 200 long mm Milling spindle speed: 15-12000 rpm Equipment/accessories: -Chip conveyor -Mist extraction -Tools -Documentation

Condition: used, Year of construction: 2020, turning diameter 380 mm turning length 511 mm control Mazatrol SmoothG turning diameter over slide 276 mm Ijdpstugggofx Abnsap max. swing diameter over bed 675 mm Standard machining diameter 276 mm bar material dia. 65 mm x-axis 234 mm rapid traverse X-axis 30 m/min z-axis 625 mm rapid traverse Z-axis 33 m/min turning speeds 35 - 5000 U/min spindle nose A2-6 spindle bore 76 mm Motor output (40%ED) 26 KW 22 KW Max. Torque 465 Nm turning speeds 6000 U/min Main drive power 11 KW Max. Torque 90 Nm Milling spindle speeds ( driven tools) 35-6000 1/min torque on milling spindle max: 47 Nm power capacity - milling spindle 5,5 (40% ED) kW Milling spindle power 3,7 kW Numbers of tools 12 (angetrieben) Tool cross section (outside) 25 qmm Boring bar- Ø 40 mm Drill- Ø 20 mm Mill- Ø 20 mm Tap- Ø M20x2,5 Switching time one turret station ca. 0,20 sec coolant tank 180 l connected load 46,2 kW weight of the machine ca. 5,9 t dimensions of the machine ca. 2,7 x 1,9 x 1,9 m incl. the following accessories: - Signal light (3-colour LED), rectangular - High-performance coolant system (1.1 kW) Flow rate max. 17.6 l/min, pressure (at pump) 5 bar. - Additional coolant nozzle main spindle - Preparation for oil mist extraction electrical/mechanical flange 98mm - Preparation for bar feed - Robot interface (Advance/Profibus) - Chip conveyor with low ejection height - Overload monitoring system - Drilling cycle with torque-dependent chip breaking - Preliminary use of a hollow clamping cylinder on counter spindle - Hollow clamping device incl. draw tube + cylinder - Clamping chuck Hainbuch Spanntop Nova Axfix mini size 52 - Chuck Hainbuch Spanntop Nova Axfix special mini size 52 - 2 x collets - Changing device for collet chuck STANDARD ACCESSORIES Automatic on/off and warm-up function Air blowing device on the chuck on the counter spindle Use of linear systems with guide carriage USB connection (1 connection) Set of manuals in electronic form on CD C-axis main spindle Input accuracy 0.0001° Spindle positioning counter spindle without C-axis Input accuracy 0.001° Tool turret with 12 stations VDI, Operator door with locking switch Double foot switch for both main and counter spindle Hydraulic pressure interlock Fully enclosed work area Work area lighting Safety precautions in accordance with global standards High-performance coolant system (520W) Flow rate max. 11.5 l/min. Complete coolant system Automatic opening/closing of the chuck jaws Automatic tool eye Absolute positioning system Preparation for chip conveyor (lateral) Synchronisation of main and counter spindle Synchronised tapping with milling spindle Relocation Detector Mazatrol SmoothG control 19" LCD colour screen (touch screen) User macro (600 variables) EIA/ISO input function Optional stop (optional stop) Tool path check in the background Thread cutting function (G33) Polar coordinate input (EIA) Drawing data direct input function Interface for LAN SD memory card I/F - Second-hand machine without warranty - All dimensions, weights and performance specifications are non-binding

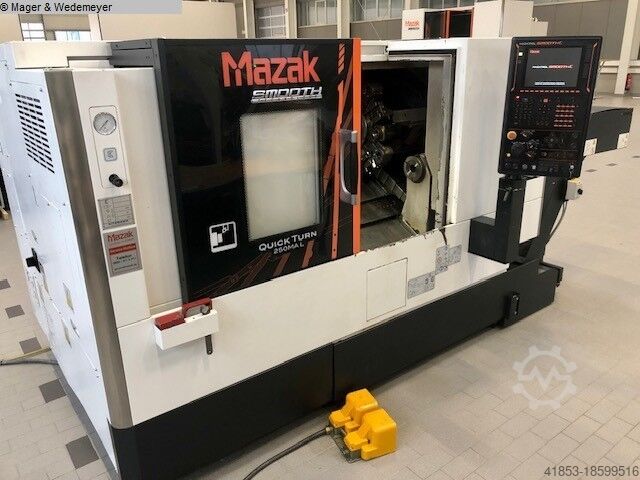

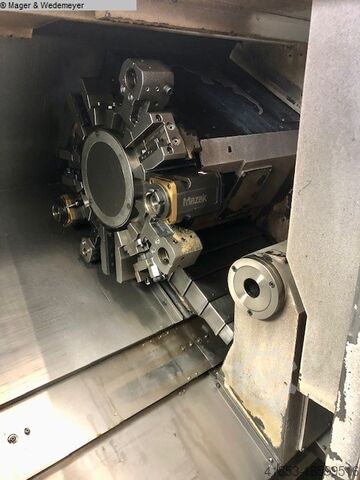

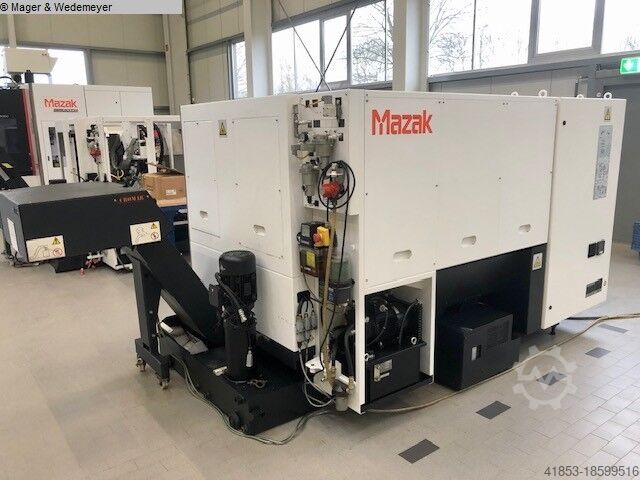

Condition: used, turning diameter max. 360 mm turning length 505 mm control Mazatrol SmoothC max. swing diameter over bed 660 mm swing diameter over slide guides max 255 mm bar material dia. max. 80 mm turning speed range - spindle 35 - 4000 U/min max. torque on the spindle 358 Nm x-axis 225 mm rapid traverse X-axis 30 m/min z-axis 605 mm rapid traverse Z-axis 33 m/min spindle nose A2-8'' spindle bore 91 mm spindle hollow 80 mm Milling spindle speeds ( driven tools) 5000 1/min torque on milling spindle max: 47 Nm power capacity - milling spindle 5,5 (40%ED) kW tailstock quill taper MT 5 Travel- tailstock 565 mm Axial pressure max 5000 Nm Tool turret 1 Numbers of tools 12 (angetrieben) turning tool - shaft cross cut 25 x 25 mm tool taper BMT Required air-pressure 5 / 160 bar / l/min voltage 400 V coolant tank 180 l engine output 18,5 (30min Betrieb) kW Rated power (100% continuous operation) 15 kW weight of the machine ca. 6 t dimensions of the machine ca. 3,6 x 2 x 1,8 m Machine incl. the following special accessories: Chip conveyor on the right side Productivity package C - special according to storage machine This package includes: High-performance coolant system (1.1 kW) Flow rate max. 17.6 l/min Preparation for chip conveyor (lateral) Automatic tool eye STANDARD ACCESSORIES Transformer for the European market Use of linear systems with guide carriage SD MEMORY I/F(1P) + USB MEMORY I/F(1P) 1 x USB memory interface (1 slot) Spindle bore 91 mm Set of manuals in electronic form on CD Mazak standard colour CE marking, metric, 50 Hz C-axis input accuracy 0.0001° NC controlled tailstock Tailstock pressure adjustment Tailstock with fixed quill MK5 Iodjv Dxw Rspfx Abneap SAFETY DEVICES Operator door with interlock switch Double foot switch Hydraulic pressure lock Fully enclosed work area Work area lighting Safety precautions according to global standard COOLANT SUPPLY Grundfos coolant pump type MTA (0.25kW / 7.6L/min) Complete coolant system Automatic switch-off via circuit breaker triggering MESSSYSTEM Absolute positioning system NUMERICAL CONTROL Synchronous tapping with milling spindle Relocation Detector Mazatrol SmoothC 10.4’ colour screen User macro (600 variables) EIA/ISO input function Tool path check in the background Thread cutting function (G33) Polar coordinate input (EIA) Drawing data direct input function Interface for LAN Various tool holders - All dimensions, weights and performance data are non-binding - Used machine without warranty -

Condition: used, Year of construction: 2022, turning diameter 276 mm turning length 500 mm control Mazatrol Smooth G max. swing diameter over bed 695 mm Distance spindle end - turret 710 mm bar material dia. max. 65 mm turning speed range - spindle 35 - 5000 U/min max. torque on the spindle 465 Nm x-axis 234 mm rapid traverse X-axis 30 m/min y-axis 100 mm rapid traverse Y-axis 21 m/min z-axis 625 mm rapid traverse Z-axis 33 m/min spindle nose A2-6 spindle passage 76 mm Milling spindle speeds ( driven tools) 5000 1/min torque on milling spindle max: 47 Nm power capacity - milling spindle 5,5 (40% ED) kW tailstock quill taper MT 5 Travel- tailstock 550 mm Tool turret 1 Numbers of tools 12 (angetrieben) tool taper VDI 30 min rated capacity 42,6 kVA Required air-pressure 0,5 / 330 MPa / l/min distance spindle /table 710 mm total power requirement 37 kW weight of the machine ca. 5,7 t dimensions of the machine ca. 2,8 x 2 x 1,9 m With the following special accessories: - Mayfran chip conveyor, side ejector, hinged belt conveyor Ijdpfoynbd Sox Abnsap - Engraving function ACCESSORIES / MACHINE OPTIONS Automatic on/off switch and warm-up function A warm-up is necessary to avoid problems such as abnormal wear of the sliding surfaces and sluggish movement. A sufficient warm-up provides the machine with the heat resistance it needs to machine workpieces with consistent, high precision. Transformer for the European market 8" chuck for main spindle with enlarged passage USB connection (1 connection) Mazak standard colour Main spindle motor AC 26 kW Tool turret with 12 stations VDI, also for driven tools in every position. For maximum performance, only the cutting tool is driven. Programmable tailstock (MK5) Tailstock quill (MK5) Y-axis control SAFETY DEVICES Operator door with lock switch Double foot switch Opening and closing of the chuck by means of a separate switch. Hydraulic pressure lock Fully enclosed work area Work area lighting COOLANT SUPPLY High-performance coolant system (520W) Flow rate max. 11.5 l/min. Complete coolant system CHUCK, ETC. Automatic opening/closing of chuck jaws 8" power chuck with enlarged passage (main spindle) Kitagawa BB208 MEASURING SYSTEM Automatic Tool Eye NUMERICAL CONTROL Synchronous tapping with milling spindle Relocation Detector Mazatrol SmoothG control 19" LCD colour screen (touch screen) User macro (shared variables: 600 pairs) Mazak tapping/drilling cycle Tornado in EIA/ISO. (Only possible on machines with Y-axis. EIA/ISO package EIA/ISO input function EIA/ISO additional functions - Helical interpolation - 3D tool correction - Workpiece coordinate rotation - Geometric function - Scaling - External data input/output Thread cutting function (G33) Reverse time feed G93 G37 Tool length measurement Polar coordinate input (EIA) Optional stop (optional stop) Additional workpiece coordinate systems 300 pieces User macro (600 variables) Mazak thread tapping/drilling cycle Tornado in EIA/ISO. EIA/ISO drilling cycles (arc, grid, circle, circular arc, line) Machining on inclined surfaces EIA/ISO input function Tool path check in the background Thread cutting function (G33) Polar coordinate input (EIA) Interface for LAN SD memory card I/F Smooth standard software for lathes (milling) MAZACC 2D software Workpiece shape compensation Rapid traverse paths Rounding function - Seamless co...

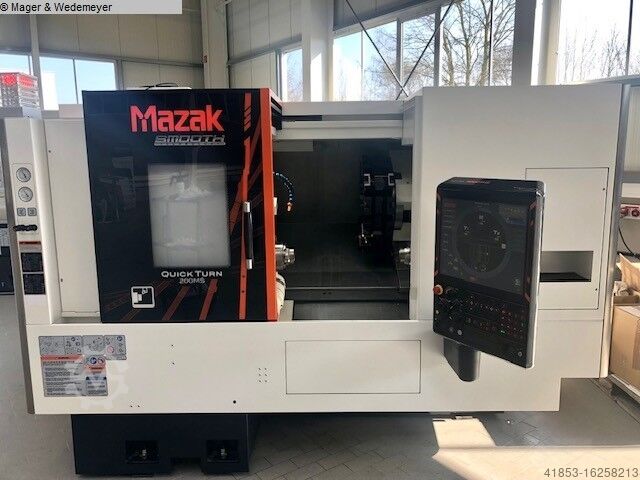

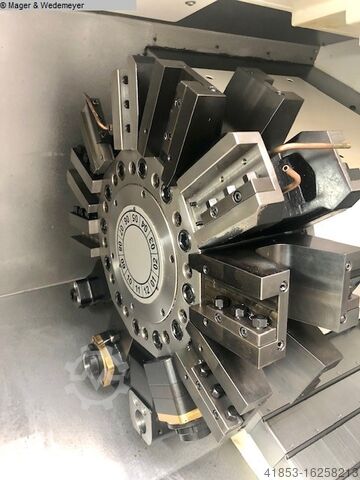

Condition: used, turning diameter 340 mm turning length 575 mm control Mazatrol SmoothEZ max. swing diameter over bed 695 mm Standard machining diameter 235 mm bar material dia. max. 65 mm x-axis 215 mm rapid traverse X-axis 30 m/min y-axis 100 mm rapid traverse Y-axis 10 m/min z-axis 605 mm rapid traverse Z-axis 30 m/min turning speeds 35 - 5000 U/min spindle nose A2-6 spindle bore 76 mm Motor output (40%ED) 15 KW 11 KW Max. Torque 167 Nm turning speeds 35 - 6000 U/min spindle nose A2-5 Motor output (40%ED) ca. 7,5 KW Power (continuous operation) 5,5 KW Max. Torque 53 Nm Milling spindle speeds ( driven tools) 20 - 4500 1/min torque on milling spindle max: 47 Nm power capacity - milling spindle 5,5 (40% ED) kW Milling spindle power 3,7 kW Numbers of tools 12 (angetrieben) Tool cross section (outside) 25 qmm Boring bar- Ø 40 mm Drill- Ø 20 mm Mill- Ø 20 mm Tap- Ø M20 coolant tank 225 l Chuck diameter main spindle 8 '' Chuck diameter counter spindle 6 '' w-axis 585 mm rapid travel W 30 m/min c-axis 555 weight of the machine ca. 4,9 t dimensions of the machine ca. 2,8 x 2 x 1,8 m Special accessories: - Chip conveyor, hinged belt, side ejector - Production package, this package includes Preparation for bar feed Automatic parts catcher (Ø:80mm x L:120mm x 2.5 kg) 15 bar high-pressure coolant system Preparation for chip conveyor (lateral) Signal light (3-colour LED), rectangular C-axis counter spindle 0.0001° Automatic tool eye 8" power chuck Kitag. BR08 & Cyl. SR1566C (HD1) GENERAL MACHINE OPTIONS Air blowing device on the chuck (counter spindle) Transformer for the European market Linear roller guides SD MEMORY I/F(1P) + USB MEMORY I/F(1P) 1 x USB - Memory Interface (1 slot) CE marking CE marking, metric, 50 Hz Counter spindle positioning 0.0001 degrees without C-axis Tool turret with 12 stations Y-axis control ADDITIONAL PROCESS SOFTWARE Smooth restart function / restart mode Set of manuals in electronic form on CD Main spindle motor AC 15 kW (20 hp) 2nd spindle motor AC 7.5kW (20 hp) Main spindle motor AC 7.5kW MAIN SPINDLE C-axis main spindle Input accuracy (contour/index) 0.0001° Mazak standard colour (F white(fine)/S black) Automatic switch-off via circuit breaker trip Double foot switch Hydraulic pressure interlock RFID door interlock Safety foot switch with locking mechanism Safety measures according to worldwide standard Work area lighting Complete coolant system Automatic opening/closing of chuck jaws (main and counter spindle) Feedback of the chuck status (main and counter spindle) Feedback of the chuck status via sensors. 8" power chuck 6" power chuck (counter spindle) Absolute positioning system Synchronous tapping with milling spindle Relocation Detector NC control Mazatrol SmoothEz 15" colour Lcd (touch screen) User macro (common variables: 600 pairs) EIA/ISO package EIA/ISO - input function EIA/ISO - additional functions Bolt line interpolation 3D tool compensation Workpiece coordinate rotation Iodpewngkljfx Abneap Geometric function Scaling External data input/output Tapping function (G33) Reverse feed rate G93 G37 Tool length measurement Polar coordinate input (EIA) Optional stop Additional workpiece coordinate systems 300 pieces User macro (600 variables) Mazak tapping/drilling cycle EIA/ISO - input function Scaling External data input/output Thr...
