Jointer & thickness planer combined

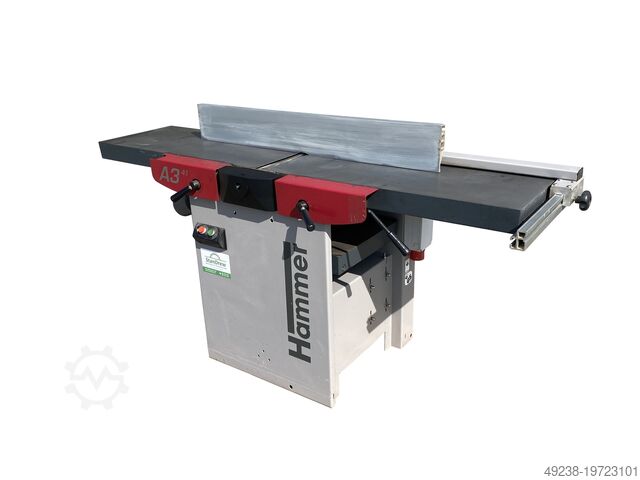

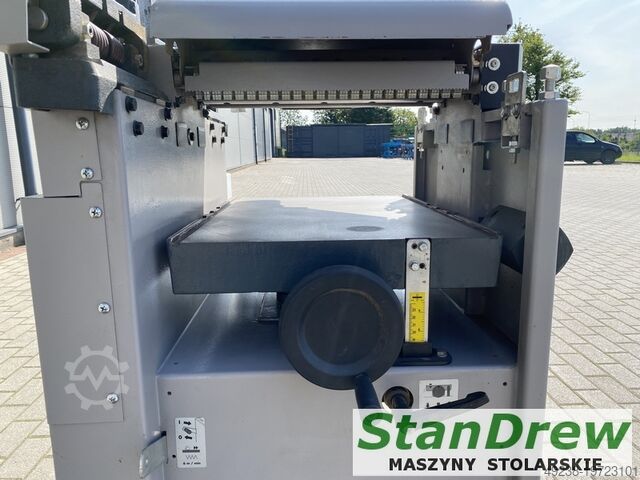

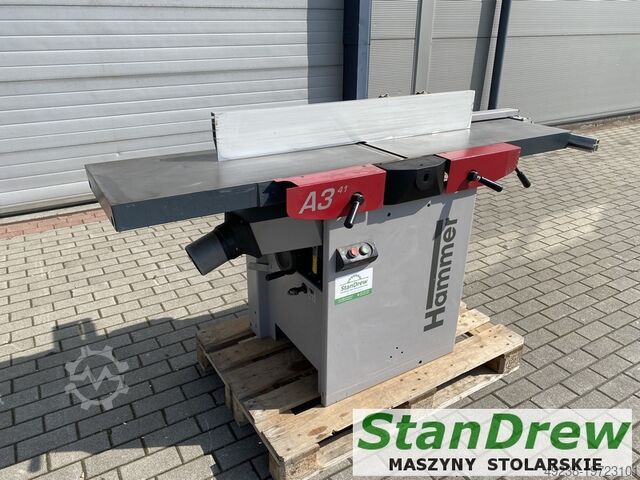

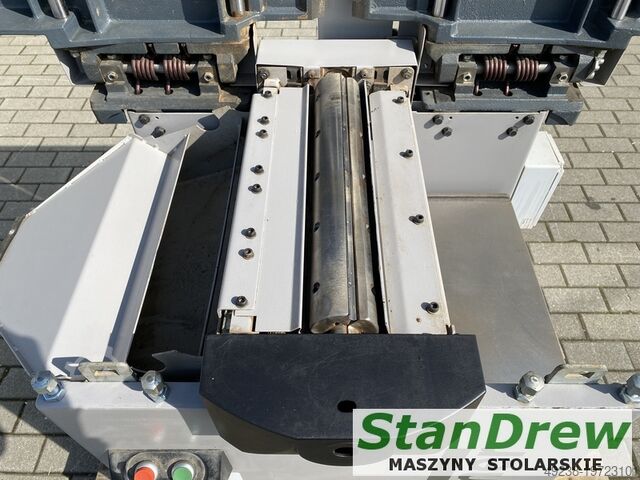

HAMMER A3 41

Condition: used, Year of construction: 2014, functionality: fully functional, planing width: 410 mm, planer shaft diameter: 72 mm, total length of planing tables: 1,800 mm, number of planer blades: 3, type of input current: three-phase, overall weight: 355 kg, input voltage: 400 V, rotational speed (max.): 6,000 rpm, - Year of manufacture: 2014 - Not repainted - After technical inspection - Operating manual, technical documentation (DTR) TECHNICAL SPECIFICATIONS: - Planing width: 410 mm - Number of knives: 3 - Rotational speed: 6000 rpm - Cutterblock diameter: 72 mm SURFACE PLANER: - Planing width: 410 mm - Max depth of cut: 4 mm - Jointer table length: 1800 mm - Fence length: 150 x 1100 mm THICKNESSER: - Planing width: 404 mm - Table length: 600 mm - Planing height min/max: 4/225 mm - Feed speed: 6 m/min - Motor power: 4 kW - Voltage: 3×400 V - Extraction port diameter: 100 mm Machine overall dimensions: - Length: 1950 mm Fgodpfxsw H R I So Aa Uek - Width: 800 mm - Height: 1090 mm - Weight: 355 kg

Condition: excellent (used), Year of construction: 2010, Planer Thicknesser SCM FS410 NOVA Working width: 410 mm Thicknesser working height: 220 mm Thicknesser table mounted on 4 supports Two planing speeds via thicknesser: 6–12 m/min Four-knife cutter block Cutter block with Tersa knives Cutter block diameter: 95 mm Cutter block speed: 5,000 rpm Additional fence for planing low elements using the jointer Motor power: 4 kW Jointer table length: 2,200 mm Mortising and boring unit Fedpfx Aewtytdea Usgk CE Certificate Technical documentation

Condition: like new (used), Year of construction: 2024, For sale is a used Hammer A3-41 planer-thicknesser with a planing length of 1800 mm. The machine has been inspected by our specialist staff and is in mint condition. Technical specifications: - Planing thickness width 410 mm - 3 knife blocks (reversible knives) - Dual folding planing tables - Planer stop pivots 90-45° - Thicknessing height 4-225 mm Fjdpev Scx Ujfx Aa Uegk - 5.5 HP (4 kW) motor / 400 volts - Year of manufacture 2024 - Machine number 52.02.285.24 The machine is located in A-8561 Söding and can be inspected at any time during our opening hours. Subject to prior sale! Related terms: planer, thicknesser, planer, planing, thicknessing Reference: R-L0J2U

Condition: excellent (used), For sale is a used Hammer A3-41 Silent Power surface planer and thicknesser with a jointer length of 1800 mm. The machine has been checked by our specialized staff and is in very good condition. Technical data: - Silentpower spiral cutterhead - Planing width 410 mm - Jointer length 1800 mm - Max. clearance 230 mm - Motor power 4 kW / 5.4 HP - Suction connection Ø 120 mm - Year of manufacture 2022 Fjdpfjwqq Dhex Aa Uegk The machine is located in A-5431 Kuchl and can be inspected at any time during our opening hours. Related terms: jointer, thickness planer, planer, jointing, thickness Reference: R-A0117

Condition: excellent (used), Technical data: Max planing width: 400 mm Max planing height: 240 mm Knife shaft diameter: 120 mm Number of knives: 4 Feed speed: 6-12 m/min Manual lifting Extraction port: 110 mm Power supply: 400 V Motor power: 10 kW Overall dimensions: Length: 2200 mm Fsdpfx Aasv Rv Dbj Ujgk Width: 860 mm Height: 1250 mm

Condition: excellent (used), functionality: fully functional, SURFACE PLANER machines . different models Fedpjwt T Hdefx Aa Usgk second hand machines n.4 knives volt. 380/50

Condition: as good as new (ex-display), With strip knife, demonstration machine Surface planer: Table dimensions 1800 x 410 mm Max. chip removal 5 mm Planer shaft diameter 100 mm Number of planer knives 4 pieces Thickness planer: Table dimensions 700 x 406 mm Max. clearance height 230 mm Max. chip removal 4 mm Feed speed 8 m/min Motor output 3.8 kW -S6 (3 kW S1) Weight 450 kg Fsdpfxjvrvnvs Aa Uogk Symbolic photo

Condition: new, Year of construction: 2025, VERSION with the most powerful engine with a total power of S6: 2.6kW. A more powerful engine means stable operation and easy processing of hard materials: Hardwood requires more force for processing. A powerful engine will handle this without a problem. The latest version of the machine with an innovative tabletop opening system: Competitive old-type machines have "butterfly" tabletops. Before each start of work, the feed table and the receiving table should be calibrated with each other. Even small differences between them lead to damage in the material, giving undesirable effects. The new solution of connected tabletops allows for precise adjustment of both tables at the same time! Thanks to this, once set, the tables are permanently calibrated. When changing the planing height, both tables move simultaneously. Such a solution not only saves time, makes work with the machine more convenient, but also increases the precision of planing by 30% compared to the old solution. This is very important, especially when working with thinner materials. Trouble-free change from a planer to a thicknesser. Fedpjvxh A Sofx Aa Uogk The transition from planer to thicknesser is very quick and easy. It consists of unlocking the eccentrics and lifting the tables and moving the chip extraction cover. Work precision. Smooth height adjustment of the tops with a scale. The thicknesser table mounted centrally on the column has a knob for adjusting the setting up and down Aluminum swinging ruler (700x150 mm) with a scale strip allowing for precise setting at an angle in the range of 90-45 degrees. Technical parameters Knife shaft diameter 75 mm Knife shaft speed 4000 rpm Suction nozzle diameter 100 mm Swing ruler tilt angle 90–45° Number of knives 3 Shaft length 250 mm Knife dimensions 250x30x3 mm Maximum planer width 250 mm Maximum thicknesser width 250 mm Maximum planing height 180 mm Maximum thicknesser cutting depth 3 mm Maximum planer cutting depth 2.5 mm Thicknesser feed speed 6 m/min Fence size 700 x 150 mm Machine dimensions (length x width) 1080 x 269 mm Weight 175 kg Total engine power S1: 2.2 kW S6: 2.6 kW Power supply 400V

Condition: new, Year of construction: 2025, Cutting height at 90°: 125 mm Cutting height at 45°: 80mm Cutting length at 20mm cutting height: 545 mm Cutting length at 125mm cutting height: 450mm Miter range horizontal: 0 - 45° Miter range vertical: -45° to +45° Roller conveyor / support table: no Saw blade diameter: 400 mm Speed: 2800 rpm Motor power: 3 kW Motor brake: yes Extraction connection: 60mm Fgodpfsgzlprsx Aa Ujk Table size: 1540mm x 1025mm Machine length: Machine width: Weight: 180kg

Condition: excellent (used), CATALOG NUMBER 7497 Technical data: - Shaft width: 300 mm - Table length: 2100 mm - Cast iron tables - Both tables adjustable - Cast iron fence, angle adjustable - Motor approx. 2 kW - Extraction port diameter: 160 mm - Dimensions (L/W/H): 2100x600x960 mm - Weight: 392 kg Fodpfx Aasu Razhe Uegk Net price: 5300 PLN Net price: 1260 EUR depending on exchange rate 4.2 EUR (Prices may change with exchange rate fluctuations)
