Cnc lathe with C and Y axis

HAAS ST10Y

Condition: used, Year of construction: 2007, functionality: fully functional, travel distance X-axis: 1,270 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 635 mm, rapid traverse X-axis: 35,600 m/min, rapid traverse Y-axis: 35,600 m/min, rapid traverse Z-axis: 35,600 m/min, workpiece diameter (max.): 127 mm, number of slots in tool magazine: 31, tool length: 330 mm, Haas VF-4SSHE – Vertical Machining Center The Haas VF-4SSHE is a high-performance vertical machining center, manufactured in 2007, equipped with Haas CNC control. Ideal for fast and precise machining, it offers generous work capacity and a compact structure. Main technical features: Axis travel: X = 1,270 mm, Y = 508 mm, Z = 635 mm Spindle: ISO-40, 12,000 rpm, 22.4 kW Dedpfx Adswt Ripeusla Spindle – table distance: 107 ÷ 742 mm Rapid traverse: 35,600 mm/min Feed rate during machining: 21,200 mm/min Table: Dimensions: 1,321 x 495 mm Load capacity: 800 kg Tool changer: Tool type: BT-40 Magazine capacity: 24 positions Max tool diameter (adjacent/free): Ø64 / Ø127 mm Max tool length: 330 mm Max tool weight: 5.4 kg Additional equipment: 4th axis – Haas rotary table Ø 310 mm High-pressure coolant pump through the spindle Tank with wash pump Spindle cooler Screw-type chip conveyor Manuals, electrical diagrams, and CE declaration Machine dimensions: L 4,100 mm × W 2,600 mm × H 2,690 mm – Weight: 6,250 kg

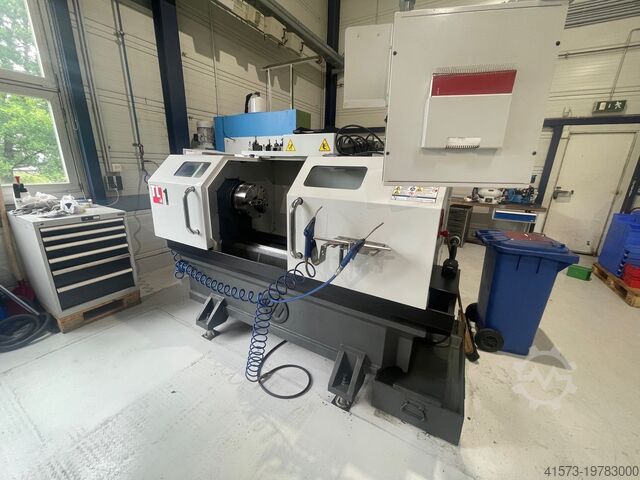

Condition: used, Year of construction: 2015, functionality: fully functional, machine/vehicle number: M60I/9034, Offer Number: M60I/9034 Dledpfew N Dm Eox Aduja Machinetype: CNC lathe Make: HAAS Type: TL-1 Constr. year: 2015 diameter range: 203 mm working hight: 279 mm cutting length: 762 mm Location: Germany

Condition: used, Year of construction: 2006, travel distance X-axis: 762 mm, travel distance Y-axis: 406 mm, travel distance Z-axis: 508 mm, controller manufacturer: Haas, total height: 2,750 mm, total length: 2,250 mm, total width: 2,360 mm, table width: 914 mm, table length: 356 mm, table load: 680 kg, spindle speed (max.): 12,000 rpm, Equipment: documentation/manual, CNC Vertical Machining Centre CNC Control Haas CNC Table size 914 x 356 mm Table load 680 kg Number of pallets: 1 x Movement X-axis 762 mm Movement Y-axis 406 mm Movement Z-axis 508 mm Spindle taper DIN 68971A Spindle speed 12.000 1/min Spindle motor 22,4kW Magazin capacity 24 + 1 Dljdpfjxnm A Eex Aduea If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: excellent (used), Year of construction: 2006, operating hours: 6,650 h, functionality: fully functional, Equipment: documentation/manual, The used HAAS SL 30 THE CNC lathe is a fast, medium-sized, slant-bed numerically controlled lathe equipped with a tailstock, C-axis spindle, and a 12-position powered turret with VDI 40 tooling interface. The configuration also includes a tool presetter, chip conveyor, programmable tailstock body, hydraulic 3-jaw chuck 250mm BB, and fixed toolholders. Main features: Maximum workpiece diameter: 350 mm Maximum workpiece length: 826 mm Maximum bar diameter: 76 mm Spindle speed: 3,400 rpm Spindle power: 30 HP Djdpfoxdvarox Adujla Year of manufacture: 2006, with only 6,650 spindle hours, CE compliant machine.

Condition: like new (used), Year of construction: 2022, functionality: fully functional, travel distance X-axis: 610 mm, travel distance Y-axis: 406 mm, travel distance Z-axis: 406 mm, workpiece weight (max.): 200 kg, table width: 500 mm, spindle speed (min.): 10,000 rpm, Equipment: chip conveyor, For sale: HAAS UMC-500 5-Axis Universal Machining Center Condition: Absolutely brand new machine. Only one part was produced for test machining. The equipment has been unused and stored for 2 years. Main technical specifications Travel: X-axis: 610 mm Y-axis: 406 mm Z-axis: 406 mm Table: Diameter: 500 mm Maximum workpiece weight: 200 kg 5-axis rotary/trunnion table (trunnion type) Spindle: Inline direct-drive 10,000 rpm 30 HP (22.4 kW) Dljdsxg Nd Nspfx Adusa CAT 40 taper (40T) Through-spindle coolant: 300 psi (21 bar) Tool changer: 30 tool positions Side-mount, high speed Precision and compensation: Temperature compensation DWO/TCPC – Dynamic Work Offset and Tool Center Point Control Rigid Tapping Equipment and features: Haas NGC CNC control (FANUC compatible) 1 GB memory Ethernet connection, WiFi connectivity USB port, color 15” LCD display Early power-failure detection module Memory lock (keyswitch) Spindle coolant system Protective enclosure with doors Internal lighting Centralized lubrication system Top cover Measurement and calibration equipment: Renishaw WIPS wireless intuitive probing system (Haas Visual Programming System, macros, spindle orientation, coordinate rotation and scaling) Rotary-Axis calibration tool RJH remote jog handle with color display Chip and coolant systems: Coolant tank – 95 gallons (360 L) Initial fill with Blaser coolant emulsion Chip conveyor (belt type – CONVEYOR-H) High-pressure air system Documentation: Original machine documentation (in English) Application Haas UMC-500 is a compact yet powerful universal 5-axis machining center designed for the production of complex, multi-sided, and free-form surface parts. Suitable for simultaneous 5-axis machining as well as 3+2 machining, significantly reducing setup operations and ensuring high accuracy. If you have further questions, we are happy to assist.

Year of construction: 1984, condition: used, machine/vehicle number: 25 948, throat: 485 bzw. 1050 mm roller-Ø: 500 mm passage height: 380 mm table size: Arbeitstisch 780 x 800 mm sawing band length: ueber 2 Laufraeder 3920 - 4050 mm sawing band width max.: 20 mm band speed: 15 - 940 m/min engine: 380 V, 4 kW space needed: 950 x 2130 x 2100 mm Djdpfx Asb N Eh Heduela weight: 1740 kg

Condition: used, Year of construction: 2005, functionality: fully functional, travel distance Z-axis: 1,219 mm, rotational speed (max.): 2,000 rpm, travel distance cross slide: 203 mm, Flatbed Lathe Dedpowftdmofx Aduela Manufacturer: Haas Type: TL-2 S/N: XXXXX Year of Manufacture: 08-2005 On-time hours: n/a Control: Haas CNC Technical Parameters: ----- - 4-way tool post with Parat quick change system - Z travel: 1,219 mm - X travel: 203 mm - Swing over bed: 406 mm - Swing over slide: 282 mm - Spindle bore: 76 mm - Spindle speeds: 10 - 2,000 rpm - Coolant system - Tailstock / MT 4 - Weight: 2,100 kg Accessories: ----- - 3 Parat cartridges - 3-jaw chuck - Documentation

Condition: refurbished (used), Year of construction: 1989, functionality: fully functional, machine/vehicle number: 193 34-41, travel distance X-axis: 1,600 mm, travel distance Y-axis: 1,250 mm, travel distance Z-axis: 1,600 mm, table load: 2,500 kg, spindle diameter: 102 mm, spindle speed (min.): 4 rpm, spindle speed (max.): 1,600 rpm, total height: 3,500 mm, total length: 6,500 mm, total width: 4,700 mm, table length: 1,400 mm, table width: 1,250 mm, year of last overhaul: 2025, Equipment: rotational speed infinitely variable, The machine was overhauled and modernized in 2025 and is immediately ready for operation! Travel paths: - Table cross travel (X-axis): 1600 mm - Spindle head vertical travel (Y-axis): 1250 mm - Table longitudinal travel (Z-axis): 1475 mm (restriction due to large table) - Quill travel (W-axis): 710 mm - Table rotation (B-axis): 360 degrees Clamping table: - Clamping surface: 1250 x 1400 mm - Table load capacity: 2.5 t Spindle: - Diameter: 102 mm - Tool holder: DIN2080, SK 50 - Infinitely variable speed: 4 – 1600 rpm - Drive power: 13 kW Feed: Dedpfx Adjw Rn R Rsuola - X, Y, Z axes, stepless: 1 – 4000 mm/min Rapid traverse: - X, Y, Z axes: 4 m/min Power consumption: 42 kW Weight: 10 t Space requirements (L x W x H): 6.5 x 4.7 x 3.5 m Equipment: - Heidenhain TNC 320 - Coolant device

Condition: used, Year of construction: 1968, roll diameter 500 mm throat 1050 / 485 mm workpiece height 300 mm saw band length 3920 - 4050 mm cutting speed 15 - 940 m/min table height 1040 mm Dodjiqp Eropfx Adujla table surface area 750 x 800 mm Table tiltable 15 Grad total power requirement 4,0 kW weight of the machine ca. 1750 kg dimensions of the machine ca. 2100 x 1000 x 2100 mm - Unique mitering range left/right up to 30° acute angle - Mitering adjustment via lockable detent every 15° - Adjustable saw blade for optimum cutting angle - Hydraulic clamping device on both sides - Electric blade breakage monitoring - Smooth-running saw carriage via preloaded recirculating ball bearings - Additional table 450 x 450 - Machine light

Condition: used, Year of construction: 2001, functionality: fully functional, machine/vehicle number: 26026, travel distance X-axis: 762 mm, travel distance Y-axis: 506 mm, travel distance Z-axis: 608 mm, - Year of manufacture: 07/2001 - 1st owner, from our own use - Fully functional, powered, ready for demonstration - Travel paths: 762x506x608 mm - Tool changer with 24+1 magazine positions - Spindle speed up to 7500 rpm - BT 40 - Rotatable coolant supply Dledpfsxp N Nqox Aduoa - Spiral chip conveyor - Serial number: 26026 Net price unloaded, ex-site Luckenwalde (Germany), without transport.
