Vertical lathe machining centre

DÖRRIES SCHARMANN VCE 2000/160

Condition: used, swing diameter 2000 mm turning height 1800 mm Control Siemens Sinumerik 840 Dsl turning speeds range 2,8-315 U/min cross rail adjustment - vertical 1200 mm cross rail adjustment - horizontal +/- 1150 mm 1500 mm bit feeder section 240 x 240 mm Minimum immersion diameter 340 mm cutting capacity 50 kN max. torque on the faceplate 50000 Nm speed range step 1 2,8 - 80 U/min speed range step 2 12 - 315 U/min Max. clamping weight 12000 Kg power capacity faceplate 105 kW weight of the machine ca. 33 t dimensions of the machine ca. 10 x 5 x 6,5 m Further technical data: - Feed range of three-phase servo motors: 1–3000 mm/min; 0.01–50 mm/rev - Crossbeam travel speed: 425 mm/min Features/Accessories - Increased turning height (+600 mm) - Z-axis extended to 1500 mm - Magazine capacity: 20 positions - Magazine type: disc magazine - Max. tool length: 525 mm - Chip conveyor - Workpiece measurement - Renishaw probe - Coolant tank capacity: approx. 2000 litres - Coolant pump flow rate: 60 litres/min at 2 bar Overhaul: - Extensively overhauled in 2012 by Siemens Industry Munich Rodpey Dvlqsfx Acbeu - Items overhauled included: control system, cabling, motors, measuring systems, etc. - Further information can be found in the PDF

Condition: ready for operation (used), Year of construction: 1996, functionality: fully functional, rotary table diameter: 1,000 mm, grinding height: 500 mm, table diameter: 1,000 mm, CNC rotary table grinding machine with 1000 mm magnetic chuck, turret carrier with 3 grinding spindles (external, face, and internal grinding spindle). CNC control Sinumerik 840C, Simodrive 611 drives, coolant tank, currently still in operation, now being dismantled. Delivery also possible as overhauled and with new electrics upon agreement. Total weight 20,000 kg. Rodpfx Acswv Sc Aobeu

Year of construction: 1993, condition: ready for operation (used), Vertical lathe machiningcenter Dörries Scharmann Type: VCE 2000/160 Pallet size: 1.600 mm Pallet load: max. 8.000 kg Number of pallets 13 pcs Table indexing C-Axis 0.001° Table cross travel (X) 2.300 mm Column longitudinal travel (Z) 1.500 mm Crossbeam positions: 9 steps off 100 mm Feed X/Y/Z 1 – 6.000 mm/min. Rapid X/Y/Z 8 m/min. Max rotary diameter 2.000 mm Max workpiece height 1.500 mm Main Spindle Spindle drive motor: 69KW Spindle speed: 2.8 – 315 rpm Rsdegulkijpfx Acbju ATC 70 pots - system 240.2 Live spindle – SK50 Spindle drive motor: 30KW Spindle speed: 10 – 1500 rpm CNC controller Siemens Sinumerik 880M Accessories FMS 13 pallets Rotary loading stations 2 pcs Coolant unit with filtration system Coolant through spindle Machine weight Approx 40T. Build year 1993 (2/2)

Condition: excellent (used), Year of construction: 2016, functionality: fully functional, travel distance X-axis: 4,000 mm, travel distance Y-axis: 2,200 mm, travel distance Z-axis: 1,100 mm, table length: 4,500 mm, table width: 2,500 mm, spindle speed (max.): 22,000 rpm, CNC Heidenhain iTNC 640 WORKING AREA: Longitudinal X-axis travel: mm 4.000 Transversal Y-axis travel: mm 2.200 Vertical Z-axis travel: mm 1.100 Maximum speed with interpolating axes: m/min 50 Rjdpfx Aeyv In Iocbsu WORKTABLE: Dimensions: mm 4.500 x 2.500 Height: mm 300 Load capacity: T/m² 15 T-slots for workpiece clamping mm 28 DIN 650 (H12), complete with leveling elements. T-slot direction parallel to Y-axis movement. CONTINUOUS POSITIONING UNIVERSAL HEAD WITH ELECTROSPINDLE: Automatic universal head indexed to 360,000 positions (every 0.001°). Rotation is driven by direct drive motors and controlled by the CNC as a positioning axis. Automatic tool clamping. Allows 10° undercut machining. Internal cooling system for bearings and axis motors. C-axis rotation range: ± 270° A-axis rotation range: ± 185° Maximum axis rotation speed: rpm 30 Maximum torque available on A/C axes: Nm 450 Axis clamping torque: Nm 1.400 Spindle power (S1/S6): kW 22/33 Spindle torque (S1/S6): Nm 84/128 Maximum spindle speed: rpm 22.000 Constant power range: rpm 3.000 to 18.000 Constant torque range: rpm 10 to 3.000 Tool interface: HSK-A63 DIN 69893 ELECTROSPINDLE HSK-A100 WITH SEMI-AUTOMATIC CHANGE SYSTEM Spindle power (S1/S6): kW 37/43 Spindle torque (S1/S6): Nm 140/165 Maximum spindle speed: rpm 15.000 Constant power range: rpm 2.500 to 12.000 Constant torque range: rpm 10 to 2.500 Tool interface: HSK-A100 DIN 69893 CHAIN TOOL MAGAZINE – 55 POSITIONS, HSK-A100 / HSK-A63 Floor-mounted fixed chain magazine located at the rear of the machine, fully enclosed for operator protection, equipped with a vertical tool change arm and automatic tool pre-selection. Fixed-pocket management system. Hydraulic axis locking Total tools: No. 55 HSK-A63 tools (DIN 69893): Number of tools: No. 30 Max tool diameter: mm 90 Max tool diameter (with adjacent pockets free): mm 160 Max tool length: mm 300 Max tool weight: kg 10 HSK-A100 tools (DIN 69893): Number of tools: No. 25 Max tool diameter: mm 100 Max tool diameter (with adjacent pockets free): mm 160 Max tool length: mm 450 Max tool weight: kg 20 REQUIRED CONNECTIONS Maximum installed power: kVA 177 Maximum current required: A 235 MACHINE EQUIPPED WITH: • Heidenhain HR550 remote electronic handwheel • High-pressure water and air through the spindle • Semi-automatic electrospindle change system with HSK-A63 and HSK-A100 interfaces • Various tooling included with the machine • Renishaw probe • BLUM laser presetting system • AUTOCAL automatic head calibration system • Visormax subscription for remote monitoring • Electrical cabinet air conditioning unit • Cooling system for all axes and the electrospindle • User and maintenance manual and CE declaration of conformity

Condition: good (used), Year of construction: 2010, Machine is in good condition. Parts shown by hand not come. Rjdpfx Acox N Atfsbou

Condition: used, Year of construction: 2017, Milling machines Travel distance X: 400 mm Travel distance Y :450 mm Travel distance Z: 350 mm HSC-machines Number of axis: 5 milling machine / machining center Control: Heidenhain iTNC 530 HSCI spindle chuck: HSK-40 spindle revolutions: 42000 rpm Speed range to: 42000 U/min table size X: 400 mm table size Y: 400 mm max. workpiece weight: 100 kg tool changer: 68 - time input Power : 20 kW Torque: 30 Nm Rapid traverse: 50 m/min Rsdpfxoym Rr As Acbou feed rate: 50000 mm/min spindle cooling chip conveyor control Heidenhain 5-axis CNC machining center designed for graphite machining Heidenhain iTNC 530 HSCI control 68-position tool changer HSK-40 high-speed spindle spindle speed up to 42,000 rpm KNOLL oil filtration system KF 400 / FKA 620 KNOLL chip conveyor ideal for electrode production high surface quality in finishing

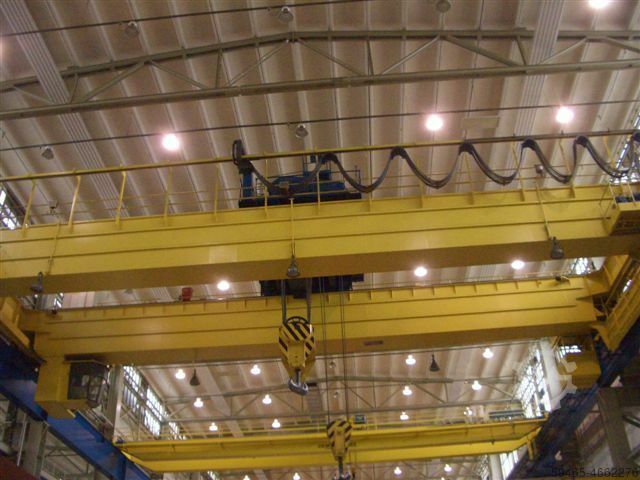

Year of construction: 1981, condition: good (used), Capacity crane approx. 100.000 kg Capacity main/auxiliary hoist approx. 100.000/32.000 kg Span approx. 26.700 mm Hook path main/auxiliary hoist approx. 14.000/15.050 mm Manufacturer SKET Year of construction/Overhaul 1981/2000 Hoisting class H2 Stress group B3 Mechanism group FEM/ISO 2m/M5 Use as assembly crane for only very short time Crane equipped with: - high quality double rail-open winch trolley SKET Rjdpofrlafofx Acbsu - cabin and radio remote control - unilateral crane runway - accessible trolley - cable drum with no lateral hook movement

Condition: used, Year of construction: 2020, Technical details: turning diameter: 670 mm turning length: 1540 mm control: F31iB5 Celos Fanuc 35iB5 swing diameter max. over bed cover: 700 mm Travel turret No.1 (milling spindle) x/y/z: 495 / ± 150 / 1562(+164) mm Rotation B-axis: -30° / +210° Rapid traverse feeds turret 1 (milling head) x/y/z: 40/40/40 m/min RPM milling spindle: 12000 1/min power capacity - milling spindle: 20,2/18,8 kW Torque of milling spindle: 120 / 44 Nm tool taper milling spindle: Coromant Capto C6 Tool magazine for milling spindle (turret 1): 76 Tool change time tool/tool, milling spindle: 1,25 s Spindle 1 RPM: 3000 1/min Spindle 1 Power: 36 / 30 / 25 kW C-axis spindle 1: 0,001 ° Bar capacity spindle 1: 102 mm Spindle 2 RPM: 4000 1/min Spindle 2 power: 26 / 22 / 15 kW C-axis spindle 2: 0,001 ° Rsdpfxeyv E T Ue Acbou Bar capacity spindle 2: 80 mm dimensions of the machine ca.: 7,8 x 3,6 x 2,9 m Linear scales on axis: X, Y programmable steady: KLU-A530 & SLU-X3.2 Accerories Chip conveyor tool setting spindle load monitor Airblow system Airblow system internal to cutting tool Spindle 1 Chuck Kitagawa 250 (B 210) mm Spindle 2 Chuck Kitagawa 250 (B 210) mm Interface for coolant through the spindle 70 bar Tailstock specification for spindle 2 Measuring probe for work piece Renishaw OMP60 pendant hand wheel Parts and total counter Signal lamp 3 colors Robot interface Matris Robot System R-2000iC/165F Automatic door Rotoclear window Quick fixed cycles Program restart Signal lamp 4 colours Ethernet I/P Interface manual tool eye Automatic door Air Filter Oil skimmer Tactile sensor for workpiece measuring Airblow system external Subspindel Spindle 1 coolant jet Spindle 2 coolant jet Coolant Gun Coolant through spindle 70 bar with filter Knoll High performance turning and milling center with multi axis milling head, 76 tool magazine Capto C6, main- and sub spindle, which can act as tailstock. It has automatic door and Matris robot R-2000iC/165F. *

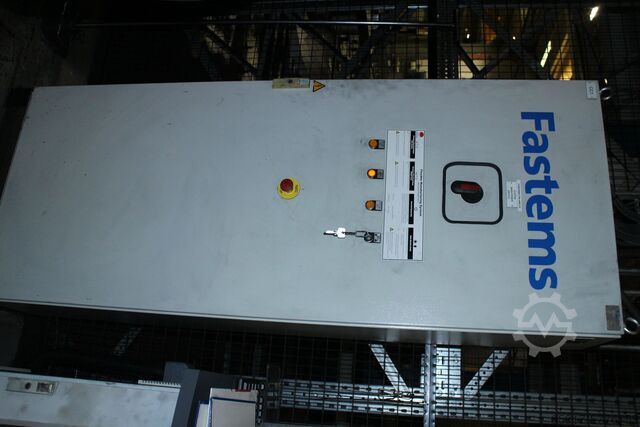

Year of construction: 2006, condition: ready for operation (used), FASTEMS Type: MLS-XHD Load max pr. pallet 6.000 kg Machine capacity 5 pcs Pallet capacity 25 pcs Available pallets 19 pcs Loading stations 2 pcs X 2650 mm max Y 2300 mm max Robot with grinding function 1 pcs Rodeguk E Topfx Acbsu Layout dimensions 15 x 54 meter Build year 2006

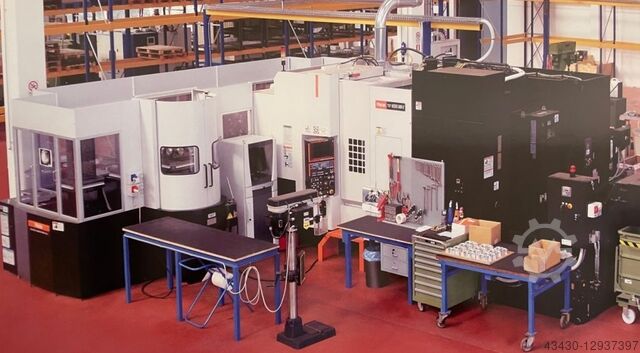

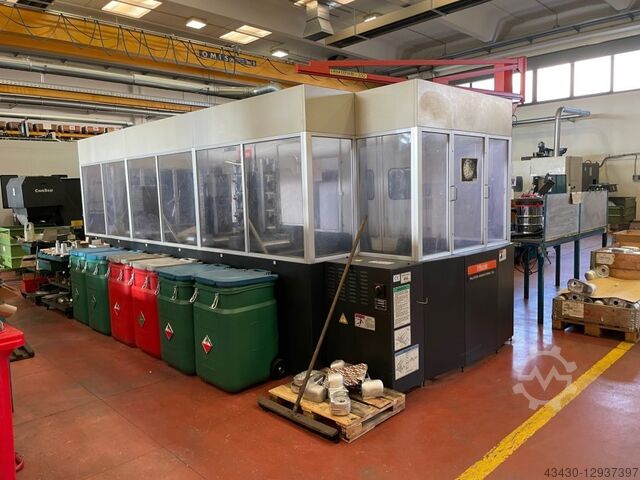

Condition: excellent (used), Year of construction: 2007, machine/vehicle number: 22049, functionality: fully functional, CNC horizontal machining center MAZAK HC NEXUS 5000-II + PALLETECH (6 Paletten) Mfg. year 2007 Mazatrol Matrix control movements: X-axis: 730 mm Y-axis: 730 mm Z-axis: 740 mm Distance spindle nose to spindle center 70-810 mm Distance spindle center to pallet surface 100-830 mm Pallet size 500 x 500 mm Max. workpiece dimensions Ø800 x 1000 mm Max. pallet load 700 kg Main spindle 30 kW Max. spindle speed 18.000 rpm BT-40 Tool magazine for 120 tools NC indexing table, 1° indexing Tool length measuring – Laser Renishaw NC4 Swarf conveyor, Tecnoforme Coolant through spindle Coolant tank 300 microns rotofilter 18 bar high pressure pump Pulse generator Rsdpfx Acepm Igzsbou Palletech system with pallets and loading station CE-mark
