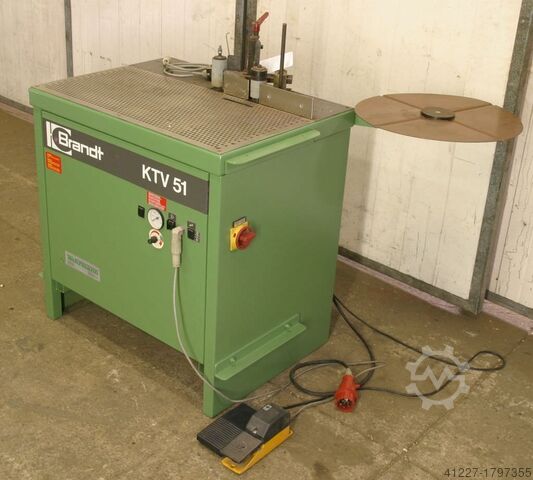

Molded part edge gluing machine

Brandt KTV 51

Condition: used, Year of construction: 1989, Used Machine Features and Technical Specifications: - Small machine for processing molded parts - Processes hot-melt adhesive-coated edging material, which is reactivated using hot air - The workpiece is automatically fed by pressing it against the central, driven pressure roller, ensuring uniform adhesive reactivation and, consequently, reliable bonding - Thermostatic temperature control via a dial thermostat - Maintenance-free three-phase hot-air blower for continuous operation - Automatic airflow deflection - Pneumatically operated roller cutting device trims even the toughest veneer and PVC edges - Foot switch for processing molded parts - Workpiece thickness: 10–50 mm Godpfxozk N Ehs Aipeuh - Heating power: 3 kW - Connected load: 3.3 kW - Workpiece width (min.): approx. 25 mm - Edge thickness approx. 0.5–1 mm - Minimum inner radius approx. 25 mm - Feed rate 4 m/min. - Pneumatic pressure: 6 bar Weight: approx. 105 kg Availability: available shortly Location: Röllbach
