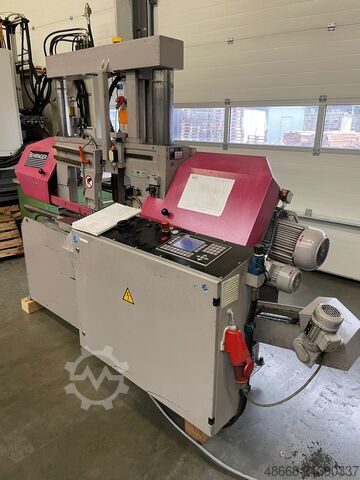

Horizontal Bandsaw, Dual-Column

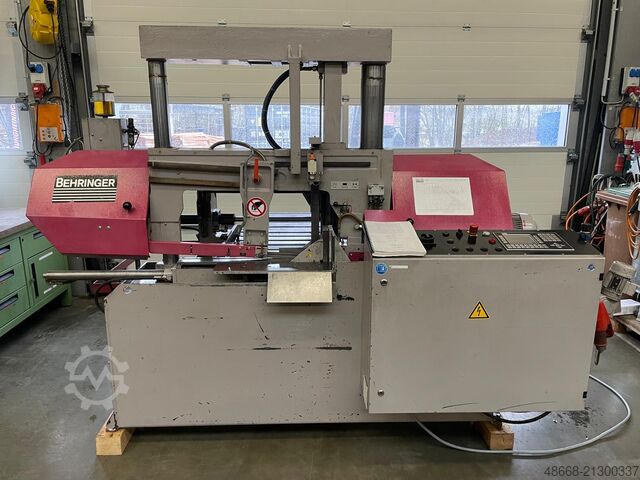

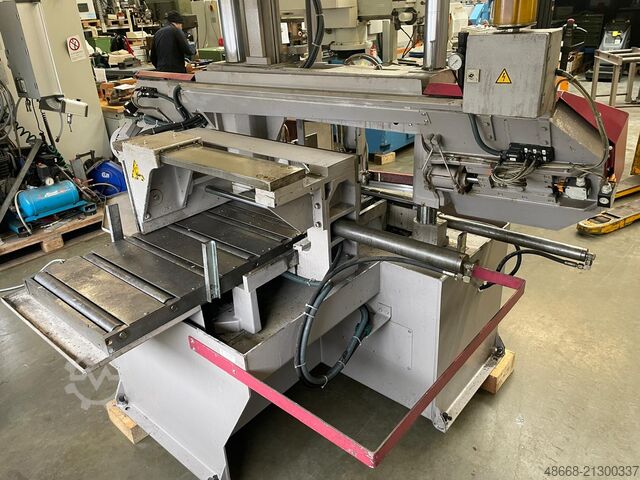

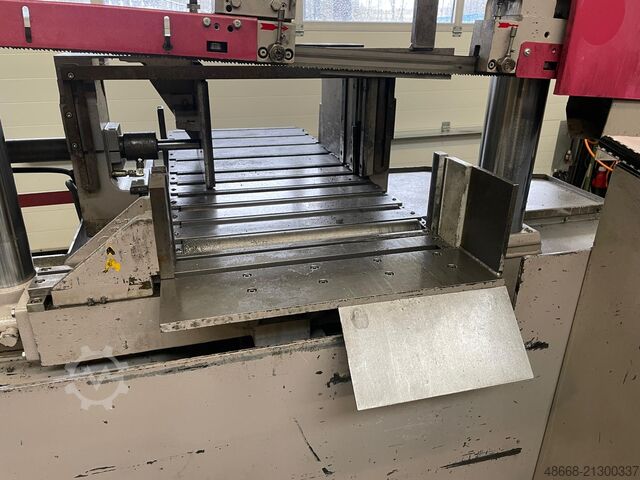

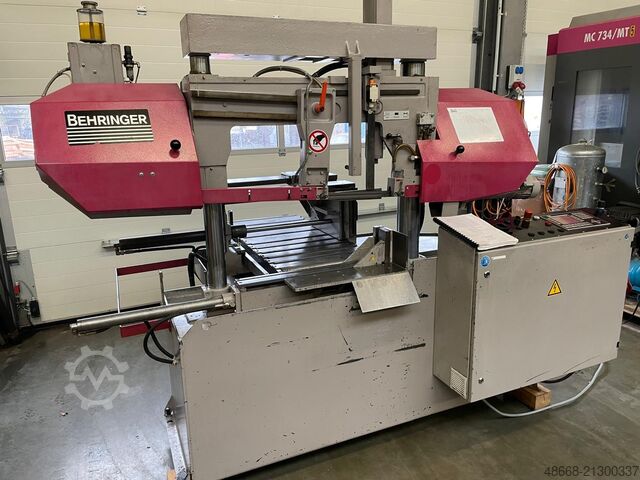

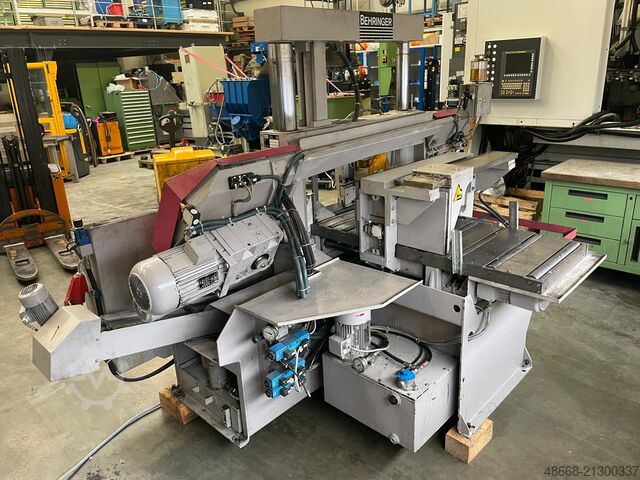

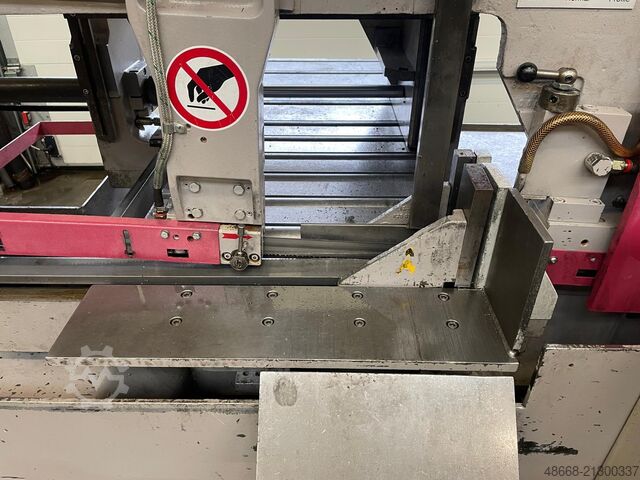

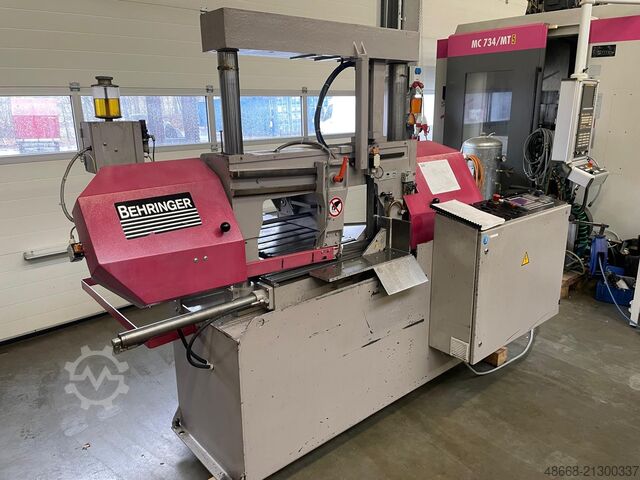

BEHRINGER HBP 313

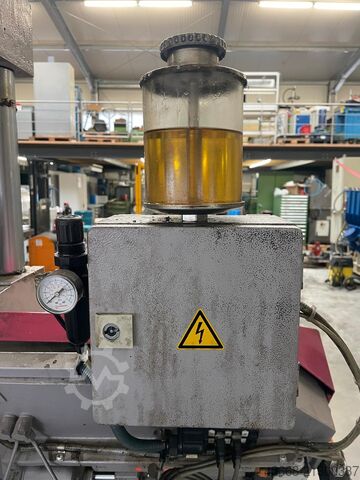

Condition: used, Year of construction: 1995, machine/vehicle number: 795101, Offer 26032 Hydraulic Twin-Column Guided Mitre Band Saw Automatic Machine Technical Data: - Cutting capacity at 90° – round: 310 mm - flat: 520 x 310 mm - Mitre adjustment to the left up to 30° - Cutting capacity up to 45° – round: 340 mm - flat: 350 x 310 mm - Cutting capacity up to 30° – flat: 230 x 310 mm - Saw blade dimensions approx. 5000 x 41 x 1.3 mm - Cutting speed: 17 – 120 m/min - Infinitely variable cutting pressure: 0 – 10 m/min - Automatic material feed Nljdpeyv D Idjfx Ah Nea - Total drive power approx. 400 V / 6.0 kW - Micro-spray coolant system - 2 x roller conveyors, each 2000 mm - Space requirement approx. W 3500 x H 1800 x D 1600 mm - Weight approx. 2000 kg

Condition: good (used), Year of construction: 2001, Manufacturer: KASTO Type: KASTOtec A3 Year of construction: 2001 Specifications: Metric Metric US Standard Sawing capacity round 90 330 Sawing capacity flat 90° 330 x 330 mm Max. Sawing speed 12 - 120 Saw blade dimensions Nljdeu R R Acjpfx Ah Nja 6830 x 41 x 1.3 mm Saw power 7.5 kW Dimensions (estimate) length 4600 mm width 2150 mm height 2310 mm weight 4300 kg Please note: The information on this page has been obtained from the manufacturer to the best of our knowledge and belief, and where possible, the information is given in good faith but accuracy cannot be guaranteed. Accordingly, it does not constitute a representation or contract and we recommend that you check all relevant details.

Condition: ready for operation (used), functionality: fully functional, cutting height (max.): 1,200 mm, cutting width (max.): 1,100 mm, Danobat CP 1211T Large Capacity Bandsaw Cutting Capacity Dia / Square 1100mm Cutting capacity rectangle 1200mm wide x 1100mm high Nlsdpfx Ahstv Nado Nea Fully automatic

Condition: used, Year of construction: 1985, bore capacity in steel (diameter) 30 mm x-travel 850 mm y-travel 435 mm Control HEIDENHAIN TNC 150 total power requirement 16 kW weight of the machine ca. 3500 kg dimensions of the machine ca. m F E H L M A N N (Switzerland) CNC-Controlled High Precision Drilling and Milling Machine with HEIDENHAIN CNC-Control Model TNC 150 Model PICOMAX 100 CNC – 2 + A * Year 1985 Serial No. 16 085 109 _____ Table travel: Longitudinal ( X-Axis) 850 mm Cross (Y-Axis) 435 mm Milling/Boring head travel vertical ( Z-Axis) 210 mm Table size /Clamping area 500 x 1.570 resp. 390 x 1.280 mm Mounting height below spindle, approx. 140 / 690 mm Height adjustment of Milling head max. 540 mm Distance between spindle and column 450 mm Spindle taper SF 32 Spindle quill travels 210 mm Nlodpfxet Hxa Ho Ah Nea Drilling Capacity approx.. 30 mm Spindle speeds steplessly adjustable 50 – 2,500 rpm Feeds steplessly adjustable 1 – 8.000 mm/Min. Quick feed 8.000 mm/Min. Spindle drive, approx. 6 kW Total electrical load 16 kW - 400 V - 50 Hz Weight, approx. 3,500 kg Accessories / Special Features: * HEIDENHAIN – CNC Path Control System Model TNC 150 with colour Screen Grafik, Subroutines, cycles, Threading cycles, Milling Cycles, etc. Mobile Control unit with electronic handwheel. Ideal for quick set-up and approach to the workpiece. * The quill movement can be actuated manually or also by the CNC-Control, * The Drilling depth can be presetted by a 12 fold turret drum for different quillstops and with a digital display of the values on monitor. * The complete Milling/Drilling head can be positioned in 3 different heights and with automatic clamping. * Hi Precision Coordinate table controlled by the XY – CNC axis with hardened ball screw spindles. * With quick change tool holders, chucks, millers, etc. and with coolant device. Condition : Very Good to excellent - Machine under power, ideal for small batch production Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract.

Condition: good (used), Year of construction: 1999, Technical specifications Ø: 1100 mm Nljdpfx Aev Tzxvoh Noa Rectangular: 1300 x 1100 mm

Condition: ready for operation (used), Year of construction: 2019, operating hours: 2,240 h, This Flow Mach M500-2060 was manufactured in 2019. It features a large cutting area of 2000x6000 mm, a programmable Z-axis, and the advanced Dynamix Waterjet XD for precise 2D and 3D cutting. Equipped with a PASER 4 cutting head and a HyperJet 94i-D pump, it ensures high efficiency. Consider the opportunity to buy this Flow Mach M500-2060 waterjet cutting machine. Contact us for more information about this machine. Nljdex D Rxpjpfx Ah Nea Application Types Cutting

Condition: good (used), Year of construction: 2000, machine/vehicle number: 6535, Offer 25230 Hydraulic Twin-Column Guided Bandsaw Machine Technical Specifications: - Automatic operating cycle for the cutting process, hydraulic lifting/lowering of the saw frame - Manual mitre adjustment with hydraulic clamping - Automatic material feed unit, motorized mitre adjustment Nodpfx Ahow I Scfs Nela - Saw blade dimensions: 4400 x 34 x 1.1 mm - Infinitely variable cutting speed: 15 – 150 m/min - Infinitely adjustable cutting pressure: 10 – 15 bar - Feed rate: 0 – 300 mm/min - Cutting range at 90° – Max round: 335 mm – Max square/flat: 500 x 335 mm - Automatic material feed: 5 – 2300 mm - Drive: 400 V / 6.5 kW - Space requirement (approx.): W 2400 x H 1950 x D 2200 mm - Weight (approx.): 1800 kg

Condition: good (used), Rolling width: 2050mm Rolling thickness 3x toproll Ø:18mm Nljdpfxowtpgts Ah Noa Rolling thickness 5x toproll Ø:21mm Rolling thickness prebending: 12mm Top Roll Ø: 280mm Side roll Ø: 260mm Number of rolls: 3 Rolling speed: 0-5 Adjustiment lower roll: 0-150mm/min. Adjustment side rolls: 0-150mm/min. Top support: yes Power: 12kW Length: 3000mm Width: 1500mm Height: 1600mm Weight: 5200kg

Condition: new, The HB 460 L is a semi-automatic horizontal band saw in the Horizontal Mitre Cutting Bandsaws category and part of the Semi-Auto Bandsaw product group. Designed for heavy cutting applications, it delivers precise cuts on steel, cast iron, and other materials with its robust dual-column construction and reduced vibrations that enhance accuracy and speed. This advanced model features infinitely variable cutting speeds from 20 to 100 m/min, a powerful, low-maintenance motor, and a standard hydraulic workpiece clamping system to ensure reliability and efficiency. With the HB 460 L, operators benefit from precise saw blade tension adjustments via a pressure gauge, a removable coolant reservoir for easy maintenance, and an optical sensor for automatic stroke height adjustment. The machine’s versatility extends to including miter cutting capabilities with a 45° swiveling vise, making it ideal for both sections and solid materials. For an optimal cutting experience with the Horizontal Mitre Cutting Bandsaws product group, request a quote for the HB 460 L today and see how KNUTH can enhance your machining operations. Nlsdpfx Aou Abvdoh Nea

Condition: used, Year of construction: 1985, cutting diameter 340 mm dimensions of saw-blade 4860 x 32 x 1,1 mm cutting range square 340 x 340 mm cutting speed 17 - 120 m/min drive motor 4 kW weight of the machine ca. 2,5 t dimensions ca. 2600 x 2600 x 1650 mm ncl. chip conveyor and chip tray Hydraulic bundle clamping device incl. electrical circuit diagrams the previous owner only sawed at one speed Nedjwyfa Aspfx Ah Nsla Adjustable cutting pressure valve HSS bimetal saw band Hydraulic material and saw band tensioning with electrical monitoring Automatic height adjustment of the saw frame Automatic adjustment of the movable band guide arm Electrical piece counter Digital display of the dimension preselection Constant, hydraulic clamping of the carbide band guides
