The machine was always very well maintained, was in use in a large industrial company with its own, very good service team.
With extra drive and holder for large, thick glasses.
- Year of construction: 2006
- Serial number: 785
- Ready for immediate use
- Feed rate: 0,5 – 5 m/min
- Glass thickness: 3 – 55 mm
- Can grind miter up to 45 °
- 13 grinding and polishing discs
- Complete documentation available
- Weight: 5700 Kg
- has been maintained regularly
- only 591 000 running ...
GranitoGrav photoengraving system for granite/gravestones and glass (also suitable for glasses and bottles)
The CNC photo engraving unit in glass and stone.
The CNC milling machine series High-Z/S-400T with CNC GranitoGrav module includes the software for an incredible price.
Whether on memorial plaques, tombstones, tile, mirror glass, glass...
Just simply load your black and white or colour photography into the specially developed module of the ConstruCAM-3D software, then only enter the si...
4 axes CNC work center for max. glass sizes : 3000 x 1500 mm
for grinding , milling , drilling , engraving and sawing .
including engraving and sawing kits
total working hours : 5500 hours
speed : 0 - 36 m/min.
glass thikness : 2 - 100 mm
tool row store : 22 cones
power : 30 Kw HP 40
spindle power : 9,6 Kw HP 13
spinde speed : 9000 RPM
machine dimensions : W x L x H 3,9 x 5,9 x 2,4
electric cabinet : 0;8 x 0,8 m
weight : 5700kg
Basic technical parameters
- Rated power 20,5 kW
- Grinding speed 0,7-3 m/min
- Glass thickness 4mm - 15mm
- Weight 3500kg
- Minimum glass size 100mm x 100mm
- Maximum width of the chamfer 40mm
- Chamfer angle 0st - 25st
- Overall dimensions 7.9m x 1.3m x 2.5m
- Option! overall dimensions 6,9m x 1,3m x 2,5m
The machine is designed for beveling straight glass. It chamfers glass and mirrors. It is equipped with a peripheral disc grinding the bottom edge of the glass. The machine is equippe...
Disc-grinding machine with water supply (cooling). Fixation of grinding material magnetically (on the backside of the grinding pad). Water supply 1x central through axle + 1 x by adjustable tube/hose. Machine runs smoothly on all speeds. Excellent condition, regularly serviced and maintained.
Together with the machine 2 new grinding pads + 1 diamond pad (used) will be provided.
Machine can be tested on our premises.
immediately available from stock!
- Type: ZX5325E
- Serial number: 211004
- Baujahr: 2021
- Min. Glass dimension: 80 x 80 mm
- Glass thickness: 3 – 25 mm
- Total dimension: L 5500 x B 1200 x H 2500 mm
- Number of discs:
o Diamond disc Metal binding for the glass edge
o Diamond disc bakelite binding hem front
o Diamond disc bakelite binding hem back
o Polishing wheel rubber bond for glass edge
o Cerium polishing wheel for glass edge
- The inlet is adjustable in height for the a...

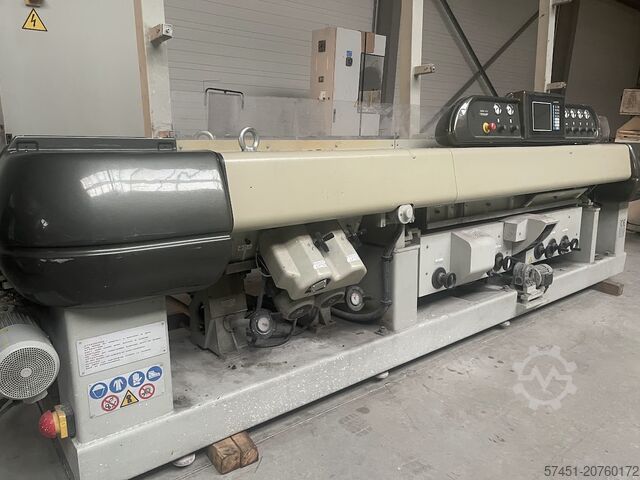

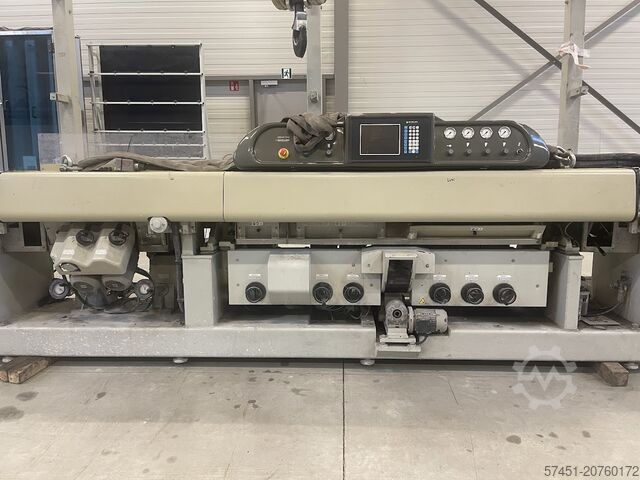

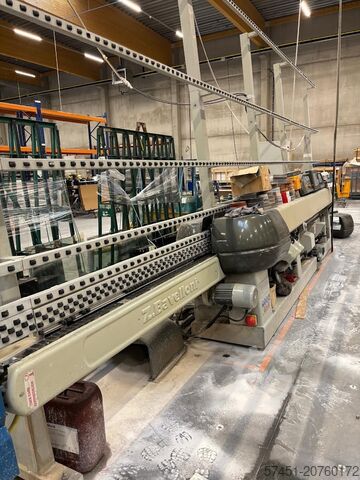

I have for sale a glass grinder Italian company Bavelloni type GEMY 9C from 2006.
The machine is designed for grinding and polishing flat glass and mirrors.
Gemy 9 C is a true innovation in the sector of straight edge binders. It is a 9-spindle machine, equipped with an additional pair of spindles for automatic corner refraction.
The grinder is preserved in good technical condition.
BAVELLONI Gemy 9 machines are equipped with a glass conveyor that moves on adjustable guides and allows a signific...
Year of production: 2009
Factory number: 04/2009
Power supply: 400V/50Hz
Weight of device: 155 kg
Dimensions: length 2120 x width 1460 x height 1100
Dimensions of work surface: 1600 x 1200
Installed power: 1.1 kW
Extremely stable and heavy grinding machine suitable for daily and permanent production. With robust and first-class materials, the machine is designed for durability and precision.
- Type: 111F
- Serial number: GG111F-20218
- 11 Spindles
- Year of construction: 2012
- Glass thickness: 3 – 50 mm
- Min. Dimension 40 x 40 mm
- Machine dimension: 11250 x 1800 x 2700 mm
- Grinding profile: Flat edge with hem
- Number of discs:
o 3 Diamond discs edge
o 1 Diamond disc back hem
o 1 ...
6 axis automatic vertical drilling machine for routing bores, grinding, chamfering and polishing flat glasso
6 work axis of which 3 ( X, Y, Z ) are totally interpolated.
Min./Max size of glass worked 500 x 250 mm / 3000 x 2000 mm
Min./Max. thickness of glass worked 4 mm - 30 mm
Max diameter of the holes that can be made 130 mm
Height of work level 800 mm
Axis travel X 3000 mm
Axis travel Y 2000 mm
Axis travel V 2000 mm
Forward work speed 0 - 15 mt/min.
Double spindle 4 kW
Zafferani Straight line edging machine
with peripheral wheels ( 2 wheels )
manufacture Zafferani Glas S.r.L. Italy
Type Junior 2M/ 12
Zafferani’s line of peripheral wheel straightline edgers provides a superb answer
to thedemands of straight line edging::- for pencil edge work- for flat edge work- for OG work- for decorative profile work (waterfall, etc.)in accordance with the type of profile wheelsused.
Our line of edgers reflects the Zafferanitrademark of simplified construction and ease of ...
BOVONE MINI MAXI 11 Spindle straight line bevelling machine for cerium polished bevel and pencil edge polishing of flat glass.
Beveling, smoothing and polishing wheel spindles are mounted on a separate swiveling beam which is adjustable for angle variation in seconds. This allows a quick change of angle from 3° up to 45° without adjusting each spindle.
Glass thickness: 3 - 25 mm
Working speed: 0,4 - 5,4 meter / min
Glass thickness minimum: 35 x 35 mm
Beveling angle: 3...
3 axes CNC work center for max. glass size : 2 x 1,2 m
max. glass thikness : 2 - 12 ( 19 mm )
speed : 36 m/min.
wheels diameter : 80 - 150 mm
power : 22 Kw 30 Hp
spindle power : 7,5 Kw 10 Hp
spindle speed : 7500 RPM
machine dimensions : L x W x H 4,1 x 2,8 x 2,1 m
electric cabinet 0,8 x 0,8 m
weight : 3500Kg
Glass straight-line edging machine by Fuschan FZM9325P has 9 spindles. Chain transmitting, suitable for straight-line edging with arris for various flat glass. Front arris spindles moing with the fore beam synchronously when processing various thickness of glass. This model is characterized by a very strong and stable structure (frame made of cast iron). FZM9325D has touchscreen and automatic PLC control. The machine has a pneumatic system. For each ordered machine, we add a WHOLE SET of 9 di...
The following items are for sale:
- Glass/plate grinding machine from Richard Spatzier
- used, optical condition according to photos
- with Demanders cross table, multi-sided adjustable
- Engine 1400rpm
- Dimensions Total approx: 120cm W 60cm D 180cm H
- the grinding plate approx. 26cm
- the clamping plate with two quick-release clamps approx. 40cm
- Water connection on the side
- Grinding plate can be adjusted several times by Kreutisch (high down, sharp, forwa...
Zafferani glass edge grinding machine
manufacture: Savam S.R. L. Italy
Year of manufacture 2000
suitable for the use of Abrasive belts 2400mm
Simple centring of the belts
Central roller with rubber cover
Motor 1.1 Kw, 380 V 50 Hz
Dimensions (L x W x H ) 950 x 900 x 1500mm
Weight 130 Kg
The machine is for grinding and polishing facets and edges.
It is similar to a Bavelloni SB 10.
- Type: Bilux 3FP
- Year of construction: 2001
- Serial number: 92237
- Complete with water tub (2000 x 2000mm)
- Working height: 1000 mm
- Glass thickness: 3 – 25 mm
- Max. Dimension of the glass: 2000 mm
- Max. Facet width: 40 mm
- Facet angle: 0 – 45°
- Weight: 700 kg
- Power: 400 V, 50 Hz, 5.2 kW, 10.4A
Price on request

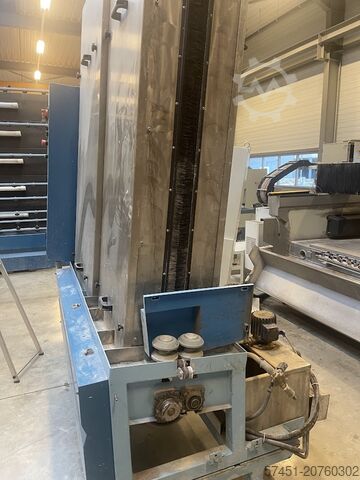

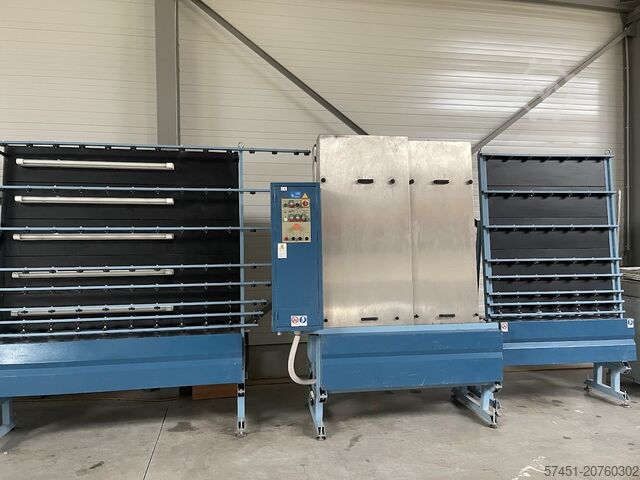

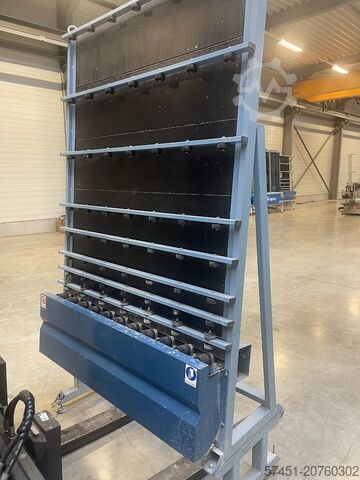

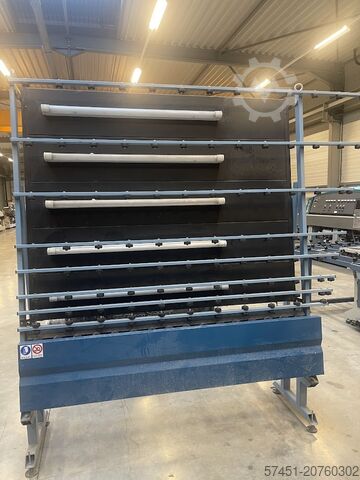

This is a vertical washing machine suitable for every type of glass panels.
Made exclusively in “open top” version, it allows to wash over-sized glasses. Glass washable minimum dimensions L = 300mm H =150mm. It is composed by a washing / rinsing section completely in stainless steel followed by a large drying section. Both sections of the machine are accessible through removable casing, soundproof in drying area. The mechanical movement is placed at the bottom, below the crankcase. At the same ...
10 cup wheels machine with variable angle 0-45°
with CE specifications
min. glass size : 90 x 90 mm
glass thikness : 3 - 30 mm
speed : 0,6 - 4,4 m/min.
power : 32 kw
machine dimensions : 8200 x 1200 x 2800 mm µ
weight : 5800 Kg
Machine is in excellent condition .
Glass straight-line edging machine by Fuschan FZM9325P has 9 spindles. Chain transmitting, suitable
for straight-line edging with arris for various flat glass. Front arris spindles moing with the fore beam
synchronously when processing various thickness of glass. This model is characterized by a very strong and stable structure (frame made of cast iron). FZM93265 has touchscreen and automatic PLC control. The machine has a pneumatic system. For each ordered machine, we add a WHOLE SET of 9 discs...
BodoGerhard K300E glass grinding machine from 2001 for sale. The machine is in continuous operation after reconditioning. The machine has eight heads (4 diamond and 4 polishing wheels).
Number of spindles: 8
Condition: Very good (after renovation)
Price: 12,500 net, negotiable
Possibility to see the machine in the plant. Possibility to send more photos or a video of the machine's operation.
Feel free to contact me!
7 wheels vertical glass bevelling machine
4 cup wheels for bevel
1 perpheral wheel for the edge
2 cerium oxide felt wheels
variable angle : 0-45°
min. glass size : 80 x 80 mm
glass thikness : 3 - 20 mm
work height : 960 mm
max. load : 800 kg
total power : 11,2 KW
speed : 0,6 - 3m/min.
weight : 4660 Kg
machine dimensions : L x H x W : 6959 x 1880 x 2985 mm
Bottero Titan 2x224-L group - "L" type transfer
Corner dubbing device
Automatic flat edge diamond wheels consumption recovery for group
High-speed movement for size change
Soft belts for Low-E glasses
Condition as is with many spare parts, see pictures.
- 11 spindles
- glass thickness: 3 - 31 mm
- min. glass dimension: 50 x 100 mm
speed: 0 - 5 m/min
- 23,8 Kw
- Machine dimensions + weight
o Length: 8,10 m
o Width: 1,20 m
o Height: 2,3 m
o Working height: 0,84 m
o Weight: 4000 kg
- Diamond wheels for flat edges
o Ø150 mm 2 (pos. 1-2)
- Diamond disc for flat edges
o Ø150 mm 1 (pos. 3)
- Diamond wheels for hems
o Ø100 mm 2 (pos. 4 and 6)
- Polishing wheels for hems
o Ø100 mm 2...
- Serial number: 3378
- Can miter up to 60
- Max. Glass dimension: 3000 x 3000 mm
- Min. glass dimension: 80 x 120 mm
- Glass thickness: 3 - 25 mm
- Year of manufacture: 2000
Price on request
