Used Scm Double End Tenoner for sale (598)

Condition: new, Year of construction: 2023, Stable cast iron construction Milling spindle can be swiveled backwards from 0° to -45° Right-left rotation of the milling spindle Generously dimensioned milling unit made of cast iron, attached directly to the table Solid and precise cast iron table Standard curved milling protection hood Aluminum sliding carriage ball contact system Torsion-resistant, highly precise, smooth-running and problem-free in daily use 10-year SCM guarantee on wear of the guideways Milling spindle mounted high up with precision ball bearings, resulting in the lowest possible bearing load and the longest possible service life Exact router fence with quick adjustment and fine adjustment with a scale on the stop jaw Integrated suction connection Large milling table opening allows the use of larger tools Weight approx. 290 kg Extraction connection diameter 2 x 120 mm Ncedpfxsiknp Rj Ab Esp Working table L x W = 1000 x 435 mm Table height 900 mm Sliding carriage length 1000 mm Sliding carriage width 270 mm Drive motor power 5.0 kW, 400 V, 50 Hz Milling spindle inclination 0 to -45 ° Spindle usable length 100 mm Overhang max. above table 130 mm Spindle speeds 3500/7000/10000 rpm Mandrel diameter 30 mm Tool diameter max. lowerable 180 mm

Condition: new, spindle moulder with tillable spindle guaranteed quality at your finger tips - easy-to-use the operator easily adjusts all movements due to a hand wheel with mechanical decimal readouts located on the front of the machine. spindle speed readout via LED's left right turning of spindle spindle moulder fence with manual adjustment machine in version 'LL' with left and right table elongation (2500 mm), pull - out work piece support and emergency stop button carriage on work table for tenoning works incl. fence and work piece clamp incl. feeder unit STEFF 2048 4 rollers 8 speeds work table dimensions 1200 (2500) x 855 mm spindle DM 30 mm usable spindle lenght 125 mm max. tool DM under table 240 x 80 mm suction connection DM 2 x 120 mm motor 5,5 kW INcL. OPTIONS: version 'LL' with long cast iron tables (2500 mm) & pull out work piece support in front fence with hand wheel adjustment and numerical read out machine dimensions L x B x H = 2500 x 855 x 900 weight approx. 500 kg Advise used machines: • Technical data without obligation, mistake and intermediate sale reserve. • Price is considered ex-location price • All articles or machines are bought as seen without any entitlement on warranty. Njdpfxjcuwptj Ab Eocp • It is left to the choice of the buyer to view the machines before at its location. • Special arrangements are possible but only valid in written form. (We answer your inquiries only with stated address + telephone number!)

Condition: used, machine/vehicle number: 007966, Position 1: Panel Feeding and Loading SCM-EVOLUTION C Position 2: Double Sided Squaring/Edgebanding Machines SCM-EVOLUTION C Position 3: Panel Stacking and Offloading SCM-EVOLUTION C Ncedpfx Aowu Agpsb Eep

Condition: used, machine/vehicle number: 008391, Type of edging: Thin edge, Thick edge, Solid wood Gluing System: EVA Hotmelt Premilling Unit: yes Ncodpfjygta Nsx Ab Ejp Corner Rounding Unit: yes Max feed speed: 28 m/min Maximum panel thickness: 60 mm Operating Units: 7 nr

Condition: used, machine/vehicle number: 007984, Max. machining width: 1300 mm Nedpswqdbmefx Ab Escp Min. machining thickness: 4 mm Working Table: Fixed pass height Vacuum feed belt: yes No. Operating units: 4 Nr

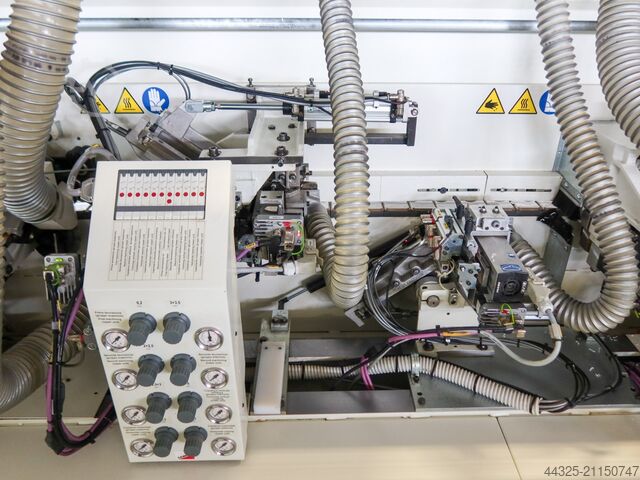

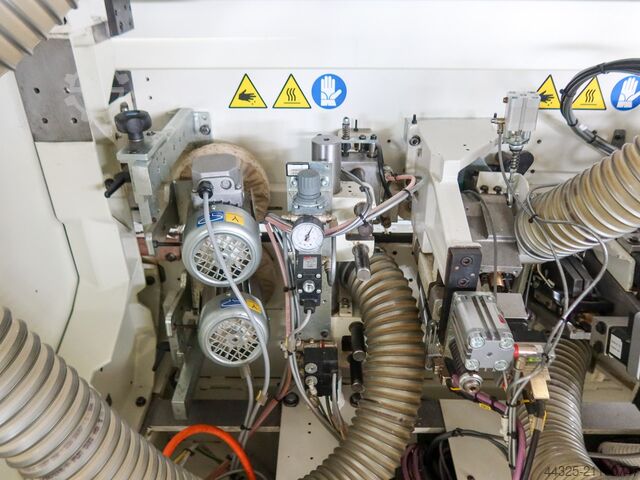

Condition: used, machine/vehicle number: 007855, Position 1: Single Edgebanders SCM-STEFANI KD Position 2: Panel Return Systems SCM-STEFANI KD Ncodpfxjyhml Ij Ab Eop

Condition: used, machine/vehicle number: 007983, Position 1: Single Edgebanders SCM-STEFANI KDR Position 2: Panel Return Systems SCM-STEFANI KDR Nsdpfx Aewqndlob Eecp

Condition: new, Work table adjustment in the infeed by means of parallelogram system Display for chip removal via degree scale Simultaneous height adjustment and locking of the work tables complete with anti-tilt device Quick changeover system for changing from dressing to thicknessing operations (CE version) by means of a special support for the opening of the dressing tables and an automatic pneumatic positioning system of the suction hood, with hydraulic assistance. "READY" electronic control includes: - Thicknessing table adjustment - Manual, semi-automatic and automatic mode with 99 storable working programs. - Additional functions: Calculator and hour meter Automatic star delta start for main engine Machine table with height adjustment via 4 steel threaded spindles Rubber-coated feed roller at the outlet Exchangeable feed rollers Link pressure shoes in the infeed Planing shaft and setting gauge for planing knives Micro protection switch for correct positioning of the dressing tables and extraction hoods Dressing hood (CE version) Automatic motor brake on main motor Ncjdpfx Aod Akyzjb Ejp Thermal protection switch Emergency stop switch Lockable main switch CE Declaration of Conformity Technical data [mm Usable working width [mm] 520 Total table length [mm] 2310 Blade shaft diameter [mm] 120 Motor power [kW] 9.0 Hz 50, 400 V Planer shaft speed [rpm] 5000 4 knives [mm] 35 x 3 x 520 Aluminium planing fence [mm] 1200 x 190 Planing fence inclination from 90° to -45 Min./ma

Condition: new, both working tables open at the same time! working width 410 mm cutter block DM 95 mm knife dimensions 410 x 30 x 3 Njdpfx Absdvn Hwj Escp max. chip removal 5 mm working table length 2200 mm thicknesses table dim. 410 x 775 mm feed speed 6/12 m/ min min. ÷ max. work piece height 3 ÷ 240 mm Motorleistung 5,0 kW, 400V, 50 Hz incl. options: "Tersa”-cuter block Ø 95 mm, with 4 pcs knifes auxiliary fence for small work pieces electric height adjustment for thicknessing table with digital readout

Condition: new, - extra long - one piece - planing tables (2250 mm) from cast iron - simultaneous opening and closing of planer tables with locking system - heavy duty industrial style main motor - fixed suction hood - planer fence dimension 1200 x 150 mm with small parts fence - feeder with 4 feed speeds and separate motor - thicknesser table mounted on 4 solid spindles and linear guides - high quality steel anvil roller - rubber coated outfeed roller - digital display of thicknessing height - autom. star triangle switch techiscal data: total planer table lenght 2250 mm max. working width 520 mm max. chip removal 5 mm dimensions thicknessing table 850 x 520 mm min/max. working height 3/ 240 mm feed speeds 5/ /8 /12/ 18 m/min planer head dimension 120 mm/ incl. 4 pcs HSS cutter knifes planer head speed 5000 1/min Ncodpfx Abocq E Uus Ejp main motor 400 V/50 Hz/S6 - 40 % 7,0 kW suction hood dimension 1 x 120 mm weight approx. 650 kg - "Teresa"-cutter block Ø 120 mm, mono block, with 4 knifes - additional fence for small work pieces - motorised height adjustment for thicknesser table with digital read out - thicknesser table with 2 rollers

Condition: new, Working width (finished size) 23 – 180 mm Working height (finished size) 6 -105 mm Min. length of single workpiece 300 mm Feed speed 6 – 12 m/min Motor power horizontal spindles 2 x 7.5 kW Motor power vertical spindles 1 x 7.5 kW Spindle speed 6000 rpm Spindle diameter 35 mm Clamping length vertical spindles 120 mm Clamping length horizontal spindles 190 mm Manual lubricant pump Profile capacity without axial adjustment on vertical spindle 10 mm Los roller integrated in the outfeed table Suction DM 4 x 120 mm Including OPTIONS: - Motor-driven feed roller in front of the planer with lever for quick changeover - Front vertical printing unit in front of the left vertical spindle - Feed table length 2300 mm - Tool package consisting of 4 planing heads and a joint rebate cutter Ncjdpeiiv Dcjfx Ab Esp

Condition: reconditioned (used), Year of construction: 2005, through feed moulder with 9 spindles and SCM control 100 PC control system Max. Working width 240 mm Min. Working width 25 mm Max. Working height 120 mm Min. Working height 10 mm Min. Work piece length 640 mm feed speed 6 - 36 m/ min, variabel Spindle DM 40 mm Usable length vertical spindles 140 mm Usable length horizontal spindles 250 mm Axial adjustment vertical spindles 0 - 80 mm Axial adjustment horizontal spindles 0 - 45 mm Min and max. Tool DM 100 - 220 mm Min. And Max. Tool DM on planer spindle 120 - 140 mm Profiling capacity of 2. Bottom horizontal spindle with tool DM 200 mm = 15 mm Power feeder motor 5,5 kW DM feeder rollers 140 mm Infekt table length 2500 mm Quick adjustment indeed table and fence 10 mm Required suction capacity 7500 m3/ h Compressed air requirement 6 - 10 bar Weight approx 6000 kg Dimension approx. L x W x H = 6300 x 1620 x 1655 mm Spindle arrangement: Bottom horizontal spindle Motor 11,0 kW Spindle Speed 6000 RPM Right vertical spindle Motor 7,5 kW Spindle Speed 8300 RPM Left vertical Spindle Motor 7,5 kW Spindle Speed 8300 RPM 2. Right vertical spindle Motorleistung 7,5 kW Wellendrehzahl 8300 RPM 2. Left vertical spindle Motor 7,5 kW Spindle Speed 8300 RPM Top horizontal spindle Motor 11,0 kW spindle speed 8300 RPM 2. Bottom horizontal spindle Motor 12,0 kW spindle speed 8300 RPM 2. Top horizontal spindle Motor 11,0 kW Ncodpfxeg Umrms Ab Esp spindle speed 8300 U/min 3. Bottom horizontal spindle Motor 7,5 kW spindle speed 8300 U/ min SET - UP quick set up system reduces down times Power Lifting of the feed system and upper spindle units with 100 PC control Pneumatic opening of safety hood full Kardan feed system Feed speed variable Segmented pressure shoe before upper horizontal spindle with parallelogram movement and pneumatic pressure Fine adjustment of outfield table Pneumatic blocking of spindle in working position incl. ZIWO CL 15 automatic feeding unit Advise used machines: • Technical data without obligation, mistake and intermediate sale reserve. • Price is considered ex-location price • All articles or machines are bought as seen without any entitlement on warranty. • It is left to the choice of the buyer to view the machines before at its location. • Special arrangements are possible but only valid in written form. (We answer your inquiries only with stated address + telephone number!)

Condition: as good as new (ex-display), 21-spindle single-head drilling machine, suitable for all carpentry needs, ideal for joining a work center to save time and release it from horizontal drilling operations. PNEUMATIC HEAD ROTATION - with lock and stop reference from 0° to 90°at any angle. SIDE REFERENCE FENCES - Adjustable cast iron fences on a metric scale thanks to a magnify glass and nonius. Nsdod Supgspfx Ab Ejcp PATENTED SPIRAL SYSTEM - Device for boring depth adjustment, allowing an easy and quick set-up on a millimetric scale according to the different drill lengths. no of drilling spindles 21 # distance between drilling spindles 32 mm working width 640 mm max drilling depth 65 mm no. of pneumatic work piece clamps 2 # work piece dimensions max 900 x 3000 x 60 mm motor 1,5 kWm 50 Hz, 400 V, 2800 rpm pneumatic pressure requirement 6-8 bar compressed air consumption 10 l/cycle suction DM 80 mm machine dimensions L x W x H = 1030 x 1030 x 1285 mm weight 240 Kg

Condition: new, work table dimensions 2500 x 780 mm spindle DM 30 mm tilting of spindle +/- 45,50 usable spindle lenght 140 mm Max. tool DM under table 300 x 80 mm suction DM 1 x 120 & 2 x 100 mm Motor elektrospindel 7,50 kW elektro spindel with inverter for speed 900 to 12.000 RPM Ncjdpfx Abed Etkho Esp control panel with mit "Easy Touch 7" program "Flex"- fence with autom. adjustment via 'Easy Touch 7' left right turning of spindle table elongation front INCL. OPTIONS: - "Fast” table with autom. adjustment via 'Easy Touch 7' control - version “LL” with 2 cast iron tables (2500 mm) Advise used machines: • Technical data without obligation, mistake and intermediate sale reserve. • Price is considered ex-location price • All articles or machines are bought as seen without any entitlement on warranty. • It is left to the choice of the buyer to view the machines before at its location. • Special arrangements are possible but only valid in written form. (We answer your inquiries only with stated address + telephone number!)

Condition: new, The model ME 40TR is SCM’s ‘bestseller and in this category offering unrivaled price / performance ratio. We can offer the following new machine SCM me 40tr, CE Volt 400 EU, frequency 50 Hz edge thickness coils 0,4 - 3 mm max. edge thickness strips 5 mm min. – max. work piece thickness 8 - 50 mm feed speed 9 m/ min glue pot unit 0,18 kW, capacity 0,8 kg Nedpfx Abjc S Di Rs Eecp premiling aggregate 2,2 kW, 9000 U/ min end-cutting unit with "Radius" allows you to make a radius on the corners of the edged panel trimming unit 2 x 0,35 kW, 12.000 U/ min OPTIONAL device for panel preheating edge scraping unit flat scraping unit grooving unit 1,1 kW, 12.000 U/ min, notch width 4 mm brushing unit with 2 independent motors magazine for strip edges kid for quick exchange of glue unit ...

Condition: new, Sturdy cast steel construction High-precision sizing slide made of anodized aluminium with a travel of 2250 mm Maximum saw blade diameter of 315 mm possible, saw blade can be tilted 45 Large trimming frame (960 x 600 mm) with telescopic aluminum fence that can be extended up to 2660 mm Heavily ribbed dressing work tables made of gray cast iron, re-annealed and stress-free for decades of stability and flatness Helical toothed steel feed roller for even material feed Three milling speeds, manually adjustable Milling spindle with right/left rotation Three independent industrial motors With lockable main switch, motor protection switch, emergency stop switch Dressing table width 410 mm Dressing table length 1810 mm Chip removal max. 4 mm Thicknessing table length 605 mm Thicknessing table width 410 mm Working height min. 3 mm Working height max. 230 mm Feed speed 7 m/min Chip removal max. 4 mm Suction nozzle diameter 4 x 120 mm Planer cutterblock type TERSA (3 pcs.) Planer shaft diameter 72 mm Speed 5200 min-¹ Circular saw Edging length 2250 mm Cutting width with rip fence 900 mm Max. Cutting width to the left of the saw blade 2310 mm Saw blade inclination 90 - 45 ° Ncodpfx Asiiynnsb Eep Max. Cutting height at 90° 90 mm Max. Cutting height at 45° 63 mm Saw blade diameter 315 mm Saw blade speed 4000 min-¹ Sliding carriage and table Length of sliding table 2600 mm Spindle diameter 30 mm Speeds 3500/7000/ 10000 min-¹ Milling tool diameter max. lowerable/ not lowerable 180/ 210 mm Power drive motor 3 x 5.0 kW, 400 V, 50 Hz Machine weight approx. 560 kg INCLUDING OPTIONS - Handwheel with gravitational-numerical display for thicknessing table positioning - Sliding carriage length 2600 mm - Professional stops - "TERSA" planer cutterhead - Right-left rotation of the cutter

Condition: excellent (used), Wide Belt Sander for Calibration and Fine Sanding SCM Model RCS 1st Unit: Calibration Roller, Steel 2nd Unit: Combination Unit (Roller 60 Shore, sanding pad with 2 inserts – hard, soft) Working width: 920 mm Abrasive belt dimensions: 930 x 1,525 mm Main motor power: 11.0 kW, 400 V, 50 Hz Feed motor power: 0.37 kW, 400 V, 50 Hz 2 feed speeds Electromotive table height adjustment Main switch lockable 2 x emergency stop Table extension with 2 rollers, front and rear Sanding pad inserts fitted with new graphite cloth Including as-new sanding belts All documentation included Note for used machinery: • Specifications, data, and prior sale are subject to change. • Prices stated are ex works – free loaded! • The machine has been cleaned and functionality tested. • All machines are sold as seen without any rights to warranty. Buyers are welcome to inspect the machines on site. • Special agreements are only valid in written form. Nedsxqggcspfx Ab Eocp (We only respond to inquiries that include your address and telephone number!)

Condition: excellent (used), Wide belt sander for calibration and fine sanding Working width 1100 mm Min. / max. workpiece height 3 - 120 mm Feed motor power 0.8 kW Sanding belt speed 18 m/sec Sanding belt dimensions 1115 x 2620 mm Feed speed 4.5 / 9 m/ min Suction connection 3 x 160 mm Compressed air connection 6 bar 1st unit Sanding roller rubber-coated 90 Sh Motor power 11 kW 2nd unit Combi unit Rubber-coated sanding drum 60 Sh Sanding pad, rigid Motor power 11 kW 3. cleaning brush unit Automatic workpiece thickness adjustment at infeed with digital workpiece thickness display Table extension in the outfeed Dimensions approx. L x W x H = 2291 x 1784 x 2350 mm Weight approx. 3000 kg Note used machines: - Subject to errors in technical specifications and prior sale. - Prices quoted are ex location - free loading! - The machines have been cleaned and functionally tested. - All machines are purchased as seen without any warranty. The buyer is free to inspect the machines on site. Nsdpstwzyfsfx Ab Escp - Special agreements are only possible in written form. (Inquiries will only be answered with your address and telephone number).

Condition: new, Wide belt sanding machine for calibrating and fine sanding Working width mm 1,100 Min/ Max. working height mm 4/ 170 Sanding belt width mm 1,115 Sanding belt length mm 2,150 Gear motor kW 2.2 Feed speed m/min variable Infeed and outfeed support rollers for long and short workpieces Oscillating belt cleaning 1st unit Oscillating belt cleaning 2nd unit Oscillating belt cleaning 3rd aggregate 10” touch screen control panel “eye-S” 1. Aggregate steel roller 2. Aggregate rubberized calibrating roller 85SH 3. Aggregate combi-aggregate pneumatic seg. sanding pad /rubberized sanding roller 35 SH Ncodpfeitvkuex Ab Eep Motore power 1st unit kW 18.5 Motor powert 2nd & 3rd aggregate kW 18.5 Version "B" for RRCS with: Pneumatic switching on and off 1st aggregate Pneumatic switching on and off 2nd aggregate Pneumatic switching on and off 3rd aggregate "MESAR" with elastic segmented sanding pad Pneumatic switching on and off of the sanding pad unit electronic adjustment of the working height SPECIAL PRICE! IMMEDIATELY AVAILABLE

Condition: new, Features: 5-axis electronic control overhead control panel, rotatable electronic adjustment for scoring unit automatic rip fence with movement on screw and ball pushing linear guide start / stop pushbuttons integrated in the carriage “Quick Lock” squaring fence sliding carriage with 'arc' profile - 10 years warranty telescopic swing arm made of large dimensioned extrusion and linear guide on recirculating ball bearings Ncjdpfx Ascrnm Nob Eop Technical Data: saw blade DM mm 550 scoring unit blade DM mm 120 squaring capacity mm 3200x3200 tiltig capacity deg. 0 +46 max. cutting height at 90° mm 200 max. cutting height at +45° mm 130 saw blade speed RPM 2500, 3500, 5000 scoring unit blade speed RPM 8500 DM suction connections mm 120 & 100 main motor Hz 50 kW 7,0 scoring unit motor Hz 50 kW 1,3 cutting capacity right side mm 1500 incl. following options: 570335 "Pro-Lock" system for quick changing of main saw blade without tools

Condition: excellent (used), Year of construction: 2005, 3-axis controlled panel saw with parallelogram support table Swiveling control panel above the table Data input via membrane keypad Electronic scoring unit adjustment Automatic parallel fence with adjustment via leadscrew and linear ball bearing guide Parallelogram support table for miter cuts Manual adjustment with angle settings from +50° to -50° perpendicular to the cutting axis with corresponding fine adjustment. Angle detection system using magnetic strip and LCD display. Crosscut stop with 3 LCD displays Extendable support table with roller support Technical Data: Cutting length mm: 3200 Main saw blade diameter mm: 450 Scoring blade diameter mm: 120 Nedpfx Ajyftzkob Ejcp Panel cutting size with extendable stop mm: 3200x3200 Swivel range degrees: 0° / +46° Max. cutting height at 90° mm: 150 Max. cutting height at +45° mm: 130 Saw blade rotation speed rpm: 2500, 3500, 5000 Scoring blade speed rpm: 9000 Extraction port diameter mm: 120 & 100 Main motor power Hz 50 kW: 7.5 Scoring unit power Hz 50 kW: 0.75 Cutting width with parallel fence mm: 1270 Weight approx.: 1180 kg Note on used machines: • Errors in technical details and prior sale excepted. • Stated prices are ex-location, loaded free of charge! • The machines have been cleaned and function tested. • All machines are sold as seen, without any warranty or guarantee. The buyer is welcome to inspect the machines at our premises. • Special agreements are only valid in written form. (We only respond to inquiries including your address & telephone number!)

Condition: new, Saw unit swivels 46 ° on both sides. Programmable, electric saw blade adjustment Control unit with electronic display for saw blade tilt and lift Torsional rigidity and vibration-free working Easier plate feeding due to large trimming frame with roller Telescopic ruler with 2 professional folding stops Excellent cutting precision scoring unit equipped with its own motor - easily adjustable from the outside saw blade diameter of 400 mm scoring saw blade with a diameter of 160 mm 2-position saw blade pendulum protection manell adjustable 3-axis controlled Motorized rip fence with electronic positioning includes: Position display via an encoder Adjustment via ball screw Stepless adjustment via switch or automatic positioning system Cutting width 1270 mm Programmed movement of motorized adjustment and tilting for saw unit UP version with swivelling control panel for maximum flexibility X version with Compex miter fence for quick and accurate execution of miter cuts with automatic compensation of the stop position. (Length compensation) incl. options: - cutting lenght 3200 mm - on / off buttons for main motor and scoring unit integrated in saw carriage Ncjdpfsd Akygex Ab Eop - CompeX frame - Version "READY 3 UP" - 2 saw speeds (3500/5000 U/min) Max. cutting width with rip fence 1270 mm Format cuts 3200 mm main motor 7,0 kW, 400 V, 50 Hz Saw blade angle -46 - 46 ° Max. cutting height 90° 136 mm Max. cutting height 45° 97 mm Max. cutting height -45° 60 mm saw blade diameter 400 mm Diameter scoring saw blade 160 mm (Main) saw blade speed 4000 min¯¹ Dust extraction ports 120 & 80 mm

Condition: excellent (used), Year of construction: 1999, cutting length 3.200 mm cutting width 3.200 mm cutting hight 65 mm saw blade DM max. 300 mm saw blade motor: 5,5 kW scoring unit DM max. 160 mm motor scoring unit 1,5 kW front support tables 3 Stk. 1 x 2500 x 500 & 2 x 1500 x 500 mm cutting optimisation program Nodpfx Abshvan Ie Ejcp no. of grippers 8 pcs saw blade hight adjustment on THK guides pressure beam with openings side pusher (alignment) saw blade quick change system suction DM1 x 120 & 1 x 150 mm space requirement L x B 5700 x 6000 mm weight approx. 2500 kg INVERTER NEW Advise used machines: • Technical data without obligation, mistake and intermediate sale reserve. • Price is considered ex-location price • All articles or machines are bought as seen without any entitlement on warranty. • It is left to the choice of the buyer to view the machines before at its location. • Special arrangements are possible but only valid in written form. (We answer your inquiries only with stated address + telephone number!)

Condition: new, Technische Daten: Abmessungen der Heizplatten 3000 x 1300 mm Anzahl der Heizplatten 2 # Anzahl der Presszylinder 6 # Pressdruck 90 t (900 kN) Zylinderdurchmesser 70 mm Anzahl der Etagen 1 # Etagenöffnung ca. 400 mm Anschlussleistung ca. 21,0 kW ELEKTRISCH BEHEIZBARE TISCHE (ELKOM - Deutschland) Der Tisch besteht aus 2 kalibrierten Aluminiumplatten, in denen die elektrischen Widerstände verlegt sind. Die maximale Betriebstemperatur ist 120 Grad C. Im am Tisch wird eine Dämmplatte montiert, die zur Wärmeisolierung gegenüber der Presse dient. Der Bau des Tisches und die präzise Verarbeitung, die von spezialisierten Firmen vorgenommen werden, gewährleisten eine sehr gleichmäßige Verteilung der Temperatur. Die Heizplatten sind mit speziellen Halterungen an der Presse befestigt um die Wärmeausdehnung zu erlauben, außerdem erleichtern sie die Wartung und das Auswechseln. Spezifischer Betriebsdruck des Tisches bis zu 10 kg/cm2 Ncodpfx Abofh Tmmo Esp Max. Temperatur der Heizplatte 120 Grad C Arbeitstemperatur 90 Grad C Schuetzsteuerung Waermeschutzschalter Die Zylinder sind aus spezial geschweissten und gross dimensionierten Stahlrohren hergestellt. Hydraulik: Kompakte hydraulische Einheit Fabrikat HAWE aus Deutschland. Pumpe fuer Schliessphase und Druckaufbauphase. Automatische Nachdruckverstellung Leistung der hydraulischen Einheit 3 kW Bewegung des Presstisch von unten nach oben. Pressengestell: Das Pressengestell besteht aus einer schweren verwindungssteifen und spannungsfrei geschweissten Stahlkonstruktion. Beide Presstische sind aus HEA-Profilen geschweisst. Die Bearbeitung der Baugruppen erfolgt auf CNC-Barbeitungsmaschinen. Bewegung des Presstisches mit Zahnstangen und Parallelfuehrung an 2 Ecken des Presstisches aus selbstschmierenden Material. BEDIENTAFEL mit Display und Tastatur: Bedientafel Siemens mit 7-Zoll-Farb-Touchscreen mit Verbindung zum Ethernet- Netzwerk für den Fernwartungsservice. Das System ist mit einer eigenen Software ausgestattet durch die die Bedienung der Presse einfach und intuitiv erfolgen kann. Sie können folgende Parameter programmieren, abrufen und ändern: - Automatische Regelung des hydraulischen Drucks aufgrund des Werkstückgrösse und des gewünschten spezifischen Drucks. Das System reguliert den Druck der Zylinder automatisch und der Bediener muss keine Berechnungen mit Grafiken oder Tabellen anstellen. - Möglichkeit zum Speichern von bis zu 100 Arbeitsrezepten (Temperatur, spezifischer Druck, Pressdauer, Plattengrösse). - Direkteinstellung des hydraulischen Drucks der Zylinder mit digitaler Kontrolle aufgrund der Grafik. Dieses System kann alternativ zur automatischen Regulierung verwendet werden, falls Sie lieber mit der herkömmlichen Methode arbeiten. - Elektronische Regelung der Pressdauer - Elektronische Kontrolle der Temperatur der Tische - Automatische Wiederherstellung des Drucks aufgrund des Nachgebens des Materials. - Komplette Diagnostik und Störungsanzeige mit Meldungen am Display. WEITERE AUSSTATTUNG UND MERKMALE DER PRESSE Haken zum Anheben der Maschine um das Laden/ Entladen der Maschine beim Transport zu erleichtern. Nivelliervorrichtungen die an den Füssen der Presse montiert sind. In die Presse integrierte Schalttafel; dadurch sind weniger Aussenkabel notwendig, die vorhandenen sind jedoch auf jeden Fall angemessen geschützt. inkl. Option: Fehlbelegungsüberwachung (Ebenheitskontrolle)

Condition: new, DMC SD 90 RCS 135 "C-Plus" version Technical specifications: Useful working width mm 1350 min/max Working height (with fixed table) mm 4 – 200 Abrasive belts mm 1,370 x 2,620 Feed speed m/min 3.5-18 working aggregates: “MESAR 46” 46 sectors (30 mm) flexible electronic link sanding pad complete with B/46 workpiece sensing bar in the infeed • 1st position: "RA" diagonally ribbed steel contact roller D=250 • 2nd position: COMBI with rubber-coated grinding roller D=175 mm 65 Sh • Floating pressure shoe in 1st position with pneumatic adjustment • 2 grooved rubber coated pressure rollers 2nd and 3rd position Noded E Ixzopfx Ab Eocp • Oscillating blow-off device 1st and 2nd unit • Workpiece cleaning unit with rotating blast nozzles • Motor 1st unit 18.5 kW • Motor 2 with inverter 15 kW Table: • Fixed table working height 900 mm • Infeed roller table for long workpieces • Outfeed roller table for long workpieces • Perforated table and transport carpet 50 Sh • Vacuum table with 4 kW electric fan integrated in the machine frame • Stepless carpet feed from 3.5-18 m/min (gear motor 0.75 kW) Control: • Electronic programming unit "Pro-Sand" • Touch screen 10.4" screen • Door with viewing window on set-up side for machine with 2 working units • LED interior lighting Advise used machines: • Technical data without obligation, mistake and intermediate sale reserve. • Price is considered ex-location price • All articles or machines are bought as seen without any entitlement on warranty. • It is left to the choice of the buyer to view the machines before at its location. • Special arrangements are possible but only valid in written form. (We answer your inquiries only with stated address + telephone number!)
