Used Scm Double End Tenoner for sale (650)

Condition: ready for operation (used), Year of construction: 2014, machine/vehicle number: AA2/002546, functionality: fully functional, travel distance X-axis: 7,033 mm, travel distance Y-axis: 1,940 mm, travel distance Z-axis: 475 mm, spindle speed (max.): 24,000 rpm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Number of milling spindles: 1 Number of controlled axes: 5 Spindle speed: max. 8,000 rpm Main motor power: 11 kW C-axis: Available Tool holder: HSK-F63 Table design: Cantilever table Table length: 5,200 mm Table width: 1,300 mm Working area X-axis: 6,350 mm Working area Y-axis: 1,300 mm Working area Z-axis: 200 mm Travel range X-axis: max. 7,033 mm Travel range Y-axis: max. 1,940 mm Hjdpo Aidx Hjfx Anwjfp Travel range Z-axis: max. 475 mm Drilling tool: Available Motor power: 3 kW Horizontal drilling spindles: 6 Vertical drilling spindles: 10 Tool changer positions: 24 MACHINE DETAILS Vacuum pump: Becker VTLF 250 Year of manufacture: 2008 Main motor power: 5.5 kW Capacity: 300 m³/h Connection diameter: 70 mm Oil-free: Yes Voltage: 400 V Current consumption: 64 A Dimensions & Weight Dimensions (L x W x H): 10,300 x 2,450 x 2,800 mm Installed length: 11,000 mm Installed width: 3,900 mm Installed height: 3,000 mm Transport weight: 6,600 kg Transport packages: 1 EQUIPMENT Tools CE marking

Condition: ready for operation (used), Year of construction: 2016, machine/vehicle number: AA1/018/23, functionality: fully functional, operating hours: 12,371 h, travel distance X-axis: 5,709 mm, travel distance Y-axis: 1,650 mm, working width: 1,260 mm, milling spindle speed (max.): 20,000 rpm, working length: 5,200 mm, TECHNICAL DETAILS Working area X: 5,200 mm Working area Y: 1,260 mm Main spindle travel X: 5,709 mm Main spindle travel Y: 1,650 mm Number of workpiece consoles: 8 Hedpfe Ai Emhex Anwjfp Drilling unit Total number of drilling spindles: 18 Vertical drilling spindles: 12 Horizontal drilling spindles: 6 Horizontal drilling spindles in the X direction: 4 Horizontal drilling spindles in the Y direction: 2 Milling spindle Motor power: 11 kW Speed: max. 20,000 rpm Tool holder: HSK-F 63 Number of controlled axes: 5 MACHINE DETAILS Voltage: 400 V Frequency: 50 Hz Phases: 3 Operating hours: 12,371 h EQUIPMENT Drilling unit with 18 spindles Keyway cutter Liquid-cooled milling motor Tool changer with 16 positions Side tool changer with 8 positions PC control

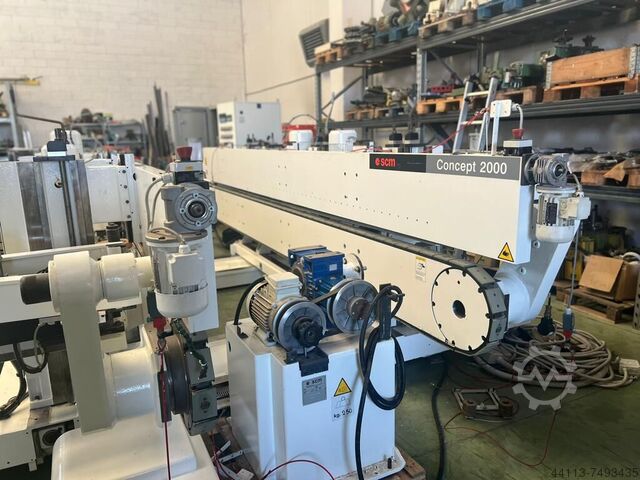

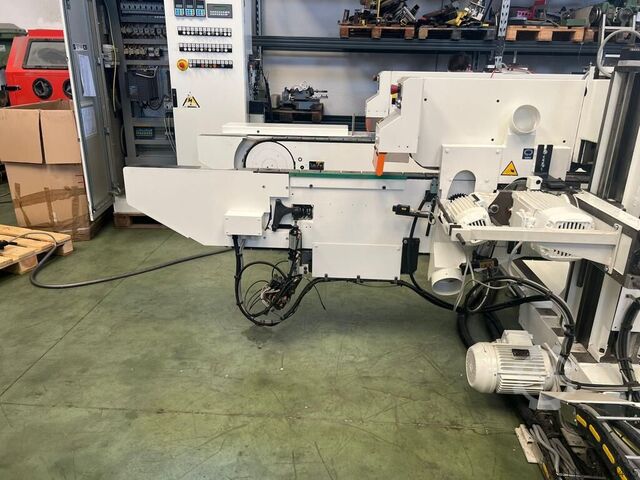

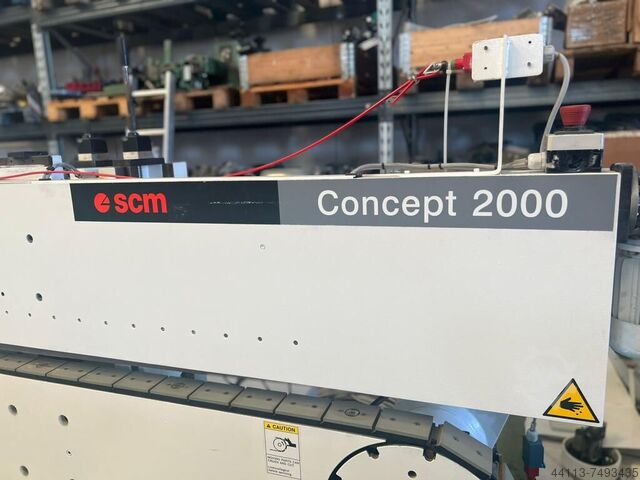

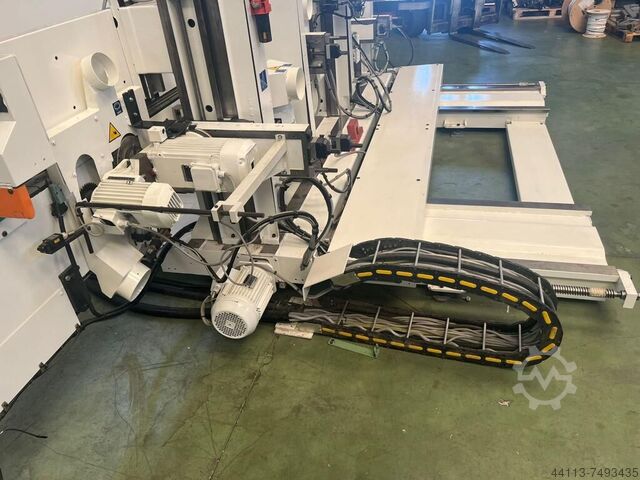

Condition: good (used), Double-end tenoner, brand SCM, model Concept 2000, complete with electronic feed and height adjustment. Chipbreaker on the right and left spindles. Timing shaper cutter + fixed shaper cutter on the right and left spindles. Shaper cutter with grinding wheel on the right and left spindles. Belt sanding unit on the left spindle. Hfsdszfprkopfx Anwjp Inverters on all shaper cutters. Working width 3000 mm. Pin ejection with selector. Track shoe width 50 mm for processing narrow parts. Machine in perfect condition, ready for use.

Condition: excellent (used), Independent machine (standing alone) and/or Universal machine (First & Second in a line) Electronic Programmer EasyLing Safety and sound-proof enclosure No. 3+3 Vertical columns to support the working units Min. useful working width (mm) 240 Max. useful working width (mm) 3100 Min. useful working tickness (mm) 3 Max. useful working tickness (mm) 150 Distance between center-axes of the disappearing dogs (mm) 800 Hfsdewhmdfopfx Anwjp Adjustable (min/max) feeding speed (m/min) 4 - 24 Total installed power No. 4 Working groups (for each machine's side): Scoring Unit Jumping Scoring Unit 1 x Kw 3 (RPM 6000) Hogging Unit 1 x Kw 6 (RPM 6000) 0-10° Jumping Milling Unit 1 x Kw 6 (RPM 6000) 0°-90° Milling-Shaping unit 1 x Kw 6 (RPM 6000) 0°-90°

Condition: excellent (used), Independent machine (standing alone) and/or Universal machine (First & Second in a line) It is 2nd DET in the X10023 LINE Electronic Programmer OMRON Safety and sound-proof enclosure Electric and command cabinet No. 3+3 Vertical columns to support the working units As a second machine, it accepts panels 1900 mm deep Min. useful working width (mm) 300 Max. useful working width (mm) 2500 Min. useful working thickness (mm) 6 (ca.) Max. useful working thickness (mm) 60 Hfodpfxoyz Si Hj Anwep Distance between center-axes of the disappearing dogs (mm) 400 Adjustable (min/max) feeding speed (m/min) 4-24 Total installed power Kw 65 No. 3 Working groups (for each machine's side): - 1 Jumping vertical NC Milling Unit (useful height 300 mm), belt drive motor (9.2 kW at 3000 rpm) - 1 Standard vertical NC Milling Unit (useful height 500 mm ca.), belt drive motor (9.2 kW at 3000 rpm) - 1 Jumping vertical NC Milling Unit (useful height 300 mm), belt drive motor (9.2 kW at 3000 rpm) NOTE: These 3 main vertical Milling units are NC controlled, with horizontal and vertical adjustment - 1 Free space

Condition: excellent (used), Independent machine (standing alone) and/or Universal machine (First & Second in a line) Electronic Programmer Safety and sound-proof enclosure - OPTIONAL No. 4+4 Vertical columns to support the working units Min. useful working width (mm) 150 (ca.) Max. useful working width (mm) 3100 (ca.) Max. useful working thickness (mm) 180 (ca.) Distance between center-axes of the disappearing dogs (mm) 500 (ca.) Adjustable (min/max) feeding speed (m/min) 8-40 (ca.) Hfedpeifz H Nsfx Anwop No. 8 Working groups (for each machine's side): 1 Jumping Scoring Unit 1 Hogging Unit 1 Jumping Milling Unit 1 Milling-Shaping unit 1 Corners Rounding unit (contour trimming) with 2 vertical motors 1 Belt sanding unit (with abrasive disc) 1 Belt sanding units (with abrasive papers)

Condition: excellent (used), Year of construction: 2007, I sell the double end cutting and tenoning machine SCM CONCEPT NT. Working width up to 3000mm Configuration left side / fix: 1 pc. cutting saw aggregate Hfodpotv Rxbjfx Anwsp 1 pc. moulding aggregate 1 pc. moving jumping moulding aggregate Configuration right side / moving: 1 pc. cutting saw aggregate 1 pc. moulding aggregate 1 pc. moving jumping moulding aggregate Material pressure feeding band from top Throughfeed machine. Very good condition. Available immediately.

Condition: excellent (used), Independent machine (standing alone) and/or Universal machine (First & Second in a line) It is the 1st Double End Tenenor in the X10023 LINE Electronic Programmer OMRON Hedjyz Siaopfx Anwjfp Safety and sound-proof enclosure Electric and command cabinet No. 2+2 Vertical columns to support the working units Min. useful working width (mm) 300 Max. useful working width (mm) 2000 Min. useful working thickness (mm) 6 Max. useful working thickness (mm) 60 Distance between center-axes of the disappearing dogs (mm) 400 Adjustable (min/max) feeding speed (m/min) 4-24 Total installed power Kw 60 No. 4 Working groups (for each machine's side): - 1 Jumping vertical NC Milling Unit (useful height 300 mm), belt drive motor (9.2 kW at 3000 rpm) - 1 Standard vertical NC Milling Unit (useful height 300 mm), belt drive motor (9.2 kW at 3000 rpm) - 1 Jumping vertical NC Milling Unit (useful height 300 mm), belt drive motor (9.2 kW at 3000 rpm) NOTE: These 3 main vertical Milling units are NC controlled, with horizontal and vertical adjustment - 1 Vertical Milling Unit (1.5 kW at 1470 rpm)

Condition: ready for operation (used), Year of construction: 1977, functionality: fully functional, No minimum price – guaranteed sale to the highest bidder! Loading: December 1st to December 10th. TECHNICAL DETAILS WORK AREA Table dimensions: 900 × 770 mm Additional work table: 1,000 × 300 mm Table height adjustment: 115 mm ROUTING HEAD Speed: 10,000–20,000 min⁻¹ Swivel range of routing head: 0–60° Spindle stroke: 135 mm Hfjdpfx Aj Ad Igzenwjp Spindle diameter: 85 mm MACHINE DETAILS Manufacturer: SCM Type: R9 Year of manufacture: 1977 Machine type: Overhead router Dimensions (L × W × H): 1,650 × 1,250 × 2,000 mm Weight: 1,500 kg

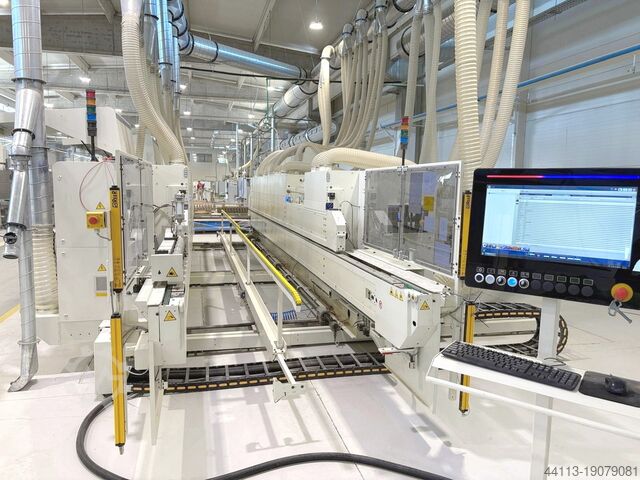

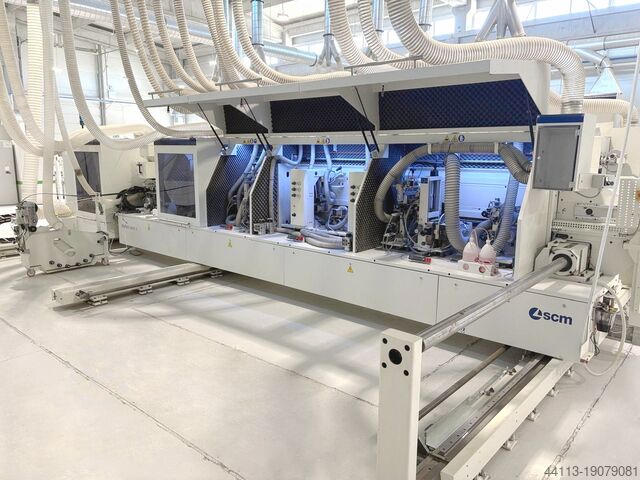

Condition: excellent (used), Year of construction: 2018, functionality: fully functional, workpiece height (max.): 60 mm, workpiece width (max.): 1,600 mm, workpiece length (max.): 3,200 mm, edge thickness (max.): 12 mm, height adjustment type: electric, Equipment: CE marking, documentation/manual, SCM Group -STEFANI: 4-sided edgebander complete machine line (2x double-sided edgebanders with vacuum loading, turning unit, drilling and vacuum unloading,) 1. SCG - Vacuum feeder with roller conveyor 2. STEFANI Evolution SSB - double-sided edgebander 3. MAHROS - part turning unit (turning parts by 90°) 4. STEFANI Evolution SSB - double-sided edgebander 5. BIESSE - drilling machine 6. SCG - Vacuum unloading with roller conveyor + including 4x NORDSON units for PUR glue application -All parts/units were made in Italy. -During the operation the machine line was used only with EVA type of glue. The PUR gluing units have not been used and they are in a brand new condition - applicators on the machine and the 4 NORDSON units. Hjdpfx Ans Afbuhjwefp -Please, find the technical parameters in the PDF bellow.

Condition: used, Year of construction: 2022, machine/vehicle number: AH00003901, functionality: fully functional, input voltage: 400 V, input current: 37 A, input frequency: 50 Hz, type of input current: three-phase, edge thickness (max.): 60 mm, height adjustment type: electric, actuation type: electric, overall weight: 2,650 kg, Equipment: CE marking, documentation/manual, used SCM Stefani KD edgebander in HP configuration, year 2022. The machine is in excellent condition and can be seen running. Units: RT/E pre-milling unit with diamond cutters (H 64 mm) VC800 gluing unit with pre-heating for EVA glue Automatic edge feed from coil and strips K/SEL end trimming unit, tilting 0–15° R-HP Multiedge tilting trimming unit for 2 radii (4-axis positioning) Round K corner rounding unit R-HP Multiedge radius scraper for 2 radii and RAS/V scraper RCA/2C flat scraper Buffing brushes Additional equipment: Startouch 12" control, ready for a barcode reader Top pressure belt instead of wheels, which protects matt and gloss panels Easy Size (automatic infeed fence positioning) Spray units for anti-adhesive, cleaning and gliding agents Infrared ceramic lamp Hfedpo Aifpwefx Anwep 1700 mm extendable support for workpieces up to 2200 mm wide Copying wheel kit for nesting panels CE Technical data: Feed speed: 10–20 m/min Panel thickness: 8–60 mm Coil edges: up to 3 × 45 mm Solid wood edges: up to 8 mm

Condition: ready for operation (used), Year of construction: 2017, machine/vehicle number: AB / 231059, functionality: fully functional, input voltage: 400 V, input current: 23 A, input frequency: 50 Hz, type of input current: three-phase, edge thickness (max.): 3 mm, height adjustment type: mechanical, feed rate X-axis: 11 m/min, actuation type: electric, total height: 1,770 mm, total length: 4,400 mm, total width: 1,100 mm, overall weight: 1,000 kg, Equipment: documentation/manual, This machine comes fully equipped to provide flawless edges:  1. Pre-Milling Unit (RT-V): 2 counter-rotating diamond heads to eliminate panel chipping and telegraphing.  2. Gluing Station: High-efficiency EVA glue basin with rapid heating and automatic temperature control. 3. Pressure Zone: Driven main roller plus 2 idle pressure rollers for an optimal glue line. 4. End Trimming Unit (K-2): Dual-motor automatic switching for straight or beveled cuts.  5. Fine/Flush Trimming Unit: High-frequency motors with numerical control adjustment for flush, radius, or chamfered trimming. 6. Corner Rounding Unit (Round 1): Complete finishing of panel corners on straight or shaped panels.  7. Edge Scraping Unit: Eliminates radius chatter lines for a smooth finish. 8. Glue Scraping Unit: Cleans away any residual squeeze-out along the joint line. 9. Polishing/Buffing Unit: Dual cloth motors to restore color and sheen to extruded PVC/ABS edges. 10. Anti-Adhesive Spray System: Dual-liquid spraying device to keep panels perfectly clean. Controls Hjdpfxj Ah Sime Anwsfp • Interface: SCM Orion electronic control panel with digital display for effortless program setup, unit exclusion, and troubleshooting. • Guide System: Numerically controlled automatic infeed guide. • Safety: CE certified with full enclosure safety hood and safety microswitches. • Material Support: Extendable roller support rail for processing oversized panels.

Condition: like new (used), Year of construction: 2010, functionality: fully functional, overall weight: 4,795 kg, input voltage: 380 V, "SCM" model WINDOR 20 corner processing center – M configuration for the machining of wooden frames (windows and French doors). It performs tenoning, profiling, and hardware and glazing bead machining in a single pass, with automatic return of the pieces, allowing a single operator to handle the entire process. MAIN TECHNICAL DATA: 1st group: tenoning unit 2nd group: tenoning router cutter Ø50x620 mm, max. tool diameter: 320 mm, Jolly anti-splinter device, continuous vertical axis positioning 3rd group: profiling router cutter Ø50x320 mm, max. tool diameter: 240 mm, continuous vertical axis positioning, pneumatic horizontal positioning ON/OFF with a 5-position turret 4th group: profiling router cutter Ø50x320 mm 5th group: profiling router cutter Ø40x130 mm + hardware seat machining, max. tool diameter: 220 mm - piece return - "ZUANI" tool set for 68mm windows Hodpfx Ao Afwtvsnwjfp

Condition: like new (used), Year of construction: 2022, machine/vehicle number: AA 10005475, functionality: fully functional, operating hours: 2,540 h, number of axes: 5, overall weight: 5,725 kg, Work table and workpiece clamping: 8 TV FLEX rails, length 1,600 mm 8 lifting devices for 1,600-mm rails 24 fixed vacuum supports, 145 × 145 mm, H = 75 mm 8 rotatable vacuum supports, 180 × 65 mm, H = 75 mm Front stops, H = 75 mm Hfsdpoz R Rgmofx Anwep Additional front stops, H = 75 mm Double, removable central reference stop with 6 stops, H = 75 mm Working area X: 5510 mm Working area Y: 1620 mm Workpiece passage Z: 250 mm Vector speed X-Y axes: 78 m/min (ProSpeed) Machining units: 5-axis machining unit DIRECT 5 JQX: 13.5 kW with liquid cooling 3-way positionable extraction hood Drilling unit F23 L RO AX: 13 independent vertical spindles 10 horizontal spindles (6 in X and 4 in Y direction) Integrated slot cutter in X direction Drilling unit OF0480: With pneumatic vertical positioning (single Z-axis) Drilling unit with additional frequency inverter Device for increasing the drilling pressure in the Z direction Preparation for Hiteco units with 1 pneumatic interface Tool length measuring system Linear tool changer magazine TRB14: Arranged on the side with 14 tool positions Suitable for milling cutters and, depending on the configuration, larger tools or angular heads Moving linear quick-change magazine FAST 14: With 14 tool positions, designed for short tool change times and high machining efficiency Vacuum pump: 250/300 m³/h; 50/60 Hz Control and software: SCM Maestro Connect Maestro Active, Human Machine Interface (HMI) Maestro CNC Hardware key for Maestro CNC Basic Additional key for Xilog Maestro (USB) Operating system: Windows 10 Embedded 64 Bit Control panel with integrated EYE-M PRO PC Chip disposal: Chip extraction mat 5510 mm; mobile chip container at the end of the machine bed Electrical connection: 400 V - 50 Hz

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, cutting height (max.): 90 mm, cutting width (max.): 3,800 mm, saw blade diameter: 380 mm, overall weight: 4,400 kg, cutting length (max.): 3,800 mm, main saw diameter: 380 mm, Beamsaw SIGMA IMPACT 90 (SCM Group) suitable for furniture panels precize cutting by one or more panels overlapped. Manufacturer: SCM Group Model: Sigma Impact 90 Production year: 2017 Cutting width: 3.800 mm Cutting depth: 3.200 mm Max. cutting height: 90 mm Front tables (air cushion): 1x 2.500x600mm, 3x 2.500x600mm Machine basement with air-cushion. Max. main blade diameter: 380 mm Scorer diameter: max. 300 mm PUSHER: brushless motor, max. speed 120 m/min ! SAW CARRIAGE: brushless motor, max. speed 150 m/min ! THK linear guides for the saw carriage movement. THK linear guides for the PUSHER movement. Automatic centralized lubrication of THK linear guides. Hi-Tronic kit: - main motor 15 kW (mode S6) - vertical movement of main and scoring blade by price ball-screws Hfjdjx Nc Ayopfx Anwjp - optimized stroke of the main blade - electronic scorer adjustment in 2 axis (vertical, horizontal) - grooving with the main blade (electronic depth adjustment) - postforming cuts - window cut outs (blind cuts) - AKE flange for main and scoring blade Quantity of clamps (grippers): 10 pcs (maximum) Automatic exclusion of the clamp acting on the panels edge (up to 800 mm width). Start/stop pedal. Label printer. Control SW: WINCUT Optimalisation program: OTTIMO PERFECT CUT TOP (1x HW key) Control PC Eye-S: Windows + LCD touch screen 21" Air conditioning device for the electric box. Panel´s dimension automatic measuring. Laser line for the visualisation of the cutting line. Automatic double side aligner - motorized (60-2.200 mm). Machine stat: fully working Possibility to see in actuall production. Availability: cca April 2026

Year of construction: 2014, condition: good (used), Edge banding machine, edge bander, finishing unit, buffing unit, modular unit, format processing unit, double-end tenoner, edge processing machine, sanding unit, edge banding unit -Handover: in its current condition as inspected -Accessories: see pictures -Manufacturer: SCM HOLZKRAFT, Edge banding machine type Minimax ME 20 -Minimum workpiece length: 180 mm -Minimum workpiece width: 65 mm -Workpiece thickness: approx. 12 to 50 mm -Edge thickness (rolled edges / strip edges): 0.4 to 2 mm -Feed rate: max. 5 m/min -Adhesive system: Hot melt adhesive granules in the glue pot below -Dimensions: 2000/720/H1235 mm Hjdpfez Rxb Rjx Anwjfp -Weight: 300 kg

Condition: used, machine/vehicle number: 008288, Position 1: Panel Feeding and Loading SCM-MAHROS - STEFANI - CELASCHI Position 2: Double Sided Squaring/Edgebanding Machines SCM-MAHROS - STEFANI - CELASCHI Position 3: Panel Turning Device SCM-MAHROS - STEFANI - CELASCHI Position 4: Double Sided Squaring/Edgebanding Machines SCM-MAHROS - STEFANI - CELASCHI Position 5: Panel Turning Device SCM-MAHROS - STEFANI - CELASCHI Position 6: Splitters SCM-MAHROS - STEFANI - CELASCHI Hfedpfxjx Nv S Us Anwop Position 7: Panel Stacking and Offloading SCM-MAHROS - STEFANI - CELASCHI

Condition: like new (used), Year of construction: 2021, functionality: fully functional, operating hours: 100 h, input voltage: 415 V, input frequency: 50 Hz, pressing force: 120 t, stroke length: 500 mm, table width: 1,300 mm, table length: 2,500 mm, throat depth: 1,000 mm, ram plate width: 1,300 mm, ram plate length: 2,500 mm, distance table to ram: 1,000 mm, total length: 3,000 mm, total width: 1,800 mm, total height: 2,750 mm, overall weight: 2,900 kg, Equipment: CE marking, SCM Sergiani PF Cold Platen Press, New 2021, Model PFH DIGIT 25/13 Platen area 2500 x 1300 mm, with 6 x 90 mm dia chromed hydraulic cylinders giving 120 tons pressure via a double rack and pinion Hfodpfx Ao Ad Hatenwep system connected by a torsion bar to grant a planar movement of the movable press platen. Controlled by Siemens colour touch screen control panel. Suitable for pressing plasics, composites, wood inc door panels etc and some light sheet metalwork.

Condition: good (used), Code: 0399 Brand: TECNOMAX SCM Model: ST 4 ELITE - CE Standard Saw spindle moulder with tilting blade and scoring unit and tilting spindle moulder for carpentry, furniture, wooden window frames, doors, panels and various - CE Standard Technical data: Squaring carriage length 3200 mm Blade inclination 90-45 degrees Max saw blade diameter with scoring unit mounted 315 mm Max saw blade projection from the table at 90°/45° mm 100/70 Cutting width at parallel guide 1000 mm Scoring unit blade diameter 100 mm Workpiece clamping press Tilting Spindle moulder 90-45° Useful spindle length 125 mm Spindle rotation speed rpm 3500/6000/8000/10000 Max tool diameter 210 mm Tenoning table and head Electrical connection and removable support for the feeding Three-phase motors 5,5 Hp Suction inlet diameter mm 120 Hfodpj Aip H Uofx Anwsp Overall dimensions of assembled machine mm 3600 x 3000 x 1100 h Overall dimensions for transport mm 3600 X 1600 X 1100 h Weight kg 645

Condition: used, Ferwood Code: RU0011365 - Manufacturer Code: 0000506990B - Condition: Used - Compatible Machine: SQUADRABORDA SCM/STEFANI - If interested we offer an overhaul service, contact us. Hsdova Avcjpfx Anwofp

Condition: used, Year of construction: 2020, max. workpiece length 6360 mm profile spindle 1 Stück main drive 13 kW Control Maestro SCM CNC Machining Center ACCORD 40 FX for windows and doors ----- Available as an OPTION at an additonal price extensive window and door tooling among others (window cutting available upon request!): Wooden windows IV 68, 78, 92 Wooden "style" windows Wood-aluminum windows Front doors Lift-and-slide doors Box windows 2) IT integration with a post-processor ----- Machine still in operation, available for viewing! ----- Technical Summary (detailed description available upon request!): ----- - Working area X-Y = 6360 x 1905 Z = 350 - Automatic table with 8 support rails MATIC - L1825 - 5-axis spindle MAXI - Prisma T, HSK 63 E, 13 kW - RTCP Setting - Self-calibration system for Prisma work unit - Adjustable chip removal device on the electric spindle - Preparation for "Prisma T-S" angle gearbox - BRC - Working unit: Saw blade for face machining, 1 vertical milling cutter connection 3 vertical, independent drill heads, center distance 32 mm 3 vertical drill heads (not independent), center distance 21.5 mm, for mortise drilling 4 horizontal drill heads (2 per side, not independent), center distance 21.5 mm 2 horizontal milling heads (1 per (Page) - TRC 48 - Rear Tool Magazine 48 tool positions (excluding tool holders) Center-to-center distance between positions: 104 mm Max. tool diameter: 350 mm Max. tool length: 320 mm Max. weight per tool: 10 kg (15 kg with HSK 63 E spindle) Max. total weight on the magazine: 250 kg - MACH 5 - Quick-change system: Allows tool changes on the electric spindle in just a few seconds. - Pendulum operation - Automatic lubrication of the axes - eye-M operating console with integrated PC - Additional fixed control panel - TECPAD - Remote control of machine functions - Clamping jaw preparation H145 for worktable with 8 support rails - Front stop row H110 for worktable with 8 support rails Hodpfx Asy Hl Iyenwefp - Rear stop row H110 for worktable with 8 support rails - Suction cup H110 145x145 mm - Swivel suction cup H110 145x55 mm - Swivel suction cup H110 180x65 mm - First side stop row H145 for worktable with 8 support rails Second side stop row H145 for worktable with 8 support rails Clamp H145 with round base Clamp H145 with square base N.6 Lifting devices with double stroke H145 Laser and reference stop H145 for sheet (left) - PRO-SPEED safety system - Maestro CNC - Machine operator interface and programming - Maestro ProView - Simulation software Tools are sold in the condition, scope, and with accessories as they are currently in stock. Note regarding window cutouts, tool drawings, and tool system listings: Engelfried GmbH does not guarantee that the tools actually available correspond to the systems listed and drawn. (Technical specifications according to the manufacturer - without guarantee!)

Condition: used, Year of construction: 2011, AXES Working area X-Y-Z axes * mm 3050-1300-180 Workpiece length in swivel machining mm 1390 Hfodpfjyymz Uox Anwsp Stroke X-Y-Z axes mm 3460-1735-250 Max. travel speed of the X-Y axes m/min 60 WORKING TABLE Number of workpiece supports and vacuum cups 6 / 2 Standard type Standard End stops / Position 1 / rear Vacuum pump m3/h 90/108 DRILLING UNIT Vertical spindles Std/Number/Speed 1/min 12 (8X-5Y) / 4000 Horizontal spindles Std/Number/Speed 1/min 6 (4X-2Y) / 4000 Integrated slotting/sawing unit in X Ømm/1/min 120 / 6000 Motor power kW (HP) 2.2(3) ELECTROSPINDLE Motor power Std. / Opt. (S6) kW (HP) 7.5(10) / 11(15) Max. speed 1/min 24000 Tool changer mounted on the unit carrier in X 4 positions, pneumatic INSTALLATION Installed power KVA 23÷28.5 Compressed air requirement Nl/min 450 Extraction air requirement m3/h 1900+1900 (3400) Required extraction air velocity m/sec 30 Extraction nozzle diameter mm 150+150 (200) Machine weight Kg 3000 * X Distance between the stops - Y Milling center as reference point; Z Workpiece passage GENERAL FEATURES CNC-controlled boring and milling center, in C-frame design and working table with adjustable workpiece supports and vacuum cups, for performing: - Vertical drilling on the surface of the panel - Horizontal drilling on all four sides of the workpiece - Slot milling with disc cutter in "X" direction - General milling operations Self-supporting structure and working table Structure made of a steel welded construction with the control cabinet integrated into the machine frame. Available in two different lengths and with standard workpiece supports or TV supports. Movable unit carrier Box construction made of cold-rolled steel with internal reinforcing ribs, protective devices with bumpers. Working unit Consisting of a drilling head with vertical spindles, horizontal spindles, an integrated slotting and sawing unit and an SCM electrospindle with tool quick-change system type HSK 63 F. Travel paths of the portal and the unit carrier Movement in the X, Y and Z axis takes place on linear prismatic ball-bearing guides with the aid of pre-tensioned linear guides. The power transmission of the X-axis (movable stand) takes place via a pre-tensioned, backlash-free rack and pinion drive with diagonal movement. The movement of the unit carrier in Y and Z direction takes place via pre-tensioned linear guides. The positioning of the working units and the control of the machine functions takes place via "Brushless" three-phase servomotors and digital drives. CNC CONTROL The control unit consists of a numerical control for the milling and drilling machines and a pre-connected personal computer with a graphical user interface "XILOG PLUS". PC -Office- operating system Windows XP - LCD color screen 17 - Qwerty keyboard - Swiveling control panel - Machine interface software Xilog Plus Xilog Plus features Programming - parametric, graphical and ISO programming - Import of DXF and ASCII files - Linear or circular interpolation in three axes, linear in space, spiral in the chosen plane - Supported programming with graphic and syntax aids for drilling and milling operations - Automatic optimization of drilling operations and tool changes - cycles - Possibility of plate zero-point shift for performing drilling on inclined or curved plate sides - Complete compatibility with CAD/CAM Routocam (SCM) - AlphaCam Integrated additional functions - Calculator for direct transfer of the calculated data.

Condition: used, Tenoning spindle 1 Stk. Number of milling agregates 3 St. Spindle diameter 50 mm SCM Dogma Window Production Line For sale on behalf of a customer ----- Manufacturer’s Technical Description: Item 1 Tenoning Machine Worktable height = 990 mm Carriage for longitudinal machining: - Driven by a motor with numerical control - Stroke = 750 mm - Speed = 12 m/min - Max. acceleration = 2.5 m/s² Carriage for transverse machining: - Driven by a motor with numerical control - Stroke = 1600 mm - Max. speed = 12 m/min - Max. acceleration = 2.5 m/s² Hodj Ah T U Eepfx Anwefp Left stop for aligning the workpiece during the loading phase: - Integrated into the auxiliary support bridge Crosscut unit (1TR): - Power = 4 kW (5.5 PS) - Rotational speed = 3,000 rpm - Outer diameter of the tool = 400 mm - Diameter of the tool bore = 80 mm - Fixed horizontal positioning - Vertical positioning with pneumatic on/off mechanism - In position 1 - Power = 15 kW - Rotational speed = 3,500 rpm - Shaft diameter = 50 mm - Shaft length = 320 mm - Max. tool diameter = 320 mm (optional: 370 mm) - Vertical stroke = -15 to +300 mm - Maximum reach of chip guard = 55 mm - Positioning: horizontal = fixed - Positioning: vertical = motor with numerical control - In position 2 Item 2: Profiling Machine: 1. Profile Milling Unit (1VD): - Power = 7.5 kW (10 HP) - Rotational speed = 6,000 rpm with bidirectional rotation - Shaft diameter = 50 mm - Shaft length = 320 mm - Max. tool diameter = 240 mm - Vertical stroke = -15 to +300 - Positioning: horizontal = pneumatic on/off with 5-position turret stop and time-controlled engagement - Positioning: vertical = motor with numerical control - in position 3 Work table height = 870 mm 2. Profile Milling Unit (2VD): - Power = 7.5 kW (10 HP) - Rotational speed = 6,000 rpm - Shaft diameter = 50 mm - Shaft length = 320 mm - Max. tool diameter = 240 mm - Vertical stroke = -15 to +300 - Positioning: horizontal = pneumatic on/off with 5-position turret stop - Positioning: vertical = motor with numerical control - in position 4 3. DUO Unit: Device for cutting out the glazing bead (in the horizontal position) and/or grooving unit (in the vertical position, RL/SF) (in position 5) It includes: > 1 glazing bead removal unit with: - Power = 3 kW - Rotational speed = 6,000 rpm - Shaft diameter = 30 mm - Shaft length = 25 mm - Tools mounted on a quill > 1 grooving unit: - Rotational speed = 9,000 rpm with belt drive - Shaft with centering diameter = 50 mm, L = 3 mm for securing the tool with 3 M8 screws spaced 120° apart - Tool diameter = 146 + 2 (max. diameter = 154) Tools: - Glass retainer strip cutting saws: inner diameter = 50 mm; outer diameter = 200 mm; for mounting on the quill with 6 M6 screws spaced at 60° - Gear-cutting cutters, inner diameter = 50 mm; outer diameter = 240 mm; for mounting on the quill with 6 M6 screws at 60° All tools for the dual function are mounted on the unit simultaneously, and the function is switched by rotating the unit 90° Positioning: - Rotational = pneumatic on/off - Axial = manual - Radial = pneumatic on/off with 5-position turret stop Feeding mechanism: - Wheel diameter = 110 mm - Wheelbase = 150 mm - Feed speed = 6 m/min (fixed) - Vertical positioning = manual with mechanical dimension indicator Positioning guides Right: - Ia = manual - IIa = pneumatic on/off via ...

Condition: used, machine/vehicle number: 008703, X axis working area: 3650 mm Y axis working area: 1600 mm Working Table: Flat table Hfjdpfezq Ur Tox Anwjp Main Electrospindle power: 15 KW Number of controlled axes: 3 axes Total number of drilling spindles: 37 Total number of tool changer positions: 18

Condition: used, Year of construction: 1995, Window manufacturing line Manufacturer: SCM Type: Method K Year of manufacture: 1995 Hsdpfs Ahn Ihex Anwefp Technical data Tool configuration: - 1st crosscut saw spindle - 2nd mortise and tenon spindle - 3rd profile spindle - 4th profile spindle - 5th hardware spindle - 6th glass bead separator saw Note: The technical data and descriptions are copies of the original order confirmation. The information provided is for informational purposes only and is not binding.
