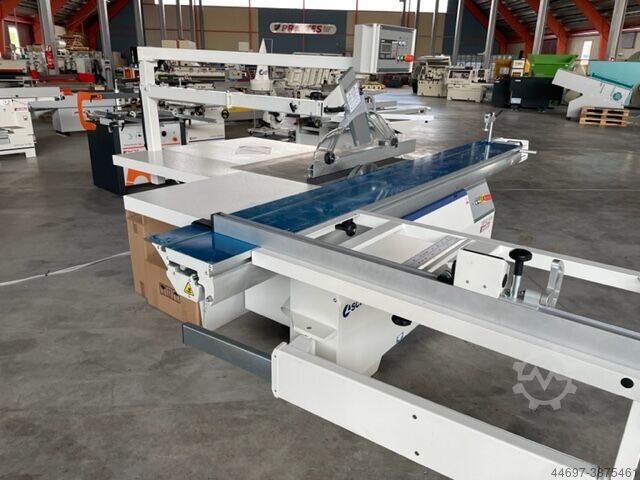

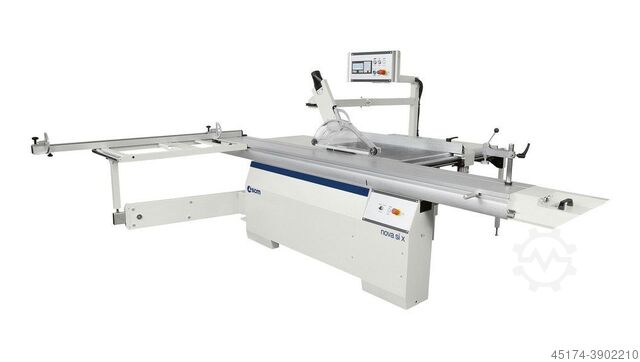

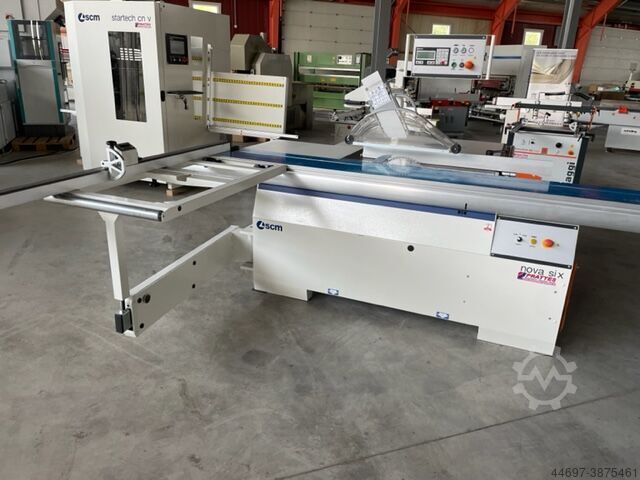

Used Scm Nova Si X for sale (2)

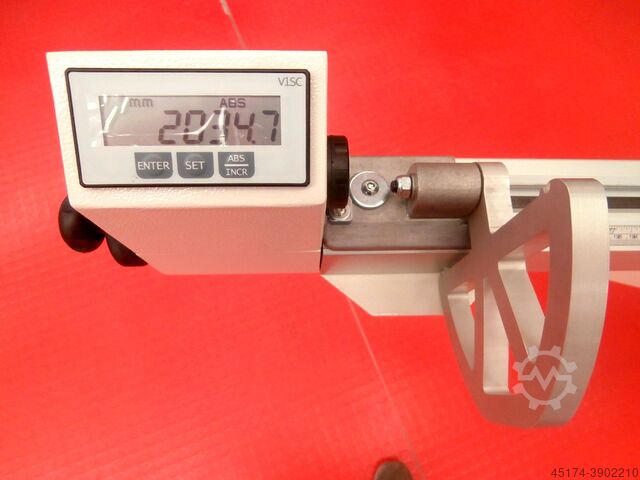

Condition: new, Code: N0764 Brand: SCM Model: NOVA SI X - CE Standard Circular saw with +/- 46° double blade tilting with 3 controlled axis - Version READY 3 UP - CE Standard equipped with following optionals : Start buttons integrated into the sliding table Squaring frame with Compex device Squaring fence with n° 2 LCD displays for position reading Technical data: Max. saw blade diameter with mounted scorer mm 400 Maximum saw blade projection from table to 90°/+46°/-46° mm 136/97/60 Cutting width on rip fence mm 1270 Lsdpfx Aded Dc Eco Doru Squaring capacity mm 3200 Three-phase motors starting from kW/Hz 7 (8) / 50 (60)

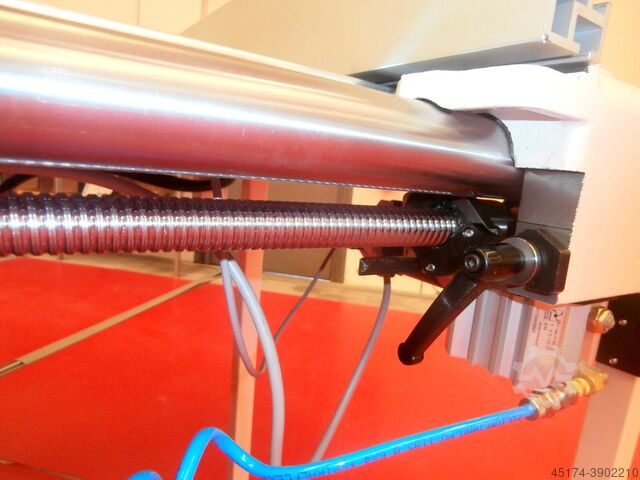

Condition: new, Saw unit swivels 46 ° on both sides. Programmable, electric saw blade adjustment Control unit with electronic display for saw blade tilt and lift Torsional rigidity and vibration-free working Easier plate feeding due to large trimming frame with roller Telescopic ruler with 2 professional folding stops Excellent cutting precision scoring unit equipped with its own motor - easily adjustable from the outside saw blade diameter of 400 mm scoring saw blade with a diameter of 160 mm 2-position saw blade pendulum protection manell adjustable 3-axis controlled Motorized rip fence with electronic positioning includes: Position display via an encoder Adjustment via ball screw Stepless adjustment via switch or automatic positioning system Cutting width 1270 mm Ledod Akygspfx Ad Djru Programmed movement of motorized adjustment and tilting for saw unit UP version with swivelling control panel for maximum flexibility X version with Compex miter fence for quick and accurate execution of miter cuts with automatic compensation of the stop position. (Length compensation) incl. options: - cutting lenght 3200 mm - on / off buttons for main motor and scoring unit integrated in saw carriage - CompeX frame - Version "READY 3 UP" - 2 saw speeds (3500/5000 U/min) Max. cutting width with rip fence 1270 mm Format cuts 3200 mm main motor 7,0 kW, 400 V, 50 Hz Saw blade angle -46 - 46 ° Max. cutting height 90° 136 mm Max. cutting height 45° 97 mm Max. cutting height -45° 60 mm saw blade diameter 400 mm Diameter scoring saw blade 160 mm (Main) saw blade speed 4000 min¯¹ Dust extraction ports 120 & 80 mm
