Used Ott Edgebander for sale (70)

Condition: reconditioned (used), Year of construction: 2014, functionality: fully functional, workpiece height (max.): 80 mm, edge thickness (max.): 15 mm, power of the milling unit: 3,000 W, overall weight: 7,000 kg, compressed air connection: 6 bar, height adjustment type: electric, space requirement length: 10,500 mm, year of last overhaul: 2023, Fully refurbished Topedge Duo-melt, year 2014 2 x 3Kw each Pre-milling motors 80 mm panel thickness 1 x Synchroflex top driven belt system 2 x Glue heads and tanks, Duo Melt system (For instant glue colour changes) 1 x rough trim station 1 x Bevel fine trim (can also be used for fine finishing wood in “flat” setting - adjustable angle 1 x Radius trimming machine 1 x AKF station Psdpfx Aajx Nbprohspl 1 x 4 position per side AZK4 radius scraper 1 x Flat scraper 1 x Cleaning spray, front, middle and back - LCM 1 x Buffing station 2 x free spaces Infeed fence alignment for narrow panels Nesting package LCM iRelease cleaning system BrushTec ES - not included

Condition: excellent (used), 2 pre-cutters gluing unit Guillotine Ppsdpfxjulh Nus Aahjl Drip unit with 2 saws Straight cutter Rounding cutter

Condition: excellent (used), Adhesive unit Guillotine Ppodpfx Aaorzaavohsl Chop saws Straight cutters Scraper Polishing machine Without pre-milling

Condition: ready for operation (used), Year of construction: 1996, pressing force: 70 t, Main Drive Pressing force 686 Kn Pedpfx Aox D D Nnoahopl This OTT ST 1611/60 veneer press was manufactured in 1996. It features a maximum pressing force of 70 tons, pressing plates measuring 1300x1611 mm, and a power output of 10.1 kW. The plates are electrically heated, enhancing its efficiency. Consider the opportunity to buy this OTT ST 1611/60 veneer press. Contact us for more information. Application Types Pressing / Laminating

Condition: used, Year of construction: 1990, Used machine Year of manufacture: 1990 Features and technical data: Max. working width: 1100 mm Min / max. workpiece thickness: 3 / 160 mm Sanding belt dimensions: 2150 x 1120 mm Sanding belt speed: 18 m/sec Feed speed: 4 + 8 m/min Sanding unit motor power: 15 kW Feed belt motor power: 1.1 / 1.8 kW Operating pressure: 6 bar Air consumption: 20 l/min Extraction nozzles: 2 x 150 + 1 x 120 mm Dimensions: 2690x1800x2100 mm Weight: approx. 3500 kg Ppjdpfjwxh Duex Aahel Note: Machine is not operational (feed belt is missing) Storage location: Flörsheim Availability: by arrangement

Condition: reconditioned (used), Year of construction: 2015, functionality: fully functional, Ott frezzer st1 psp Nyrenoverad. Pastoreserande, 3fas , vattenkyld. Podpexn Tvrsfx Aahopl

Condition: used, Year of construction: 2008, Used machine Year of manufacture: 2008 Equipment and technical specifications: - Round tank glue application unit - Feed unit with automatic edge band magazine - Pressure zone with multiple pressure rollers - End trimming: 2 motorized saw units for front/end trimming - Top/bottom milling units: 2 milling units with copy wheels for radius or chamfer - Radius scraper: pneumatically controlled, for post-processing radii - Surface scraper: for smoothing the edge surfaces - Buffing unit: 2 buffing wheels with motors for final finishing - Riepe spraying device - Control: PLC with operator panel - Feed frequency inverter replaced by Ott in 2022 Pjdjxdpm Sopfx Aahopl - Feed speed approx. 10–12 m/min - Workpiece thickness up to 52 mm - Edge thickness 0.3 – 12 mm - Power supply 3x 400 V AC, 50 Hz - Rated power 12.7 kW - Rated current 30.5 A - Control voltage 24 V DC - Max. fuse protection 35 A (5x 6 mm² connection cable) Machine dimensions: approx. 6120x840x1385 mm Machine weight: approx. 3,000 kg Availability: Short notice Location: Bavaria

Condition: excellent (used), Year of construction: 1992, functionality: fully functional, Wide belt sanding machine, sander 1300mm Manufacturer: Ott Model: RSO-1300 Year: 1992 Working width: 1300mm with roller 15 kW and pad 11 kW + brush Ppsdox E Amqjpfx Aahsl Feed speed: 10 m & 20 m/min

Condition: used, Year of construction: 1990, No. 04502 Veneer press Ott JU 2511/70 Used, year of construction 1990 Electro-hydraulic, approx. 15 kW Aluminum heating plates 2550 x 1100 mm LW Heating electric 4 hydraulic cylinders each 80 mm diameter Total pressing pressure 70 tons Specific pressing pressure 2.5 - 3.5 kg/cm2 Opening width 400 mm Button control for opening - closing - stop Pressure monitoring with automatic readjustment Adjustable limit switch for specific opening width HAWE pump Safety rip cord Incl. electric cable and plug 32 A Incl. electric plans, operating instructions as .pdf file Transport dimensions approx. 2900 x 1400 x 2000 mm LWH Weight approx. 3000 kg To avoid possible misunderstandings, an on-site inspection is possible and recommended by appointment Sold as is Technical specifications, condition description, year of construction and scope of delivery according to manufacturer's brochure or previous owner, without guarantee Subject to prior sale For used machines, any warranty is excluded, the following applies: “sold as seen” Ppsdpfoxwp S Iox Aahsl Terms of payment: Prices plus VAT, payment before collection or dispatch Terms of delivery: ex warehouse

Condition: used, Used machine Technical specifications: - Plate size: 2200 x 1100 mm - Max. opening: 315 mm - Heating medium: Electric Pedpfx Ajxuxhaoahepl - Pressing pressure: 2.7 kg/cm² - Cylinders: 4 Dimensions: 2540 x 1220 x 1850 mm Weight: approx. 2500 kg Availability: approx. end of January 2026 Location: Hesse

Condition: used, Veneer press OTT Type JU 60S Podpfsvdaymex Aahopl Pressing area max. 225x120 cm Electric

Condition: ready for operation (used), Year of construction: 1994, Ott 2513 Stabil Veneer Press 4 cylinders Pedjx Dzvxopfx Aahepl Pressing area 2500 x 1300 mm Electric heating Electric opening and closing Pressing force 90 tons Year of manufacture 1994 Price 7,500.-

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: M/53056, total length: 9,800 mm, overall weight: 4,500 kg, compressed air connection: 6 bar, input voltage: 400 V, input frequency: 50 Hz, Single-sided edge banding machine in right-hand configuration - with jointing unit - gluing unit - double end cutting unit - flush trimming, chamfering, and radius milling unit - corner rounding unit Ppedpfx Aaoxy Sizohol - scraper and edge buffing unit with high-performance automation - pressure zone with one driven roller and six follow-up rollers - automatic edge thickness adjustment for all units - automated chamfer thickness adjustment of the top pressure to panel thickness - pneumatic engagement/disengagement of all processing units with monitoring - Machine in CE-compliant design with complete encapsulation of processing zones by high-quality noise protection hoods. Machine length: 9,800 mm Machine weight: 4,500 kg Gluing unit - for hot-melt adhesive granules - with quick heating tank, preheating time: 6 minutes - electronic temperature control - adhesive application roller (no adjustment required for different material heights) - operates in both co- and counter-rotation, automatically activated via program control Edge thickness: 0.2 - 20 mm Workpiece dimensions: Minimum width: 60 mm Minimum height: 8 mm Maximum height: 60 mm Minimum length: 160 mm for strip edges / 60 mm for continuous roll edges / 150 mm with double end cutting unit Workpiece transport - heavy-duty chain conveyor with precision sliding guides for chain support plates with flat and round guide rails to ensure positive workpiece transport - feed speed: 12 - 20 m/min, adjustable via electronic frequency inverter from the central control panel, values can be saved in work programs - motor power: 5.5 kW Panel thickness adjustment Motorized adjustment of double roller top pressure, preselection via the central control panel, values can be saved in work programs Edge thickness adjustment - automatic positioning of all edge thickness-related units including the pressure zone, preselection via the central control panel, values can be saved in work programs Machine control - central control panel - PLC and line control for contactless control of the processing units Central control panel - for flexible and easy operation of the edge banding machine, with a specifically developed user interface for clear and rapid access to all important machine and unit statuses - intuitive menu navigation via two-line text display, supported by clearly arranged symbols with two-color LED status indicators PLC - high-performance PLC to industrial standards for fast and efficient interaction with the machine and for controlling all functional groups and line control Line control - high-resolution line control of all processing units with +/- 1mm accuracy over the full machine length - complete access via the control panel for all program-controlled processing units - values can be saved in various work programs EFU - electronic frequency inverter Connections Electrical: 3 x 400 V, 50 Hz, rated current 42 A, protection: 50 ampere, supply: 5-core, 5 x 10 mm², control voltage: 24 V Extraction: 1 x 120 mm, 1 x 160 mm, 1 x 120 mm, extraction air velocity: min. 20 m/sec, required capacity: approx. 65 m³/min Compressed air: 6 bar, 1/4" - consumption approx. 300 l/min, required minimum pressure: 4.5 bar, all workpiece blow-off lines are line-controlled.

Condition: excellent (used), Veneer press JU 60 Pjdjmhguajpfx Aahspl 2200 x 1200 mm heating plate damaged (see pictures), heating plate works year of construction 1965, heating 12 kw Loading costs (forklift rental approx. 500 €)

Condition: used, No. 04485 Veneer press Ott JU 2513 Used Pjdpfxow Npbzo Aahepl Electrically heated heating plates Hydraulic pressing pressure Aluminum heating plates Plate dimensions 2550 x 1350 mm LW BUSSE heating plates renewed in 2019 and covered with Mylar film 4 hydraulic cylinders each 90 mm diameter Total pressing pressure 90 tons Specific pressing pressure 2.8 - 4.0 kg/cm2 Button control for closing / opening / stop Emergency stop rip cord Opening width 400 mm Total power 19 kW Stable construction with 3 longitudinal beams in the upper part of the press and 2 longitudinal beams in the press table Transport dimensions approx. 2900 x 1500 x 2000 mm LWH Weight approx. 4200 kg To avoid possible misunderstandings, an on-site inspection is possible and recommended by appointment Sold as is Technical details, condition description, year of construction and scope of delivery according to manufacturer's brochure or previous owner, without guarantee Subject to prior sale For used machines, any warranty is excluded, the following applies: “sold as seen” Terms of payment: Prices excl. VAT, payment before collection or dispatch Terms of delivery: ex warehouse

Condition: used, Year of construction: 1995, Used machine Year of manufacture: 1995 Equipment and technical data: Glue tank with glue roller Pre-cutting knife 4 pressure rollers 2-motor cutting unit Radius milling unit Flush milling unit Radius scraper Edge thickness: 0.2 - 6 mm Workpiece width min.: 70 mm Workpiece height: 8-42 mm Feed speed: 12 m/min. Shipping dimensions: 370x100x125 cm Ppsdswpm Igepfx Aahjl Weight: 1330 kg Location: Röllbach Availability: short term

Condition: refurbished (used), Year of construction: 1972, operating hours: 50 h, functionality: fully functional, machine/vehicle number: 6619, Classic heavy-duty through-feed press featuring modern control technology with a uniquely large press bed Specifications • Brand: Paul Ott • Type: Through-feed press • Year of manufacture: 1972 • Press bed dimensions: 2300 mm x 3600 mm • Infeed and outfeed table dimensions: 3900x2560 mm • Maximum stroke: 140 mm • Number of cylinders: 8 • Pressing force: > 100 bar • Connected load: 380V • Control system: Siemens PLC • Heating: Top and bottom plates hydraulically heated • Infeed and outfeed: Fully automated or manual • Condition: Completely overhauled in 2020 and ready for operation This robust through-feed press has been thoroughly overhauled, both hydraulically and mechanically, and is equipped with a modern Siemens control system. It combines classic durability with contemporary automation technology, making it ideal for industrial applications requiring reliability and flexibility. Further information: Ppsdpfx Aasxgfgaehel • The machine can be viewed in operation at our site in Tilburg • Overhaul and maintenance reports available for inspection • Transport and installation can be arranged by agreement

Condition: ready for operation (used), Year of construction: 1986, Ott Höfer 2-Roller Glue Application Machine ZLA 1300 Working width: 1300 mm Max. workpiece thickness: 80 mm Roller diameter: 165 mm Both rollers are in good condition Ppsdpjxqrdajfx Aahjl Feed speed: 18 m/min Drive power: 0.75 kW Working height: 800 mm Required space: 2000 x 750 x 1150 mm Weight: 500 kg

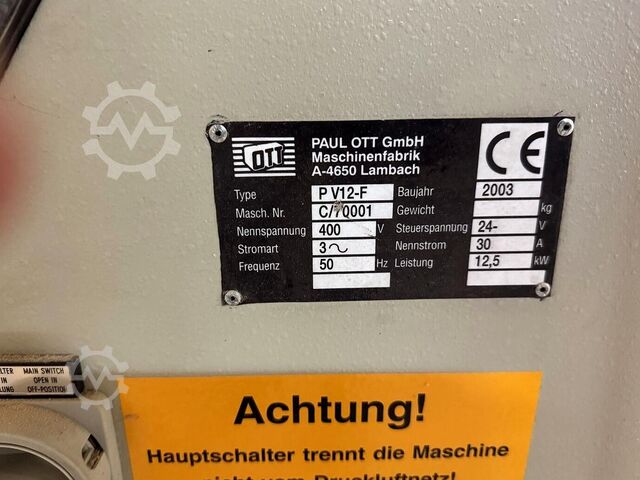

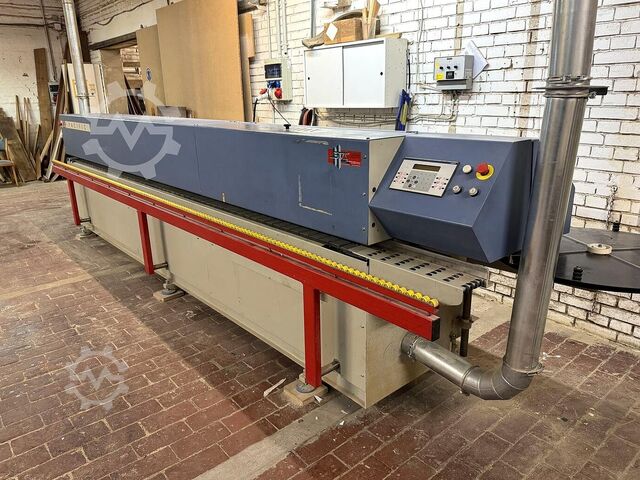

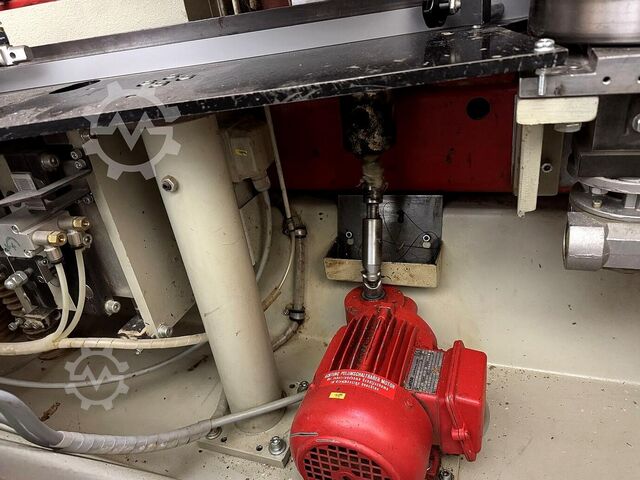

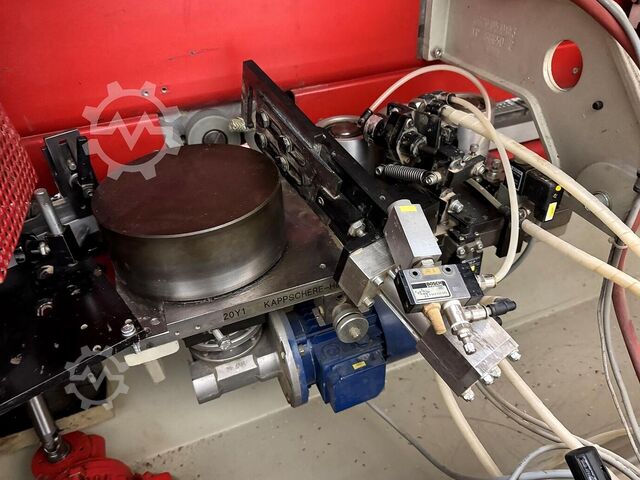

Condition: ready for operation (used), Year of construction: 2003, operating hours: 601 h, functionality: fully functional, machine/vehicle number: C/70001, workpiece height (max.): 42 mm, edge thickness (max.): 3 mm, product length (min.): 160 mm, No reserve price - guaranteed sale at the highest bid! TECHNICAL DETAILS Workpiece height: 8 - 42 mm Workpiece width: min. 70 mm Workpiece length (strip edges): min. 160 mm Workpiece length (endless roll): min. 60 mm Workpiece length (with double end-cutting device): min. 150 mm Ppsdpfx Aaowlquvshol Edge parameters Edge thickness: max. 3 mm Edging thickness: 0.2 - 12 mm Working height and speed Working height: 800 mm Feed speed: 12 m/min Adhesive application Adhesive application: via application roller Process: Hot melt adhesive, hot-cold process, single-sided, right-hand design Heating time of adhesive tank: 8 min MACHINE DETAILS Total connected load: 12.5 kW Total weight: 2,100 kg Total length: 5,300 mm Total width: 900 mm Total height: 1,300 mm Operating voltage: 400 V, 50 Hz Input current: 400 A Compressed air connection: 6 bar Air connection: 6 bar, 1/4" Extraction connection: 1 x central extraction nozzle, diameter: 160 mm UNITS - Jointing unit with 2 HF motors, 1.5 kW each, 12,000 rpm, automatically controlled, including DIA MAX DIA jointing set Ø 85 x 30 x 42 mm, 3 teeth (LEUCO system), for panel thicknesses up to 42 mm - Double cross-cutting unit with 2 HF motors, 0.3 kW each, 12,000 rpm, 2 automatic positions (0° / 3°), 2 carbide saw blades Ø 140 x 3.2 x 16 mm Z 36 - Flush trimming machine with 2 HF motors, 0.43 kW each, 12,000 rpm, for solid and plastic edges, single-sided scanning, 2 carbide insert heads Ø 70 x 20 x 16 mm, Z 4 - Fine trimming machine with 2 HF motors, 0.3 kW each, 12,000 rpm, double-sided scanning, quick-change device, 2 AT 73 carbide rounding cutter heads Ø 73 x 16 x 16 mm, Z 3, profile knives R2 – R5 - Scraper with double-sided scanning, automatic control, for PVC and plastic edges - Corner rounding machine with 2 motors, 0.35 kW each, 12,000 rpm, 200 Hz, double-sided scanning, 1 work spindle each top/bottom AR 73 radius cutter heads Ø 73 x 16 x 16 mm, 3 teeth, profile cutters R2 – R5 EQUIPMENT - Double-roll top pressure with electronic positioning - Single feed for strip and solid edges - Automatic roll magazine for rolls up to 800 mm in diameter, with pneumatic cutting device up to 3 mm thick - Rapid heating tank for hot melt adhesive granules, with electronic temperature control - Automatic reversal of adhesive dosing via PLC (same and counter-rotating) - Automatic infeed guide, no manual adjustment of edge thickness required - Central control via PLC-controlled control panel, including plain-text error display - Program memory with name and number programs

Year of construction: 1968, condition: ready for operation (used), An OTT heating plate press is available. Pressing area X/Y: 2250mm/1200mm, heating plates: 2, connected load: 14kW, pressing force: approx. 65t, max. pressing height: 300mm, machine dimensions X/Y/Z: approx. 2600mm/1350mm/1800mm, weight: approx. 3300kg. An on-site inspection is possible. Psdpfxoxd Auie Aahopl

Condition: used, Year of construction: 1970, Year of manufacture: 1970 Total pressing force at 320 atü: 80 tons Ppjdpfx Ajwx Rrnsahsl Pressing cylinder: 6 pistons Motor power: 1.1 kW Heating-up time approx. 20 min. Price ex works.

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, total length: 4,000 mm, total width: 1,200 mm, total height: 1,400 mm, OTT ATLANTIC EDGE BANDER 2 HM SAW BLADES 140X3.2X16 Z=36 FLUSH MILLING WITH 2 HM REVERSIBLE KNIFE CUTTER HEADS FINE MILLING WITH 2 HM REVERSIBLE KNIFE CUTTER HEADS SCRAPING UNIT WITH 2X HM SCRAPERS, AUTOMATIC FEED EDGE CLEANING – OSCILLATING BRUSHES Ppedpfx Aaeww H Enshel MACHINE LENGTH: 4.50 M

Condition: reconditioned (used), functionality: fully functional, power: 9 kW (12.24 HP), Ott veneer press connected load 380V 9kW Panel size 2250 x 1350 mm Elkom heating plates, gold anodized Ppjdjtwp Iwopfx Aahjl Plates and hydraulics in order

Condition: reconditioned (used), Year of construction: 1991, functionality: fully functional, grinding width: 1,100 mm, "M.-No. 2679, built 1991, Technical data: max. working width: 1100 mm, min./max. workpiece thickness: 3 / 160 mm, sanding belt dimensions: 2150 x 1120 mm, sanding belt speed: 18 m/sec., feed speeds: 4 + 8 m/min, Motor power sanding unit: 11 kW, power setting: 0.55 kW, feed carpet: 1.3/1.8 kW, operating pressure: 6 bar, air requirement: 10 l/min., extraction sockets: 1 x 150 + 1 x 120 mm, WxDxH: 1800 x 2000 x 2100 mm, weight approx. 2400 kg, Pedpfxstppz Io Aahspl Standard equipment: - Contact roller D=150 mm, hardness 90° Shore - Air sanding pad with automatic insertion and removal - Rigid sanding pad for solid wood frame sanding - Brush roller driven by the sanding unit - Automatic centering of the feed carpet - Feed carpet with high-quality rubber circular hole carpet and auto. Carpet centering - pneumatic sanding belt tensioning with length compensation - non-contact sanding belt oscillation, electronic - low-wear disc brake system for immediate stop of the sanding belt drive with pressure monitor - motorized thickness adjustment with digital display - workpiece thickness limiter at the infeed - semi-automatic workpiece thickness adjustment - grit thickness compensation for contact roller 4-fold, special accessory: workpiece thickness gauge".

Condition: not inspected (used), Year of construction: 1975, Power supply 400V 13kW 2 heating plates à 1200 x 2250 mm heating plates controlled by 2 thermostats pressing pressure at 250 bar Psdpskkflbofx Aahspl LxDxH: 2590 x 1330 x 1950 mm weight approx. 2800 kg pressing thickness 380 mm
