Used Ott Edgebander for sale (78)

Condition: excellent (used), Year of construction: 1996, OTT ALPHA 110 wide-belt sander - machine in stock - after the technical review - very good condition - German production - year of production 1996 - segment shoe - a perfect solution for varnish / veneer TECHNICAL SPECIFICATIONS: - grinding width 1100 mm - grinding height 1-150 mm - combi unit with task-controlled membrane sanding shoe - engine power 11 kW Rsdpfx Afsgi Dryo Tobw - blowing on the belt - pneumatic oscillation - two types of belt speed 4.5 and 18 m / s - aggregate with felt roller - engine power 0.75 kW - shaft oscillation - aggregate with a cleaning brush - engine power 0.75 kW - smoothly regulated feed - feed speed range 4-18 m / min - 1.5 kW feed motor power - electric height adjustment - vacum table - 3kW fan motor power - diameter of nozzles 4 x 120 mm and 1 x 150 mm Transport dimensions: - length 200 cm - width 245 cm - height 210 cm - weight 2500 kg 1. The Alpha Combi aggregate is a grinding unit with a contact shaft with a diameter of 150 mm and a hardness of 90 shor. It is integrated with a sectional pneumatic shoe with a section width of 27 mm 2. EMS 27 optical system - detects minimal unevenness and adjusts the pressure force of a particular section of the shoe at a given point of the ground element. 3. It is possible to control the individual sections of the shoes adjacent to each other in the range -2 to +4 -

Year of construction: 1994, condition: good (used), Finishing unit, buffing unit, modular unit, format processing unit, double-end tenoner, edge processing machine, plastering unit -Manufacturer: Paul OTT, Finishing unit from edgebanding machine U 206 -Type: KEO-04 -Motor: 0.3 kW -Speed: 1450 rpm - laterally adjustable -Height: adjustable -Number: 2 units available Price: per piece Rodpju N Sggjfx Af Tsbw -Dimensions: 400/280/H660 mm / 480/290/H660 mm -Weight: 35 kg/ 36 kg

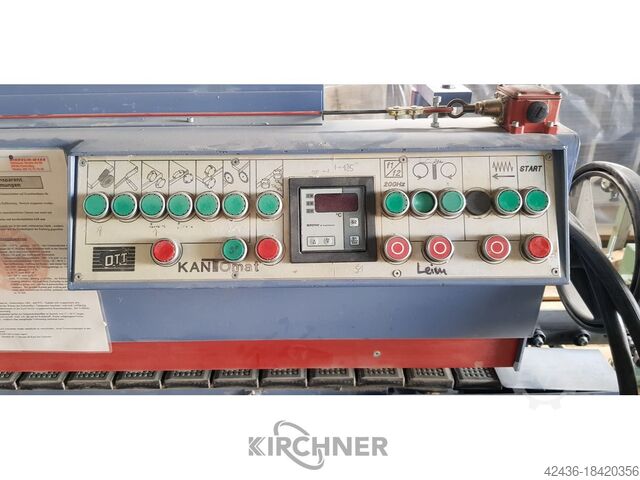

Condition: used, Year of construction: 1993, with prejoiningused, good conditionmake Otttype Kantomat 156- FÜyear 1993glue thickness 15 mmworkpiece height min 10 mm max 60 mmworkpiece width min 60 mmworkpiece length min 60/160 mmthick edges up to 3 mmcaps from the roll up to 3 mmprejoiningcross-cutting unit K 14 / 2 x 1,1 PSflush milling HF15.1 2 x 1,5 PSChamfer 082 2 x 0,8 PS 0-45° swivelingRadius milling 2 x 0,8 PSRadius scraper controlled pneumaticBuffing oscillating pneum. with pneum. feed 2 x 0,3 HPautom. edge magazinefeed speed steplessgranulate quick heating basinsound insulation hoodlarge roller supportsuction connection D 160 mmspace requirement approx. 7400 mm x 1000 mm x 1600 mmtotal connected load 22 kWstorage location 97447 Gerolzhofen, free loaded, unpackeddelivery in as-is condition as viewed,without guarantee and warranty Redpjvwfyfofx Af Tsbw

Condition: used, Year of construction: 2023, functionality: fully functional, For Sale: OTT Unimatic 25.8F Edgebander with Ligmatech ZHR 15 Return System Rsdpeygl A Aefx Af Tobw We are selling an OTT Unimatic 25.8F edgebanding machine combined with a Ligmatech ZHR 15 return conveyor table. The units are sold exclusively as a complete set (line). Key Features and Customizations: Custom Grooving Units: The machine has been upgraded with two additional milling units—one for lateral grooving from the front and one for vertical grooving from the top. It was primarily used for the production of interior door frames. Stability Upgrades: Custom-built stabilization rollers have been added to the interior side to ensure precision when processing narrow workpieces. Recent Maintenance: Last year, the glue application unit (including the roller) was completely replaced with a new one. The track pads (shoes) were also replaced. Condition and Dimensions: Condition: The machine is rarely used but has been regularly maintained and serviced by TIBO. It is currently in full working order and available for testing on-site. Dimensions: Total line length is 11m, width is 2m. Serious inquiries only, please.

Condition: ready for operation (used), Year of construction: 2009, machine/vehicle number: H/32059, functionality: fully functional, workpiece height (max.): 50 mm, feed rate X-axis: 22 m/min, TECHNICAL DETAILS Panel height: 10 mm to 50 mm Solid wood: 12 mm PVC/ABS: 0.4 mm to 3 mm Rsdpsydibwsfx Af Tsbw Max. feed speed: 22 m/min Min. panel length: 150 mm Min. panel width: 70 mm MACHINE DETAILS Rectifier group motors: 1.5 kW (2 motors) EQUIPMENT Touchscreen control for adjusting working units Panel support guide Side roller conveyor with idler wheels for panel support Anti-adhesive unit Roll holder plate COMBIMELT glue unit for hotmelt adhesive with automatic VarioMelt dosing and pre-melter Patented edge pressing unit with segmented pads Trimming unit with 2 motors Cleaning unit with 2 motors Rounding unit Edge scraper unit Working height adjustable electronically via C.N. Powered rubberized conveyor with top pressure

Condition: ready for operation (used), Year of construction: 2001, Ott Deltatronic Wide Belt Sander €9,500.00 excl. VAT Ott Deltatronic Magelis control system Sanding thickness: 3-160 mm Sanding width: 1350 mm 3 units Lacquer sanding package Vacuum Satin finishing brush Cleaning brush Redsyatgiopfx Af Tsbw Pneumatic slider Year of manufacture: 2001 Condition: Fully functional

Condition: used, Year of construction: 1990, No. 04502 Veneer press Ott JU 2511/70 Used, year of construction 1990 Electro-hydraulic, approx. 15 kW Aluminum heating plates 2550 x 1100 mm LW Heating electric 4 hydraulic cylinders each 80 mm diameter Total pressing pressure 70 tons Specific pressing pressure 2.5 - 3.5 kg/cm2 Opening width 400 mm Button control for opening - closing - stop Pressure monitoring with automatic readjustment Rbsdpfxjxwp S Ie Af Tow Adjustable limit switch for specific opening width HAWE pump Safety rip cord Incl. electric cable and plug 32 A Incl. electric plans, operating instructions as .pdf file Transport dimensions approx. 2900 x 1400 x 2000 mm LWH Weight approx. 3000 kg To avoid possible misunderstandings, an on-site inspection is possible and recommended by appointment Sold as is Technical specifications, condition description, year of construction and scope of delivery according to manufacturer's brochure or previous owner, without guarantee Subject to prior sale For used machines, any warranty is excluded, the following applies: “sold as seen” Terms of payment: Prices plus VAT, payment before collection or dispatch Terms of delivery: ex warehouse

Condition: excellent (used), 2 pre-cutters gluing unit Guillotine Drip unit with 2 saws Rbedpoulh Nuefx Af Tjw Straight cutter Rounding cutter

Condition: excellent (used), Adhesive unit Guillotine Chop saws Straight cutters Scraper Polishing machine Rjdpfx Aforzaave Tebw Without pre-milling

Condition: excellent (used), Veneer press JU 60 Rodpomhguasfx Af Tebw 2200 x 1200 mm heating plate damaged (see pictures), heating plate works year of construction 1965, heating 12 kw Loading costs (forklift rental approx. 500 €)

Condition: reconditioned (used), Year of construction: 2015, functionality: fully functional, Ott frezzer st1 psp Nyrenoverad. Pastoreserande, 3fas , vattenkyld. Rodpfx Afexn Tvre Tjbw

Condition: excellent (used), Year of construction: 1992, functionality: fully functional, Wide belt sanding machine, sander 1300mm Manufacturer: Ott Model: RSO-1300 Year: 1992 Working width: 1300mm Rbsdpfjx E Amqjx Af Tsw with roller 15 kW and pad 11 kW + brush Feed speed: 10 m & 20 m/min

Condition: used, No. 04485 Veneer press Ott JU 2513 Used Electrically heated heating plates Hydraulic pressing pressure Aluminum heating plates Plate dimensions 2550 x 1350 mm LW BUSSE heating plates renewed in 2019 and covered with Mylar film 4 hydraulic cylinders each 90 mm diameter Total pressing pressure 90 tons Specific pressing pressure 2.8 - 4.0 kg/cm2 Button control for closing / opening / stop Emergency stop rip cord Opening width 400 mm Total power 19 kW Stable construction with 3 longitudinal beams in the upper part of the press and 2 longitudinal beams in the press table Transport dimensions approx. 2900 x 1500 x 2000 mm LWH Weight approx. 4200 kg To avoid possible misunderstandings, an on-site inspection is possible and recommended by appointment Sold as is Technical details, condition description, year of construction and scope of delivery according to manufacturer's brochure or previous owner, without guarantee Subject to prior sale Rjdpfx Aow Npbzof Tsbw For used machines, any warranty is excluded, the following applies: “sold as seen” Terms of payment: Prices excl. VAT, payment before collection or dispatch Terms of delivery: ex warehouse

Condition: used, Year of construction: 1995, Used machine Year of manufacture: 1995 Equipment and technical data: Glue tank with glue roller Pre-cutting knife 4 pressure rollers 2-motor cutting unit Radius milling unit Flush milling unit Radius scraper Edge thickness: 0.2 - 6 mm Workpiece width min.: 70 mm Rsdowpm Igepfx Af Tjbw Workpiece height: 8-42 mm Feed speed: 12 m/min. Shipping dimensions: 370x100x125 cm Weight: 1330 kg Location: Röllbach Availability: short term

Condition: ready for operation (used), Year of construction: 2003, machine/vehicle number: C/70001, functionality: fully functional, operating hours: 601 h, workpiece height (max.): 42 mm, edge thickness (max.): 3 mm, product length (min.): 160 mm, No reserve price - guaranteed sale at the highest bid! TECHNICAL DETAILS Workpiece height: 8 - 42 mm Workpiece width: min. 70 mm Workpiece length (strip edges): min. 160 mm Workpiece length (endless roll): min. 60 mm Workpiece length (with double end-cutting device): min. 150 mm Edge parameters Edge thickness: max. 3 mm Edging thickness: 0.2 - 12 mm Working height and speed Working height: 800 mm Feed speed: 12 m/min Adhesive application Adhesive application: via application roller Process: Hot melt adhesive, hot-cold process, single-sided, right-hand design Heating time of adhesive tank: 8 min MACHINE DETAILS Total connected load: 12.5 kW Total weight: 2,100 kg Total length: 5,300 mm Total width: 900 mm Total height: 1,300 mm Operating voltage: 400 V, 50 Hz Input current: 400 A Compressed air connection: 6 bar Air connection: 6 bar, 1/4" Extraction connection: 1 x central extraction nozzle, diameter: 160 mm UNITS - Jointing unit with 2 HF motors, 1.5 kW each, 12,000 rpm, automatically controlled, including DIA MAX DIA jointing set Ø 85 x 30 x 42 mm, 3 teeth (LEUCO system), for panel thicknesses up to 42 mm - Double cross-cutting unit with 2 HF motors, 0.3 kW each, 12,000 rpm, 2 automatic positions (0° / 3°), 2 carbide saw blades Ø 140 x 3.2 x 16 mm Z 36 - Flush trimming machine with 2 HF motors, 0.43 kW each, 12,000 rpm, for solid and plastic edges, single-sided scanning, 2 carbide insert heads Ø 70 x 20 x 16 mm, Z 4 - Fine trimming machine with 2 HF motors, 0.3 kW each, 12,000 rpm, double-sided scanning, quick-change device, 2 AT 73 carbide rounding cutter heads Ø 73 x 16 x 16 mm, Z 3, profile knives R2 – R5 - Scraper with double-sided scanning, automatic control, for PVC and plastic edges - Corner rounding machine with 2 motors, 0.35 kW each, 12,000 rpm, 200 Hz, double-sided scanning, 1 work spindle each top/bottom AR 73 radius cutter heads Ø 73 x 16 x 16 mm, 3 teeth, profile cutters R2 – R5 EQUIPMENT - Double-roll top pressure with electronic positioning - Single feed for strip and solid edges - Automatic roll magazine for rolls up to 800 mm in diameter, with pneumatic cutting device up to 3 mm thick - Rapid heating tank for hot melt adhesive granules, with electronic temperature control - Automatic reversal of adhesive dosing via PLC (same and counter-rotating) - Automatic infeed guide, no manual adjustment of edge thickness required Rbodpfx Aowlquvjf Tew - Central control via PLC-controlled control panel, including plain-text error display - Program memory with name and number programs

Condition: used, Veneer press OTT Type JU 60S Rjdpfx Ajvdaymjf Tebw Pressing area max. 225x120 cm Electric

Condition: reconditioned (used), Year of construction: 1995, functionality: fully functional, Nominal volume flow Vnenn 750 m³/h, suction nozzle D=100 mm, minimum volume flow Vmin 565 m³/h, negative pressure 14.5 mbar, motor 1.1 kW, nominal speed 2860 rpm, connection 380V 3Ph 50Hz - Rjdpfsv Azfzox Af Tsbw

Condition: not inspected (used), Year of construction: 1975, Power supply 400V 13kW 2 heating plates à 1200 x 2250 mm heating plates controlled by 2 thermostats pressing pressure at 250 bar LxDxH: 2590 x 1330 x 1950 mm weight approx. 2800 kg Rbodpjkkflbofx Af Tjw pressing thickness 380 mm

Condition: reconditioned (used), functionality: fully functional, power: 9 kW (12.24 HP), Ott veneer press Rbedpfxstwp Iws Af Tow connected load 380V 9kW Panel size 2250 x 1350 mm Elkom heating plates, gold anodized Plates and hydraulics in order

Condition: used, functionality: fully functional, 0,75 kW Spraying device Lamella star 150/70/25 mm sisal/leather/plastic fabric Lamellar star 150/70/25 mm sisal/plastic fabric Flanges 70 mm reduced to 11 mm (2 pcs.) Metal Control panel top 4 motors à 0,18 kW for brushes Rodpfoigaf Rex Af Tobw

Condition: ready for operation (used), Year of construction: 1994, Ott 2513 Stabil Veneer Press 4 cylinders Pressing area 2500 x 1300 mm Electric heating Electric opening and closing Pressing force 90 tons Rbjdpfxex Dzvxj Af Tew Year of manufacture 1994 Price 7,500.-

Condition: used, Year of construction: 2001, functionality: fully functional, Used, fully functional OTT PACIFIC for sale! Machine length: 6.30 m! Redpfjxc Hhksx Af Tobw

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, ASSEMBLY UNIT PROGRAMMABLE ASSEMBLY FENCE 0-5MM AUTOMATIC MAGAZINE FOR EDGE BANDING ROLLS AUTOMATIC MAGAZINE FOR SOLID EDGES CUT-OFF KNIFE FOR EDGE BANDING ROLLS PROGRAMMABLE PRESSURE ZONE WITH 1 PRE-PRESSURE AND 5 POST-PRESSURE ROLLERS GLUING UNIT, FLUSHABLE FOR PU ADHESIVE LINEAR CUTTING UNIT, SWIVELABLE Rbodpfx Aov I Sayef Tew FLUSH MILLING UNIT 2X1.9 KW RADIUS MILLING UNIT RADIUS SCRAPER COPY MILLING UNIT WITH 2 MOTORS SURFACE SCRAPERS TOUCHSCREEN CONTROL PANEL EDGE THICKNESS UP TO 20MM MACHINE LENGTH 7.90 M

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, total height: 1,400 mm, total length: 4,000 mm, total width: 1,200 mm, OTT ATLANTIC EDGE BANDER 2 HM SAW BLADES 140X3.2X16 Z=36 FLUSH MILLING WITH 2 HM REVERSIBLE KNIFE CUTTER HEADS FINE MILLING WITH 2 HM REVERSIBLE KNIFE CUTTER HEADS Rbjdpfx Afjww H Enj Tsw SCRAPING UNIT WITH 2X HM SCRAPERS, AUTOMATIC FEED EDGE CLEANING – OSCILLATING BRUSHES MACHINE LENGTH: 4.50 M

Condition: ready for operation (used), Year of construction: 1986, Ott Höfer 2-Roller Glue Application Machine ZLA 1300 Working width: 1300 mm Max. workpiece thickness: 80 mm Roller diameter: 165 mm Both rollers are in good condition Rbedpfx Afsxqrdas Tew Feed speed: 18 m/min Drive power: 0.75 kW Working height: 800 mm Required space: 2000 x 750 x 1150 mm Weight: 500 kg
