Used Ott Tornado+ for sale (6)

Condition: excellent (used), Year of construction: 2007, Edge thickness 0.2 - 12 mm Workpiece thickness 8 - 52 mm Workpiece width min. 70 mm Workpiece length min. 150 mm Automatic edge magazine milling unit 2 x 1.5 kW, application-controlled Cut-off unit 2 x 0.3 kW Flush trimming unit 2 x 0.7 kW, scanning on one side Fine trimming unit 2 x 0.35 kW, tiltable 15/ 30/ 45 degrees Fine trimming unit 2 x 0.3 kW, R=2, scanning on both sides Corner copying unit 2 x 0.3 kW Scraper unit, autom. in/ out Flat scraper unit Buffing unit 2 x 0.2 kW, oscillating 5 x spray device (2 x release agent, 1 x lubricant, 2 x cleaning agent) Color touch screen control OTT C3 Motorized height adjustment Feed 10 - 14 m/min COMBI MELT gluing part for EVA/ PUR, volume 1.5 l CE mark Isdolc Ewispfx Af Sotr Total connection 12.6 kW Dimensions L x W x H approx. = 6120 x 840 x 1500 mm Weight approx. 2,900 kg

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: T/41242, workpiece height (max.): 52 mm, edge thickness (max.): 12 mm, working height: 880 mm, empty load weight: 3,000 kg, throughput speed: 233 mm/s, TECHNICAL DETAILS Operating Method: Single-sided, right-hand operation Edge Thickness: 0.2 – 12 mm Workpiece Dimensions Minimum Width: 70 mm Minimum Height: 8 mm Maximum Height: 52 mm Minimum Length: 150 mm Feed Speed: 10 – 14 m/min Working Height: 880 mm MACHINE DETAILS Processing Units Jointing Section with 2 HF motors, 1.5 kW Double End Trimming Unit with 2 HF motors, 0.3 kW Flush Milling Unit with 2 HF motors, 0.7 kW Fine Chamfer Mill with 2 HF motors, 0.3 kW Fine Radius Mill with 2 HF motors, 0.3 kW Corner Rounding Unit with 2 motors, 0.35 kW Scraper Unit for Plastic Edges Dimensions & Weight Machine Dimensions (L x W x H): 6,120 x 840 x 1,385 mm Machine Weight: 3,000 kg Operating Voltage: 400 V, 50 Hz Total Connected Load: 12 kW Electrical Connection: 3 x 400 V, 5 x 6 mm², fuse 35 A EQUIPMENT Double roller top pressure with electronic positioning Isdpfx Ajxtfchef Setr Automatic coil magazine for rolls up to 800 mm diameter with pneumatic cut-off device for up to 3 mm thickness Automatic edge magazine with optical monitoring for fixed-length edge strips Infeed fence with automatic positioning after inputting the jointing value CM - CombiMelt - Modular glue application system Control system via 7-inch TFT color touch display 100 freely alphanumeric storable work programs PLC for high-resolution track control Individual frequency inverters for separate activation of processing motors Hole detection system for skipping CNC processing Network capability for integration into a data network

Condition: refurbished (used), Year of construction: 2007, functionality: fully functional, OTT Tornado Top Edge Banding Machine in Excellent Condition PU glue pot with release agent, also suitable for EVA adhesives. We had the entire machine recalibrated in September 2024. The glue unit was replaced. The results are perfect with transparent adhesive and incredible with white panels using white adhesive. The machine runs perfectly and without any problems. Technical specifications: Edge thickness: 0.4 - 8 mm Panel thickness: 8 - 40 mm Minimum panel length: 150 mm Minimum panel width: 70 mm Feed speed: 14 m/min Pre-milling unit: with 2 HF motors, 2.3 kW, 12,000 rpm Cross-cutting unit: with 2 HF motors, 0.3 kW, 12,000 rpm Flush trimming unit: with 2 HF motors, 0.7 kW, 12,000 rpm Fine trimming unit: with 2 HF motors, 0.3 kW, 12,000 rpm Corner rounding unit Ijdov Sm Hcspfx Af Sstr Scraper blade Buffing unit Triple spraying Total power: 17.5 kW Dimensions: Length: 6180 mm Width: 1770 mm mm Weight: 3100 kg - Available immediately -

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: T/41242, workpiece height (max.): 52 mm, edge thickness (max.): 12 mm, working height: 880 mm, empty load weight: 3,000 kg, throughput speed: 233 mm/s, No reserve price – guaranteed sale to the highest bidder! Iodjxa Acrspfx Af Sstr TECHNICAL DETAILS Operation: Single-sided, right-hand version Edge thickness: 0.2 – 12 mm Workpiece dimensions Minimum width: 70 mm Minimum height: 8 mm Maximum height: 52 mm Minimum length: 150 mm Feed speed: 10 – 14 m/min Working height: 880 mm MACHINE DETAILS Processing units Jointing unit with 2 high-frequency motors, 1.5 kW Double end trimming unit with 2 high-frequency motors, 0.3 kW Flush trimming unit with 2 high-frequency motors, 0.7 kW Fine trimming CHAMFERING unit with 2 high-frequency motors, 0.3 kW Fine trimming RADIUS unit with 2 high-frequency motors, 0.3 kW Corner rounding unit with 2 motors, 0.35 kW Scraper unit for plastic edges Dimensions & Weight Machine dimensions (L x W x H): 6,120 x 840 x 1,385 mm Machine weight: 3,000 kg Operating voltage: 400 V, 50 Hz Total connected load: 12 kW Electrical connection: 3 x 400 V, 5 x 6 mm², fuse 35 A EQUIPMENT Double roller top pressure with electronic positioning Automatic roll magazine for coils up to 800 mm diameter, with pneumatic guillotine for edge thickness up to 3 mm Automatic edge magazine with optical monitoring for strip edges in fixed lengths Infeed fence with automatic positioning when inputting the jointing value CM - CombiMelt adhesive application system in modular design Control system via 7-inch TFT color touchscreen display 100 work programs freely and alphanumerically programmable PLC for high-resolution feed control Individual frequency inverters for independent activation of processing motors Hole recognition to suppress CNC operations Network capability for integration into a data network

Condition: used, Year of construction: 2008, Used machine Year of manufacture: 2008 Equipment and technical specifications: - Round tank glue application unit - Feed unit with automatic edge band magazine - Pressure zone with multiple pressure rollers - End trimming: 2 motorized saw units for front/end trimming - Top/bottom milling units: 2 milling units with copy wheels for radius or chamfer - Radius scraper: pneumatically controlled, for post-processing radii - Surface scraper: for smoothing the edge surfaces - Buffing unit: 2 buffing wheels with motors for final finishing - Riepe spraying device - Control: PLC with operator panel - Feed frequency inverter replaced by Ott in 2022 - Feed speed approx. 10–12 m/min - Workpiece thickness up to 52 mm Ijdpjxdpm Sjfx Af Setr - Edge thickness 0.3 – 12 mm - Power supply 3x 400 V AC, 50 Hz - Rated power 12.7 kW - Rated current 30.5 A - Control voltage 24 V DC - Max. fuse protection 35 A (5x 6 mm² connection cable) Machine dimensions: approx. 6120x840x1385 mm Machine weight: approx. 3,000 kg Availability: Short notice Location: Bavaria

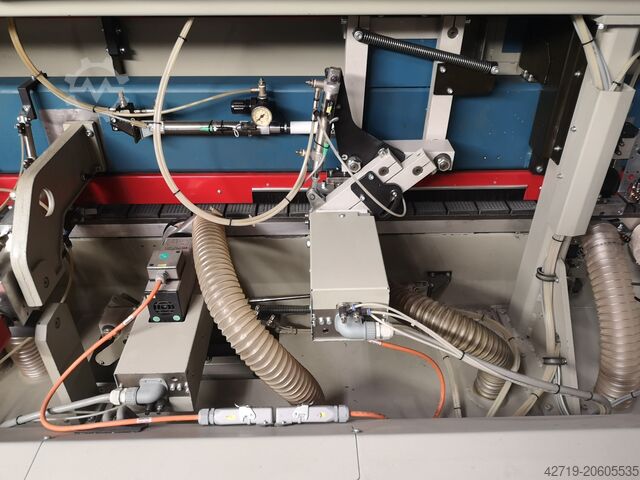

Condition: used, OTT Tornado - TOP Control system - via a 15-inch color touch monitor for full automation and maximum operating convenience. CM-CombiMelt gluing system suitable for processing EVA and PUR hot melt adhesives as well as all standard cleaning granulates. Joint processing unit for edging chipboard panels. Automatic roll magazine. Automatic edge magazine. Double end trimming unit with automatic 0° / 3° swivel. Isdpfx Afjxy Iw Ue Sjtr Flush milling unit for flush trimming - 12mm. Fine radius milling - profile knives R2 - R5. Automated copying milling - corner rounding. Scraper unit - radius / bevel. Surface scraper unit. Sliding agent spray unit - PU. Cleaning set with fine polishing unit. Very stable workpiece support with roller conveyors - FRONT with scissor extension. Complete set of tools included. Machine is AS NEW in EXTREMELY WELL-MAINTAINED CONDITION. First commissioning in 2009, very few operating hours, approx. 1600. Machine from lease return / leasing option available. Ex stock Lieboch.
