Used Optimum Opti B28H Vario for sale (118)

Condition: used, bore capacity in steel (diameter) 28 mm throat 200 mm bore stroke 105 mm spindle taper MK 3 number of spindle speeds 12 spindle speed: 35 - 5600 Upm column diameter 92 mm table-size 340 x 360 mm table rotating 360 ° total power requirement 1,5 kW weight of the machine ca. ca. 170 kg dimensions of the machine ca. ca. 750 x 500 x 1800 mm Lrsdpfx Aofbh Akjhweh

Condition: used, Year of construction: 2023, Optimum Optiturn TX 5216V – used machine. - Machine bed made from heavily ribbed cast iron - One-piece steel machine base - High rigidity of the spindle head housing due to heavily ribbed 25GG cast iron - Precisely machined saddle - Shafts mounted on needle bearings, all components lubricated in oil bath - Bed guideways hardened and precision-ground - All electronic controls centrally accessible - All feed gearbox gears made from hardened steel - Handwheels decoupled and tested according to EN 23125 - Dual-channel safety electronics - Switches with lifecycle calculation, tested according to EN ISO 13849 - Complete lead screw and feed shaft guard - Full work area illumination - Service-friendly removable rear panel - Hardened and ground faceplate spindle ensures extreme accuracy and durability - Due to the machine’s high cutting capacity, substantial material removal during rough machining is no problem - Energy chain ensures gentle routing of cables and hoses - Lockable chip guard moves with the saddle, featuring integrated position display and coolant hose, manually adjustable - No change gears required - Equipped with safety device to prevent simultaneous operation of thread cutting and feed mechanisms - Electronic feed shut-off for the Z-axis - Coolant system with separate coolant tank, fill level indicator and oil separator; easy, complete draining and cleaning per DIN - Electrical position shut-off with quadruple position stop - 3-jaw chuck included as standard - Quick-change tool post SWH 7-C - Tool holder 32 x 130 type D for 25 mm square tools - Large spindle bore Dimensions and Weights - Length approx. 2925 mm - Width/depth approx. 1195 mm - Height approx. 1930 mm - Weight approx. 2470 kg Working Ranges - Centre height 260 mm - Centre distance 1600 mm - Swing over bed 520 mm - Swing over cross slide 324 mm - Bed width 350 mm Speed Range - Number of speed ranges: 2 x 3 steps - Spindle speed range: 12 – 1800 rpm Electrical Data Lrjdex Hdq Tjpfx Ahweh - Output power (motor): 7.5 kW - Total connected load: 5.5 kW - Rated voltage: 400 V - Mains frequency: 50 Hz Coolant System - Coolant pump output: 60 W - Data type: Usage data Tailstock - Mount: MK 5 - Quill stroke: 180 mm - Quill diameter: 72 mm Spindle - Spindle mount: Camlock DIN ISO 702-2 No. 8 - Spindle bore/bar pass diameter: 80 mm - Tool post: SWH 7C - Spindle taper: MK 7 Threading - Metric thread pitch: 0.5 – 15 mm/rev - Number of metric pitches: 55 - Inch thread pitch: 60 – 2 tpi - Number of inch threads: 55 - Diametral pitch: 120 – 4 DP - Number of diametral pitches: 55 - Module thread pitch: 0.25 – 7.5 mm x π - Number of module pitches: 55 Traverse Paths - Top slide travel: 170 mm - Cross slide travel: 340 mm - Carriage travel: 1400 mm Feed - Longitudinal feed range: 0.05 – 1.5 mm/rev - Number of longitudinal feeds: 55 - Cross feed range: 0.025 – 0.75 mm/rev - Number of cross feeds: 55

Condition: used, Year of construction: 2003, x-travel:930 mm Lrjdpst U Rm Iofx Ahweh y-travel:400 mm z-travel:406 mm turning speeds:9-6750 1/min table::1370 x 254 quill stroke:127 mm quill feed:(3) 0,04; 0,08; 0,15 mm/U bore capacity in steel:32 mm feed range:19 - 890 (x) mm/min spindle cone:SK 40 column arm:200 - 680 mm total power requirement:4 kVA weight of the machine ca.:1,15 t dimensions of the machine ca.:1,5 x 1,45 x 2,2 m 3-axis RSF-electronic Z503 digital display, swivelling vertical head +/- 90°, all 3 axes with Feeds, spindle quill (60 mm), switchable spindle brake, coolant system, bore-feed 0.03; 0.12; 0.06 mm/rev. machine light, angled table, extensive accessories (counter bearing, milling spindles with distance rings, tool holders etc.)

Condition: excellent (used), Year of construction: 2003, cutting diameter 128 mm saw band length / mm Ljdjxbh Hfspfx Ahwsrh table height / mm

Condition: used, Year of construction: 1999, Technical details: turning diameter over bed: 460 mm turning diameter over support: 388 mm turning length: 1016 mm centre distance: 1016 mm center height measured in bed: 230 mm turning dia. in gap: 640 mm spindle bore of work spindle: 52 mm range of revolution per miute: 30 - 2000 / 12 step U/min feeds:: längs: 0,032 - 0,898 mm/U feeds:: plan: 0,016 - 0,449 mm/U tailstock quill taper MT: 4 tailstock quill adjustment:: 120 mm total power requirement: 3,75 kW weight of the machine ca.: 1,6 t dimension machine xH: 2,1 x 1,1 x 1,5 m Switchable gearbox Quantum 3-way length measuring system Ljdpfx Aheu Ixzbjwjrh Top slide adjustment +/-90° Multifix quick-change steel holder 3-jaw chuck Ø 200mm rotating center in tailstock Threads: Inch thread; Metric thread; Trapezoidal thread; Module thread Accessories: Change gears, machine feet, 1x fixed quill tip *

Condition: used, Drilling / Milling machine OPTIMUM type OPTI F 40 E Travel X: 500 mm Travel Y: 200 mm Spindle: Ø 80 mm Cone CM3 Lrodpfxsxugnue Ahweh Spindle exit: 120 mm Spindle speed: from 95 to 3200 RPM Table size: Length 730 mm x Width 210 mm 2 speeds motor Motor power: 1,5 Kw Straight head Cross table Manual Descent Equipped with: 1 rotary vice Voltage: 380 V Dimensions (L x W x H): 1200 x 900 x 1400 mm Weight: approx 350 KG

Condition: as good as new (ex-display), Year of construction: 2025, Machine is in the exhibition and was only used for demonstration purposes. Optiturn S400 HSC CNC Premium CNC lathe direct from the manufacturer. S400 HSC - The OPTIMUM Premium CNC milling machine with Siemens control SINUMERIK 828D is characterized by performance, speed, precision and long service life. Heavy-duty design - Compact design - .SIEMENS servomotors in all axes - Renishaw measuring arm for tool measurement - All servomotors with integrated encoder for maximum accuracy - Main spindle designed as motor spindle - 45° inclined bed design for particularly large machining diameters and unhindered chip flow into the chip flow into the chip tray - Hydraulic three-jaw lathe chuck Ø 170 mm with soft jaws - Servo tool changer VDI 30 with 12 tool positions - Hardened and precision-ground ball screws for high rapid traverse speeds in all axes axes - Faster tool change speed - High hydraulic clamping force - Heavy-duty cutting without vibration, to realize machining automation and high efficiency in extreme cases - Dimensionally stable linear guides ensure a long service life thanks to maximum static and dynamic rigidity rigidity - Device for manual tool measurement - Heat exchanger - Portable, electronic handwheel with enabling switch and emergency stop switch makes it much easier to run in programs. programs considerably - Belt-type chip conveyor ensures efficient chip removal - Work light for complete illumination of the work area - Coolant device with cleaning gun - RJ45 and power interface - EMC (electromagnetic compatibility) - Additional package SIEMENS material liability for defects and free online/on-site service OSS Plus see "Additional package SIEMENS OSS Plus" on page 117 - 1 year maintenance contract Basic included Machine data Electrical connection 400 V / 3 Ph ~50 Hz Total connected load 25 kVA Spindle Drive motor S1 operation 11.6 kW Torque drive motor S1 operation 65 Nm Drive motor S6-30% operation 14.4 kW Torque drive motor S6-30% operation 81 Nm Spindle holder A2-5 Spindle bore Ø 56 mm Lrodpfx Asymlhrehwoh Chuck opening Ø 45 mm Hydraulic lathe chuck Ø 170 mm Coolant system Coolant pump power 700 W Tank capacity 160 liters Hydraulic system Hydraulic pump output 1.5 kW Tank capacity 36 liters Machine data Turning Ø max. 220 mm Turning length 320 mm Rotation Ø over cross slide 300 mm Rotation Ø over machine bed 500 mm Inclined bed 45° Speed range Spindle speeds* 30 - 6,000 min-1 Tool changer Type Servo VDI 30 Number of tool positions 12 Accuracy Repeat accuracy ± 0.004 mm Positioning accuracy ± 0.004 mm Travel distance X-axis 180 mm Z-axis 350 mm Feed force Dynamic X-axis 3.6 kN Z-axis 3.6 kN Feed speed X-axis / Z-axis 30 m/min. Motor torque X-axis / Z-axis 6 Nm Dimensions Length x width x height 2,000 x 2,250 x 1,550 mm Total weight 2,600 kg

Condition: as good as new (ex-display), Year of construction: 2025, Optiturn L28 HS CNC lathe directly from the manufacturer. L28 HS - The OPTIMUM CNC lathe with Siemens control SINUMERIK 808D Advanced PPU 150. Strutted machine bed made of gray cast iron - Elaborate spindle bearings - Emergency stop impact switch - Central lubrication - Reference switch - Maintenance-friendly protective housing - Rear access flap for maintenance - Safety switch on the front sliding door - Turning turret is located behind the turning center (left turning tool) - Linear guide - Software package "SINUMERIK 808D on PC" included. (Practical training software, so that workpieces can be programmed and simulated offline on the PC. Free to download free of charge - Two-year SIEMENS warranty included Technical data Electrical connection 400 V / 3 Ph ~50 Hz Total connected load 3.75 kVA Ljdpfx Ajymlf Rehwerh Spindle Drive motor S1 operation 2.2 kW Torque drive motor S1 operation 14 Nm Torque at the spindle 28 Nm Spindle holder DIN 6350 A2-3 Spindle cone 5C Spindle bore Ø 30 mm Cooling lubricant system Coolant pump output 95 W Tank capacity 25 liters Machine data Center height 169 mm Center width 430 mm Rotation Ø over cross slide Ø 200 mm Rotation Ø over machine bed Ø 300 mm Speed range Spindle speeds* 40 - 4,000 min-1 Tool turret Type electric Number of tool positions 6 tools Mounting height, width square max. 16 mm Mounting diameter of boring bar max. 16 mm Accuracy Repeat accuracy ± 0.01 mm Positioning accuracy ± 0.01 mm Bhajn7pvcu Travel distance X-axis 145 mm Z-axis 465 mm Feed speed X-axis 10,000 mm/min. Z-axis 12,000 mm/min. Machine leasing possible via Siemens Finance. Liquidity required.

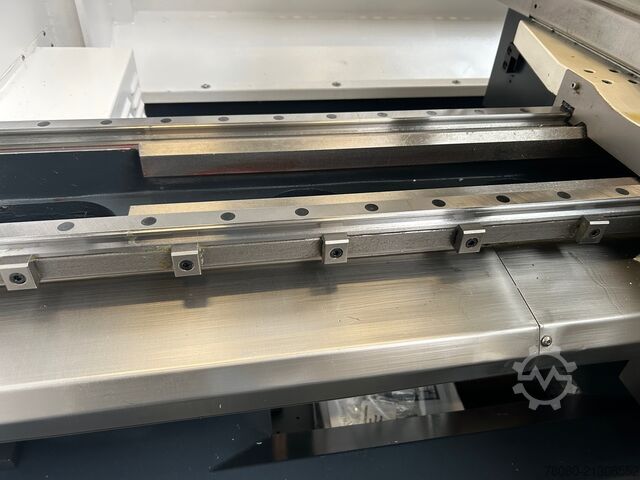

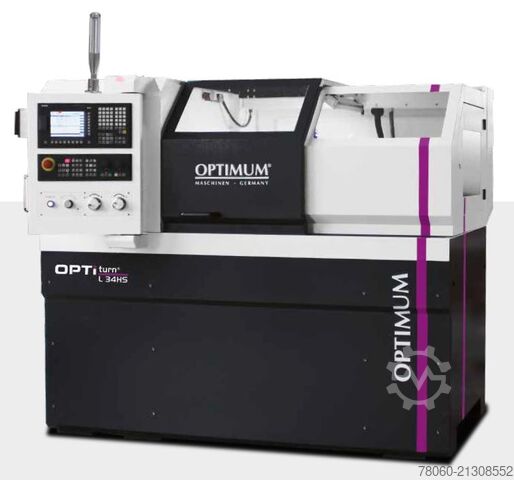

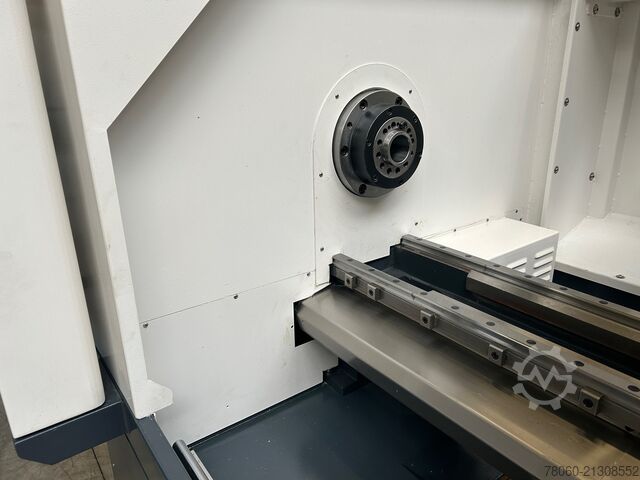

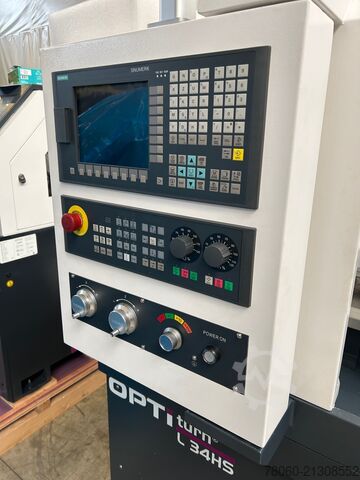

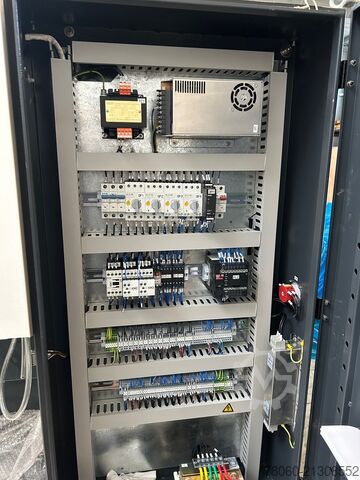

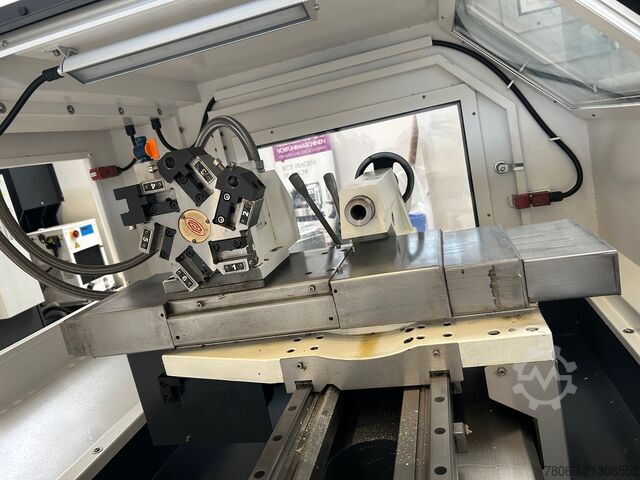

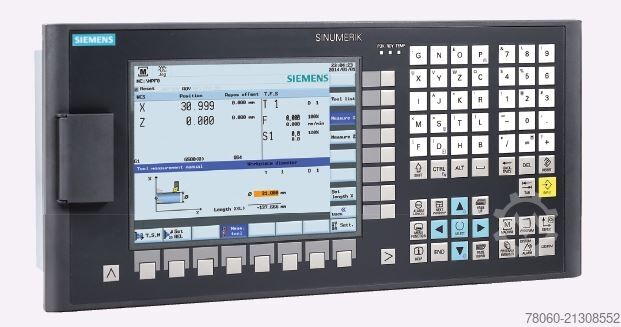

Condition: as good as new (ex-display), Year of construction: 2025, Optiturn L34 HS CNC lathe directly from the manufacturer. L34 HS - The OPTIMUM CNC lathe with Siemens control SINUMERIK 808D Advanced PPU 150. Lredpfxeymlfks Ahweh Strutted machine bed made of gray cast iron - Elaborate spindle bearings - Emergency stop switch - Central lubrication - Spindle and feed motors from Siemens - Maintenance-friendly protective housing - Rear access flap for maintenance - Safety switch on the front sliding door - Turning turret is located behind the turning center (left turning tool) - Linear guide - Software package "SINUMERIK 808D on PC" included. (Practical training software, so that workpieces can be programmed and simulated offline on the PC. Free to download Technical data Electrical connection 400 V / 3 Ph ~50 Hz Total connected load 6.5 kVA Spindle Drive motor S1 operation 3.7 kW Torque drive motor S1 operation 23.6 Nm Torque at the spindle 40 Nm Spindle holder DIN 6350 A2-3 Spindle bore Ø 46 mm Coolant system Coolant pump output 95 W Tank capacity 75 liters Machine data Center height 165 mm Center width 600 mm Rotation Ø over cross slide Ø 146 mm Rotation Ø over machine bed Ø 350 mm Speed range Yvwdh0 Spindle speeds* 30 - 3500 min-1 Tool turret Type electric Number of tool positions 6 tools Mounting height, width square max. 16 mm Mounting diameter of boring bar max. 16 mm Accuracy Repeat accuracy ± 0.01 mm Positioning accuracy ± 0.01 mm Travel distance X-axis 145 mm Z-axis 465 mm Feed speed X-axis 6,000 mm/min. Z-axis 8,000 mm/min. Machine leasing possible via Siemens Finance. Liquidity required.

Condition: as good as new (ex-display), Year of construction: 2025, The machine is currently on display. Optiturn Premium CNC lathe directly from the manufacturer. S600M – The OPTIMUM Premium CNC lathe equipped with a Siemens SINUMERIK 828D control system. • Heavy-duty construction • Renishaw measuring arm for manual tool measurement • Ball screw with enhanced precision, rigidity, and thermal stability • Siemens servo motors on all axes • All servo motors with integrated encoders for maximum accuracy • 45° slant bed design for particularly large workpieces • Hydraulic three-jaw chuck, Ø 200 mm • Sauter tool turret VDI 40 with 8 tool stations and driven tool capability • Hardened and precision-ground ball screws for high rapid traverse speeds on all axes • Manual tool measurement setup • Tailstock with hydraulic quill • Heat exchanger • Portable electronic handwheel with enabling button and emergency stop impact switch greatly simplifies program setup • Belt-style chip conveyor • Worklight for complete illumination of the work area • Coolant system with cleaning gun Linear Guideways • Maximum static and dynamic rigidity • High positioning accuracy • Smooth, backlash-free movement • Hydraulic turret head VDI 40 • All 12 turret stations powered by an integrated motor capable of speeds up to 4,000 rpm Machine Bed • Heavily ribbed • 45-degree inclination • High rigidity and durability • Facilitates chip removal SAFETY Integrated – Setup with the door open • Functional safety also protects against high costs! Complete Package • Safety Integrated • Remnant detection and machining • ShopMill step programming • Manage network drives • 3D simulation • Remote view/assistance SIEMENS OSS Plus Additional Package • 12 months; Item no. 3589020 • 24 months; Item no. 3589021 • 36 months; Item no. 3589022 Dimensions and Weights Length approx. 4570 mm Width/depth approx. 1845 mm Height approx. 1955 mm Weight approx. 4200 kg Work Area Chuck diameter: 320 mm Turning length: 475 mm Swing over bed: 570 mm Swing over cross slide: 400 mm C-Axis (factory option) Angular accuracy: 51 '' Repeatability: 20 '' Motor Torque X-axis: 11 Nm Z-axis: 11 Nm Speed Range Speed range: 30 – 4000 rpm Lrjdoymk Ukjpfx Ahwsh Rapid Traverse Speed X-axis: 24 m/min Z-axis: 30 m/min Electrical Data Supply voltage: 400 V Mains frequency: 50 Hz Electrical connection Total connected load: 40 kVA Accuracy Repeatability: ± 0.002 mm Positioning accuracy: ± 0.004 mm Chuck passage diameter: 51 mm Slant bed: 45° Tailstock Mount: MT 5 Quill stroke: 100 mm Quill diameter: 100 mm Quill actuation: hydraulic Spindle Spindle nose: DIN ISO 702-1 No. 6 Main spindle hydraulic chuck: 200 mm Spindle taper: A2-6 Main spindle bore: 65 mm Travel X-axis: 235 mm Z-axis: 530 mm Vertical Spindle Drive motor power S1 continuous duty: 11 kW Drive motor power S6-30% duty: 22 kW Drive motor torque: 70 Nm Drive motor torque S6-30%: 140 Nm Feed Force Feed force, X-axis: 8.4 kN Feed force, Z-axis: 5.6 kN Tool Turret Type: Servo VDI 40 - DIN 5480 Number of tool stations: 12 Drive motor power: 4.82 kW Max. permissible speed at tool coupling: 6000 rpm Max. tool torque: 20 Nm

Condition: as good as new (ex-display), Year of construction: 2026, The machine is on display and has only been used for demonstration purposes. Optiturn L44 CNC Premium CNC Lathe – directly from the manufacturer. L44 CNC – The OPTIMUM Premium CNC lathe with Siemens SINUMERIK 828D control system stands out for its performance, speed, precision, and long service life. Dimensions and Weight: - Max. width/depth: 2300 mm - Approx. length: 2530 mm - Approx. width/depth: 1595 mm - Approx. height: 1795 mm - Approx. weight: 2600 kg Working Range: - Chuck diameter: 150 mm - Chuck clamping actuation: hydraulic - Centre height: 223 mm - Centre distance: 850 mm - Swing diameter over bed: 446 mm - Swing diameter over gap: 520 mm - Swing diameter over cross slide: 240 mm - Bed width: 300 mm Servo Torque: - X-axis: 6 Nm - Z-axis: 8.5 Nm Spindle Speed Range: - Number of speed ranges: 1 - Spindle speed range: 10 – 3000 rpm Electrical Data: Lrsdpfjymkwrex Ahweh - Drive motor power: 7 kW - Voltage: 400 V - Network frequency: 50 Hz - Total connected load: 23 kVA Accuracy: - Repeatability: ± 0.005 mm - Positioning accuracy: ± 0.005 mm Hydraulic System: - Motor power: 0.75 kW - Tank capacity: 50 l Ball Screw: - X-axis diameter: 25 mm - X-axis lead P: 5 mm - X-axis accuracy grade: C3 - Z-axis diameter: 40 mm - Z-axis lead P: 5 mm - Z-axis accuracy grade: C3 Coolant System: - Coolant pump power: 270 W - Tank capacity: 90 l Machine Data: - Spindle bore diameter: 40 mm - Drive motor torque: 33 Nm Tailstock: - Taper: MT 4 - Quill travel: 165 mm - Quill diameter: 52 mm Spindle: - Spindle nose: DIN ISO 702-1 No. 5 - Spindle bore/bar capacity: 52 mm Controller: - Type: Sinumerik 828D PPU 240 - System software: SW 24 - CNC memory: 3 MB - Look Ahead: 50 - Block change time: 3 ms - Number of tools: 128 Travel: - X-axis: 250 mm - Z-axis: 760 mm Vertical Spindle: - Drive motor continuous power S1: 7 kW - Drive motor S6-30% duty cycle power: 16 kW - Drive motor torque: 33 Nm - Drive motor torque S6-30% duty cycle: 80 Nm Feed Rate: - X-axis: 15,000 mm/min - Z-axis: 15,000 mm/min Feed Force: - X-axis: 7.5 kN - Z-axis: 5.3 kN Tool Changer: - Type: hydraulic; VDI 30 - Number of tool stations: 8 - Max. square tool shank height/width: 20 x 20 mm - Max. boring bar diameter: 25 mm Features: - Siemens spindle and servo motors - Full enclosure with safety interlock - Standard with max. spindle speed up to 3000 rpm - Automatic central lubrication - Swiveling control panel - Tailstock cover - Electronic hand wheels for X and Z axes - Coolant system with 90-liter tank - RJ45 connection, USB port, and 230 V power socket - EMC (Electromagnetic compatibility) - Six leveling feet - Operator tools included SINUMERIK 828D Basic – COMPLETE PACKAGE - Safety Integrated - Remainder material detection and machining - ShopTurn step programming - Network drive management - 3D simulation - Graphical tracking Control: - 10.4” color display - 4:3 format - User-friendly SINUMERIK Operate software - Front interfaces: USB 2.0, RJ45 Ethernet, Compact Flash (CF) Card Guides: - Rigid flat-bed guideways Ball Screw: - For high rapid traverse speeds on all axes - Reduced wear - High positioning and repeat accuracy

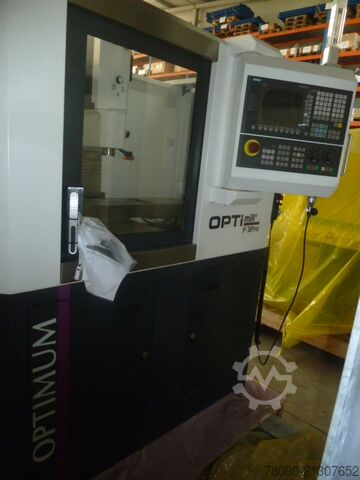

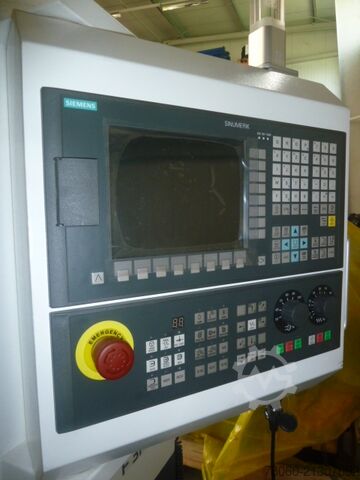

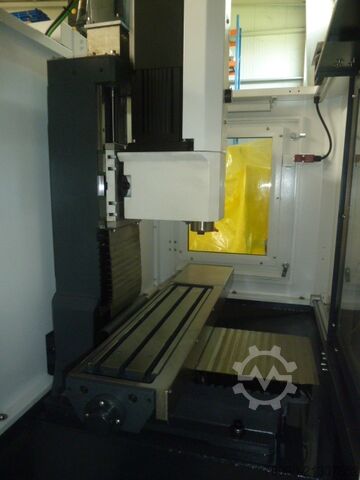

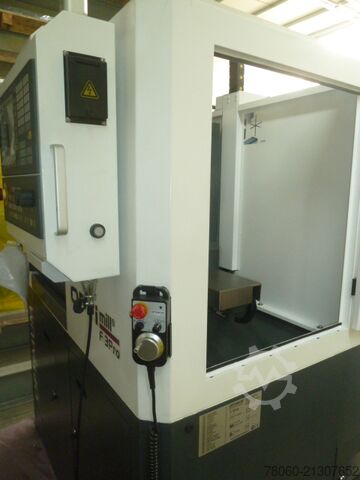

Condition: as good as new (ex-display), Year of construction: 2025, Machine is in the exhibition and was only used for demonstration purposes. Optimill F 3 Pro CNC milling machine (training machine) directly from the manufacturer. F 3 PRO - The OPTIMUM CNC milling machine with Siemens control SINUMERIK 808D Advanced is characterized by performance, speed, precision and long service life. Lrodpfjymkkfox Ahwsh All linear guides with stainless steel covers Automatic central lubrication Servo drive from SIEMENS in all axes (open control loop) Max. Spindle speed 4000 min-1 Machine light in the work area Portable, electronic handwheel with enabling switch and emergency stop switch. Makes running in programs considerably easier Tools can be changed at the touch of a button Access doors very generously designed to reduce cleaning and maintenance time to a minimum Software package "SINUMERIK 808D on PC" included. (Practical training software so that workpieces can be programmed and simulated offline on the PC. Software can be downloaded free of charge at). SINUMERIK 808 ADVANCED - CNC technology from the technology leader, paired with a revolutionary operating concept The SINUMERIK 808D ADVANCED control is a panel-based CNC control. The compact and user-friendly entry-level solution is used for simple milling applications. Features such as simple operation, commissioning and maintenance are the perfect basis for equipping CNC machines. Compact and robust Thanks to a panel-based CNC design with few interfaces and a control panel in protection class IP65, the SINUMERIK 808D ADVANCED is perfectly prepared for use in harsh environments. The small dimensions allow it to be used in compact machines INCLUDED RJ45 Ethernet port 8.4" LCD color display with 800 x 600 resolution Prepared for remote maintenance Dimensions and weights Length approx. 1410 mm Width/depth approx. 1372 mm Height approx. 2007 mm Weight approx. 1000 kg Drilling/milling capacity Cutter head size max. 50 mm End mill size max. 25 mm Electrical data Supply voltage 400 V Mains frequency 50 Hz Electrical connection Total connected load 5 kVA Horizontal milling table Length 620 mm Width 180 mm Distance vertical spindle - milling table min. 50 mm Distance vertical spindle - milling table max. 295 mm T-slots size 12 mm Number of T-slots 3 T-slot spacing 50 mm Load max. 30 kg Accuracy Repeat accuracy ± 0.02 mm Positioning accuracy ± 0.01 mm Coolant system Coolant pump(s) Drive power 95 W Tank capacity 30 l Travel distance X-axis automatic 355 mm Y-axis automatic 190 mm Z-axis automatic 245 mm Vertical spindle Spindle holder BT 30 Speed range 4000 min¯¹ Explanation Speed range Please note that the maximum spindle speed must be reduced by approx. 20 % in continuous operation Power drive motor continuous operation S1 1.5 kW Power drive motor S6-30 % operation 2.2 kW Torque drive motor continuous operation S1 9.5 Nm Torque drive motor 30% operation S6 14 Nm Feed rate Speed X-axis 10000 mm/min Y-axis 10000 mm/min Z-axis 10000 mm/min Feed motor torque X-axis continuous operation S1 1.9 Nm Y-axis continuous operation S1 3.5 Nm Z-axis continuous operation S1 3.5 Nm

Condition: as good as new (ex-display), Year of construction: 2025, The machine is on display and has only been used for demonstration purposes. Optimill F50 E CNC milling machine, direct from the manufacturer. F50 E – The OPTIMUM CNC milling machine with Siemens SINUMERIK 808D Advanced control stands out with its power, speed, precision, and long service life. • Machine in rigid cast frame design for high stiffness • Carousel tool changer with eight tool stations • All linear guides equipped with stainless steel covers • Automatic central lubrication • Siemens main spindle motor • Siemens servo drive on all axes (closed loop) • Maximum spindle speed of 10,000 rpm • The portable electronic handwheel with enabling button and emergency stop facilitates program setup significantly • Coolant system with 70-liter coolant tank • Tool change is automatic or by button press (electropneumatic tool clamping system) • Massive, precision-milled work table – large and precisely ground surface • Large access doors designed to minimize cleaning and maintenance time • LED machine light for complete workspace illumination • SIEMENS options package with material defect liability and free on-site OSS service SINUMERIK 808D • Control-identical software package for process reliability • LED tool number display • MCP with rotary switch for feed and spindle override • Absolute encoders – no homing run required • Higher accuracy Control system • 8.4” LCD color display with 800 x 600 resolution SIEMENS OSS options package • 12 months; Item No. 3589010 • 36 months; Item No. 3589012 Dimensions and weights Length approx. 2030 mm Width/depth approx. 1600 mm Height approx. 1980 mm Weight approx. 1900 kg Electrical data Connection voltage 400 V Mains frequency 50 Hz Electrical connection Total connected load 10 kVA Work table horizontal Length 690 mm Width 225 mm Vertical spindle-table distance min. 90 mm Vertical spindle-table distance max. 410 mm T-slot size 14 mm Number of T-slots 3 T-slot spacing 63 mm Max. load capacity 150 kg Accuracy Repeat accuracy ± 0.015 mm Positioning accuracy ± 0.015 mm Pneumatic connection Operating pressure 6 bar Travel X-axis automatic 330 mm Y-axis automatic 220 mm Z-axis automatic 320 mm Spindle-column distance min. 280 mm Spindle-column distance max. 280 mm Vertical spindle Spindle taper BT 30 Speed range 10,000 rpm Drive motor power continuous operation S1 3.7 kW Drive motor power S6-30% duty 5.5 kW Drive motor torque continuous operation S1 24 Nm Drive motor torque 30% duty S6 36 Nm Feed rates X-axis 15,000 mm/min Y-axis 15,000 mm/min Z-axis 15,000 mm/min Lsdpfx Aoymkdxohwerh Feed motor torque X-axis continuous operation S1 3.5 Nm Y-axis continuous operation S1 6 Nm Z-axis continuous operation S1 6 Nm Tool changer Type: carousel Number of tool stations: 8 Maximum tool diameter: 100 mm Maximum tool length: 200 mm Maximum tool weight: 6 kg Tool-to-tool change time: 7 s

Condition: as good as new (ex-display), Year of construction: 2025, The machine is on display. Optimill F 80 CNC milling machine, direct from the manufacturer. F 80 CNC – The OPTIMUM CNC milling machine with Siemens SINUMERIK 808D control is distinguished by performance, speed, precision, and long service life. • Machine base constructed from cast iron for high rigidity • Carousel-type tool changer with 12 tool stations • All linear guides equipped with stainless steel covers • Automatic central lubrication • Siemens main spindle motor • Siemens servo drive in all axes (closed loop) • Maximum spindle speed of 10,000 rpm • The portable electronic handwheel featuring an enabling switch and emergency stop button makes program setup significantly easier • Coolant system with 70-liter coolant tank • Tool change performed automatically or at the push of a button (electropneumatic tool clamping system) Lrjdpfx Ahsymkcuewoh • Heavy-duty, high-precision milling table – large dimensions and precision ground finish • Generously dimensioned access doors minimize cleaning and maintenance time • LED machine light for complete illumination of the working area SINUMERIK 808 ADVANCED Compact and robust Communication features: • Front USB port (IP65) • Serial RS232C interface • RJ45 Ethernet on rear panel User-friendly: • Technology-specific keyboard layout • Hard keys with protective membrane Process reliability: • LED tool number display • MCP with rotary switch for feed and spindle override Complete package: • RJ45 Ethernet port • Prepared for remote maintenance • AST function; allows simple optimization for enhanced dynamic and accuracy requirements • Absolute encoder / no reference run necessary • Higher precision Dimensions and Weight Length: approx. 1995 mm Width/Depth: approx. 1930 mm Height: approx. 1640 mm Weight: approx. 2300 kg Rapid traverse speed X axis: 20 m/min Y axis: 20 m/min Z axis: 20 m/min Electrical Data Connection voltage: 400 V Mains frequency: 50 Hz Electrical Connection Total connected load: 12 kVA Horizontal Milling Table Length: 800 mm Width: 260 mm Distance vertical spindle – table, min.: 100 mm Distance vertical spindle – table, max.: 550 mm T-slot size: 16 mm Number of T-slots: 5 T-slot spacing: 50 mm Maximum load capacity: 200 kg Accuracy Repeatability: ± 0.01 mm Positioning accuracy: ± 0.01 mm Coolant/Lubricant System Coolant pump drive power: 450 W Tank capacity: 80 l Pneumatic Connection Operating pressure: 7 bar Travel X axis (automatic): 450 mm Y axis (automatic): 260 mm Z axis (automatic): 450 mm Max. spindle–column distance: 370 mm Vertical Spindle Spindle taper: BT 40 Speed range: 50 – 10,000 rpm Note: Maximum spindle speed must be reduced by approx. 20% during continuous operation Drive motor power S1 (continuous duty): 3.7 kW Drive motor power S6-30% duty cycle: 5.5 kW Drive motor torque S1: 24 Nm Drive motor torque S6-30%: 36 Nm Feed Motor Torque X axis S1: 6 Nm Y axis S1: 6 Nm Z axis S1: 11 Nm Tool Changer Design: Carousel Number of tool stations: 12 tools Max. tool diameter: 95 mm Max. tool length: 300 mm Max. tool weight: 8 kg Chip-to-chip tool change time: 7 s

Condition: as good as new (ex-display), Year of construction: 2020, The machine is on display and has only been used for demonstration purposes. Optimill F 120X CNC milling machine, directly from the manufacturer. F 120X – The OPTIMUM CNC milling machine equipped with Siemens SINUMERIK 828D control stands out for its performance, speed, precision, and long service life. - Heavy-duty design - High productivity - Linear guides for high rapid traverse speeds on all axes - 21-position tool changer magazine - High reliability - Meehanite quality cast-iron construction - Cross table, precision-ground with 3 T-slots - Strongly ribbed, torsion-resistant machine base - Precision-ground, preloaded high-performance ball screws on all axes - High-torque servo drives mounted directly on the ball screws on all three axes - Electronic handwheel - Chip conveyor - Cleaning pistol - RJ45 connection, USB port, and power connection (230V) - Coolant system with 210-litre coolant tank - Heat exchanger Included options: Lrsdpfxjymkbqj Ahwsh - PPU 290 touch panel - 16,000 rpm inline spindle with oil cooler - Belt conveyor with chip trolley Machine leasing available via Siemens Finance; liquidity required. Dimensions and Weights - Length approx. 2,315 mm - Width/depth approx. 2,194 mm - Height approx. 2,325 mm - Weight approx. 3,800 kg Drilling/Milling Capacity - Maximum cutter head size: 80 mm Feed/Rapid Traverse Speed - X-axis: 40,000 mm/min - Y-axis: 40,000 mm/min - Z-axis: 40,000 mm/min Electrical Data - Connection voltage: 400 V - Number of phases: 3 - Current type: AC - Mains frequency: 50 Hz - Electrical connection - Total connected load: 45 kVA Vertical Spindle to Table Distance - Minimum: 150 mm - Maximum: 450 mm T-slot Size: 14 mm Number of T-slots: 3 T-slot pitch: 125 mm Maximum table load: 250 kg Accuracy - Repeatability: ± 0.006 mm - Positioning accuracy: ± 0.005 mm Coolant System - Coolant pumps - Each pump drive power: 370 W - Tank capacity: 120 l Control - Type: Sinumerik 828D PPU 290 - System software: SW 28x - CNC memory: 8 MB - Block change time: 2 ms - Look ahead: 150 - Number of tools: 512 Travel Range - X-axis, automatic: 500 mm - Y-axis, automatic: 400 mm - Z-axis, automatic: 300 mm Vertical Spindle - Spindle taper: BT 30 - Speed range: 10 – 16,000 rpm - Main drive power (continuous S1): 12 kW - Main drive power (S6-30% operation): 22.8 kW - Main drive torque (continuous S1): 38 Nm - Main drive torque (30% operation S6): 116 Nm Feed Motor Torque - X-axis, continuous S1: 6 Nm - Y-axis, continuous S1: 6 Nm - Z-axis, continuous S1: 11 Nm Servo Tool Changer - Design: Carousel in front of the spindle - Number of tool stations: 21

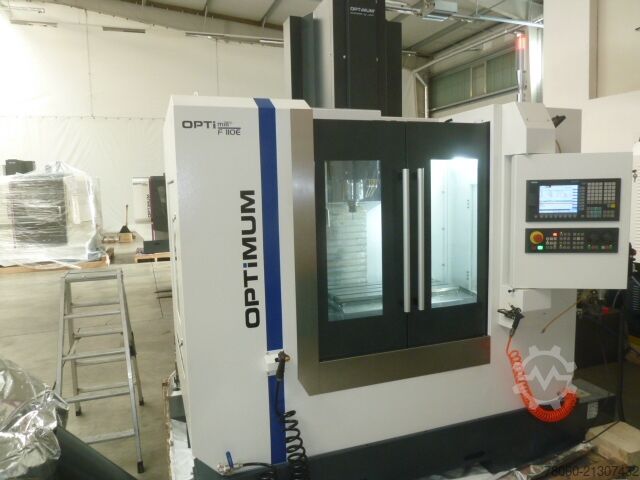

Condition: as good as new (ex-display), Year of construction: 2025, The machine is on display. Optimill F110 ECO Premium CNC milling machine, direct from the manufacturer. F110 ECO – The OPTIMUM Premium CNC milling machine with Siemens SINUMERIK 828D control stands out for its performance, speed, precision, and long service life. Model: F110 ECO Control: SIEMENS SINUMERIK 828D PPU271.5 Milling spindle with belt drive Machine Specifications Electrical connection: 400 V / ~50 Hz Total connected load: 15 kVA Milling Spindle Drive motor S1 operation: 7.5 kW Torque of drive motor S1 operation: 45 Nm Drive motor S6 30% operation: 16.2 kW Torque of drive motor S6 30% operation: 103 Nm Spindle taper: BT40 Coolant System Coolant pump output: 900 W Max. flow rate: 35 l/min Tank capacity: 116 liters Cleaning pump Milling Precision Repeatability: 0.008 mm Positioning accuracy: 0.004 mm Tool Changer Type: Double-arm gripper Number of tool stations: 20 Max. tool diameter: 78 mm Max. tool diameter (neighboring tool pockets empty): 120 mm Tool length: 300 mm Max. tool weight: 8 kg Tool change time, tool-to-tool: 2.5 seconds Lrodpfx Aoymkbkshwsh Travel (Axis Movement) X-axis: 650 mm Y-axis: 400 mm Z-axis: 500 mm Feed Drive Rapid traverse X, Y, Z-axis: 48 / 48 / 32 m/min Motor Torque X / Y / Z-axis: 11 Nm / 11 Nm / 20 Nm Feed Forces X / Y / Z-axis: 3.67 kN / 3.67 kN / 6.68 kN Spindle Speed Range Speeds*: 8,000 rpm Pneumatics Compressed air: 6 bar Air consumption per hour: 6–8 kg/m³ Milling Table Distance spindle to table: 100–600 mm Table length x width: 800 x 400 mm T-slot size / number / pitch: 18 mm / 3 / 100 mm Max. payload: 400 kg Dimensions Length x width x height: 2,100 x 2,300 x 2,750 mm Total weight: 4,300 kg Equipment Linear guides with ball screw drive for high rapid traverse speeds on all axes Telescopic guideway covers on all three axes Automatic lubrication system Portable electronic handwheel with enabling switch and emergency stop button RJ45 interface and 230 V power outlet Work area machine lamp Cleaning pistol Ball screws and linear guides from THK Chip flushing system Cooling at the spindle head (machining area) Control cabinet Arm-type tool changer SW24 CE *More options available

Condition: as good as new (ex-display), Year of construction: 2025, The machine is currently on display. Optimill F 110 E CNC milling machine, direct from the manufacturer. F 110 E – The OPTIMUM CNC milling machine equipped with Siemens SINUMERIK 808D control, stands out for its performance, speed, precision, and long service life. • Heavy-duty construction • High productivity • High reliability • Strongly ribbed, torsion-resistant machine base • Linear guideways with ball circulation for high rapid traverse speeds on all axes • Powerful servo drives on all three axes • Telescopic covers on all guideways • Automatic lubrication • Spindle oil cooler • Solid, precision-ground milling table with three oversized T-slots • The portable electronic handwheel with enabling button and emergency stop switch greatly facilitates program setup • Coolant system with chip flushing and cleaning gun • Chip conveyor with auger design • Chip cart • RJ45 interface and 230 V power connection • Enclosed electrical cabinet with integrated heat exchanger ensures optimal temperature and prevents ingress of dirt particles • Machine lamp providing over 500 Lux in the working area RJ45 Ethernet port 8.4” LCD color display with 800 x 600 resolution Prepared for remote maintenance AST function: enables easy optimization for higher requirements in dynamics and accuracy Absolute encoder / no reference run necessary Higher accuracy Travel distances: X = 650 mm Y = 400 mm Z = 500 mm Dimensions and weights Length approx. 2,100 mm Width/depth approx. 2,300 mm Height approx. 2,750 mm Weight approx. 4,100 kg Boring/milling performance Max. cutter head size: 90 mm Electrical data Connection voltage: 400 V Network frequency: 50 Hz Electrical connection Total connected load: 20 kW Horizontal milling table: Length: 850 mm Width: 400 mm Distance spindle nose to table min.: 100 mm Distance spindle nose to table max.: 600 mm Ledpfx Ajymkbdjhwjrh T-slot size: 18 mm Number of T-slots: 3 T-slot spacing: 100 mm Maximum load capacity: 400 kg Accuracy Repeat accuracy: ±0.005 mm Positioning accuracy: ±0.005 mm

Condition: as good as new (ex-display), Year of construction: 2025, Machine is in the exhibition. Optimill F 110 HSC Premium CNC milling machine direct from the manufacturer. F 110 HSC - The OPTIMUM Premium CNC milling machine with Siemens SINUMERIK 828D control is characterized by performance, speed, precision and a long service life. - Heavy-duty design - High productivity - High reliability - Heavily ribbed, torsion-free machine base - Profiled rail with recirculating ball bearing for high rapid traverse speeds in all axes - High-torque servo drives in all three axes - Telescopic guideway cover on all three axes - Automatic lubrication - Massive, exact milling table with three T-slots, large dimensions and precision-ground - The portable, electronic handwheel with enabling switch and emergency stop switch makes it much easier to the run-in of programs considerably - Coolant device with chip flushing system and cleaning gun - Chip conveyor in belt design ensures efficient chip removal - Chip trolley - RJ45 plug connection and 230 V power connection - Closed switch cabinet with integrated heat exchanger ensures optimum temperature and prevents the ingress of dirt particles - Machine light in the work area - Additional package SIEMENS material liability for defects and free online/on-site service OSS Plus - 1-year Basic maintenance contract included in D/A/CH Milling spindle Inline spindle Machine data Electrical connection 400 V / ~50 Hz Total connected load 15 kVA Ljdpfx Asymka Hohworh Milling spindle Drive motor S1 operation 9 kW Torque drive motor S1 operation 57 Nm Drive motor S6-30% operation 21.2 kw Torque drive motor S6-30% operation 135 Nm Spindle holder SK 40 / DIN 69871 Internal spindle cooling option Drive motor S1 operation 10.5 kW Torque drive motor S1 operation 50 Nm Drive motor S6-30% operation 26.4 kW Torque drive motor S6-30% operation 125 Nm Cooling lubricant system Power of the coolant pumps, 2 pieces 900 W Delivery rate max. 35 l/min. Tank capacity 116 liters Cleaning pump Power of the cleaning pump 530 W Milling accuracy Repeat accuracy ± 0.005 mm Positioning accuracy ± 0.005 mm Tool changer Double arm gripper type Number of tool positions 20 Tool diameter max. 78 mm Tool diameter (secondary positions free) max. 120 mm Tool length 300 mm Tool weight max. 8 kg Time tool change: tool to tool 2.5 seconds Travel distance X-axis 650 mm Y-axis 400 mm Z-axis 500 mm Feed drive Rapid traverse X-, Y-, Z-axis 48 / 48 / 32 m/min. Motor torque X- / Y- / Z-axis 11 Nm / 11 Nm / 20 Nm Feed forces X- / Y- / Z-axis 3.67 kN / 3.67 kN / 6.68 kN Speed range Speeds* 12,000 min-1 Pneumatics Air pressure 6 bar Air consumption per hour 6 - 8 kg/m³ Milling table Distance spindle - table 100 - 600 mm Table length x width 850 x 400 mm T-slot size / number / distance 18 mm / 3 / 100 mm Max. load 400 kg Dimensions Length x width x height 2,100 x 2,300 x 2,750 mm Total weight 4,300 kg

Condition: as good as new (ex-display), Year of construction: 2025, The machine is currently on display. Optimill F200 ECO Premium CNC Milling Machine—direct from the manufacturer. Lsdpfxsymd Nbo Ahwsrh F200 ECO – The OPTIMUM Premium CNC Milling Machine with Siemens SINUMERIK 828D Control stands out for its performance, speed, precision, and long service life. Model: F200 ECO Control: SIEMENS SINUMERIK 828D PPU271.5 Milling Spindle: Belt Drive Machine Specifications Electrical connection: 400 V / ~50 Hz Total connected load: 15 kVA Milling Spindle Drive motor S1 operation: 9 kW Drive motor torque S1 operation: 57 Nm Drive motor S6 30% operation: 17.1 kW Drive motor torque S6 30% operation: 118 Nm Spindle taper: BT40 Coolant System Coolant pump power: 900 W Max. delivery rate: 35 l/min Tank capacity: 116 liters Flushing pump Milling Precision Repeatability: 0.008 mm Positioning accuracy: 0.004 mm Tool Changer Type: Double-arm gripper Number of tool stations: 20 Max. tool diameter: 78 mm Max. tool diameter (adjacent stations empty): 120 mm Tool length: 300 mm Max. tool weight: 8 kg Tool change time, tool-to-tool: 2.5 seconds Travel X-axis: 850 mm Y-axis: 500 mm Z-axis: 550 mm Feed Drive Rapid feed, X-/Y-/Z-axis: 48 / 48 / 48 m/min Motor Torque X / Y / Z-axis: 16 Nm / 16 Nm / 20 Nm Feed Forces X / Y / Z-axis: 5,34 kN / 5,34 kN / 6,68 kN Speed Range Spindle speed*: 10,000 rpm Pneumatics Compressed air: 6 bar Air consumption per hour: 6 – 8 kg/m³ Milling Table Spindle-to-table distance: 100 – 650 mm Table length × width: 1000 × 500 mm T-slot size / number / spacing: 18 mm / 5 / 100 mm Maximum load capacity: 500 kg Dimensions Length × width × height: 2,400 × 2,355 × 2,860 mm Total weight: 5,500 kg Equipment • Linear guides with ball screw for high rapid traverse speeds on all axes • Telescopic guideway covers on all three axes • Automatic lubrication • Portable electronic handwheel with enabling switch and emergency stop • RJ45 port and 230 V power outlet • Machine lamp in work area • Cleaning blow gun • Ball screws and linear guides from THK • Chip flushing system • Cooling at the spindle head (machining area) • Control cabinet • Arm-type tool changer • SW24 • CE compliant *More options available

Condition: as good as new (ex-display), Year of construction: 2025, Machine is on display. Optimill F 200 HSC Premium CNC milling machine directly from the manufacturer. F 200 HSC – The OPTIMUM Premium CNC Milling Machine with Siemens SINUMERIK 828D control system features high performance, speed, precision, and long service life. Heavy-duty design · High productivity · High reliability · Strongly ribbed, torsion-resistant machine base · Profile rail guideways with roller bearings for high rapid traverse rates on all axes · High-torque servo drives on all three axes · Telescopic guideway covers on all three axes · Automatic lubrication · Massive, precision-ground milling table with five T-slots, large dimensions · The portable electronic handwheel with enabling button and emergency stop switch greatly simplifies program setup · Coolant system with chip flushing and cleaning gun · Internal spindle coolant with 20 bar pressure · Belt-type chip conveyor for efficient chip removal · Chip trolley · RJ45 connection socket and 230 V power supply · Enclosed control cabinet with integrated heat exchanger ensures optimal temperature and prevents ingress of dust particles · Work area machine light · Additional SIEMENS warranty package for material defects and free online/on-site service OSS Plus · 1 year Basic maintenance contract included in D/A/CH region Milling spindle: inline spindle Machine data Electrical connection: 400 V / ~50 Hz Total connected load: 20 kVA Milling spindle Drive motor S1 operation: 10.5 kW Drive motor torque S1 operation: 50 Nm Drive motor S6-30% duty cycle: 26.4 kW Drive motor torque S6-30% duty cycle: 125 Nm Spindle taper: SK 40 / DIN 69871 Coolant system Lrodpoymd Hmefx Ahwjh Coolant pump power, 3 units: 1 kW Delivery rate: 35 l/min Tank capacity: 200 liters Cleaning pump Cleaning pump power: 530 W Milling accuracy Repeatability: ± 0.005 mm Positioning accuracy: ± 0.005 mm Tool changer Type: Double-arm gripper Number of tool stations: 24 Maximum tool diameter: 78 mm Maximum tool diameter (adjacent stations free): 120 mm Tool length: 300 mm Maximum tool weight: 8 kg Tool change time: tool-to-tool 2.5 seconds Travel X axis: 850 mm Y axis: 500 mm Z axis: 550 mm Feed drive Rapid traverse X, Y, Z axes: 48 m/min Drive torque motor X/Y/Z axes: 16 Nm / 16 Nm / 20 Nm Feed forces X/Y/Z axes: 5.34 kN / 5.34 kN / 6.68 kN Speed range Speeds*: 12,000 rpm Pneumatics Air pressure: 6–8 bar Air consumption per hour: 6–8 kg/m³ Milling table Spindle-to-table distance: 100–650 mm Table (L x W): 1,000 x 500 mm T-slot size/number/spacing: 18 mm / 5 / 100 mm Max. load: 500 kg Dimensions L x W x H: 2,400 x 2,355 x 2,860 mm Total weight: 5,500 kg !!! Image shows optional setup with 3D printer, not included in the price !!!

Condition: as good as new (ex-display), Year of construction: 2025, Machine currently on display. Optimill F 300 HSC Premium CNC milling machine, direct from the manufacturer. F 300 HSC – The OPTIMUM Premium CNC milling machine with Siemens SINUMERIK 828D control features outstanding performance, speed, precision, and long service life. • Heavy-duty construction • High productivity • High reliability • Strongly ribbed, torsion-resistant machine base • Linear guideways with roller recirculation on all axes for high load capacity • High-torque servo drives directly coupled to the ball screws in all three axes • Precision-ground, preloaded high-performance ball screws for rapid traverse speeds on all axes • Telescopic guideway covers on all three axes • Main spindle SK40 with spindle speed up to 15,000 rpm, inline spindle • Solid, precision-ground milling table with five T-slots, generously dimensioned • Portable electronic handwheel with enabling switch and emergency stop impact switch significantly simplifies program setup • Automatic tool changer with double-arm gripper, 30 tool stations • Coolant unit with chip flushing system and cleaning gun • Through-spindle coolant 20 bar • Belt-type chip conveyor ensures efficient chip removal • Chip cart • Oil separator • Machine light in working area • Additional SIEMENS warranty package and free online/on-site service (OSS Plus) • 1 year basic maintenance contract included for Germany, Austria, Switzerland • Control unit • 15.6" color display • 16:9 format • Complete package • Safety Integrated • Remainder material detection and processing • ShopMill operation step programming • Network drive management • 3-D simulation • Program tracing • Additional Siemens OSS PLUS package • 12 months; Item No. 3589020 • 24 months; Item No. 3589021 • 36 months; Item No. 3589022 Equipment details • Inline spindle • SK 40 / DIN 69871 spindle taper • Spindle speed 15,000 rpm Dimensions and weight • Length approx. 2856 mm • Width/depth approx. 2300 mm • Height approx. 2850 mm • Weight approx. 6500 kg Rapid traverse speed • X-axis 36 m/min • Y-axis 36 m/min • Z-axis 32 m/min Electrical data • Supply voltage 400 V • Mains frequency 50 Hz • Electrical connection • Total connected load 30 kVA Milling table (horizontal) • Length 1200 mm • Width 600 mm • T-slot size 18 mm • Number of T-slots 5 • T-slot spacing 100 mm • Maximum load capacity 800 kg Accuracy • Repeatability ± 0.005 mm • Positioning accuracy ± 0.005 mm Lredpfx Aheymd Epjwoh Travel • X-axis (automatic) 1000 mm • Y-axis (automatic) 620 mm • Z-axis (automatic) 630 mm Vertical spindle • Spindle taper SK 40 DIN 69871 • Speed range 15,000 rpm • Continuous operation motor power (S1) 20 kW • Motor power (S6-30% duty cycle): 52.4 kW • Continuous torque (S1): 96 Nm • Torque at 30% duty cycle (S6): 250 Nm Feed force • X-axis feed force: 6.68 kN • Y-axis feed force: 6.68 kN • Z-axis feed force: 12.01 kN Feed drive torque • X-axis continuous operation (S1): 20 Nm • Y-axis continuous operation (S1): 20 Nm • Z-axis continuous operation (S1): 36 Nm Tool changer • Double-arm gripper • Number of tool stations: 30 • Max. tool length: 300 mm • Max. tool weight: 8 kg • Tool-to-tool change time: 2.5 seconds

Condition: as good as new (ex-display), Year of construction: 2025, Machine is in the exhibition and was only used for demonstration purposes. Optimill F 150 E CNC milling machine direct from the manufacturer. F 150 E - The OPTIMUM CNC milling machine with Siemens control SINUMERIK 808D Advanced is characterized by performance, speed, precision and long service life. Carousel tool changer with 16 tool positions All linear guides with stainless steel covers Automatic central lubrication Siemens main spindle motor Servo drive from SIEMENS in all axes (closed control loop) Chip conveyor in belt design ensures efficient chip removal Chip trolley Ledeymdygjpfx Ahworh Max. Spindle speed 10,000 min-1 Machine light in the work area Portable, electronic handwheel with enabling switch and emergency stop switch. Makes running in programs considerably easier Coolant system with 190 liter coolant tank Tools are changed automatically or at the touch of a button Solid, exact milling table, large dimensions and precise surface finish Access doors very generously designed to reduce cleaning and maintenance time to a minimum Software package "SINUMERIK 808D on PC" included. (Practical training software so that workpieces can be programmed and simulated offline on the PC. Software can be downloaded free of charge at). SINUMERIK 808 ADVANCED - CNC technology from the technology leader, paired with a revolutionary operating concept The SINUMERIK 808D ADVANCED control is a panel-based CNC control. The compact and user-friendly entry-level solution is used for simple milling applications. Features such as simple operation, commissioning and maintenance are the perfect basis for equipping CNC machines. Thanks to its technology-specific features, the SINUMERIK 808D ADVANCED control is perfectly preconfigured for milling. Thanks to the hardware and software extensions, the SINUMERIK 808D ADVANCED also offers sufficient performance for simple milling functions in mold and tool making. Compact and robust Thanks to a panel-based CNC design with few interfaces and a control panel in protection class IP65, the SINUMERIK 808D ADVANCED is perfectly prepared for use in harsh environments. The small dimensions allow it to be used in compact machines INCLUDED RJ45 Ethernet port 8.4" LCD color display with 800 x 600 resolution Prepared for remote maintenance AST function; enables simple optimization for higher dynamic and accuracy requirements Absolute encoder / no reference run required Higher accuracy Travel distance: X=750mm Y=500mm Z=500mm Dimensions and weights Length approx. 3420 mm Width/depth approx. 2050 mm Height approx. 2400 mm Weight approx. 4500 kg Drilling/milling capacity Cutter head size max. 80 mm End mill size max. 38 mm Electrical data Supply voltage 400 V Mains frequency 50 Hz Electrical connection Total connected load 15 kW Horizontal milling table Length 900 mm Width 500 mm Distance vertical spindle - milling table min. 100 mm Distance vertical spindle - milling table max. 600 mm T-slots size 18 mm Number of T-slots 5 T-slot spacing 80 mm Load capacity max. 350 kg Accuracy Repeat accuracy ±0.005 mm Positioning accuracy ±0.01 mm

Condition: as good as new (ex-display), Year of construction: 2025, GT 25 – The OPTIMUM Premium NC Grinding Machine with Siemens Touchscreen. • Electromagnetic chuck for securing the workpiece, with automatic demagnetization function • High-quality spindle with precision tapered roller bearings • Hardened and ground table guideways • Turcite-B coated counter-guides for high wear resistance and low friction • Grinding spindle with premium precision bearings • Grinding wheel can be dressed directly on the machine with an integrated dressing device • Digital position display • Machine base made of stable, torsion-resistant cast iron for maximum rigidity and stability • Longitudinal, cross, and vertical axis guideways are backlash-free and self-centering, designed as V and flat guideways • Precision ball screws • Central lubrication for guideways and feed screws • All flat guides are finely scraped, guaranteeing maximum precision in all manual movements • Safety electronics with 24 V DC • Large, decoupled handwheels on all three axes • Hydraulic lines according to DIN EN 853 • Grinding accuracy: 0.005 mm • Corundum grinding wheel, grit 46, suitable for all standard steels • Swivel control panel makes operation significantly easier • Separate hydraulic unit with heat exchanger prevents vibrations and thermal loading • Dual-channel safety electronics • Grinding table splash guard • EMC filter class • Equipped with IE3 motor – significantly reduces energy consumption, providing substantial cost savings Technical Data: Dimensions and Weights Length approx. 2300 mm Width/Depth approx. 1600 mm Height approx. 1675 mm Weight approx. 1700 kg Electrical Data Total connected load: 3 kW Supply voltage: 400 V Phases: 3 Ph Current type: AC Mains frequency: 50 Hz Surface Grinding Table Length: 254 mm Width: 508 mm Grinding Wheel(s) Outer diameter: 200 mm Width: 20 mm Bore: 31.75 mm Ledpfx Asymdwfjhwjrh Peripheral speed: 33 m/s Spindle Speed: 2850 rpm Radial runout accuracy: 0.005 mm X-Axis Feed speed: 5 – 25 m/min Packaging unit: 1 Scope of Delivery Unit: Piece Packing unit: 1 Digital position display Coolant system Balancing arbor Grinding wheel, grit 46 Diamond dresser Operating tools Manual oil pump LED lamp Electromagnetic chuck Demagnetization function Features Electromagnetic chuck Table splash guard enclosure Automatic demagnetization device Parallel dressing device 40 W coolant system LED work lamp Leveling feet

Condition: as good as new (ex-display), Year of construction: 2025, GT 40 – The OPTIMUM Premium NC Grinding Machine with Siemens Touch Screen. • Electromagnetic clamping plate for securing the workpiece, featuring automatic demagnetization function • High-quality spindle with precision tapered roller bearings • Hardened and ground table guideways • Turcite-B coated counter-guides for high wear resistance and low friction • Grinding spindle equipped with premium precision bearings • The grinding wheel can be dressed directly on the machine using the dressing device • Digital position display • Machine base made from stable, torsion-resistant cast iron for maximum rigidity and stability • Guideways for longitudinal, cross, and vertical movements are backlash-free and self-centering, designed as V and flat ways • Precision ball screw drives • Guideways and feed screws with centralized lubrication • All flat guides are hand-scraped, guaranteeing the highest precision for all manual movements • Safety electronics with 24 V DC voltage • Large, decoupled handwheels on all three axes • Hydraulic lines compliant with DIN EN 853 • Grinding accuracy: 0.005 mm • Corundum grinding wheel, grit 46, suitable for all common steels • Swiveling control panel for greatly simplified operation • Separate hydraulic unit with heat exchanger to prevent vibrations and thermal stress • Dual-channel safety electronics Lredpsymduqofx Ahwjh • Grinding table splash guard • EMC filter class • Equipped with IE3 motor – significantly reduces energy consumption and provides substantial cost savings Dimensions and Weights Length approx. 3600 mm Width/Depth approx. 2400 mm Height approx. 1900 mm Weight approx. 3600 kg Electrical Data Total connected load: 7.5 kW Supply voltage: 400 V Mains frequency: 50 Hz Surface Grinding Table Clamping area length: 400 mm Clamping area width: 800 mm Grinding Wheel(s) Outer diameter: 350 mm Width: 40 mm Bore: 127 mm Peripheral speed: 27 m/s Spindle Speed: 1450 rpm Run-out accuracy: 0.005 mm X-Axis Feed rate: 5 – 25 m/min Standard Features • Digital position display • Coolant system • Balancing arbor • Grinding wheel, grit 46 • Diamond dresser • Operating tools • Manual oil pump • LED lamp • Electromagnetic clamping plate • Demagnetization function Equipment • Electromagnetic clamping plate • Table enclosure with splash guard • Demagnetization device • Parallel dressing device ✔ • Coolant system 125 W • Working light: LED lamp • Leveling feet ✔

Condition: as good as new (ex-display), Year of construction: 2025, GT 30 - The OPTIMUM premium NC sanding machine with Siemens touch screen. - Electromagnetic clamping plate for fixing the workpiece with automatic demagnetization function - High-quality spindle with precision tapered roller bearings - Hardened and ground table guideways - Turcite-B coated counter guides for high wear resistance and low friction - Grinding spindle with high-quality precision bearings - Grinding wheel can be resharpened directly on the machine using a sharpening device - Digital position indicator - Machine base made of sturdy torsion-resistant cast iron for maximum rigidity and stability - Guideways for longitudinal, transverse and vertical movements are backlash-free and self-centring as V and flat tracks - Precision recirculating ball screws - Guideways and transport spindle with central lubrication - All flat guides are finely scraped and thus guarantee maximum precision of all manual movements - Safety electrics with 24 V DC voltage - Large decoupled handwheels in all three axes - Hydraulic lines according to DIN EN 853 - Sanding accuracy: 0.005 mm - Grain 46 corundum grinding wheel for all common steels - Swivel-mounted control panel makes work considerably easier - Separate hydraulic unit with heat exchanger, avoids vibrations and thermal stress - Two-channel safety electronics - Grinding table splash guard - EMC filter class - With IE3 motor - consumes considerably less energy, resulting in significant cost savings Dimensions and weights Length approx. 3200 mm Width/depth approx. 2200 mm Height approx. 2100 mm Weight approx. 3000 kg Electrical data Total connected load 6.5 kW Supply voltage 400 V Mains frequency 50 Hz Surface grinding table Clamping surface length 300 mm Clamping surface width 600 mm Grinding wheel(s) Outer diameter 350 mm Width 40 mm Bore 127 mm Peripheral speed 27 m/s Spindle Speed 1450 min¯¹ Concentricity 0.005 mm X-axis Feed speed 5 - 25 m/min Scope of delivery Unit of measure: piece Packaging unit: 1 Digital position indicator Ledpjymdtyefx Ahwjrh Coolant device Balancing mandrel Grinding wheel grit 46 Diamond pin Operating tool Manual oil pump LED lamp Electromagnetic clamping plate Demagnetizing function Equipment Electromagnet clamping plate Splash guard table enclosure Automatic demagnetizing device Parallel dressing device ✔ Coolant device 125 W Work light LED lamp Alignment feet ✔
