Used Okuma Lb3000 Ex Ii for sale (10)

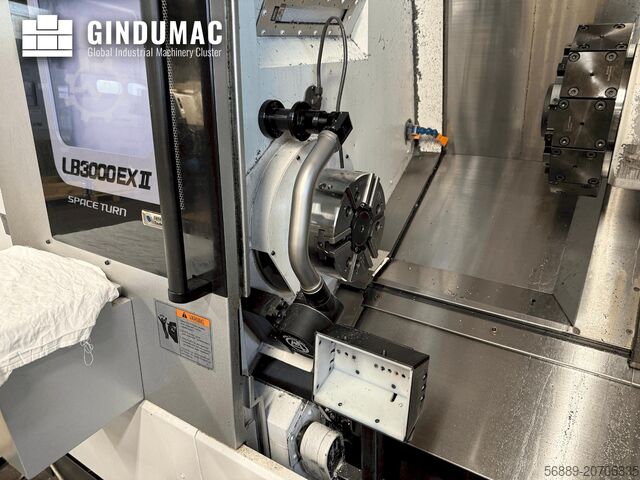

Condition: like new (used), Year of construction: 2022, operating hours: 681 h, functionality: fully functional, machine/vehicle number: 248233, turning diameter over cross slide: 470 mm, turning length: 1,085 mm, turning diameter: 340 mm, spindle bore: 91 mm, spindle speed (max.): 5,000 rpm, spindle speed (min.): 45 rpm, travel distance X-axis: 260 mm, travel distance Y-axis: 115 mm, travel distance Z-axis: 1,010 mm, spindle motor power: 22 W, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 12 m/min, rapid traverse Z-axis: 25 m/min, rotational speed (min.): 45 rpm, rotational speed (max.): 6,000 rpm, total height: 2,455 mm, total length: 3,844 mm, total width: 2,041 mm, swing diameter over cross slide: 470 mm, workpiece weight (max.): 180 kg, overall weight: 6,850 kg, swing diameter over bed slide: 580 mm, bar passage: 80 mm, chuck outer diameter: 250 mm, spindle nose: A2-6, Equipment: documentation/manual, rotational speed infinitely variable, The lathe is in new condition and can be seen under power, only 681 cutting houer and 702 hour spindel rotation. Hnsdpfsza U D Nsx Adrjn Equipped with bar feeder Iemca Kid 80/16, 160mm chuck in sub spindle, 4 straight live tool holder, 4 angle live tool holder, 2 double holder, 8 normal toolholder, 4 bore holder, 6 set of soft jaws.

Year of construction: 2018, operating hours: 1,256 h, condition: excellent (used), functionality: fully functional, machine/vehicle number: 2189, OKUMA LB3000EX-II - is particularly suitable for universal turned parts and complete machining of complex workpieces thanks to generous flatbed guides and the high-torque drives ensure high precision and continuous accuracy TECHNICAL DETAILS turning diameter over bed: 580 mm Machinable turning diameter: 340 mm workpiece length: 950 mm traverse X / Z / Y: 230 / 510 / 120 (+70/-50) mm C axis: 360 / 0.001 ° Control: OKUMA OSP-P300LA rapid traverse X / Z / Y: 25 / 30 / 12,5 m/min riveting stroke: 1015 mm spindle speed: 4200 rpm spindle end piece: JIS A2-8 spindle bore: 91 mm diameter spindle bearing: 140 mm tool holder: M-V12 with 12 places tool size: 25 x 25 mm tool diameter: 40 mm tool change time: 0,1 s Tool speed: 45 - 6000 rpm Operating hours: 1.256 h Control on: 1.660 h MACHINE DETAILS dimensions L x W x H: 3420 x 2041 x 2444 mm Hodpjnt T Auefx Adronn weight: 6600 kg Supply voltage: 400 V, 3 phases, 50 Hz Power drawn: 38,9 kVA Spindle power (30 min/continuous): 30 / 22 kW Spindle torque: (30 min/continuous): 700 / 512 Nm Tool power (25 min/continuous): 7.1 / 4.1 kW Tool torque (25 min/continuous): 40.4 / 23.4 Nm Note: The WTOH hobbing tool holder (see document in the appendix) is not part of the scope of delivery.

Condition: excellent (used), Year of construction: 2019, operating hours: 2,044 h, functionality: fully functional, machine/vehicle number: 223697, turning length: 950 mm, turning diameter: 340 mm, travel distance X-axis: 260 mm, travel distance Y-axis: 120 mm, travel distance Z-axis: 1,010 mm, rotational speed (max.): 5,000 rpm, Machine with Big-Bore Spindle Hjdpfownqdisx Adrjnn TECHNICAL DETAILS Spindle speed: 45 to 4,200 rpm Spindle motor: 30/22 kW Spindle mount: JIS A2-8 Spindle bore: ø91 mm Axes and Travel Turning length: 950 mm Turning diameter: 340 mm C-axis control: 360° at 0.001° increments X-axis travel: 260 mm Y-axis travel: 120 mm; +70 mm / −50 mm Z-axis travel: 1,010 mm Tool Turret Turret type: V12, radial, for L and M tools Tool holder mount: VDI Speed: 45 to 6,000 rpm Rotary tool motor: VAC 7.1/4.1 kW Control CNC control: OSP-P300LA with 15" touch panel Pitch error compensation: X-/Y-/Z-axes Workpiece ejection detection: available Smart Interface: included API Library 2: activated Virus Protection System - OSP-VPS: available Software Functions One Touch IGF Advanced M-E Kit: standard Optional IGF Advanced M-D Kit: available Multitasking coordinate conversion: available Profile generation: available Cycle time inspection and reduction: available Hi-Cut Pro: available Load monitoring, spindle & feed axes: available NC operation monitoring: available Spindle speed control: variable Y-axis turning: available Helical milling for MY machine: X/Y surface, Y/Z surface Cooling and Lubrication Coolant pump: 0.25 kW Coolant tank: L-type, replacing I-type High-pressure coolant pump: 0.8 kW Lubrication monitoring: A-1 incl. hydraulic pressure monitoring Dimensions and Construction CE marking and EMC: available IEC standard compliance: available Power supply CE-compliant: adapted to local standards Guideway extension for steady rests: available TAS-C: available Chip and Coolant Management Chip tray: side extraction Chip conveyor H-type: side, CE-compliant Fully enclosed with coolant protection: available MACHINE DETAILS Height: 2,444 mm Footprint: 3,420 x 2,041 mm Weight: 6,600 kg

Condition: excellent (used), Year of construction: 2010, turning length: 995 mm, spindle bore: 80 mm, Max. turning Ø: 530mm X-Axis: 260mm Z-Axis: 995mm Spindle bore: 80mm Hsdpfx Asx I Nbtedrjnn Speedrange: 5000Rpm Spindle power: 22kW Subspindle speeds:6000Rpm Subspindle bore: 62mm Subspindle power:11kW ATC / revolver: 12 Speed live tools:6000Rpm Tool eye: yes Hours: 2800H Length: 3000mm Width: 1800mm Height: 1900mm Weight: 6350kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

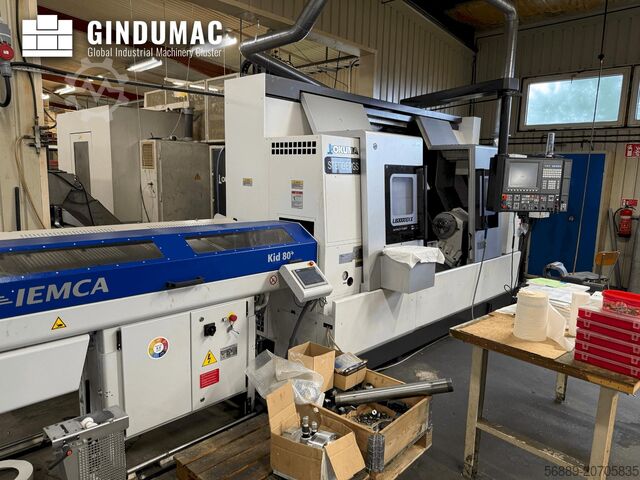

Condition: ready for operation (used), Year of construction: 2022, travel distance X-axis: 260 mm, travel distance Y-axis: 115 mm, overall weight: 6,850 kg, controller manufacturer: OKUMA, controller model: OSP-P300LA, number of axes: 5, This 3-axis Okuma LB 3000 EX II was manufactured in 2022, featuring a robust horizontal turning capability. It includes an Iemca KID 80 bar feeder, a 250 mm SMW chuck, and a 170 mm Kitagawa chuck. With a main spindle motor power of 22 kW and rotational speeds up to 6000 rpm, it ensures efficient turning operations. If you are looking to get high-quality turning capabilities consider the Okuma LB 3000 EX II machine we have for sale. Contact us for more information. • Distance between spindle noses: 1085 mm • Maximum turning diameter: 340 mm • Bar capacity through main spindle draw tube: 80 mm • Sub spindle bore: 63 mm • Bar capacity through sub spindle draw tube: 52 mm • Rotational speed of driven tools: 45–6000 rpm Additional equipment Hnsdjx D Rvnjpfx Adron • Iemca KID 80/16 Plus bar feeder (2022) — KID 80 included • 250 mm SMW chuck on the main spindle • 170 mm Kitagawa chuck on the sub spindle • 6 sets of soft jaws • 4 straight driven tool holders • 4 angled driven tool holders • 2 double turning tool holders • 4 boring bar holders • 8 standard turning tool holders • 8 straight ER holders with about 30 ER collets

Condition: used, Year of construction: 2017, Technical details: turning diameter: 340 mm turning length: 1000 mm control: OSP 300 LA swing diameter over cross slide guide: 470 mm swing diameter max. over bed cover: 580 mm travel -x axis: 260 mm travel -z axis: 1065 mm rapid travel - longitudinal/face: 30 / 25 m/min bar material dia.: 52 mm spindle diameter: 80 mm Spindle RPM: 5000 1/min spindle drive: 22 / 15 kW turret stations / rotary tool stations: 12/12 VDI 40 : 7 kW speed of driven tools: 6000 1/min Tailstock Travel: 1015 mm tailstock quill taper MT: 5 total power requirement: 38,7 kVA weight of the machine ca.: 6500 kg dimensions of the machine ca.: 4 x 2,5 x 2 m Hnodpfxjzb Rh Ho Adrsn Accerories Chip conveyor Signal lamp 2 colors manual tool eye High precision Turning and Milling Centre with turret for milling tools and main spindle with C- axis. The Stiefelmayer mandrel for inside clamping of hollow shafts can b e replaced by regular 250 mm Kitagawa chuck. Machine can be shown undeer power *

Condition: used, Year of construction: 2015, Technical details: turning diameter: 340 mm turning length: 1000 mm control: OSP 300 LA swing diameter over cross slide guide: 470 mm swing diameter max. over bed cover: 580 mm travel -x axis: 260 mm travel -z axis: 1065 mm rapid travel - longitudinal/face: 30 / 25 m/min bar material dia.: 52 mm spindle diameter: 80 mm Spindle RPM: 5000 1/min spindle drive: 22 / 15 kW turret stations / rotary tool stations: 12/12 VDI 40 : 7 kW speed of driven tools: 6000 1/min Tailstock Travel: 1015 mm Hnjdjzbzv Iopfx Adron tailstock quill taper MT: 5 total power requirement: 38,7 kVA weight of the machine ca.: 6500 kg dimensions of the machine ca.: 4 x 2,5 x 2 m Accerories Chip conveyor Signal lamp 2 colors manual tool eye High precision Turning and Milling Centre with turret for milling tools and main spindle with C- axis. There are 4 machines available with Robot loading and one machine without Robot. The Stiefelmayer mandrel for inside clamping of hollow shafts can b e replaced by regular 250 mm Kitagawa chuck. Machines can be shown undeer power *

Condition: ready for operation (used), Year of construction: 2022, operating hours: 215 h, spindle speed (max.): 5,000 rpm, travel distance X-axis: 260 mm, travel distance Y-axis: 120 mm, travel distance Z-axis: 1,010 mm, spindle motor power: 22,000 W, number of axes: 4, This 4-axis Okuma LB 3000 EXII was manufactured in 2022. It features a spindle speed of 5,000 rpm and a bar capacity of 52 mm. The machine includes a 12-position motorized turret and a Y-axis travel of 120 mm. If you are looking to get high-quality turning capabilities, consider the Okuma LB 3000 EXII horizontal turning machine we have for sale. Contact us for further details. Hjdjza E H Uepfx Adrsnn - Control: OSP-P300LA- Spindle Speed: 5,000 rpm- Spindle Power: 22 kW- Spindle Nose: ASA 6" (80 mm bore, without drawbar)- Bar Capacity: 52 mm (Kitagawa SR1453 cylinder)- Spindle Orientation: Electric- Y-Axis Travel: 120 mm- C-Axis Rotation: 360° (0.001° increments)- Turret: 12-position radial, motorized- Turret Motor Speed: 6,000 rpm- Turret Motor Power: 7.1 kW- Tailstock: CM5 (500 kgf thrust, rotating center)- Tool Holders: Eppinger live/static tool holders- High-Pressure Coolant Pump: 0.8 kW, 6 bar, 20 l/min- Tool Presetting: Manual- Programming: Plain text dialog IGF- Chip Conveyor: Enomoto hinged belt type chip conveyor with external control box- Voltage: 400 V- Number of Phases: 3 P- Frequency: 50 Hz- Max Power Consumption: 33.1 kVA- Total Current Consumption: 47.8 A- Max Motor Current: 154 A- Control Cabinet Short Circuit Strength: 2.5 kA- Machine is a Showroom machine Technical Specification Counter Spindle Yes Driven Tools Yes

Condition: ready for operation (used), Year of construction: 2022, spindle speed (max.): 5,000 rpm, travel distance Y-axis: 120 mm, spindle motor power: 22,000 W, number of axes: 4, This 4-axis Okuma LB 3000 EXII was manufactured in 2022. It features a spindle speed of 5,000 rpm and a spindle power of 22 kW. The machine includes a 12-position motorized turret and a Y-axis travel of 120 mm. If you are looking to get high-quality turning capabilities, consider the Okuma LB 3000 EXII horizontal turning machine we have for sale. Contact us for further details. • Control: OSP P 300LA • Spindle: ASA 6" nose (bore 80 mm, without drawbar); bar capacity 52 mm (Kitagawa SR1453 cylinder); electric spindle orientation • Axes: Y-axis travel 120 mm ; C-axis rotation 360° (0.001° increment) • Turret: 12-position radial, motorized; turret motor 6,000 rpm, 7.1 kW • Tailstock: CM5; 500 kgf thrust; rotating tip Hjdpfxeyq Ngmj Adrsnn • Pedals: Separate for spindle and tailstock • High-pressure coolant pump: 0.8 kW; 6 bar; 20 l/min • Tool presetting: Manual • Programming: Conversational IGF

Condition: excellent (used), Year of construction: 2024, functionality: fully functional, turning diameter over cross slide: 410 mm, turning length: 515 mm, turning diameter: 520 mm, spindle bore: 66 mm, spindle speed (max.): 5,000 rpm, travel distance X-axis: 250 mm, travel distance Z-axis: 565 mm, overall weight: 4,400 kg, One-Touch IGF (soru-cevap diyalog programlama özelliği var) 2024 model OKUMA LB3000EXII CNC TORNA KONTROL OSP-P300LA KATALOGUNU EKLEDİK İNCELİYEBİLİRSİNİZ. 2 EKSEN ÇEVİRME ÇAPI 520 MM İŞLEME ÇAPI 410mm İŞLEME BOYU 515 mm Hedpfx Ajywhfiodronn FENERMİLİ DELİK ÇAPI 66 mm PUNTA KONİGİ MT-5 PROGRAMLI PUNTA VAR 5000 DEVİR AGIRLIGI 4400 KĞ Almanya ve Fransa' da referans verebiliriz.
