Used Deckel Engraving Machine for sale (683)

Condition: ready for operation (used), Milling Machine DECKEL FP 2 LB incl. 3-axis digital readout (ACU-RITE) - Travel X/Y/Z: 795x300x400mm - Automatic longitudinal / transverse / planar feeds - Rapid traverse on all three axes - Table clamping surface: 1000x440mm - 3-axis digital display (ACU-RITE) - Spindle speeds: 40 – 2000 rpm - Horizontal / vertical milling setup - Tool holder: ISO 40 - Swivel vertical head with quill Csdpjylba Ujfx Ahtjrd - Coolant system - Machine lamp - Various tool holders - Machine documentation Dimensions (LxWxH): 2.5x2.3x1.8 meters / Weight: 2200kg Errors and omissions excepted

Condition: reconditioned (used), Year of construction: 1988, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, spindle speed (max.): 2,500 rpm, spindle speed (min.): 50 rpm, quill stroke: 60 mm, total height: 1,935 mm, total length: 2,000 mm, total width: 200 mm, rotational speed (max.): 2,500 rpm, rotational speed (min.): 50 rpm, type of input current: three-phase, overall weight: 1,445 kg, table length: 460 mm, workpiece weight (max.): 400 kg, table load: 400 kg, table width: 800 mm, year of last overhaul: 2013, warranty duration: 6 months, The machine was completely and professionally overhauled by us in 2013. We were able to repurchase the machine from a customer who had used it very little, and we fully serviced and inspected it. Crodpoyitxqsfx Ahted Control 3-axis - Active - Digital display HEIDENHAIN TNC 113 Speed 50 - 2500 rpm, geometrically stepped direct drive with 18 speed stages for maximum torque / milling performance Feed 6.3 to 630 mm/min, steplessly adjustable Rapid Traverse 1.3 m/min Quill Extendable quill, vertical 60 mm, SK40 with M16 drawbar thread, optionally: with DECKEL - saw thread S20 x 2 Extendable quill, horizontal approx. 100 mm Axes X/Y/Z 500/400/400 mm Table Rigid angle table 800x460 mm Equipment • Vertical and horizontal spindle • Milling head manually swivels +/- 90° • Central lubrication Options • Z-axis bellows • Chip tray • Machine lamp • Universal table • Rotary table • Slotting head • Dividing attachment • Counter-holder • etc.

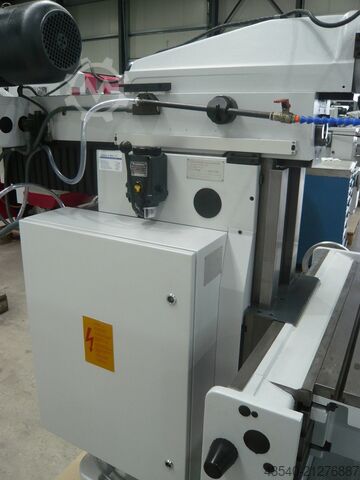

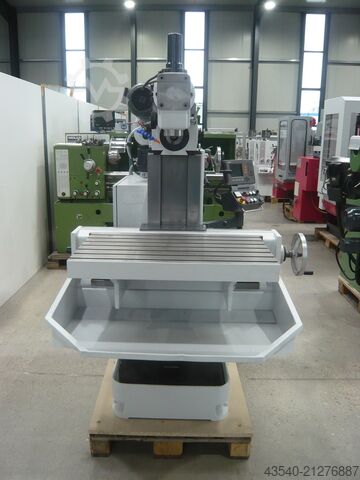

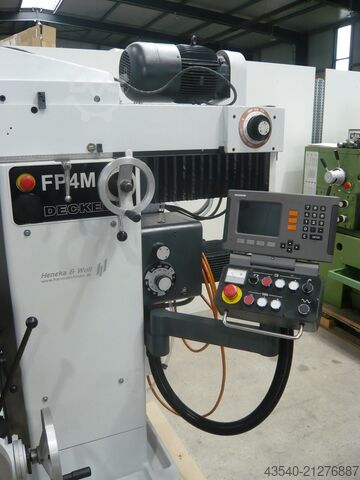

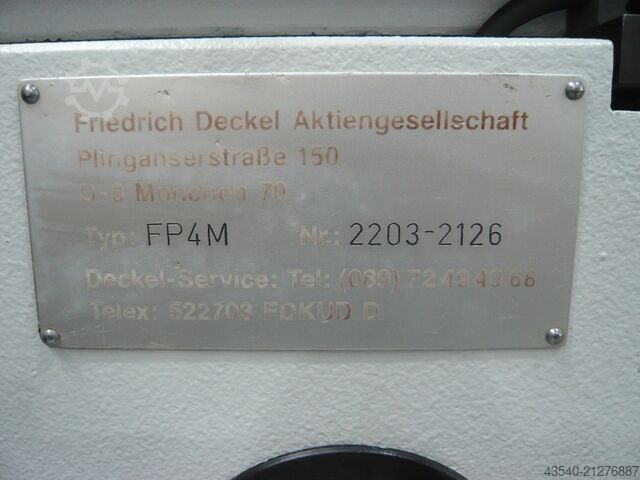

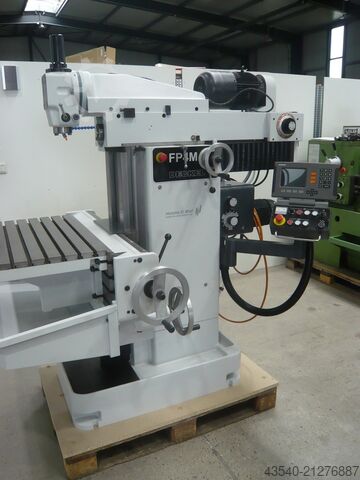

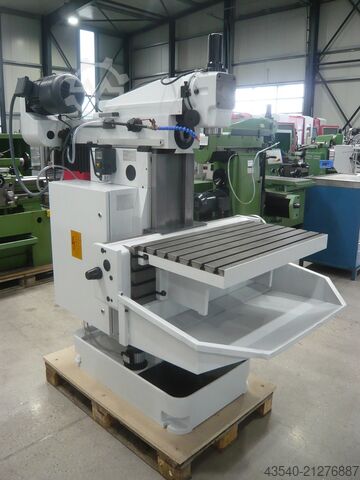

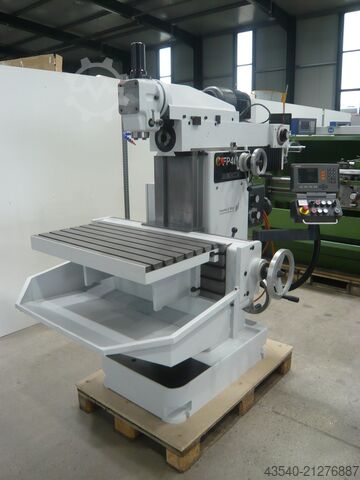

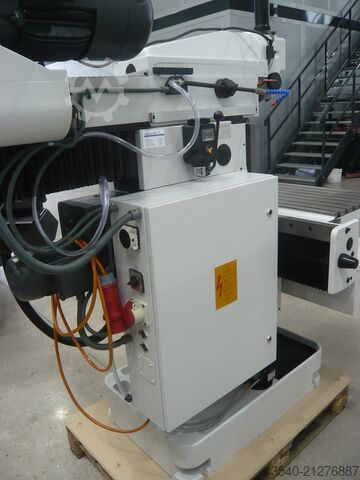

Condition: new, Year of construction: 2026, Completely refurbished machine, as new, modernized to the legally prescribed "state of the art" safety standard in accordance with the safety regulations of the employers' liability insurance associations. Switch cabinet electronics Crjdpfxjh Sptns Ahted Installation of a new CE - control cabinet according to the current legal regulations of the professional associations BGVA 3 / DIN-EN 60204-1 new machine standard. Optionally complete machine in CE execution. A CE declaration of conformity is issued for the machine. With this FPS Werkzeugmaschinen GmbH acts as manufacturer. The machine fulfills the requirements of the BETRIEBS-SICHERHEITSVERORDNUNG- Betr.SichV. The year of manufacture corresponds to the date of delivery of the machine. EN ISO 12100, EN ISO 13857, DIN EN 13128:2009-09, EN ISO 13850, EN ISO 13849, EN 60204-1 Control system 3-axis - FPS Active - digital display Speed 25 - 2500 rpm geometrically stepped direct gear with 18 speed steps for maximum torque / milling power Feed rate 5 to 500 mm/min, infinitely variable rapid traverse 1,2 m/min quill Extendable quill, vertical 100 mm SK40 with M16 tightening thread optional: with DECKEL - saw thread S20 x 2 Extendable quill, horizontal approx. 100mm Axes X/Y/Z 800/300/400 mm Table rigid angular table 1000x440mm, load 2000kg Equipment - Vertical and horizontal spindle - Milling head manually tiltable +/- 90 °. Options - Z-axis bellows - chip tray - machine light - central lubrication - universal table - rotary table - Shaper head - dividing head - counterholder - etc.

Condition: excellent (used), Year of construction: 1994, functionality: fully functional, Deckel KF 3 S type Copy Milling Machine Very good condition Csdpfx Ahev E Rw Sjtjrd

Condition: ready for operation (used), operating hours: 41,072 h, functionality: fully functional, travel distance X-axis: 630 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 560 mm, spindle speed (max.): 12,000 rpm, number of slots in tool magazine: 20, TECHNICAL DETAILS Travel in X-axis: 630 mm Travel in Y-axis: 560 mm Travel in Z-axis: 560 mm Crjdozd Aw Djpfx Ahtod Spindle speed: 12,000 rpm Feed rate: 20-10,000 mm/min Rapid traverse rate X/Y/Z: 26/26/20 m/min Number of positions in tool changer: 20 Spindle mount: SK 40 Table surface area (L x W): 1,000 x 600 mm MACHINE DETAILS Control system model: Heidenhain TNC 430 Total power consumption: 26 kW Operating hours: 41,072 h Machine weight: approx. 6.5 t EQUIPMENT B-axis (NC milling head) Electric handwheel Chip conveyor Cooling system

Condition: ready for operation (used), Year of construction: 2006, operating hours: 5,366 h, functionality: fully functional, machine/vehicle number: 11415551674, controller model: Heidenhain i TNC 530, spindle speed (max.): 10,000 rpm, number of slots in tool magazine: 16, table diameter: 600 mm, TECHNICAL DETAILS Spindle speed: 10,000 rpm Table diameter: 600 mm Number of tool changer positions: 16 Tool system: SK40 MACHINE DETAILS Codpfezhmw Aox Ahterd Control model: Heidenhain iTNC 530 Control operating hours: 24,237 h Automatic operating hours: 5,366 h

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, machine/vehicle number: 11065357454, spindle speed (max.): 6,000 rpm, control type: CNC control, number of axes: 3, TECHNICAL DETAILS Pallet size: 400 mm Spindle speed: 6,000 rpm Tool holder: SK40 MACHINE DETAILS Control type: CNC controlled Number of axes: 3 EQUIPMENT Codpfx Ahozhmvlotsrd Tool change: manual

Condition: ready for operation (used), Year of construction: 2013, operating hours: 23,831 h, functionality: fully functional, machine/vehicle number: 15465588584, travel distance X-axis: 400 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 375 mm, controller model: Heidenhain iTNC 530 HSCI, rotational speed (max.): 18,000 rpm, TECHNICAL DETAILS Travel range, X-axis: 400 mm Travel range, Y-axis: 400 mm Travel range, Z-axis: 375 mm B-axis: -5 to +110 degrees Cjdpjzgt U Eefx Ahterd C-axis: 360 degrees Table dimensions: 450 x 400 mm Maximum workpiece weight: 250 kg Spindle speed: 18,000 rpm Tool interface: HSK-A63 Number of tool positions: 60 Rapid traverse rate: 80 m/min MACHINE DETAILS Control system: Heidenhain iTNC 530 HSCI Machine weight (approx.): 7,150 kg Operating hours Spindle hours: 23,831 h Power-on hours: 57,330 h EQUIPMENT Band filter system NC rotary table Handwheel FS Coolant gun Tool measurement system Chip conveyor Rotoclear viewing window Temperature monitoring

Condition: used, Motor output 3 kW Crjdpsv Nq Skefx Ahtod total power requirement 3 kw Weight 1.400 kg

Condition: good (used), Year of construction: 2003, functionality: fully functional, X-axis travel: 500 mm Y-axis travel: 400 mm Z-axis travel: 400 mm Control system: TNC Heidenhain Spindle operating hours: 13,100 Total operating hours: 38,000 Spindle speed range – main spindle: 20 – 9,000 min⁻¹ Drive power – main spindle: 9 / 13 kW Table diameter: 700 x 500 mm Tilting range B: 105° (-10°/+95°) manual Rotatable 360° manual Max. table load: 200 kg Number of T-slots: 7 Crjdpfx Ahjzi Efbjtjd Centering bore: 30H7 mm Number of tool positions: 16 Tool holder: ISO 40 DIN 69871 Max. tool length: 290 mm Max. tool weight: 6.0 kg Max. total weight: 50 kg Feed rate max.: 10,000 mm/min Total power consumption: 17 kW Machine weight: approx. 3.2 t Space requirement: approx. 4.0 x 4.0 x 2.5 m

Condition: used, Year of construction: 2001, x-travel 800 mm y-travel 700 mm Crjdpfx Ahezip Rzetod z-travel 600 mm control Heidenhain 430 weight of the machine ca. 10 t dimensions of the machine ca. 4400 x 2900 x 2880 mm

Condition: good (used), functionality: fully functional, Technical details x-travel 1040 mm y-travel 600 mm z-travel 500 mm Control Heidenhain iTNC 530 table surface area 1250 x 600 mm table load 600 kg tool taper SK 40 spindle turning speed range 1 - 8000 U/min max. torque on the spindle (S1/S6) 140/200 Nm feed range 40000 mm/min rapid power traverse in X-and Z direction 70 m/min rapid motion - y-axis 40 m/min spindle drive (100/40 % ED) 13/19 kW total power requirement 39 kVA weight of the machine ca. 8,9 t Additional information Operating hours 70278 Spindle hours 23335 Please note the enclosed geometry measurement report with the tool pull-in force measurement. Cjdszim Auspfx Ahtsrd Equipment: CNC control Heidenhain iTNC 530 Electronic handwheel Heidenhain HR 410 Motor spindle with increased torque Direct path measuring system in Y-Z axis Preparation for measuring probe 30-station tool changer, tool diameter 100/140 mm, length 300, weight 7 kg ROTOCLEAR Production package 2 Internal coolant supply through the spindle 20 bar Coolant system with paper belt filter Cooling device blown air through the spindle center selectable via M function Chip conveyor Bed flushing Linear drive in the X-axis Operating mode 4 Program check with extended manual intervention Machine documentation Transport dimensions: 4100 x 2500 x 3000 mm

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, Technical details x-travel 300 mm y-travel 160 mm z-travel 290 mm table surface area 600 x 210 mm tool taper SK 40 spindle turning speed range (16) 40 - 2000 U/min feeds -stepless- 5 - 500 mm/min rapid traverse 1,2 m/min spindle motor 1,5 / 1,9 kW total power requirement 9,5 kVA weight of the machine ca. 830 kg Crodpjzikrasfx Ahtjd dimensions of the machine ca. 2000 x 2200 x 1655 mm Additional information The machine is in very good condition and comes from a training workshop. Equipment: * 3-axis positioning control with active digital display Heidenhain TNC 123 - Manual mode: Manual operation and positioning with manual input - Automatic mode: Single-block programme run, programme storage * Fixed angle table * Movable vertical milling head, swivel range +/- 90 degr., quill stroke 60 mm * Coolant equipment * Central lubrication * Tailstock with counter bearing * Manual

Condition: used, Year of construction: 2008, x-travel 1000 mm y-travel 1000 mm z-travel 1000 mm Control Siemens 840D powerline spindle tunring speed 8.000 U/min drive capacity - main spindle 100/40% ED 32/44 kW tool taper HSK-A 100 number of tool places 354 Pos. rapid traverse ( x / y / z ) 60 m/min Crsdpfexcp R Uox Ahted size of pallet 800 x 800 mm In our opinion, the machine is in good used condition and can be inspected under power by appointment. Technical Features: - NC rotary table with pallet carrier - Rotary pallet changer - 40 bar internal coolant supply - Rotating viewing window - Wall-mounted magazine with 300 magazine positions - Rotating wall tool lock, 30 positions (inactive) and 54 positions (active) - Infrared measuring probe - SK 50 mechanical tool breakage detector - Tool identification - 4-color signal lamp Accessories, tools, and clamping devices shown are only included in the scope of delivery if noted in the additional information. Subject to changes and errors in the technical data and information, as well as subject to prior sale!

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Machining Center Deckel Maho Type DMC 104 V Linear Year 2005 Csdszhw Raepfx Ahtjrd CNC Fanuc 180 iMB Includes tooling Includes documentation Only 4,600 operating hours (machine used very little)

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, Vertical Machining Center DECKEL MAHO DMC 635V Year of manufacture: 2009 CNC control: Siemens 840D Axes X-axis travel (mm): 635 Y-axis travel (mm): 510 Z-axis travel (mm): 460 Distance spindle nose - table surface (mm): 720 Feed rate (m/min): 20 Rapid traverse (m/min): 30 Axis acceleration (m/s²): 5 Work Table Pallet dimensions (mm): 560×790 Max. workpiece weight (kg): 600 Crsdpfsyay D Usx Ahtod Spindle Max. spindle speed (rpm): 14,000 Spindle drive power (kW): 18.5/15 (40%ED/cont) Spindle torque (Nm): 100/74 Tool System Tool holder: SK40 Number of tools in magazine: 20 Electronic handwheel Chip conveyor Blow air through spindle selectable via M function Direct measuring system XYZ Machine Operating Hours: Total power-on hours: 14,500 Spindle hours: 3,600 Connected power requirement (kVA): 35 Basic Machine: Dimensions/Weight Length (mm): 2,275 Width (mm): 3,288 Height (mm): 2,670 Weight: 4.5 t Including vices and tool holders

Condition: good (used), Year of construction: 2007, functionality: fully functional, Manufacturer DECKEL MAHO DMC 835V Year of manufacture 2007 Control Siemens 840D / Shop Mill X-axis travel 835 mm Y-axis travel 510 mm Z-axis travel 510 mm Cedpfsyaywbox Ahtsrd Spindle speed 10,000 rpm Feed rate Programmable up to 15 m/min - rapid traverse 30 m/min Positioning tolerance 0.008 mm Tool magazine 30 stations Internal coolant supply and chip conveyor Weight approx. 6.5 t

Condition: used, Univ. universal milling machine with active digital display, DECKEL type FP 1 Universal milling machine Machine No. 2102 - 6130 Year of manufacture 1991 Travel distances X: 300 mm, Y: 150 mm, Z: 330 mm Table size 600 x 210 mm Spindle mounting SK 40 - S20x2 Spindle speed 40-2000 rpm, 16 steps Feed rate 5 to 500 mm/min Rapid traverse 1200 mm/min Motor power 1.6 and 2 kW, pole-changing Mains connection 380 Volt, 50 Hz - Active digital display for 3 axes, HEIDENHAIN type TNC 113 - Stepless feed in the X, Y and Z axes - Spindle speed controlled via 2 motor speeds and 8 gear stages Codpezinzxjfx Ahtjrd - Quill travel on the vertical milling head 60 mm - Vertical milling head swiveling and horizontally extendable 100 mm - Fixed tilting table 600 x 210 mm - Coolant system in the machine base - Central lubrication - Adjacent control cabinet - Protective enclosure with hinged doors around the machine table - Original chip tray for mounting on the machine base - Machine lamp - Counter holder with counter bearing - Electrical diagram available Space requirement L x W x H 1600 x 1250 x 1750 mm Weight 900 kg Good condition

Condition: used, Univ. universal milling machine with active digital display, DECKEL Type FP 1 Machine No. 2101 - 7088, Year of manufacture 1993 Travel distances X: 300 mm, Y: 150 mm, Z: 330 mm Table size 600 x 200 mm Spindle mounting SK 40 - S20x2 Spindle speed 40-2000 rpm, 16 steps Feed rate X and Y axis 5 to 500 mm/min. Crsdpfxoziny Ie Ahtsd Rapid traverse 1200 mm/min. Motor power 1.6 and 2 kW, pole-changing Power connection 380 Volt, 50 Hz - Active control and digital display for 3 axes, HEIDENHAIN Type TNC 123 - Stepless feed rate via servo motor in the X, Y, and Z axes - Spindle speed via 2 motor speeds and 8 gear stages - Quill travel on the vertical milling head 60 mm - Vertical milling head swiveling and horizontally extendable by 100 mm - Swivel, rotary, and tilting angle table DECKEL, Type 2114 - Coolant system in the machine base - Central lubrication - Adjacent control cabinet - Hinged protective shield with safety switch - Original chip tray for mounting on the machine base - Electrical diagram available Space requirement L x W x H 1600 x 1200 x 1770 mm Weight 900 kg Good condition

Condition: like new (used), Year of construction: 2000, operating hours: 47,500 h, functionality: fully functional, travel distance X-axis: 1,800 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,100 mm, rapid traverse X-axis: 60 m/min, rapid traverse Y-axis: 40 m/min, rapid traverse Z-axis: 40 m/min, feed rate X-axis: 60 m/min, feed rate Y-axis: 40 m/min, feed rate Z-axis: 40 m/min, controller manufacturer: Heidenhain, controller model: TNC 430 M, workpiece weight (max.): 5,000 kg, total height: 4,174 mm, total length: 7,900 mm, total width: 8,800 mm, table width: 1,700 mm, table height: 1,400 mm, rotary table diameter: 1,700 mm, rotational speed (min.): 200 rpm, spindle speed (min.): 8,000 rpm, coolant supply: 40 bar, spindle motor power: 30 W, Equipment: chip conveyor, documentation/manual, Year of construction: 2000 CNC controller: Heidenhain TNC 430 Axes X-axis travel mm: 1800 Y-axis travel mm: 2000 Crjdpfxjzhu I Nj Ahtod Z-axis travel mm: 1100 C-axis degrees: 360º (0,001) B-axis degrees: -7/+187º Feed rates m/min: 60/40/40 Rapid traverse m/min: 60/40/40 Milling/turning table nc: Table dimensions mm: Ø1700x1400 Max. workpiece weight kg: 5000 Table rotation speed rpm: 200 Spindle Spindle speed rpm: 8000 Spindle drive power kW: 30/20(40%ED/cont) Cooling Tank capacity: 900 Tool system Tool holder: SK 50 Tool magazine slots: 120 Tool changer: Double gripper Chip-to-chip time s: 13.5 Equipment Electronic Handwheel Chip conveyor Infrared probe Internal cooling lubricant supply Rotating inspection windows Rinsing gun Operating mode 4 Tool breakage probe Oil skimmer Machine running times Under power: 65200 Spindle Working: 47500 Basic machine dimensions / weight Length mm: 7900 Width mm: 8800 Height mm: 4174

Condition: used, Year of construction: 2007, Technical details: x-travel: 730 mm y-travel: 560 mm z-travel: 560 mm turning speeds: 18.000 1/min control: HEIDENHAIN iTNC 530 tool adaptor: SK 40 tool magazin:: 24 Pos. total power requirement: 52 kVA weight of the machine ca.: 6,7 t 5-axis simultaneously, NC-roundtable (dia 600mm) integrated in rigid table (1.000 x 600mm), max. table load 500kg, controlled NC-milling head (B-axis), -120 to +30°, 3D touch probe TS 640, BLUM laser, el. hadwheel, mode 4, safety package for power failure, chipconveyor, NO INTERNAL COOLANT SUPPLY ! Crjdpey T Rq Hofx Ahtsd approx. 87.000h "machine on", approx. 15.000h "program run" latest known spindle change: 2022 *

Condition: used, Year of construction: 2012, Technical details: x-travel: 2600 mm y-travel: 1100 mm z-travel: 900 mm table surface area: 3200 x 1100 mm rotary table diameter: 1050 mm table load: 1,2 t control: Heidenhain iTNC 530 HSCI ergoline 19" turning speeds: 20 - 14.000 1/min taper ISO: SK 40 Crodpfxoy T Ndrs Ahted tool change unit: 30 Pos. rapid traverse: 40 m/min spindle: 14 / 19 kW total connected load: 46 kVA weight of the machine ca.: 25 t dimensions of the machine ca.: 6,70 x 3,40 x 2,95 m 5-axis universal machining center, rigid table with integrated NC-rotary table left side and B-axis in milling head, direct measuring system, Swarf Conveyer, Rotoclear 3D Touch probe HEIDENHAIN TS 649, BLUM laser, mode 4, prepared for 3D quick set (software yes, hardware no), NO INTERNAL COOLANT SUPPLY (upgrade on request, additional costs 15.000€) approx. 70.500 h machine on, approx. 14.000 h Programm run last known spindle change in 2021 *

Condition: good (used), Electric motor, three-phase motor, brake motor -Manufacturer: Siemens, electric motor type 1LC3113-4BB23 Z from milling machine Deckel FP4L -Power: 4.0 kW -Speed: 1435 rpm -Design: B14 -Protection class: IP 44 Cjdpfx Aheul H Dweterd -Brake: multi-disc brake type EK5dB24 -Dimensions: 575/270/H225mm -Weight: 64 kg

Condition: good (used), Control panel, operating unit, control board, operating panel, operating unit, keyboard, CNC control Cjdpeul H Ezofx Ahtjrd -Manufacturer: Deckel, control unit from milling machine Deckel FP4L -Transport dimensions: 1200/800/H220 mm -Weight: 33 kg

Condition: good (used), Universal milling head, milling chuck, milling extension, angle milling head Cedpfjulp Aisx Ahtord -Manufacturer: Deckel, milling head from milling machine FP4L -Mounting: SK40 -Milling head: swiveling -Tool clamp: electric motor -Individual components: see photos -Transport dimensions: 1690/360/H745 mm -Weight: 548 kg
