Used Gildemeister Ctx 420 Linear for sale (11)

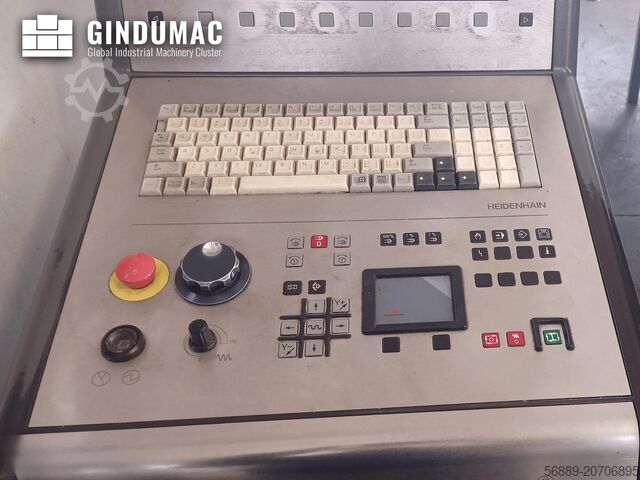

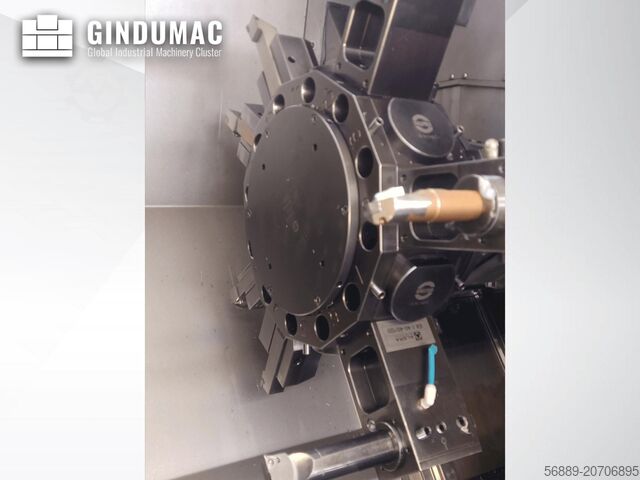

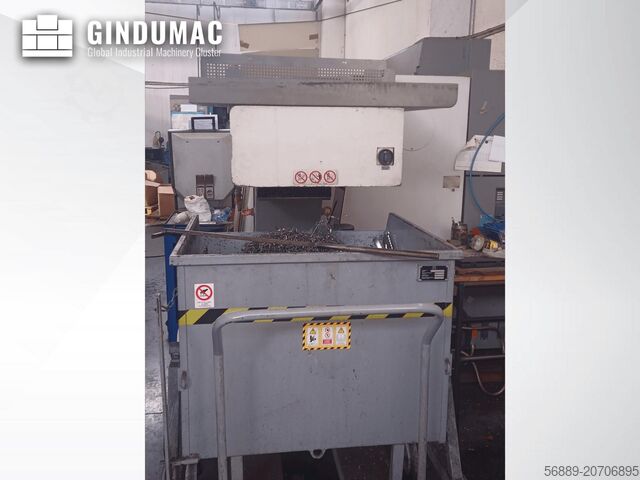

Year of construction: 2008, condition: ready for operation (used), Control Unit Brand HEIDENHAIN Model CTX 420 Main Drive Number of axis 3 Additional Equipment Chip conveyor Oil mist separator via mechanical industrial filter, 1500 m³/h Package bar processing G Signal light 4-color Hollow clamping device, Ø 68 mm Lifting beam included This Gildemeister CTX 420 linear was manufactured in 2008. A robust horizontal turning machine featuring HEIDENHAIN Plus iT CNC control, tool drive, C-axis, Y-axis, and a chip conveyor. It includes a tailstock and a tool measuring device. The tool turret was completely overhauled this year. Consider the opportunity to buy this Gildemeister CTX 420 linear horizontal turning machine. Contact us for more information about this machine. Application Types Turning Dedpfx Adjx D D Ahsuscr

Condition: reconditioned (used), Year of construction: 2006, CNC Lathe GILDEMEISTER CTX 420 linear Equipped with Siemens 840 D powerline control Year of manufacture: 2006 Max. turning diameter: 324 mm Max. turning length: 600 mm Djdpfx Adjxzt Dcjujcr Max. swing diameter: 680 mm Spindle bore: 79 mm Max. spindle speed: 4,500 rpm Including the following accessories: Sliding guard with interior lighting 12-position turret with 12 driven stations Y-axis, C-axis Tool measuring device Parts catcher 3-jaw hydraulic chuck 210 mm with foot switch Hainbuch hydraulic collet chuck IRCO Breuning RBK 10012 bar feeder Signal lamp Tailstock with quill Chip conveyor Oil mist extraction Coolant system with high-pressure coolant (IKZ) and belt filter unit Operating manuals

Condition: excellent (used), Year of construction: 2008, operating hours: 50,305 h, functionality: fully functional, machine/vehicle number: 02260008351, turning length: 600 mm, turning diameter: 324 mm, spindle bore: 72 mm, spindle speed (max.): 5,000 rpm, travel distance X-axis: 185 mm, travel distance Y-axis: 40 mm, travel distance Z-axis: 620 mm, rapid traverse X-axis: 4 m/min, rapid traverse Y-axis: 7 m/min, rapid traverse Z-axis: 7 m/min, total height: 2,080 mm, total length: 4,890 mm, total width: 2,460 mm, overall weight: 6,500 kg, bar passage: 45 mm, controller manufacturer: HEIDENHAIN, controller model: iTNC 530, counter spindle speed (max.): 7,000 rpm, counter spindle bore: 57 mm, number of slots in tool magazine: 12, Equipment: documentation/manual, - Driven tools: 12 - Tool holder: VDI 40 - Power of driven tools: 12 kW - Torque: 10.5 Nm - Speed: 4,500 rpm Djdowun Nvepfx Aduscr - Including tool package - Including band filtration system - Including bar feeder MKE HL 12 PN, year of manufacture 2008

Condition: good (used), Year of construction: 2007, Machine is in good working condition. Machine come without automatic line. Marked equipement with red not come.. Some accesories and machine equipement are also available. Dcjdpjxf Iamjfx Aduer More specs of the machine, check last two pictures.

Condition: used, Year of construction: 2007, Technical details: turning diameter: 325 mm turning length: 600 mm total power requirement: 35 kW spindle drive: 25 kW spindle turning speed range: 5000 U/min speeds of tool: 4500 U/min rapid traverse X-axis: 60 m/min diverse toolholders: VDI 40 rapid traverse Z-axis: 45 m/min weight of the machine ca.: 6,5 t dimensions of the machine ca.: 3,5 x 2,5 x 2,1 m Machine with SIEMENS 840 D control power line with shopturn - C and Y-axis, driven tools - bar loader IRCO ILS-RBK - coolant device with coolant throough revolving head - Revolver - counter spindle - chip conveyor - collet clamping - part catcher Dcedpfx Asvgb Epjduer *

Condition: used, Year of construction: 2004, turning diameter max. 560 mm turning length 600 mm control 840D powerline Siemens greates pass round over bed 680 mm Swing dia. over traverse guideway 565 mm centre distance 620 mm turning speed range - main spindle 20 - 5.000 min/-1 power capacity - main spindel 25 / 37 kW max. Torque 390 Nm spindle nose 170H5 spindle bearing diameter 120 mm usable bar diameter 65 mm max. chucking diameter 250 mm C-Axis 0,025° / 360 ° Spindle speed range subspindle 20 - 7.000 min/-1 power capacity - Sub spindle 25 / 33 kW max. Torque 213 Nm spindle bearing diameter 90 mm spindle bore 57 mm spindle nose 140H5 C-Axis 0,025° / 360 ° number of toolpositions 12 pos. Number of driven toolspositions 12 pos. Spindle speed - driven tools max. 4.500 min -1 power capacity - driven tools 12,2 kW tool taper VDI 40 DIN 69880 Tool dimensions with square shank 40 mm x-axis 185 mm y-axis 80 mm z-axis 620 mm rapid traverse X: 60 m/min rapid traverse Y: 15 m/min Dodpjwmf Tpefx Aduscr rapid traverse Z: 45 m/min total power requirement 50 kVA weight of the machine ca. 7 t dimensions of the machine ca. 6,0 x 3,0 x 2,5 m CNC Turning- and MillingCenter GILDEMEISTER - CTX 420 linear V6 - Main and sub spindle - Tool drive - C axis / Y axis - Partial hollow clamping device - ShopTurn - Surface - Package bar processing consisting of: - Hollow clamping device 66mm - Workpiece picking device - Incl. 2x driven tools - Incl. 4x double tool holders - Incl. 4x tool holders - Incl. 83x tools

Year of construction: 2008, condition: ready for operation (used), Control Unit Brand HEIDENHAIN Model na Main Drive Number of axis 3 This 3-axis Gildemeister CTX 420 Linear was manufactured in 2008. It features a HEIDENHAIN iT CNC control, motorized tools, and both C and Y axes, enhancing its horizontal turning capabilities. Consider the opportunity to buy this Gildemeister CTX 420 Linear horizontal turning machine. Contact us for more information. Application Types Turning Djdsx D Swtjpfx Adujcr

Condition: excellent (used), Year of construction: 2003, functionality: fully functional, CNC Lathe Dedpfx Adoxc Uq Tsuocr Manufacturer: Gildemeister Model: CTX 420 linear V3 Year of Manufacture: 2003 Control Unit: Heidenhain Plus IT Swing diameter over bed: 680 mm Swing diameter over cross slide: 565 mm Cross travel: 260 mm Longitudinal travel: 635 mm Drive power (40/100%): 25/37 kW Speed range: 20 – 5000 rpm Weight approx.: 6500 kg Equipment: Driven tools: 12 stations Tool turret: 12-position Sauter turret VDI 30 Partly hollow clamping chuck Tailstock Automatic quill travel Quill taper: Mk 5 Chip conveyor Measuring arm Oil mist extraction unit Subject to prior sale and errors.

Condition: ready for operation (used), Year of construction: 2008, operating hours: 20,130 h, functionality: fully functional, machine/vehicle number: 02260008351, turning length: 600 mm, turning diameter: 324 mm, travel distance X-axis: 185 mm, travel distance Y-axis: 40 mm, travel distance Z-axis: 620 mm, No minimum price – guaranteed sale to the highest bidder! Djdpfxjxm Sxij Adujcr The payment deadline for the machine is November 20, 2025! Placing a bid obligates you to collect the machine within the scheduled collection period between December 1, 2025 and December 5, 2025! TECHNICAL DETAILS Turning length: 600 mm Swing diameter: 324 mm Travel X-axis: 185 mm Travel Y-axis: 40 mm Travel Z-axis: 620 mm Rapid traverse X-axis: 4 m/min Rapid traverse Y-axis: 7 m/min Rapid traverse Z-axis: 7 m/min Spindle bore: 72 mm Spindle speed (max.): 5,000 rpm Bar capacity: 45 mm Counter spindle speed (max.): 7,000 rpm Counter spindle bore: 57 mm Number of magazine tool stations: 12 Tool holder: VDI 40 Driven tool power: 12 kW Torque: 10.5 Nm Speed: 4,500 rpm MACHINE DETAILS CNC control: HEIDENHAIN iTNC 530 Dimensions & Weight Dimensions (L x W x H): 4,890 x 2,460 x 2,080 mm Total weight: 6,500 kg Operating Hours Spindle hours: 20,130 h Power-on hours: 50,305 h EQUIPMENT Documentation / manual 12 driven tools Tool package Belt filtration system Bar loader MKE HL 12 PN, year of manufacture 2008

Condition: ready for operation (used), Year of construction: 2005, 1 unit of used CNC lathe with driven tools and Y-axis. Siemens control. Dodpfx Adjwz Sgfsuecr

Condition: excellent (used), Year of construction: 2004, functionality: fully functional, Hello, I am offering for sale a renowned brand CNC lathe: DMG GILDEMEISTER CTX 420 Linear V4 with C-axis, Y-axis, and driven tools. The machine is in excellent technical and visual condition. _ Type: CNC Lathe Manufacturer: DMG GILDEMEISTER Model: CTX 420 V4 Linear Control: HEIDENHAIN 4290 + DIN PLUS interface for program generation Country of manufacture: Germany Year of manufacture: 2004 Dodpfx Adsxcupcoujcr _ Machine specifications: - Turret: 12 tools with VDI 40 holders (all stations are driven) - Max spindle speed: 5,000 rpm - C-axis - Y-axis - Driven tools - Max turning length on Z-axis: 635 mm - Max turning diameter on X-axis: 325 mm - Spindle chuck BERG, diameter 200 mm - Max bar diameter: 66 mm - Coolant system - Hydraulic tailstock, programmable - Chip conveyor - Spindle drive power: 21 kW - LNS bar feeder - Documentation (DTR) - Machine weight: 6 tons _ WHY IS IT WORTH BUYING MACHINES FROM PPM? - We offer our own stationary and mobile service support - We have sold over 700 DMG machines - We can commission the machine at the customer's site - Operator training and delivery included in the price - All our machines undergo a professional technical inspection and are ready for operation - The machine can be purchased via installment plan or leasing.
