Used Weinig Moulder for sale (471)

Condition: like new (used), Year of construction: 2023, functionality: fully functional, working width: 310 mm, planing width: 310 mm, Top model from Weinig: Weinig Powermat 3000 Special 6-spindle four-sided planer All motors frequency-controlled, 4000–12000 RPM Extra wide working width of 310 mm Working height 160 mm - Optional we can make it 200 mm Rodpexqxhfjfx Ac Hoch All spindles with Powerlock High-speed feeding system of 100 m/min With profile and straight jointers Axial and radial CNC-controlled axes Short infeed table, 1.1 meters WMC Moulder Master Full options machine ! Like new, never used in production!

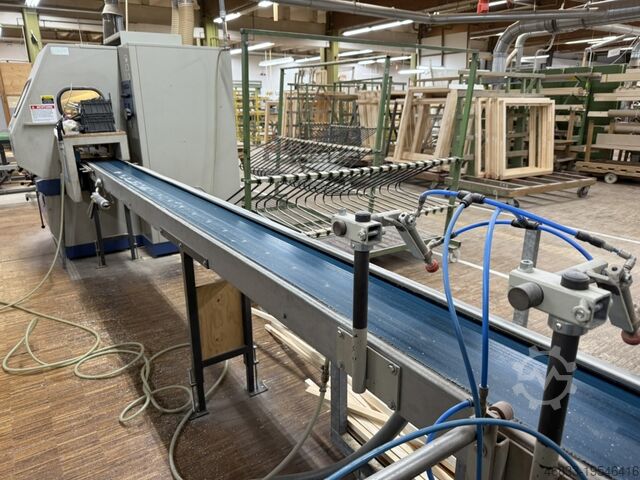

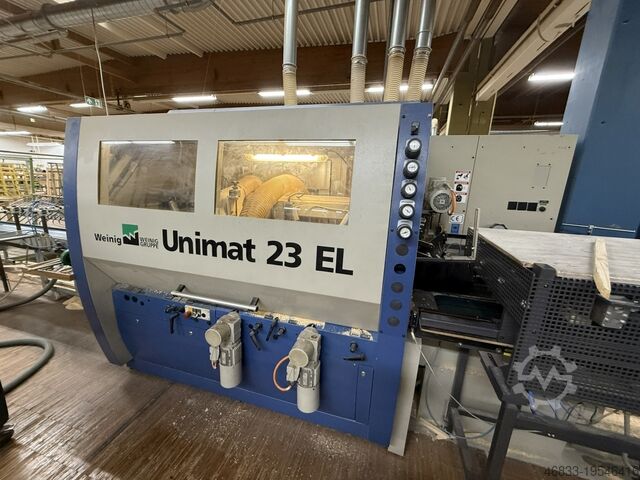

Condition: good (used), Year of construction: 2004, Weinig Unimat 23 EL Year of manufacture: 2004 Working width: 230 mm, Working height: 120 mm 1. Bottom spindle with 7.5 kW motor and spindle brake 2. Right spindle with separate motor, 7.5 kW and spindle brake Speed: 8,000 rpm with high-performance ball bearings, NC-axis with frequency inverter, axial stops milled to 35 mm height 3. Left spindle with separate motor, 7.5 kW, speed 8,000 rpm with high-performance ball bearings, NC-axis with frequency inverter, radial pneumatic pressure guide left for varying workpiece widths up to 200 mm 4. Top spindle with 7.5 kW motor and spindle brake, speed 8,000 rpm with high-performance ball bearings, NC-axis radial Pneumatic axial control, adjustment range 40 mm, glazing bead ejection, pneumatically cycled. - Infeed system with 4 kW motor and infeed brake - Short piece package - UC-Matic package consisting of: PLC control, central motor start, parts monitoring, operator terminal, free-standing control cabinet, free-standing operating panel, magnetic interlock for safety cover - Enhanced sound insulation - Automatic planing and feeding system for different workpiece lengths and widths Workpiece dimensions Length: 400 – 3,500 mm (4,000 mm) Width: 40 – 200 mm Thickness: 20 – 100 mm Powered conveyor belt Belt width 250 mm, conveying length 4,500 mm, additional photoelectric sensor for signal transmitter Weinig Hydro Finish Planing Machine Uniplan 23 Year of manufacture: 2004 Working width: 230 mm, Working height: 120 mm 1. Bottom spindle with 7.5 kW motor and spindle brake, speed 7,200 rpm 2. Top spindle with 7.5 kW motor and spindle brake, speed 7,200 rpm, NC-axis radial - First feed roller cycled with photocells - NC-axis for separate feed height adjustment - Improved sound insulation Rcjdpfx Acewyuluo Hoh - UC-Matic package - 2 hydro straight cutter blocks 501 with HSS strip planer knives 30 mm x 3 mm, max. 9,000 rpm, dimensions 163 mm x 230 mm x 50 mm, Z=4

Condition: used, Year of construction: 1993, Catalogue number: 7705 TECHNICAL DATA - Max working width: 220mm Rcedpfx Acow Edgfj Hsh - Max working height: 160mm – 4 spindles: 1) Bottom horizontal: 220mm, 5.5kW 2) Right vertical: 160mm 3) Left vertical: 160mm (2nd & 3rd spindle) 11kW 4) Top horizontal: 220mm with electric adjustment up/down, 7.5kW - All spindles adjustable up/down, right/left - Spindle diameter: 40mm - 4 top metallic, toothed feed rollers - 1 top double rubber outfeed roller - 1 bottom rubber outfeed roller - Feed via Kardana shafts - Stepless feed speed adjustment - Feed motor: 2.2kW - Lifting motor: 0.55kW - Electric planing thickness adjustment - Infeed table length: 1970mm - Central lubrication - Extraction nozzle diameter: 3x120mm, 140mm - Enclosed cabin - Dimensions (L/W/H): 3500x1600x1500mm - Weight: 1620kg Net price: 33,900 PLN Net price: 8,070 EUR (based on 4.2 EUR exchange rate) (Prices may change with exchange rate fluctuations)

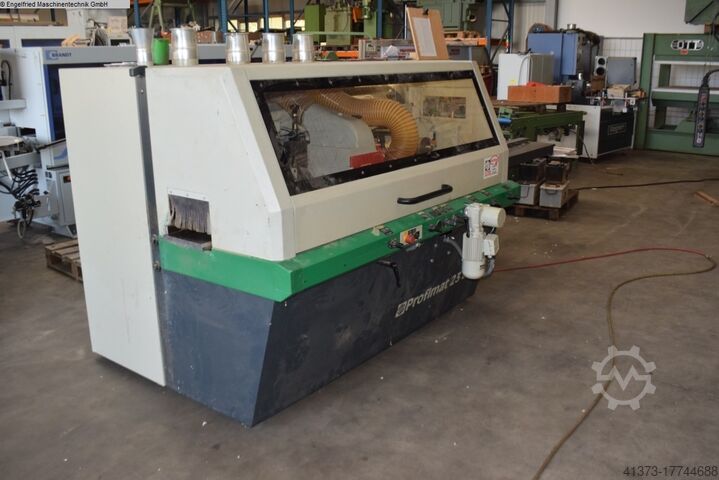

Condition: used, Number of spindles 6 St. Working width 230 mm Working height 120 mm Length of the planing table 2500 mm Feed motor 3 kW Feed speed 5-24 m/min. total power requirement 27 kw Dimensions (L/W/H) 3900 x 2200 x 2000 mm weight of the machine ca. 2500 kg Weinig Profimat 23 four-side planer, window version with glazing bead removal or can be used as a grooving spindle ATS control and program control ----- Machine was factory overhauled by Weinig in 2024. Technical Specifications Summary (Please inquire about any additional accessories included) ----- General ----- > Working width: 230 mm > Working height: 120 mm > Number of spindles: 6 > Planer table length: 2500 mm Rsdpfx Asxpn T Usc Hjch > Feed motor: 3 kW > Feed speed: 5-24 m/min > Total power requirement: 27 kW > Dimensions: 3900 x 2200 x 2000 mm > Machine weight, approx.: 2500 kg Spindle arrangement ----- > Spindle 1: bottom > Spindle 2: right, pneumatically timed up-down > Spindle 3: left > Spindle 4: top > Spindle 5: bottom > Spindle 6: pneumatically timed up-down glazing bead saw Spindle Description ----- > Spindle 1: 4 kW, 6000 rpm, 40 mm diameter > Spindle 2: 7.5 kW, 6000 rpm, 40 mm diameter > Spindle 3: 6000 rpm, 40 mm diameter > Spindle 4: 5.5 kW, 6000 rpm, 40 mm diameter > Spindle 5: 4 kW, 6000 rpm, 40 mm diameter > Spindle 6: glazing bead saw 2.2 kW, 6000 rpm, 40 mm diameter Additional Features ----- > Can be used for glazing bead cutting or as a grooving machine > ATS control, automatic 2-axis positioning for width and height (left and upper spindle) with 99-program memory > Machine operation: Window package Joint control of the right spindle and the glazing bead feed via manual selector switch on the control panel > Spindles with mechanical digital display (Technical data according to the manufacturer - no guarantee!)

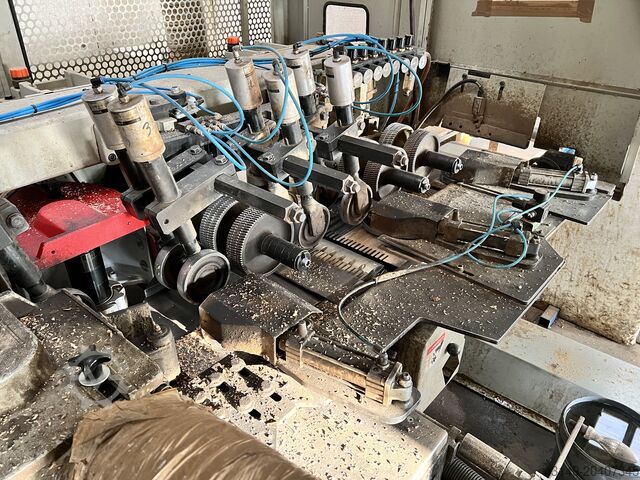

Condition: good (used), Year of construction: 1996, functionality: unexamined, shaft diameter: 50 mm, power: 77.5 kW (105.37 HP), High-performance planing and profiling machines / four-sided planer Manufacturer: Weinig Model: Hydromat 30 / H 30 N System originates from a parquet factory Planing width: approx. 220 mm Planing height: approx. 120 mm Spindle arrangement: Bottom (joiner), 22 kW Right, 7.5 kW Left, 18 kW Top, 30 kW Rcsdexr Hbvspfx Ac Hsh Spindle diameter: 50 mm Feed speed adjustable, 12 – 120 m/min. Voltage: 380 V, 50 Hz

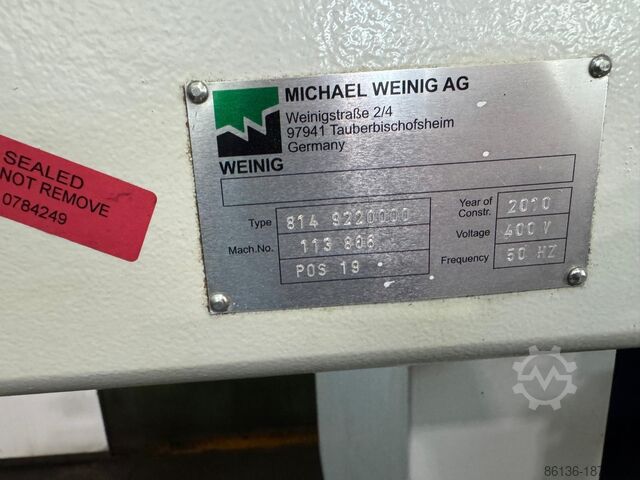

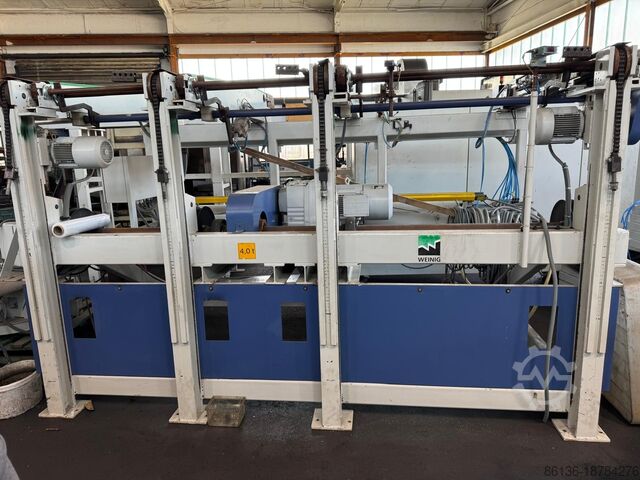

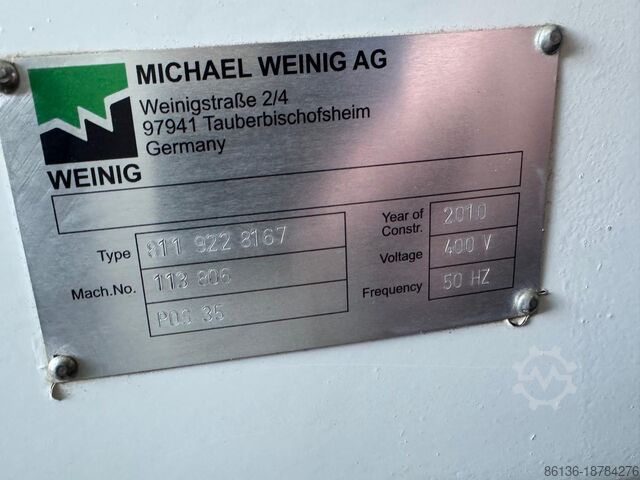

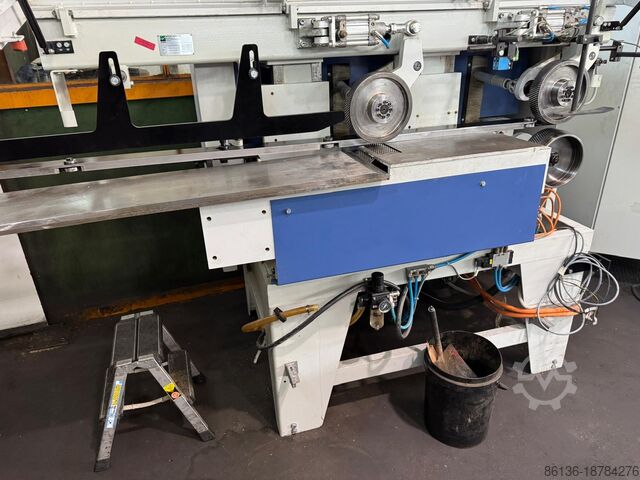

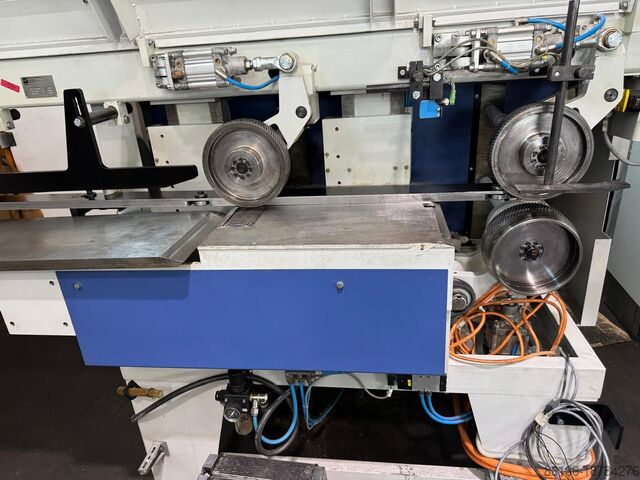

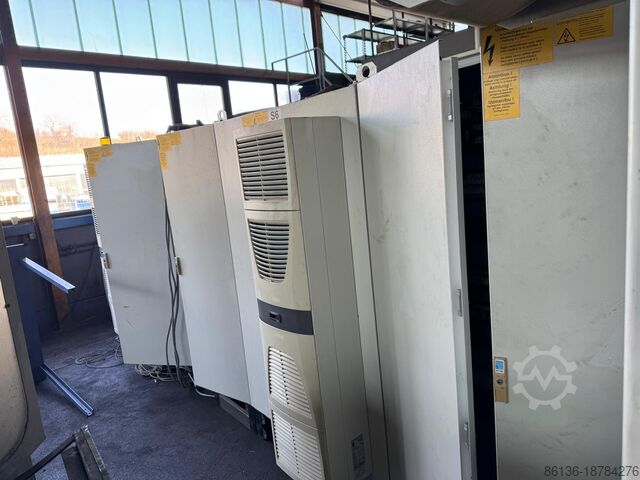

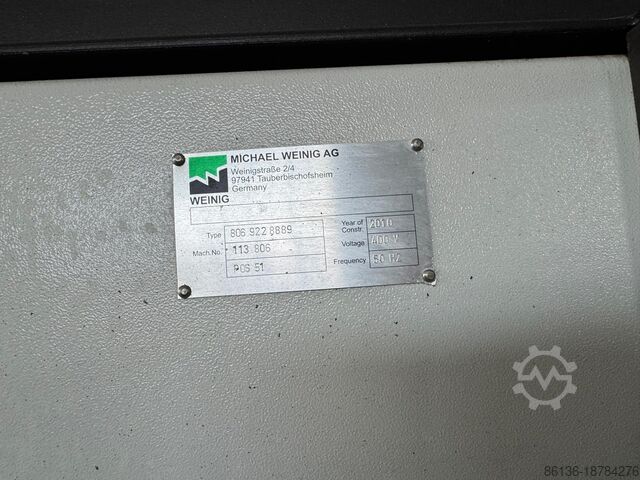

Condition: repair required (used), Year of construction: 2010, functionality: not functional, feed rate X-axis: 120 m/min, input frequency: 50 Hz, For sale is a Weinig mechanization system consisting of: Weinig 811, Weinig 820, Weinig 814, Weinig 811, Weinig 806 Rcedsv Skayspfx Ac Hjh

Condition: excellent (used), Year of construction: 2001, Weinig Profimat 26 Super Year of manufacture: 2001 Planing width: 220 (230) mm Planing height: 120 mm Infeed table length: 2,500 mm Spindle arrangement: Bottom Rjdpfjxqnxtjx Ac Hsch Right Left Top Bottom

Condition: used, Year of construction: 2000, machine/vehicle number: 90816, Technical specifications: 1st shaft: lower horizontal, 2nd shaft: right spindle moulder, 3rd shaft: left spindle moulder, 4th shaft: upper horizontal, 5th shaft: lower horizontal, 6th shaft: universal, ATS control, any width, maximum width: 230, maximum height: 120. Rcodpfxexp U R He Ac Hoh

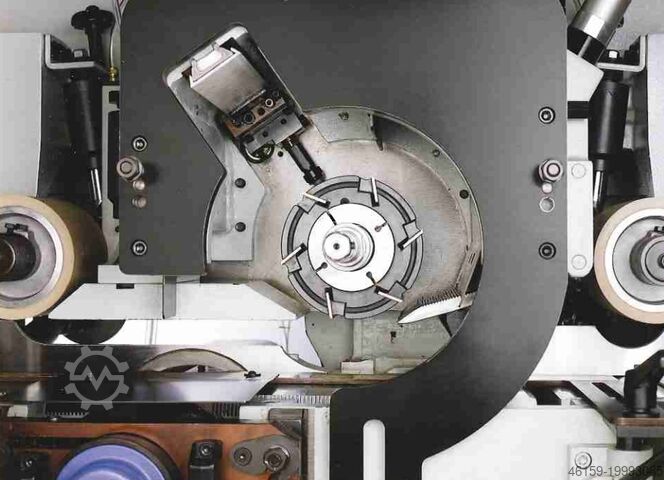

Condition: good (used), Leadermac Speedmac 923 Maximum width 230mm Maximum thickness 160mm 9x spindles 6,000 RPM 4x side heads !!! Bottom 11kW outboard bearing Right 11kW Left 11kW Right 11kW Left 11kW Top 11kW outboard bearing Bottom 11 kW outboard bearing Top 22kW outboard bearing Bottom 22 kW outboard bearing Possible to add jointers as needed. Rcjdpfoxcft Ssx Ac Hjh Large quantity of Hydro tooling included!!! 11kW feed motor. 6-70m/min (possible to increase if needed). Automatic lubrication system. Possible to supply with moulder infeed and outfeed as needed. Possible to offer tooling if needed.

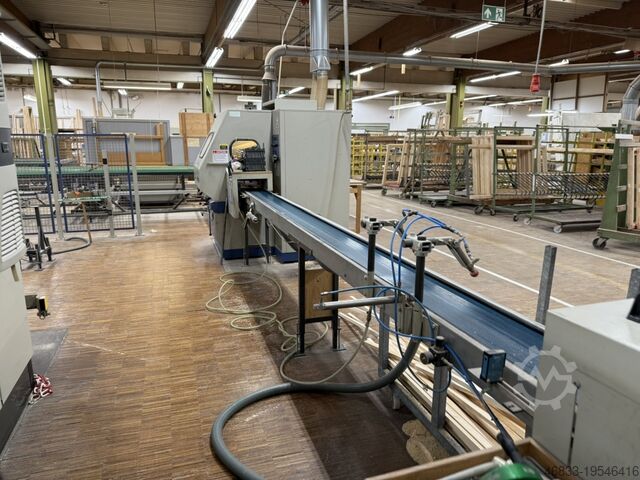

Condition: used, Number of spindles 8 St. Working width 230 mm Working height 120 mm Weinig Planing and moulding line ----- Consisting of the following individual machines: Item 1: Weinig Profimat 23 E, four-side planer, stock number: 2803 5 spindles + glazing bead saw Item 2: Weinig Uniplan 23, stock number: 2804 Fine and hydroplaner with 2 horizontal spindles Rjdsxpn Tujpfx Ac Hsch Item 3: Weinig RF 15, stock number: 2805 Longitudinal-cross-longitudinal conveyor with workpiece return to the operator Detailed descriptions of the machines can be found under the mentioned stock numbers. (Technical specifications according to the manufacturer, without guarantee!)

Condition: like new (used), Year of construction: 2020, functionality: fully functional, feed length X-axis: 5,300 mm, feed rate X-axis: 60 m/min, working width: 230 mm, spindle diameter: 180 mm, working height: 160 mm, power of feed motor: 9,000 W, spindle speed (max.): 6,000 rpm, height adjustment type: electric, number of spindles: 6, power: 127 kW (172.67 HP), input current: 241 A, feed roller diameter: 140 mm, Equipment: motor brake, Complete and functional Hydromat 3000 planer line with splitting axe. Ideal for automated production of cladding/flooring and roofing battens. Line consists of feeding by destacking tilting table, piece by piece planer feeder, minibundling station, trimming and automated stacking into package. Finish package is automaticaly lowered onto buffer conveyor for PET strapping. Line is offered for sale due to capacity upgrade. More information about line upon request. Rodpfx Acsrk Nklj Hjch

Condition: good (used), Year of construction: 1989, functionality: unexamined, working width: 220 mm, planing height: 120 mm, spindle diameter: 50 mm, planing width: 220 mm, working height: 120 mm, overall weight: 7,500 kg, spindle speed (max.): 6,000 rpm, spindle speed (min.): 6,000 rpm, height adjustment type: electric, type of input current: three-phase, number of spindles: 10, power: 105 kW (142.76 HP), input frequency: 50 Hz, Equipment: cabin, motor brake, Weinig Hydromat 22 B With grooved bed 10 spindles, Working width: 220 mm, working height: 120 mm, spindle diameter: 50 mm, Feed rate: 7.5 kW / 8- 40 m/min, Spindle arrangement: 1-bottom (7.5 kW) - with hydraulic clamping 2- Right (7.5 kW) 3-Left (11 kW) 4-Right (7.5 kW)- with straight jointer Rcsdpfxju Udd Se Ac Hjh 5-Left (7.5 kW) 6-Top (15 kW) - with hydraulic clamping 7-Bottom (7.5 kW) - with hydraulic clamping 8-Top (7.5 kW) - with hydraulic clamping and straight jointer 9-bottom (7.5 kW) - with hydraulic clamping and straight jointer 10-Uni (7.5) 6 driven rollers in the table

Condition: excellent (used), Planer 9 heads Working width - 20 cm Working height - 22 cm 5 pulleys in the table Rcsdstrdwtspfx Ac Hsh Heads 1 bottom 7.5 kW 2 right 11 kW 3 left 11 kW 4 right 11 kW 5 up to 11 kW 6 down 11 kW 7 up to 11 kW 8 down 11 kW 9 universal 11 kW PERFECT CONDITION!

Condition: good (used), Year of construction: 2001, WEINIG MOULDER TYPE PROFIMAT 23 FORTEC 5 SPINDLES NO. 94151 YEAR 2001 WITH AUTOMATIC OUTFEED SYSTEM Weinig Year: 2001 Motor power: 33 kW Capacity (mm): 230 mm x 120 mm Working units: 5 1st unit: surface planer 2nd unit: right spindle moulder 3rd unit: left spindle moulder 4th unit: thickness planer 5th unit: bottom horizontal spindle Infeed table length: 2000 mm Noise reduction lips: Yes Control panel with Siemens SIMATIC OP7 programmable 2-axis control Feed speed: variable speed drive from 5 to 24 m/min Electric rise and fall Digital counter on the control panel and digital mechanical counters at each axis movement Guard: Yes CE compliant: Yes Special features: - Pneumatically retractable infeed roller before the surface planer - Independent pneumatic feed pressure - Forward and reverse wood feed device - Independent spindle start-up, except the two spindle moulders, which operate together - 2-axis height and width programming - Device for all widths with automatic infeed side pusher coordinated with the left spindle moulder Rcjdpfx Asxl Rv Rsc Hsh - Disengageable system for manual operation - Centralized lubrication system for tables with Waxilit groove - Profiling cover, 180 mm diameter, on right and left spindle moulders and bottom horizontal spindle - Short wood processing device - Extraction diameter: 5 x 140 mm

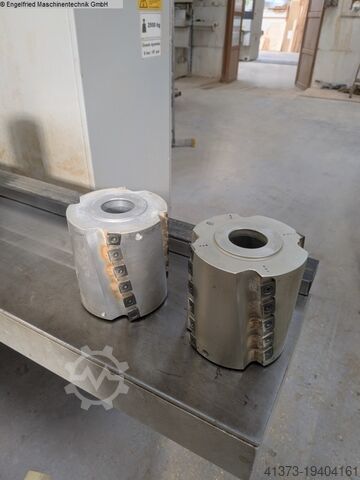

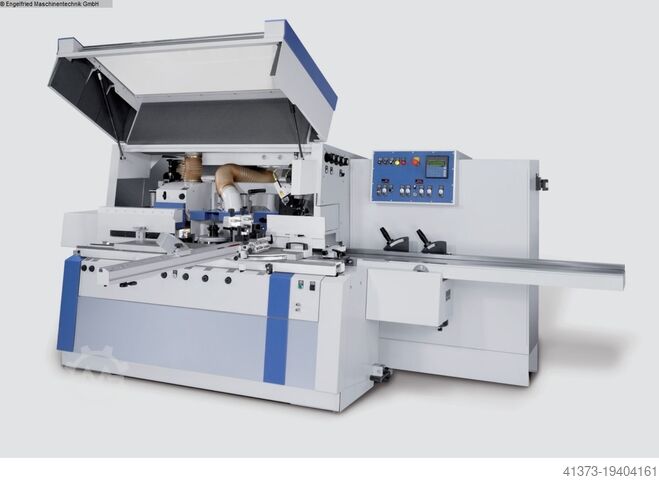

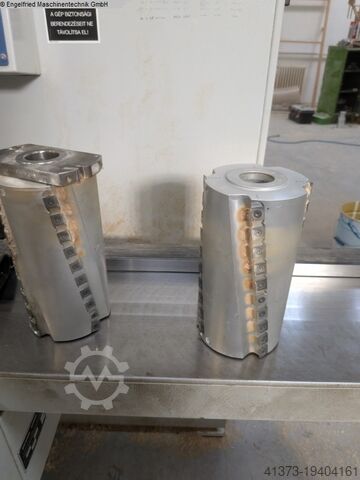

Condition: used, Number of spindles 5 St. Working width 20 - 230 mm Working height 8 - 120 mm Length of the planing table 2000 mm Feed motor 1,1 kW Feed speed stufenlos regelbar 2 - 12 m/min. 1 WEINIG VARIOMAT planer and moulder including multifunction / slotting table ----- Machine will be cleaned and functionally tested before delivery ! Technical manufacturer's description: ----- Working width: 20 - 230 mm Working height: 8 - 120 mm 1st spindle horizontal, bottom ----- Motor with brake: 5.5 kW Diameter 40 mm Speed ??6000 rpm Tool radius 125 - 145 mm Axis adjustment range 5 mm Folding device including rebate cutter MarathonCoating for table insert before and after the 1st lower spindle Rcedpfx Aswugpboc Hoh 2nd spindle vertical, right ----- Motor with brake: 11 kW Common motor with left vertical spindle Diameter 40 mm mm Speed ??electronically adjustable 3000 - 6000 rpm (for 11 kW/15 HP) Tool cutting radius for longitudinal machining 93-232 mm Minimum tool diameter at stop plane: 93 mm Maximum tool diameter behind stop plane: 180 mm Maximum throat depth 45 mm Axially adjustable travel 30 mm Insertion segment, including additional stop lip 125 mm Insertion segment, including additional stop lip 150 mm 3rd vertical spindle, left POWERLOCK/HSK ----- Shared motor with 1st right spindle PowerLock tool holder Shared speed with right vertical spindle Tool cutting radius for longitudinal machining 93-232 mm Maximum throat depth 45 mm Minimum throat depth with tool cutting radius 200 mm: 20 mm Axially adjustable travel under table 30 mm Insertion segment 125 mm Insertion segment 150 mm 4th spindle, horizontal, top ----- Motor with brake: 5.5 kW Diameter 40 mm Speed ??6000 rpm Tool cutting radius 125-200 mm Maximum chamfering depth 30 mm Minimum chamfering depth with a tool cutting radius of 200 mm: 20 mm Axially adjustable range 30 mm Glazing bead removal after the upper spindle 5th spindle, second, horizontal, bottom ----- Motor with brake: 4 kW Diameter 40 mm Speed ??6000 rpm Tool cutting radius 125-200 mm Maximum chamfering depth 15 mm Axially adjustable range 10 mm Machine operation ----- Both axes of all spindles - with the exception of the first lower spindle - are equipped with mechanical digital displays. Central radial adjustment with mechanical digital display of the feed rate along with the pressure in front of the upper spindle. The pressure after the upper spindle can be adjusted separately. Memory function ----- For saving the setting values ??of profiles Tool holder axes and pressure elements before and after the upper tool holder with electronic dual displays: Function: -Saving the setting values ??of the finished profile at the touch of a button under a profile number - When the profile number is selected again, the electronic dual displays show the setting values - By manually adjusting the tool holders and pressure elements, the displays are aligned - 99 memory locations 3 axial CNC-controlled adjustment and positioning of the spindles in conjunction with the memory function. For spindles 2, 3, an...

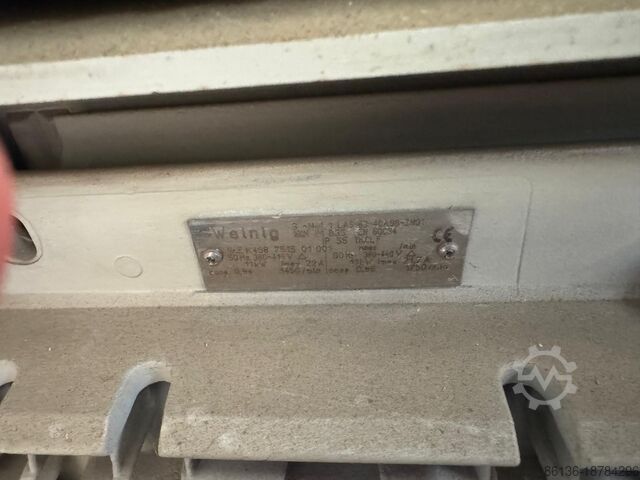

Condition: excellent (used), functionality: fully functional, power of feed motor: 11,000 W, Hydraulic feed from Weinig Feed speed 120 m/min Rodpfxov Skbks Ac Hsch Motor power 11 kW

Condition: used, Year of construction: 2014, Number of spindles 5 St. Working width 230 mm Working height 120 mm Length of the planing table 2500 mm Feed motor 4 kW Feed speed 5-30 m/min. Control Memory-Funktion Weinig Powermat 600 Compact ----- The machine will be cleaned and completely checked before delivery. Brief Summary: ----- - 5 spindles - Powerful motors - Left and upper spindles controlled for width and height Detailed Description: ----- Technical Specifications: Working width: 20-230 mm Working height: 10-120 mm Number of spindles: 5 1st spindle - bottom ----- Motor with brake: 7.5 kW Spindle diameter: 40 mm Speed: 6,000 rpm Tool travel radius: 125-145 mm Tool travel radius for rebate cutter: 130-160 mm Rcsdpfswzmu Rox Ac Hsh Axis adjustment range: 5 mm Rebate device MarathonCoatin for table insert in front of the 1st lower tool holder Electronic digital display for wheel adjustment 2nd spindle - Right ----- Motor with brake: 11.0 kW Shared motor with left-hand tool holder Spindle diameter: 40 mm Speed: 6,000 rpm Tool cutting radius 40 mm below table level: 93 - 200 mm Tool cutting radius 55 mm below table level: 93 - 180 mm Tool cutting radius for straight cutter heads max. 163 mm Max. tool diameter behind stop level: 180 mm Max. throat depth: 35 mm Axis adjustment range: 55 mm 3rd spindle - left ----- Motor with brake: Shared motor with the 2nd spindle Spindle diameter: 40 mm Speed: 6,000 rpm Tool cutting radius 40 mm below table level: 93 - 200 mm Tool cutting radius 55 mm below table level: 93 - 180 mm Tool cutting circle for straight cutter heads max. 163 mm Max. throat depth: 35 mm Axial adjustment range: 55 mm Radial CNC-controlled spindle 4th spindle - top ----- Motor with brake: 11.0 kW Spindle diameter: 40 mm Speed: 6,000 rpm Tool cutting circle: 93 - 200 mm Tool cutting circle for straight cutter heads max.: 180 mm Max. throat depth: 35 mm Axial adjustment range: 40 mm Radial CNC-controlled spindle Split pressure shoe in front of the upper tool holder, adjustable to the tool cutting circle and pivoting away from the tool, spring-loaded. Pressure shoe before and discharge after the upper spindle with electronic digital displays, integrated into the memory function. 5th spindle - lower ----- Motor with brake: 7.5 kW Spindle diameter: 40 mm Speed: 6,000 rpm Tool cutting radius: 93 - 200 mm Max. groove depth: 15 mm Axis adjustment range: 35 mm Feed system ----- Electronic feed, continuously adjustable with brake: 4 kW, 5 - 30 m/min Feed roller in front of the first lower tool, pneumatically controlled up/down. Durofer pointed tooth rollers with depth gauge and self-cleaning. Adjustment range of the feed rollers relative to the left tool holder, axial: 35 mm Machine electrical system ----- Operating voltage 400 V (voltage range 380 - 420 V), 50 Hz. All spindles are IE 2 version. Electrical design according to DIN VDE 0113, electrical equipment for industrial machines EN60204, IEC-204-1. Other electrical regulations are not taken into account. Machine stands, tables, and stops -----...

Condition: ready for operation (used), Year of construction: 1983, functionality: fully functional, working width: 220 mm, planing height: 140 mm, spindle diameter: 50 mm, planing width: 220 mm, working height: 140 mm, power of feed motor: 15,000 W, spindle speed (max.): 6,000 rpm, spindle speed (min.): 6,000 rpm, height adjustment type: electric, type of input current: three-phase, number of spindles: 7, input frequency: 50 Hz, Weinig Hydromat 22 BL 7 spindles, Working width: 220 mm, working height: 140 mm, spindle diameter: 50 mm, feed: 15 kW / 6 - 60 m/min, Beesjj3Vck9 Spindle arrangement: 1-bottom (7.5 kW) with hydraulic clamping 2- Right (11 kW) Rcjdpfx Acoulnr Aj Hsh 3-Left (11 kW) 4-Top (11 kW) 5-bottom (7.5 kW)-with hydraulic clamping, straight jointer and profile jointer 6-Top (11 kW) with hydraulic clamping, straight jointer 7-bottom (11 kW) - with hydraulic clamping, straight jointer and profile jointer 6 driven rollers in the table

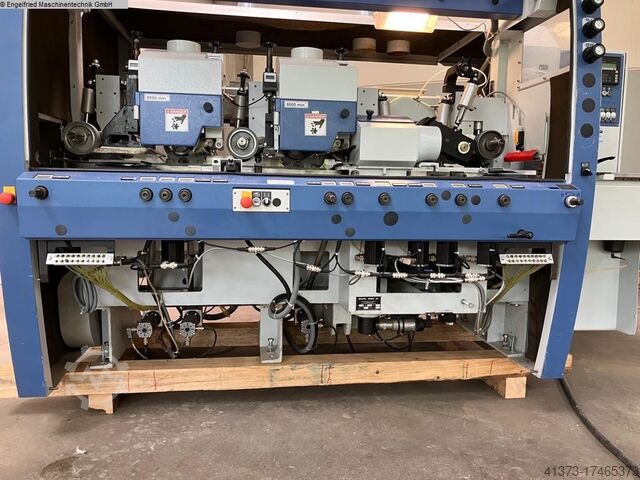

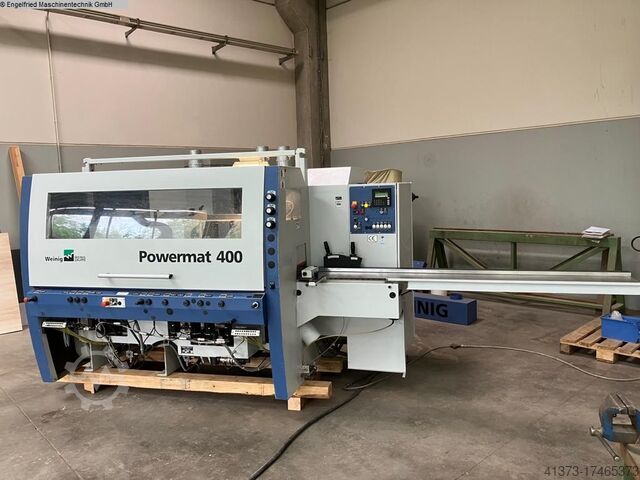

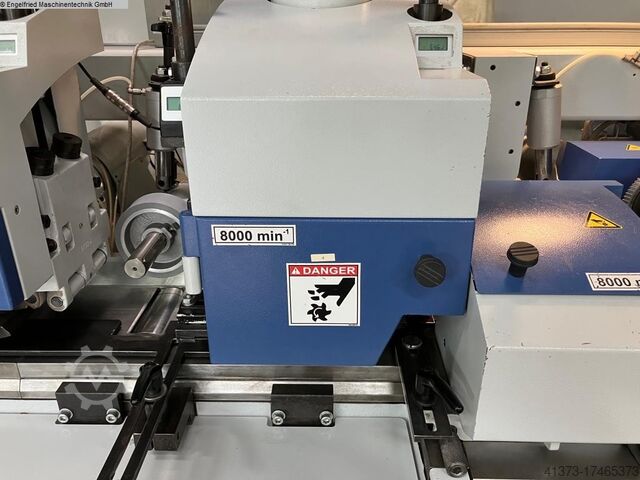

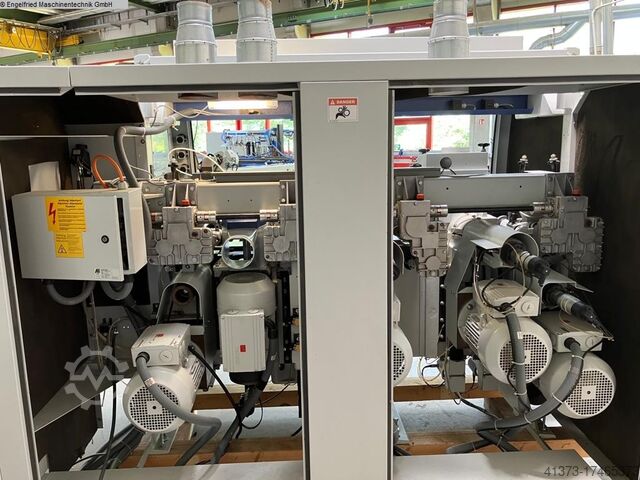

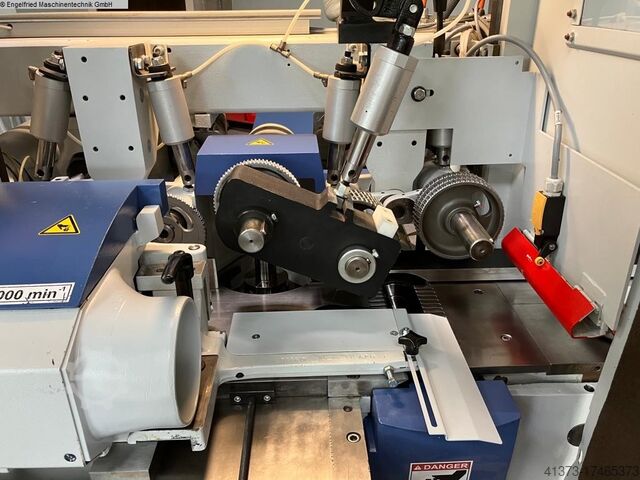

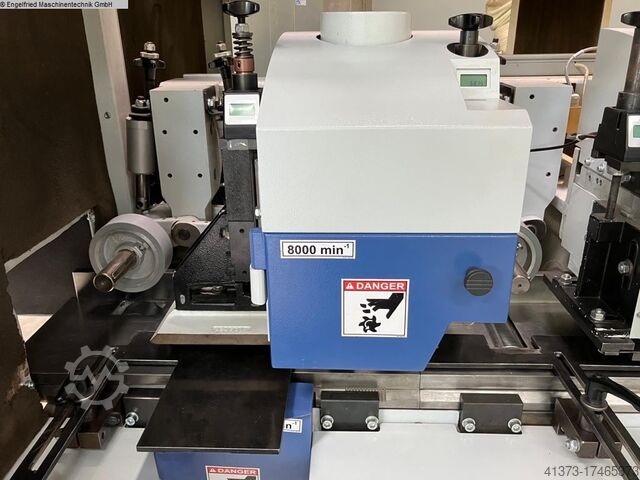

Condition: used, Number of spindles 6 St. Working width 230 mm Working height 120 mm Length of the planing table 2500 mm Feed motor 4 kW Feed speed 5-30 m/min. Weinig Powermat 400 with HSK/Powerlock, axial/radial CNC controlled ----- The machine renovated and functionally checked ! Short summary: ----- 6 spindles with 8,000 rpm 5 x HSK/Powerlock Axial and radial CNC adjustment of the spindles via control CNC - controlled adjustment and positioning of the feed Detailed description: ----- Technical specifications: Working width: 20-230 mm Working height: 8-120 mm Number of spindles: 6 1. Tool holder - below ----- Motor with brake: 5.5 kW Spindle diameter: 40mm Speed: 6,000 rpm Tool flight circle: 93 - 160 mm Axial adjustment range: 5 mm Rebating device MarathonCoatin for table insert in front of 1st lower tool holder 2. Tool holder - PowerLock - right ----- Motor with brake: 11.0 kW Common motor with left tool holder Speed ??including high-performance ball bearing: 8,000 rpm Tool flight circle 40 mm below table level: 93 - 200 mm Tool flight circle 55 mm below table level: 93 - 180 mm Tool cutting circle for straight cutter heads max. 163 mm Max. tool diameter behind stop level: 180 mm Max throat depth: 35 mm Axial adjustment range: 55 mm Spindle axially and radially CNC controlled 3. Tool holder - PowerLock - left ----- Motor with brake: Common motor with the 2nd spindle Speed ??including high-performance ball bearing: 8,000 rpm Tool flight circle 40 mm below table level: 93 - 200 mm Tool flight circle 55 mm below table level: 93 - 180 mm Tool cutting circle for straight cutter heads max. 163 mm Max throat depth: 35 mm Axial adjustment range: 55 mm Spindle axially and radially CNC controlled 4. Tool holder - PowerLock - above ----- Rcsdpfxjuzaa Ss Ac Hjh Motor with brake: 7.5 kW Speed ??including high-performance ball bearing: 8,000 rpm Tool flight circle: 93 - 200 mm Tool cutting circle for straight cutter heads max.: 180 mm Max throat depth: 35 mm Axial adjustment range: 40 mm Divided pressure shoe in front of the upper tool holder, on tool flight circle adjustable and pivoting away from the tool, spring-loaded. Radial CNC-controlled spindle 5. Tool holder - PowerLock - above ----- Motor with brake: 7.5 kW Speed ??including high-performance ball bearing: 8,000 rpm Tool flight circle: 93 - 200 mm Tool cutting circle for straight cutter heads max. : 180 mm Max throat depth: 35 mm Axial adjustment range: 40 mm Divided pressure shoe in front of the upper tool holder, on tool flight circle adjustable and pivoting away from the tool, spring-loaded. Spindle axially and radially CNC controlled 6. Tool holder - PowerLock - below ----- Motor with brake: 7.5 kW Speed ??including high-performance ball bearing: 8,000 rpm Tool flight circle: 93 - 200 mm Max throat depth: 15 mm Axial adjustment range: 35 mm Radial CNC-controlled spindle feed system ----- Frequency-controll...

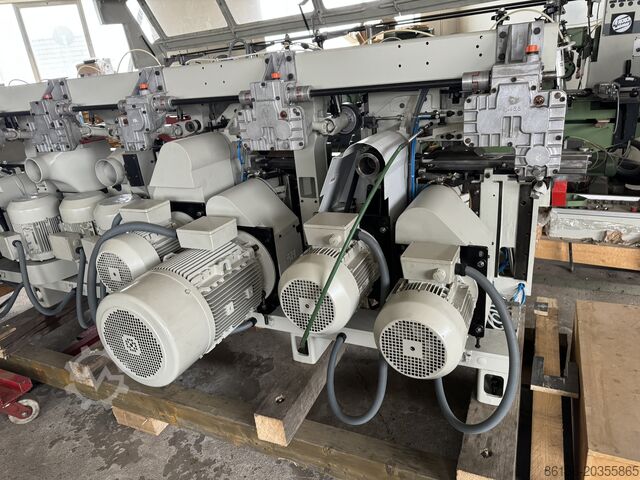

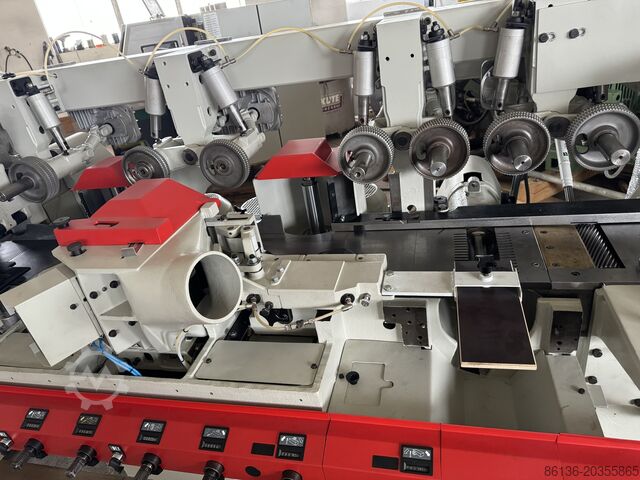

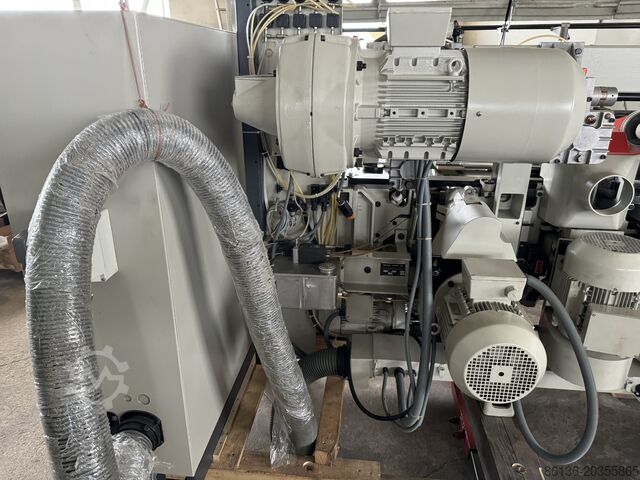

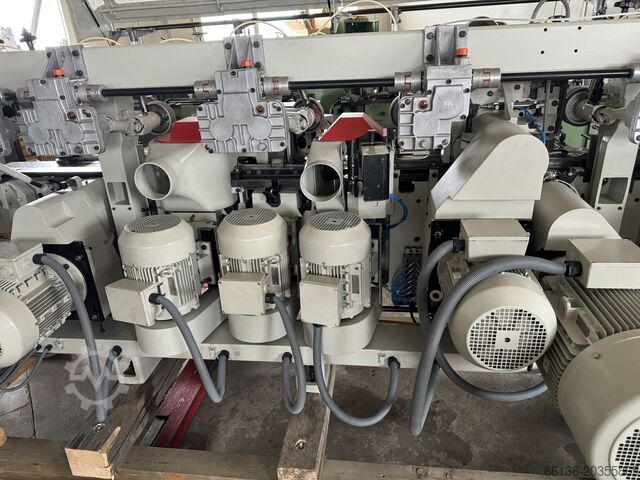

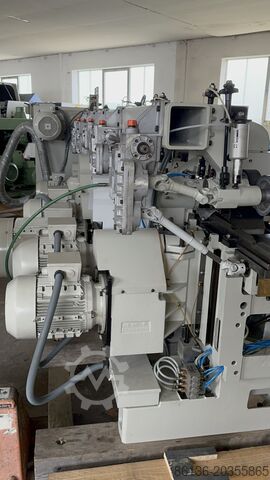

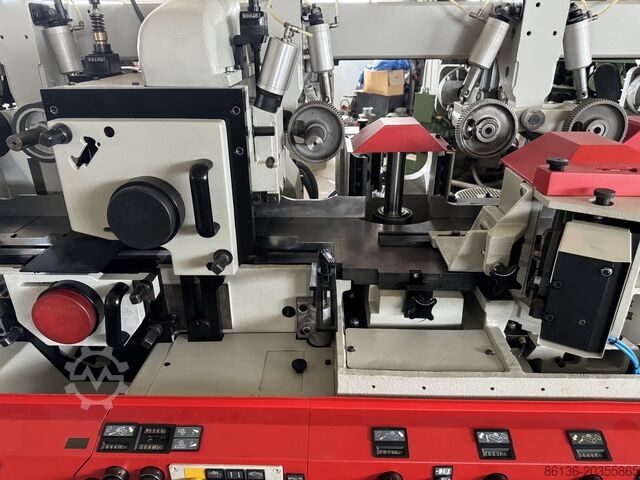

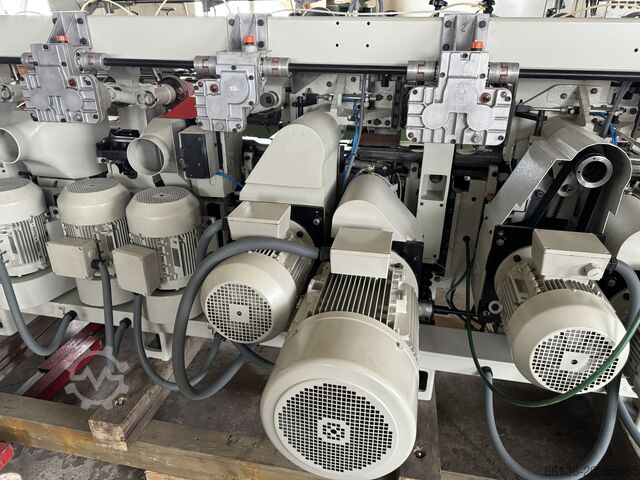

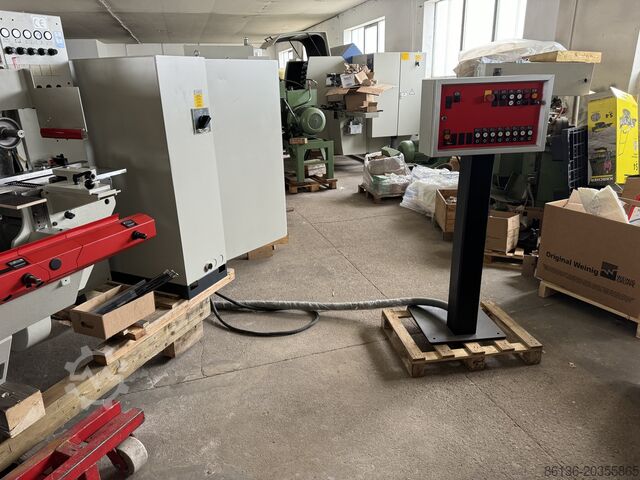

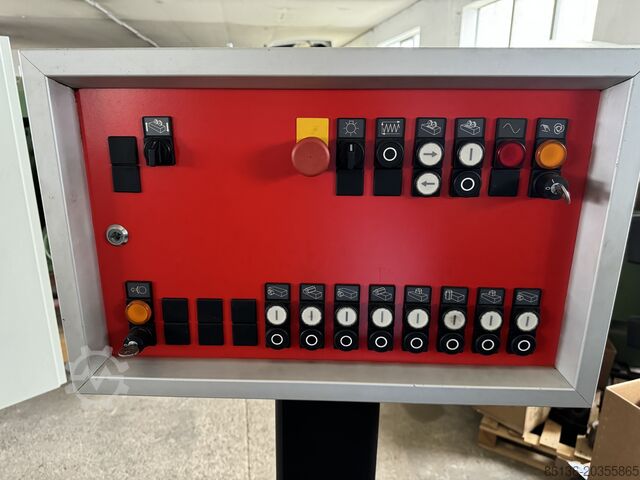

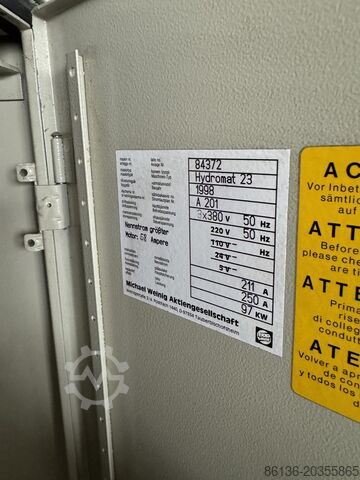

Condition: good (used), Year of construction: 1998, functionality: fully functional, Four-side planer Weinig Hydromat 23, finger jointing machine 8 spindles, Working width: 230 mm, Working height: 160 mm, Spindle diameter: 50 mm, Feed: 7.5 kW / 6–36 m/min, Spindle arrangement: 1-Bottom (7.5 kW) 2-Right (7.5 kW) 3-Left (7.5 kW) with profile jointer 4-Right (7.5 kW) with profile jointer 5-Top (7.5 kW) with hydraulic clamping 6-Bottom (30 kW) with hydraulic clamping 7-Top (7.5 kW) with hydraulic clamping and straight jointer Rcsdpsxqh E Hefx Ac Heh 8-Bottom (7.5 kW) with hydraulic clamping and straight jointer. Hard coating. Two powered rollers in the table.

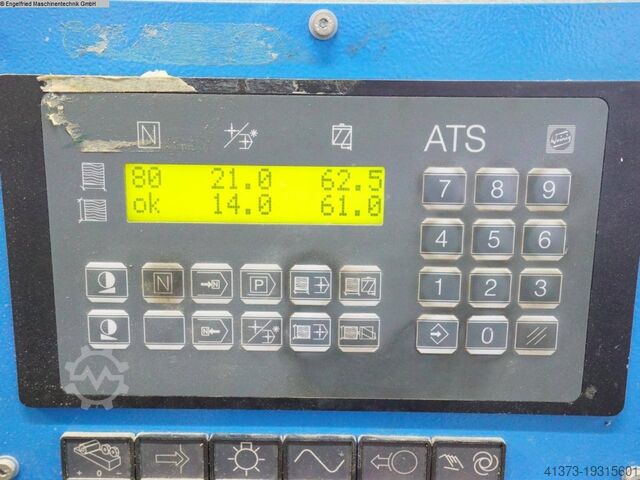

Condition: used, Year of construction: 2000, Number of spindles 6 St. Working width 230 mm Working height 120 mm Length of the planing table 2500 + 500 mm Feed motor 3 kW Feed speed 6-36 m/min. 1 WEINIG Unimat 23 E 4-side Planer and Moulder ----- 6 spindles (2 on the right), powerful motors, EM 11 feed magazine available Working width 20 - 230 mm Working height 8 - 120 mm 1st spindle, bottom 7.5 kW ----- Diameter 40 mm Speed ??6000 rpm Tool travel radius 125 - 180 mm Folding device including tool Hardened table insert in front of 1st lower spindle 2nd spindle, right 11.0 kW ----- Shared motor with left vertical spindle Diameter 40 mm Speed ??6000 rpm Tool travel radius 112-250 mm Max. tool diameter behind stop plane 203 mm Max. groove depth 35 mm Axis adjustment range 80 mm 3rd spindle, left ----- Shared motor with 2nd spindle Diameter 40 mm Speed ??6000 rpm Tool cutting radius 112-200 mm Max. groove depth 35 mm Axis adjustment range 80 mm Pressure shoe in front of left spindle, including lateral roller pressure, spring-loaded 4th spindle, right 7.5 kW ----- Diameter 40 mm Speed ??6000 rpm Tool cutting radius 112-250 mm Max. tool diameter behind stop plane 203 mm Max. groove depth 35 mm Axis adjustment range 80 mm 5th spindle, top 11.0 kW ----- Diameter 40 mm Speed ??6000 rpm Tool cutting radius 112-200 mm Max. throat depth 35 mm Axis adjustment range 45 mm Split pressure shoe in front of the upper spindle, adjustable to the tool travel circle and pivoting away from the tool, spring-loaded. Rcjdpjwqr Rvsfx Ac Heh 6. Lower spindle 7.5 kW ----- Diameter 40 mm Speed ??6000 rpm Tool travel circle 112-250 mm Max. throat depth 15 mm Axis adjustment range 45 mm Spindles in general ----- All throat spindles with high concentricity. Lubrication points for the axial spindle movement. Spindle length of vertical spindles 170 mm Feed system ----- Motor with mechanical brake, 3 kW Mechanical feed continuously adjustable 6 - 36 m/min. Feed roller in front of the first lower tool pneumatically controlled up-down, Durofer pointed tooth rollers (Weinig patent) with depth gauge and self-cleaning Adjustment range of the feed rollers relative to the left spindle, axial: 35 mm Extension of the oscillating axis relative to the left spindles to 150 mm Machine electrical system ----- Operating voltage: 380-400-415 volts, 50 Hz. Machine stands, tables, and stops ----- Surface table 2.5 m long (including jointing ruler) Aluminum extension 0.5 m for surface table, including extension of the jointing ruler Manual Waxilit pump for resin removal from the table One driven rubber roller (spring-mounted in the outfeed table) Pressure elements and Guides ----- Pneumatic pressure rollers from above Pneumatic pressure rollers pivot away from above, opposite the right-hand spindles for easy tool changes Machine Operation ----- Pressure shoe in front of the upper spindle with mechanical digital display. Discharge after the upper spindle with mechanical digital display. ATS/E system, automatic 2-axis positioning for spindles 3 and 4 Min. working height 12 mm Electric height adjustment of the upper spindles and the feed Central p...

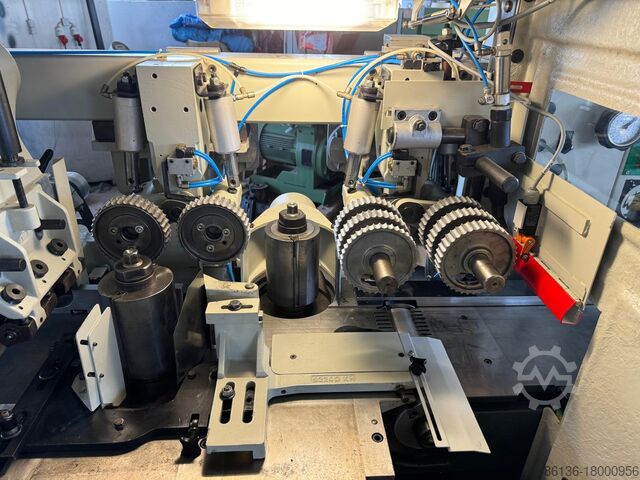

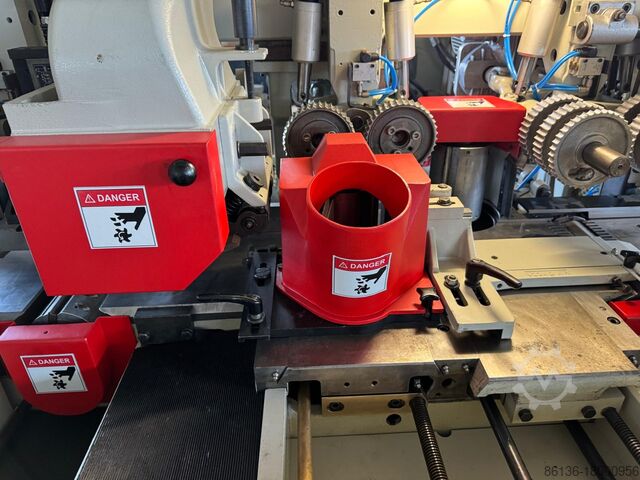

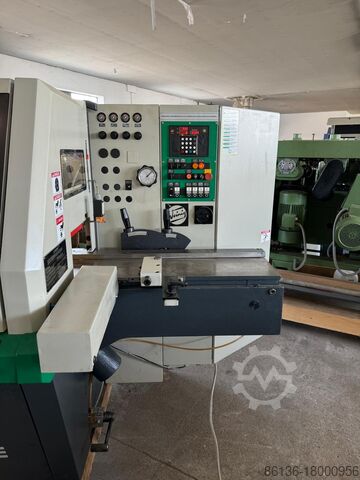

Condition: ready for operation (used), functionality: fully functional, working width: 260 mm, planing height: 170 mm, spindle diameter: 40 mm, planing width: 260 mm, working height: 170 mm, power of feed motor: 4,000 W, spindle speed (max.): 6,000 rpm, spindle speed (min.): 6,000 rpm, height adjustment type: electric, number of spindles: 5, input frequency: 50 Hz, Equipment: cabin, motor brake, Weinig Profimat 23 E Working width: 260 mm, working height: 170 mm, 5 spindles, spindle diameter: 40 mm, Spindle arrangement: 1- Bottom - 5.5 kW 2- Right + 3- Left - 11 kW 4- Top - 5.5 kW 5- Bottom - 11 kW Feed rate: 6 - 24 m/min - 4 kW Air cushion in the table One driven roller in the table at the exit. With tool. Rcodpsvgnb Rjfx Ac Hjh

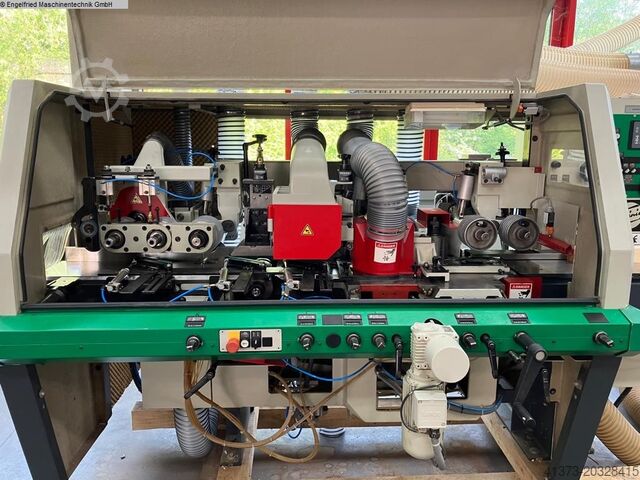

Condition: used, Number of spindles 6 St. Working width 230 mm Working height 120 mm Length of the planing table 2500 mm Feed motor 3 kW Feed speed 5-24 m/min. total power requirement 27 kw Dimensions (L/W/H) 3900 x 2200 x 2000 mm weight of the machine ca. 2500 kg Weinig four-side planer Profimat 23 window version with glazing bead removal, ATS control and program control ----- Machine will be renovated and functionally checked! Technical data summary (please inquire about any additional accessories included) ----- Generally ----- > Working width: 230 mm > Working height: 120 mm > Number of spindles: 6 pieces. > Dressing table length: 2500 mm > Feed speed: 5-24 m/min > Total power requirement: 27 kW > Dimensions: 3900 x 2200 x 2000 mm > Machine weight, approx.: 2500 kg Spindle arrangement ----- > Spindle 1: bottom > Spindle 2: right, pneumatically clocked up-down > Spindle 3: left > Spindle 4: top > Spindle 5: bottom > Spindle 6: Glass bead saw pneumatically up and down Spindle description ----- > Spindle 1: 4 kW, 6000 rpm, 40 mm diameter > Spindle 2: 7.5 kW, 6000 rpm, 40 mm diameter > Spindle 3: 6000 rpm, 40 mm diameter > Spindle 4: 5.5 kW, 6000 rpm, 40 mm diameter > Spindle 5: 4 kW, 6000 rpm, 40 mm diameter > Spindle 6: Glass bead saw 2.2 kW, 6000 rpm, 40 mm diameter Other features ----- > Glazing bead removal > ATS control, automatic 2-axis positioning for width and height (left and upper spindle) with program memory 99 programs > Machine operation: window package Joint control of the right spindle and the glazing bead removal via manual selector switch in the control panel > Spindles with mechanical digital display Option: used planer heads (technical data according to the manufacturer - no guarantee!) Rcsdpfxju Su Huj Ac Heh

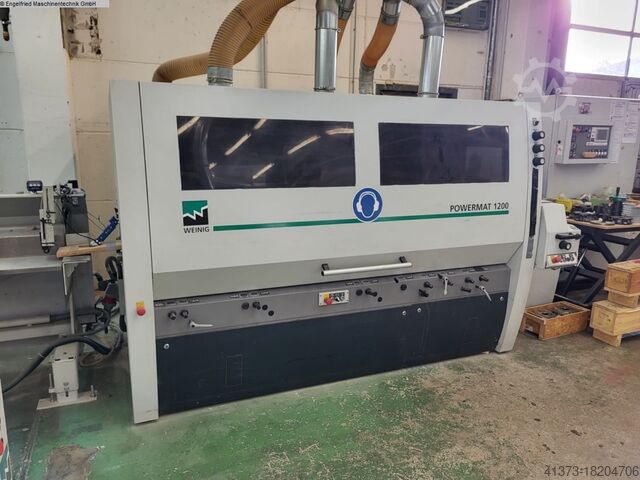

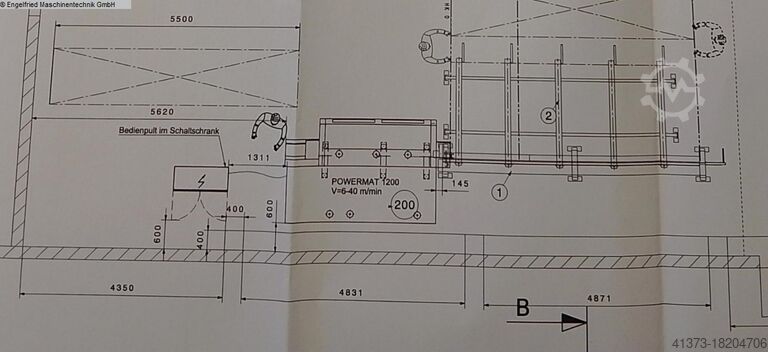

Condition: used, Number of spindles 6 St. Working width 230 mm Working height 160 mm Length of the planing table 1050 mm Feed motor 7 kW Feed speed 6-40 m/min. Weinig Powermat 1200 ----- with infeed automation Weinig wheel magazine EM 100 and linked with outfeed automation Weinig High-Mech A 1 The machine will be completely overhauled at our warehouse before delivery ! Detailed description: ----- 1. Weinig planer and moulder Powermat 1200 ----- Technical data: ----- Working width 20 - 230 mm (with tool flight circle 93 - 163 mm) Working height 10 - 160 mm (with tool flight circle 93 - 163 mm) 1. Spindle ----- First lower horizontal spindle Motor with brake 7.5 KW Spindle diameter 50 mm Speed ??8,000 rpm Tool flight circle 125 - 180 mm In conjunction with PowerLock 93 - 180 mm Tool flight circle rebate cutter 130-160 mm Axially adjustable range 17 mm Folding device Rcedpfxovnwbcj Ac Heh MarathonCoating in front of 1st lower tool holder 2nd spindle ----- First right vertical spindle Motor with brake 7.5 KW Spindle diameter 50 mm Speed ??8,000 rpm Tool flight circle 93 - 200 mm Maximum throat depth 35 mm Axial adjustment range 80 mm Radial adjustment range Min. tool diameter on stop plane 93 mm Max. tool diameter behind stop plane 200 mm 3rd spindle ----- First left vertical spindle Motor with brake 7.5 KW Spindle diameter 50 mm Speed ??8,000 rpm Tool flight circle 93 - 200 mm Tool flight circle for straight cutter heads max. 163 mm Maximum throat depth 35 mm Axially adjustable travel 80 mm Pressure shoe in front of left tool holder, including 2 side pressure rollers, spring-loaded 4th spindle ----- First upper horizontal spindle Motor with brake 7.5 KW Spindle diameter 50 mm Speed ??8,000 rpm Tool flight circle 93 - 200 mm Tool flight circle for straight cutter heads max. 163 mm Maximum throat depth 35 mm Axially adjustable travel 40 mm Split pressure shoe in front of upper tool holder on tool flight circle adjustable and swinging away from the tool, spring-loaded. Upper spindle prepared for later installation of the cassette system 5th spindle ----- Second upper horizontal spindle Motor with brake 7.5 KW Spindle diameter 50 mm Speed ??8,000 rpm Tool flight circle 93 - 200 mm Tool flight circle for straight cutter heads max. 163 mm Maximum throat depth 35 mm Axially adjustable travel 40 mm Split pressure shoe in front of upper tool holder on tool flight circle adjustable and swinging away from the tool, spring-loaded. Upper spindle prepared for later installation of the cassette system 6th spindle ----- Second lower horizontal spindle Motor with brake 7.5 KW Spindle diameter 50 mm Speed ??8,000 rpm Tool flight circle 93 - 225 mm Maximum throat depth 15 mm Axially adjustable travel 40 mm Radial adjustable travel Min. tool diameter to table level 93 mm Max. tool diameter 6 mm below table level 225 mm All spindles with high concentricity. Lubrication points for the axial tool holder movement. Feed system ----- Electronic feed, infinitely variable with bra...

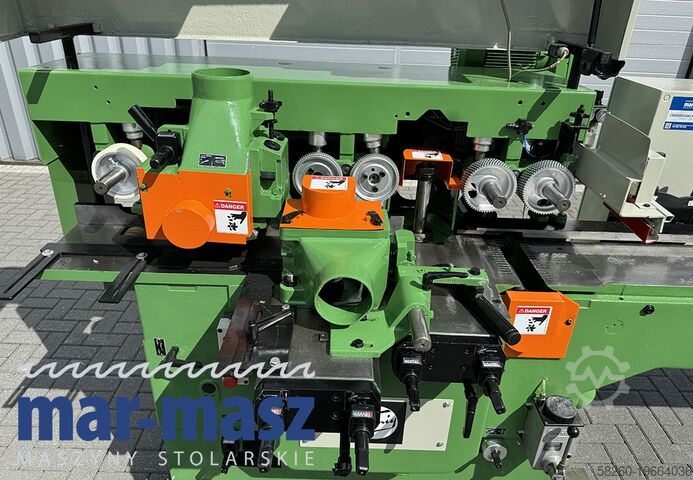

Condition: used, Number of spindles 5 St. Rcodpfx Acsv Irize Hsh Working width 220 mm Working height 120 mm Length of the planing table 2500 mm Feed motor 6 kW Feed speed 6-22 m/min. total power requirement 25 kw Dimensions (L/W/H) 3500 x 1500 x 1600 mm weight of the machine ca. 2000 kg 1 WEINIG four-side planer Type PROFIMAT 22 N with 5 spindles ----- Working width 220 mm, working height 120 mm Still in use, can be viewed Spindle arrangement: 1st spindle bottom 4.0 kW, 2nd spindle right and 3rd spindle left 7.5 kW, 4th spindle top 5.5 kW, 5th spindle bottom 4.0 kW Spindle diameter 40 mm, Feed 3 kW, continuously adjustable from 6 - 22 m/min Special equipment: Cardan drive Profiling package Includes 5 used planer heads. (Technical specifications according to the manufacturer, without guarantee!)
