Coordinate measuring machine

Werth Scope-Check 300x200x200 3D

Condition: new, Year of construction: 2024, operating hours: 15 h, functionality: fully functional, type of input current: AC, input voltage: 240 V, measuring range X-axis: 580 mm, measuring range Y-axis: 300 mm, measuring range Z-axis: 200 mm, total width: 579 mm, total length: 916 mm, total height: 844 mm, overall weight: 45 kg, workpiece weight (max.): 50 kg, VL-770 3D measuring system with motorized rotary table Ø500mm - VL-770 measuring head - VL-700 control unit Gjdovzqp Hepfx Actsbw - 500mm object table VL-750 - Measuring range with composition up to Ø500mm or 580x300mm - Cover (light shielding) - Software package (German) - Calibration plate - Software module for form and positional tolerances - Software module for CAD conversion Full description available in the brochure

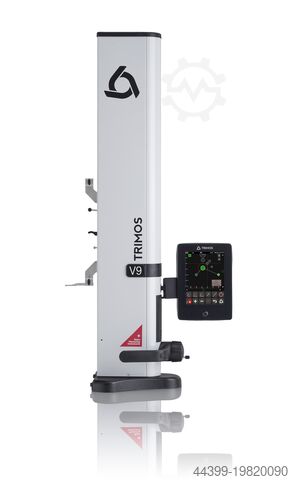

Condition: new, functionality: fully functional, The V9 height gauge is designed for the most demanding users. Laboratories and workshops where measurement reliability is critical will appreciate its exceptional precision and 'Swiss Made' build quality. Metrological performance was at the core of the development of this height gauge. No compromises were made regarding precision and repeatability, which is why several design features—particularly the probe—differ from other models. The display, which is based on a fully tactile interface, offers a level of user-friendliness previously unseen in a vertical measuring instrument. The menus and displayed functions follow a rigorously consistent design philosophy, enabling high efficiency even in complex tasks such as programming, 2D mode, angle measurements, or statistical analysis of results. The V9 models are equipped with a revolutionary displacement handwheel, allowing the user to select between manual and motorized displacement mode. Measuring ranges: 400 to 1100 mm Exceptional precision Electronically adjustable measuring force Manual or motorized movement 2D, programming, statistics Comprehensive range of accessories All settings tool-free RS232 and USB interfaces Wireless data transmission (optional) Models V9: V9 – 400 Measuring range (mm): 406 Measuring range with extension (mm): 724 Accuracy (μm): 1.2 + L(mm)/1000 Repeatability (μm): 0.4 (Ø: 1) Frontal squareness deviation (μm): 5 Resolution (mm): 0.0001 Measuring force (N): 0.75 ÷ 1.5 Autonomy (h): 12 Interfaces: USB / RS232 Air bearing: Yes Weight (kg): 21 Models V9: V9 – 700 Measuring range (mm): 710 Measuring range with extension (mm): 1028 Accuracy (μm): 1.2 + L(mm)/1000 Repeatability (μm): 0.4 (Ø: 1) Frontal squareness deviation (μm): 8 Resolution (mm): 0.0001 Measuring force (N): 0.75 ÷ 1.5 Autonomy (h): 12 Interfaces: USB / RS232 Air bearing: Yes Weight (kg): 24 Models V9: V9 – 1100 Measuring range (mm): 1109 Measuring range with extension (mm): 1427 Accuracy (μm): 1.2 + L(mm)/1000 Repeatability (μm): 0.4 (Ø: 1) Frontal squareness deviation (μm): 11 Gbsdpfx Acew R Nv Iotew Resolution (mm): 0.0001 Measuring force (N): 0.75 ÷ 1.5 Autonomy (h): 12 Interfaces: USB / RS232 Air bearing: Yes Weight (kg): 33

Condition: like new (used), Year of construction: 2015, operating hours: 230 h, functionality: fully functional, measuring range X-axis: 300 mm, measuring range Y-axis: 200 mm, measuring range Z-axis: 150 mm, workpiece weight (max.): 20 kg, total height: 890 mm, total width: 986 mm, total length: 705 mm, overall weight: 170 kg, input voltage: 230 V, Equipment: documentation/manual, lighting, type plate available, SPECIAL OFFER with optional full service (delivery, commissioning) Technical data of the HEXAGON OPTIV CLASSIC 321 GL tp measuring machine Year of manufacture: 2015 Maximum traverse speed in X, Y, Z axes: 160 mm/s Maximum workpiece weight: 20 kg Measuring resolution: 0.05 µm Measuring accuracy in X, Y axes (optical sensor): Ex, Ey = (1.6 + L/250) µm Measuring accuracy in XY axes (optical sensor): Exy = (2.0 + L/250) µm Measuring accuracy in Z axis (optical sensor): Exy = (3.9 + L/200) µm Measuring accuracy in X, Y axes (touch-trigger probe): Ex, Ey = (2.0 + L/250) µm Measuring accuracy in XY axes (touch-trigger probe): Exy = (2.5 + L/250) µm Measuring accuracy in Z axis (touch-trigger probe): Ez = (2.9 + L/200) µm Measuring volume (optical sensor): X 300 mm / Y 200 mm / Z 150 mm Measuring volume (tactile sensor): X 230 mm / Y 200 mm / Z 150 mm Dimensions (L x W x H): 705 x 986 x 890 mm Machine weight: 170 kg Equipment of the measuring machine: • 3-axis microprocessor CNC with vector path control • Metrology software: PC-DMIS Vision • Vision sensor for non-contact measurement of the smallest and most precise components • CCD camera with 6.5x motorized CNC zoom • DC servomotors • TESA probe system (1 body and 1 module) • Modular probe changer: TESASTAR with 4 slots and 4 modules • Linear guides on all axes • Coaxial LED top light (white LED) • LED backlight (green LED + diffuser) • Multi-segment LED ring light • Evaluation computer from Dell included Gbsdpfsxfzzqox Actjw Optional services: Delivery (surcharge) Commissioning (surcharge)

Year of construction: 2002, condition: used, x-travel 210 mm z-travel 350 mm max. loading 25 kg Distance C/Z-axis (mm) 270 mm max. test diameter (mm) 300 mm Rotation axis C (turntable) 0° 90° 180° 270° diameter of rotary table 150 mm Gbedpfxorxxc Ho Actjw Measuring path R-axis 170 mm required space L2,0 x B0,8 x H0,82 m Scope of delivery: - Form measuring system F1004/350 - Work table - Rotary table (rotation axis C) - All documentation - Software TURBO FORM 8.21 + licences - Accessories (see pictures) Condition: - As good as new - Functional Maintenance: - Last inspection on 03/08/2021 - Test report from Jenoptik available

Year of construction: 2018, condition: ready for operation (used), This KEYENCE IM-7030T optical measurement machine was manufactured in 2018. It features a 10.4" LCD monitor, a double telecentric lens, and motorized XY and Z stages with a movement range of 200 × 100 mm and 75 mm respectively. It supports both wide-field and high-precision measurement modes, ensuring detailed and accurate measurements. Consider the opportunity to buy this KEYENCE IM-7030T optical measurement machine. Contact us for more information about this machine. • Controller: IM-7000 • Image pickup device: 1" 6.6 megapixel monochrome CMOS • Display: 10.4" LCD monitor (XGA 1024×768) • Light receiving lens: Double telecentric lens • Illumination system: Telecentric transmissive, top light, four-division multi-angle illumination (motorized), slit ring illumination (motorized) • Measurement modes: Wide-field, High-precision • Wide-field measurement area: 300 × 200 mm (quadangle R50) • High-precision measurement area: 225 × 125 mm • Minimum display unit: 0.1 µm • Measurement accuracy (wide-field, without stage move): ±1 µm • Measurement accuracy (high-precision, without stage move): ±0.5 µm • Measurement accuracy (wide-field, with stage move): ±2 µm Gbodpfx Ajx D E Npjctjw • Measurement accuracy (high-precision, with stage move): ±1.5 µm • Linked measurement accuracy: ±(7 + 0.02L) µm (wide-field), ±(4 + 0.02L) µm (high-precision) • Measurable area (XY, stage): 90 × 90 mm • Maximum measurement depth: 30 mm • Light probe diameter: 3 mm • Measuring force: 0.015 N (light probe), 0.3 N (height measurement) • Repetition accuracy: ±2 µm • Measurement range (Z): 0–75 mm • Measuring position accuracy (XY): ±0.2 mm • Minimum display unit (height): 1 µm • Measurable area (XY) wide-field mode: 145 × 95 mm • Measurable area (XY) high-precision mode: 107.5 × 95 mm • XY stage: Motorized, movement range 200 × 100 mm, max load 5 kg • Z stage: Motorized, movement range 75 mm • External remote input: Non-voltage input (contact/solid-state) • External output: PhotoMOS, OK/NG/FAIL/MEAS, rated load 24 VDC, 0.5 A • Interface: LAN RJ-45 (10/100/1000BASE-T), USB 2.0 Series A (6 ports) • Record storage: HDD 500 GB • Ambient temperature: +10 to +35°C • Relative humidity: 20–80% RH (no condensation) • Pollution degree: 2 • Over-voltage category: II • Power supply voltage: 100–240 V, 50/60 Hz • Weight head: 31 kg • Controller weight: ~8 kg

Year of construction: 2018, condition: ready for operation (used), This KEYENCE IM-7030T was manufactured in 2018. It features a digital measuring projector with a 300x200 mm measuring field, light probe, and height probe. Accessories include a control unit, AC power cable, mouse, keyboard, and a user manual in German. Consider the opportunity to buy this KEYENCE IM-7030T optical measurement machine. Contact us for more information. • Digital measuring projector measuring head • Measuring field: 300 x 200 mm • Probes: light probe, height probe Godpex D Ipfjfx Actsbw Additional equipment • Digital measuring projector control unit • AC power cable • Mouse and keyboard • User manual (German)

Year of construction: 1994, condition: good (used), Manufacturer: Rollomatic Godpfewhznxjx Actsbw Year of manufacture: 1994 Type: CNC 24-F Machine number: 142 3 x 380 V, 50 Hz

Condition: reconditioned (used), Year of construction: 2008, machine/vehicle number: FARO-PT08, Faro Fusion Arm in top conditionArm 7 axis, length 6ft (appx. 1,8m) Accuracy 36/51µm Last calibration 2011 incl. very new Aberlink 3D software (free updates) Windows 10 PC or notebook (used) on demand Inca Premium software (+ € 4.000,--) Gbedpfx Aopqx Ifsctew or other application (Polywork, PcDmis, MComos.) On demand we can deliver a granit plate with 1500x1000mm. Softwaretraining possible

Condition: used, Year of construction: 2011, length 300 mm centre height ca. 30 mm Gjdjwmwwaspfx Actobw diameter 0,5 - 52 mm weight of the machine ca. 0,103 t dimensions of the machine ca. H 0,84 x L 1,00 x P 0,435 m Serviced and calibrated by Studenroth on 24.07.2024 Length and diameter measuring device: Equipment/accessories: -Software -monitor and computer -Technical documentation

Year of construction: 2008, condition: ready for operation (used), number of axes: 3, This 3-axis TESA Visio 300 was manufactured in 2008, but is like new, has never been in use. It features an X-axis travel of 300 mm, Y-axis travel of 200 mm, and Z-axis travel of 150 mm. The machine includes a precision vice and a glass stage plate, enhancing its measurement capabilities. If you are looking to get high-quality optical measurement capabilities, consider the TESA Visio 300 machine we have for sale. Contact us for further details. • machine is like new, has never been in use • Voltage: 110 / 240 V • Frequency: 50 / 60 Hz • Software: TESAVista 1.4 (Application Software) • Manuals: Includes "Manuel & DCC Version" binder • Travel: X 300 mm, Y 200 mm, Z 150 mm Gbedpfx Aey N Am Eectew Additional equipment • Maxell 2HD Floppy Disk (System/Data) • RÖHM "Praezisions-Spanner" PL-60G (Precision Vice) • Demo piece • Glass stage plate • monitor is included
