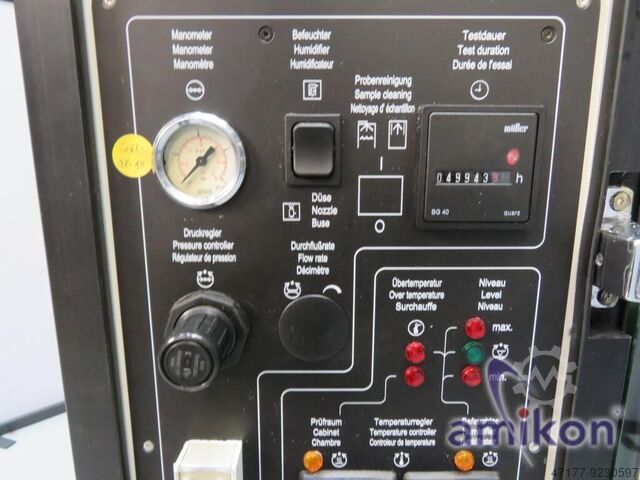

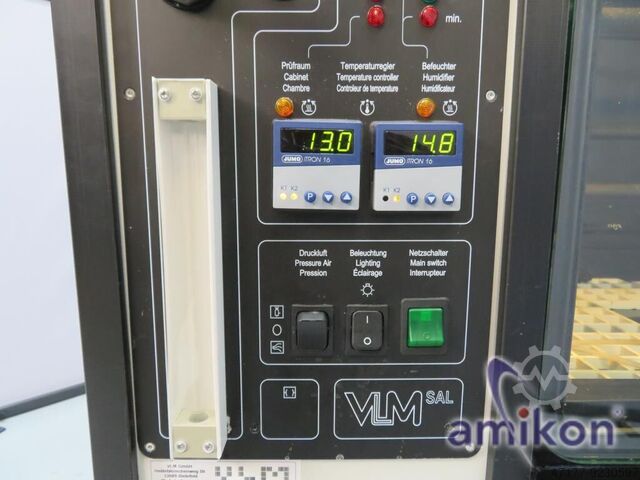

Corrosion test chamber

VLM SAL 400 V.713.062.000

Condition: excellent (used), White Type: WKL 34/60 Weiss air-cooled climate chamber Refrigerant converted to R-452A -60°C to 150°C Room volume: 34 liters Entry port installed in basic equipment: R1 NW 50 mm L1NW 120 mm Internal dimensions: Height 310 mm Width 324 mm Depth 300 mmm External dimensions: Height 1740 mm Width 630 mm Depth 970 mmm Characteristic values for temperature tests: Temperature range -60 to +150 °C Temperature differences in steady state, according to IEC 60068-3-5) Temperature fluctuation over time in the center of the usable space ± 0.3 to ± 1 K ± 1 to ± 2 K Temperature deviation in space (corresponds to temperature gradient) 2 to 4 Temperature change rate (according to IEC 60068-3-5) Heating 2.5 K/min Cooling 3 K/min Heat compensation max. 550 W Characteristic values for climate tests: Temperature range +10 to +95 °C Humidity range 10 to 98 %r.H. Temperature and humidity differences (in steady state, according to IEC 60068-3-5) Temperature fluctuation over time in the center of the usable space ± 0.3 to ± 0.5 K Temperature deviation in space ± 0.5 to ± 1.5 (corresponds to temperature gradient) 1 to 3 Humidity fluctuation over time in the center of the usable space ± 3 to ± 5 %RH Data for operation: Test room lighting Halogen bulb 12V, 20W Nominal voltage 1/N / PE AC 230 V ± 10 % 50 Hz Rated power 2.5 kW Rated current 11 A On-site fuse 16A slow-blow Heat dissipation air-cooled test chambers Max. Heat dissipation to surroundings 1700 W Refrigerant: R-452A / R23 Weight: 140 kg The following information is for your safety as a buyer! The following points are carried out on our offered chambers in advance: 1. functional check and replacement of necessary components 2. if necessary, refilling with legally compliant refrigerant 3. leak test with certificate 4. after successful inspection, the chambers are subjected to a documented test run. Condition: used Kedpfxotr Dine Af Sofa Scope of delivery: (see picture) (Changes and errors in the technical data, specifications are reserved!) We will be happy to answer any further questions you may have on the phone.

Condition: excellent (used), Here we offer a Vötsch climatic test chamber. Designation VC³ 4100 Air-cooled With temperature change rate of 3 K/min Test chamber dimensions: Height 950 mm x width 1100 mm x depth 950 mm Unit dimensions: Height 2000 mm x width 1300 mm x depth 1916 mm Volume: 990 liters Feed-through: Ø 125 mm Ø 50 mm Data for temperature tests: Temperature range -42°C to +180°C Temperature deviation temporal ± 0.1 to ± 0.5 K Temperature homogeneity in space ± 0.5 to ± 1.5 K Temperature change rate: Heating 4.0 K/min Cooling 3.0 K/min Max. heat compensation at +20°C 4500 watts Data for climate tests Temperature range +10°C to +95°C Dew point range -3°C to +94°C Humidity range 10 to 98% r. h. Temperature deviation temporal ± 0.1 to ± 0.3 K Temperature homogeneity in space ± 0.5 to ± 1.0 K Humidity deviation temporal ± 1 to ± 3% r. h. Heat compensation max. 500 W Voltage: 3/N/PE AC 400V ± 10% 50Hz Rated power: 11.5 kW Nominal current: 22.0 A Refrigerant: R-404 A Weight approx. 840 kg Type: VC³ 4100 The following information is for your safety as a buyer! The following points are carried out on our offered chambers in advance: 1. functional check and replacement of necessary components 2. if necessary, refilling with legally compliant refrigerant 3. leak test with certificate Kfjdpeqwim Ejfx Af Ssa 4. after successful inspection, the chambers are subjected to a documented test run. Condition: used Scope of delivery: (see picture) (Changes and errors in the technical data, specifications are reserved!) We will be happy to answer any further questions you may have on the phone.

Condition: excellent (used), CTS Type: C-40/1000 CTS climatic test chamber Condenser chiller air-cooled Control: 32 bit controller LCD control panel Digital display of setpoints and actual values Numerical input of setpoints Error messages in plain text RS 232 interface Free switching channels for on-site test material control Temperature test: Temperature range: -40°C to +180°C Temperature change rate Heating speed 2.0 K/min Cooling rate 2.5 K/min Temperature deviation ± 0.1 to ± 0.3 K in time Heat radiation: approx. 2500 W at +20°C approx. 2500 W at ± 0°C approx. 1500 W at -20°C Climate Working range: Temperature range +10°C to +95°C Humidity range 10 to 98% r.h. Dew point range I +7 to +94°C Dew point range II -10 to +7°C Temperature deviation ± 0.1 to ± 0.3 K in time Humidity constancy I, temporal ± 0.5 to ± 1.5 % r.h. Humidity constancy II, temporal ± 1 to ± 3 % r.h. Panorama window 570 x 710 mm Test chamber dimensions Width 1000 mm Depth 1100 mm Height 900 mm External dimensions Width 1270 mm Depth 2220 mm Height 1950 mm Test chamber volume 1000 liters Pipe feed-throughs, ø 50 Electrical connection: 400 V +6/-10% 3/N, PE 50 Hz Connected load: 8.4 kW Rated current: 12.4 A Refrigerant: R-404A Weight: 800 kg The following information is for your safety as a buyer! The following points are carried out on our offered chambers in advance: 1. functional check and replacement of necessary components 2. if necessary, new filling with legally compliant refrigerant Kfjdjru Dzuepfx Af Soa 3. leak test with certificate 4. after successful inspection, the chambers are subjected to a documented test run. Condition: used Scope of delivery: (see picture) (Changes and errors in the technical data, specifications are reserved!) We will be happy to answer any further questions you may have on the phone.

Condition: excellent (used), Here we offer you a Köhler salt spray chamber. Salt spray chambers: diverse testing possibilities from salt spray test to fully automatic alternating test easy operation by graphical menu guidance customized versions for many applications easy operation via touch panel internal dimensions W x D x H (without hood) 1080 x 675 x 580 mm external dimensions W x D x H 1940 x 900 x 1220 mm Test chamber capacity 500 liters Chamber temperature Rt +5 - 60°C Humidifier temperature Rt +5 - 75°C Kfodponr Hi Sefx Af Sea Mains connection 230V 1P 50/60Hz 2000W Compressed air 4,5 - 8.0 bar / 3Nm³/h Brine supply 140 liters Stainless steel version Refurbished and converted to Comfort control - Renewal of all electrical components - Renewal of all hose connections Type: HK 500 400 Kg Condition: used / used Scope of delivery: (See picture) (Changes and errors in the technical data, specifications are reserved!) Further questions we can answer on the phone for you.

Condition: excellent (used), LDS Type: V895-440 HBT900C with amplifier SPA50K Kjdpfx Aouy H I Tef Ssfa Technical data: Fitting Dimensions: 440 mm Sinusoidal force vector 55.6 kN (peak) Rausch force vector 55.6 kN (effective) Half sine force vector 166.8 kN (peak) Frequency range 0 to 2100 Hz Sinusoidal acceleration max. 981 m/s² Noise Acceleration max. 490 m/s² Speed max. 1.6 m/s Deflection ± 63.5 mm Oscillator mass 55 kg Max. load 700 kg Amplifier dimensions : WxHxD mm : 537mm x 1905mm x 895mm Weight 622 kg Sliding table: Work surface: 900 mm * 900 mm Thickness of the top : 50 mm Weight of the top: 80.4 kg Max load : 7250kg Effective frequency range 5-2000 Hz Condition : gebraucht / used Total weight (table + shaker): approx. 7000 kg Shaker + table dimensions: LxHxW approx. 2700 x 1500 x 1800 mm Scope of delivery: (see pictures) (Changes and errors in the technical data, specifications are reserved!) We will be happy to answer any further questions you may have on the phone.

Condition: excellent (used), White Type: WK 27'/50-150 Climate cabinet Water-cooled Technical data: Test cabinet designation: WK 27'/50-150 External dimensions Height 3500 mm, width 3400 mm, depth 6000 mm Control cabinet dimensions Height 2000 mm, width 2400 mm, depth 400 mm Internal dimensions Height 3000 mm, width 3000 mm, depth 3000 mm Floor load 30000 N/m³ (surface load) Test chamber volume: approx. 27000 liters Test specimen mass 1000 kg Cold / heat operation -50°C to 150°C Heating 1.0 K/min Cooling 1.0 K/min Temperature stability +- 0.3 to 1.0 K (time-related) Kfjdpsvx Nfbefx Af Sea Temperature stability +- 0.1 to 0.5 K (time-related) Air conditioning operation 10 – 90°C Humidity 10...98% r.h. Temperature stability +- 0.1 to 0.5 K (time-related) Dew point range +4 to +84 °C 3/N / PE AC 400 V ±10% 50 Hz Weight: 7000 kg Refrigerants R23 and R404A With extra floor plates to increase floor load The following information is for your safety as a buyer! The following points are carried out in advance on the chambers we offer: 1. Functional check and replacement of necessary components 2. New filling with legally compliant refrigerant 3. After successful inspection, the chambers are subjected to a test run, which is monitored with calibrated devices. Condition: used Scope of delivery: (See image) (Changes and errors in the technical data, information is subject to change!) We are happy to answer any further questions you may have over the phone.

Condition: good (used), Here we are offering an LDS shaker system with the following components: LDS PA 2000 Power Amplifier Vibration Exciter LDS V 726 Vibration Control System Solartron Mobrey SI 1215 Kfjdeh D Hlfjpfx Af Soa LDS Vibration Level Limiter LDS VLL-1 The system was used for space simulation tests.

Condition: excellent (used), Vötsch Type: VCL 7003 Air-cooled climatic test chamber Test chamber capacity approx. 34 liters Capacity for temperature tests: Temperature range -70 to +180°C Temperature deviation over time ±0.3 to ±1.0 K Temperature homogeneity over space ±0.5 to ±2.0 K Heating rate of change 4.0 K/min Cooling rate of change 3.0 K/min Kedpev Tnd Ssfx Af Sjfa Heat compensation max. 550 W Temperature calibration value +23°C and +80°C Capacity for climatic tests: Temperature range +10 to +95°C Humidity range 10 to 98% Humidity deviation over time ±1 to ±3% Temperature deviation over time ±0.3 to ±0.5 K Spatial temperature homogeneity ±0.5 to ±1.5 K Climate calibration values +23 °C / 50% RH and +95 °C / 50% RH Test room dimensions: Width 350 mm, Depth 300 mm, Height 310 mm External dimensions: Width 640 mm, Depth 750 mm, Height 1730 mm Electrical connection: 1/N/PE AC 230 V ±10%, 50 Hz Rated current 11.0 A Rated power, max. 2.5 kW Sound pressure level 59 dB(A) Refrigerant: R-404 A / R23 Weight approx. 130 kg For your safety, please note the following information as a buyer! The following steps are performed on our chambers in advance: 1. Functional testing and replacement of necessary components 2. Refilling with legally compliant refrigerant, if necessary 3. Leak testing with a certificate 4. After successful testing, the chambers are subjected to a documented test run. Condition: Used Scope of delivery: (See image) (Subject to change and errors in the technical data, information is subject to change!) We are happy to answer any further questions you may have over the phone.

Year of construction: 2022, condition: excellent (used), Dycometal Type: CCK -40/1500T Climate chamber water-cooled Volume liters 1500 Internal dimensions height 1000 mm width 1000 mmm depth 1500 mm External dimensions Height 2200 mm Width 1293 mmm Depth 3400 mm Thermal test Minimum temperature -40°C Maximum temperature +150°C Thermal gradient cooling 2.0 K/min. Thermal gradient during heating 3.5 K/min. Temperature stability ±0.1°C to ±0.3°C Temperature uniformity ±0.5°C to 1.5°C Climate test Temperature range +10°C to +90°C Humidity range 10% to 98% %RH Dew point range +6.5°C to +86°C Kodpfx Aou N Uugsf Ssfa Humidity stability ±1%RH to ±3%RH Water-cooled condenser Nominal voltage 400 V 3N~PE 50 Hz Output 16.1 kW 27.5 A Refrigerant R-452A Weight: 1120 kg Condition: second-hand / used Scope of delivery: (see picture) (Changes and errors in the technical data, specifications are reserved!) We will be happy to answer any further questions you may have on the phone.

Condition: used, LDS Type: V875 Shaker System V875-440 LPT600C with amplifier SPA40K Shaker for medium forces Technical data: Armature dimensions: 440 mm Headexpander 850 * 850 mm Sinusoidal force vector 35.6 kN (peak) Sine force vector 35.6 kN (effective) Kfjdpfxeuxcuge Af Ssa Shock force vector 106.75 kN (peak) Frequency range 5 to 3000 Hz Test specimen mass max.600 kg Acceleration max. 1078.7 m/s² Speed max. 1.8 m/s Deflection ± 25.4 mm Vibration tests: Sinusoidal Noise Shock Amplifier SPA40 Sliding table: WxHxD mm : 1400 mm x 1250 mm x 2200 mm Work surface: 600 mm * 600 mm Thickness of the top : 37 mm Weight of the top: 27.4 Max load : 500 kg Condition : gebraucht / used weight: Shaker approx. 2200 kg Blower 181 kg Amplifier: 622 kg Sliding table 4760 kg Scope of delivery: (See pictures) (Changes and errors in the technical data, specifications are reserved!) We will be happy to answer any further questions you may have over the phone.
