Aspiration system OT 6500 m3h

Optimat OT 6500 m3h

Year of construction: 1999, condition: repair required (used), machine/vehicle number: AL 1 / 99, Connection 9,0 kW 400 V Compressed air connection 6 bar suction 1x160 mm 3400 m³/h 30 m/sec Compressed air consumption 200 NL/min drilling spindles 9 pcs / 3000 rpm grooving spindle 1 pc / 6000 rpm milling spindle 1 pc / 16000 rpm LxWxH 4050 x 2050 x 1900 mm weight approx. 1500 kg Kjdpeiiy E Tefx Af Sefa max. plate thickness 55 mm

Condition: new, Year of construction: 2025, Technical specifications: • Extraction capacity ~ 5200 m3/h • Motor power 3.0 kW • Speed 3000 rpm • Voltage 400V, 50Hz • Suction connection 250/200mm • Filter area 13.7 m2 • Speed 28m/sec. • Number of filters 28 • Dimensions 752 x 1982 x 2144 mm • Weight 300kg • Category of filters G • Polyester filter material • Noise 80 dB without connection, 65 dB when connected to the machine via a pipe Delivery: - Fulfill H-2 Norms - 5 micron polyester filter - 2 containers - Running gear - Filter cleaning using a controlled vibration system Kfjdpfx Asd H Rf Tef Soa + 850 euros for the models with fire extinguisher (Safe System)

Condition: good (used), Year of construction: 2003, functionality: fully functional, VITAP Inserix semi-automatic drilling, gluing and dowel inserting machine Year of construction 2003 Manufacturer: VITAP Italy S/N 300951 23 spindles / drilling head Center distance 32mm Total center distance between the first and last spindle: 704mm Max. Drilling depth 70mm Kfodpfx Astvzf Nof Ssa Spindle rotation 2800 /min Motor 2.5 HP Tools 5 Dowel diameter 6 / 8 / 10 / 12 mm Dowel length 20-40mm Air pressure 6-8 atm CE-marked Size: L x W x H = 1600 x 940 x 1700mm Weight 450 kg

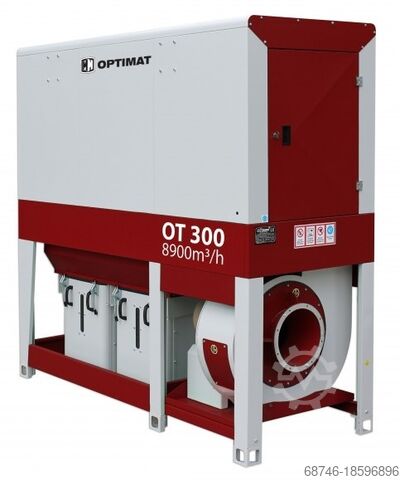

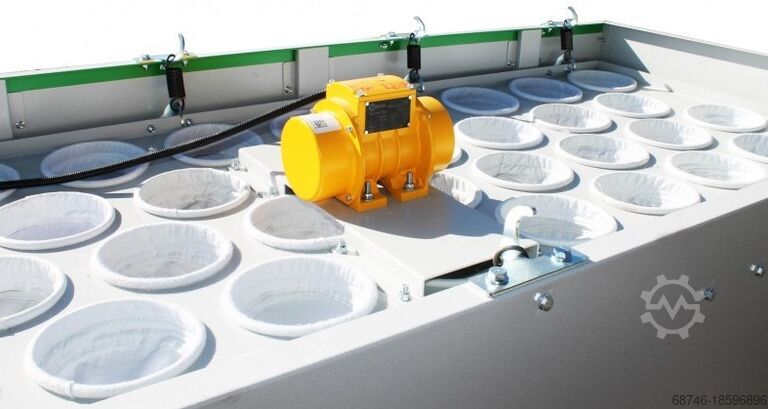

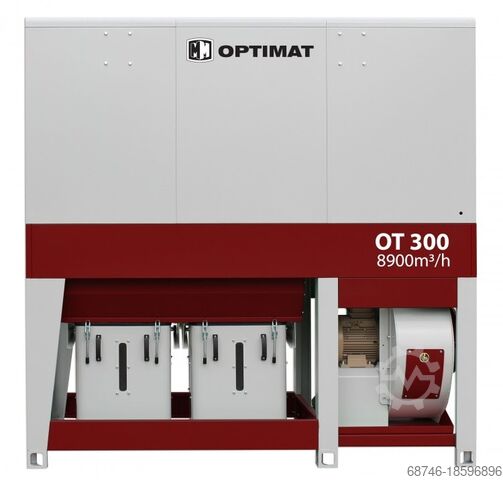

Condition: new, Year of construction: 2025, extraction capacity ~ 8900 m3/h engine power 7.5 kW rotation speed 3000 rpm/m rated voltage 400 V, 50 Hz extraction nozzle 300/200 mm extraction speed 28 m/sec. number of filters 45 filter category G filter material polyester noise level 80 dB without connection / 65 dB when connected via pipe to the machine filter surface 22 m2 dimensions 920 x 2260 x 2250 mm weight 450 kg negative pressure 3000 Pa Polyester filter, 3 microns 2 containers Traction Filter cleaning by vibration system with control + 850 euros for model with fire extinguishing system (Safe System) Kfodpfxsv Dvbao Af Ssa + 550 euros for model with inverter (speed regulation)

Condition: new, Year of construction: 2025, The manufacturer guarantees the cleaning quality The system of automatic vibrating cleaning of the filter cloth - during breaks and during filter operation, it allows for constant monitoring of the correct operation. Technical specifications: • Conforms to H-2 standard • Extraction capacity ~ 4500 m3/h • Motor power 3.0 kW • Speed 3000 rpm • Voltage 400V, 50Hz • Suction connection 200 mm • Polyester filter material, 5 microns • Filter surface 8.8 m2 • Speed 28 m/sec. • Number of filters 18 Kfodpfx Aogyfmaof Sja • Dimensions 752 x 1502 x 2144 mm • Weight 180 kg • Category of filters G • Polyester filter material • Noise 80 dB without connection, 65 dB when connected to the machine via pipe Delivery set: - 5 micron polyester filter - 1 container - Running gear - Filter cleaning using a controlled vibration system - Fire extinguisher - Fulfill H-2 Norms + 850 euros for the model with fire extinguisher (Safe System)

Condition: ready for operation (used), Year of construction: 1987, functionality: fully functional, machine/vehicle number: 402, cutting length (max.): 3,200 mm, cutting height with scoring (max.): 70 mm, saw blade diameter: 300 mm, cutting height (max.): 70 mm, cutting width (max.): 3,200 mm, Equipment: scorer, Cutting length: 3200 mm Cutting width: 3200 mm Width stop: Gear motor adjustment Main saw unit: saw blade Ø 300, Ø 30, Z=60, SH 70 Kjdpfsvi H Disx Af Sjfa Scoring unit: yes - saw blade Ø 125, Ø 20, Z=24 Softforming unit: no Side pressure unit: yes - Version: FR 50/100 Residual cutting device: yes - Pressure beam recess Veneer cutting device: yes Trimming device: yes - Spacing: 145/525/1790 Support table front: 400 x 1400 mm - 2 pieces Rear support table: 240 x 2960 mm - 1 piece Support bars rear: 40 x 2960 mm - 5 pieces Angled table: 480 x 1400 mm left Angle ruler: with pull-out Collets: 4 pieces - floating - distance 70/400/1600/2800 Stop jaw: 2 pieces - rigid - distance 1000/2200 additional foot at the rear : no - 3 feet safety guard: yes foot switch : no Machine cuts from: left to right unit can emerge in any area: no automatic lowering with saw overtravel: no 3-step cutting height adjustment: no Main circular saw: 7.5 kW, 380 V, 2870 rpm, 50 Hz Scoring saw: 1.1 kW, 380 V, 2800 rpm, 50 Hz Width stop adjustment motor with torque compensation: fine input motor: 0.12 kW, 380 V, 1380 /min, main motor: 0.35 kW, 380 V, 1350n.

Condition: new, Year of construction: 2025, Holzkraft Extractor RLA 210 For wood dust and shavings, designed for commercial use Item number: 5132100 Kfodpfx Ashk Dfrof Ssa Brand: Holzkraft Dimensions and weights Shavings collection volume: 2 x 165 l Nominal diameter of the external suction nozzle inlet: 200 mm Length: approx. 1755 mm Width/depth: approx. 830 mm Height: approx. 1800 mm Weight: approx. 259 kg Electrical data Connection voltage: 400 V Mains frequency: 50 Hz Filter Filter area: 22 m² Noise emission Sound pressure level: max. 72 dB(A) Voltage flow: Nominal flow rate: 2262 m³/h Dust-tested according to H3, residual dust content less than 0.1 mg/m³ High extraction performance with low noise Space requirement Maximum performance in this class Very quiet All models with collision protection Area of application Designed for commercial use For all woodworking machines with the appropriate extraction nozzle diameter High-quality, well-thought-out design Robust and compact housing made of galvanized sheet steel Extraction nozzle can be easily converted from left to right, allowing for flexible use Large inspection openings Large, mobile chip containers with clamps and chip collection bag Dust extractor is delivered fully assembled, allowing for quick installation All models are mobile For model RLA 210: Optimal chip distribution into the chip containers due to the large filter surface Filter description Ultra-compact with maximum filter surface Filter material made of aluminized polyester fleece, washable and therefore with a long service life Filter is tested and approved as standard in an antistatic version according to category M-BIA Filter resistance monitoring via differential pressure cell, adjustable with a warning light on the unit Control box The fan is installed downstream of the filter. Equipment details With a new locking device for secure container positioning. Location: From stock, 54634 Bitburg - Available at short notice.

Year of construction: 1997, condition: ready for operation (used), A Homag horizontal panel saw is available. Saw blade outer diameter: 300mm, saw blade inner diameter: 75mm, speed: 4550rpm, scoring saw blade outer diameter: 125mm, scoring saw blade inner diameter: 45mm, speed: 5100rpm, cutting height: 50mm, cutting width: 1250mm/2200mm, workpiece length: 3200mm. Total system dimensions X/Y/Z: approx. 4700mm/5000mm/2000mm, machine weight: approx. 3500kg. Including saw blades and various spare parts. Documentation available. On-site inspection is possible. Kfsdpfx Afewxxvuj Sja
