Used Ibarmia Az-32V for sale (20)

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, Ibarmia AZ-34 Pillar Drilling Machine (2008) Manufacturer: Ibarmia Model: AZ-34 Pillar Drilling Machine Year of manufacture: 2008 Condition: Used, very good, newly serviced Drilling capacity in steel: 34 mm Thread cutting capacity in steel ST 60: M 27 Speed range: 100-2000 rpm Speed control: Potentiometer Speed display: Digital Tool holder: MT 4 Quill stroke: 150 mm Column diameter: 125 mm Feed: 0.1 / 0.2 / 0.3 mm/rev Type of feed: Mechanical Arm length: 300 mm Table size: 400 x 480 mm Drive power: 2.2 kW Njdpfox Ivzyex Af Ssdf Electrical connection: 400/50 V/Hz Weight: 360 kg Infinitely variable speed control with digital readout Electronically adjustable from 100 – 2,000 rpm Machine lamp Coolant system integrated in the machine base Machined baseplate with 2 T-slots Integrated tool ejector Chip guard with microswitch Automatic reverse rotation for thread cutting 3 automatic drilling feeds Operating manual included Dimensions/Weight: 2350 x 610 x 1100 mm (LxWxH)

Condition: used, Year of construction: 1998, With CNC control HEIDENHAIN TNC 426, 30-position tool changer, electronic handwheel, and chip conveyor. Table clamping area: 2600 x 650 mm Travel distances: X-axis: 2200 mm, Y-axis: 600 mm, Z-axis: 800 mm Ndsdpfxjx Np I Ns Af Ssf Spindle speed: 20 – 6000 rpm Spindle taper: ISO 50 Spindle power: 28 kW Machine weight approx.: 15 t

Condition: used, Year of construction: 1999, functionality: unexamined, travel distance X-axis: 1,600 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 800 mm, table width: 850 mm, table length: 2,000 mm, rotational speed (max.): 6,000 rpm, Machining Centre Ibarmia ZV55/L1600 Ndjdpfxsx Ndc Uo Af Sjf Travels: X: 1,600 mm Y: 800 mm Z: 800 mm Milling Spindle: Spindle: SK50 Power: 28/35 kW Spindle Speed: 6,000 rpm Tool Changer: 30 positions, chain magazine Control: Heidenhain TNC426 Handwheel Documentation and export possible at an additional cost. Inspection under power is possible. We will gladly send you further details or arrange an on-site demonstration.

Condition: used, Year of construction: 2005, CNC 5-axis Traveling Column Vertical Machining Centre CNC Control Heidenhain iTNC 530 Table size 3600 x 1050 mm Table load 3200 kg Diameter integreated NC 800 mm Number of pallets 1x Movement X-axis 3000 mm Movement Y-axis 1000 mm Movement Z-axis 860 mm C-axis (table rotation) 360° B-axis travel +/- 105° Spindle speed 9.000 R/min Ndedpjxx Ubqofx Af Ssf Spindle taper DIN 69871-SK 50 Spindle motor 46/40 kW Magazin capacity 30 If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: used, Year of construction: 1995, functionality: fully functional, Morse taper: 4 Ndsdpfsx Ebv Iox Af Ssf Drilling capacity: Ø40 mm. Quill travel: 200 mm. Throat/reach: 380 mm. RPM.: 30-1500 (variabel). Table size: 560 x 480 mm. Automatic feed: Ja Motor: 3,1 kW. Year: 1995 Country of origin: Spain. Size (L x W x H): 600 x 1100 x 2100 mm. Weight: 640 kg. With electro magnetic clutch for automatic feed, automatic tapping unit, variable speed in 3 gear ranges. Digital reaout of RPM, rotating and tilting table, coolant pump in base, vice and misc. drills. All our used machine are tested and serviced before delivery.

Condition: used, Year of construction: 1998, Technical details: x-travel: 3000 mm y-travel: 600 mm z-travel: 800 mm table surface area: 3.600 x 650 mm max. table load: 2.800 kg control: TNC 426 HEIDENHAIN turning speeds: 6.000 1/min tool change unit: 30 Pos. taper ISO: SK 50 rapid motion - x-axis: 30 m/min rapid motion - y-axis: 30 m/min rapid traverse Z-axis: 30 m/min spindle drive: 31 / 21,5 kW total power requirement: 45 kW Nsdpfsxvq Hqox Af Sjdf dimensions of the machine ca.: 5,5 x 3,4 x 3 m weight of the machine ca.: 15,5 t 3-axis vertical machining-center, prepared for 4th axis (wire and plug), internal cooling device 40 bar, chip conveyor, el. handwheel HR 410, 3D-touch probe, direct measuring system, dividing wall, twin table machining, flush gun, table elevation 100mm, bed flushing, coolant of spindle (oil), approx. 53.000 switch on hours, 18.500 spindle hours *

Condition: used, Year of construction: 2003, x-travel 3000 mm y-travel 800 mm z-travel 800 mm weight of the machine ca. 16000 kg Ndjdpfx Aoxzk Raef Sef

Condition: used, Brand: Ibarmia-1B-35 Ndjdoxqmvkjpfx Af Sof Description: Dividing head bell, 2 stations

Condition: used, Year of construction: 1989, Drilling / Milling Machine IBARMIA B 32 F Travel X: 675 mm Travel Y: 350 mm Travel Z: 600 mm Cone SA 30 Spindle exit: 200 mm Rotation: from 75 to 2375 RPM Table size: 1200 x 360 mm Year of construction: 1989 Maxi distance spindle nose/table: 700 mm Throat depth: 380 mm Swivel head at +/- 45° Table: X - Y manuel movements Motor: 2-speed motor Scale ACU-RITE Auto descent Drilling / Tapping function Watering Voltage: 380 V Ndedpfx Asxu H Sysf Ssf Width: 1600 mm Depth: 1600 mm Total height: 2500 mm Weight: approx 2 T

Condition: good (used), spindle speed (max.): 9,600 rpm, spindle speed (min.): 200 rpm, – MK3 – 200–9600 rpm – Right- and left-hand rotation Nedpfx Afsxq Rwfs Sodf – Thread cutting function – Throat depth 120 mm – Steplessly adjustable speed – Thread cutting function – Protective cover – Emergency stop switch – 40V

Condition: used, Year of construction: 2007, bore capacity in steel (diameter) 25.0 / 30.0 mm throat 150 mm bore stroke 120 mm threading M18 / M22 Ndsdpfx Aexaamzsf Sjf spindle taper 3 MK table: 300 x 270 mm turning speeds 200 - 4.000 U/min column diameter 100 mm total power requirement 0.75 / 1.1 kW weight 170 kg range L-W-H 800 x 500 x 1400 mm from a training workshop (!!) New price approx. 4.700 euros Furnishing: - robust bench drill with V-belt drive - Clamp / relax using a quick release lever - stepless speed adjustment - digital speed display - EMERGENCY OFF push button at the front - stable feed handle - stable quill for tool mounting - Thread cutting device - Right / left running of the work spindle - Pole changing motor - manual spindle feed - Height-adjustable work table, using a hand crank - adjustable drilling depth stop

Condition: like new (used), Year of construction: 2002, Parts shown by hand not come Ndjdsk It Utjpfx Af Ssf

Condition: used, Year of construction: 2004, x-travel 3.000 mm y-travel 1.000 mm z-travel 860 mm Control Heidenhain iTNC-530 table-size 3.600 x 1.050 mm T-slots 7 x 18 T - slots distance 125 mm Ndsdpjwqr Nlefx Af Ssf distance table - lower edge spindle 25-366 mm table weight 4.200 Kg b-axis +-105 ° c-axis +-360 0 rapid travel x/y/z 30.000 mm/min rotary table Durchm. 1.000 mm max. turning diameter 1.400 mm number of spindle speeds 9.000 U/min/rpm tool taper ISO-50 DIN 69871-AD spindle drive 28,5 kW max. torque on the spindle 240 Nm tool change unit AITEK, 40 fach 20 handwheel Ink. Shuttle operation Inkl Chip coveyor Ink. Internal cooling system 20 bar total power requirement 65 kW weight of the machine ca. 24,8 t dimensions of the machine ca. 8.056 x 5.496 x 3.790 mm

Condition: used, Drill press, bench drill, column drill, pillar drill -Manufacturer: Ibarmia, column drilling machine type 40 TF / C -Motor: Siemens 1.1 kW -Speeds: 104 - 1450 rpm, right-left rotation -Table size: 360 x 300 mm, travel 600 mm -Spindle mount: MK3 -Spindle stroke: 150 mm -Feed: automatic -Projection: 300 mm -Pillar Ø: 125 mm -Coolant device Ndodpfxohaxkno Af Sjf -Dimensions: 480/680 / H2220 mm -Weight: 358 kg

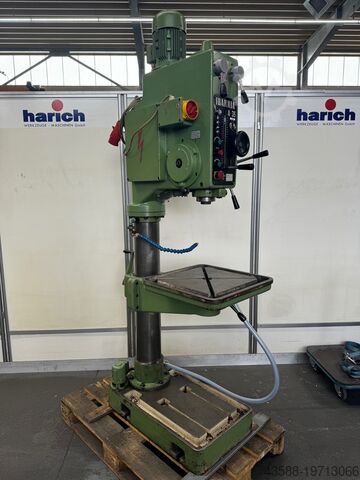

Condition: used, Column Drilling Machine Make: IBARMIA Model: A-35 Year of manufacture: 1980 – workshop-tested Machine No.: 1294-C Speed: See technical data Accessories: - Automatic feed for drilling - Machine lamp - Machined coolant base plate - Coolant system - Operating manual Technical Data: 9 spindle speeds via gear stages 73/103/149/232/325/472/695/976 and 1415 rpm Ndjdpfx Afow Hxbmj Ssf Right/left rotation 4 automatic drilling feeds: 0.1/0.2/0.4 and 0.4 mm Drilling capacity in steel (ST 60): 35 mm Drilling capacity in cast iron (GG 20): 45 mm Thread cutting capacity in steel (ST 60): M 27 Thread cutting capacity in cast iron (GG 20): M 33 Spindle taper MK 4 Spindle stroke: 200 mm Table dimensions: 510 x 510 mm (T-slot: 16 mm) Rotatable table plate Weight approx. 490 kg Used, sold without warranty.

Condition: good (used), Year of construction: 1992, machine/vehicle number: 145 K, Offer 24018 Technical data: - Drilling capacity in steel ST 60 28 mm - Drilling capacity in steel ST 60 32 mm - Drill spindle holder MK 3 - Drill spindle stroke 150 mm - 9 drill spindle speeds 104 - 1400 rpm Nodpfxeu At Ths Af Sodf - 2 feeds 0.1 / 0.2 mm/rev - throat depth 290 mm - max distance table - drill spindle 780 mm - Table with 2 T-slots 480 x 400 mm - Height adjustable via rack and pinion with hand crank - Drive 400 V / 1.1 / 1.3 kW - Space requirement approx. W 600 x H 2100 x D 900 mm - Weight approx. 420 kg - with: - right - left rotation - Coolant device - Quick-action drill chuck 1-13 - lighting

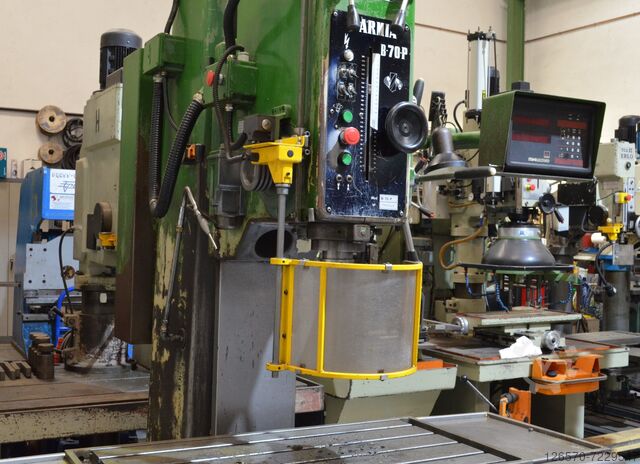

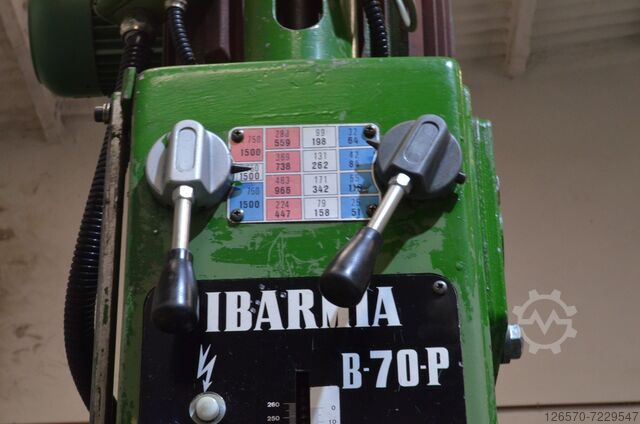

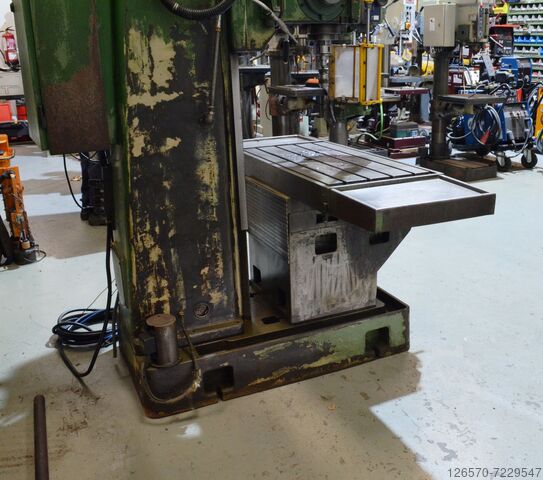

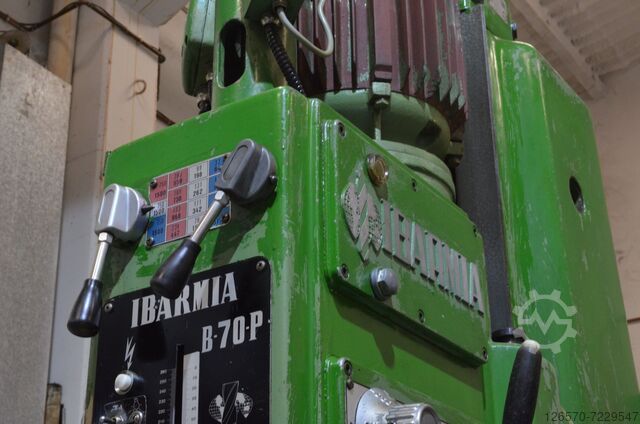

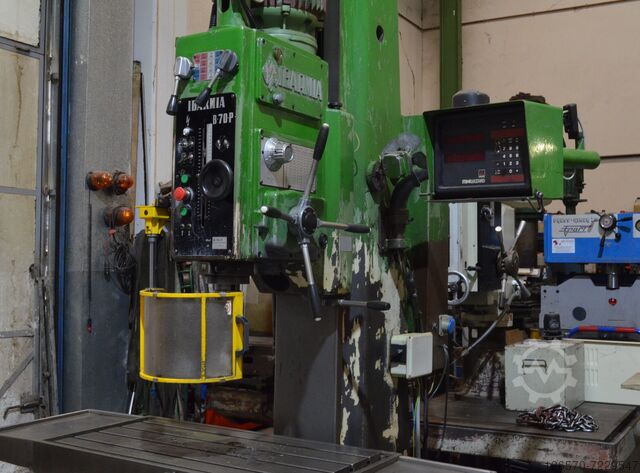

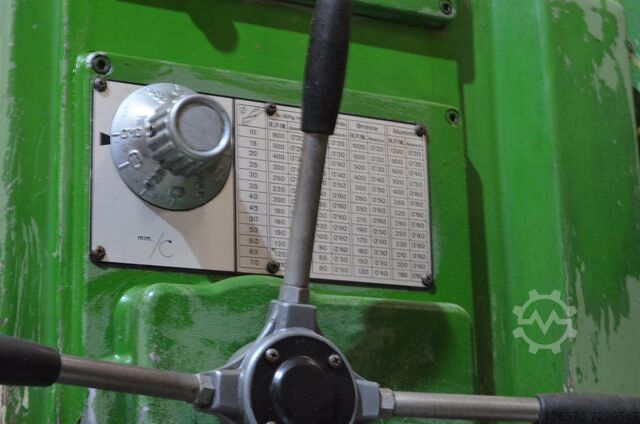

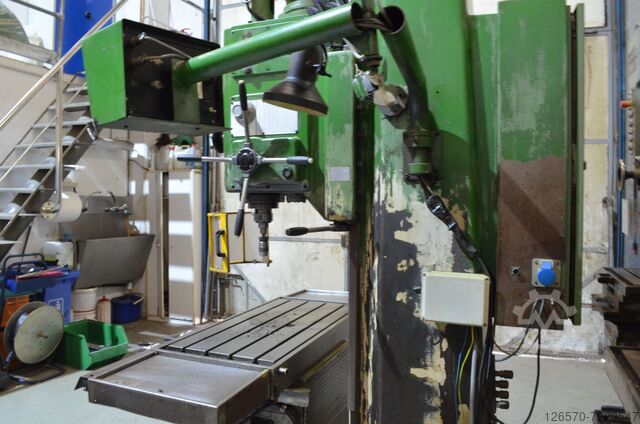

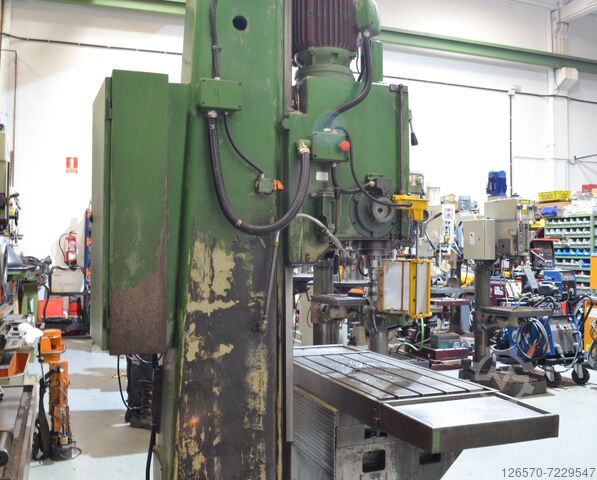

Condition: good (used), Drill with coordinate table and sliding head Brand: IBARMIA Model: B70P Capacity: Up to 70mm drill Characteristic: - Transmission: By gears. - Coordinate table with 2 X-Y axes. - Automatic advance. - Number of automatic advances: 6 - Number of speeds: 24 - Chap. max. drilling capacity in 70Kg steel: 70mm - Chap. max. drilling capacity in 200Hb cast iron: 80mm - Electromagnetic clutch - Automatic tool ejector - Motorized moving head - Bidirectional rotation. - Head travel: 1500mm - ANILAM digital X,Y coordinate display. Ndodpoh Rydnefx Af Sef - Table tours: X570 x 260mm - Table dimensions: 500x1000mm - Manual oiler Cooling system using coolant. It is delivered revised and with the protections for CE compliance.

Condition: good (used), travel distance X-axis: 2,200 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 800 mm, table width: 850 mm, table length: 2,600 mm, overall weight: 15,000 kg, spindle speed (max.): 8,000 rpm, power: 0.018 kW (0.02 HP), Equipment: chip conveyor, CHARACTERISTICS Table; 2600 x 850 mm X-axis travel; 2200 mm Y-axis travel; 800 mm Z-axis travel; 800 mm Spindle RPM; 8,000 Control; Fagor 8055 - MC Motor power; 15/18,5 Kw Magazine tool capacity; 40 Tool; BT 40 Fourth spindle (IRTS splitter); 350 ⌀ mm Electronic handwheel Cooling through the tool Nedsr I Aumspfx Af Ssdf Chip extractor Air cooling Dimensions with extractor (width x length x height); 4029 x 7050 x 3100 Weight; 15,000 kg

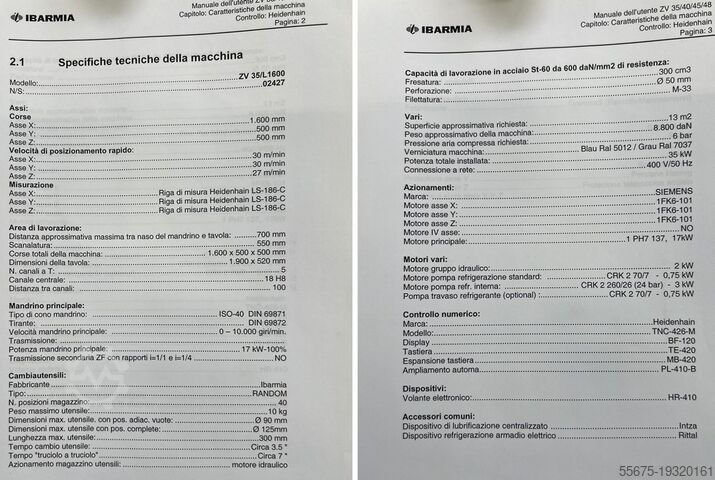

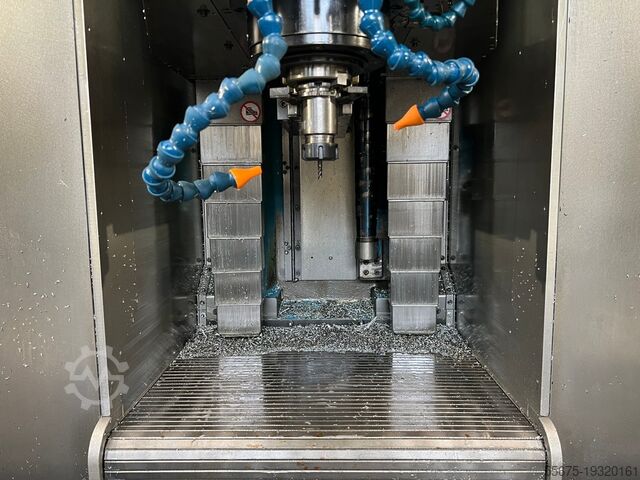

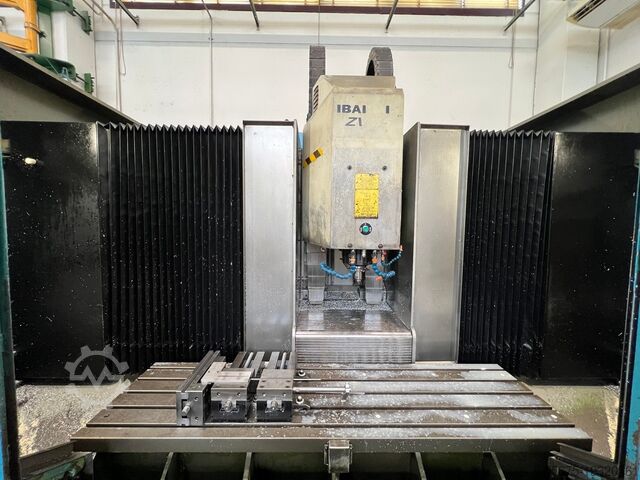

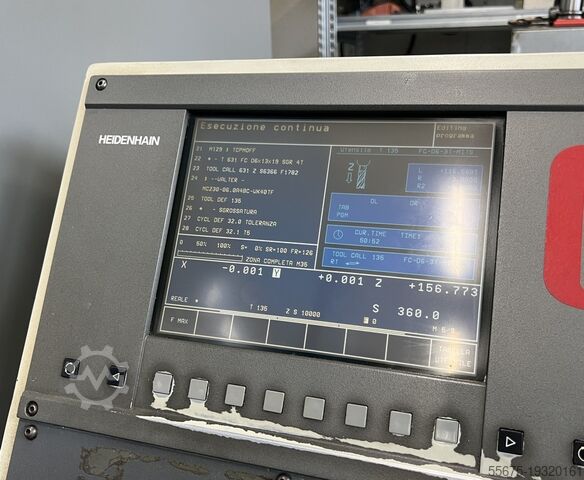

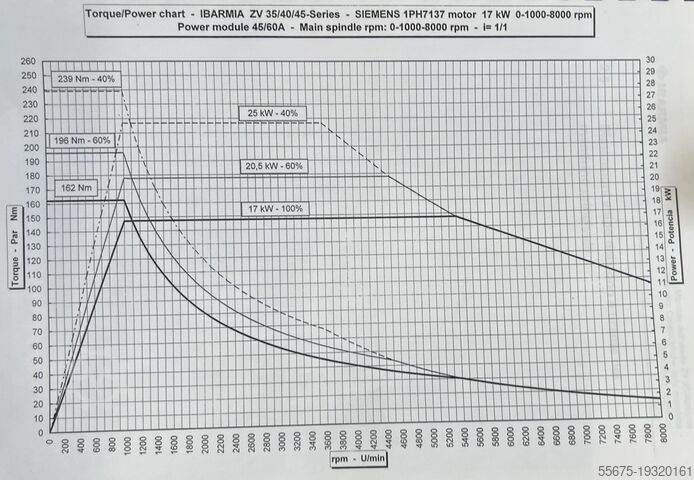

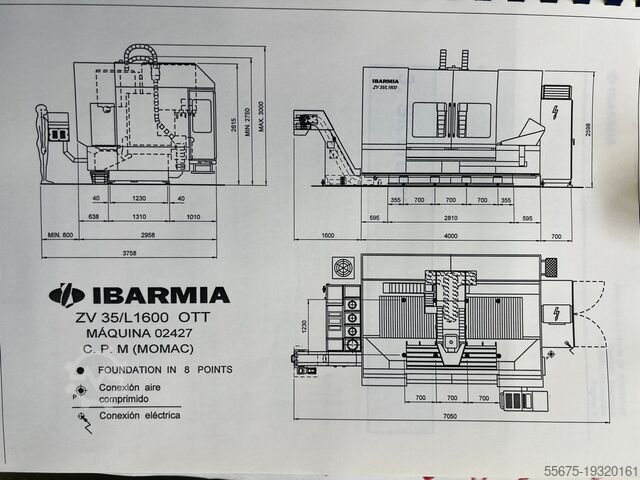

Condition: excellent (used), Year of construction: 2002, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, The used IBARMIA ZV 35 L1600 vertical machining center with moving column is a medium/large sized numerically controlled vertical center with HEIDENHAIN 430 CNC, 1600 x 500 x 500 mm strokes, ISO-40 spindle (DIN 69871) 10,000 rpm, 40-position random tool changer, through-spindle coolant, carpet chip evacuator, optical scales, remote handwheel and bulkhead for pendulum machining. Ndsdpfx Afowqxnbj Sjf year of construction 2002, CE compliant, in excellent general condition.

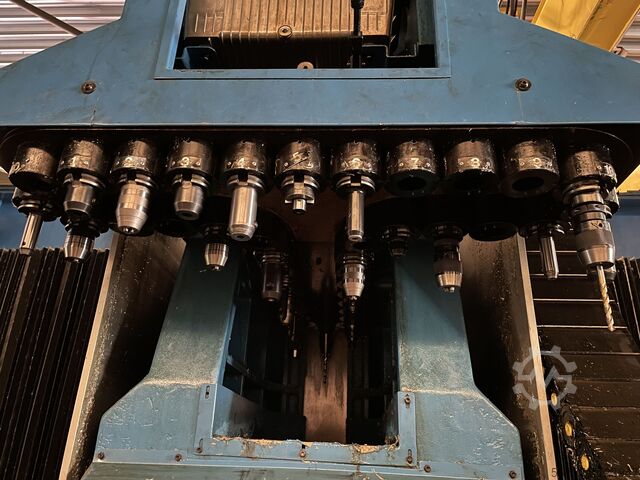

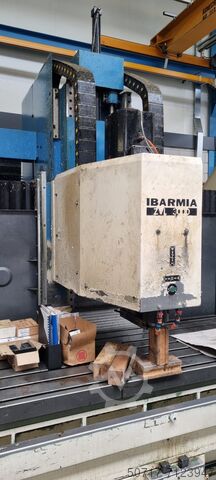

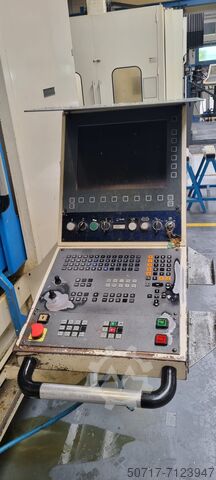

Year of construction: 1997, condition: good (used), Ibarmia CNC machining center offered. Type: ZVL 3000 Control unit: Heidenhain TNC 426 CB X-travel: 2200 mm Y-travel: 800 mm Z-travel: 600/800 mm Table: 850 x 2600 mm Weight on table max: 3500 KG Njdpfx Afjh Hp Unj Sedf Spindle: SK 40 with cooling Speed max: 4000 RPM Toolchanger: 40 pieces Power: 47 KW Included: documentation, parameters, toolholders, chip conveyor and central lubrication system Year: 1997 Dimensions: 625x305x340 cm LxWxH Weight: ca 12000 KG Movie available! For more information call us or send an e-mail.
