Used Maho for sale (467)

Condition: used, Year of construction: 2005, x-travel 880 mm y-travel 630 mm z-travel 630 mm control iTNC 530 Heidenhain Main spindle: turning speed range - main spindle max. 18.000 min/-1 power capacity - main spindel 28 / 19 kW max. Torque 121 / 82 Nm tool taper HSK-A 63 swivellable B: +30° / -120 ° NC-Rotary table: table surface area Ø 700 / 1.250 x 700 mm max. table load 650 kg rotatable C: 360 ° max. workpiecediameter 850 mm Hedpfjvn Ur Esx Abrjnu max. workpiece height 550 mm tool magazin: number of toolpositions 32 pos. tool taper HSK-A 63 max. tool diameter 80 mm max. tool-dia with free toolbox 160 mm max. tool weight 8,0 kg change-time chip to chip 10 sec feeds: feed speeds max. 30.000 mm/min rapid traverse 30 m/min Accelaration 5 m/s² total power requirement 48 kVA weight of the machine ca. 14,0 t dimensions of the machine ca. 6,5 x 5,0 x 2,9 m 5 Axis CNC - MachiningCenter Universal DECKEL MAHO - DMU 80 monoBLOCK - NC-Rotary Table (C-Achse) integrated in rigid-table - Swivel-Milling-Head (B-Axis) - only 6.100h Power-On Hours

Condition: used, Vertical milling head, milling head, angle milling head MAHO suitable for MH300 or MH400. Year of manufacture approx. 1990. Tool holder: SK 40. Quill stroke: 60 mm. Centering diameter on the flange plate: 102 mm. Outer diameter of flange: 180 mm. Bolt circle on flange plate: Ø 150 mm. Mounting holes on flange plate: 4x Ø 11 mm. - Quill feed: 0.015 / 0.03 / 0.06 / 0.12 mm/rev. - Head drive via shaft Ø 32 with 10 mm keyway. - Knurled wheel with scale for quill stroke. - Angle scale on angle milling head 2x 90°. Dimensions L x W x H: 300 x 280 x 300 mm. Total weight: 31.4 kg. In good condition. Hedpfsxf Ur Nsx Abrjnu

Condition: ready for operation (used), Year of construction: 1999, Make: DECKEL MAHO Type of machine: DMC 80 H / RS4 Year of manufacture: 1999 Control system: Siemens 840 D Machine's weight: 18,5 t Tool holder: SK 50 x-travel: 800 mm y-travel: 710 mm z-travel: 710 mm Speed range: 10.000 1/min Overall dimensions: 9,0 x 5,0 x 3,0 m Table dimensions: 400 x 500 mm Number of tools in the magazine: 180 (2x 90) pos Internal coolant supply: 40 Bar : x Hnsdpfx Abjxni Uqerou

Condition: used, Year of construction: 2004, travel distance X-axis: 1,800 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,100 mm, total height: 4,375 mm, total length: 12,300 mm, total width: 11,200 mm, table width: 1,400 mm, table length: 1,600 mm, table load: 3,500 kg, Equipment: documentation/manual, 5-axis CNC Universal Machining centre, simultaneous Control: Heidenhain iTNC 530 Table size: 1600x1400 mm Table load: 3500 kg Number of pallets: 2 x Maximum workpiece diameterxheight: 1950x1100 mm Movement X-axis: 1800 mm Movement Y-axis: 2000 mm Movement Z-axis: 1100 mm C-Axis table rotation: 360 ° B-Axis travel: -7 / 187 ° Spindle Speed: 18000 1/min Hedpjxd A S Uofx Abrsnu Spindle taper: HSK-A63 Spindle motor: 28/19 kW Magazin capacity: 120 Required floor space: 11200x12300 mm Height: 4375 mm Weight: 58000 kg If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail.

Condition: good (used), Year of construction: 2002, Maho DMU 50 M Universal Milling Machine, year of manufacture 2002, Siemens control, travel X/Y/Z 500/400/400 mm, feed X/Y/Z up to 5 m/min, manual rotary-swivel table with display indication, rotary table size 700 x 500 mm, swivel range -10° / +95°, max. table load 200 kg, spindle speed up to 4,500 rpm, SK 40 spindle taper. Hnsdpfx Absxm Srcjrou

Condition: excellent (used), Year of construction: 1999, x-path 1,250 mm Hnedpfx Abjgypaborou y-path 880 mm z-path 800 mm Main spindle: Speed range - main spindle max. 12,000 min/-1 Drive power - main spindle 15 / 10 kW Table clamping area 1,500 x 1,050 mm Number of tool positions 30 pos.

Condition: used, Year of construction: 2005, x-travel 500 mm y-travel 450 mm Hnedev Hhq Sopfx Abrju z-travel 400 mm control iTNC 530 Heidenhain turning speed range - main spindle 20 - 8.000 min/-1 power capacity - main spindel 9 / 13 kW max. Torque 82 Nm tool taper SK 40 table surface area 630 x 500 mm max. table load 200 kg Swivel range -5 / +110 ° rotation range 360° ° T-slots 7x 14 x 63 mm number of toolpositions 30 pos. max. tool weight 6 kg max. tool diameter 80 mm max. tool-dia with free toolbox 130 mm max. workpiece length 300 mm rapid traverse 12 m/min feed speeds 10.000 mm/min total power requirement 17 kVA weight of the machine ca. 5,0 t dimensions of the machine ca. 5,0 x 4,0 x 2,3 m 5 Axis CNC - Milling Machine Universal DECKEL MAHO - DMU 50 - 5 Axis (3+2) - swivel-rotary-table : controlled B&C-Axis / only positioning - Operating-Hours.: Power-On: ca. 37.700h / Spindle-Runtime: ca. 10.800h

Condition: good (used), Year of construction: 1997, travel distance X-axis: 625 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 500 mm, Machining center DMU 60 T Control: Heidenhain TNC 426 Travel paths: X - 625 Y - 500 Z - 500 4th axis With Hoffmann universal indexing head, controlled and mounted on the table Hsdpfx Aoxnwv Ajbrjnu

Condition: ready for operation (used), Year of construction: 1999, Make: DECKEL MAHO Type of machine: DMC 80 H / RS4 Year of manufacture: 1999 Control system: Siemens 840 D Machine's weight: 18,5 t Tool holder: SK 50 x-travel: 800 mm y-travel: 710 mm z-travel: 710 mm Speed range: 10.000 1/min Hnedpsxni T Tjfx Abrsu Overall dimensions: 9,0 x 5,0 x 3,0 m Table dimensions: 400 x 500 mm Number of tools in the magazine: 180 (2x 90) pos Internal coolant supply: 40 Bar : x

Condition: good (used), Year of construction: 2000, Ref. -No.: 10468 Manufacturer: DECKEL MAHO Type: DMU 80 Year of construction: 2000 Control: Heidenhain Millplus Storage location: Halberstadt Country of origin: Japan Machine-No.: 111xxxxx X-Travel: 800 mm Y-Travel: 700 mm Z-Travel: 600 mm Number of T-slots: 9 / 14 Clamping Area: Ø 900 x 630 mm T - slot spacing: 63 mm Tool Taper: SK 40 Tool changer: 30 Spindle Speed: 12.000 RPM Max. Torque: 2659 Nm Operating hours: 67.452 H Center hole: Ø 50 mm Holding torque: 4500 Nm Max. rotation of the table top: 10,7 rpm Feed: 3600 °/min. Resolution of the measuring system: 0,001 ° NC rotary table: 800 kg NC swivel rotary table: 600 kg Further information: - Clamping table 900 x 630 mm - Chip conveyor, sheet metal technology - Belt filter system, manufacturer Interlit - Type SK 200-760 - Oil mist separator - Set of tool holders, - Workbenches - 2x 6 drawers - Vise Hnsdpfx Absxdayioreu - Jaw width 125 mm - Roller shutter cabinet with 1 door The machine can be viewed under power by arrangement.

Condition: ready for operation (used), Year of construction: 2001, operating hours: 88,546 h, Control Unit Brand SIEMENS Model 840D Main Drive Number of axis 4 Movement X-Axis Movement 800 mm Hnedpfjxg Umvox Abrsu Y-Axis Movement 710 mm Z-Axis Movement 710 mm This 4-axis DECKEL MAHO DMC 80 H horizontal machining center was manufactured in 2001. It features a SIEMENS Sinumerik 840D CNC control, a spindle speed of up to 6000 RPM, and a 40-position tool changer. Additional highlights include dual 630 x 500 mm pallets, SK50 spindle taper, and a chip conveyor. Consider the opportunity to buy this DECKEL MAHO DMC 80 H horizontal machining center. Contact us for more information about this machine. Application Types Milling

Condition: excellent (used), Year of construction: 2000, travel distance X-axis: 800 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 600 mm, rapid traverse X-axis: 30,000 m/min, rapid traverse Y-axis: 30,000 m/min, rapid traverse Z-axis: 30,000 m/min, 5-axis CNC machine (VMC) DECKEL MAHO - DMU80P Hodpfow Rdl Djx Abrjnu MACH-ID 9194 Make: DECKEL MAHO Type: DMU80P Control: HeidenHain TNC430 Year: 2000

Condition: used, Year of construction: 2006, x-travel 800 mm y-travel 800 mm z-travel 800 mm Control iTNC 530 Heidenhain Main spindle: Max. rpm 18.000 min/-1 power capacity - main spindel 28 / 19 kW max. Torque 121 / 82 Nm tool taper HSK A63 swivellable B: 0 - 190 ° swivle time 1,2 s NC-Rotary table: table diameter 900 x 700 mm max. table load 1.400 kg rotatable C: 360 ° tool magazin: number of toolpositions 60 pos. tool taper HSK A63 change-time chip to chip ca. 5,0 sec feeds: rapid traverse ( X / Y / Z ) 60 m/min rapid traverse B: 30 m/min rapid traverse C: 30 m/min feed speeds max. 60.000 mm/min total power requirement 64 kVA weight of the machine ca. 14,0 t dimensions of the machine ca. 6,0 x 6,5 x 3,2 m 5 Axis CNC-Machiningcenter Universal DECKEL MAHO - DMU 80 P duoBLOCK - 5-axis simultaneous Hedpfx Aetqmmzsbrenu - Swivel-Milling-Head - Rotary-Table

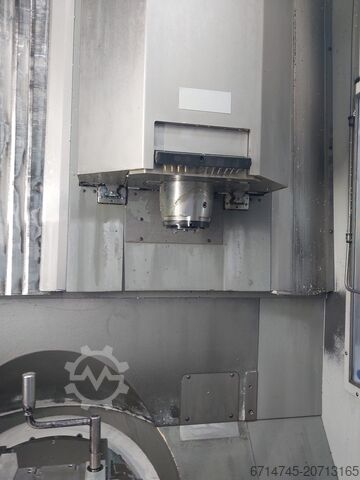

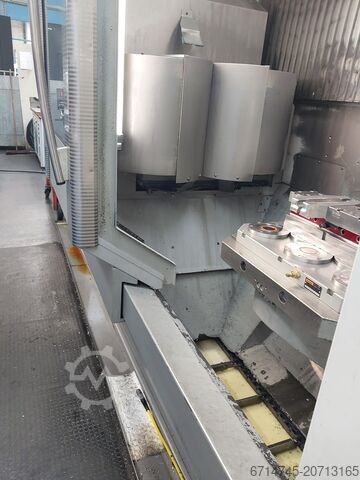

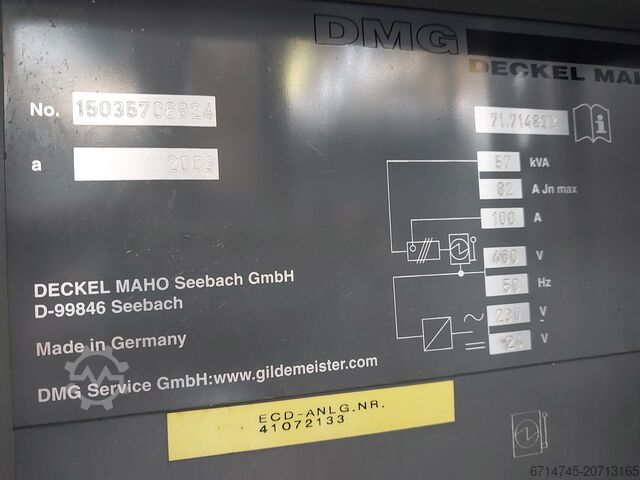

Condition: excellent (used), Year of construction: 2002, 5-Axis Machining Center - Universal DECKEL MAHO DMU 70 EVO Year of manufacture: 2002 Control: MillPlus iT Heidenhain Machine hours: 33,289.6 h Spindle hours: 10,533.5 h Technical Data: X-axis travel: 750 mm Y-axis travel: 600 mm Z-axis travel: 520 mm Main Spindle: Speed range - main spindle: 20 - 18,000 rpm Drive power - main spindle: 35 / 25 kW Max. torque: 130 / 87 Nm NC Rotary Swivel Table: Clamping surface: 700 x 500 mm Swivel range, B-axis: 180° Rotatable, C-axis: 360° Max. table load: 350 kg Centering bore: 30 H6 mm T-slots: 7x 14H7 x 63 mm Hjdpfxexf Hlhs Abrjnu Table speed range: 21.5 rpm Tool Magazine: Number of tool positions: 32 Max. tool length: 315 mm Max. tool diameter: 105 mm Max. tool diameter with adjacent pockets empty: 130 mm Max. tool weight: 6 kg

Condition: good (used), Year of construction: 2006, travel distance Y-axis: 450 mm, travel distance Z-axis: 400 mm, rapid traverse X-axis: 50,000 m/min, rapid traverse Y-axis: 50,000 m/min, rapid traverse Z-axis: 50,000 m/min, table width: 380 mm, table length: 500 mm, table load: 200 kg, mount diameter: 30 mm, Measuring probe TS640 Tank 600 L with 40 Bar IKZ Extended chip conveyor for 30/60 Tools ATC Direct measuring scales also in B & C Axis Air true spindle over M-Function X - Travel: 500mm Y - Travel: 450mm Z - Travel: 400mm A - Axis: 360° B - Axis: 0 - 108° Table Length: 500mm Table Width: 380mm Table load: 200 Feed rate X-Axis: 50000mm/min. Feed rate Y-Axis: 50000mm/min. Feed rate Z-Axis: 50000mm/min. Spindle Taper: 40ISO/Bt/Mk Power on spindle: 35kW Speeds / ranges: 18000Rpm ATC / revolver: 30 Coolant through spindle / Bar:20 Number of controlled axis: 3+2 Chip conveyor: yes Coolantsystem: yes Length: 3800mm Width: 3200mm Height: 2800mm Hjdpfxew Rl Igj Abrjnu Weight: 6500kg

Condition: used, Year of construction: 2005, x-travel 1.000 mm y-travel 1.000 mm z-travel 1.000 mm Control 840 D Siemens turning speed range - main spindle 20 - 18.000 min/-1 power capacity - main spindel 28 / 19 kW max. Torque 121 Nm tool taper HSK-A63 swivellable B: -30 / +180 ° swivle time 1,2 s numbers of pallets 2 size of pallet 1.000 x 800 mm max. workpiece weight 1.500 kg rotatable C: 360 ° number of toolpositions 180 pos. tool taper HSK-A63 total power requirement 78 kVA weight of the machine ca. 27,0 t dimensions of the machine ca. 8,0 x 7,0 x 3,4 m 5 Axis - CNC Machining Center Universal DECKEL MAHO - DMC 100 U duoBLOCK - Swivel-Milling-Head (B-Achse) - NC-Rotary (C-Axis) - pallet changer - 180-pos. tool-changer - WITHOUT zero point clamping system Hnsdjwf Rgfepfx Abrju - WITHOUT RINGLER exhaust - WITHOUT tools

Condition: used, Year of construction: 2002, x-travel 2.200 mm y-travel 560 mm z-travel 720 mm control 840 D Powerline ShopMill Siemens Main spindle: turning speed range - main spindle 20 - 12.000 min/-1 power capacity - main spindel 35 / 25 kW max. Torque 130 / 87 Nm tool taper SK 40 internal coolant system feed 40 bar work table: table surface area 2.600 x 600 mm max. table load 2.200 kg number of T-slots 6 Hnodpfxjtqmr Rs Abrou T-slot - width 18 H7 mm T-slot - distance 100 mm Tool-Presetter: number of toolpositions 30 pos. max. tool length 300 mm max. tool weight 6 kg max. tool diameter 80 / 125 mm feeds: feed speeds 20.000 mm/min input unit 0,01 mm rapid traverse ( X / Y / Z ) 100 / 50 / 50 m/min measuring system Resolution 0,001 mm total power requirement 60 kVA weight of the machine ca. 12,5 t dimensions of the machine ca. 6,0 x 3,7 x 2,9 m CNC - Machining Center Vertical DECKEL MAHO - DMF 220 linear - from individual part production (aluminium, brass and stainless steel) - incl. workroom wall - M26 function (switching to blown air through spindle center) - new ball screw Z-axis incl. bearing (April 2015) - new milling spindle (2016) - Spindle hours: ca. 11,966 h - WITHOUT vices

Condition: used, Year of construction: 2003, x-travel 630 mm y-travel 560 mm z-travel 560 mm control iTNC 530 Heidenhain Main spindle: turning speed range - main spindle 20 - 12.000 min/-1 power capacity - main spindel 15 / 10 kW max. Torque 125 Nm tool taper MAS BT 40 swivellable B: 103 ° feed: feed speeds 20 - 10.000 mm/min rapid traverse X-axis 26 m/min rapid traverse Y-axis 26 m/min rapid traverse Z-axis 20 m/min Resolution 0,001 mm input unit 0,001 mm work table: surface area 1.000 x 600 mm rotary table dia. 600 mm number of T-slots 8 / 1 T-slot - width 14 H12 / 14 H7 T-slot - distance 63 mm max. table loading capacity 350 kg rotatable C: 360 ° Tool-Presetter: number of toolpositions 24 pos. max. tool diameter 80 mm max. tool-dia with free toolbox 130 mm max. tool length 315 mm max. tool weight 8 kg total wight max. 100 kg total power requirement 26 kVA weight of the machine ca. 6,7 t dimensions of the machine ca. 4,0 x 4,0 x 3,0 m CNC - MachiningCenter Universal DECKEL MAHO - DMU 60 T Hnedpfovn Utcsx Abreu - 5-Axis - controled NC-Swivel-Milling-Head ( B-Axis ) - Rotary Table integrated in Working-Table ( C-Axis )

Condition: used, Year of construction: 2002, x-travel 750 mm y-travel 600 mm z-travel 520 mm control iTNC 530 Heidenhain turning speed range - main spindle 20 - 18.000 min/-1 power capacity - main spindel 35 / 25 kW max. Torque 130 / 87 Nm tool taper HSK-A63 table surface area 700 x 500 mm Swivel range B-Axis 0 - 180 ° Swivel range C-Axis 0,001 ° max. table load 350 kg center hole 30 H6 mm T-slots 7x 14H7 x 63 mm table turning speeds 21,5 rpm number of toolpositions 32 pos. max. tool length 315 mm max. tool diameter 105 mm max. tool-dia with free toolbox 130 mm max. tool weight 6,0 kg rapid traverse ( X / Y / Z ) 50 / 50 / 50 m/min feed speeds 20.000 mm/min Feed force X / Y / Z: 8 / 8 / 7 kN total power requirement 50 kVA weight of the machine ca. 8,5 t dimensions of the machine ca. 6,5 x 3,5 x 3,5 m 5 Axis-CNC-Machining Center DECKEL MAHO - DMU 70 eVolution Hnodpfx Abeuntmdorsu - 5 Axis - NC-Swivel-Rotary-Table - Operating-Hours: Power-On: ca. 62.500h / Spindle: ca. 15.100h

Condition: used, Year of construction: 2005, x-travel 500 mm y-travel 450 mm z-travel 400 mm control iTNC 530 Heidenhain turning speed range - main spindle 20 - 10.000 min/-1 power capacity - main spindel 9 / 13 kW max. Torque 82 Nm tool taper MAS BT 40 table surface area 630 x 500 mm max. table load 200 kg Swivel range -5 / +110 ° rotation range 360° ° T-slots 7x 14 x 63 mm number of toolpositions 16 pos. max. tool weight 6 kg max. tool diameter 80 mm max. tool-dia with free toolbox 130 mm Hsdpfot Uv Dfox Abrenu max. workpiece length 300 mm change-time tool to tool 1,6 sec change-time chip to chip 8,0 sec rapid traverse 24 m/min Feed force 4,8 kN feed speeds 1 - 24.000 mm/min total power requirement 17 kVA weight of the machine ca. 5,0 t dimensions of the machine ca. 4,5 x 3,5 x 2,3 m 5 Axis CNC - Milling Machine Universal DECKEL MAHO - DMU 50 - 5 Axis (3+2) - swivel-rotary-table : controlled B&C-Axis / only positioning - Operating-Hours.: Power-On: ca. 37.700h / Spindle-Runtime: ca. 10.800h

Condition: used, Year of construction: 2007, x-travel 730 mm Hnjdpjwpw E Nofx Abreu y-travel 560 mm z-travel 560 mm control iTNC 530 Heidenhain turning speed range - main spindle max. 18.000 min/-1 power capacity - main spindel 10 / 15 kW max. Torque 130 / 87 Nm tool taper HSK-A63 swivellable NC: ° table surface area 1.000 x 600 mm T-slots 9x 14 x 63 mm table diameter 600 mm rotatable C: 360 ° max. table load 500 kg number of toolpositions 60 pos. tool taper HSK-A63 total power requirement 40 kVA weight of the machine ca. ca. 11,0 t dimensions of the machine ca. 4,5 x 4,5 x 3,5 m CNC - MachiningCenter Universal DECKEL MAHO - DMU 60 monoBLOCK - 5 Axis - NC-Rotary-Table - Swivel-MillingHead

Condition: used, Year of construction: 2002, x-travel 880 mm y-travel 630 mm z-travel 630 mm control iTNC 530 Heidenhain Main spindle: turning speed range - main spindle 20 - 10.000 min/-1 power capacity - main spindel 13 kW Torque 130 Nm tool taper BT 40 DIN 69872 work table: table surface area 1.250 x 700 mm max. table load ca. 500 kg table diameter 700 mm T-slots 11x 14 x 63 mm max. table speed 15 min/-1 tool magazin: number of toolpositions 32 (2x 16) pos. tool taper BT 40 max. tool diameter 80 / 130 mm max. tool-dia with free toolbox 160 mm max. tool length 315 mm max. tool weight 8,0 kg feeds: feed speeds 20 - 15.000 mm/min rapid traverse 12 m/min total power requirement 30 kVA weight of the machine ca. 9,0 t dimensions of the machine ca. 4,0 x 3,0 x 2,5 m CNC - MachiningCenter Universal DECKEL MAHO - DMU 80 T - 5-Axis - Rotary table in Fixed-Table Hnsdpfxsvn Ur So Abrju - Retrofitting to SK 40 optionally possible!

Condition: used, Year of construction: 2008, x-travel 450 mm y-travel 400 mm z-travel 480 mm Hsdpsu Dbpmofx Abronu control MillPlus IT V600 Heidenhain turning speed range - main spindle max. 12.000 min/-1 power capacity - main spindel 10 / 15 kW max. Torque 130 Nm tool taper SK 40 swivellable B: -95 / +30 ° table surface area Ø 450 mm T-slots 7x 14 x 63 mm max. table load 250 kg rotatable C: 360 ° max. workpiecediameter 380 mm max. workpiece height 670 mm number of toolpositions 16 pos. tool taper SK 40 max. tool diameter 80 mm max. tool-dia with free toolbox 130 mm max. tool length 250 mm max. tool weight 8,0 kg feed speeds max. 30.000 mm/min rapid traverse 30 m/min Feed force ( X / Y / Z ) 7 / 13 / 10 kN total power requirement 27,6 kVA weight of the machine ca. 5,2 t dimensions of the machine ca. 3,1 x 3,0 x 3,0 m 5 Axis CNC - MachiningCenter Universal DECKEL MAHO - DMU 40 monoBLOCK - 5-axis simultaneous - only ca. 589h Spindle-hrs.! Operating-Hours: ca. 1.700h - from training center

Condition: used, Year of construction: 2006, x-travel 500 mm y-travel 450 mm z-travel 400 mm control iTNC 530 Heidenhain turning speed range - main spindle 20 - 10.000 U/min power capacity - main spindel 9 / 13 kW Torque 57 / 82 Nm tool taper SK 40 table surface area 630 x 500 mm Tilting area -5 / +110 ° max. table load 200 kg T-slots 14 H7 T-slot - distance 63 mm C-Axis +/- 360 ° rapid travel ( X / Y / Z ) 12 m/min feed speeds 10.000 mm/min Tooling 16 pos. max. tool weight 6 kg Hnodpjvanqxefx Abreu max. tool length 300 mm max. tool diameter 80 mm max. tool-dia with free toolbox 130 mm tool taper SK 40 total power requirement 17 kVA weight of the machine ca. 3,6 t dimensions of the machine ca. 3,0 x 3,0 x 2,5 m Tool Room Milling Machine - Universal DECKEL MAHO - DMU 50 - 5 Axis (3+2) - only 10.071 Spindle Hours - WITHOUT tools

Condition: used, Year of construction: 2008, x-travel 800 mm y-travel 800 mm z-travel 800 mm Control iTNC 530 Heidenhain Main spindle: Max. rpm 18.000 min/-1 power capacity - main spindel 28 / 19 kW max. Torque 121 / 82 Nm tool taper HSK-A63 swivellable B: 0 - 190 ° swivle time 1,2 s NC-Rotary table: table diameter 900 x 700 mm max. table load 1.400 kg rotatable C: 360 ° tool magazin: number of toolpositions 40 pos. tool taper HSK-A63 change-time chip to chip ca. 5,0 sec feeds: rapid traverse ( X / Y / Z ) 60 m/min rapid traverse B: 30 m/min rapid traverse C: 30 m/min feed speeds max. 60.000 mm/min total power requirement 64 kVA weight of the machine ca. 14,0 t dimensions of the machine ca. 6,5 x 6,5 x 3,5 m 5 Axis CNC-Machiningcenter Universal DECKEL MAHO - DMU 80 P duoBLOCK - 5-Axis Hodjukwatepfx Abrjnu - Swivel-Milling-Head - Rotary-Table
