Hammer 4-in-1 combination machine C3-41

Hammer C3-41

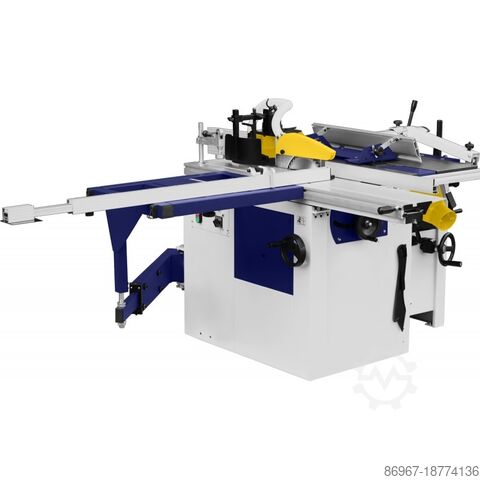

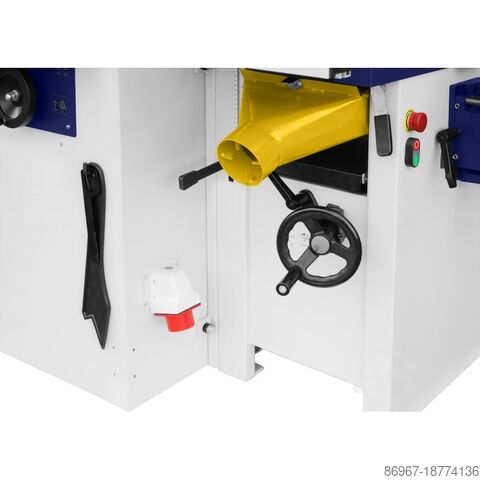

Condition: new, Year of construction: 2025, Universal 5-in-1 Multifunction Machine - CMS260 is a tool that has gained recognition in the European market. We guarantee that this machine complies with safety and technological regulations. Here is a comprehensive description of this machine distribution: Advanced Technological Solutions: CMS260 combines high-quality construction with advanced technological software, designed for various woodworking applications. Compliance with Safety Standards: The machine meets all requirements regarding European Union and Polish safety regulations. It’s not just about performance, but above all, user safety. Technical Start-Up Documentation (TSD) in Polish: It includes access to full technical documentation, which makes operating and maintaining the machine easier. Authentic CE Declaration of Conformity: The CMS260 holds a genuine CE declaration of conformity, a certificate issued by authorized certification bodies within the European Union to verify compliance with European safety standards. Multifunctionality in Small Spaces: Despite its versatility, the machine performs well even in limited spaces, thanks to its smart design and compact dimensions. Precise Triple Cutter Shaft and Aluminum Sliding Table: The triple cutter shaft with HSS blades and aluminum sliding table with a triangular guide ensure precision and power during operations. Iedpfxsv R Td Ej Af Ssbf Three Motors for Maximum Performance: The CMS260 features three motors as standard, providing significant power, especially during heavy-duty operations. Integrated User-Friendly Elements: The machine includes foldable planer tables for faster conversion to thickness planer mode, manual adjustment of the saw blade tilt up to 45°, and a clear electrical panel. Foldable Chip Collector Hood and Stable Planing Stop: The integrated foldable chip collector hood extends 100 mm, and the planing stop can be adjusted from 90° to 45°, improving workspace safety and efficiency. DRILLING ATTACHMENT (ADDITIONAL COST) Horizontal Drilling Machine: Drilling and chiseling are tasks easily mechanized. Chiseling head that can be raised and lowered Table adjustable in two axes Adjustable length stop Two lower clamps and one side clamp Technical Data: Circular Saw Table dimensions: 920 x 410 mm Max. saw blade diameter: 254 mm Saw blade spindle: 30 mm Rotational speed of the saw blade at 50 Hz: 4000 rpm Saw blade tilt angle: 0°-45° Max. cutting height at 45°: 63 mm Max. cutting height at 90°: 78 mm Motor power: 2.2 kW / 400V Planer / Thicknesser Drum diameter: 70 mm Number of knives: 3 pcs Rotational speed of the cutting drum: 5500 rpm Feeding rollers: 32 mm Max. planing width: 260 mm Max. planing depth: 3 mm Workpiece angle adjustment: 0–45° Max. thicknessing width: 258 mm Max. thicknessing height: 225 mm Max. thicknessing depth: 4 mm Feed speed: 7 m/min Motor power: 2.2 kW / 400V Main table size: 920 x 410 mm Sliding table size: 238 x 1320 mm Dust extraction port diameter: 100 mm Milling Machine Spindle: 30 mm Spindle rotational speed: 1400/4000/6000/9000 rpm Spindle mounting length: 105 mm Max. spindle stroke: 110 mm Max. table hole: 160 mm Motor power: 1.5 kW / 400V Weight: 360 kg

Condition: like new (used), Year of construction: 2011, I sell the combined machine format sliding table saw with scoring + spindle moulder Manufacutrer: FELDER Austria Model: KF700S. Year 2011. Cutting length 3200mm. Cutting height 95mm. Saw blade and spindle moulder tilting 0-45° Saw blade and spindle moulder height adjustment digital Digital display for parallel fence and working height. Turn on the main saw blade and scoring unit from the sliding carriage. Main motor format sliding table saw 3,0 KW / (3200/4500/5800 rpm adjustable) Scoring motor format sliding table saw 0,75 KW Main motor Spindle moulder 5,5 kW Tools, Optionals, and equipment on photos included in price. Very good condition. Available immediately. Ijdpfxer Alzpj Af Ssbf Including full documentation and CE Certificate.

Condition: ready for operation (used), Technical characteristics 5-operation combination (planer, jointer, router, saw and mortiser) Thicknes planer : Usable width: 310 mm Useful height: 230 mm Surface planer : Usable width: 310 mm Table length 1400 mm Shaft diameter 70 mm, common to the robot and jointer Router : Shaft diameter 30 mm, length 125 mm Table width: 800 mm Saw: Blade diameter 250 mm, tiltable at 45°. Cutting height with 250 mm blade: 80 mm Table width 800 mm Rip fence length: 635 mm Mortising machine : Iedpfx Afst T U E Es Sobf Wick mortising (0 to 16 mm) Power and Motors Voltage: 220 V Pluging: Singlephased Overall dimensions

Condition: new, Aluminum format sliding carriage (anodized) with hardened steel guide rods. Kickback protection for thickness planer. Anodized parallel stop with micrometric fine adjustment. Slant adjustment of the saw blade up to 45° using a handwheel. Table opening ø190 mm with under-table suction. Milling stop 180 mm. Built-in milling spindle lock. Laying table with telescopic stop, eccentric clamp, degree grid 100% Made in EU (developed, built, quality tested) Technical data: Surface planing unit: Table width: 410 mm Table length: 1800 mm Planing shaft diameter: 100 mm Number of planing knives: 4 pieces Shaft speed: 5000 Motor output power: 5 kW S6 400V (4 kW S1) Thickness unit: Thickness passage, min/max: 4 - 230 mm Feed speed: 7 m/min Ibjdevrvcajpfx Af Sof Milling machine: Useful length of the spindle: 125 mm Height adjustment of the. Spindle: 160 mm Max. tool diameter when profiling: 180 mm when tenoning: 250 mm Spindle speed: 8000/6000/3500/1400 Table openings: 190 mm Integral stop: 500 mm Motor output power: 3.8 kW S6 400V (3kW S1) Circular saw: Format table: 2300 x 285 mm Saw blade diameter max/min: 315 mm/250 mm Incline position: 90° - 45° Max. cutting height: 90° 45 ° Saw blade 315: 102/72 Motor output power: 3.8 kW S6 400V (3kW S1) Weight: 900 kg Optional accessories: Reversible blade (no extra charge) Spiral planer shaft Long hole board Scoring unit

Condition: as good as new (ex-display), Exhibition Machine Aluminum format sliding carriage (anodized) with hardened steel guide rods. Kickback protection for thickness planer. Anodized parallel fence with micrometric fine adjustment. Saw blade tilting up to 45° via handwheel. Table opening ø260 mm with under-table extraction. Milling fence 250 mm. Slot mortising table with Westcott collet chuck, Mori safety device. Exchangeable milling spindle with MK4 mount, made in EU! Jointer unit: Table width 410 mm Table length 1800 mm Cutterhead diameter 100 mm Number of cutter knives 4 pcs Cutterhead speed 4500 rpm Motor output 5 kW (S6) (4 kW S1) Ibedpfewzzguex Af Sef Thicknessing unit: Thickness capacity min/max 4 – 225 mm Feed speed 8 m/min Spindle moulder: Usable spindle length 125 mm Spindle height adjustment 175 mm Motor output 5.5 kW (S6) (4.5 kW S1) Max. tool diameter: For profiling 250 mm For tenoning 300 mm Spindle speeds 10000/8000/6000/5000/4000/3000 rpm Table openings 260 mm Circular saw: Sliding table length 3000 mm Saw blade diameter min/max 315 mm / 250 mm Tilting range 90° - 45° Max. cutting height 90° / 45° Saw blade 315 mm 103 / 72 mm Motor output 5 kW (S6) (4 kW S1) Weight 1090 kg Slot mortising table: Table size 300 x 500 mm Drilling length 250 mm Drilling depth 210 mm Height adjustment 160 mm
